Location

2011/09/09 14:24:03 44.591 10.207 6.5 3.3 Italy

Arrival Times (from USGS)

Felt Map

Focal Mechanism

SLU Moment Tensor Solution ENS 2011/09/09 14:24:03:0 44.59 10.21 6.5 3.3 Italy Stations used: GU.MAIM GU.PCP GU.SC2M IV.BDI IV.CRE IV.CRMI IV.GROG IV.MAGA IV.MSSA IV.PIEI IV.PRMA IV.ROVR IV.TRIF Filtering commands used: hp c 0.02 n 3 lp c 0.10 n 3 Best Fitting Double Couple Mo = 1.70e+21 dyne-cm Mw = 3.42 Z = 16 km Plane Strike Dip Rake NP1 110 80 65 NP2 360 27 157 Principal Axes: Axis Value Plunge Azimuth T 1.70e+21 49 353 N 0.00e+00 25 115 P -1.70e+21 31 220 Moment Tensor: (dyne-cm) Component Value Mxx -1.05e+19 Mxy -7.11e+20 Mxz 1.40e+21 Myy -5.16e+20 Myz 3.78e+20 Mzz 5.26e+20 ###########--- ##################---- #######################----- ##########################---- ############## ############----- ############### T #############----- ################ ##############----- -#################################------ ----###############################----- --------############################------ ------------########################------ ----------------####################------ ---------------------###############------ --------------------------#########----- ---------------------------------------- ---------------------------------##### ------- ---------------------##### ------ P --------------------##### ---- -------------------#### -----------------------##### ------------------#### -----------### Global CMT Convention Moment Tensor: R T P 5.26e+20 1.40e+21 -3.78e+20 1.40e+21 -1.05e+19 7.11e+20 -3.78e+20 7.11e+20 -5.16e+20 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20110909142403/index.html

Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion and first motion observations is

      STK = 110
      DIP = 80
     RAKE = 65
       MW = 3.42
       HS = 16.0

The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to others

SLU

SLU Moment Tensor Solution ENS 2011/09/09 14:24:03:0 44.59 10.21 6.5 3.3 Italy Stations used: GU.MAIM GU.PCP GU.SC2M IV.BDI IV.CRE IV.CRMI IV.GROG IV.MAGA IV.MSSA IV.PIEI IV.PRMA IV.ROVR IV.TRIF Filtering commands used: hp c 0.02 n 3 lp c 0.10 n 3 Best Fitting Double Couple Mo = 1.70e+21 dyne-cm Mw = 3.42 Z = 16 km Plane Strike Dip Rake NP1 110 80 65 NP2 360 27 157 Principal Axes: Axis Value Plunge Azimuth T 1.70e+21 49 353 N 0.00e+00 25 115 P -1.70e+21 31 220 Moment Tensor: (dyne-cm) Component Value Mxx -1.05e+19 Mxy -7.11e+20 Mxz 1.40e+21 Myy -5.16e+20 Myz 3.78e+20 Mzz 5.26e+20 ###########--- ##################---- #######################----- ##########################---- ############## ############----- ############### T #############----- ################ ##############----- -#################################------ ----###############################----- --------############################------ ------------########################------ ----------------####################------ ---------------------###############------ --------------------------#########----- ---------------------------------------- ---------------------------------##### ------- ---------------------##### ------ P --------------------##### ---- -------------------#### -----------------------##### ------------------#### -----------### Global CMT Convention Moment Tensor: R T P 5.26e+20 1.40e+21 -3.78e+20 1.40e+21 -1.05e+19 7.11e+20 -3.78e+20 7.11e+20 -5.16e+20 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20110909142403/index.html

Waveform Inversion

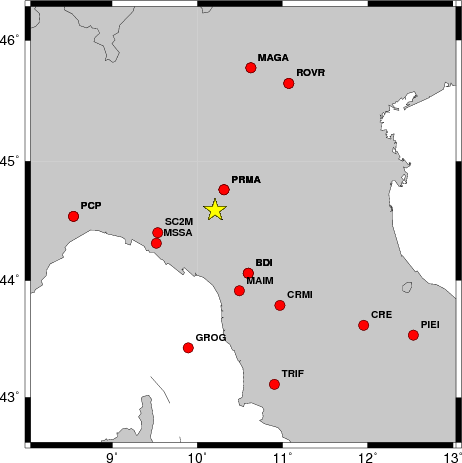

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

hp c 0.02 n 3
lp c 0.10 n 3

The results of this grid search from 0.5 to 19 km depth are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   270    30    70   3.14 0.2913
WVFGRD96    2.0   260    30    60   3.23 0.3352
WVFGRD96    3.0   260    80   -25   3.24 0.3481
WVFGRD96    4.0   260    75   -20   3.27 0.3819
WVFGRD96    5.0    85    90    30   3.32 0.3980
WVFGRD96    6.0   260    80   -30   3.32 0.4246
WVFGRD96    7.0   260    80   -30   3.34 0.4600
WVFGRD96    8.0   260    80   -25   3.34 0.4952
WVFGRD96    9.0   260    80   -25   3.35 0.5160
WVFGRD96   10.0   260    80   -25   3.36 0.5335
WVFGRD96   11.0   260    80   -30   3.36 0.5497
WVFGRD96   12.0   260    75   -25   3.39 0.5620
WVFGRD96   13.0   260    75   -25   3.40 0.5722
WVFGRD96   14.0   110    80    65   3.35 0.5774
WVFGRD96   15.0   110    80    65   3.40 0.5872
WVFGRD96   16.0   110    80    65   3.42 0.5914
WVFGRD96   17.0   110    85    65   3.43 0.5905
WVFGRD96   18.0   110    85    65   3.44 0.5892
WVFGRD96   19.0   110    85    65   3.46 0.5821
WVFGRD96   20.0   290    90   -65   3.47 0.5766
WVFGRD96   21.0   190    25   -15   3.49 0.5740
WVFGRD96   22.0   190    30   -20   3.51 0.5783
WVFGRD96   23.0   185    30   -30   3.52 0.5787
WVFGRD96   24.0   175    30   -40   3.53 0.5789
WVFGRD96   25.0   175    30   -40   3.54 0.5838
WVFGRD96   26.0   175    30   -45   3.55 0.5808
WVFGRD96   27.0   170    30   -50   3.56 0.5755
WVFGRD96   28.0   170    30   -50   3.57 0.5730
WVFGRD96   29.0   170    35   -50   3.59 0.5627

The best solution is

WVFGRD96   16.0   110    80    65   3.42 0.5914

The mechanism correspond to the best fit is

Figure 1. Waveform inversion focal mechanism

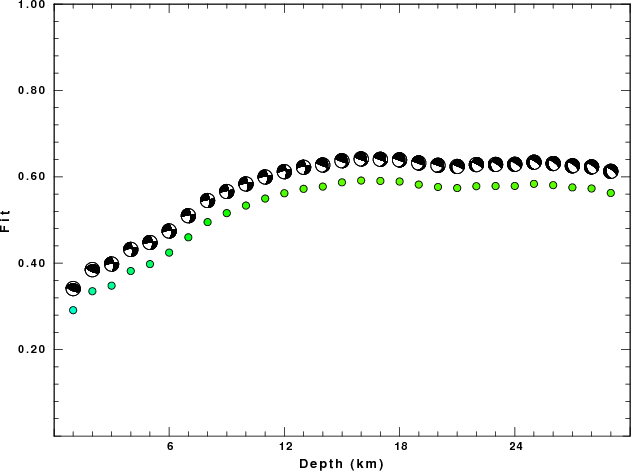

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

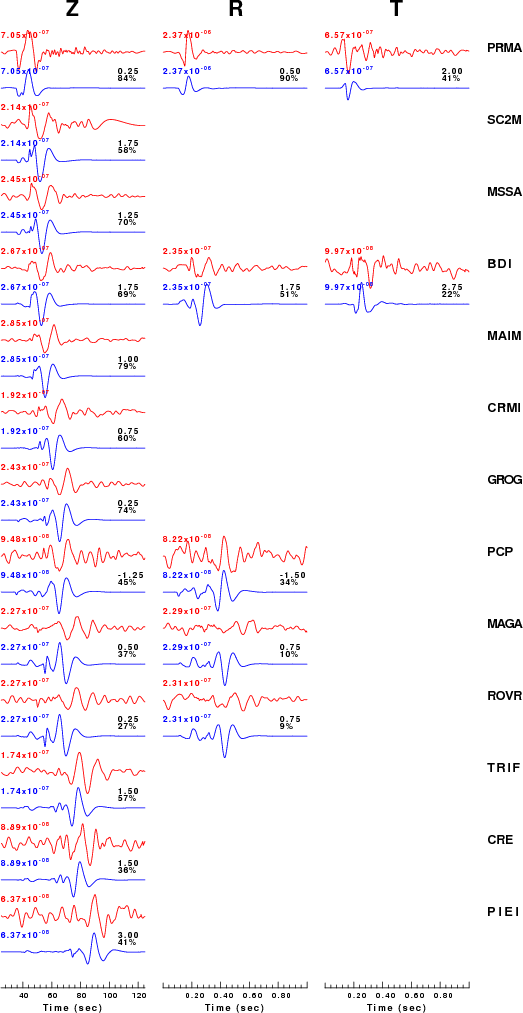

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

hp c 0.02 n 3
lp c 0.10 n 3

Figure 3. Waveform comparison for selected depth

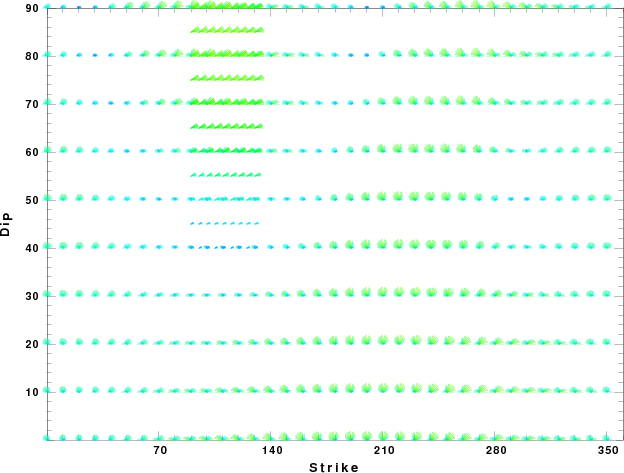

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

The origin time and epicentral distance are incorrect
The velocity model used for the inversion is incorrect
The velocity model used to define the P-arrival time is not the same as the velocity model used for the waveform inversion (assuming that the initial trace alignment is based on the P arrival time)

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

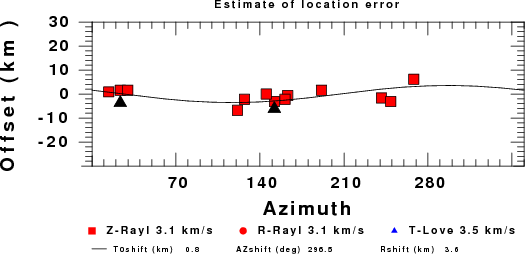

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Discussion

Velocity Model

The nnCIA used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:

MODEL.01
C.It. A. Di Luzio et al Earth Plan Lettrs 280 (2009) 1-12 Fig 5. 7-8 MODEL/SURF3
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.5000     3.7497     2.1436     2.2753  0.500E-02  0.100E-01   0.00       0.00       1.00       1.00
     3.0000     4.9399     2.8210     2.4858  0.500E-02  0.100E-01   0.00       0.00       1.00       1.00
     3.0000     6.0129     3.4336     2.7058  0.500E-02  0.100E-01   0.00       0.00       1.00       1.00
     7.0000     5.5516     3.1475     2.6093  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
    15.0000     5.8805     3.3583     2.6770  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
     6.0000     7.1059     4.0081     3.0002  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
     8.0000     7.1000     3.9864     3.0120  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.4036     3.2760  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00

Quality Control

Here we tabulate the reasons for not using certain digital data sets

The following stations did not have a valid response files:

DATE=Fri Sep 9 10:44:54 CDT 2011

Last Changed 2011/09/09
