Location

2011/09/06 08:22:04 42.946 13.701 20.2 3.2 Italy

Arrival Times (from USGS)

Felt Map

Focal Mechanism

SLU Moment Tensor Solution ENS 2011/09/06 08:22:04:0 42.95 13.70 20.2 3.2 Italy Stations used: IV.ATPC IV.ATTE IV.ATVO IV.CING IV.FAGN IV.FDMO IV.FIAM IV.GUMA IV.MURB IV.NRCA IV.PIEI IV.POFI IV.PTQR IV.T0104 IV.TERO IV.TRTR MN.AQU Filtering commands used: hp c 0.03 n 3 lp c 0.10 n 3 Best Fitting Double Couple Mo = 8.81e+20 dyne-cm Mw = 3.23 Z = 12 km Plane Strike Dip Rake NP1 245 55 -60 NP2 20 45 -126 Principal Axes: Axis Value Plunge Azimuth T 8.81e+20 6 314 N 0.00e+00 24 47 P -8.81e+20 65 212 Moment Tensor: (dyne-cm) Component Value Mxx 3.13e+20 Mxy -5.07e+20 Mxz 3.43e+20 Myy 4.04e+20 Myz 1.19e+20 Mzz -7.17e+20 ############## ####################-- #######################---- T ########################---- # ########################------ ####################----------####-- ################---------------####### #############-------------------######## ###########---------------------######## #########------------------------######### #######--------------------------######### ######--------------------------########## #####----------- -------------########## ###------------ P ------------########## ##------------- ------------########## ----------------------------########## -------------------------########### -----------------------########### -------------------########### ----------------############ ----------############ -############# Global CMT Convention Moment Tensor: R T P -7.17e+20 3.43e+20 -1.19e+20 3.43e+20 3.13e+20 5.07e+20 -1.19e+20 5.07e+20 4.04e+20 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20110906082204/index.html

Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion and first motion observations is

      STK = 245
      DIP = 55
     RAKE = -60
       MW = 3.23
       HS = 12.0

The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to others

SLU

SLU Moment Tensor Solution ENS 2011/09/06 08:22:04:0 42.95 13.70 20.2 3.2 Italy Stations used: IV.ATPC IV.ATTE IV.ATVO IV.CING IV.FAGN IV.FDMO IV.FIAM IV.GUMA IV.MURB IV.NRCA IV.PIEI IV.POFI IV.PTQR IV.T0104 IV.TERO IV.TRTR MN.AQU Filtering commands used: hp c 0.03 n 3 lp c 0.10 n 3 Best Fitting Double Couple Mo = 8.81e+20 dyne-cm Mw = 3.23 Z = 12 km Plane Strike Dip Rake NP1 245 55 -60 NP2 20 45 -126 Principal Axes: Axis Value Plunge Azimuth T 8.81e+20 6 314 N 0.00e+00 24 47 P -8.81e+20 65 212 Moment Tensor: (dyne-cm) Component Value Mxx 3.13e+20 Mxy -5.07e+20 Mxz 3.43e+20 Myy 4.04e+20 Myz 1.19e+20 Mzz -7.17e+20 ############## ####################-- #######################---- T ########################---- # ########################------ ####################----------####-- ################---------------####### #############-------------------######## ###########---------------------######## #########------------------------######### #######--------------------------######### ######--------------------------########## #####----------- -------------########## ###------------ P ------------########## ##------------- ------------########## ----------------------------########## -------------------------########### -----------------------########### -------------------########### ----------------############ ----------############ -############# Global CMT Convention Moment Tensor: R T P -7.17e+20 3.43e+20 -1.19e+20 3.43e+20 3.13e+20 5.07e+20 -1.19e+20 5.07e+20 4.04e+20 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20110906082204/index.html

Waveform Inversion

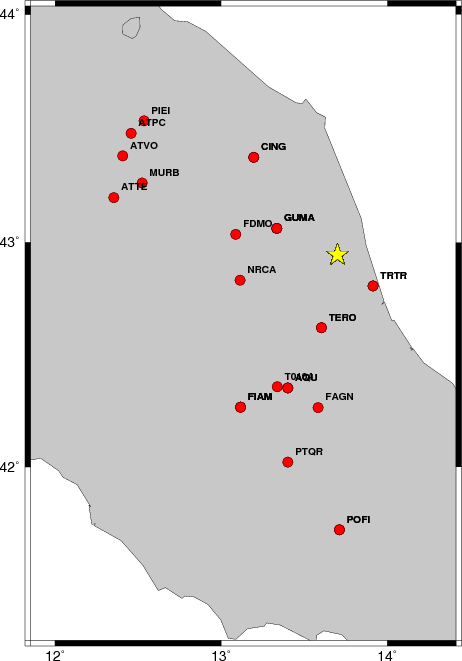

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

hp c 0.03 n 3
lp c 0.10 n 3

The results of this grid search from 0.5 to 19 km depth are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   220    50    85   2.99 0.3117
WVFGRD96    2.0   345    85   -10   3.04 0.3098
WVFGRD96    3.0    80    80    10   3.07 0.3023
WVFGRD96    4.0    80    85    15   3.11 0.3087
WVFGRD96    5.0   135    25    -5   3.12 0.3394
WVFGRD96    6.0   125    25   -15   3.12 0.3680
WVFGRD96    7.0    55    45   -70   3.20 0.4194
WVFGRD96    8.0   225    45   -90   3.19 0.4632
WVFGRD96    9.0   235    50   -75   3.19 0.4925
WVFGRD96   10.0   235    50   -75   3.20 0.5110
WVFGRD96   11.0   235    50   -75   3.22 0.5187
WVFGRD96   12.0   245    55   -60   3.23 0.5192
WVFGRD96   13.0   250    60   -50   3.25 0.5133
WVFGRD96   14.0   250    60   -55   3.26 0.5058
WVFGRD96   15.0   250    60   -50   3.30 0.5057
WVFGRD96   16.0   255    65   -45   3.32 0.4980
WVFGRD96   17.0   255    65   -45   3.33 0.4870
WVFGRD96   18.0   255    70   -40   3.35 0.4737
WVFGRD96   19.0   255    70   -40   3.36 0.4580
WVFGRD96   20.0   150    40    60   3.31 0.4560
WVFGRD96   21.0   150    40    60   3.32 0.4557
WVFGRD96   22.0   150    40    60   3.33 0.4521
WVFGRD96   23.0   155    35    65   3.34 0.4472
WVFGRD96   24.0   160    35    70   3.35 0.4395
WVFGRD96   25.0   155    35    65   3.35 0.4277
WVFGRD96   26.0   170    30    80   3.36 0.4153
WVFGRD96   27.0   165    30    80   3.37 0.4011
WVFGRD96   28.0   175    30    85   3.37 0.3863
WVFGRD96   29.0   240    60   -50   3.43 0.3792

The best solution is

WVFGRD96   12.0   245    55   -60   3.23 0.5192

The mechanism correspond to the best fit is

Figure 1. Waveform inversion focal mechanism

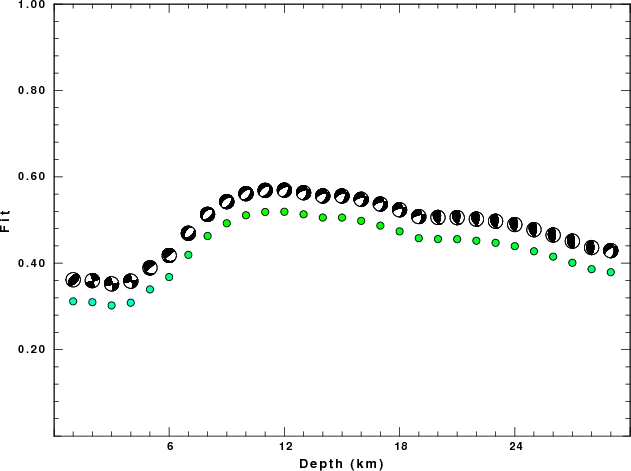

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

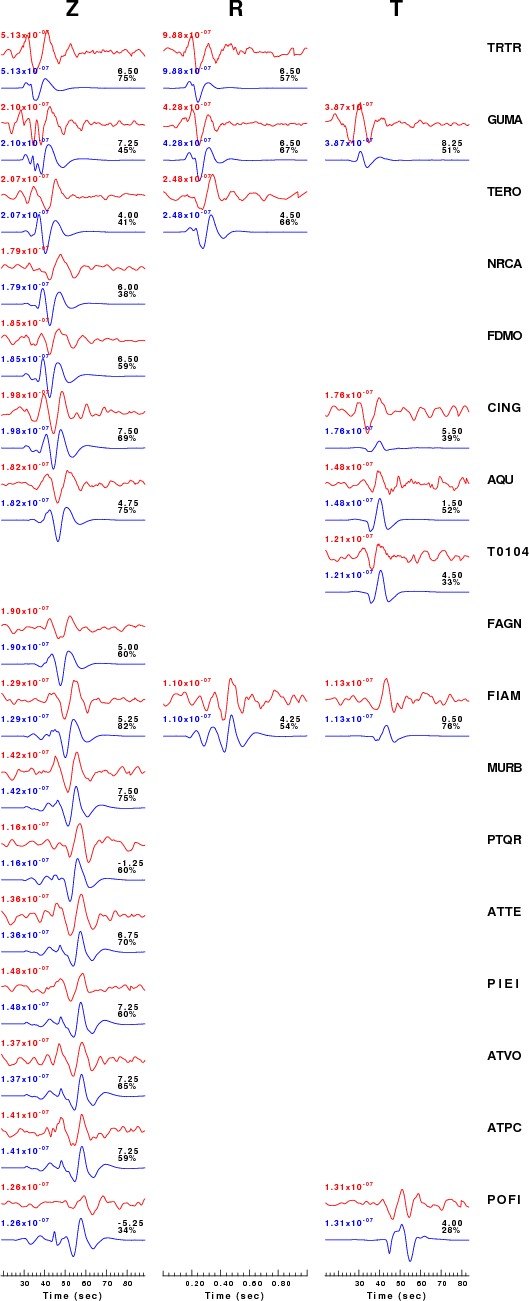

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

hp c 0.03 n 3
lp c 0.10 n 3

Figure 3. Waveform comparison for selected depth

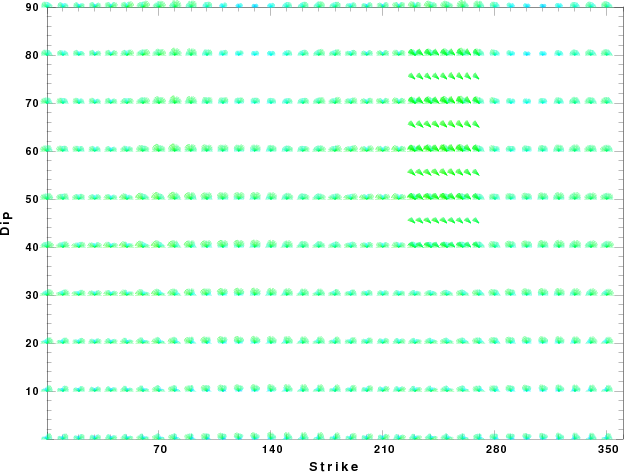

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

The origin time and epicentral distance are incorrect
The velocity model used for the inversion is incorrect
The velocity model used to define the P-arrival time is not the same as the velocity model used for the waveform inversion (assuming that the initial trace alignment is based on the P arrival time)

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

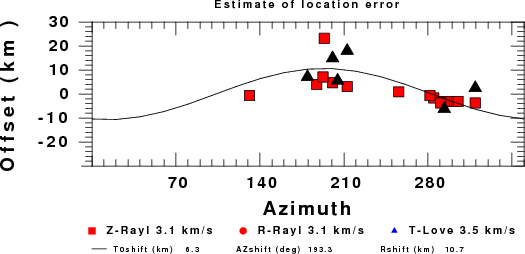

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Discussion

Velocity Model

The nnCIA used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:

MODEL.01
C.It. A. Di Luzio et al Earth Plan Lettrs 280 (2009) 1-12 Fig 5. 7-8 MODEL/SURF3
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.5000     3.7497     2.1436     2.2753  0.500E-02  0.100E-01   0.00       0.00       1.00       1.00
     3.0000     4.9399     2.8210     2.4858  0.500E-02  0.100E-01   0.00       0.00       1.00       1.00
     3.0000     6.0129     3.4336     2.7058  0.500E-02  0.100E-01   0.00       0.00       1.00       1.00
     7.0000     5.5516     3.1475     2.6093  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
    15.0000     5.8805     3.3583     2.6770  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
     6.0000     7.1059     4.0081     3.0002  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
     8.0000     7.1000     3.9864     3.0120  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.4036     3.2760  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00

Quality Control

Here we tabulate the reasons for not using certain digital data sets

The following stations did not have a valid response files:

DATE=Thu Sep 8 09:30:40 CDT 2011

Last Changed 2011/09/06
