2011/07/25 12:31:20 45.02 7.32 12.0 4.2 Italy
REVISED INGV LOCAITON
2011/07/25 12:31:30 44.982 7.284 25.1 ML=4.3
USGS Felt map for this earthquake
USGS/SLU Moment Tensor Solution ENS 2011/07/25 12:31:20:4 45.02 7.32 12.0 4.2 Italy Stations used: CH.BNALP CH.GIMEL CH.PLONS GU.BHB GU.FINB GU.LSD GU.MAIM GU.NEGI GU.PCP GU.PZZ GU.RORO GU.SC2M IV.BOB IV.DOI IV.GROG IV.IMI IV.MAGA IV.MDI IV.MRGE IV.MSSA IV.ZCCA Filtering commands used: hp c 0.02 n 3 lp c 0.06 n 3 Best Fitting Double Couple Mo = 3.55e+22 dyne-cm Mw = 4.30 Z = 16 km Plane Strike Dip Rake NP1 49 71 -97 NP2 250 20 -70 Principal Axes: Axis Value Plunge Azimuth T 3.55e+22 26 144 N 0.00e+00 7 51 P -3.55e+22 63 308 Moment Tensor: (dyne-cm) Component Value Mxx 1.63e+22 Mxy -1.01e+22 Mxz -2.01e+22 Myy 5.17e+21 Myz 1.95e+22 Mzz -2.14e+22 ############## ###################### ########---------------##### #####-----------------------## #####----------------------------- ####----------------------------###- ###-----------------------------###### ###---------- ----------------######## ##----------- P ---------------######### ##------------ -------------############ ##---------------------------############# #--------------------------############### #------------------------################# ----------------------################## --------------------#################### ----------------###################### ------------############## ####### -------################## T ###### ####################### #### ############################ ###################### ############## Global CMT Convention Moment Tensor: R T P -2.14e+22 -2.01e+22 -1.95e+22 -2.01e+22 1.63e+22 1.01e+22 -1.95e+22 1.01e+22 5.17e+21 Details of the solution is found at http://www.eas.slu.edu/Earthquake_Center/MECH.NA/20110725123120/index.html |
STK = 250 DIP = 20 RAKE = -70 MW = 4.30 HS = 16.0
The waveform inversion is preferred.
The following compares this source inversion to others
USGS/SLU Moment Tensor Solution ENS 2011/07/25 12:31:20:4 45.02 7.32 12.0 4.2 Italy Stations used: CH.BNALP CH.GIMEL CH.PLONS GU.BHB GU.FINB GU.LSD GU.MAIM GU.NEGI GU.PCP GU.PZZ GU.RORO GU.SC2M IV.BOB IV.DOI IV.GROG IV.IMI IV.MAGA IV.MDI IV.MRGE IV.MSSA IV.ZCCA Filtering commands used: hp c 0.02 n 3 lp c 0.06 n 3 Best Fitting Double Couple Mo = 3.55e+22 dyne-cm Mw = 4.30 Z = 16 km Plane Strike Dip Rake NP1 49 71 -97 NP2 250 20 -70 Principal Axes: Axis Value Plunge Azimuth T 3.55e+22 26 144 N 0.00e+00 7 51 P -3.55e+22 63 308 Moment Tensor: (dyne-cm) Component Value Mxx 1.63e+22 Mxy -1.01e+22 Mxz -2.01e+22 Myy 5.17e+21 Myz 1.95e+22 Mzz -2.14e+22 ############## ###################### ########---------------##### #####-----------------------## #####----------------------------- ####----------------------------###- ###-----------------------------###### ###---------- ----------------######## ##----------- P ---------------######### ##------------ -------------############ ##---------------------------############# #--------------------------############### #------------------------################# ----------------------################## --------------------#################### ----------------###################### ------------############## ####### -------################## T ###### ####################### #### ############################ ###################### ############## Global CMT Convention Moment Tensor: R T P -2.14e+22 -2.01e+22 -1.95e+22 -2.01e+22 1.63e+22 1.01e+22 -1.95e+22 1.01e+22 5.17e+21 Details of the solution is found at http://www.eas.slu.edu/Earthquake_Center/MECH.NA/20110725123120/index.html |

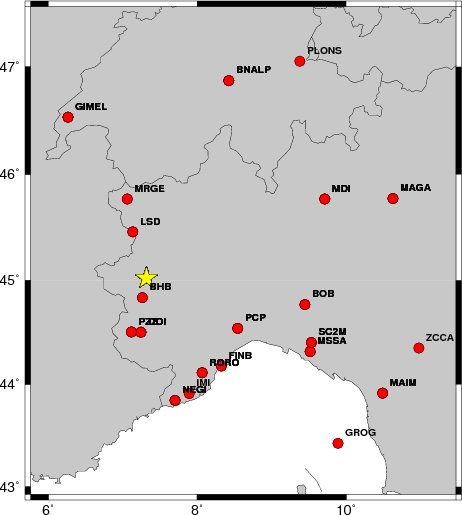

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.
![]() |
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
hp c 0.02 n 3 lp c 0.06 n 3The results of this grid search from 0.5 to 19 km depth are as follow:
DEPTH STK DIP RAKE MW FIT WVFGRD96 1.0 235 45 -90 4.10 0.4657 WVFGRD96 2.0 235 45 -90 4.16 0.4480 WVFGRD96 3.0 70 75 -70 4.22 0.3865 WVFGRD96 4.0 65 75 -75 4.21 0.4118 WVFGRD96 5.0 60 75 -80 4.30 0.4551 WVFGRD96 6.0 60 75 -80 4.28 0.4853 WVFGRD96 7.0 55 70 -85 4.29 0.5154 WVFGRD96 8.0 55 70 -85 4.24 0.5430 WVFGRD96 9.0 55 70 -85 4.24 0.5688 WVFGRD96 10.0 55 70 -85 4.24 0.5879 WVFGRD96 11.0 230 20 -90 4.25 0.6027 WVFGRD96 12.0 235 20 -85 4.25 0.6138 WVFGRD96 13.0 240 20 -80 4.25 0.6211 WVFGRD96 14.0 245 20 -75 4.26 0.6257 WVFGRD96 15.0 245 20 -75 4.29 0.6316 WVFGRD96 16.0 250 20 -70 4.30 0.6322 WVFGRD96 17.0 255 20 -65 4.30 0.6314 WVFGRD96 18.0 260 20 -60 4.31 0.6294 WVFGRD96 19.0 265 20 -55 4.31 0.6259 WVFGRD96 20.0 290 25 -40 4.32 0.6217 WVFGRD96 21.0 280 25 -40 4.33 0.6164 WVFGRD96 22.0 280 25 -40 4.34 0.6100 WVFGRD96 23.0 280 25 -40 4.34 0.6026 WVFGRD96 24.0 280 25 -40 4.35 0.5939 WVFGRD96 25.0 275 25 -45 4.35 0.5844 WVFGRD96 26.0 280 30 -40 4.37 0.5742 WVFGRD96 27.0 280 30 -40 4.38 0.5633 WVFGRD96 28.0 280 30 -40 4.38 0.5511 WVFGRD96 29.0 315 40 -25 4.39 0.5412
The best solution is
WVFGRD96 16.0 250 20 -70 4.30 0.6322
The mechanism correspond to the best fit is
![]() |
|

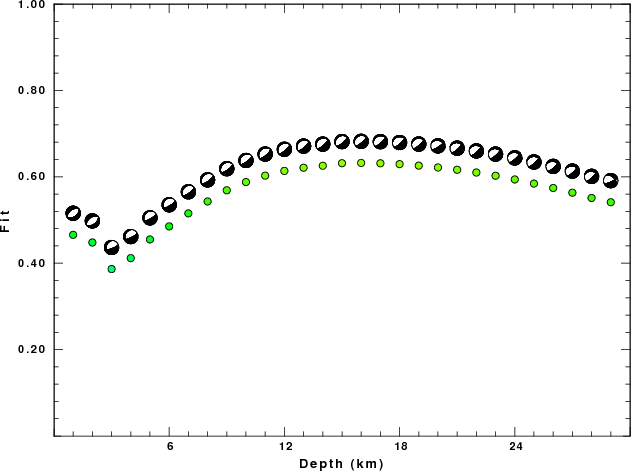

The best fit as a function of depth is given in the following figure:
![]() |
|

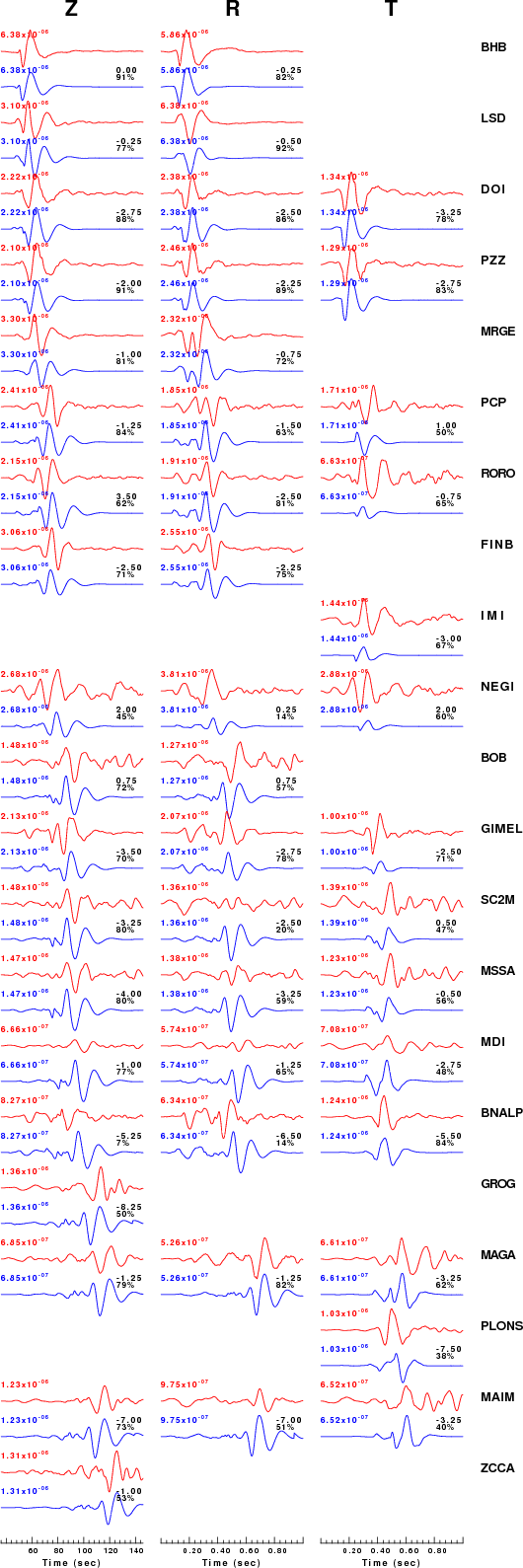

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
hp c 0.02 n 3 lp c 0.06 n 3
![]() |
|
![]() |

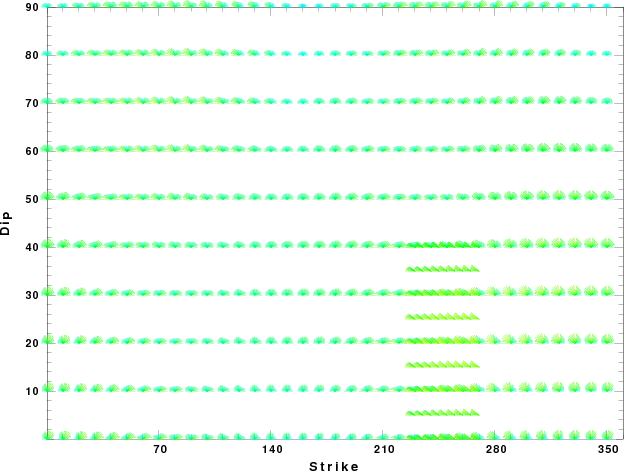

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

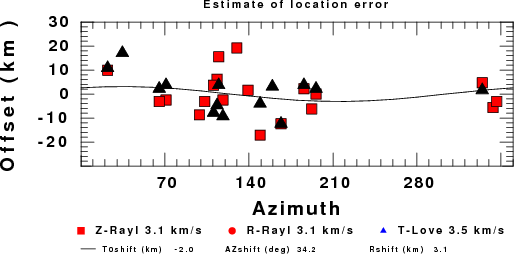

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The nnCIA used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:
MODEL.01 C.It. A. Di Luzio et al Earth Plan Lettrs 280 (2009) 1-12 Fig 5. 7-8 MODEL/SURF3 ISOTROPIC KGS FLAT EARTH 1-D CONSTANT VELOCITY LINE08 LINE09 LINE10 LINE11 H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS 1.5000 3.7497 2.1436 2.2753 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00 3.0000 4.9399 2.8210 2.4858 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00 3.0000 6.0129 3.4336 2.7058 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00 7.0000 5.5516 3.1475 2.6093 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00 15.0000 5.8805 3.3583 2.6770 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00 6.0000 7.1059 4.0081 3.0002 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00 8.0000 7.1000 3.9864 3.0120 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00 0.0000 7.9000 4.4036 3.2760 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
Here we tabulate the reasons for not using certain digital data sets
The following stations did not have a valid response files:
DATE=Mon Jul 25 08:53:27 CDT 2011
