Location

2011/07/10 18:13:39 42.137 12.477 2.6 3.2 Italy

Arrival Times (from USGS)

Felt Map

Focal Mechanism

USGS/SLU Moment Tensor Solution ENS 2011/07/10 18:13:39:0 42.14 12.48 2.6 3.2 Italy Stations used: IV.AOI IV.ARCI IV.ATTE IV.ATVO IV.BSSO IV.CAFI IV.CAFR IV.CASP IV.CERA IV.CERT IV.CING IV.CRE IV.CSNT IV.FIAM IV.FROS IV.GUAR IV.GUMA IV.INTR IV.LATE IV.LAV9 IV.MA9 IV.MAON IV.MCIV IV.MGAB IV.MIDA IV.MODR IV.MTCE IV.MURB IV.NRCA IV.OFFI IV.PARC IV.POFI IV.PTQR IV.PTRJ IV.RDP IV.RNI2 IV.ROM9 IV.SACS IV.SAMA IV.SNTG IV.TOLF IV.TRIF IV.TRIV IV.VVLD MN.AQU Filtering commands used: hp c 0.02 n 3 lp c 0.10 n 3 Best Fitting Double Couple Mo = 1.24e+21 dyne-cm Mw = 3.33 Z = 1 km Plane Strike Dip Rake NP1 230 50 70 NP2 80 44 112 Principal Axes: Axis Value Plunge Azimuth T 1.24e+21 74 75 N 0.00e+00 15 243 P -1.24e+21 3 334 Moment Tensor: (dyne-cm) Component Value Mxx -9.97e+20 Mxy 5.10e+20 Mxz 2.03e+19 Myy -1.55e+20 Myz 3.40e+20 Mzz 1.15e+21 -------------- P ------------------- --- ---------------------- ---------------------########- -----------------################# ---------------##################### -------------######################### ------------############################ ----------############################## ----------############# ###############- ---------############## T ##############-- -------################ #############--- -------###############################---- -----##############################----- ##--#############################------- ###-#########################--------- ##----##################------------ #--------------------------------- ------------------------------ ---------------------------- ---------------------- -------------- Global CMT Convention Moment Tensor: R T P 1.15e+21 2.03e+19 -3.40e+20 2.03e+19 -9.97e+20 -5.10e+20 -3.40e+20 -5.10e+20 -1.55e+20 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20110710181339/index.html

Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion and first motion observations is

      STK = 230
      DIP = 50
     RAKE = 70
       MW = 3.33
       HS = 1.0

The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to others

SLU

USGS/SLU Moment Tensor Solution ENS 2011/07/10 18:13:39:0 42.14 12.48 2.6 3.2 Italy Stations used: IV.AOI IV.ARCI IV.ATTE IV.ATVO IV.BSSO IV.CAFI IV.CAFR IV.CASP IV.CERA IV.CERT IV.CING IV.CRE IV.CSNT IV.FIAM IV.FROS IV.GUAR IV.GUMA IV.INTR IV.LATE IV.LAV9 IV.MA9 IV.MAON IV.MCIV IV.MGAB IV.MIDA IV.MODR IV.MTCE IV.MURB IV.NRCA IV.OFFI IV.PARC IV.POFI IV.PTQR IV.PTRJ IV.RDP IV.RNI2 IV.ROM9 IV.SACS IV.SAMA IV.SNTG IV.TOLF IV.TRIF IV.TRIV IV.VVLD MN.AQU Filtering commands used: hp c 0.02 n 3 lp c 0.10 n 3 Best Fitting Double Couple Mo = 1.24e+21 dyne-cm Mw = 3.33 Z = 1 km Plane Strike Dip Rake NP1 230 50 70 NP2 80 44 112 Principal Axes: Axis Value Plunge Azimuth T 1.24e+21 74 75 N 0.00e+00 15 243 P -1.24e+21 3 334 Moment Tensor: (dyne-cm) Component Value Mxx -9.97e+20 Mxy 5.10e+20 Mxz 2.03e+19 Myy -1.55e+20 Myz 3.40e+20 Mzz 1.15e+21 -------------- P ------------------- --- ---------------------- ---------------------########- -----------------################# ---------------##################### -------------######################### ------------############################ ----------############################## ----------############# ###############- ---------############## T ##############-- -------################ #############--- -------###############################---- -----##############################----- ##--#############################------- ###-#########################--------- ##----##################------------ #--------------------------------- ------------------------------ ---------------------------- ---------------------- -------------- Global CMT Convention Moment Tensor: R T P 1.15e+21 2.03e+19 -3.40e+20 2.03e+19 -9.97e+20 -5.10e+20 -3.40e+20 -5.10e+20 -1.55e+20 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20110710181339/index.html

Waveform Inversion

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.

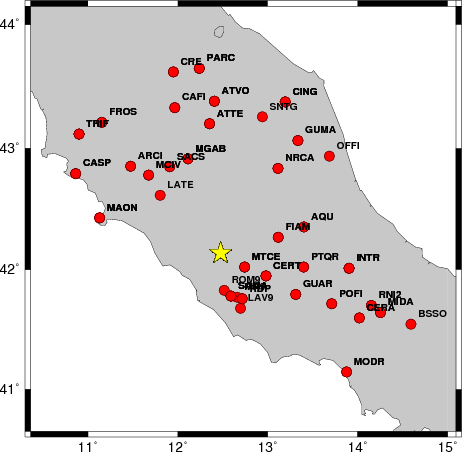

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

hp c 0.02 n 3
lp c 0.10 n 3

The results of this grid search from 0.5 to 19 km depth are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   230    50    70   3.33 0.3898
WVFGRD96    2.0    45    35    55   3.40 0.3635
WVFGRD96    3.0    30    30    30   3.41 0.3333
WVFGRD96    4.0    15    65   -25   3.38 0.3462
WVFGRD96    5.0    30    30    30   3.49 0.3589
WVFGRD96    6.0   185    50   -30   3.48 0.3574
WVFGRD96    7.0   185    50   -35   3.50 0.3673
WVFGRD96    8.0   185    50   -30   3.49 0.3785
WVFGRD96    9.0   185    55   -35   3.50 0.3736
WVFGRD96   10.0   185    50   -30   3.51 0.3650
WVFGRD96   11.0   185    55   -30   3.52 0.3539
WVFGRD96   12.0   190    55   -30   3.53 0.3416
WVFGRD96   13.0   190    55   -30   3.54 0.3283
WVFGRD96   14.0   190    55   -30   3.55 0.3149
WVFGRD96   15.0   185    50   -30   3.57 0.2934
WVFGRD96   16.0   190    55   -30   3.58 0.2772
WVFGRD96   17.0   270    70   -60   3.54 0.2641
WVFGRD96   18.0   270    70   -55   3.55 0.2553
WVFGRD96   19.0   270    70   -55   3.56 0.2484
WVFGRD96   20.0   270    70   -55   3.57 0.2419
WVFGRD96   21.0   270    65   -55   3.58 0.2356
WVFGRD96   22.0   270    65   -50   3.59 0.2303
WVFGRD96   23.0   100    65   -45   3.60 0.2266
WVFGRD96   24.0   100    65   -45   3.61 0.2263
WVFGRD96   25.0   100    65   -40   3.62 0.2249
WVFGRD96   26.0   100    65   -40   3.63 0.2218
WVFGRD96   27.0   105    70   -35   3.65 0.2174
WVFGRD96   28.0   105    70   -35   3.66 0.2119
WVFGRD96   29.0   295    75    10   3.70 0.2047

The best solution is

WVFGRD96    1.0   230    50    70   3.33 0.3898

The mechanism correspond to the best fit is

Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

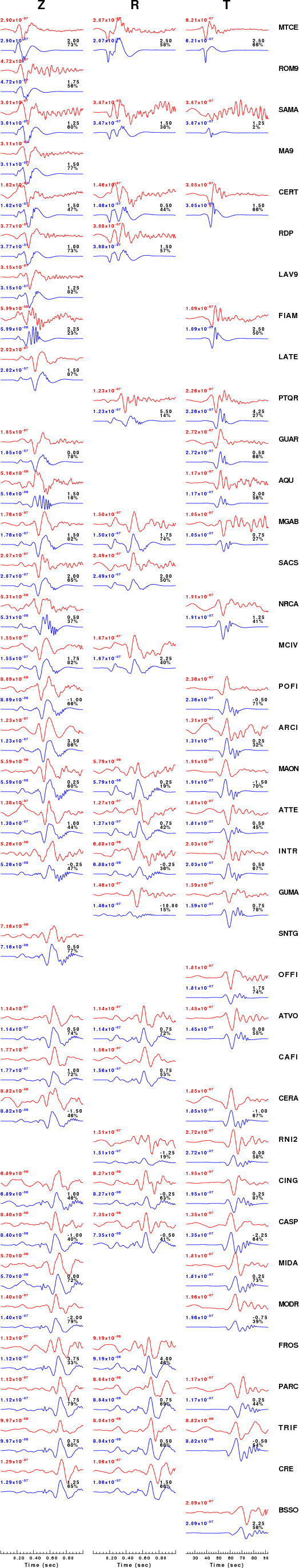

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

hp c 0.02 n 3
lp c 0.10 n 3

Figure 3. Waveform comparison for selected depth

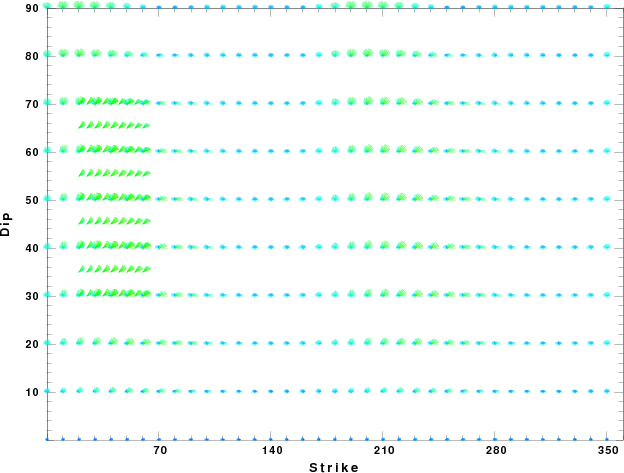

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

The origin time and epicentral distance are incorrect
The velocity model used for the inversion is incorrect
The velocity model used to define the P-arrival time is not the same as the velocity model used for the waveform inversion (assuming that the initial trace alignment is based on the P arrival time)

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

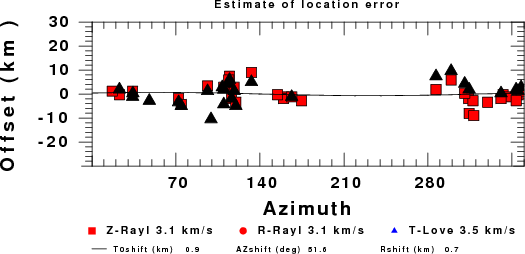

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Discussion

Velocity Model

The nnCIA used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:

MODEL.01
C.It. A. Di Luzio et al Earth Plan Lettrs 280 (2009) 1-12 Fig 5. 7-8 MODEL/SURF3
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.5000     3.7497     2.1436     2.2753  0.500E-02  0.100E-01   0.00       0.00       1.00       1.00
     3.0000     4.9399     2.8210     2.4858  0.500E-02  0.100E-01   0.00       0.00       1.00       1.00
     3.0000     6.0129     3.4336     2.7058  0.500E-02  0.100E-01   0.00       0.00       1.00       1.00
     7.0000     5.5516     3.1475     2.6093  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
    15.0000     5.8805     3.3583     2.6770  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
     6.0000     7.1059     4.0081     3.0002  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
     8.0000     7.1000     3.9864     3.0120  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.4036     3.2760  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00

Quality Control

Here we tabulate the reasons for not using certain digital data sets

The following stations did not have a valid response files:

DATE=Sun Jul 10 17:39:39 CDT 2011

Last Changed 2011/07/10
