2011/05/24 22:03:55 43.860 12.030 5.0 3.7 Italy

Arrival Times (from USGS)

Felt Map

Focal Mechanism

USGS/SLU Moment Tensor Solution ENS 2011/05/24 22:03:55:0 43.86 12.03 5.0 3.7 Italy Stations used: GU.MAIM GU.PCP GU.SC2M IV.ARCI IV.ATPC IV.ATTE IV.ATVO IV.BDI IV.CASP IV.CESI IV.CING IV.FIAM IV.FIR IV.FNVD IV.FSSB IV.GUMA IV.MAON IV.MCIV IV.MGAB IV.MSSA IV.MTCE IV.MTRZ IV.NRCA IV.PESA IV.PLMA IV.PRMA IV.QLNO IV.RNI2 IV.SACS IV.SASS IV.SNTG IV.T0104 IV.TERO IV.TRIF Filtering commands used: hp c 0.02 n 3 lp c 0.06 n 3 Best Fitting Double Couple Mo = 1.26e+22 dyne-cm Mw = 4.00 Z = 5 km Plane Strike Dip Rake NP1 140 60 -65 NP2 277 38 -126 Principal Axes: Axis Value Plunge Azimuth T 1.26e+22 12 212 N 0.00e+00 21 307 P -1.26e+22 65 96 Moment Tensor: (dyne-cm) Component Value Mxx 8.62e+21 Mxy 5.67e+21 Mxz -1.63e+21 Myy 1.26e+21 Myz -6.08e+21 Mzz -9.88e+21 ############## ###################### -########################### -############################# ----#####-------------############ ----------------------------######## ---###--------------------------###### --######---------------------------##### -#######-----------------------------### -#########-----------------------------### ###########--------------- -----------## ############-------------- P ------------# ##############------------ ------------- ##############-------------------------- ################------------------------ ################---------------------- ##################------------------ ###################--------------- #### #############---------- ### T ###################--- ################### ############## Global CMT Convention Moment Tensor: R T P -9.88e+21 -1.63e+21 6.08e+21 -1.63e+21 8.62e+21 -5.67e+21 6.08e+21 -5.67e+21 1.26e+21 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20110524220355/index.html

Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion and first motion observations is

      STK = 140
      DIP = 60
     RAKE = -65
       MW = 4.00
       HS = 5.0

The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to others

SLU

USGS/SLU Moment Tensor Solution ENS 2011/05/24 22:03:55:0 43.86 12.03 5.0 3.7 Italy Stations used: GU.MAIM GU.PCP GU.SC2M IV.ARCI IV.ATPC IV.ATTE IV.ATVO IV.BDI IV.CASP IV.CESI IV.CING IV.FIAM IV.FIR IV.FNVD IV.FSSB IV.GUMA IV.MAON IV.MCIV IV.MGAB IV.MSSA IV.MTCE IV.MTRZ IV.NRCA IV.PESA IV.PLMA IV.PRMA IV.QLNO IV.RNI2 IV.SACS IV.SASS IV.SNTG IV.T0104 IV.TERO IV.TRIF Filtering commands used: hp c 0.02 n 3 lp c 0.06 n 3 Best Fitting Double Couple Mo = 1.26e+22 dyne-cm Mw = 4.00 Z = 5 km Plane Strike Dip Rake NP1 140 60 -65 NP2 277 38 -126 Principal Axes: Axis Value Plunge Azimuth T 1.26e+22 12 212 N 0.00e+00 21 307 P -1.26e+22 65 96 Moment Tensor: (dyne-cm) Component Value Mxx 8.62e+21 Mxy 5.67e+21 Mxz -1.63e+21 Myy 1.26e+21 Myz -6.08e+21 Mzz -9.88e+21 ############## ###################### -########################### -############################# ----#####-------------############ ----------------------------######## ---###--------------------------###### --######---------------------------##### -#######-----------------------------### -#########-----------------------------### ###########--------------- -----------## ############-------------- P ------------# ##############------------ ------------- ##############-------------------------- ################------------------------ ################---------------------- ##################------------------ ###################--------------- #### #############---------- ### T ###################--- ################### ############## Global CMT Convention Moment Tensor: R T P -9.88e+21 -1.63e+21 6.08e+21 -1.63e+21 8.62e+21 -5.67e+21 6.08e+21 -5.67e+21 1.26e+21 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20110524220355/index.html

Waveform Inversion

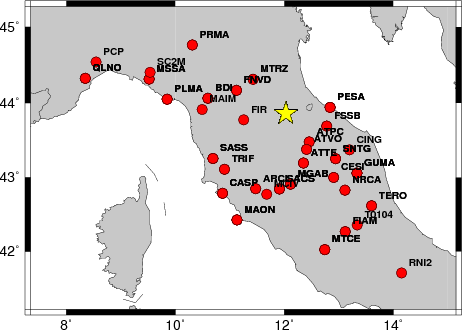

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

hp c 0.02 n 3
lp c 0.06 n 3

The results of this grid search from 0.5 to 19 km depth are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   150    70   -65   3.87 0.3272
WVFGRD96    2.0   145    70   -70   3.94 0.3701
WVFGRD96    3.0   145    65   -65   3.94 0.4054
WVFGRD96    4.0   135    55   -70   3.97 0.4178
WVFGRD96    5.0   140    60   -65   4.00 0.4364
WVFGRD96    6.0   140    60   -65   4.00 0.4164
WVFGRD96    7.0   155    70   -45   3.94 0.3865
WVFGRD96    8.0   170    65    25   3.91 0.3807
WVFGRD96    9.0   170    65    25   3.92 0.3810
WVFGRD96   10.0   170    65    25   3.92 0.3788
WVFGRD96   11.0   170    70    25   3.93 0.3746
WVFGRD96   12.0   170    70    20   3.94 0.3710
WVFGRD96   13.0   170    70    20   3.94 0.3676
WVFGRD96   14.0   170    70    20   3.95 0.3634
WVFGRD96   15.0   170    70    20   3.97 0.3567
WVFGRD96   16.0   165    70    20   3.96 0.3509
WVFGRD96   17.0   165    70    20   3.97 0.3449
WVFGRD96   18.0   165    70    20   3.97 0.3390
WVFGRD96   19.0   165    70    15   3.98 0.3325
WVFGRD96   20.0   160    75   -20   3.99 0.3260
WVFGRD96   21.0   160    75   -20   3.99 0.3211
WVFGRD96   22.0   160    75   -20   4.00 0.3160
WVFGRD96   23.0   160    75   -20   4.01 0.3107
WVFGRD96   24.0   160    75   -20   4.02 0.3050
WVFGRD96   25.0   160    75   -20   4.03 0.2995
WVFGRD96   26.0   160    75   -20   4.04 0.2934
WVFGRD96   27.0   160    75   -20   4.05 0.2870
WVFGRD96   28.0   345    80    25   4.06 0.2835
WVFGRD96   29.0   250    70   -15   4.08 0.2829

The best solution is

WVFGRD96    5.0   140    60   -65   4.00 0.4364

The mechanism correspond to the best fit is

Figure 1. Waveform inversion focal mechanism

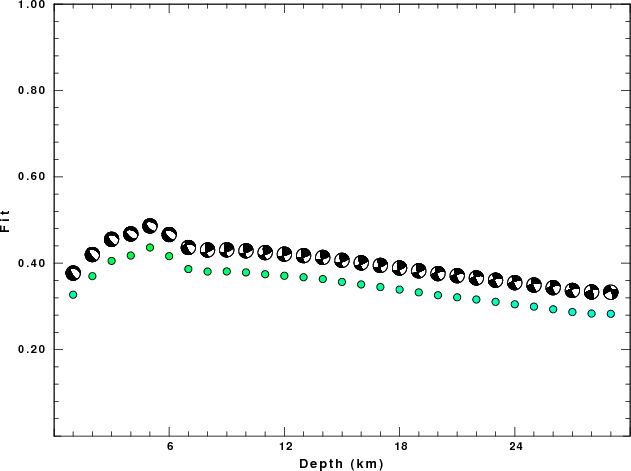

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

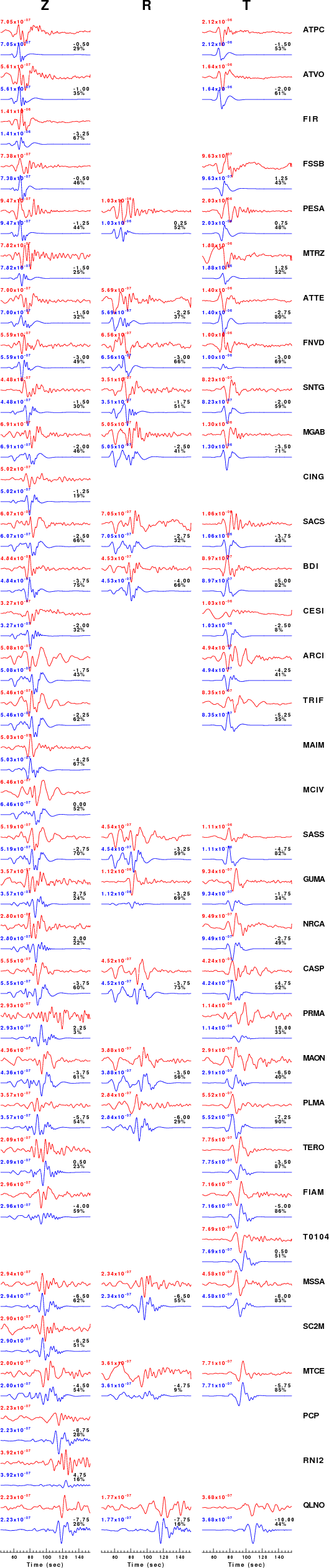

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

hp c 0.02 n 3
lp c 0.06 n 3

Figure 3. Waveform comparison for selected depth

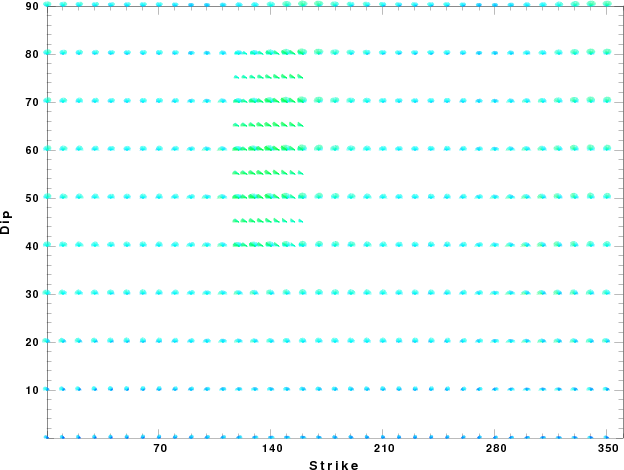

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

The origin time and epicentral distance are incorrect
The velocity model used for the inversion is incorrect
The velocity model used to define the P-arrival time is not the same as the velocity model used for the waveform inversion (assuming that the initial trace alignment is based on the P arrival time)

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

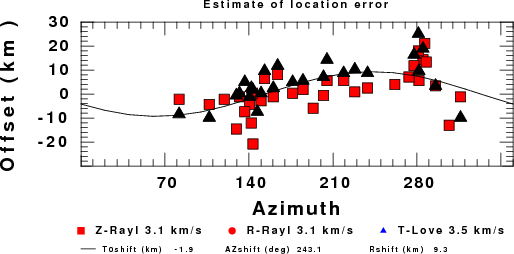

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Discussion

Velocity Model

The nnCIA used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:

MODEL.01
C.It. A. Di Luzio et al Earth Plan Lettrs 280 (2009) 1-12 Fig 5. 7-8 MODEL/SURF3
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.5000     3.7497     2.1436     2.2753  0.500E-02  0.100E-01   0.00       0.00       1.00       1.00
     3.0000     4.9399     2.8210     2.4858  0.500E-02  0.100E-01   0.00       0.00       1.00       1.00
     3.0000     6.0129     3.4336     2.7058  0.500E-02  0.100E-01   0.00       0.00       1.00       1.00
     7.0000     5.5516     3.1475     2.6093  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
    15.0000     5.8805     3.3583     2.6770  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
     6.0000     7.1059     4.0081     3.0002  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
     8.0000     7.1000     3.9864     3.0120  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.4036     3.2760  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
