2010/08/11 21:40:44 43.657 12.001 8.0 3.0 Italy
USGS Felt map for this earthquake
USGS/SLU Moment Tensor Solution
ENS 2010/08/11 21:40:44:0 43.66 12.00 8.0 3.0 Italy
Stations used:
GU.MAIM IV.ARVD IV.ASQU IV.ATFO IV.BDI IV.CING IV.CSNT
IV.FSSB IV.PARC IV.RSM IV.SACS IV.SNTG MN.VLC
Filtering commands used:
hp c 0.03 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 1.16e+21 dyne-cm
Mw = 3.31
Z = 5 km
Plane Strike Dip Rake
NP1 123 56 -97
NP2 315 35 -80
Principal Axes:
Axis Value Plunge Azimuth
T 1.16e+21 10 218
N 0.00e+00 6 127
P -1.16e+21 78 8
Moment Tensor: (dyne-cm)
Component Value
Mxx 6.53e+20
Mxy 5.37e+20
Mxz -3.93e+20
Myy 4.22e+20
Myz -1.60e+20
Mzz -1.07e+21
##############
######################
##-----------###############
-------------------###########
------------------------##########
#--------------------------#########
##----------------------------########
####----------------------------########
####--------------- -----------#######
######-------------- P ------------#######
########------------ -------------######
#########----------------------------#####
###########--------------------------#####
############------------------------####
##############-----------------------###
################-------------------###
###################---------------##
########################--------#-
### ########################
## T #######################
####################
##############
Global CMT Convention Moment Tensor:
R T P
-1.07e+21 -3.93e+20 1.60e+20
-3.93e+20 6.53e+20 -5.37e+20
1.60e+20 -5.37e+20 4.22e+20
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20100811214044/index.html
|
STK = 315
DIP = 35
RAKE = -80
MW = 3.31
HS = 5.0
The waveform inversion is preferred.
The following compares this source inversion to others
USGS/SLU Moment Tensor Solution
ENS 2010/08/11 21:40:44:0 43.66 12.00 8.0 3.0 Italy
Stations used:
GU.MAIM IV.ARVD IV.ASQU IV.ATFO IV.BDI IV.CING IV.CSNT
IV.FSSB IV.PARC IV.RSM IV.SACS IV.SNTG MN.VLC
Filtering commands used:
hp c 0.03 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 1.16e+21 dyne-cm
Mw = 3.31
Z = 5 km
Plane Strike Dip Rake
NP1 123 56 -97
NP2 315 35 -80
Principal Axes:
Axis Value Plunge Azimuth
T 1.16e+21 10 218
N 0.00e+00 6 127
P -1.16e+21 78 8
Moment Tensor: (dyne-cm)
Component Value
Mxx 6.53e+20
Mxy 5.37e+20
Mxz -3.93e+20
Myy 4.22e+20
Myz -1.60e+20
Mzz -1.07e+21
##############
######################
##-----------###############
-------------------###########
------------------------##########
#--------------------------#########
##----------------------------########
####----------------------------########
####--------------- -----------#######
######-------------- P ------------#######
########------------ -------------######
#########----------------------------#####
###########--------------------------#####
############------------------------####
##############-----------------------###
################-------------------###
###################---------------##
########################--------#-
### ########################
## T #######################
####################
##############
Global CMT Convention Moment Tensor:
R T P
-1.07e+21 -3.93e+20 1.60e+20
-3.93e+20 6.53e+20 -5.37e+20
1.60e+20 -5.37e+20 4.22e+20
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20100811214044/index.html
|

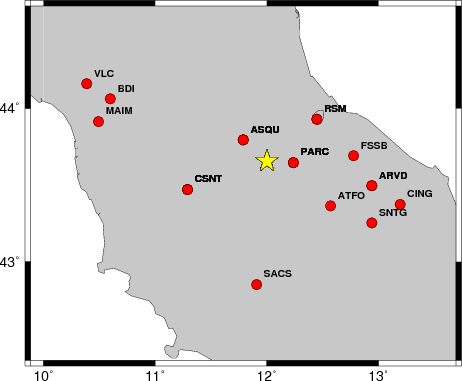

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.
|
|
|
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
hp c 0.03 n 3 lp c 0.10 n 3The results of this grid search from 0.5 to 19 km depth are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 1.0 310 35 -90 3.11 0.4012
WVFGRD96 2.0 130 60 -90 3.19 0.4261
WVFGRD96 3.0 310 30 -90 3.21 0.4315
WVFGRD96 4.0 325 35 -70 3.22 0.4207
WVFGRD96 5.0 315 35 -80 3.31 0.4476
WVFGRD96 6.0 340 30 -45 3.29 0.4188
WVFGRD96 7.0 350 30 -30 3.29 0.4032
WVFGRD96 8.0 15 45 20 3.22 0.3943
WVFGRD96 9.0 15 45 20 3.23 0.3887
WVFGRD96 10.0 15 45 20 3.24 0.3836
WVFGRD96 11.0 15 50 25 3.24 0.3772
WVFGRD96 12.0 5 55 30 3.26 0.3737
WVFGRD96 13.0 5 55 30 3.27 0.3722
WVFGRD96 14.0 5 55 30 3.28 0.3715
WVFGRD96 15.0 10 55 40 3.31 0.3649
WVFGRD96 16.0 10 55 40 3.31 0.3620
WVFGRD96 17.0 10 55 40 3.32 0.3573
WVFGRD96 18.0 5 60 35 3.32 0.3533
WVFGRD96 19.0 345 35 -30 3.38 0.3532
WVFGRD96 20.0 345 35 -30 3.39 0.3511
WVFGRD96 21.0 345 35 -30 3.39 0.3473
WVFGRD96 22.0 345 35 -30 3.40 0.3437
WVFGRD96 23.0 345 35 -30 3.40 0.3383
WVFGRD96 24.0 345 35 -30 3.41 0.3351
WVFGRD96 25.0 345 35 -30 3.41 0.3326
WVFGRD96 26.0 345 35 -35 3.42 0.3301
WVFGRD96 27.0 340 35 -45 3.42 0.3307
WVFGRD96 28.0 340 35 -45 3.43 0.3330
WVFGRD96 29.0 340 40 -45 3.45 0.3375
The best solution is
WVFGRD96 5.0 315 35 -80 3.31 0.4476
The mechanism correspond to the best fit is
|
|
|

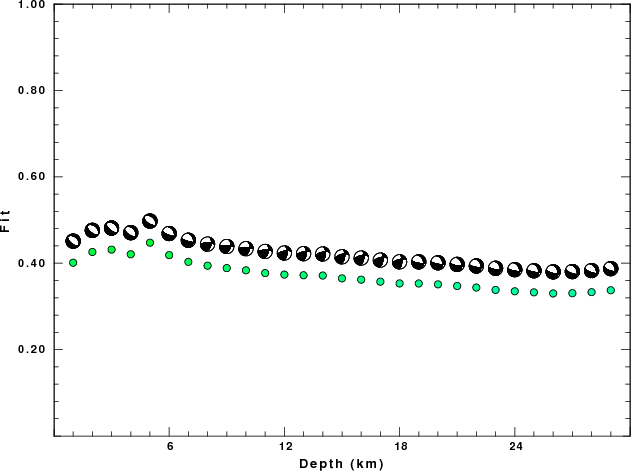

The best fit as a function of depth is given in the following figure:
|
|
|

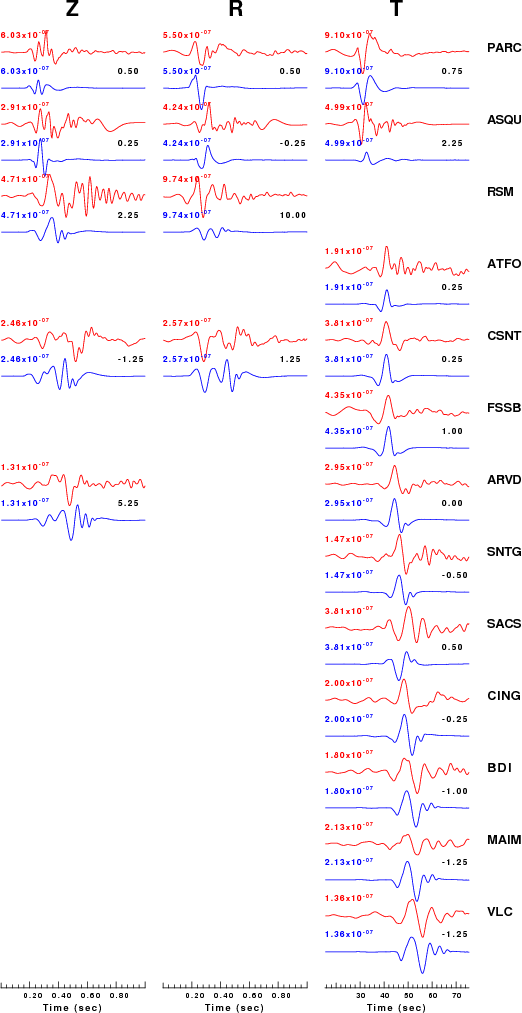

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. The number in black at the rightr of each predicted traces it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The bandpass filter used in the processing and for the display was
hp c 0.03 n 3 lp c 0.10 n 3
|
|
|
|

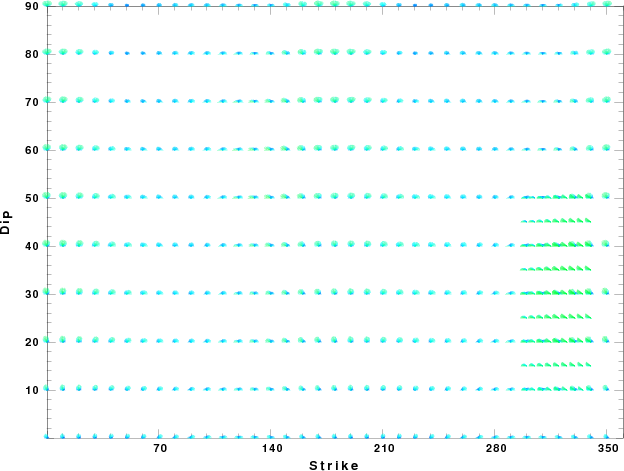

| Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
The nnCIA used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:
MODEL.01
C.It. A. Di Luzio et al Earth Plan Lettrs 280 (2009) 1-12 Fig 5. 7-8 MODEL/SURF3
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS
1.5000 3.7497 2.1436 2.2753 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
3.0000 4.9399 2.8210 2.4858 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
3.0000 6.0129 3.4336 2.7058 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
7.0000 5.5516 3.1475 2.6093 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
15.0000 5.8805 3.3583 2.6770 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
6.0000 7.1059 4.0081 3.0002 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
8.0000 7.1000 3.9864 3.0120 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
0.0000 7.9000 4.4036 3.2760 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
Here we tabulate the reasons for not using certain digital data sets
The following stations did not have a valid response files:
DATE=Mon Aug 16 15:18:10 CDT 2010
