2010/01/12 13:35:45 43.135 13.433 18.1 4.2 Italy
USGS Felt map for this earthquake
USGS/SLU Moment Tensor Solution ENS 2010/01/12 13:35:45:2 43.13 13.43 18.1 4.2 Italy Stations used: IV.AOI IV.ARVD IV.ASQU IV.CAFI IV.CAMP IV.CESI IV.CESX IV.CRE IV.CSNT IV.FAGN IV.FDMO IV.FIAM IV.FSSB IV.GIUL IV.GUAR IV.GUMA IV.INTR IV.LAV9 IV.MA9 IV.MGAB IV.MTCE IV.OFFI IV.PARC IV.PESA IV.POFI IV.RDP IV.RMP IV.RSM IV.SACS IV.TERO IV.VVLD Filtering commands used: hp c 0.02 n 3 lp c 0.10 n 3 Best Fitting Double Couple Mo = 1.45e+22 dyne-cm Mw = 4.04 Z = 16 km Plane Strike Dip Rake NP1 160 75 80 NP2 14 18 123 Principal Axes: Axis Value Plunge Azimuth T 1.45e+22 59 56 N 0.00e+00 10 163 P -1.45e+22 29 258 Moment Tensor: (dyne-cm) Component Value Mxx 7.26e+20 Mxy -4.30e+20 Mxz 4.83e+21 Myy -7.84e+21 Myz 1.14e+22 Mzz 7.12e+21 ############## ----################-- -------##################--- --------####################-- ----------#####################--- -----------######################--- -------------######################--- --------------########### #########--- ---------------########## T #########--- ----------------########## #########---- -----------------#####################---- ----- ---------#####################---- ----- P ----------####################---- ---- -----------###################--- ------------------##################---- ------------------################---- ------------------##############---- ------------------############---- -----------------#########---- ------------------#####----- ----------------##---- ---------##### Global CMT Convention Moment Tensor: R T P 7.12e+21 4.83e+21 -1.14e+22 4.83e+21 7.26e+20 4.30e+20 -1.14e+22 4.30e+20 -7.84e+21 Details of the solution is found at http://www.eas.slu.edu/Earthquake_Center/MECH.NA/20100112133545/index.html |
STK = 160 DIP = 75 RAKE = 80 MW = 4.04 HS = 16.0
The waveform inversion is preferred.
The following compares this source inversion to others
USGS/SLU Moment Tensor Solution ENS 2010/01/12 13:35:45:2 43.13 13.43 18.1 4.2 Italy Stations used: IV.AOI IV.ARVD IV.ASQU IV.CAFI IV.CAMP IV.CESI IV.CESX IV.CRE IV.CSNT IV.FAGN IV.FDMO IV.FIAM IV.FSSB IV.GIUL IV.GUAR IV.GUMA IV.INTR IV.LAV9 IV.MA9 IV.MGAB IV.MTCE IV.OFFI IV.PARC IV.PESA IV.POFI IV.RDP IV.RMP IV.RSM IV.SACS IV.TERO IV.VVLD Filtering commands used: hp c 0.02 n 3 lp c 0.10 n 3 Best Fitting Double Couple Mo = 1.45e+22 dyne-cm Mw = 4.04 Z = 16 km Plane Strike Dip Rake NP1 160 75 80 NP2 14 18 123 Principal Axes: Axis Value Plunge Azimuth T 1.45e+22 59 56 N 0.00e+00 10 163 P -1.45e+22 29 258 Moment Tensor: (dyne-cm) Component Value Mxx 7.26e+20 Mxy -4.30e+20 Mxz 4.83e+21 Myy -7.84e+21 Myz 1.14e+22 Mzz 7.12e+21 ############## ----################-- -------##################--- --------####################-- ----------#####################--- -----------######################--- -------------######################--- --------------########### #########--- ---------------########## T #########--- ----------------########## #########---- -----------------#####################---- ----- ---------#####################---- ----- P ----------####################---- ---- -----------###################--- ------------------##################---- ------------------################---- ------------------##############---- ------------------############---- -----------------#########---- ------------------#####----- ----------------##---- ---------##### Global CMT Convention Moment Tensor: R T P 7.12e+21 4.83e+21 -1.14e+22 4.83e+21 7.26e+20 4.30e+20 -1.14e+22 4.30e+20 -7.84e+21 Details of the solution is found at http://www.eas.slu.edu/Earthquake_Center/MECH.NA/20100112133545/index.html |
The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.
![]() |
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
hp c 0.02 n 3 lp c 0.10 n 3The results of this grid search from 0.5 to 19 km depth are as follow:
DEPTH STK DIP RAKE MW FIT WVFGRD96 1.0 155 50 -90 3.73 0.3264 WVFGRD96 2.0 155 50 -90 3.78 0.2853 WVFGRD96 3.0 305 85 -60 3.74 0.2635 WVFGRD96 4.0 330 90 -65 3.76 0.3134 WVFGRD96 5.0 335 90 -75 3.89 0.3662 WVFGRD96 6.0 155 85 75 3.91 0.4265 WVFGRD96 7.0 160 80 75 3.93 0.4779 WVFGRD96 8.0 160 75 75 3.90 0.5191 WVFGRD96 9.0 160 75 75 3.92 0.5495 WVFGRD96 10.0 160 75 75 3.93 0.5743 WVFGRD96 11.0 160 75 75 3.95 0.5931 WVFGRD96 12.0 160 75 75 3.96 0.6072 WVFGRD96 13.0 160 75 75 3.97 0.6172 WVFGRD96 14.0 160 75 75 3.98 0.6233 WVFGRD96 15.0 160 75 80 4.03 0.6253 WVFGRD96 16.0 160 75 80 4.04 0.6255 WVFGRD96 17.0 160 75 80 4.06 0.6238 WVFGRD96 18.0 160 75 80 4.07 0.6187 WVFGRD96 19.0 160 75 80 4.08 0.6113 WVFGRD96 20.0 160 75 80 4.09 0.6008 WVFGRD96 21.0 160 75 80 4.10 0.5875 WVFGRD96 22.0 160 75 80 4.11 0.5719 WVFGRD96 23.0 160 75 80 4.12 0.5536 WVFGRD96 24.0 160 75 80 4.12 0.5333 WVFGRD96 25.0 160 75 80 4.13 0.5113 WVFGRD96 26.0 160 75 80 4.13 0.4889 WVFGRD96 27.0 160 75 80 4.13 0.4664 WVFGRD96 28.0 160 75 80 4.13 0.4465 WVFGRD96 29.0 155 70 75 4.13 0.4315
The best solution is
WVFGRD96 16.0 160 75 80 4.04 0.6255
The mechanism correspond to the best fit is
![]() |
|

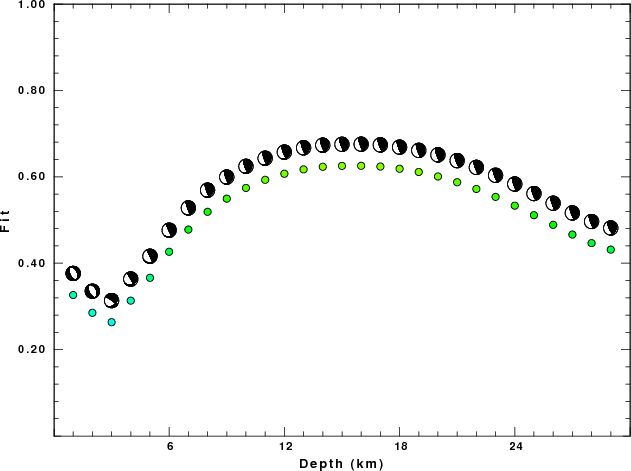

The best fit as a function of depth is given in the following figure:
![]() |
|

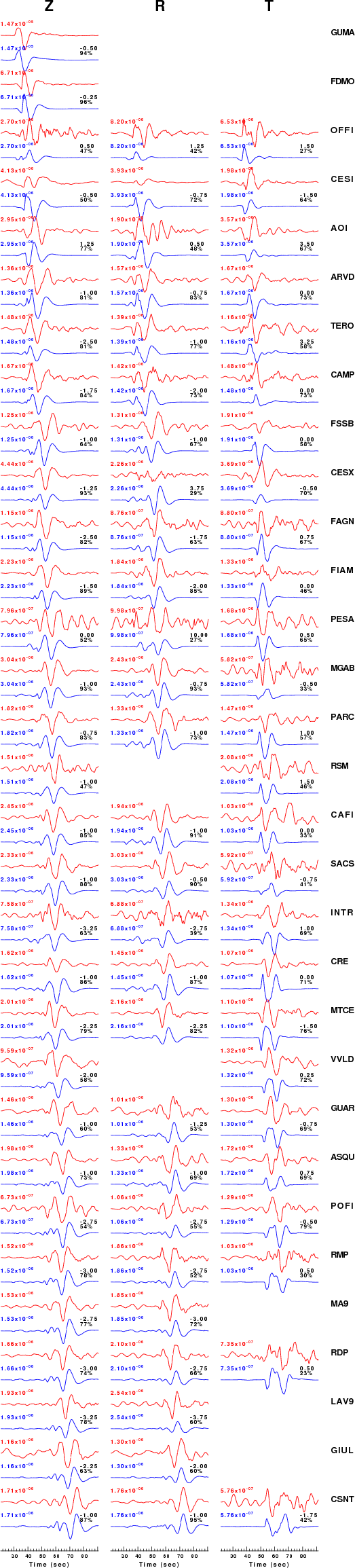

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
hp c 0.02 n 3 lp c 0.10 n 3
![]() |
|
![]() |

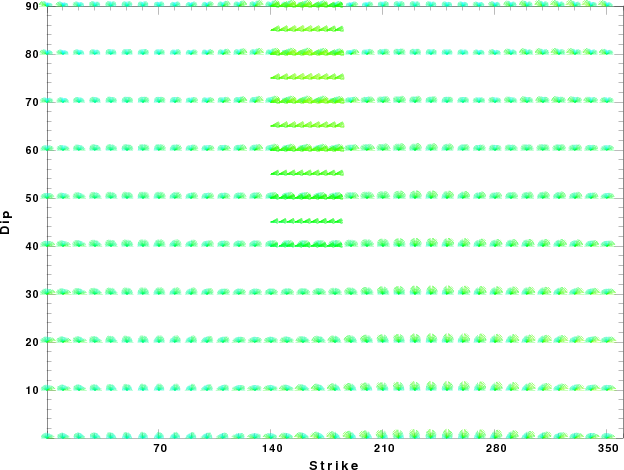

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

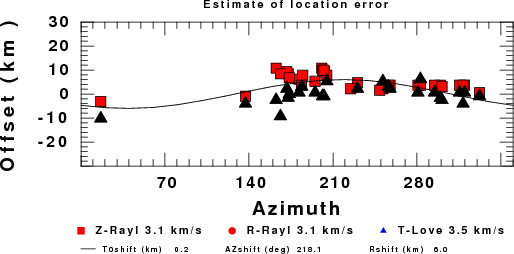

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The nnCIA used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:
MODEL.01 C.It. A. Di Luzio et al Earth Plan Lettrs 280 (2009) 1-12 Fig 5. 7-8 MODEL/SURF3 ISOTROPIC KGS FLAT EARTH 1-D CONSTANT VELOCITY LINE08 LINE09 LINE10 LINE11 H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS 1.5000 3.7497 2.1436 2.2753 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00 3.0000 4.9399 2.8210 2.4858 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00 3.0000 6.0129 3.4336 2.7058 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00 7.0000 5.5516 3.1475 2.6093 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00 15.0000 5.8805 3.3583 2.6770 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00 6.0000 7.1059 4.0081 3.0002 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00 8.0000 7.1000 3.9864 3.0120 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00 0.0000 7.9000 4.4036 3.2760 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
Here we tabulate the reasons for not using certain digital data sets
The following stations did not have a valid response files:
