2010/01/12 08:25:11 43.119 13.451 17.1 4.1 Italy
USGS Felt map for this earthquake
USGS/SLU Moment Tensor Solution
ENS 2010/01/12 08:25:11:3 43.12 13.45 17.1 4.1 Italy
Stations used:
IV.AOI IV.ARVD IV.ASQU IV.CERA IV.CESI IV.CESX IV.CSNT
IV.FAGN IV.FDMO IV.FIAM IV.GIUL IV.GUAR IV.GUMA IV.INTR
IV.LPEL IV.MGAB IV.MODR IV.MTCE IV.OFFI IV.PARC IV.PESA
IV.PIEI IV.POFI IV.RMP IV.SACS IV.TERO IV.VVLD
Filtering commands used:
hp c 0.02 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 1.60e+22 dyne-cm
Mw = 4.07
Z = 16 km
Plane Strike Dip Rake
NP1 165 75 80
NP2 19 18 123
Principal Axes:
Axis Value Plunge Azimuth
T 1.60e+22 59 61
N 0.00e+00 10 168
P -1.60e+22 29 263
Moment Tensor: (dyne-cm)
Component Value
Mxx 8.16e+20
Mxy 3.55e+20
Mxz 4.23e+21
Myy -8.71e+21
Myz 1.30e+22
Mzz 7.89e+21
-#############
-----################-
--------##################--
---------###################--
-----------#####################--
------------######################--
-------------######################---
---------------########### ########---
---------------########### T ########---
----------------########### ########----
-----------------######################---
----- ---------#####################----
----- P ----------####################----
---- ----------####################---
------------------##################----
------------------################----
-----------------###############----
-----------------#############----
----------------##########----
----------------#######-----
--------------###-----
--------####--
Global CMT Convention Moment Tensor:
R T P
7.89e+21 4.23e+21 -1.30e+22
4.23e+21 8.16e+20 -3.55e+20
-1.30e+22 -3.55e+20 -8.71e+21
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20100112082511/index.html
|
STK = 165
DIP = 75
RAKE = 80
MW = 4.07
HS = 16.0
The waveform inversion is preferred.
The following compares this source inversion to others
USGS/SLU Moment Tensor Solution
ENS 2010/01/12 08:25:11:3 43.12 13.45 17.1 4.1 Italy
Stations used:
IV.AOI IV.ARVD IV.ASQU IV.CERA IV.CESI IV.CESX IV.CSNT
IV.FAGN IV.FDMO IV.FIAM IV.GIUL IV.GUAR IV.GUMA IV.INTR
IV.LPEL IV.MGAB IV.MODR IV.MTCE IV.OFFI IV.PARC IV.PESA
IV.PIEI IV.POFI IV.RMP IV.SACS IV.TERO IV.VVLD
Filtering commands used:
hp c 0.02 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 1.60e+22 dyne-cm
Mw = 4.07
Z = 16 km
Plane Strike Dip Rake
NP1 165 75 80
NP2 19 18 123
Principal Axes:
Axis Value Plunge Azimuth
T 1.60e+22 59 61
N 0.00e+00 10 168
P -1.60e+22 29 263
Moment Tensor: (dyne-cm)
Component Value
Mxx 8.16e+20
Mxy 3.55e+20
Mxz 4.23e+21
Myy -8.71e+21
Myz 1.30e+22
Mzz 7.89e+21
-#############
-----################-
--------##################--
---------###################--
-----------#####################--
------------######################--
-------------######################---
---------------########### ########---
---------------########### T ########---
----------------########### ########----
-----------------######################---
----- ---------#####################----
----- P ----------####################----
---- ----------####################---
------------------##################----
------------------################----
-----------------###############----
-----------------#############----
----------------##########----
----------------#######-----
--------------###-----
--------####--
Global CMT Convention Moment Tensor:
R T P
7.89e+21 4.23e+21 -1.30e+22
4.23e+21 8.16e+20 -3.55e+20
-1.30e+22 -3.55e+20 -8.71e+21
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20100112082511/index.html
|

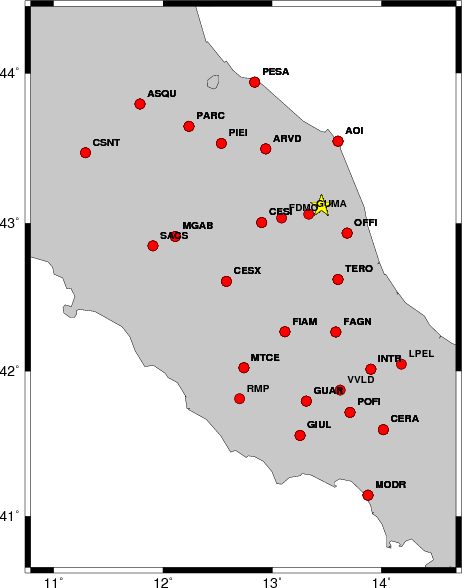

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.
|
|
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
hp c 0.02 n 3 lp c 0.10 n 3The results of this grid search from 0.5 to 19 km depth are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 1.0 340 40 -90 3.78 0.3406
WVFGRD96 2.0 155 50 -95 3.84 0.3096
WVFGRD96 3.0 300 45 -20 3.77 0.2576
WVFGRD96 4.0 155 90 65 3.79 0.3010
WVFGRD96 5.0 160 90 75 3.91 0.3562
WVFGRD96 6.0 335 85 -70 3.93 0.4138
WVFGRD96 7.0 160 90 70 3.95 0.4605
WVFGRD96 8.0 160 80 70 3.92 0.5017
WVFGRD96 9.0 160 75 75 3.94 0.5316
WVFGRD96 10.0 160 75 75 3.96 0.5555
WVFGRD96 11.0 165 75 75 3.97 0.5730
WVFGRD96 12.0 160 75 75 3.98 0.5867
WVFGRD96 13.0 165 75 75 4.00 0.5976
WVFGRD96 14.0 165 75 75 4.01 0.6048
WVFGRD96 15.0 165 75 80 4.06 0.6105
WVFGRD96 16.0 165 75 80 4.07 0.6131
WVFGRD96 17.0 165 75 80 4.08 0.6130
WVFGRD96 18.0 165 75 80 4.10 0.6091
WVFGRD96 19.0 165 75 80 4.11 0.6030
WVFGRD96 20.0 165 75 80 4.12 0.5940
WVFGRD96 21.0 165 75 80 4.13 0.5823
WVFGRD96 22.0 165 75 80 4.14 0.5677
WVFGRD96 23.0 165 75 80 4.15 0.5503
WVFGRD96 24.0 170 70 85 4.15 0.5302
WVFGRD96 25.0 170 70 85 4.15 0.5084
WVFGRD96 26.0 170 70 85 4.15 0.4852
WVFGRD96 27.0 170 70 85 4.15 0.4638
WVFGRD96 28.0 160 65 75 4.15 0.4471
WVFGRD96 29.0 160 65 75 4.16 0.4331
The best solution is
WVFGRD96 16.0 165 75 80 4.07 0.6131
The mechanism correspond to the best fit is
|
|
|

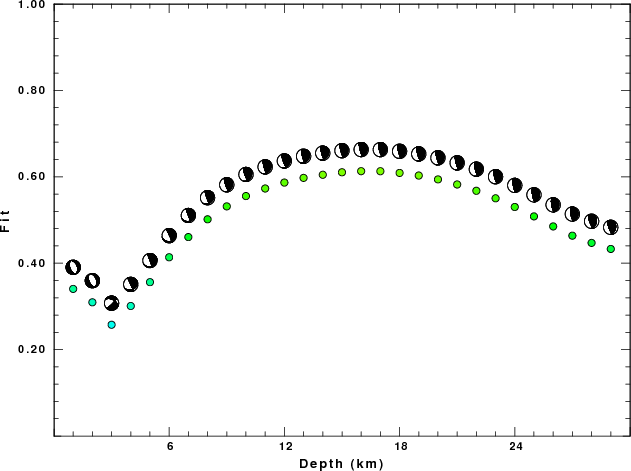

The best fit as a function of depth is given in the following figure:
|
|
|

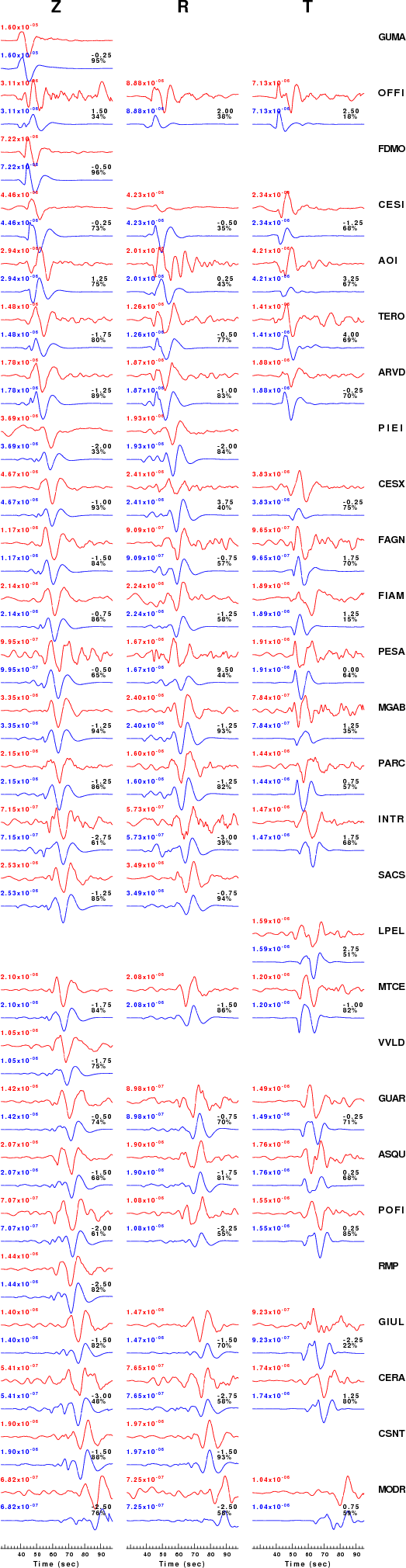

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
hp c 0.02 n 3 lp c 0.10 n 3
|
|
|
|

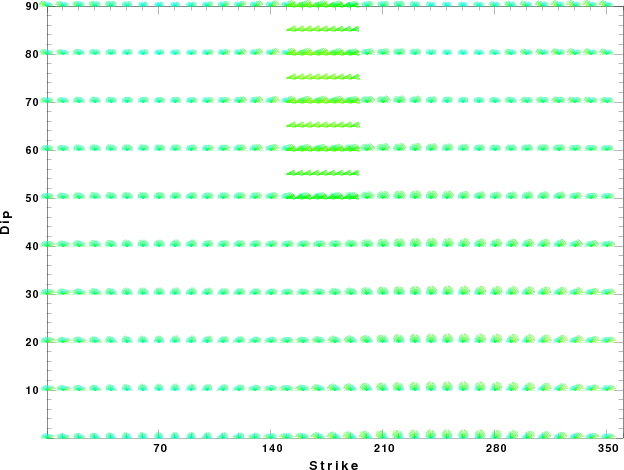

| Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

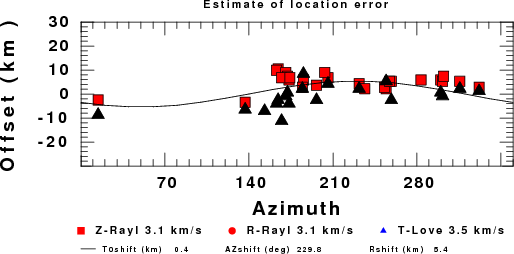

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The nnCIA used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:
MODEL.01
C.It. A. Di Luzio et al Earth Plan Lettrs 280 (2009) 1-12 Fig 5. 7-8 MODEL/SURF3
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS
1.5000 3.7497 2.1436 2.2753 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
3.0000 4.9399 2.8210 2.4858 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
3.0000 6.0129 3.4336 2.7058 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
7.0000 5.5516 3.1475 2.6093 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
15.0000 5.8805 3.3583 2.6770 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
6.0000 7.1059 4.0081 3.0002 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
8.0000 7.1000 3.9864 3.0120 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
0.0000 7.9000 4.4036 3.2760 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
