2009/04/13 19:17:57 42.360 13.354 11.3 3.50 Italy
USGS Felt map for this earthquake
USGS/SLU Moment Tensor Solution
ENS 2009/04/13 19:17:57:0 42.36 13.35 11.3 3.5 Italy
Stations used:
IV.ASSB IV.CAMP IV.CERT IV.CESI IV.CESX IV.CING IV.FAGN
IV.FDMO IV.FIAM IV.INTR IV.LPEL IV.MGAB IV.MNS IV.MTCE
IV.NRCA IV.OFFI IV.TERO IV.TRTR
Filtering commands used:
hp c 0.02 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 2.66e+21 dyne-cm
Mw = 3.55
Z = 9 km
Plane Strike Dip Rake
NP1 130 71 -120
NP2 10 35 -35
Principal Axes:
Axis Value Plunge Azimuth
T 2.66e+21 20 242
N 0.00e+00 28 141
P -2.66e+21 54 3
Moment Tensor: (dyne-cm)
Component Value
Mxx -3.84e+20
Mxy 9.29e+20
Mxz -1.67e+21
Myy 1.82e+21
Myz -8.24e+20
Mzz -1.43e+21
------------##
------------------####
-----------------------#####
-------------------------#####
#---------------------------######
###-------------- ----------######
#####------------- P -----------######
#######------------ -----------#######
#########-------------------------######
###########------------------------#######
#############----------------------#######
###############--------------------#######
#################-----------------########
##################---------------#######
#### #############------------########
### T ################--------########
## ###################-----#######
##########################--######
#######################-------
####################--------
###############-------
#######-------
Global CMT Convention Moment Tensor:
R T P
-1.43e+21 -1.67e+21 8.24e+20
-1.67e+21 -3.84e+20 -9.29e+20
8.24e+20 -9.29e+20 1.82e+21
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20090413191757/index.html
|
STK = 10
DIP = 35
RAKE = -35
MW = 3.55
HS = 9.0
The waveform inversion is preferred.
The following compares this source inversion to others
USGS/SLU Moment Tensor Solution
ENS 2009/04/13 19:17:57:0 42.36 13.35 11.3 3.5 Italy
Stations used:
IV.ASSB IV.CAMP IV.CERT IV.CESI IV.CESX IV.CING IV.FAGN
IV.FDMO IV.FIAM IV.INTR IV.LPEL IV.MGAB IV.MNS IV.MTCE
IV.NRCA IV.OFFI IV.TERO IV.TRTR
Filtering commands used:
hp c 0.02 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 2.66e+21 dyne-cm
Mw = 3.55
Z = 9 km
Plane Strike Dip Rake
NP1 130 71 -120
NP2 10 35 -35
Principal Axes:
Axis Value Plunge Azimuth
T 2.66e+21 20 242
N 0.00e+00 28 141
P -2.66e+21 54 3
Moment Tensor: (dyne-cm)
Component Value
Mxx -3.84e+20
Mxy 9.29e+20
Mxz -1.67e+21
Myy 1.82e+21
Myz -8.24e+20
Mzz -1.43e+21
------------##
------------------####
-----------------------#####
-------------------------#####
#---------------------------######
###-------------- ----------######
#####------------- P -----------######
#######------------ -----------#######
#########-------------------------######
###########------------------------#######
#############----------------------#######
###############--------------------#######
#################-----------------########
##################---------------#######
#### #############------------########
### T ################--------########
## ###################-----#######
##########################--######
#######################-------
####################--------
###############-------
#######-------
Global CMT Convention Moment Tensor:
R T P
-1.43e+21 -1.67e+21 8.24e+20
-1.67e+21 -3.84e+20 -9.29e+20
8.24e+20 -9.29e+20 1.82e+21
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20090413191757/index.html
|

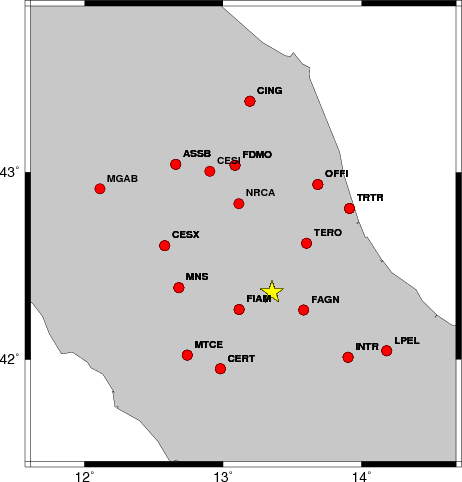

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.
|
|
|
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
hp c 0.02 n 3 lp c 0.10 n 3The results of this grid search from 0.5 to 19 km depth are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 0.5 275 30 80 3.31 0.2651
WVFGRD96 1.0 345 45 -70 3.32 0.2461
WVFGRD96 2.0 245 25 40 3.42 0.2715
WVFGRD96 3.0 25 25 -15 3.42 0.3240
WVFGRD96 4.0 15 30 -30 3.43 0.3726
WVFGRD96 5.0 10 25 -35 3.54 0.4164
WVFGRD96 6.0 10 30 -35 3.55 0.4519
WVFGRD96 7.0 5 30 -40 3.57 0.4788
WVFGRD96 8.0 10 35 -35 3.54 0.4893
WVFGRD96 9.0 10 35 -35 3.55 0.4918
WVFGRD96 10.0 10 35 -35 3.56 0.4868
WVFGRD96 11.0 15 35 -30 3.56 0.4774
WVFGRD96 12.0 20 35 -20 3.57 0.4674
WVFGRD96 13.0 20 35 -20 3.58 0.4573
WVFGRD96 14.0 20 40 -20 3.59 0.4462
WVFGRD96 15.0 20 35 -15 3.62 0.4378
WVFGRD96 16.0 20 35 -15 3.63 0.4259
WVFGRD96 17.0 20 35 -15 3.64 0.4124
WVFGRD96 18.0 20 35 -15 3.65 0.3981
WVFGRD96 19.0 20 35 -15 3.65 0.3838
WVFGRD96 20.0 25 35 -10 3.66 0.3709
WVFGRD96 21.0 20 35 -15 3.66 0.3588
WVFGRD96 22.0 10 45 -30 3.66 0.3508
WVFGRD96 23.0 5 45 -35 3.67 0.3471
WVFGRD96 24.0 5 45 -35 3.68 0.3450
WVFGRD96 25.0 5 45 -35 3.68 0.3407
WVFGRD96 26.0 5 40 -35 3.69 0.3357
WVFGRD96 27.0 5 45 -35 3.70 0.3291
WVFGRD96 28.0 5 45 -35 3.71 0.3198
WVFGRD96 29.0 10 50 -25 3.71 0.3092
The best solution is
WVFGRD96 9.0 10 35 -35 3.55 0.4918
The mechanism correspond to the best fit is
|
|
|

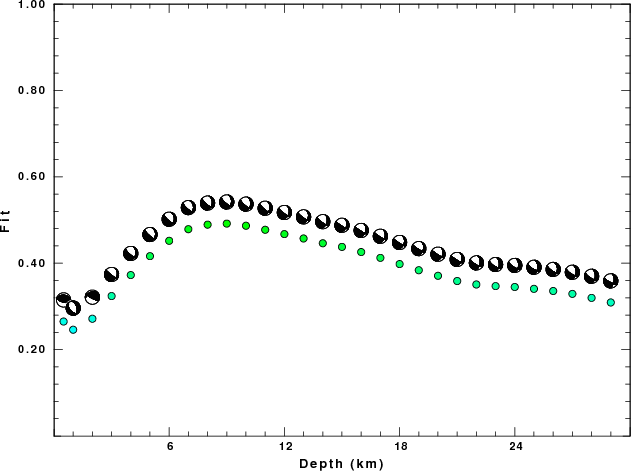

The best fit as a function of depth is given in the following figure:
|
|
|

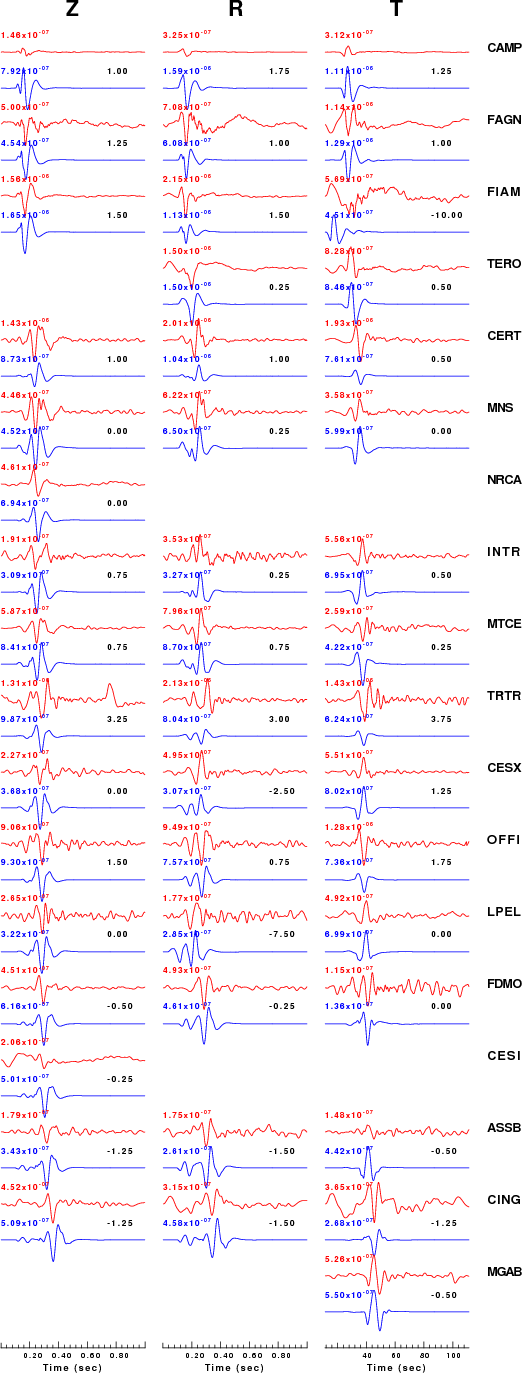

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. The number in black at the rightr of each predicted traces it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The bandpass filter used in the processing and for the display was
hp c 0.02 n 3 lp c 0.10 n 3
|
|
|
|

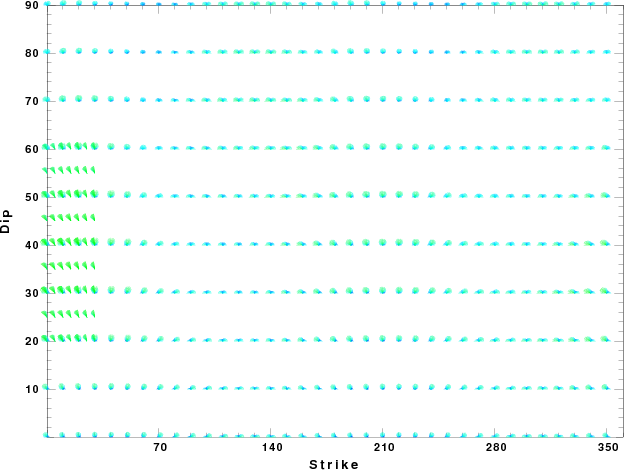

| Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
The nnCIA used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:
MODEL.01
C.It. A. Di Luzio et al Earth Plan Lettrs 280 (2009) 1-12 Fig 5. 7-8 MODEL/SURF3
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS
1.5000 3.7497 2.1436 2.2753 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
3.0000 4.9399 2.8210 2.4858 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
3.0000 6.0129 3.4336 2.7058 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
7.0000 5.5516 3.1475 2.6093 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
15.0000 5.8805 3.3583 2.6770 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
6.0000 7.1059 4.0081 3.0002 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
8.0000 7.1000 3.9864 3.0120 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
0.0000 7.9000 4.4036 3.2760 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
Here we tabulate the reasons for not using certain digital data sets
The following stations did not have a valid response files:
DATE=Mon Apr 20 13:06:11 CDT 2009
