2009/04/11 05:39:00 42.386 13.402 10.7 3.30 Italy
USGS Felt map for this earthquake
USGS/SLU Moment Tensor Solution
ENS 2009/04/11 05:39:00:0 42.39 13.40 10.7 3.3 Italy
Stations used:
IV.ARVD IV.CERT IV.CESI IV.CESX IV.CING IV.FAGN IV.FDMO
IV.FIAM IV.INTR IV.LATE IV.LNSS IV.LPEL IV.MIDA IV.MTCE
IV.MURB IV.NRCA IV.OFFI IV.RMP IV.SACS IV.SGG IV.TERO
IV.VAGA
Filtering commands used:
hp c 0.02 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 1.82e+21 dyne-cm
Mw = 3.44
Z = 7 km
Plane Strike Dip Rake
NP1 131 52 -102
NP2 330 40 -75
Principal Axes:
Axis Value Plunge Azimuth
T 1.82e+21 6 229
N 0.00e+00 10 138
P -1.82e+21 79 351
Moment Tensor: (dyne-cm)
Component Value
Mxx 6.95e+20
Mxy 9.01e+20
Mxz -4.65e+20
Myy 1.04e+21
Myz -8.39e+19
Mzz -1.73e+21
##############
-------###############
---------------#############
-------------------###########
#----------------------###########
##------------------------##########
###-------------------------##########
#####--------------------------#########
#####------------- -----------########
#######------------ P -----------#########
########----------- ------------########
#########--------------------------#######
##########-------------------------#######
###########-----------------------######
#############---------------------######
##############-------------------#####
# ############----------------####
T ###############------------####
#####################------#-
##########################--
######################
##############
Global CMT Convention Moment Tensor:
R T P
-1.73e+21 -4.65e+20 8.39e+19
-4.65e+20 6.95e+20 -9.01e+20
8.39e+19 -9.01e+20 1.04e+21
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20090411053900/index.html
|
STK = 330
DIP = 40
RAKE = -75
MW = 3.44
HS = 7.0
The waveform inversion is preferred.
The following compares this source inversion to others
USGS/SLU Moment Tensor Solution
ENS 2009/04/11 05:39:00:0 42.39 13.40 10.7 3.3 Italy
Stations used:
IV.ARVD IV.CERT IV.CESI IV.CESX IV.CING IV.FAGN IV.FDMO
IV.FIAM IV.INTR IV.LATE IV.LNSS IV.LPEL IV.MIDA IV.MTCE
IV.MURB IV.NRCA IV.OFFI IV.RMP IV.SACS IV.SGG IV.TERO
IV.VAGA
Filtering commands used:
hp c 0.02 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 1.82e+21 dyne-cm
Mw = 3.44
Z = 7 km
Plane Strike Dip Rake
NP1 131 52 -102
NP2 330 40 -75
Principal Axes:
Axis Value Plunge Azimuth
T 1.82e+21 6 229
N 0.00e+00 10 138
P -1.82e+21 79 351
Moment Tensor: (dyne-cm)
Component Value
Mxx 6.95e+20
Mxy 9.01e+20
Mxz -4.65e+20
Myy 1.04e+21
Myz -8.39e+19
Mzz -1.73e+21
##############
-------###############
---------------#############
-------------------###########
#----------------------###########
##------------------------##########
###-------------------------##########
#####--------------------------#########
#####------------- -----------########
#######------------ P -----------#########
########----------- ------------########
#########--------------------------#######
##########-------------------------#######
###########-----------------------######
#############---------------------######
##############-------------------#####
# ############----------------####
T ###############------------####
#####################------#-
##########################--
######################
##############
Global CMT Convention Moment Tensor:
R T P
-1.73e+21 -4.65e+20 8.39e+19
-4.65e+20 6.95e+20 -9.01e+20
8.39e+19 -9.01e+20 1.04e+21
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20090411053900/index.html
|

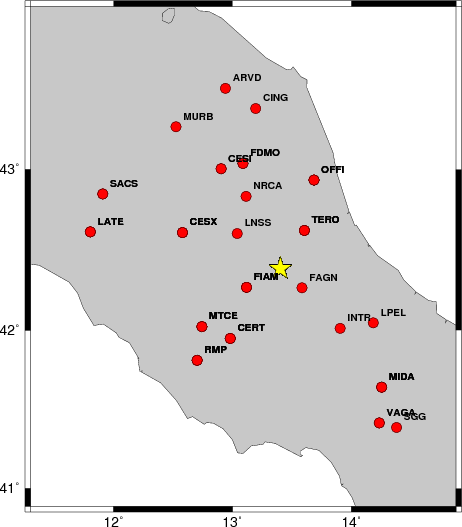

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.
|
|
|
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
hp c 0.02 n 3 lp c 0.10 n 3The results of this grid search from 0.5 to 19 km depth are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 0.5 155 35 -90 3.12 0.2512
WVFGRD96 1.0 -5 65 -40 3.14 0.2542
WVFGRD96 2.0 215 25 20 3.26 0.2969
WVFGRD96 3.0 5 30 -15 3.26 0.3566
WVFGRD96 4.0 5 35 -30 3.27 0.4045
WVFGRD96 5.0 345 35 -55 3.40 0.4624
WVFGRD96 6.0 330 40 -75 3.45 0.5534
WVFGRD96 7.0 330 40 -75 3.44 0.5915
WVFGRD96 8.0 330 40 -75 3.41 0.5765
WVFGRD96 9.0 340 45 -65 3.40 0.5636
WVFGRD96 10.0 340 45 -65 3.40 0.5449
WVFGRD96 11.0 345 45 -60 3.40 0.5210
WVFGRD96 12.0 350 50 -45 3.41 0.4964
WVFGRD96 13.0 -5 55 -35 3.42 0.4713
WVFGRD96 14.0 0 65 -20 3.45 0.4454
WVFGRD96 15.0 0 60 -25 3.46 0.4350
WVFGRD96 16.0 0 60 -25 3.47 0.4144
WVFGRD96 17.0 0 65 -20 3.48 0.3956
WVFGRD96 18.0 190 40 -25 3.45 0.3799
WVFGRD96 19.0 190 40 -25 3.46 0.3657
WVFGRD96 20.0 190 35 -25 3.46 0.3525
WVFGRD96 21.0 190 35 -25 3.47 0.3394
WVFGRD96 22.0 190 35 -25 3.47 0.3277
WVFGRD96 23.0 0 70 -15 3.53 0.3206
WVFGRD96 24.0 0 75 -15 3.54 0.3140
WVFGRD96 25.0 0 75 -10 3.55 0.3065
WVFGRD96 26.0 0 80 -5 3.56 0.2993
WVFGRD96 27.0 5 60 -15 3.55 0.2944
WVFGRD96 28.0 5 65 -10 3.57 0.2935
WVFGRD96 29.0 5 75 5 3.61 0.2956
The best solution is
WVFGRD96 7.0 330 40 -75 3.44 0.5915
The mechanism correspond to the best fit is
|
|
|

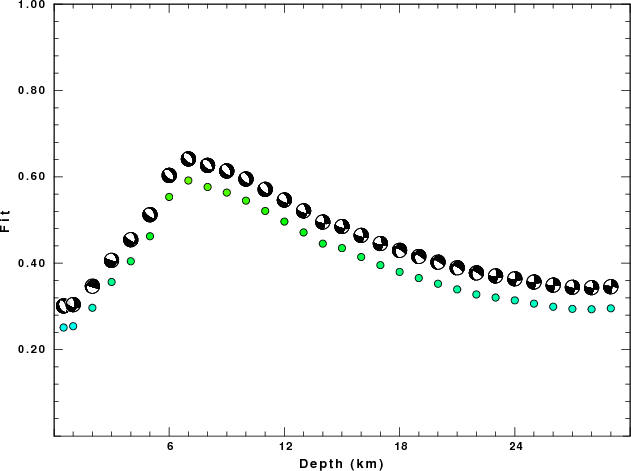

The best fit as a function of depth is given in the following figure:
|
|
|

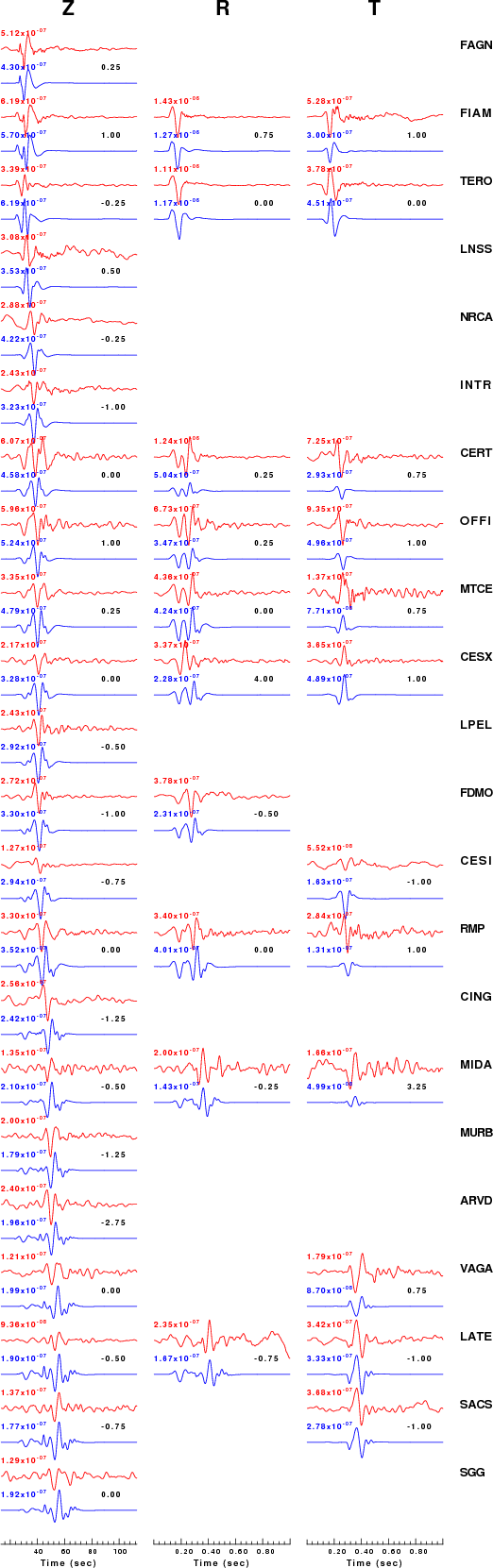

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. The number in black at the rightr of each predicted traces it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The bandpass filter used in the processing and for the display was
hp c 0.02 n 3 lp c 0.10 n 3
|
|
|
|

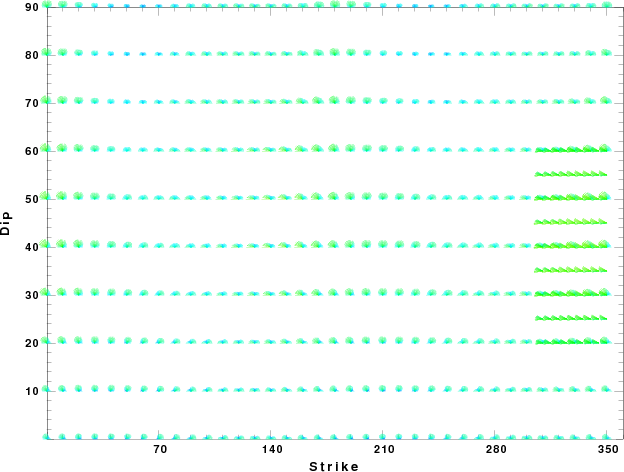

| Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
The nnCIA used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:
MODEL.01
C.It. A. Di Luzio et al Earth Plan Lettrs 280 (2009) 1-12 Fig 5. 7-8 MODEL/SURF3
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS
1.5000 3.7497 2.1436 2.2753 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
3.0000 4.9399 2.8210 2.4858 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
3.0000 6.0129 3.4336 2.7058 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
7.0000 5.5516 3.1475 2.6093 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
15.0000 5.8805 3.3583 2.6770 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
6.0000 7.1059 4.0081 3.0002 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
8.0000 7.1000 3.9864 3.0120 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
0.0000 7.9000 4.4036 3.2760 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
Here we tabulate the reasons for not using certain digital data sets
The following stations did not have a valid response files:
DATE=Mon Apr 27 16:08:17 CDT 2009
