2009/04/09 13:00:29 42.299 13.467 9.9 3.00 Italy
USGS Felt map for this earthquake
USGS/SLU Moment Tensor Solution
ENS 2009/04/09 13:00:29:0 42.30 13.47 9.9 3.0 Italy
Stations used:
IV.AOI IV.ARVD IV.BSSO IV.CERT IV.CESI IV.CING IV.FAGN
IV.FDMO IV.FIAM IV.INTR IV.LATE IV.LPEL IV.MIDA IV.MNS
IV.MTCE IV.NRCA IV.OFFI IV.POFI IV.SGG IV.TERO IV.TOLF
IV.TRTR IV.VAGA
Filtering commands used:
hp c 0.02 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 8.81e+20 dyne-cm
Mw = 3.23
Z = 6 km
Plane Strike Dip Rake
NP1 141 82 -140
NP2 45 50 -10
Principal Axes:
Axis Value Plunge Azimuth
T 8.81e+20 21 267
N 0.00e+00 49 150
P -8.81e+20 33 11
Moment Tensor: (dyne-cm)
Component Value
Mxx -5.89e+20
Mxy -7.53e+19
Mxz -4.13e+20
Myy 7.40e+20
Myz -3.76e+20
Mzz -1.51e+20
--------------
----------------------
#-------------- ----------
###------------- P -----------
######------------ -----------##
########-------------------------###
###########-----------------------####
#############----------------------#####
##############--------------------######
################-------------------#######
### ############----------------########
### T #############--------------#########
### ###############-----------##########
#####################--------###########
#######################-----############
########################-#############
######################--############
##################-------#########
############-------------#####
--------------------------##
----------------------
--------------
Global CMT Convention Moment Tensor:
R T P
-1.51e+20 -4.13e+20 3.76e+20
-4.13e+20 -5.89e+20 7.53e+19
3.76e+20 7.53e+19 7.40e+20
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20090409130029/index.html
|
STK = 45
DIP = 50
RAKE = -10
MW = 3.23
HS = 6.0
The waveform inversion is preferred.
The following compares this source inversion to others
USGS/SLU Moment Tensor Solution
ENS 2009/04/09 13:00:29:0 42.30 13.47 9.9 3.0 Italy
Stations used:
IV.AOI IV.ARVD IV.BSSO IV.CERT IV.CESI IV.CING IV.FAGN
IV.FDMO IV.FIAM IV.INTR IV.LATE IV.LPEL IV.MIDA IV.MNS
IV.MTCE IV.NRCA IV.OFFI IV.POFI IV.SGG IV.TERO IV.TOLF
IV.TRTR IV.VAGA
Filtering commands used:
hp c 0.02 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 8.81e+20 dyne-cm
Mw = 3.23
Z = 6 km
Plane Strike Dip Rake
NP1 141 82 -140
NP2 45 50 -10
Principal Axes:
Axis Value Plunge Azimuth
T 8.81e+20 21 267
N 0.00e+00 49 150
P -8.81e+20 33 11
Moment Tensor: (dyne-cm)
Component Value
Mxx -5.89e+20
Mxy -7.53e+19
Mxz -4.13e+20
Myy 7.40e+20
Myz -3.76e+20
Mzz -1.51e+20
--------------
----------------------
#-------------- ----------
###------------- P -----------
######------------ -----------##
########-------------------------###
###########-----------------------####
#############----------------------#####
##############--------------------######
################-------------------#######
### ############----------------########
### T #############--------------#########
### ###############-----------##########
#####################--------###########
#######################-----############
########################-#############
######################--############
##################-------#########
############-------------#####
--------------------------##
----------------------
--------------
Global CMT Convention Moment Tensor:
R T P
-1.51e+20 -4.13e+20 3.76e+20
-4.13e+20 -5.89e+20 7.53e+19
3.76e+20 7.53e+19 7.40e+20
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20090409130029/index.html
|

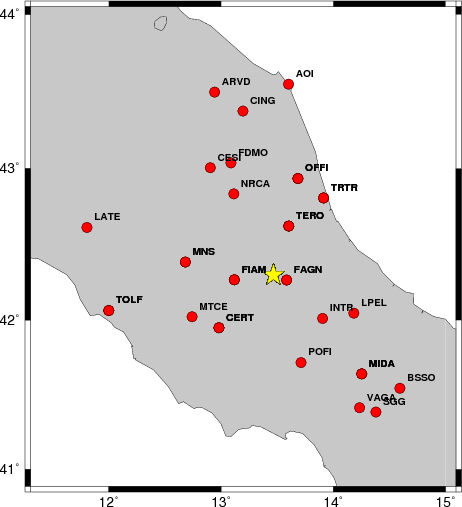

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.
|
|
|
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
hp c 0.02 n 3 lp c 0.10 n 3The results of this grid search from 0.5 to 19 km depth are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 0.5 55 70 20 2.98 0.2902
WVFGRD96 1.0 55 75 35 3.02 0.2994
WVFGRD96 2.0 40 40 -15 3.11 0.3187
WVFGRD96 3.0 40 45 -10 3.13 0.3405
WVFGRD96 4.0 40 50 -15 3.15 0.3531
WVFGRD96 5.0 40 45 -15 3.22 0.3603
WVFGRD96 6.0 45 50 -10 3.23 0.3626
WVFGRD96 7.0 45 50 -5 3.25 0.3617
WVFGRD96 8.0 50 60 10 3.24 0.3576
WVFGRD96 9.0 50 60 10 3.26 0.3545
WVFGRD96 10.0 50 60 10 3.27 0.3491
WVFGRD96 11.0 50 60 10 3.29 0.3420
WVFGRD96 12.0 50 60 10 3.30 0.3334
WVFGRD96 13.0 50 60 10 3.32 0.3231
WVFGRD96 14.0 50 60 10 3.33 0.3116
WVFGRD96 15.0 50 55 10 3.35 0.2986
WVFGRD96 16.0 50 55 10 3.36 0.2859
WVFGRD96 17.0 50 55 10 3.37 0.2738
WVFGRD96 18.0 50 55 10 3.37 0.2628
WVFGRD96 19.0 50 55 10 3.38 0.2529
WVFGRD96 20.0 55 55 15 3.39 0.2441
WVFGRD96 21.0 55 55 15 3.39 0.2365
WVFGRD96 22.0 55 55 15 3.40 0.2291
WVFGRD96 23.0 55 60 15 3.40 0.2222
WVFGRD96 24.0 55 60 10 3.41 0.2171
WVFGRD96 25.0 55 60 10 3.42 0.2124
WVFGRD96 26.0 55 65 10 3.42 0.2094
WVFGRD96 27.0 55 70 10 3.43 0.2070
WVFGRD96 28.0 55 70 15 3.44 0.2066
WVFGRD96 29.0 55 70 10 3.46 0.2068
The best solution is
WVFGRD96 6.0 45 50 -10 3.23 0.3626
The mechanism correspond to the best fit is
|
|
|
The best fit as a function of depth is given in the following figure:
|
|
|

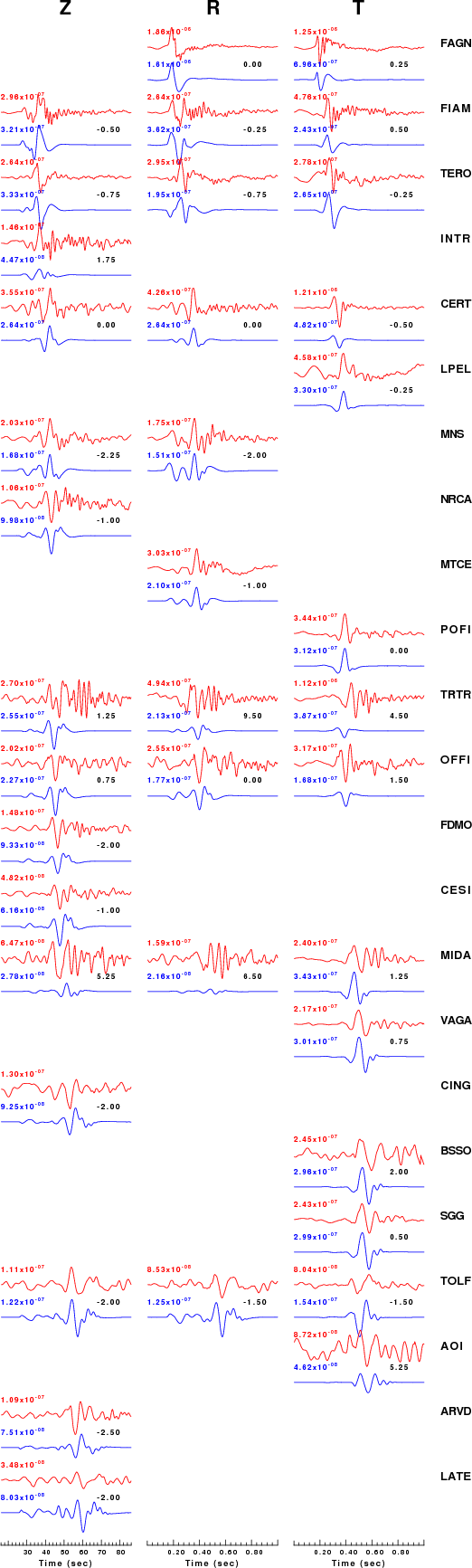

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. The number in black at the rightr of each predicted traces it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The bandpass filter used in the processing and for the display was
hp c 0.02 n 3 lp c 0.10 n 3
|
|
|
|
| Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
The nnCIA used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:
MODEL.01
C.It. A. Di Luzio et al Earth Plan Lettrs 280 (2009) 1-12 Fig 5. 7-8 MODEL/SURF3
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS
1.5000 3.7497 2.1436 2.2753 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
3.0000 4.9399 2.8210 2.4858 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
3.0000 6.0129 3.4336 2.7058 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
7.0000 5.5516 3.1475 2.6093 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
15.0000 5.8805 3.3583 2.6770 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
6.0000 7.1059 4.0081 3.0002 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
8.0000 7.1000 3.9864 3.0120 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
0.0000 7.9000 4.4036 3.2760 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
Here we tabulate the reasons for not using certain digital data sets
The following stations did not have a valid response files:
DATE=Thu Apr 30 13:39:22 CDT 2009
