2009/04/06 09:30:12 42.373 13.341 10.1 3.00 Italy
USGS Felt map for this earthquake
USGS/SLU Moment Tensor Solution
ENS 2009/04/06 09:30:12:0 42.37 13.34 10.1 3.0 Italy
Stations used:
IV.ASSB IV.CERA IV.CERT IV.CESI IV.CING IV.FDMO IV.GUAR
IV.INTR IV.LPEL IV.MGAB IV.MNS IV.MTCE IV.OFFI IV.TERO
IV.TOLF
Filtering commands used:
hp c 0.02 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 1.01e+21 dyne-cm
Mw = 3.27
Z = 9 km
Plane Strike Dip Rake
NP1 123 61 -132
NP2 5 50 -40
Principal Axes:
Axis Value Plunge Azimuth
T 1.01e+21 6 242
N 0.00e+00 36 148
P -1.01e+21 53 340
Moment Tensor: (dyne-cm)
Component Value
Mxx -9.82e+19
Mxy 5.29e+20
Mxz -5.06e+20
Myy 7.39e+20
Myz 6.91e+19
Mzz -6.40e+20
----------####
----------------######
--------------------########
----------------------########
-------------------------#########
#------------ -----------#########
##------------ P -----------##########
####----------- ------------##########
#####-------------------------##########
#######------------------------###########
#########----------------------###########
##########---------------------###########
############-------------------###########
##############---------------###########
# ############-------------###########
T ###############---------###########
####################----##########
########################----------
#####################---------
##################----------
##############--------
#######-------
Global CMT Convention Moment Tensor:
R T P
-6.40e+20 -5.06e+20 -6.91e+19
-5.06e+20 -9.82e+19 -5.29e+20
-6.91e+19 -5.29e+20 7.39e+20
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20090406093012/index.html
|
STK = 5
DIP = 50
RAKE = -40
MW = 3.27
HS = 9.0
The waveform inversion is preferred.
The following compares this source inversion to others
USGS/SLU Moment Tensor Solution
ENS 2009/04/06 09:30:12:0 42.37 13.34 10.1 3.0 Italy
Stations used:
IV.ASSB IV.CERA IV.CERT IV.CESI IV.CING IV.FDMO IV.GUAR
IV.INTR IV.LPEL IV.MGAB IV.MNS IV.MTCE IV.OFFI IV.TERO
IV.TOLF
Filtering commands used:
hp c 0.02 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 1.01e+21 dyne-cm
Mw = 3.27
Z = 9 km
Plane Strike Dip Rake
NP1 123 61 -132
NP2 5 50 -40
Principal Axes:
Axis Value Plunge Azimuth
T 1.01e+21 6 242
N 0.00e+00 36 148
P -1.01e+21 53 340
Moment Tensor: (dyne-cm)
Component Value
Mxx -9.82e+19
Mxy 5.29e+20
Mxz -5.06e+20
Myy 7.39e+20
Myz 6.91e+19
Mzz -6.40e+20
----------####
----------------######
--------------------########
----------------------########
-------------------------#########
#------------ -----------#########
##------------ P -----------##########
####----------- ------------##########
#####-------------------------##########
#######------------------------###########
#########----------------------###########
##########---------------------###########
############-------------------###########
##############---------------###########
# ############-------------###########
T ###############---------###########
####################----##########
########################----------
#####################---------
##################----------
##############--------
#######-------
Global CMT Convention Moment Tensor:
R T P
-6.40e+20 -5.06e+20 -6.91e+19
-5.06e+20 -9.82e+19 -5.29e+20
-6.91e+19 -5.29e+20 7.39e+20
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20090406093012/index.html
|

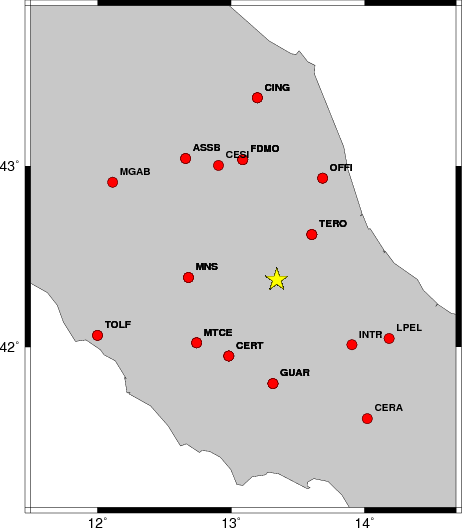

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.
|
|
|
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
hp c 0.02 n 3 lp c 0.10 n 3The results of this grid search from 0.5 to 19 km depth are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 0.5 245 35 65 2.99 0.2450
WVFGRD96 1.0 230 40 40 3.03 0.2482
WVFGRD96 2.0 220 35 25 3.13 0.2902
WVFGRD96 3.0 215 40 20 3.14 0.3360
WVFGRD96 4.0 215 50 25 3.16 0.3682
WVFGRD96 5.0 15 40 -15 3.23 0.3958
WVFGRD96 6.0 0 40 -50 3.28 0.4349
WVFGRD96 7.0 0 45 -50 3.29 0.4633
WVFGRD96 8.0 5 50 -40 3.26 0.4622
WVFGRD96 9.0 5 50 -40 3.27 0.4640
WVFGRD96 10.0 10 55 -30 3.28 0.4623
WVFGRD96 11.0 10 55 -30 3.29 0.4563
WVFGRD96 12.0 15 55 -25 3.30 0.4471
WVFGRD96 13.0 15 55 -20 3.30 0.4377
WVFGRD96 14.0 15 55 -20 3.31 0.4273
WVFGRD96 15.0 15 55 -20 3.34 0.4230
WVFGRD96 16.0 15 55 -20 3.35 0.4141
WVFGRD96 17.0 20 55 -15 3.36 0.4066
WVFGRD96 18.0 20 55 -10 3.37 0.4001
WVFGRD96 19.0 20 55 -10 3.38 0.3939
WVFGRD96 20.0 20 55 -10 3.38 0.3881
WVFGRD96 21.0 20 50 -5 3.39 0.3836
WVFGRD96 22.0 25 50 0 3.40 0.3806
WVFGRD96 23.0 25 50 0 3.41 0.3791
WVFGRD96 24.0 25 50 0 3.42 0.3766
WVFGRD96 25.0 25 50 0 3.43 0.3726
WVFGRD96 26.0 20 55 -5 3.44 0.3694
WVFGRD96 27.0 20 55 -10 3.45 0.3667
WVFGRD96 28.0 20 55 -5 3.46 0.3644
WVFGRD96 29.0 20 60 -5 3.47 0.3614
The best solution is
WVFGRD96 9.0 5 50 -40 3.27 0.4640
The mechanism correspond to the best fit is
|
|
|

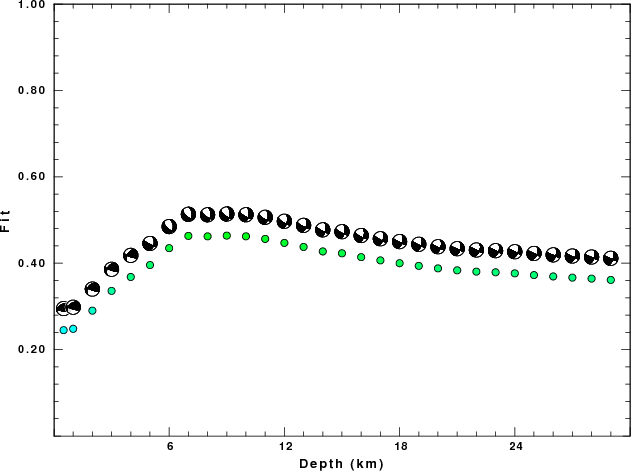

The best fit as a function of depth is given in the following figure:
|
|
|

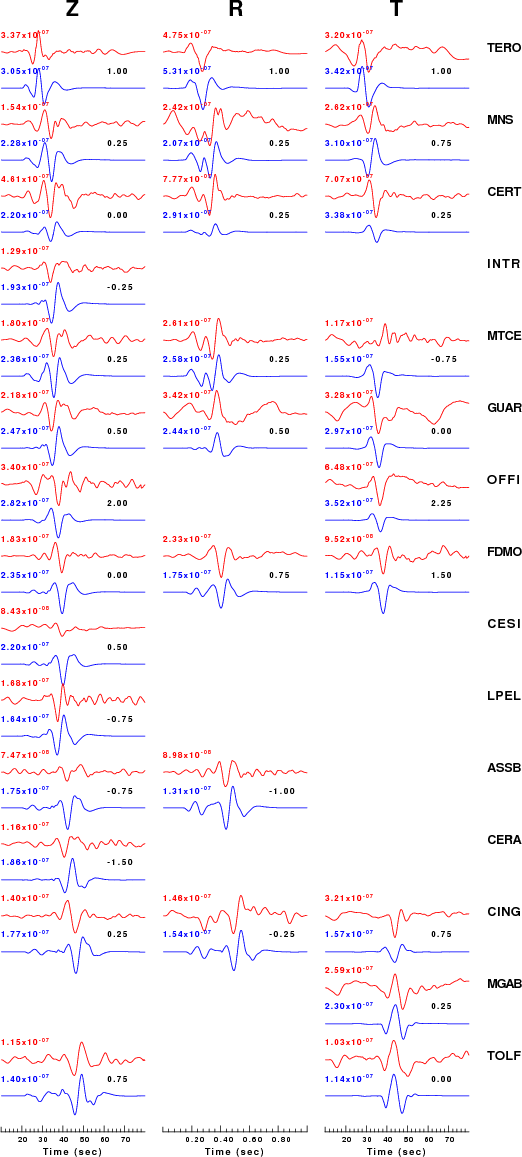

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. The number in black at the rightr of each predicted traces it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The bandpass filter used in the processing and for the display was
hp c 0.02 n 3 lp c 0.10 n 3
|
|
|
|

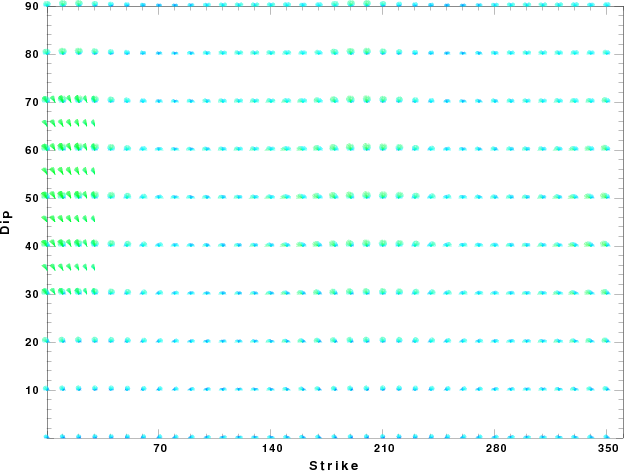

| Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
The nnCIA used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:
MODEL.01
C.It. A. Di Luzio et al Earth Plan Lettrs 280 (2009) 1-12 Fig 5. 7-8 MODEL/SURF3
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS
1.5000 3.7497 2.1436 2.2753 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
3.0000 4.9399 2.8210 2.4858 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
3.0000 6.0129 3.4336 2.7058 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
7.0000 5.5516 3.1475 2.6093 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
15.0000 5.8805 3.3583 2.6770 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
6.0000 7.1059 4.0081 3.0002 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
8.0000 7.1000 3.9864 3.0120 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
0.0000 7.9000 4.4036 3.2760 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
