2009/04/06 07:28:45 42.347 13.390 15.0 3.0 ITALY
USGS Felt map for this earthquake
USGS/SLU Moment Tensor Solution
ENS 2009/04/06 07:28:45:0 42.35 13.39 15.0 3.0 ITALY
Stations used:
IV.CERT IV.GUAR IV.INTR IV.MNS IV.NRCA IV.TERO
Filtering commands used:
hp c 0.02 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 1.43e+21 dyne-cm
Mw = 3.37
Z = 7 km
Plane Strike Dip Rake
NP1 134 78 -144
NP2 35 55 -15
Principal Axes:
Axis Value Plunge Azimuth
T 1.43e+21 15 260
N 0.00e+00 52 150
P -1.43e+21 34 0
Moment Tensor: (dyne-cm)
Component Value
Mxx -9.48e+20
Mxy 2.23e+20
Mxz -7.21e+20
Myy 1.30e+21
Myz -3.50e+20
Mzz -3.48e+20
--------------
----------------------
------------- ----------##
-------------- P -----------##
###------------- -----------####
#####--------------------------#####
#######-------------------------######
##########----------------------########
###########---------------------########
##############------------------##########
################----------------##########
## ############--------------###########
## T ##############-----------############
# ################--------############
#######################---##############
######################################
#####################----###########
##################---------#######
#############----------------#
########--------------------
----------------------
--------------
Global CMT Convention Moment Tensor:
R T P
-3.48e+20 -7.21e+20 3.50e+20
-7.21e+20 -9.48e+20 -2.23e+20
3.50e+20 -2.23e+20 1.30e+21
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20090406072845/index.html
|
STK = 35
DIP = 55
RAKE = -15
MW = 3.37
HS = 7.0
The waveform inversion is preferred.
The following compares this source inversion to others
USGS/SLU Moment Tensor Solution
ENS 2009/04/06 07:28:45:0 42.35 13.39 15.0 3.0 ITALY
Stations used:
IV.CERT IV.GUAR IV.INTR IV.MNS IV.NRCA IV.TERO
Filtering commands used:
hp c 0.02 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 1.43e+21 dyne-cm
Mw = 3.37
Z = 7 km
Plane Strike Dip Rake
NP1 134 78 -144
NP2 35 55 -15
Principal Axes:
Axis Value Plunge Azimuth
T 1.43e+21 15 260
N 0.00e+00 52 150
P -1.43e+21 34 0
Moment Tensor: (dyne-cm)
Component Value
Mxx -9.48e+20
Mxy 2.23e+20
Mxz -7.21e+20
Myy 1.30e+21
Myz -3.50e+20
Mzz -3.48e+20
--------------
----------------------
------------- ----------##
-------------- P -----------##
###------------- -----------####
#####--------------------------#####
#######-------------------------######
##########----------------------########
###########---------------------########
##############------------------##########
################----------------##########
## ############--------------###########
## T ##############-----------############
# ################--------############
#######################---##############
######################################
#####################----###########
##################---------#######
#############----------------#
########--------------------
----------------------
--------------
Global CMT Convention Moment Tensor:
R T P
-3.48e+20 -7.21e+20 3.50e+20
-7.21e+20 -9.48e+20 -2.23e+20
3.50e+20 -2.23e+20 1.30e+21
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20090406072845/index.html
|

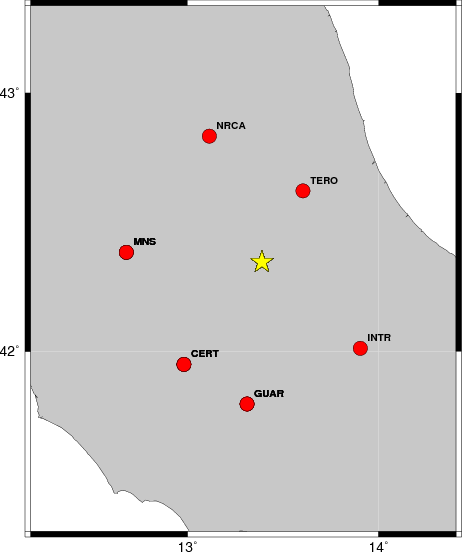

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.
|
|
|
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
hp c 0.02 n 3 lp c 0.10 n 3The results of this grid search from 0.5 to 19 km depth are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 0.5 245 50 30 3.13 0.4052
WVFGRD96 1.0 240 45 30 3.18 0.4187
WVFGRD96 2.0 235 45 25 3.26 0.4679
WVFGRD96 3.0 230 50 20 3.27 0.4948
WVFGRD96 4.0 225 60 10 3.29 0.5216
WVFGRD96 5.0 35 50 -15 3.35 0.5526
WVFGRD96 6.0 35 55 -15 3.36 0.5836
WVFGRD96 7.0 35 55 -15 3.37 0.5967
WVFGRD96 8.0 35 60 -10 3.36 0.5907
WVFGRD96 9.0 35 60 -10 3.37 0.5890
WVFGRD96 10.0 35 60 -10 3.38 0.5835
WVFGRD96 11.0 35 60 -10 3.39 0.5770
WVFGRD96 12.0 35 60 -10 3.40 0.5692
WVFGRD96 13.0 40 65 0 3.42 0.5608
WVFGRD96 14.0 40 65 0 3.43 0.5550
WVFGRD96 15.0 40 60 -5 3.45 0.5469
WVFGRD96 16.0 40 60 -5 3.46 0.5371
WVFGRD96 17.0 40 60 0 3.46 0.5276
WVFGRD96 18.0 45 65 10 3.48 0.5204
WVFGRD96 19.0 45 65 10 3.49 0.5191
WVFGRD96 20.0 45 65 10 3.50 0.5196
WVFGRD96 21.0 45 65 10 3.51 0.5206
WVFGRD96 22.0 45 65 10 3.52 0.5208
WVFGRD96 23.0 45 65 10 3.53 0.5200
WVFGRD96 24.0 45 65 10 3.54 0.5163
WVFGRD96 25.0 45 65 10 3.54 0.5103
WVFGRD96 26.0 45 65 10 3.55 0.5026
WVFGRD96 27.0 45 65 5 3.56 0.4939
WVFGRD96 28.0 45 65 5 3.57 0.4920
WVFGRD96 29.0 45 65 5 3.59 0.4923
The best solution is
WVFGRD96 7.0 35 55 -15 3.37 0.5967
The mechanism correspond to the best fit is
|
|
|

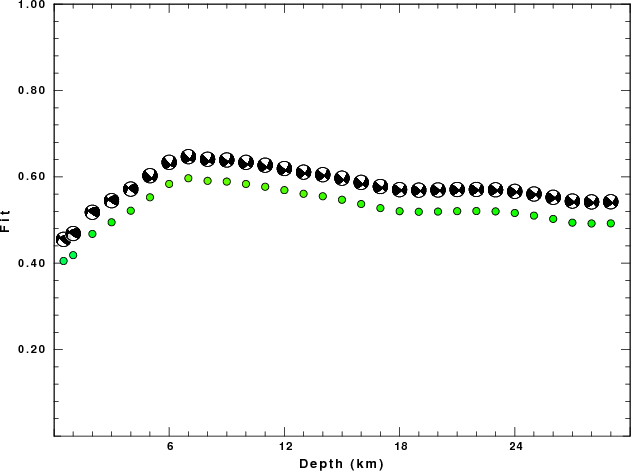

The best fit as a function of depth is given in the following figure:
|
|
|

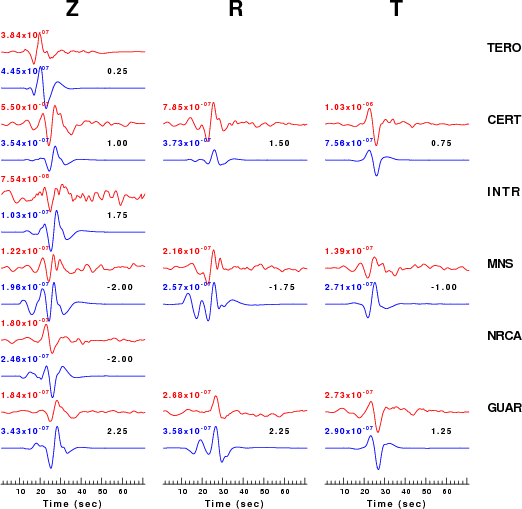

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. The number in black at the rightr of each predicted traces it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The bandpass filter used in the processing and for the display was
hp c 0.02 n 3 lp c 0.10 n 3
|
|
|
|

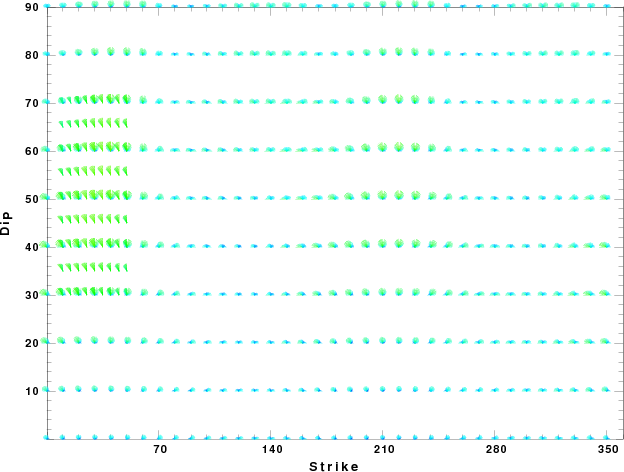

| Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
The nnCIA used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:
MODEL.01
C.It. A. Di Luzio et al Earth Plan Lettrs 280 (2009) 1-12 Fig 5. 7-8 MODEL/SURF3
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS
1.5000 3.7497 2.1436 2.2753 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
3.0000 4.9399 2.8210 2.4858 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
3.0000 6.0129 3.4336 2.7058 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
7.0000 5.5516 3.1475 2.6093 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
15.0000 5.8805 3.3583 2.6770 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
6.0000 7.1059 4.0081 3.0002 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
8.0000 7.1000 3.9864 3.0120 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
0.0000 7.9000 4.4036 3.2760 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
Here we tabulate the reasons for not using certain digital data sets
The following stations did not have a valid response files:
DATE=Wed Sep 2 08:39:09 CDT 2009
