2008/12/23 15:24:21 44.544 10.345 22.9 5.20 Italy
USGS Felt map for this earthquake
USGS/SLU Moment Tensor Solution ENS 2008/12/23 15:24:21:7 44.54 10.35 22.9 5.2 Italy Stations used: IV.CERT IV.MABI IV.ROVR IV.SGG MN.TRI MN.TUE NI.CGRP NI.PALA Filtering commands used: hp c 0.02 n 3 lp c 0.05 n 3 Best Fitting Double Couple Mo = 8.22e+23 dyne-cm Mw = 5.21 Z = 22 km Plane Strike Dip Rake NP1 95 55 80 NP2 292 36 104 Principal Axes: Axis Value Plunge Azimuth T 8.22e+23 77 331 N 0.00e+00 8 101 P -8.22e+23 9 192 Moment Tensor: (dyne-cm) Component Value Mxx -7.35e+23 Mxy -1.81e+23 Mxz 2.83e+23 Myy -2.61e+22 Myz -5.74e+22 Mzz 7.61e+23 -------------- ---------------------- ---------------------------- -------#######---------------- ---####################----------- -##########################--------- ###############################------- ##################################------ ################# ###############----- ################## T ################----- -################# #################---- --#####################################--- ----####################################-# ------################################-# ----------########################-----# ---------------#############---------- ------------------------------------ ---------------------------------- ------------------------------ ---------------------------- ------ ------------- -- P --------- Global CMT Convention Moment Tensor: R T P 7.61e+23 2.83e+23 5.74e+22 2.83e+23 -7.35e+23 1.81e+23 5.74e+22 1.81e+23 -2.61e+22 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20081223152421/index.html |
STK = 95 DIP = 55 RAKE = 80 MW = 5.21 HS = 22.0
The waveform inversion is preferred. I hasd to use 0.02 - 0.05 instead of the 0.02 - 0.10 frequency band

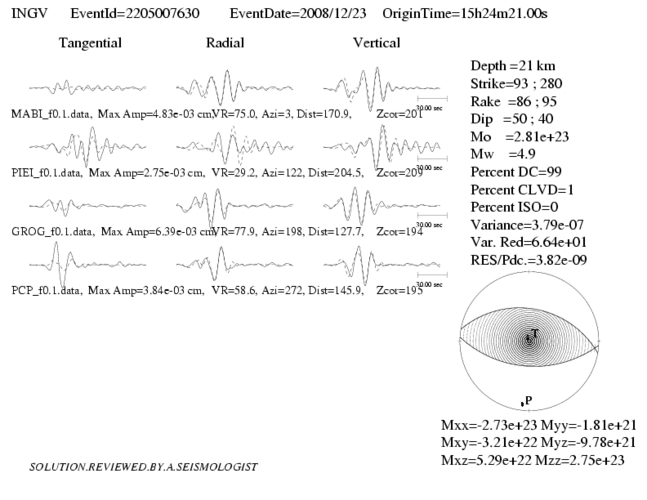

The following compares this source inversion to others
USGS/SLU Moment Tensor Solution ENS 2008/12/23 15:24:21:7 44.54 10.35 22.9 5.2 Italy Stations used: IV.CERT IV.MABI IV.ROVR IV.SGG MN.TRI MN.TUE NI.CGRP NI.PALA Filtering commands used: hp c 0.02 n 3 lp c 0.05 n 3 Best Fitting Double Couple Mo = 8.22e+23 dyne-cm Mw = 5.21 Z = 22 km Plane Strike Dip Rake NP1 95 55 80 NP2 292 36 104 Principal Axes: Axis Value Plunge Azimuth T 8.22e+23 77 331 N 0.00e+00 8 101 P -8.22e+23 9 192 Moment Tensor: (dyne-cm) Component Value Mxx -7.35e+23 Mxy -1.81e+23 Mxz 2.83e+23 Myy -2.61e+22 Myz -5.74e+22 Mzz 7.61e+23 -------------- ---------------------- ---------------------------- -------#######---------------- ---####################----------- -##########################--------- ###############################------- ##################################------ ################# ###############----- ################## T ################----- -################# #################---- --#####################################--- ----####################################-# ------################################-# ----------########################-----# ---------------#############---------- ------------------------------------ ---------------------------------- ------------------------------ ---------------------------- ------ ------------- -- P --------- Global CMT Convention Moment Tensor: R T P 7.61e+23 2.83e+23 5.74e+22 2.83e+23 -7.35e+23 1.81e+23 5.74e+22 1.81e+23 -2.61e+22 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20081223152421/index.html |

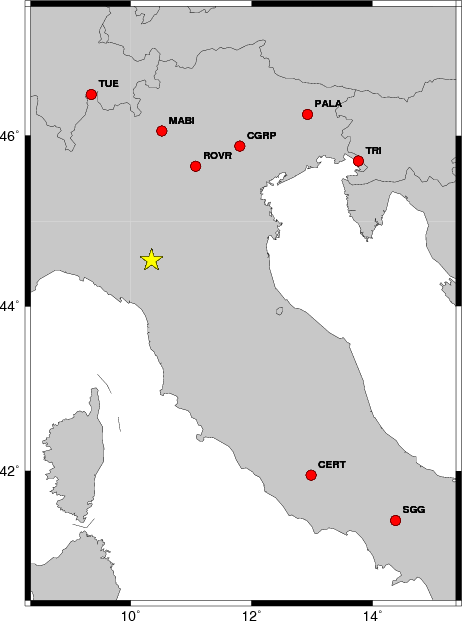

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.
![]() |
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
hp c 0.02 n 3 lp c 0.05 n 3The results of this grid search from 0.5 to 19 km depth are as follow:
DEPTH STK DIP RAKE MW FIT WVFGRD96 0.5 105 35 -90 4.91 0.3805 WVFGRD96 1.0 285 50 -90 4.94 0.3826 WVFGRD96 2.0 105 35 90 5.00 0.3710 WVFGRD96 3.0 105 40 90 5.04 0.3321 WVFGRD96 4.0 295 90 80 5.06 0.2865 WVFGRD96 5.0 290 90 85 5.16 0.3241 WVFGRD96 6.0 40 -10 20 5.13 0.3718 WVFGRD96 7.0 40 -10 20 5.13 0.4139 WVFGRD96 8.0 20 10 5 5.08 0.4519 WVFGRD96 9.0 25 10 10 5.08 0.4817 WVFGRD96 10.0 25 10 10 5.08 0.5082 WVFGRD96 11.0 25 10 10 5.08 0.5305 WVFGRD96 12.0 105 30 90 5.14 0.5589 WVFGRD96 13.0 105 50 90 5.16 0.5995 WVFGRD96 14.0 105 50 90 5.17 0.6387 WVFGRD96 15.0 105 50 90 5.19 0.6627 WVFGRD96 16.0 100 50 85 5.19 0.6888 WVFGRD96 17.0 100 50 85 5.20 0.7085 WVFGRD96 18.0 100 50 85 5.20 0.7226 WVFGRD96 19.0 100 50 85 5.20 0.7323 WVFGRD96 20.0 100 55 85 5.20 0.7386 WVFGRD96 21.0 100 55 85 5.20 0.7421 WVFGRD96 22.0 95 55 80 5.21 0.7429 WVFGRD96 23.0 95 55 80 5.21 0.7414 WVFGRD96 24.0 95 55 80 5.22 0.7377 WVFGRD96 25.0 95 55 80 5.23 0.7319 WVFGRD96 26.0 95 55 75 5.24 0.7247 WVFGRD96 27.0 95 60 75 5.24 0.7173 WVFGRD96 28.0 95 60 75 5.25 0.7082 WVFGRD96 29.0 95 60 75 5.26 0.6982
The best solution is
WVFGRD96 22.0 95 55 80 5.21 0.7429
The mechanism correspond to the best fit is
![]() |
|

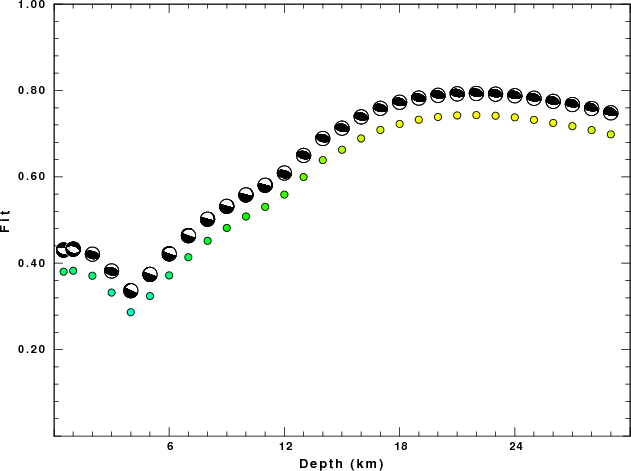

The best fit as a function of depth is given in the following figure:
![]() |
|

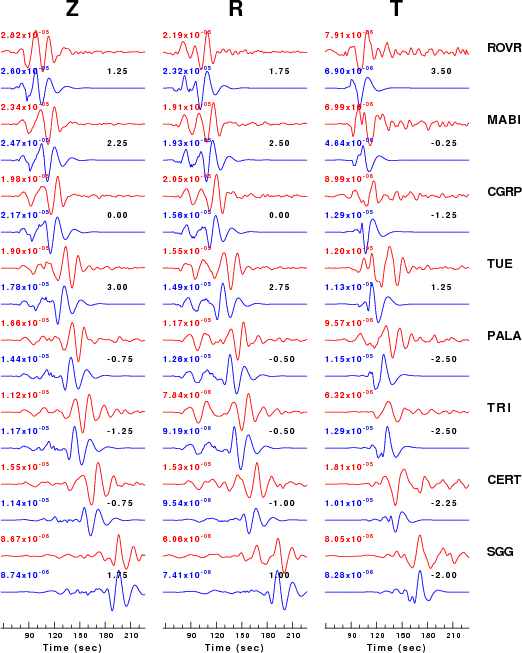

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. The number in black at the rightr of each predicted traces it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The bandpass filter used in the processing and for the display was
hp c 0.02 n 3 lp c 0.05 n 3
![]() |
|
![]() |

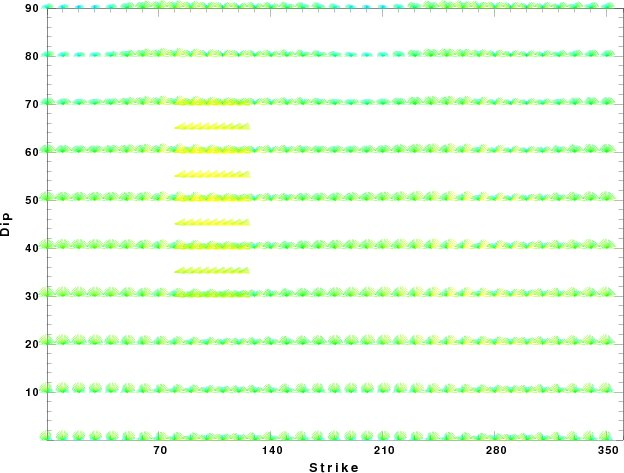

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
The nnCIA used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:
MODEL.01 C.It. A. Di Luzio et al Earth Plan Lettrs 280 (2009) 1-12 Fig 5. 7-8 MODEL/SURF3 ISOTROPIC KGS FLAT EARTH 1-D CONSTANT VELOCITY LINE08 LINE09 LINE10 LINE11 H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS 1.5000 3.7497 2.1436 2.2753 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00 3.0000 4.9399 2.8210 2.4858 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00 3.0000 6.0129 3.4336 2.7058 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00 7.0000 5.5516 3.1475 2.6093 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00 15.0000 5.8805 3.3583 2.6770 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00 6.0000 7.1059 4.0081 3.0002 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00 8.0000 7.1000 3.9864 3.0120 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00 0.0000 7.9000 4.4036 3.2760 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
Here we tabulate the reasons for not using certain digital data sets
The following stations did not have a valid response files:
DATE=Wed May 13 10:22:59 CDT 2009
