Initial USGS Location
2009/07/18 20:32:27 35.8450 43.3490 7.4 5.20 Iraq
Initial Arrival Times (from USGS)
Arrival time list
USGS FINAL PDF
The final PDE location given at the USGS PDE site is
18 20 32 29.9 35.888 N 43.353 E 26 5.3 A 0.8 44 178 IRAQ. Felt (IV) at Baghdad, Dahuk, Irbil and Mosul;
(III) at Bayji and Sinjar; (II) at Kirkuk and Tall
Afar. Also felt at Ad Diwaniyah, Al Jubayhah, Al
Khalis, Al Najaf, Al Qadisiah, Aqrah, As
Sulaymaniyah, Baqubah, Tikrit and Zakhu. Felt at
Marivan, Orumiyeh, Oshnaviyeh and Sanandaj, Iran. Felt
(II) at Ceylanpinar, Syria. Also felt at Al Hasakah
and Dayr az Zawr. Felt (II) at Diyarbakir, Turkey.
Also felt at Batman, Idil, Kiziltepe, Mardin, Semdinli
and Yuksekova.
The phase information used by the USGS is
HY20090718 203229.99 35.888N 43.353E 25.8 0.80178d375
E 1.23 3.26 2.49 8.7 5.3 114
L 278.4980.761.34E+01181.95 1.064.96E+00 91.78 9.183.18E+00
A 178 178 44.6 5.3MBGS 0 0 0A
C Felt (IV) at Baghdad, Dahuk, Irbil and Mosul; (III) at Bay
C ji and Sinjar; (II) at Kirkuk and Tall Afar. Also felt at
C Ad Diwaniyah, Al Jubayhah, Al Khalis, Al Najaf, Al Qadisi
C ah, Aqrah, As Sulaymaniyah, Baqubah, Tikrit and Zakhu. F
C elt at Marivan, Orumiyeh, Oshnaviyeh and Sanandaj, Iran. F
C elt (II) at Ceylanpinar, Syria. Also felt at Al Hasakah an
C d Dayr az Zawr. Felt (II) at Diyarbakir, Turkey. Also felt
C at Batman, Idil, Kiziltepe, Mardin, Semdinli and Yuksekov
C a.
AH20090718 203229.50 36.009N 43.268E 33.0 -1.0 -1 -1LDG
AE-1.00 -1.00 -1.00 -1.0 -1.00.0 0.0
P GNI Pn 203336.16 1.0 4.39 14.0
S Lg 203444.56
P ASF Pn 203404.19 -0.1 6.51 237.2
P MMAI Pn 203413.43 0.3 7.16 248.7
S Lg 203615.57
P KBZ Pn 203425.65 3.4X 7.84 357.6
P CSS ePn 203428.53 0.8 8.23 266.5
P BRTR Pn 203433.90 1.1 8.59 299.4
S Sn 203609.80
P EIL Pn 203444.30 0.5 9.40 231.1
S Lg 203725.67
P ANTO ePn 203445.56 3.9X 9.24 298.6
P TIRR ePn 203550.93 0.9 14.26 311.4
P SANT ePn 203553.43 0.3 14.47 277.2
P IDI ePn 203601.48 0.7 15.04 273.1 0.7 66.4935.1
P GVD ePn 203610.37 0.3 15.76 271.8
P MLR Pn 203618.22 1.2 16.29 311.4
P AKTO P 203636.70 -1.5 18.00 31.6
P KIEV eP 203637.47 -0.5 17.98 329.8 0.8 54.8904.7
P TIR eP 203652.51 1.5 19.12 293.7 1.4 248.7915.3
P KWP eP 203704.94 0.5 20.37 318.8 1.1 71.4014.9
P PSZ eP 203712.83 0.3 21.10 312.0 0.9 57.3805.0
P TIP eP 203714.13 -0.8 21.32 286.8 1.1 85.8445.1
P CEL eP 203721.04 -1.3 22.01 284.4 0.8 58.1645.1
P CUC eP 203723.32 0.4 22.06 289.0 1.0 67.3305.0
P OJC eP 203724.78 -0.1 22.26 317.3 0.8 35.1004.9
P SUW eP 203731.47 -0.4 22.93 328.5 1.1 320.8405.8
P MORC eP 203735.72 -0.4 23.32 314.5 1.7 95.6695.0
P VRAC P 203739.43 -0.1 23.68 312.8
P AQU eP 203743.68 0.8 24.04 294.7 1.3 127.3075.3
P AAK P 203750.89 -0.4 24.94 64.8
P GERESP 203754.08 0.0 25.27 310.0
P KHC eP 203755.64 0.0 25.44 310.6
P BRVK eP 203757.01 0.6 25.54 39.4 1.0 51.2495.1
P BVAR P 203757.34 0.6 25.58 39.5
S PKiKP 204908.11
P VSL eP 203810.22 0.2 27.03 287.9 0.8 71.5595.3
P GRFO eP 203810.30 -0.1 27.08 310.6 1.1 85.3185.3
P DAVOXP 203811.87 0.2 27.19 304.0
P PGF eP 203812.50 -0.1 27.30 294.6 1.0 107.5005.4
P TUE eP 203814.27 -0.1 27.50 303.2 1.6 62.6575.0
P KEST P 203815.97 1.6 27.50 279.8
P FINESP 203815.97 -0.9 27.82 342.2
S PKiKP 204907.90
P STU eP 203817.89 -1.6 28.09 307.9 1.1 35.3475.0
P BFO eP 203822.32 -1.2 28.55 306.7 0.8 7.8014.5
P SBF iPc 203823.70 0.3 28.52 297.3 1.0 141.9005.7
P FRF eP 203828.30 0.1 29.07 296.6 1.4 193.7005.7
P MBDF iPc 203828.40 0.1 29.06 299.0 1.2 121.0005.5
P ECH eP 203828.88 -1.2 29.29 306.2 1.0 21.8754.9
P LPG iPc 203829.00 -0.2 29.15 300.6 1.0 66.3005.3
P LPL iPc 203829.10 -0.2 29.16 300.6 1.0 45.6005.2
P BNI eP 203829.14 0.1 29.15 299.6 1.2 110.3305.5
P LMR eP 203829.20 0.2 29.16 296.1 1.4 114.4005.4
P CDF iPc 203830.30 0.4 29.25 306.6 1.0 23.8004.9
P HINF iPc 203830.60 -0.7 29.41 305.3 1.3 40.4005.0
P KURK P 203830.63 0.4 29.31 48.6
S PcP 204136.88 PKiKP 204909.33
P ORIF iPc 203832.80 -1.1 29.71 299.3 0.9 37.7005.2
P CABF iPc 203834.20 0.0 29.74 302.7 0.9 87.5005.6
P SMRF eP 203835.40 0.1 29.87 297.4
P WLF eP 203837.22 -1.3 30.24 308.7 1.0 31.6725.1
P PAGF iPc 203838.60 -0.4 30.29 306.5 1.2 19.9004.8
P VIVF iPc 203840.80 -0.6 30.56 299.0 1.2 86.1005.5
P SSB eP 203841.18 -1.3 30.68 299.9 1.1 22.0394.9
P SFTF iPc 203841.90 -0.5 30.68 305.6 1.2 119.6005.6
P MEZF iPc 203842.40 -0.3 30.72 306.2 1.0 141.4005.7
P HFS P 203843.92 0.1 30.86 331.1
P MKAR P 203845.20 0.8 30.91 57.2
P LASF eP 203846.10 -0.1 31.11 297.5 1.3 176.6005.7
P GIVF eP 203846.80 0.1 31.18 309.2 0.9 23.3005.0
P SMF iPc 203847.20 -0.5 31.28 302.4 1.0 73.9005.5
P LOR iPc 203847.30 -0.9 31.34 303.6 1.2 48.7005.2
P SSF iPc 203849.60 -0.5 31.55 303.2 1.0 56.7005.4
P BAIF iPc 203850.20 0.1 31.56 309.0 1.2 83.7005.5
P AVF iPc 203850.30 -0.5 31.63 302.6 1.0 76.6005.5
P BGF iPc 203853.20 -0.5 31.96 302.1 1.2 44.9005.3
P HYF eP 203855.60 0.1 32.16 303.4
P KONO qP 203856.09 0.0 32.26 328.1
P MTLF eP 203856.30 -0.3 32.29 296.1 1.5 78.8005.4
P NOA P 203856.70 -0.6 32.38 331.1
S PcP 204144.63
P TCF iPc 203857.30 -0.1 32.38 301.6 1.2 112.6005.7
P CAF iPc 203857.50 -0.2 32.41 299.0 1.3 96.3005.5
P RJF iPc 203901.40 0.2 32.81 299.7 1.1 170.9005.9
P LFF iPc 203905.90 0.0 33.35 299.0 1.3 131.4005.7
P EPF eP 203908.50 -0.3 33.67 295.6 1.4 59.7005.3
P ZALV P 203909.63 -0.5 33.86 44.6
S PcP 204148.58
P MFF iPc 203911.00 -0.7 34.02 302.0 0.8 41.9005.4
P LDF eP 203911.40 -1.3 34.14 305.5 1.4 86.8005.5
P ETSF eP 203914.20 -0.4 34.34 295.4 1.3 47.4005.3
P FLN iPc 203914.60 -0.3 34.39 305.8 1.4 106.3005.6
P GRR iPc 203915.80 -1.0 34.61 305.1 1.1 105.6005.7
P SJPF eP 203918.20 -0.4 34.82 295.8 1.4 112.0005.6
P ARE0 qP 203920.62 -0.1 35.10 349.2
P ARCESP 203921.27 0.6 35.10 349.2
S PcP 204151.90
P TAM eP 203924.33 1.7 35.24 258.7 1.0 40.2255.3
P SGMF iPc 203925.80 -0.6 35.73 304.7 1.3 202.5005.9
P QUIF eP 203928.70 -1.1 36.13 304.1 1.0 105.0005.7
P ROSF iPc 203929.70 -0.9 36.22 304.8 0.8 71.1005.6
P EKA P 203937.60 0.2 37.03 316.5
P KMBO eP 203938.18 -1.8 37.26 190.1
P ESDC P 203939.58 0.0 37.25 290.4
S PcP 204158.60
P PAB eP 203942.33 0.1 37.57 290.3 1.4 48.3925.1
P LSA eP 204006.21 0.2 40.33 84.8 1.3 71.0025.2
P EVOP iPc 204007.40 -0.5 40.65 289.6 1.5 86.5005.3
P TORD P 204031.95 -1.1 43.71 249.6
S PcP 204220.47
P TOA0 eP 204032.38 -1.0 43.71 249.6
P SPITSP 204033.86 -0.2 43.92 352.2
P PALK eP 204039.37 0.2 44.46 120.8 1.2 54.7155.3
P SONM P 204101.26 0.6 47.21 54.9
S PcP 204232.46
P ULN eP 204104.74 0.7 47.64 54.8 1.0 36.8425.4
P CHTO eP 204133.07 -1.0 51.56 93.8 0.8 15.6585.0
P CMAR P 204134.70 -0.7 51.74 94.2
P DBIC P 204142.78 -0.4 52.78 248.4
P LSZ eP 204145.62 1.8 52.87 198.5 1.0 8.4014.6
P LIC iPc 204146.00 -0.2 53.20 248.2 0.7 57.7005.7
P SUMG eP 204150.91 0.9 53.75 338.3 1.1 25.4605.1
P ENH qP 204157.15 -0.4 54.76 75.6 0.9 10.9824.9
P HIA eP 204203.33 0.6 55.52 50.6 0.8 14.4165.1
P BJT qP 204206.82 0.0 56.08 62.1
P TSUM eP 204235.98 1.5 59.98 208.3 1.5 16.1334.9
P PSI P 204239.10 -2.1 60.93 109.5
P IPM eP 204241.80 -2.2 61.37 106.3 0.9 18.8975.2
P KSAR P 204310.70 -0.2 65.49 60.6
P BOSA P 204317.32 0.6 66.38 197.3
P YHNB eP 204319.66 0.6 66.70 75.7 1.1 53.2945.6
P KSM eP 204341.74 -1.4 70.57 102.7 1.1 10.5744.9
P SCHQ P 204350.25 0.8 71.71 325.1
P MJAR P 204357.38 -0.8 73.11 57.0
P MAJO eP 204357.39 -0.8 73.10 57.0 0.9 7.2914.7
P PETK P 204405.65 -1.6 74.71 34.7
P COLD eP 204419.10 0.8 76.69 5.4 1.0 23.7815.2
P PQI eP 204422.62 0.4 77.33 318.9 1.3 120.1445.8
P COLA eP 204433.25 1.1 79.19 4.8 0.9 191.0056.1
P ILAR P 204433.30 0.2 79.35 4.4
S PKKPbc 210322.45
P EGAK eP 204435.07 0.6 79.60 2.0 1.0 31.2975.3
P MCK eP 204438.30 0.3 80.24 5.5 1.2 45.0955.4
P TRF eP 204438.40 -0.6 80.40 6.2 1.2 22.5515.1
P YKA P 204439.19 0.6 80.36 349.8
S PKKPbc 210321.59
P PPLA eP 204441.55 0.6 80.77 7.1 1.2 27.7745.2
P LBNH eP 204443.50 1.1 81.00 318.8 1.2 49.6025.4
P MENT qP 204444.86 0.9 81.35 3.3
P FRNY eP 204445.19 0.3 81.47 320.1 1.3 45.0625.3
P HNH eP 204446.27 1.0 81.55 318.6 1.1 62.7315.5
P MDV eP 204447.46 0.7 81.83 319.3
P SML eP 204448.74 0.4 82.19 5.6 0.8 11.4325.0
P LONY eP 204449.01 0.6 82.13 320.4 0.9 28.0445.3
P PMR eP 204450.05 1.0 82.34 6.0 1.0 32.8835.3
P BRYW eP 204450.37 0.9 82.34 316.9 1.0 41.4985.4
P ACCN eP 204450.83 0.5 82.50 319.1 1.1 36.6635.3
P RSO eP 204453.59 0.3 83.09 8.0 0.8 21.3065.3
P BMRM eP 204453.97 -0.1 83.27 3.9 1.0 15.9815.1
P DIV eP 204454.35 1.5 83.04 4.4 0.9 43.4265.6
P BINY eP 204500.84 -0.1 84.55 319.4 1.0 29.7245.5
P PNL eP 204502.61 1.0 84.77 1.4 1.0 37.4445.6
P FFC eP 204503.15 0.5 84.95 340.7 1.1 22.6175.3
P KDAK eP 204507.63 1.2 85.73 8.5 1.0 55.6025.7
P CHGN eP 204508.05 -1.3 86.32 12.0
P OHAK eP 204509.95 1.3 86.19 9.0 1.2 44.6035.6
P ULM P 204513.35 0.6 86.98 335.2
P COWI eP 204516.91 -0.2 87.85 329.1 0.9 13.4075.2
P WRAK eP 204519.06 1.3 88.06 357.4 0.8 24.7715.6
P AGMN eP 204519.86 -0.8 88.63 334.1 0.9 8.4225.1
P CRAG qP 204520.81 -1.2 88.96 358.0
P HDIL eP 204538.62 0.4 92.36 325.9 1.1 47.6465.8
P WCI eP 204539.85 -0.4 92.78 322.6
P ECSD eP 204540.18 0.0 92.79 332.2 1.0 15.0255.4
P USIN eP 204543.85 -0.4 93.65 323.3 1.3 103.6776.1
P CPCT eP 204545.10 -0.9 94.02 319.8
P BSMT eP 204547.54 -0.1 94.37 345.4 0.9 4.6364.9
P FITZ P 204547.71 -0.1 94.39 109.0
P NEW eP 204547.72 0.1 94.43 347.1 1.2 13.6875.3
P SIUC eP 204548.49 -0.1 94.60 324.1 1.1 42.5605.8
P SWMT qP 204549.26 1.0 94.53 344.8 1.2 8.4155.0
P CHMT eP 204550.28 0.1 94.94 344.1 1.2 7.3495.0
P UTMT qP 204550.86 -1.9 95.52 323.1 1.6 129.6656.1
P RSSD eP 204551.14 0.4 95.04 337.1 0.8 4.9105.0
P BMO eP 204602.04 -0.8 97.75 346.2 1.3 5.4204.9
P PDAR P 204603.60 -0.2 97.91 340.2
P WRA P 204623.84 1.0 102.18 105.8
P ASAR Pdif 204630.65 0.2 103.89 109.2
P NVAR PP 205049.05 0.7 104.13 345.2
S PKKPbc 210220.52
P STKA PKiKP 205106.08 -0.5 113.94 112.9
P LPAZ PKP 205114.30 1.3 116.63 268.6
P QSPA ePKPdf 205127.93 -0.3 125.72 179.9
P PLCA PKP 205137.33 2.0 129.00 243.4
P VNDA PKP 205138.88 1.2 130.84 165.4
EMSC Location
EVENT 20090718203227
Date Time Latitude Longitude Depth Ndef Nsta Gap Mag1 N Mag2 N Mag3 N Author ID
rms OT_Error Smajor Sminor Az Err mdist Mdist Err Err Err Quality
2009/07/18 20:32:27.3 35.7564 43.3386 10.0 438 417 39 Mw 5.1 CSEM GOSK3
1.26 +- 0.11 4.2 3.3 4 0.64 101.46 +-0.4 a i uk
IRAQ
Sta Dist EvAz Phase Date Time TRes Azim AzRes Slow SRes Def SNR Amp Per Mag1 Mag2 ID
MSL 0.64 346.2 m P 2009/07/18 20:32:40.0 0.2 T ISN
MSL 0.64 346.2 m S 2009/07/18 20:32:50.0 1.8 T ISN
CUKT 1.50 8.2 m Pn 2009/07/18 20:32:53.6 -0.9 T KAN
HAKT 1.82 9.3 m P 2009/07/18 20:32:58.8 -0.3 T DDA
HAKT 1.82 9.3 m S 2009/07/18 20:33:20.8 -1.4 T DDA
SIRN 1.89 337.1 m P 2009/07/18 20:32:59.3 -0.5 T DDA
SIRT 1.89 337.7 m Pn 2009/07/18 20:32:59.6 -0.1 T KAN
SIRN 1.89 337.1 m S 2009/07/18 20:33:22.0 -1.7 T DDA
GEVA 2.56 355.1 m P 2009/07/18 20:33:09.1 0.0 T DDA
GEVA 2.56 355.1 m S 2009/07/18 20:33:41.9 1.6 T DDA
MARD 2.58 307.8 m P 2009/07/18 20:33:12.1 2.7 T DDA
MARD 2.58 307.8 m S 2009/07/18 20:33:40.6 -0.2 T DDA
BHD 2.62 160.4 m P 2009/07/18 20:33:07.0 -2.7 T ISN
TVAN 2.77 1.1 m P 2009/07/18 20:33:13.0 1.0 T DDA
TATV 2.88 343.0 m P 2009/07/18 20:33:13.0 -0.5 T DDA
TATV 2.88 343.0 m S 2009/07/18 20:33:47.7 -0.5 T DDA
DIY 3.29 311.5 m Pn 2009/07/18 20:33:18.2 -0.8 T KAN
BNGL 3.64 332.0 m P 2009/07/18 20:33:23.5 -0.5 T DDA
BNGL 3.64 332.0 m S 2009/07/18 20:34:05.4 -1.5 T DDA
TUTA 3.66 353.6 m P 2009/07/18 20:33:24.5 0.1 T DDA
AGRB 3.82 356.0 m P 2009/07/18 20:33:26.6 0.1 T GFZ
BINT 3.85 324.7 m Pn 2009/07/18 20:33:27.4 0.5 T KAN
URFA 4.00 296.1 m Pn 2009/07/18 20:33:30.0 1.1 T KAN
SVRC 4.15 310.3 m Pn 2009/07/18 20:33:31.3 0.3 T KAN
ATAB 4.40 294.3 m P 2009/07/18 20:33:34.2 -0.1 T DDA
ELZG 4.43 309.5 m P 2009/07/18 20:33:34.0 -0.8 T DDA
ERZM 4.43 339.9 m P 2009/07/18 20:33:35.4 0.5 T DDA
PTK 4.44 316.0 m Pn 2009/07/18 20:33:35.0 0.0 T KAN
EZM 4.46 338.6 m Pn 2009/07/18 20:33:35.8 0.5 T KAN
GNI 4.52 13.8 m P 2009/07/18 20:33:36.7 0.6 T GFZ
GNI 4.52 13.8 m Pn 2009/07/18 20:33:36.9 0.8 T NEIR
DIGO 4.65 0.3 m P 2009/07/18 20:33:39.1 1.1 T DDA
MALT 4.68 304.4 m Pb 2009/07/18 20:33:53.2 3.6 T NEIR
MYA 4.69 304.6 m Pn 2009/07/18 20:33:39.1 0.7 T KAN
AKCD 5.02 301.9 m P 2009/07/18 20:33:43.1 0.2 T DDA
EZC 5.09 322.8 m Pn 2009/07/18 20:33:44.6 0.8 T KAN
BAYT 5.27 332.4 m Pn 2009/07/18 20:33:47.5 1.1 T KAN
DDEM 5.28 346.8 m P 2009/07/18 20:33:48.0 1.6 T DDA
ILIC 5.29 315.7 m Pn 2009/07/18 20:33:47.5 1.0 T KAN
DBAD 5.41 346.7 m P 2009/07/18 20:33:49.8 1.6 T DDA
DARE 5.44 307.5 m Pn 2009/07/18 20:33:49.8 1.2 T KAN
ARTV 5.53 348.9 m P 2009/07/18 20:33:51.2 1.2 T DDA
GUMT 5.60 328.2 m Pn 2009/07/18 20:33:50.5 -0.4 T KAN
DBOC 5.73 347.3 m P 2009/07/18 20:33:54.1 1.5 T DDA
PZAR 5.74 341.3 m Pn 2009/07/18 20:33:54.0 1.4 T KAN
SARI 6.05 300.8 m Pn 2009/07/18 20:33:58.9 1.8 T KAN
CEYT 6.25 283.8 m Pn 2009/07/18 20:33:59.5 -0.1 T KAN
KOZT 6.28 287.7 m Pn 2009/07/18 20:34:00.8 0.8 T KAN
ESPY 6.30 326.3 m Pn 2009/07/18 20:34:02.1 1.8 T KAN
KRTS 6.49 279.5 m Pn 2009/07/18 20:34:03.7 0.8 T KAN
SVSK 6.52 311.5 m Pn 2009/07/18 20:34:04.7 1.5 T KAN
RSDY 6.63 316.1 m Pn 2009/07/18 20:34:06.3 1.4 T KAN
RSDY 6.63 316.1 m P 2009/07/18 20:34:07.7 2.8 T 594.6 0.90 GFZ
BNN 6.72 299.6 m P 2009/07/18 20:34:07.4 1.1 T 571.1 0.70 GFZ
BNN 6.72 299.6 m Pn 2009/07/18 20:34:08.0 1.7 T KAN
KARA 6.84 285.1 m Pn 2009/07/18 20:34:08.6 0.9 T KAN
KSDI 6.84 250.2 m P 2009/07/18 20:34:09.2 1.5 T 269.9 0.80 GFZ
TOKT 7.03 312.4 m Pn 2009/07/18 20:34:12.8 2.4 T KAN
MMLI 7.35 245.5 m P 2009/07/18 20:34:16.9 2.1 T 248.8 0.80 GFZ
NIG 7.37 291.1 m Pn 2009/07/18 20:34:15.7 0.4 T KAN
EREN 7.46 270.9 m Pn 2009/07/18 20:34:16.7 0.4 T KAN
KVT 7.81 315.1 m Pn 2009/07/18 20:34:23.2 2.1 T KAN
IKL 7.84 276.3 m P 2009/07/18 20:34:21.6 0.2 T 104.3 0.70 GFZ
IKL 7.84 276.3 m Pn 2009/07/18 20:34:21.9 0.5 T KAN
MAK 7.88 22.9 mci P 2009/07/18 20:34:20.4 -1.6 T GSRC
LFK 8.01 269.4 m Pn 2009/07/18 20:34:24.5 0.6 T KAN
CORM 8.17 305.3 m Pn 2009/07/18 20:34:27.4 1.3 T KAN
KIV 8.20 356.7 mdi P 2009/07/18 20:34:29.9 3.3 T GSRC
CSS 8.21 267.4 m P 2009/07/18 20:34:28.1 1.5 T 9.0 1.10 GFZ
CSS 8.21 267.4 m Pn 2009/07/18 20:34:28.5 1.9 T NEIR
SULT 8.23 290.1 m Pn 2009/07/18 20:34:28.4 1.5 T KAN
SOC 8.30 341.5 m i P 2009/07/18 20:34:28.6 0.9 T GSRC
DIKM 8.63 315.4 m Pn 2009/07/18 20:34:33.6 1.3 T KAN
KZIT 8.91 239.6 m P 2009/07/18 20:34:38.8 2.7 T 59.0 0.70 GFZ
TOS 9.01 308.6 m Pn 2009/07/18 20:34:38.8 1.1 T KAN
HRFI 9.01 233.1 m P 2009/07/18 20:34:39.7 2.2 T 141.1 0.90 GFZ
CANT 9.05 305.2 m Pn 2009/07/18 20:34:39.1 0.9 T KAN
EIL 9.31 231.7 m P 2009/07/18 20:34:43.9 2.3 T 68.1 1.40 GFZ
BZK 9.55 313.2 m Pn 2009/07/18 20:34:46.2 1.3 T KAN
SIM 11.56 325.4 m i P 2009/07/18 20:35:16.1 3.7 T GSRC
RAYN 12.34 170.7 m P 2009/07/18 20:35:22.8 -0.3 T 225.3 0.80 GFZ
KARP 13.16 273.8 a P 2009/07/18 20:35:36.0 1.6 T THE
KARP 13.16 273.8 m P 2009/07/18 20:35:37.6 3.2 T 293.3 0.90 GFZ
PRK 13.99 289.5 a P 2009/07/18 20:35:47.0 1.4 T THE
CHOS 14.05 285.9 a P 2009/07/18 20:35:48.0 0.6 T THE
EDRB 14.29 300.2 m P 2009/07/18 20:35:52.8 -2.0 T 45.8 2.10 GFZ
TIRR 14.34 311.8 m Pn 2009/07/18 20:35:50.9 0.6 T NEIR
TIRR 14.34 311.8 m P 2009/07/18 20:35:53.4 -2.8 T 53.7 1.20 GFZ
APE 14.40 280.5 m P 2009/07/18 20:35:55.2 -3.1 T 76.9 0.80 GFZ
SANT 14.48 277.7 m Pn 2009/07/18 20:35:53.4 1.1 T NEIR
SMTH 14.78 293.9 a P 2009/07/18 20:35:59.0 -3.5 T THE
LIA 14.93 291.5 a P 2009/07/18 20:36:01.0 -3.1 T THE
RDO 14.94 296.4 m P 2009/07/18 20:36:01.8 -2.4 T 139.6 1.10 GFZ
IDI 15.03 273.6 m Pn 2009/07/18 20:36:01.4 1.5 T 66.0 0.70 NEIR
IDI 15.03 273.6 m P 2009/07/18 20:36:04.0 -1.3 T 117.1 0.70 GFZ
SIVA 15.14 272.6 m P 2009/07/18 20:36:05.8 -0.5 T 144.7 0.70 GFZ
MRMA 15.34 284.2 a P 2009/07/18 20:36:06.0 -2.7 T THE
VAM 15.58 274.3 a P 2009/07/18 20:36:08.0 -3.3 T THE
KAVA 15.66 295.2 a P 2009/07/18 20:36:09.0 -3.1 T THE
GVD 15.75 272.3 m Pn 2009/07/18 20:36:10.3 1.1 T NEIR
PTL 15.75 284.1 a P 2009/07/18 20:36:11.0 -2.2 T THE
SULR 15.78 309.6 a P 2009/07/18 20:36:13.9 0.4 T BUC
KARN 15.81 274.4 m P 2009/07/18 20:36:10.9 -3.0 T 247.6 1.30 GFZ
PLD 15.81 299.2 a P 2009/07/18 20:36:12.0 -1.9 T THE
ATHU 15.81 283.8 a P 2009/07/18 20:36:12.0 -1.8 T THE
AOS 15.82 288.2 a P 2009/07/18 20:36:12.0 -2.0 T THE
ZIMR 15.89 305.1 a P 2009/07/18 20:36:14.3 -0.4 T BUC
OUR 15.91 292.5 a P 2009/07/18 20:36:12.0 -3.0 T THE
PAIG 16.07 290.9 m P 2009/07/18 20:36:15.7 -1.1 T 61.0 1.60 GFZ
VRI 16.10 313.9 m P 2009/07/18 20:36:14.1 -3.0 T 155.4 1.40 GFZ
NVR 16.22 296.0 a P 2009/07/18 20:36:16.0 -2.4 T THE
DID 16.23 282.1 a P 2009/07/18 20:36:17.0 -1.6 T THE
DIDY 16.25 282.0 a P 2009/07/18 20:36:17.0 -1.9 T THE
ANKY 16.26 276.3 a P 2009/07/18 20:36:17.0 -1.8 T THE
PLG 16.32 292.4 a P 2009/07/18 20:36:16.0 -3.6 T THE
NEO 16.34 288.5 a P 2009/07/18 20:36:20.0 0.2 T THE
SRS 16.36 295.0 m P 2009/07/18 20:36:19.3 -0.7 T 130.9 1.30 GFZ
MLR 16.37 311.7 m P 2009/07/18 20:36:18.0 -2.2 T 32.6 1.60 GFZ
XOR 16.37 288.7 m P 2009/07/18 20:36:18.9 -1.3 T 54.9 1.90 GFZ
IAS 16.41 319.0 m P 2009/07/18 20:36:17.7 -2.8 T 50.0 1.30 GFZ
KYTH 16.44 277.8 a P 2009/07/18 20:36:19.0 -1.9 T THE
LTK 16.45 283.9 a P 2009/07/18 20:36:19.0 -2.0 T THE
SOH 16.48 293.9 m P 2009/07/18 20:36:21.0 -0.3 T 43.4 2.00 GFZ
VLI 16.49 279.3 a P 2009/07/18 20:36:18.0 -3.4 T THE
HORT 16.62 293.0 m P 2009/07/18 20:36:22.3 -0.7 T 22.9 1.50 GFZ
THE 16.73 293.0 m P 2009/07/18 20:36:23.5 -0.5 T 55.3 1.30 GFZ
DSF 16.82 285.2 a P 2009/07/18 20:36:26.0 0.9 T THE
KNT 16.88 294.8 m P 2009/07/18 20:36:25.7 -0.1 T 23.1 2.00 GFZ
VOIR 16.89 310.5 a P 2009/07/18 20:36:28.0 2.0 T BUC
VLX 16.92 281.7 a P 2009/07/18 20:36:27.0 0.7 T THE
GUR 16.95 283.6 a P 2009/07/18 20:36:25.0 -1.6 T THE
DYR 16.97 279.6 a P 2009/07/18 20:36:26.0 -0.8 T THE
AGG 17.01 287.3 m P 2009/07/18 20:36:27.3 0.1 T 85.1 1.40 GFZ
VTS 17.02 299.7 m P 2009/07/18 20:36:26.9 -0.5 T 44.5 1.20 GFZ
KLV 17.10 283.9 a P 2009/07/18 20:36:28.0 -0.2 T THE
MAKR 17.16 287.2 a P 2009/07/18 20:36:29.0 0.1 T THE
GRG 17.21 293.8 m P 2009/07/18 20:36:29.3 -0.1 T 22.8 1.60 GFZ
PRAR 17.23 317.5 a P 2009/07/18 20:36:30.7 1.0 T BUC
LAKA 17.24 284.6 a P 2009/07/18 20:36:30.0 0.2 T THE
ITM 17.28 281.0 m P 2009/07/18 20:36:28.9 -1.3 T 47.5 1.60 GFZ
THL 17.30 289.1 a P 2009/07/18 20:36:28.0 -2.4 T THE
EFP 17.30 285.2 a P 2009/07/18 20:36:30.0 -0.4 T THE
EVR 17.41 286.8 a P 2009/07/18 20:36:32.0 0.3 T THE
AMT 17.45 282.2 a P 2009/07/18 20:36:32.0 -0.1 T THE
KZN 17.58 291.4 a P 2009/07/18 20:36:34.0 0.4 T THE
RLS 17.64 284.0 a P 2009/07/18 20:36:34.0 -0.1 T THE
LOT 17.70 309.1 a P 2009/07/18 20:36:36.7 1.8 T BUC
FNA 17.95 292.8 m P 2009/07/18 20:36:38.9 1.3 T 41.6 1.30 GFZ
KIEV 18.09 330.0 m P 2009/07/18 20:36:37.4 -1.7 T 55.0 0.80 NEIR
SKO 18.13 296.6 m P 2009/07/18 20:36:42.3 2.8 T 170.3 1.60 GFZ
NEST 18.14 291.5 a P 2009/07/18 20:36:41.0 1.2 T THE
JAN 18.20 289.1 a P 2009/07/18 20:36:42.0 1.6 T THE
LKD2 18.30 286.3 m P 2009/07/18 20:36:41.5 0.1 T 210.8 0.80 GFZ
VLS 18.33 284.3 a P 2009/07/18 20:36:40.0 -1.8 T THE
KBN 18.37 292.1 a P 2009/07/18 20:36:44.0 1.8 T THE
DEV 18.43 309.5 a P 2009/07/18 20:36:44.7 1.8 T BUC
IGT 18.59 288.6 a P 2009/07/18 20:36:44.0 -0.7 T THE
SRN 18.88 289.6 a P 2009/07/18 20:36:48.0 0.3 T THE
BMR 18.94 315.0 a P 2009/07/18 20:36:50.3 1.8 T BUC
DRGR 18.97 311.9 m P 2009/07/18 20:36:49.5 0.7 T 63.5 1.40 GFZ
KEK 19.02 289.0 m P 2009/07/18 20:36:50.0 0.7 T 132.2 1.20 GFZ
BZS 19.14 307.6 m P 2009/07/18 20:36:52.0 1.4 T 14.9 1.60 GFZ
TIR 19.17 294.0 m P 2009/07/18 20:36:51.5 0.6 T 146.7 1.10 GFZ
DIVS 19.70 302.1 m P 2009/07/18 20:36:57.8 0.9 T 120.4 1.70 GFZ
TRPA 19.73 315.2 m P 2009/07/18 20:36:56.9 -0.2 T 73.9 1.30 GFZ
PDG 19.81 296.9 m P 2009/07/18 20:36:56.6 -1.3 T 62.3 1.00 GFZ
LVV 19.88 321.0 m e P 2009/07/18 20:36:57.3 -1.4 T LVV
OBN 19.91 348.5 mci P 2009/07/18 20:36:57.9 -1.2 T GSRC
KOLS 20.31 316.9 m P 2009/07/18 20:37:02.9 -0.5 T 178.4 1.10 GFZ
KWP 20.46 319.0 m P 2009/07/18 20:37:05.0 0.0 T 71.0 1.10 NEIR
DAMY 21.12 177.2 m P 2009/07/18 20:37:14.6 2.1 T 96.7 1.40 mb 5.0 GFZ
STHS 21.13 317.1 a P 2009/07/18 20:37:13.5 1.1 T 39.6 1.20 mb 4.6 WAR
KECS 21.18 314.0 m P 2009/07/18 20:37:12.3 -0.6 T 68.0 1.20 mb 4.9 GFZ
PSZ 21.18 312.2 m P 2009/07/18 20:37:12.8 -0.2 T 57.0 0.90 mb 4.9 NEIR
PKSM 21.29 307.0 m P 2009/07/18 20:37:13.7 -0.3 T 116.4 1.30 mb 5.1 GFZ
TIP 21.35 287.2 m P 2009/07/18 20:37:14.1 -0.6 T 86.0 1.10 mb 5.0 NEIR
MATE 21.46 291.2 m P 2009/07/18 20:37:15.5 -0.3 T 85.9 1.20 mb 5.0 GFZ
BUD 21.53 310.4 m P 2009/07/18 20:37:16.3 -0.3 T 49.6 1.50 mb 4.7 GFZ
NIE 21.66 316.2 m P 2009/07/18 20:37:19.9 1.9 T 19.6 1.60 mb 4.3 GFZ
BLY 21.81 302.3 m P 2009/07/18 20:37:19.8 0.1 T 55.0 1.30 mb 4.8 GFZ
CEL 22.03 284.7 m P 2009/07/18 20:37:21.0 -1.0 T 58.0 0.80 mb 5.1 NEIR
VYHS 22.07 312.8 m P 2009/07/18 20:37:22.1 -0.4 T 7.8 1.60 GFZ
CUC 22.10 289.3 m P 2009/07/18 20:37:22.8 0.1 T 81.6 1.20 mb 5.0 GFZ
LIKS 22.17 314.3 a P 2009/07/18 20:37:26.0 2.6 T 56.1 1.10 mb 4.9 WAR
OJC 22.35 317.6 m P 2009/07/18 20:37:24.7 -0.7 T 35.0 0.80 mb 4.9 NEIR
BEHE 22.59 306.4 m P 2009/07/18 20:37:27.9 -0.1 T 89.6 1.20 mb 5.1 GFZ
BEL 22.72 322.0 m P 2009/07/18 20:37:28.5 -0.8 T 96.9 1.20 mb 5.2 GFZ
JAVC 22.93 312.8 m P 2009/07/18 20:37:32.1 0.5 T 42.9 1.50 mb 4.8 GFZ
KOGS 22.93 306.1 a P 2009/07/18 20:37:33.0 1.5 T LJU
SUW 23.04 328.7 m P 2009/07/18 20:37:31.4 -1.2 T 320.0 1.10 mb 5.8 NEIR
OKC 23.09 315.4 m P 2009/07/18 20:37:33.6 0.4 T 48.9 1.30 mb 4.9 GFZ
ARU 23.12 21.8 mci P 2009/07/18 20:37:32.3 -1.2 T GSRC
GCIS 23.18 304.3 a P 2009/07/18 20:37:34.4 0.1 T LJU
CRES 23.28 304.2 a P 2009/07/18 20:37:35.6 0.4 T LJU
BOJS 23.33 303.3 a P 2009/07/18 20:37:35.9 0.2 T LJU
DOBS 23.36 305.0 a P 2009/07/18 20:37:36.6 0.6 T LJU
MORC 23.41 314.8 m P 2009/07/18 20:37:36.1 -0.5 T 43.0 2.60 mb 4.5 GFZ
GROS 23.43 305.7 a P 2009/07/18 20:37:38.3 1.5 T LJU
ARSA 23.66 307.6 m P 2009/07/18 20:37:39.7 0.6 T 74.2 1.30 mb 5.1 GFZ
VISS 23.69 303.8 a P 2009/07/18 20:37:40.0 0.7 T LJU
VRAC 23.76 313.0 m P 2009/07/18 20:37:40.1 0.1 T 812.2 2.40 mb 5.8 GFZ
KRUC 23.78 312.3 m P 2009/07/18 20:37:39.7 -0.4 T 46.9 2.00 mb 4.7 GFZ
LJU 23.96 304.3 a P 2009/07/18 20:37:43.0 1.2 T LJU
OBKA 24.07 305.4 m P 2009/07/18 20:37:43.9 0.9 T 144.6 1.40 mb 5.3 GFZ
AQU 24.08 295.0 m P 2009/07/18 20:37:43.1 0.1 T 86.2 1.30 mb 5.1 GFZ
MOZS 24.08 304.8 a P 2009/07/18 20:37:43.9 0.9 T LJU
JAVS 24.23 303.7 a P 2009/07/18 20:37:45.1 0.7 T LJU
AML 24.37 65.6 m i P 2009/07/18 20:37:47.4 1.3 T GSRC
TRI 24.39 303.1 m P 2009/07/18 20:37:45.0 -0.7 T 33.7 1.60 mb 4.7 GFZ
VOJS 24.39 303.9 a P 2009/07/18 20:37:46.2 0.3 T LJU
GORS 24.39 304.7 a P 2009/07/18 20:37:47.4 1.6 T LJU
TREC 24.42 312.3 m P 2009/07/18 20:37:46.1 0.1 T 38.7 1.80 mb 4.7 GFZ
CADS 24.54 304.3 a P 2009/07/18 20:37:47.9 0.7 T LJU
KSP 24.61 316.2 m P 2009/07/18 20:37:47.7 0.0 T 33.3 1.30 mb 4.8 GFZ
MOA 24.66 308.3 m P 2009/07/18 20:37:48.3 0.1 T 108.4 1.10 mb 5.4 GFZ
ROBS 24.70 304.3 a P 2009/07/18 20:37:50.4 1.9 T LJU
AAK 25.01 64.6 m P 2009/07/18 20:37:52.0 0.4 T 72.0 1.40 mb 5.2 NEIR
KBA 25.02 306.1 m P 2009/07/18 20:37:52.1 0.4 T 192.2 1.10 mb 5.7 GFZ
USP 25.08 63.1 m i P 2009/07/18 20:37:53.2 1.1 T GSRC
VSU 25.23 339.4 m P 2009/07/18 20:37:52.6 -0.7 T 277.0 0.80 mb 6.0 GFZ
PRU 25.26 313.2 m P 2009/07/18 20:37:53.5 -0.1 T 29.4 1.50 mb 4.8 GFZ
GKP 25.33 321.9 m P 2009/07/18 20:37:54.2 -0.1 T 148.5 1.10 mb 5.6 GFZ
KBK 25.34 64.6 m i P 2009/07/18 20:37:55.9 1.3 T GSRC
PVCC 25.46 314.4 m P 2009/07/18 20:37:55.1 -0.4 T 31.9 1.40 mb 4.8 GFZ
KHC 25.52 310.8 m P 2009/07/18 20:37:55.7 -0.4 T 37.8 1.20 mb 4.9 GFZ
KZA 25.52 66.0 m i P 2009/07/18 20:37:57.0 0.4 T GSRC
TKM2 25.84 64.1 m i P 2009/07/18 20:38:00.0 0.8 T GSRC
WET 25.95 310.5 m P 2009/07/18 20:37:58.6 -1.4 T 34.4 1.20 mb 4.9 GFZ
BRG 25.96 314.7 m P 2009/07/18 20:37:59.5 -0.5 T 23.9 2.10 mb 4.5 GFZ
WTTA 26.20 305.8 m P 2009/07/18 20:38:01.6 -0.8 T 67.1 1.20 mb 5.2 GFZ
WATA 26.26 306.0 a P 2009/07/18 20:38:02.4 -0.5 T ZAMG
ULHL 26.27 65.7 m i P 2009/07/18 20:38:04.6 1.5 T GSRC
MTSE 26.32 336.8 m P 2009/07/18 20:38:02.6 -0.6 T 242.8 0.80 mb 5.9 GFZ
VLC 26.48 298.6 m P 2009/07/18 20:38:05.0 0.3 T 60.2 1.40 mb 5.1 GFZ
TANN 26.65 313.0 m P 2009/07/18 20:38:06.5 0.1 T 27.7 2.20 mb 4.6 GFZ
FUR 26.67 307.6 m P 2009/07/18 20:38:06.2 -0.2 T 230.8 1.20 mb 5.8 GFZ
CLL 26.68 315.1 m P 2009/07/18 20:38:06.1 -0.4 T 46.0 1.30 mb 5.0 GFZ
FETA 26.74 305.0 a P 2009/07/18 20:38:07.1 -0.2 T ZAMG
SRPE 26.75 338.4 m P 2009/07/18 20:38:05.5 -1.6 T 105.2 1.20 mb 5.4 GFZ
GRB2 26.75 310.2 m P 2009/07/18 20:38:06.6 -0.5 T 49.8 1.00 mb 5.2 GFZ
RETA 26.83 306.0 a P 2009/07/18 20:38:07.2 -0.8 T ZAMG
FUORN 26.97 304.0 m P 2009/07/18 20:38:09.5 0.1 T 32.8 1.10 mb 5.0 GFZ
GRA2 27.06 310.8 m P 2009/07/18 20:38:09.7 -0.3 T 105.5 1.30 mb 5.4 GFZ
VSL 27.06 288.2 m P 2009/07/18 20:38:10.6 0.7 T 95.5 1.20 mb 5.4 GFZ
GRA1 27.16 310.8 m P 2009/07/18 20:38:10.8 0.0 T 105.8 1.50 mb 5.4 GFZ
GRFO 27.16 310.8 m P 2009/07/18 20:38:10.9 0.0 T 79.3 1.40 mb 5.3 GFZ
MOX 27.24 313.0 m P 2009/07/18 20:38:10.4 -1.2 T 12.9 1.40 mb 4.5 GFZ
PGF 27.35 294.8 a e P 2009/07/18 20:38:12.2 -0.4 T 2.3 70.8 1.16 mb 5.3 LDG
MEF 27.36 339.4 m P 2009/07/18 20:38:11.5 -1.1 T 49.5 0.80 mb 5.3 GFZ
DAVA 27.37 305.3 m P 2009/07/18 20:38:11.8 -1.1 T 91.9 1.00 mb 5.5 GFZ
TUE 27.56 303.4 m P 2009/07/18 20:38:14.2 -0.5 T 63.0 1.60 mb 5.2 NEIR
MUGIO 27.67 302.1 m P 2009/07/18 20:38:15.0 -0.5 T 25.3 1.50 mb 4.8 GFZ
FINES 27.94 342.3 a P 2009/07/18 20:38:16.0 -1.8 138.9 -10.1 8.9 TAS 45.0 1.1 0.32 NEWS
STU 28.17 308.1 m P 2009/07/18 20:38:18.3 -1.5 T 30.0 1.50 mb 4.9 GFZ
BNALP 28.26 304.0 m P 2009/07/18 20:38:21.0 0.3 T 38.5 1.30 mb 5.1 GFZ
SLE 28.39 305.8 m P 2009/07/18 20:38:21.3 -0.6 T 78.3 1.30 mb 5.4 GFZ
CLZ 28.40 314.8 m P 2009/07/18 20:38:21.7 -0.3 T 19.6 1.20 mb 4.8 GFZ
SAOF 28.49 297.8 m P 2009/07/18 20:38:23.2 0.4 T 60.1 2.50 mb 5.0 GFZ
SBF 28.57 297.5 a e P 2009/07/18 20:38:23.5 0.0 T 5.3 73.4 1.00 mb 5.5 LDG
ESCA 28.61 297.4 m P 2009/07/18 20:38:23.7 -0.1 T 69.4 3.50 mb 4.9 GFZ
BFO 28.62 306.9 m P 2009/07/18 20:38:23.8 -0.1 T 9.2 1.40 mb 4.4 GFZ
RAF 28.78 338.2 m P 2009/07/18 20:38:23.7 -1.6 T 26.8 1.00 mb 5.0 GFZ
TNS 29.02 310.8 m P 2009/07/18 20:38:27.1 -0.5 T 47.7 1.70 mb 5.0 GFZ
SUF 29.03 343.7 m P 2009/07/18 20:38:26.3 -1.2 T 33.4 1.00 mb 5.1 GFZ
MBDF 29.11 299.2 a e P 2009/07/18 20:38:28.2 -0.3 T 13.7 44.2 1.04 mb 5.2 LDG
FRF 29.12 296.8 a e P 2009/07/18 20:38:29.2 0.9 T 5.7 85.8 1.32 mb 5.4 LDG
BOURR 29.15 304.7 m P 2009/07/18 20:38:28.2 -0.5 T 72.9 1.50 mb 5.3 GFZ
LPG 29.20 300.8 a e P 2009/07/18 20:38:28.8 -0.6 T 3.6 47.0 1.20 mb 5.2 LDG
BNI 29.21 299.9 m P 2009/07/18 20:38:29.2 -0.1 T 91.1 1.20 mb 5.5 GFZ
LPL 29.22 300.8 a e P 2009/07/18 20:38:28.8 -0.7 T 9.6 25.0 1.08 mb 5.0 LDG
BSEG 29.26 318.8 m P 2009/07/18 20:38:29.3 -0.2 T 40.9 1.50 mb 5.0 GFZ
CDF 29.32 306.8 a e P 2009/07/18 20:38:31.5 1.3 T 4.7 11.4 1.00 mb 4.7 LDG
ECH 29.36 306.4 m P 2009/07/18 20:38:29.9 -0.6 T 22.0 1.00 mb 4.9 NEIR
HINF 29.48 305.5 a e P 2009/07/18 20:38:30.4 -1.2 T 7.8 23.6 1.36 mb 4.8 LDG
ORIF 29.76 299.5 a e P 2009/07/18 20:38:33.4 -0.7 T 6.3 19.6 0.88 mb 4.9 LDG
CABF 29.80 302.9 a e P 2009/07/18 20:38:34.0 -0.5 T 9.8 35.8 0.80 mb 5.3 LDG
IBBN 30.08 314.5 m P 2009/07/18 20:38:37.3 0.5 T 29.6 2.10 mb 4.8 GFZ
WLF 30.32 308.9 m P 2009/07/18 20:38:38.6 -0.3 T 32.0 1.00 mb 5.1 NEIR
VIVF 30.61 299.2 a e P 2009/07/18 20:38:40.6 -1.0 T 6.1 36.2 1.08 mb 5.2 LDG
SSB 30.73 300.0 m P 2009/07/18 20:38:41.3 -1.4 T 22.0 1.10 mb 5.0 NEIR
MEZF 30.79 306.4 a e P 2009/07/18 20:38:42.3 -0.8 T 13.1 55.5 0.92 mb 5.5 LDG
MUD 30.96 322.7 m P 2009/07/18 20:38:45.2 0.6 T 50.0 1.30 mb 5.3 GFZ
MAHO 30.97 289.5 m P 2009/07/18 20:38:45.6 1.0 T 138.7 1.40 mb 5.7 GFZ
HFA0 30.98 331.2 a P 2009/07/18 20:38:43.0 -1.8 154.8 26.2 6.4 -2.4 TAS 127.5 25.6 0.55 mb 5.4 NEWS
MKAR 30.99 57.1 mce P 2009/07/18 20:38:45.2 0.4 T GSRC
LASF 31.16 297.7 a e P 2009/07/18 20:38:46.9 0.5 T 6.8 84.4 1.32 mb 5.5 LDG
OUL 31.17 345.8 m P 2009/07/18 20:38:44.8 -1.6 T 38.9 0.90 mb 5.3 GFZ
GIVF 31.25 309.4 a e P 2009/07/18 20:38:46.5 -0.7 T 2.4 12.6 0.92 mb 4.8 LDG
SMF 31.34 302.6 a e P 2009/07/18 20:38:47.1 -0.9 T 13.5 38.2 1.00 mb 5.3 LDG
MSF 31.35 348.8 m P 2009/07/18 20:38:46.4 -1.7 T 20.8 1.40 mb 4.9 GFZ
LOR 31.40 303.8 a e P 2009/07/18 20:38:47.2 -1.3 T 5.5 19.1 1.08 mb 4.9 LDG
SSF 31.62 303.3 a e P 2009/07/18 20:38:49.4 -1.0 T 4.4 30.1 1.04 mb 5.2 LDG
BAIF 31.63 309.1 a e P 2009/07/18 20:38:50.0 -0.5 T 5.8 35.6 1.12 mb 5.2 LDG
AVF 31.69 302.8 a e P 2009/07/18 20:38:50.0 -1.0 T 12.9 33.8 0.96 mb 5.2 LDG
BGF 32.02 302.3 a e P 2009/07/18 20:38:52.9 -1.0 T 3.0 22.5 1.16 mb 5.0 LDG
ETOS 32.09 289.5 m P 2009/07/18 20:38:55.3 0.7 T 268.7 1.54 mb 5.9 MAD
CFON 32.23 293.3 m P 2009/07/18 20:38:55.0 -0.9 T 333.5 2.32 mb 5.9 MAD
TCF 32.44 301.7 a e P 2009/07/18 20:38:57.1 -0.5 T 11.7 51.9 1.12 mb 5.4 LDG
CAF 32.47 299.2 a e P 2009/07/18 20:38:57.3 -0.6 T 6.1 42.8 1.28 mb 5.2 LDG
NB2 32.49 331.2 a P 2009/07/18 20:38:56.0 -2.2 120.2 -6.2 9.4 0.6 TAS 30.3 20.3 1.00 mb 5.0 NEWS
CLF 32.56 305.0 m P 2009/07/18 20:38:57.6 -1.0 T 35.6 1.40 mb 5.1 GFZ
RJF 32.87 299.9 a e P 2009/07/18 20:39:01.3 -0.1 T 15.5 88.5 1.16 mb 5.6 LDG
SGF 33.16 348.2 m P 2009/07/18 20:39:03.1 -0.8 T 50.6 1.00 mb 5.4 GFZ
CSOR 33.16 294.5 m P 2009/07/18 20:39:05.1 1.0 T 131.2 2.12 mb 5.5 MAD
EPOB 33.27 292.6 m P 2009/07/18 20:39:05.0 0.0 T 156.9 1.98 mb 5.6 MAD
LFF 33.41 299.2 a e P 2009/07/18 20:39:05.7 -0.4 T 6.5 58.2 1.20 mb 5.4 LDG
EPF 33.72 295.7 a e P 2009/07/18 20:39:08.8 -0.1 T 2.1 38.8 1.56 mb 5.1 LDG
ERTA 33.86 292.0 m P 2009/07/18 20:39:09.9 -0.2 T 102.8 1.38 mb 5.6 MAD
EBIE 33.88 295.1 m P 2009/07/18 20:39:09.3 -1.2 T 137.5 2.54 mb 5.4 MAD
ZALV 33.94 44.6 m i P 2009/07/18 20:39:10.7 0.1 T GSRC
MFF 34.08 302.1 a e P 2009/07/18 20:39:10.7 -1.2 T 3.9 45.2 1.16 mb 5.3 LDG
ETSF 34.39 295.6 a e P 2009/07/18 20:39:16.3 1.6 T 2.8 19.5 1.16 mb 4.9 LDG
FLN 34.46 305.9 a e P 2009/07/18 20:39:16.4 1.2 T 2.2 53.5 1.44 mb 5.3 LDG
ATE 34.48 295.9 m P 2009/07/18 20:39:15.0 -0.4 T 19.2 1.60 mb 4.8 GFZ
HEF 34.52 347.3 m P 2009/07/18 20:39:14.6 -1.2 T 50.2 1.10 mb 5.4 GFZ
EMOS 34.54 291.1 m P 2009/07/18 20:39:16.8 0.7 T 248.7 1.34 mb 6.0 MAD
EBEN 34.57 288.1 m P 2009/07/18 20:39:17.2 0.9 T 117.8 1.28 mb 5.7 MAD
GRR 34.68 305.2 a e P 2009/07/18 20:39:15.6 -1.5 T 3.3 50.8 1.04 mb 5.4 LDG
SJPF 34.86 296.0 a e P 2009/07/18 20:39:20.2 1.5 T 5.2 51.4 1.40 mb 5.3 LDG
ECHE 35.01 289.8 m P 2009/07/18 20:39:21.2 1.1 T 90.2 0.88 mb 5.7 MAD
IUNC 35.08 295.4 m P 2009/07/18 20:39:19.1 -1.6 T 36.5 0.92 mb 5.3 MAD
IUSE 35.11 295.7 m P 2009/07/18 20:39:19.1 -1.8 T 110.0 1.54 mb 5.5 MAD
EARA 35.14 295.4 m P 2009/07/18 20:39:19.5 -1.7 T 231.9 3.26 mb 5.5 MAD
TAM 35.21 258.9 m P 2009/07/18 20:39:24.5 2.6 T 40.0 1.00 mb 5.3 NEIR
ARCES 35.22 349.2 a P 2009/07/18 20:39:21.0 -0.8 143.2 -11.2 6.5 -2.1 TAS 27.5 1.0 0.46 NEWS
EMUR 35.51 286.9 m P 2009/07/18 20:39:24.1 -0.2 T 78.1 1.38 mb 5.4 MAD
ETOB 35.60 288.3 m P 2009/07/18 20:39:24.3 -0.9 T 245.5 1.72 mb 5.8 MAD
RETOR 35.68 292.1 m P 2009/07/18 20:39:26.0 0.1 T 68.5 2.74 mb 5.0 MAD
SGMF 35.80 304.9 a e P 2009/07/18 20:39:25.6 -1.2 T 4.0 76.3 1.16 mb 5.4 LDG
QUIF 36.19 304.3 a e P 2009/07/18 20:39:28.6 -1.5 T 4.3 44.8 0.88 mb 5.3 LDG
ROSF 36.28 305.0 a e P 2009/07/18 20:39:29.5 -1.4 T 3.0 49.4 1.00 mb 5.3 LDG
EVIA 36.34 288.5 m P 2009/07/18 20:39:31.9 0.4 T 143.7 1.40 mb 5.6 MAD
ENIJ 36.43 285.7 m P 2009/07/18 20:39:31.8 -0.4 T 11.7 0.40 mb 5.0 MAD
EHUE 36.56 287.2 m P 2009/07/18 20:39:33.7 0.3 T 27.9 0.88 mb 5.0 MAD
EQES 36.94 287.3 m P 2009/07/18 20:39:36.7 0.1 T 196.7 1.86 mb 5.5 MAD
EBER 36.98 285.8 m P 2009/07/18 20:39:37.2 0.1 T 163.0 1.86 mb 5.4 MAD
KMBO 37.13 190.1 m P 2009/07/18 20:39:40.9 2.5 T 11.1 2.00 GFZ
GUD 37.28 292.2 m P 2009/07/18 20:39:38.8 -0.8 T 41.5 1.16 mb 5.1 MAD
ESDC 37.29 290.6 m P 2009/07/18 20:39:39.2 -0.3 74.7 -6.0 7.6 -0.9 TAS 72.3 2.15 mb 5.0 MAD
EQTA 37.35 286.4 m P 2009/07/18 20:39:39.8 -0.3 T 50.2 1.46 mb 5.0 MAD
EBAN 37.42 288.1 m P 2009/07/18 20:39:40.7 0.1 T 73.0 1.16 mb 5.3 MAD
ECOG 37.43 286.6 m P 2009/07/18 20:39:40.3 -0.5 T 24.1 0.76 mb 5.0 MAD
EGUA 37.52 285.9 m P 2009/07/18 20:39:41.3 -0.2 T 256.9 0.96 mb 5.9 MAD
PAB 37.60 290.4 m P 2009/07/18 20:39:42.3 0.1 T 48.0 1.40 mb 5.0 NEIR
ERON 37.67 286.2 m P 2009/07/18 20:39:42.5 -0.4 T 35.1 1.04 mb 5.0 MAD
ELOJ 37.91 286.5 m P 2009/07/18 20:39:44.2 -0.7 T 9.6 1.00 mb 4.5 MAD
EADA 38.03 288.3 m P 2009/07/18 20:39:45.8 0.0 T 46.8 1.50 mb 5.0 GFZ
EMAL 38.22 286.0 m P 2009/07/18 20:39:47.4 0.1 T 56.3 1.10 mb 5.2 GFZ
ECAB 38.70 288.3 m P 2009/07/18 20:39:51.5 0.1 T 129.7 1.38 mb 5.4 MAD
EPLA 38.83 291.6 m P 2009/07/18 20:39:52.2 -0.3 T 126.8 1.54 mb 5.3 MAD
HVS 38.86 50.7 mci P 2009/07/18 20:39:53.6 0.7 T GSRC
ESPR 39.30 286.6 m P 2009/07/18 20:39:55.2 -1.2 T 175.5 2.14 mb 5.3 MAD
IFR 39.62 281.3 m P 2009/07/18 20:40:01.3 2.0 T 40.5 1.20 mb 4.9 GFZ
EMIN 39.73 288.2 m P 2009/07/18 20:39:58.6 -1.4 T 413.7 3.74 mb 5.4 MAD
EBAD 39.78 289.8 m P 2009/07/18 20:39:58.9 -1.5 T 48.6 1.66 mb 4.9 MAD
MTE 39.87 292.5 m P 2009/07/18 20:40:00.8 -0.4 T 35.7 1.20 mb 4.9 GFZ
PESTR 40.20 290.1 m P 2009/07/18 20:40:03.8 -0.1 T 39.5 1.40 mb 4.9 GFZ
EGRO 40.41 288.1 m P 2009/07/18 20:40:03.8 -1.8 T 84.1 1.34 mb 5.2 MAD
PVAQ 40.62 288.0 m P 2009/07/18 20:40:05.8 -1.6 T 37.5 1.20 mb 5.0 GFZ
PALK 44.40 120.6 m i P 2009/07/18 20:40:40.8 2.7 T GSRC
TLY 45.08 49.8 mci P 2009/07/18 20:40:44.7 1.1 T GSRC
ULN 47.73 54.7 m P 2009/07/18 20:41:04.5 -0.1 T 38.7 1.10 mb 5.4 GFZ
DAG 49.18 344.4 m P 2009/07/18 20:41:14.5 -1.0 T 11.8 1.50 mb 4.7 GFZ
CHTO 51.56 93.7 m P 2009/07/18 20:41:33.1 -0.5 T 16.0 0.80 mb 5.0 NEIR
CMAR 51.74 94.1 m i P 2009/07/18 20:41:34.7 -0.2 T GSRC
LSZ 52.74 198.5 m P 2009/07/18 20:41:45.6 3.1 T 8.4 1.00 mb 4.6 NEIR
SUMG 53.86 338.3 m P 2009/07/18 20:41:51.2 0.1 T 28.0 1.40 mb 5.1 GFZ
TIXI 55.12 22.6 mci P 2009/07/18 20:41:59.3 -0.4 T GSRC
HIA 55.61 50.5 m e P 2009/07/18 20:42:01.4 -1.9 T GSRC
YAK 57.49 33.9 mci P 2009/07/18 20:42:15.4 -1.2 T GSRC
TSUM 59.86 208.3 m P 2009/07/18 20:42:35.9 2.6 T 16.0 1.50 mb 4.8 NEIR
KULM 60.61 105.9 m P 2009/07/18 20:42:37.1 -1.2 T 17.6 1.60 mb 4.9 GFZ
IPM 61.34 106.2 m P 2009/07/18 20:42:42.4 -0.9 T 19.0 0.90 mb 5.3 NEIR
POGA 63.71 191.5 m P 2009/07/18 20:43:02.0 2.9 T 4.9 1.30 mb 4.5 GFZ
BKNI 64.01 109.9 m P 2009/07/18 20:43:00.5 -0.5 T 73.6 1.10 mb 5.8 GFZ
PPI 64.04 111.0 m P 2009/07/18 20:43:01.1 -0.1 T 22.6 1.50 mb 5.2 GFZ
SEY 66.68 28.1 m e P 2009/07/18 20:43:19.7 1.4 T GSRC
KSI 67.77 112.1 m P 2009/07/18 20:43:23.1 -2.1 T 68.1 0.90 mb 5.9 GFZ
BILL 68.12 19.9 mdi P 2009/07/18 20:43:28.2 0.7 T GSRC
LWLI 69.77 112.2 m P 2009/07/18 20:43:37.3 -0.5 T 160.8 0.80 mb 6.2 GFZ
KASI 70.43 112.3 m P 2009/07/18 20:43:40.8 -0.9 T 64.0 0.90 mb 5.8 GFZ
KSM 70.55 102.7 m P 2009/07/18 20:43:42.4 -0.1 T 13.0 1.60 mb 4.8 GFZ
YSS 70.57 45.8 m e P 2009/07/18 20:43:42.7 0.1 T GSRC
STKI 72.33 103.1 m P 2009/07/18 20:43:54.0 0.8 T 24.6 1.20 mb 5.2 GFZ
CBJI 72.79 111.4 m P 2009/07/18 20:43:56.2 0.3 T 112.9 1.20 mb 5.9 GFZ
MAJO 73.19 57.0 m P 2009/07/18 20:43:57.2 -1.2 T 14.8 1.50 mb 4.9 GFZ
CISI 74.25 111.6 m P 2009/07/18 20:44:02.9 -1.6 T 66.2 0.80 mb 5.7 GFZ
COLD 76.82 5.4 m P 2009/07/18 20:44:20.0 0.6 T 24.0 0.96 mb 5.3 NEIR
PQI 77.42 318.9 m P 2009/07/18 20:44:23.5 0.8 T 120.0 1.20 mb 5.9 NEIR
COLA 79.32 4.8 m P 2009/07/18 20:44:33.3 0.1 T 262.0 0.90 mb 6.2 GFZ
EGAK 79.74 2.0 m P 2009/07/18 20:44:35.3 -0.2 T 33.6 1.00 mb 5.3 GFZ
MCK 80.37 5.5 m P 2009/07/18 20:44:38.8 -0.1 T 45.0 1.10 mb 5.3 NEIR
YKA 80.49 349.8 mce P 2009/07/18 20:44:39.2 -0.3 T GSRC
TRF 80.53 6.2 m P 2009/07/18 20:44:39.4 -0.6 T 23.0 1.10 mb 5.1 NEIR
KHKI 80.73 107.3 m P 2009/07/18 20:44:39.3 -1.5 T 32.0 1.40 mb 5.1 GFZ
LBNH 81.09 318.9 m P 2009/07/18 20:44:44.2 1.4 T 50.0 1.20 mb 5.4 NEIR
MENT 81.48 3.3 m P 2009/07/18 20:44:45.5 0.6 T NEIR
FRNY 81.56 320.1 m P 2009/07/18 20:44:45.8 0.5 T 45.0 1.20 mb 5.4 NEIR
HNH 81.64 318.6 m P 2009/07/18 20:44:47.0 1.4 T 63.0 1.10 mb 5.6 NEIR
MDV 81.92 319.3 m P 2009/07/18 20:44:48.1 1.0 T NEIR
LONY 82.23 320.4 m P 2009/07/18 20:44:49.6 0.8 T 28.0 0.88 mb 5.4 NEIR
SML 82.32 5.6 m P 2009/07/18 20:44:49.0 -0.3 T 11.0 0.80 mb 5.1 NEIR
BRYW 82.43 316.9 m P 2009/07/18 20:44:51.0 1.2 T 41.0 1.00 mb 5.6 NEIR
PMR 82.47 6.0 m P 2009/07/18 20:44:50.2 0.2 T 33.0 1.00 mb 5.5 NEIR
ACCN 82.59 319.1 m P 2009/07/18 20:44:51.8 1.1 T 37.0 1.10 mb 5.5 NEIR
DIV 83.17 4.4 m P 2009/07/18 20:44:54.7 0.9 T 43.0 0.88 mb 5.7 NEIR
RSO 83.22 8.0 m P 2009/07/18 20:44:54.6 0.4 T 21.0 0.84 mb 5.4 NEIR
BMRM 83.40 3.9 m P 2009/07/18 20:44:55.4 0.4 T 16.0 0.96 mb 5.2 NEIR
BINY 84.65 319.4 m P 2009/07/18 20:45:02.0 0.8 T 30.0 1.00 mb 5.5 NEIR
PNL 84.90 1.4 m P 2009/07/18 20:45:03.0 0.5 T 37.0 1.00 mb 5.6 NEIR
FFC 85.07 340.7 m P 2009/07/18 20:45:03.4 0.0 T 23.0 1.10 mb 5.3 NEIR
KDAK 85.86 8.5 m P 2009/07/18 20:45:07.5 0.3 T 74.9 1.30 mb 5.7 GFZ
OHAK 86.32 9.0 m P 2009/07/18 20:45:10.2 0.7 T 45.0 1.10 mb 5.5 NEIR
CHGN 86.45 11.9 m P 2009/07/18 20:45:08.6 -1.6 T NEIR
EYMN 87.42 331.5 m P 2009/07/18 20:45:14.4 -0.5 T 15.2 1.70 mb 5.0 GFZ
COWI 87.96 329.1 m P 2009/07/18 20:45:17.7 0.2 T 13.0 0.93 mb 5.2 NEIR
AAI 87.96 96.0 m P 2009/07/18 20:45:18.3 0.8 T 84.8 1.40 mb 5.9 GFZ
WRAK 88.19 357.4 m P 2009/07/18 20:45:19.6 1.1 T 25.0 0.83 mb 5.6 NEIR
AGMN 88.75 334.1 m P 2009/07/18 20:45:21.2 0.0 T 8.4 0.90 mb 5.0 NEIR
SWI 88.81 91.9 m P 2009/07/18 20:45:21.3 -0.2 T 36.2 1.20 mb 5.5 GFZ
JSRW 88.87 317.3 m P 2009/07/18 20:45:21.8 0.0 T NEIR
DGMT 91.29 339.1 m P 2009/07/18 20:45:34.8 1.6 T 28.0 1.10 mb 5.5 NEIR
HDIL 92.46 325.9 m P 2009/07/18 20:45:40.8 2.3 T 48.0 1.10 mb 5.8 NEIR
WCI 92.87 322.6 m P 2009/07/18 20:45:40.4 -0.1 T NEIR
ECSD 92.90 332.1 m P 2009/07/18 20:45:40.4 -0.2 T 16.4 1.30 mb 5.3 GFZ
USIN 93.75 323.3 m P 2009/07/18 20:45:44.5 0.1 T 100.0 1.30 mb 6.0 NEIR
CPCT 94.11 319.7 m P 2009/07/18 20:45:46.7 0.6 T NEIR
FITZ 94.36 109.0 m P 2009/07/18 20:45:47.1 -0.1 T 12.9 0.90 mb 5.3 GFZ
BSMT 94.50 345.4 m P 2009/07/18 20:45:48.8 0.6 T 4.6 0.92 mb 4.8 NEIR
NEW 94.55 347.0 m P 2009/07/18 20:45:48.7 0.5 T 11.1 1.40 mb 5.1 GFZ
SWMT 94.66 344.8 m P 2009/07/18 20:45:49.6 0.8 T 8.4 1.20 mb 5.0 NEIR
SIUC 94.70 324.1 m P 2009/07/18 20:45:49.2 0.4 T 43.0 1.10 mb 5.8 NEIR
CHMT 95.06 344.1 m P 2009/07/18 20:45:51.1 0.3 T 7.3 1.10 mb 5.0 NEIR
RSSD 95.15 337.1 m P 2009/07/18 20:45:51.3 0.1 T 10.9 1.50 mb 5.1 GFZ
UTMT 95.62 323.1 m P 2009/07/18 20:45:50.8 -2.2 T 130.0 1.60 mb 6.2 NEIR
BMO 97.88 346.2 m P 2009/07/18 20:46:03.5 0.1 T 5.4 1.20 mb 5.1 NEIR
DUG 101.30 341.6 m P 2009/07/18 20:46:19.8 1.1 T 3.7 2.40 GFZ
WMOK 101.46 328.9 m P 2009/07/18 20:46:19.5 0.2 T 4.2 1.20
SLU/Washington University/Array Information Technologies Solution
In addition the elocate solution based on locally recorded phases
We used the nnCIA regional model for the Italian Appenines in the VEL,MOD file with the picks in the elocate.dat file. The complete elocate output is
CHOOSE VELOCITY MODEL
TELE = Model( 1) P S
BEAM = Model( 2) P
HALF = Model( 3) P S
CUS = Model( 4) P S Lg
UPL = Model( 5) P S Lg
EMBN = Model( 6) P Ps Sp S
WUS = Model( 7) P S Lg
nnCIA = Model( 8) P S
WHICH MODEL ? 1 - 8
8
STA IWT ARRIVAL TIME PhIDQL PHASE FM CHAN
GNI 2 20090718203336.964 1 0 e P X Z
GRMI 2 20090718203340.571 1 0 e P + Z
2839 0 20090718203324.475 1 0 i P C Z
KEBG 0 20090718203256.983 2 0 i S X Z
KEBG 0 20090718203244.289 1 0 i P D Z
KEHH 2 20090718203320.855 2 0 e S X Z
KEHH 0 20090718203258.285 1 0 i P D Z
KESM 2 20090718203312.101 2 0 e S X Z
KESM 0 20090718203252.177 1 0 i P D Z
KSBB 0 20090718203306.052 1 0 i P C Z
KSJS 2 20090718203324.375 2 0 e S X Z
KSJS 0 20090718203259.964 1 0 i P C Z
KSWW 0 20090718203320.436 2 0 i S X Z
KSWW 0 20090718203258.129 1 0 i P C Z
MAKU 0 20090718203326.123 1 0 i P D Z
MALT 2 20090718203353.480 1 0 e P X Z
SNGE 2 20090718203323.055 1 0 e P X Z
enter depth, depth < 0 is fixed at abs(depth)
10
36.1842 44.2581 10.00 20090718203240.713 901.76
36.0336 43.8226 15.00 20090718203235.326 224.01
35.9213 43.4966 15.06 20090718203231.002 87.11
35.9118 43.4848 14.83 20090718203230.795 86.77
35.9051 43.4831 13.42 20090718203230.553 8.52
35.9204 43.3066 13.38 20090718203228.276 2.23
35.9258 43.2889 13.66 20090718203228.075 1.98
35.9273 43.2835 13.68 20090718203228.005 1.96
35.9280 43.2813 13.67 20090718203227.974 1.95
35.9284 43.2803 13.66 20090718203227.961 1.95
35.9286 43.2799 13.65 20090718203227.955 1.95
35.9287 43.2797 13.65 20090718203227.953 1.94
17 phases used
STA COMP DIS(K) AZM AIN ARR TIME RES(SEC) WT QFM PHASE WGT
KEBG Z 92.60 72. 114. 20090718203256.983 0.11 0 iX S 0.44
KEBG Z 92.60 72. 113. 20090718203244.289 -0.16 0 iD P 0.40
KESM Z 143.20 35. 51. 20090718203312.101 0.20 2 eX S 0.12
KESM Z 143.20 35. 51. 20090718203252.177 -0.72 0 iD P 0.12
KEHH Z 179.10 62. 51. 20090718203320.855 -0.00 2 eX S 0.14
KEHH Z 179.10 62. 44. 20090718203258.285 0.37 0 iD P 0.15
KSWW Z 180.34 82. 51. 20090718203320.436 -0.73 0 iX S 0.09
KSWW Z 180.34 82. 44. 20090718203258.129 0.06 0 iC P 0.25
KSJS Z 192.96 104. 45. 20090718203324.375 0.16 2 eX S 0.10
KSJS Z 192.96 104. 44. 20090718203259.964 0.30 0 iC P 0.15
KSBB Z 241.43 113. 44. 20090718203306.052 0.25 0 iC P 0.13
SNGE Z 380.41 103. 44. 20090718203323.055 -0.34 2 eX P 0.04
2839 Z 396.09 141. 44. 20090718203324.475 -0.90 0 iC P 0.03
MAKU Z 399.92 18. 44. 20090718203326.123 0.26 0 iD P 0.08
GNI Z 485.56 15. 44. 20090718203336.964 0.26 2 eX P 0.03
MALT Z 505.86 303. 44. 20090718203353.480 14.21 2 eX P 0.00
GRMI Z 518.83 51. 44. 20090718203340.571 -0.34 2 e+ P 0.03
RETURN FOR NEXT SCREEN
Error Ellipse X= 1.4186 km Y= 1.5759 km Theta = 25.9673 deg
RMS Error : 0.150 sec
Travel_Time_Table: nnCIA
Latitude : 35.9288 +- 0.0130 N 1.4501 km
Longitude : 43.2796 +- 0.0173 E 1.5470 km
Depth : 13.65 +- 0.88 km
Epoch Time : 1247949147.952 +- 0.31 sec
Event Time : 20090718203227.952 +- 0.31 sec
Event (OCAL) : 2009 07 18 20 32 27 952
HYPO71 Quality : CD
Gap : 161 deg
Focal Mechanism
USGS/SLU Moment Tensor Solution
ENS 2009/07/18 20:32:27:6 35.85 43.35 7.4 5.2 Iraq
Stations used:
-12345.KEBG -12345.KESM -12345.KI01 -12345.KSBB -12345.KSJS
-12345.KSWW GE.MALT IR.MAKU IR.ZNJK IU.GNI
Filtering commands used:
hp c 0.02 n 3
lp c 0.05 n 3
Best Fitting Double Couple
Mo = 2.63e+23 dyne-cm
Mw = 4.88
Z = 8 km
Plane Strike Dip Rake
NP1 255 75 40
NP2 153 52 161
Principal Axes:
Axis Value Plunge Azimuth
T 2.63e+23 38 121
N 0.00e+00 48 272
P -2.63e+23 15 19
Moment Tensor: (dyne-cm)
Component Value
Mxx -1.76e+23
Mxy -1.47e+23
Mxz -1.28e+23
Myy 9.16e+22
Myz 8.83e+22
Mzz 8.45e+22
-----------
#-------------- P ----
###--------------- -------
####--------------------------
#####-----------------------------
######------------------------------
#######-------------------------------
########--------------------------------
########---------------#################
##########-------#########################
##########--##############################
########---###############################
####--------##############################
#-----------################# ########
-------------################ T ########
-------------############### #######
-------------#######################
--------------####################
--------------################
----------------############
----------------######
--------------
Global CMT Convention Moment Tensor:
R T P
8.45e+22 -1.28e+23 -8.83e+22
-1.28e+23 -1.76e+23 1.47e+23
-8.83e+22 1.47e+23 9.16e+22
Details of the solution is found at
http://www.eas.slu.edu/Earthquake_Center/MECH.NA/20090718203227/index.html
|
Preferred Solution
The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion and first motion observations is
STK = 255
DIP = 75
RAKE = 40
MW = 4.88
HS = 8.0
The waveform inversion is preferred.
Moment Tensor Comparison
The following compares this source inversion to others
| SLU |
SLU |
USGS/SLU Moment Tensor Solution
ENS 2009/07/18 20:32:27:6 35.85 43.35 7.4 5.2 Iraq
Stations used:
-12345.KEBG -12345.KESM -12345.KI01 -12345.KSBB -12345.KSJS
-12345.KSWW GE.MALT IR.MAKU IR.ZNJK IU.GNI
Filtering commands used:
hp c 0.02 n 3
lp c 0.05 n 3
Best Fitting Double Couple
Mo = 2.63e+23 dyne-cm
Mw = 4.88
Z = 8 km
Plane Strike Dip Rake
NP1 255 75 40
NP2 153 52 161
Principal Axes:
Axis Value Plunge Azimuth
T 2.63e+23 38 121
N 0.00e+00 48 272
P -2.63e+23 15 19
Moment Tensor: (dyne-cm)
Component Value
Mxx -1.76e+23
Mxy -1.47e+23
Mxz -1.28e+23
Myy 9.16e+22
Myz 8.83e+22
Mzz 8.45e+22
-----------
#-------------- P ----
###--------------- -------
####--------------------------
#####-----------------------------
######------------------------------
#######-------------------------------
########--------------------------------
########---------------#################
##########-------#########################
##########--##############################
########---###############################
####--------##############################
#-----------################# ########
-------------################ T ########
-------------############### #######
-------------#######################
--------------####################
--------------################
----------------############
----------------######
--------------
Global CMT Convention Moment Tensor:
R T P
8.45e+22 -1.28e+23 -8.83e+22
-1.28e+23 -1.76e+23 1.47e+23
-8.83e+22 1.47e+23 9.16e+22
Details of the solution is found at
http://www.eas.slu.edu/Earthquake_Center/MECH.NA/20090718203227/index.html
|

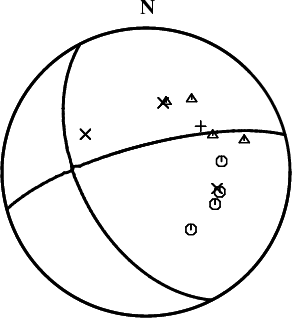

The program elocate creates a file fmplot.fmp to be used
with the program fmplot to plot the nodal planes with a given
focal mechanism. For this preferred solution, we run the command
fmplot -S 255 -D 60 -R 40 -F fmplot.tmp
and then convert FMPLOT.PLT to and EPS file and then use
GraphicsMagick to convert to create a PNG file.
The fmplot.fmp file is
AZ IO P Sta
14 44 0 'GNI '
50 44 2 'GRMI '
141 44 1 '2839 '
71 113 -1 'KEBG '
61 44 -1 'KEHH '
34 51 -1 'KESM '
113 44 1 'KSBB '
103 44 1 'KSJS '
81 44 1 'KSWW '
17 44 -1 'MAKU '
302 44 0 'MALT '
102 44 0 'SNGE '
Where 0 means an X arrivel, 1 a strong compression (O), 2 a weak
compression (+), -1 a strong dilatation (DELTA) and -2 a weak
dilatation (-).
|
Waveform Inversion
The focal mechanism was determined using broadband seismic waveforms. The location of the event and the
and stations used for the waveform inversion are shown in the next figure.
|
|

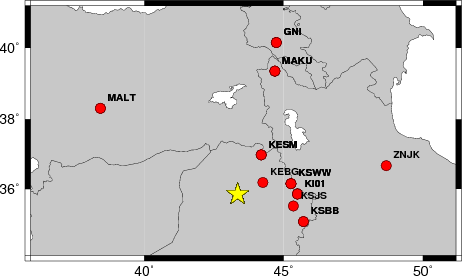

Location of broadband stations used for waveform inversion
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

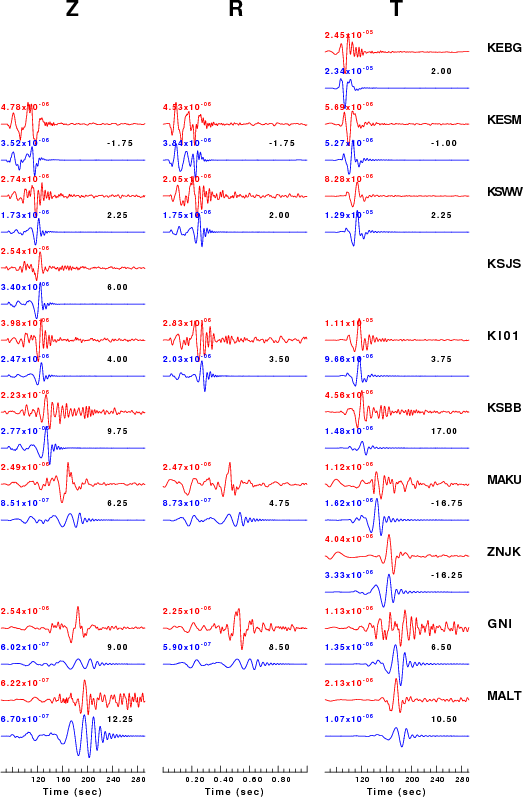

The observed and predicted traces are filtered using the following gsac commands:
hp c 0.02 n 3
lp c 0.05 n 3

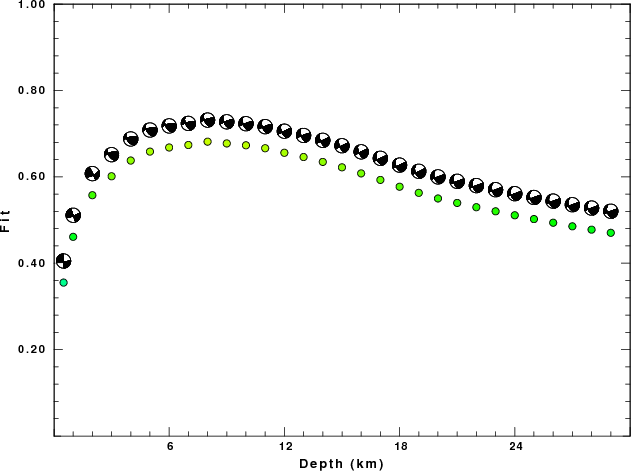

The results of this grid search from 0.5 to 19 km depth are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 0.5 85 80 -5 4.54 0.3552
WVFGRD96 1.0 70 80 0 4.59 0.4611
WVFGRD96 2.0 65 65 5 4.69 0.5575
WVFGRD96 3.0 255 60 40 4.79 0.6013
WVFGRD96 4.0 260 65 50 4.83 0.6377
WVFGRD96 5.0 260 65 45 4.84 0.6584
WVFGRD96 6.0 260 65 45 4.86 0.6679
WVFGRD96 7.0 255 75 35 4.84 0.6737
WVFGRD96 8.0 255 75 40 4.88 0.6814
WVFGRD96 9.0 250 80 35 4.88 0.6773
WVFGRD96 10.0 250 85 35 4.89 0.6730
WVFGRD96 11.0 250 85 35 4.90 0.6662
WVFGRD96 12.0 65 90 -35 4.91 0.6557
WVFGRD96 13.0 250 85 30 4.91 0.6458
WVFGRD96 14.0 65 90 -30 4.92 0.6345
WVFGRD96 15.0 245 90 30 4.93 0.6220
WVFGRD96 16.0 245 90 30 4.94 0.6079
WVFGRD96 17.0 245 90 45 5.00 0.5929
WVFGRD96 18.0 245 90 45 5.01 0.5771
WVFGRD96 19.0 65 85 -45 5.02 0.5629
WVFGRD96 20.0 250 90 45 5.02 0.5499
WVFGRD96 21.0 250 90 45 5.03 0.5396
WVFGRD96 22.0 70 90 -45 5.04 0.5297
WVFGRD96 23.0 70 90 -45 5.05 0.5202
WVFGRD96 24.0 250 90 50 5.06 0.5110
WVFGRD96 25.0 70 90 -50 5.07 0.5022
WVFGRD96 26.0 70 90 -50 5.08 0.4938
WVFGRD96 27.0 250 90 50 5.09 0.4854
WVFGRD96 28.0 250 90 45 5.09 0.4777
WVFGRD96 29.0 70 90 -45 5.09 0.4704
The best solution is
WVFGRD96 8.0 255 75 40 4.88 0.6814
The mechanism correspond to the best fit is
|
|
Figure 1. Waveform inversion focal mechanism
|
The best fit as a function of depth is given in the following figure:
|
|
Figure 2. Depth sensitivity for waveform mechanism
|
The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted.
Each observed-predicted componnet is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. The number in black at the rightr of each predicted traces it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect.
A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow.
The bandpass filter used in the processing and for the display was
hp c 0.02 n 3
lp c 0.05 n 3
|
|
Figure 3. Waveform comparison for selected depth
|
|
|
Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms.
Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.
|
Discussion
The waveform inversion code permits time shifts for a better fit. The reasons for permitting a time shift are to reduce sensitivity to earthquake location, velocity model and the fact that the Greens functions are computed at 5 km increments in epicentral distance with a sampling interval of 0.25 sec. The sensitivity to the velocity model is very when signal paths cross different structures. There are simple tests to distinguish the source of the time shift. Since the Z (vertical) and R (radial) traces should show the P and Rayleigh waves, we expect that the time shift should be the same for both. The time shift for the transverse (T) component could be different than for the Z and R components because the velocity model used may not be correct. If the model were incorrect or if the origin time is not correct, then all time shifts would be of the same sign. If the time shifts are positive for some station azimuths and negative for others, then the epicenter may not be correct.
For this data set, we note that a significant negative time shift is required at KESM and that a large positive time shift is required at KSBB. Although the KSBB waveforms shows the effect of low velocities near the surface by the short period dispersion, we can reconcile these shifts if the elocate location is correct, e.g., the epicenter is NW of the initial NEIC location used in the analysis. For the stations used for the waveform inversion, we have the following distances:
Station Distance(km) Distance(km) Elocate Distance > NEIC Expected Waveform
Initial NEIC Elocate > NEIC Distance? (Y/N) Time shift
KEBG 90.0 92.6 Y Pos
KESM 147.6 143.2 N Neg
KSWW 175.8 180.3 Y Pos
KSJS 184.8 193.0 Y Pos
KSBB 232.1 241.3 Y Pos
MAKU 407.0 399.9 N Neg
GNI 493.0 485.6 N Neg
MALT 516.2 505.9 N Neg
The comparison for MALT indicates that the velocity model needs to be modified for this large distance.
Velocity Model
The mod01.000 used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:
MODEL.01
PROG MOD Ghassan for Iraq
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
Deme number: 1
Model number: 0
LINE11
H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS
1.15 2.23 1.29 1.85 94 47 0 0 1 1
1.48 4.91 2.84 2.39 114 57 0 0 1 1
4.92 5.26 3.04 2.50 106 53 0 0 1 1
9.09 5.97 3.45 2.60 57 28 0 0 1 1
12.47 6.80 3.93 2.85 90 45 0 0 1 1
13.36 7.49 4.32 2.98 115 57 0 0 1 1
10.67 7.86 4.54 3.14 109 54 0 0 1 1
0.01 7.95 4.59 3.14 112 56 0 0 1 1
0.00 7.95 4.59 3.14 112 56 0 0 1 1
DATE=Fri Oct 9 06:46:42 CDT 2009
Last Changed 2009/07/18
