2021/01/20 07:30:26 47.62 14.43 2.0 4.2 Austria
Focal Mechanism
USGS/SLU Moment Tensor Solution
ENS 2021/01/20 07:30:26:5 47.62 14.43 2.0 4.2 Austria
Stations used:
BW.BGDS BW.HROE BW.MANZ BW.MGBB BW.PART BW.RNHA BW.RNON
BW.RTBE BW.SCE CH.LLS CH.PLONS GE.MORC GE.STU GR.BRG GR.CLL
GR.GEC2 GR.GEC7 GR.GRB5 GR.MILB GR.WET MN.BLY MN.DPC
OE.ABTA OE.ARSA OE.BIOA OE.CONA OE.CSNA OE.FETA OE.KBA
OE.MYKA OE.OBKA OE.RONA OE.SOKA OE.SQTA OE.VIE OE.WATA
OX.ACOM OX.AGOR OX.BAD OX.CAE OX.CIMO OX.CLUD OX.DRE
OX.FUSE OX.MARN OX.MLN OX.MPRI OX.PLRO OX.PRED OX.SABO
OX.VARN SL.BOJS SL.CADS SL.CEY SL.CRES SL.CRNS SL.DOBS
SL.GBAS SL.GBRS SL.GCIS SL.GORS SL.JAVS SL.KNDS SL.KOGS
SL.LJU SL.MOZS SL.PERS SL.ROBS SL.SKDS SL.VISS SL.VNDS
SL.VOJS SL.ZAVS SX.NEUB SX.TANN SX.WIMM
Filtering commands used:
cut o DIST/3.3 -30 o DIST/3.3 +70
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.06 n 3
Best Fitting Double Couple
Mo = 7.76e+21 dyne-cm
Mw = 3.86
Z = 13 km
Plane Strike Dip Rake
NP1 285 85 -30
NP2 18 60 -174
Principal Axes:
Axis Value Plunge Azimuth
T 7.76e+21 17 335
N 0.00e+00 60 96
P -7.76e+21 24 237
Moment Tensor: (dyne-cm)
Component Value
Mxx 3.98e+21
Mxy -5.63e+21
Mxz 3.54e+21
Myy -3.30e+21
Myz 1.56e+21
Mzz -6.74e+20
##############
## #############----
##### T ##############------
###### ###############------
##########################--------
###########################---------
############################----------
#############################-----------
-----########################-----------
---------------##############-------------
----------------------#######-------------
------------------------------------------
----------------------------#######-------
--------------------------############--
----- ------------------##############
---- P -----------------##############
--- ----------------##############
-------------------###############
----------------##############
-------------###############
--------##############
-#############
Global CMT Convention Moment Tensor:
R T P
-6.74e+20 3.54e+21 -1.56e+21
3.54e+21 3.98e+21 5.63e+21
-1.56e+21 5.63e+21 -3.30e+21
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20210120073026/index.html
|
Preferred Solution
The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion and first motion observations is
STK = 285
DIP = 85
RAKE = -30
MW = 3.86
HS = 13.0
The NDK file is 20210120073026.ndk
The waveform inversion is preferred.
Moment Tensor Comparison
The following compares this source inversion to others
| SLU |
OTHER |
USGS/SLU Moment Tensor Solution
ENS 2021/01/20 07:30:26:5 47.62 14.43 2.0 4.2 Austria
Stations used:
BW.BGDS BW.HROE BW.MANZ BW.MGBB BW.PART BW.RNHA BW.RNON
BW.RTBE BW.SCE CH.LLS CH.PLONS GE.MORC GE.STU GR.BRG GR.CLL
GR.GEC2 GR.GEC7 GR.GRB5 GR.MILB GR.WET MN.BLY MN.DPC
OE.ABTA OE.ARSA OE.BIOA OE.CONA OE.CSNA OE.FETA OE.KBA
OE.MYKA OE.OBKA OE.RONA OE.SOKA OE.SQTA OE.VIE OE.WATA
OX.ACOM OX.AGOR OX.BAD OX.CAE OX.CIMO OX.CLUD OX.DRE
OX.FUSE OX.MARN OX.MLN OX.MPRI OX.PLRO OX.PRED OX.SABO
OX.VARN SL.BOJS SL.CADS SL.CEY SL.CRES SL.CRNS SL.DOBS
SL.GBAS SL.GBRS SL.GCIS SL.GORS SL.JAVS SL.KNDS SL.KOGS
SL.LJU SL.MOZS SL.PERS SL.ROBS SL.SKDS SL.VISS SL.VNDS
SL.VOJS SL.ZAVS SX.NEUB SX.TANN SX.WIMM
Filtering commands used:
cut o DIST/3.3 -30 o DIST/3.3 +70
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.06 n 3
Best Fitting Double Couple
Mo = 7.76e+21 dyne-cm
Mw = 3.86
Z = 13 km
Plane Strike Dip Rake
NP1 285 85 -30
NP2 18 60 -174
Principal Axes:
Axis Value Plunge Azimuth
T 7.76e+21 17 335
N 0.00e+00 60 96
P -7.76e+21 24 237
Moment Tensor: (dyne-cm)
Component Value
Mxx 3.98e+21
Mxy -5.63e+21
Mxz 3.54e+21
Myy -3.30e+21
Myz 1.56e+21
Mzz -6.74e+20
##############
## #############----
##### T ##############------
###### ###############------
##########################--------
###########################---------
############################----------
#############################-----------
-----########################-----------
---------------##############-------------
----------------------#######-------------
------------------------------------------
----------------------------#######-------
--------------------------############--
----- ------------------##############
---- P -----------------##############
--- ----------------##############
-------------------###############
----------------##############
-------------###############
--------##############
-#############
Global CMT Convention Moment Tensor:
R T P
-6.74e+20 3.54e+21 -1.56e+21
3.54e+21 3.98e+21 5.63e+21
-1.56e+21 5.63e+21 -3.30e+21
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20210120073026/index.html
|

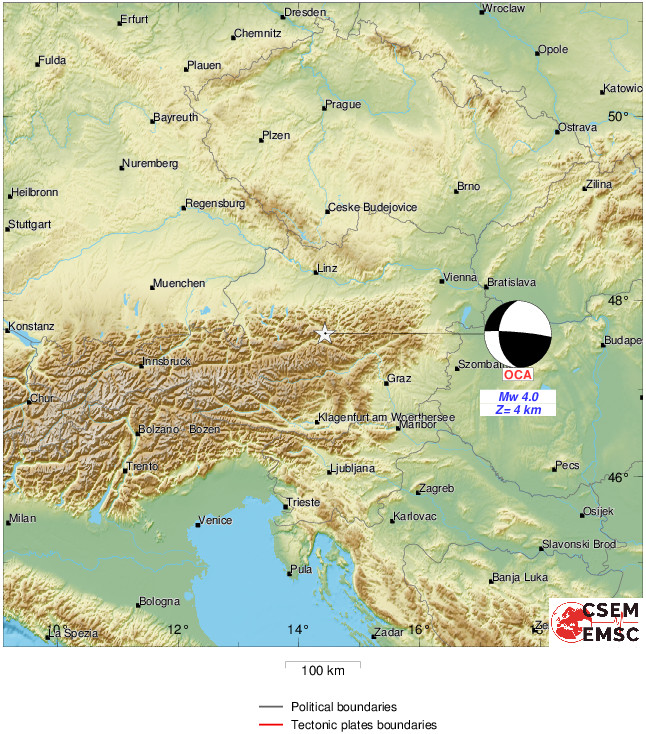

CSEM/EMSC
|
Magnitudes

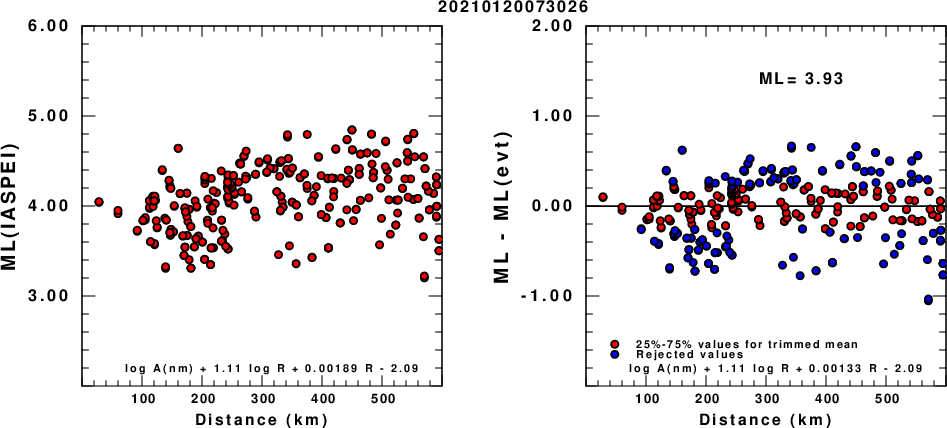

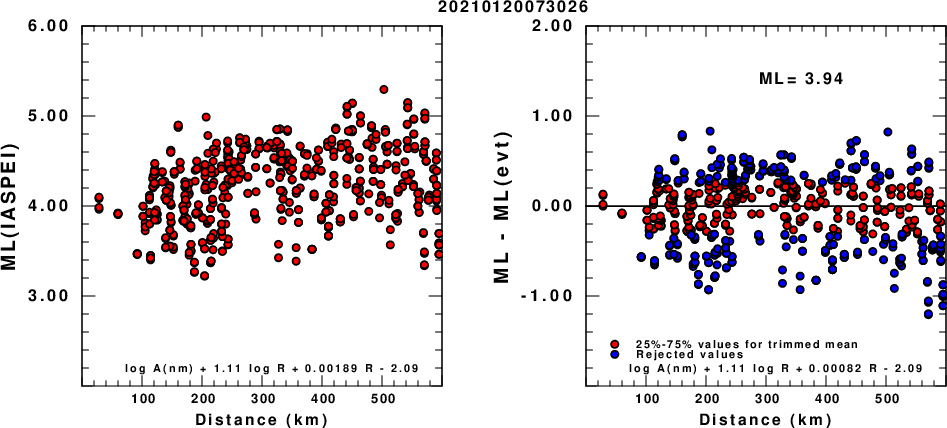

ML Magnitude
(a) ML computed using the IASPEI formula for Horizontal components; (b) ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
(a) ML computed using the IASPEI formula for Vertical components (research); (b) ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.
Context

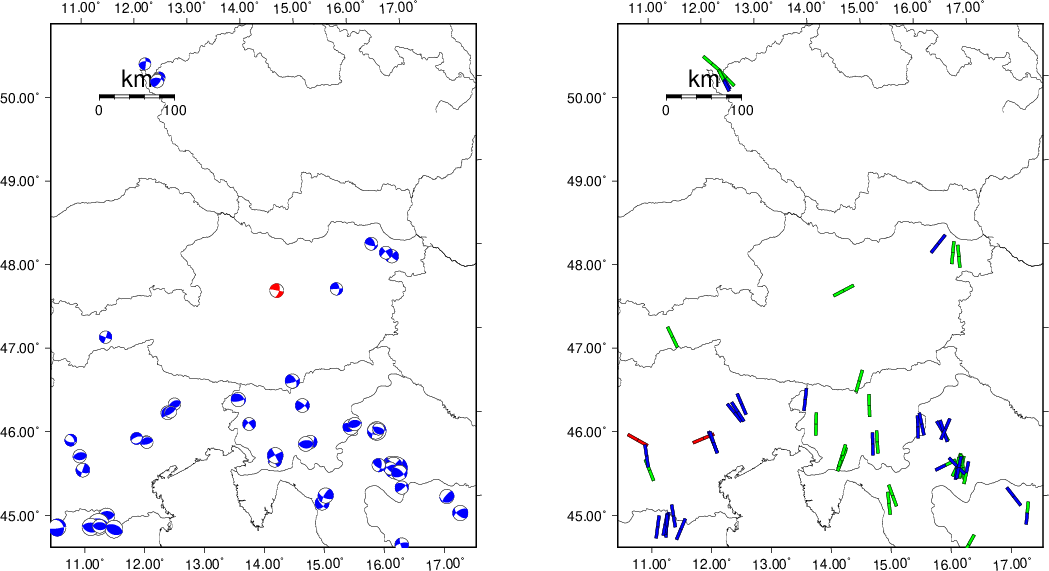

The next figure presents the focal mechanism for this earthquake (red) in the context of other events (blue) in the SLU Moment Tensor Catalog which are within ± 0.5 degrees of the new event. This comparison is shown in the left panel of the figure. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors).
Waveform Inversion
The focal mechanism was determined using broadband seismic waveforms. The location of the event and the
and stations used for the waveform inversion are shown in the next figure.
|
|

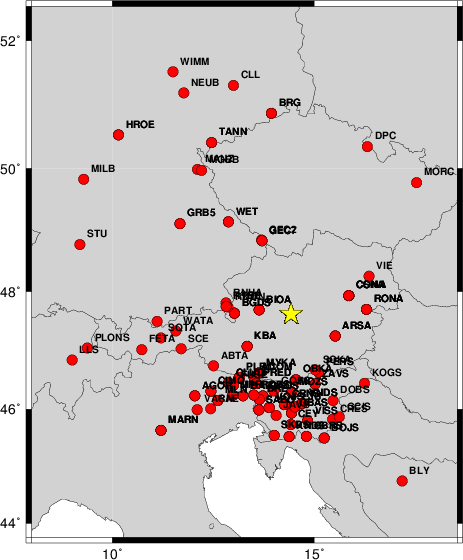

Location of broadband stations used for waveform inversion
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -30 o DIST/3.3 +70
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.06 n 3
The results of this grid search from 0.5 to 19 km depth are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 1.0 105 90 -10 3.48 0.3051
WVFGRD96 2.0 105 90 -15 3.58 0.3856
WVFGRD96 3.0 285 85 25 3.64 0.4174
WVFGRD96 4.0 110 55 25 3.71 0.4427
WVFGRD96 5.0 110 55 30 3.74 0.4641
WVFGRD96 6.0 110 75 35 3.75 0.4871
WVFGRD96 7.0 110 75 35 3.77 0.5114
WVFGRD96 8.0 115 70 40 3.82 0.5312
WVFGRD96 9.0 280 80 -40 3.82 0.5428
WVFGRD96 10.0 280 80 -35 3.83 0.5531
WVFGRD96 11.0 280 80 -35 3.84 0.5595
WVFGRD96 12.0 285 85 -30 3.85 0.5621
WVFGRD96 13.0 285 85 -30 3.86 0.5636
WVFGRD96 14.0 285 85 -30 3.87 0.5622
WVFGRD96 15.0 285 85 -30 3.88 0.5586
WVFGRD96 16.0 285 85 -25 3.89 0.5546
WVFGRD96 17.0 285 85 -25 3.90 0.5493
WVFGRD96 18.0 285 85 -25 3.90 0.5425
WVFGRD96 19.0 285 85 -25 3.91 0.5345
WVFGRD96 20.0 285 85 -25 3.92 0.5258
WVFGRD96 21.0 285 85 -25 3.93 0.5175
WVFGRD96 22.0 285 85 -25 3.93 0.5087
WVFGRD96 23.0 285 85 -20 3.94 0.4998
WVFGRD96 24.0 285 85 -20 3.95 0.4913
WVFGRD96 25.0 285 85 -20 3.95 0.4826
WVFGRD96 26.0 285 85 -20 3.96 0.4739
WVFGRD96 27.0 285 85 -20 3.97 0.4651
WVFGRD96 28.0 285 85 -20 3.97 0.4563
WVFGRD96 29.0 285 85 -20 3.98 0.4481
The best solution is
WVFGRD96 13.0 285 85 -30 3.86 0.5636
The mechanism correspond to the best fit is
|
|
Figure 1. Waveform inversion focal mechanism
|

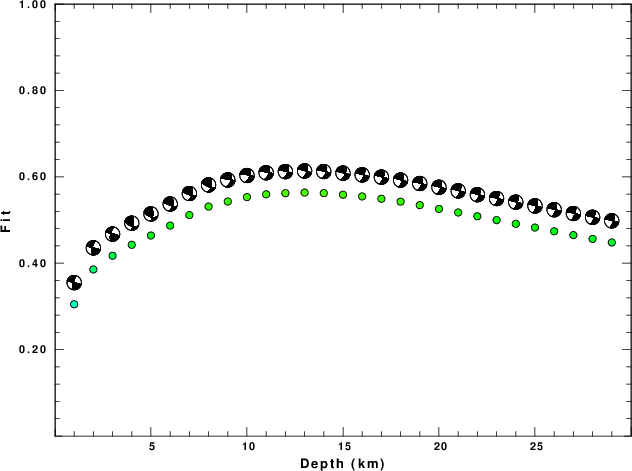

The best fit as a function of depth is given in the following figure:
|
|
Figure 2. Depth sensitivity for waveform mechanism
|

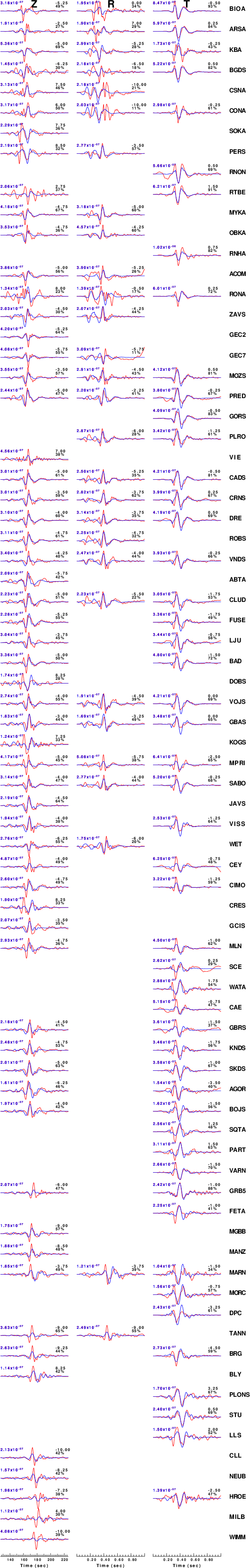

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted.
Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect.
A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -30 o DIST/3.3 +70
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.06 n 3
|
|
Figure 3. Waveform comparison for selected depth
|
|
|

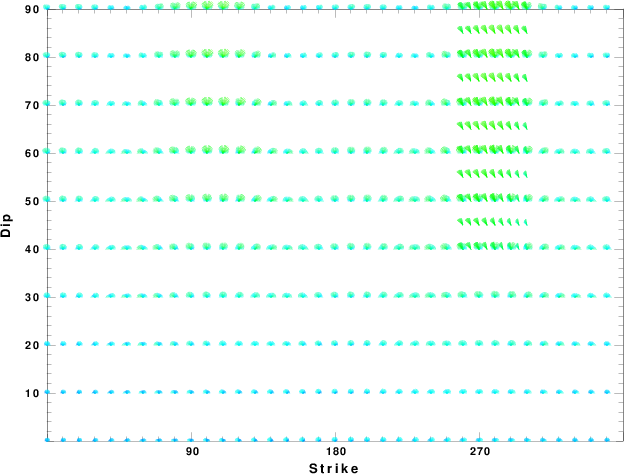

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms.
Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.
|
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
- The origin time and epicentral distance are incorrect
- The velocity model used for the inversion is incorrect
- The velocity model used to define the P-arrival time is not the
same as the velocity model used for the waveform inversion
(assuming that the initial trace alignment is based on the
P arrival time)
Assuming only a mislocation, the time shifts are fit to a functional form:
Time_shift = A + B cos Azimuth + C Sin Azimuth

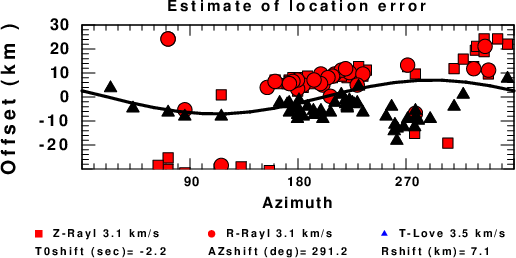

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
Discussion
Acknowledgements
Thanks also to the many seismic network operators whose dedication make this effort possible: University of Nevada Reno, University of Alaska, University of Washington, Oregon State University, University of Utah, Montana Bureas of Mines, UC Berkely, Caltech, UC San Diego, Saint Louis University, University of Memphis, Lamont Doherty Earth Observatory, the Iris stations and the Transportable Array of EarthScope.
Velocity Model
The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:
MODEL.01
Model after 8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS
1.9000 3.4065 2.0089 2.2150 0.302E-02 0.679E-02 0.00 0.00 1.00 1.00
6.1000 5.5445 3.2953 2.6089 0.349E-02 0.784E-02 0.00 0.00 1.00 1.00
13.0000 6.2708 3.7396 2.7812 0.212E-02 0.476E-02 0.00 0.00 1.00 1.00
19.0000 6.4075 3.7680 2.8223 0.111E-02 0.249E-02 0.00 0.00 1.00 1.00
0.0000 7.9000 4.6200 3.2760 0.164E-10 0.370E-10 0.00 0.00 1.00 1.00
