Location

Location ANSS

2017/10/25 22:45:58 43.71 17.52 2 4.2 Bosnia Herzegovina

Focal Mechanism

USGS/SLU Moment Tensor Solution ENS 2017/10/25 22:45:58:7 43.71 17.52 2.0 4.2 Bosnia Herzegovina Stations used: AC.BCI AC.KBN HT.FNA HT.HORT HT.KNT HU.BEHE HU.KOVH HU.MORH MN.BLY MN.BZS MN.DIVS MN.PDG MN.TIR MN.TRI MN.VTS OE.ARSA OE.KBA OX.ACOM OX.CLUD OX.DRE OX.FUSE OX.PRED OX.SABO RO.DEV RO.GZR RO.HERR RO.LOT RO.MDVR RO.PUNG SJ.BBLS SJ.FRGS Filtering commands used: cut o DIST/3.3 -30 o DIST/3.3 +70 rtr taper w 0.1 hp c 0.02 n 3 lp c 0.06 n 3 Best Fitting Double Couple Mo = 1.97e+22 dyne-cm Mw = 4.13 Z = 13 km Plane Strike Dip Rake NP1 348 69 -148 NP2 245 60 -25 Principal Axes: Axis Value Plunge Azimuth T 1.97e+22 5 115 N 0.00e+00 52 18 P -1.97e+22 38 209 Moment Tensor: (dyne-cm) Component Value Mxx -5.93e+21 Mxy -1.27e+22 Mxz 7.55e+21 Myy 1.31e+22 Myz 6.34e+21 Mzz -7.22e+21 ####---------- #########------------- ##############-------------- ################-------------- ###################--------------- #####################------####----- ###################---################ ################--------################ #############-----------################ ###########---------------################ #########-----------------################ #######--------------------############### #####----------------------############### ###-----------------------############## ##------------------------########## # -------------------------########## T ---------- -----------########## --------- P -----------########### ------- -----------######### --------------------######## ----------------###### ------------## Global CMT Convention Moment Tensor: R T P -7.22e+21 7.55e+21 -6.34e+21 7.55e+21 -5.93e+21 1.27e+22 -6.34e+21 1.27e+22 1.31e+22 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20171025224558/index.html

Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion and first motion observations is

      STK = 245
      DIP = 60
     RAKE = -25
       MW = 4.13
       HS = 13.0

The NDK file is 20171025224558.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to others

SLU

USGS/SLU Moment Tensor Solution ENS 2017/10/25 22:45:58:7 43.71 17.52 2.0 4.2 Bosnia Herzegovina Stations used: AC.BCI AC.KBN HT.FNA HT.HORT HT.KNT HU.BEHE HU.KOVH HU.MORH MN.BLY MN.BZS MN.DIVS MN.PDG MN.TIR MN.TRI MN.VTS OE.ARSA OE.KBA OX.ACOM OX.CLUD OX.DRE OX.FUSE OX.PRED OX.SABO RO.DEV RO.GZR RO.HERR RO.LOT RO.MDVR RO.PUNG SJ.BBLS SJ.FRGS Filtering commands used: cut o DIST/3.3 -30 o DIST/3.3 +70 rtr taper w 0.1 hp c 0.02 n 3 lp c 0.06 n 3 Best Fitting Double Couple Mo = 1.97e+22 dyne-cm Mw = 4.13 Z = 13 km Plane Strike Dip Rake NP1 348 69 -148 NP2 245 60 -25 Principal Axes: Axis Value Plunge Azimuth T 1.97e+22 5 115 N 0.00e+00 52 18 P -1.97e+22 38 209 Moment Tensor: (dyne-cm) Component Value Mxx -5.93e+21 Mxy -1.27e+22 Mxz 7.55e+21 Myy 1.31e+22 Myz 6.34e+21 Mzz -7.22e+21 ####---------- #########------------- ##############-------------- ################-------------- ###################--------------- #####################------####----- ###################---################ ################--------################ #############-----------################ ###########---------------################ #########-----------------################ #######--------------------############### #####----------------------############### ###-----------------------############## ##------------------------########## # -------------------------########## T ---------- -----------########## --------- P -----------########### ------- -----------######### --------------------######## ----------------###### ------------## Global CMT Convention Moment Tensor: R T P -7.22e+21 7.55e+21 -6.34e+21 7.55e+21 -5.93e+21 1.27e+22 -6.34e+21 1.27e+22 1.31e+22 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20171025224558/index.html

Magnitudes

ML Magnitude

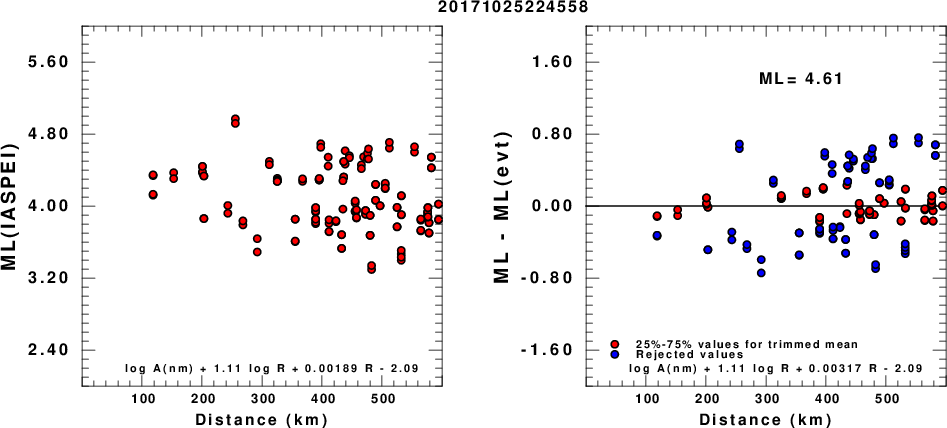

(a) ML computed using the IASPEI formula for Horizontal components; (b) ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.

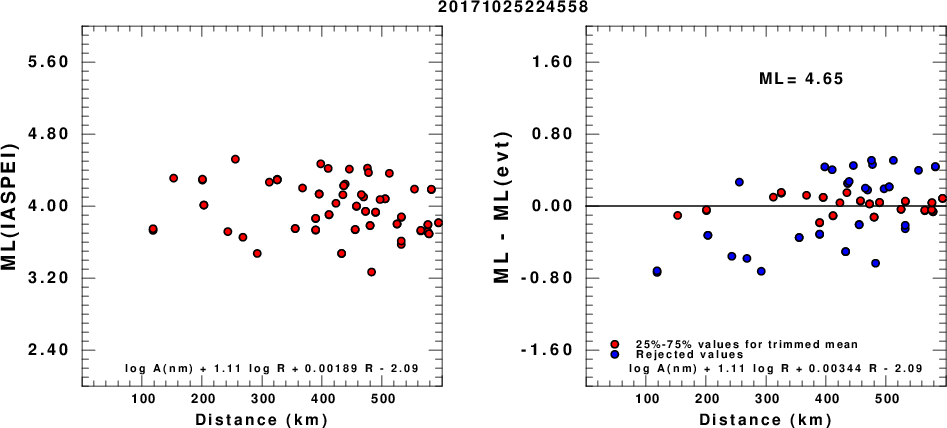

(a) ML computed using the IASPEI formula for Vertical components (research); (b) ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.

Context

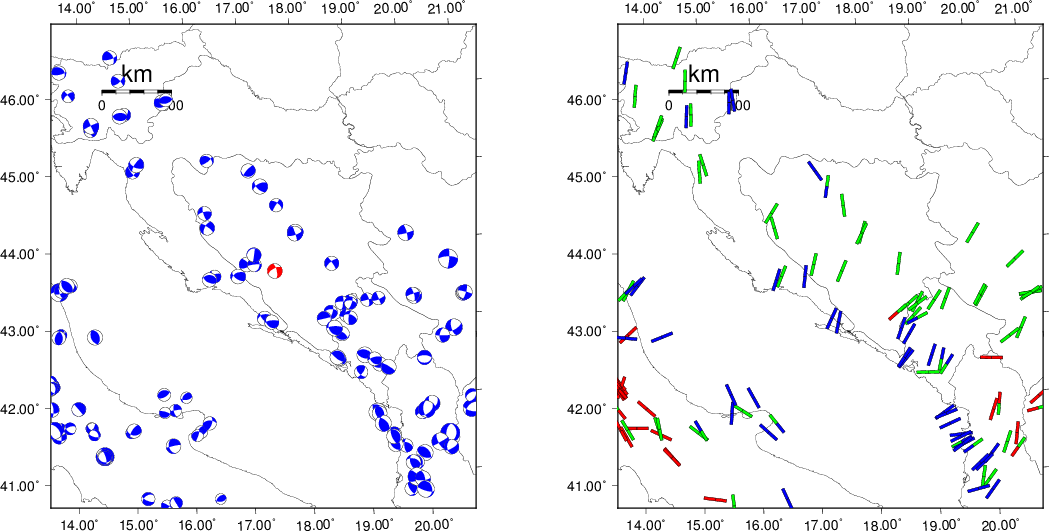

The next figure presents the focal mechanism for this earthquake (red) in the context of other events (blue) in the SLU Moment Tensor Catalog which are within ± 0.5 degrees of the new event. This comparison is shown in the left panel of the figure. The right panel shows the inferred direction of maximum compressive stress and the type of faulting (green is strike-slip, red is normal, blue is thrust; oblique is shown by a combination of colors).

Waveform Inversion

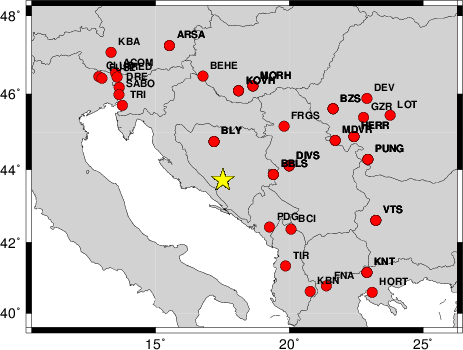

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -30 o DIST/3.3 +70
rtr
taper w 0.1
hp c 0.02 n 3
lp c 0.06 n 3

The results of this grid search from 0.5 to 19 km depth are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0    65    85     0   3.76 0.3245
WVFGRD96    2.0    60    55   -40   3.94 0.4075
WVFGRD96    3.0    55    50   -45   3.98 0.4334
WVFGRD96    4.0   240    75   -40   3.97 0.4529
WVFGRD96    5.0   245    60   -20   3.98 0.4722
WVFGRD96    6.0   245    60   -25   4.01 0.5022
WVFGRD96    7.0   245    60   -25   4.03 0.5292
WVFGRD96    8.0   245    55   -25   4.07 0.5477
WVFGRD96    9.0   245    55   -25   4.09 0.5652
WVFGRD96   10.0   245    60   -25   4.09 0.5767
WVFGRD96   11.0   245    60   -25   4.11 0.5851
WVFGRD96   12.0   245    60   -25   4.12 0.5896
WVFGRD96   13.0   245    60   -25   4.13 0.5904
WVFGRD96   14.0   250    65   -20   4.13 0.5894
WVFGRD96   15.0   250    65   -20   4.14 0.5874
WVFGRD96   16.0   250    65   -20   4.15 0.5833
WVFGRD96   17.0   250    65   -15   4.16 0.5777
WVFGRD96   18.0   250    70   -15   4.16 0.5723
WVFGRD96   19.0   250    70   -15   4.17 0.5659
WVFGRD96   20.0   250    70   -15   4.18 0.5585
WVFGRD96   21.0   250    70   -15   4.19 0.5498
WVFGRD96   22.0   250    70   -15   4.20 0.5418
WVFGRD96   23.0   250    70   -15   4.20 0.5330
WVFGRD96   24.0   250    70   -15   4.21 0.5241
WVFGRD96   25.0   250    75   -15   4.22 0.5149
WVFGRD96   26.0   250    75   -15   4.22 0.5054
WVFGRD96   27.0   250    75   -15   4.23 0.4955
WVFGRD96   28.0   250    75   -15   4.24 0.4856
WVFGRD96   29.0   250    75   -15   4.24 0.4755

The best solution is

WVFGRD96   13.0   245    60   -25   4.13 0.5904

The mechanism correspond to the best fit is

Figure 1. Waveform inversion focal mechanism

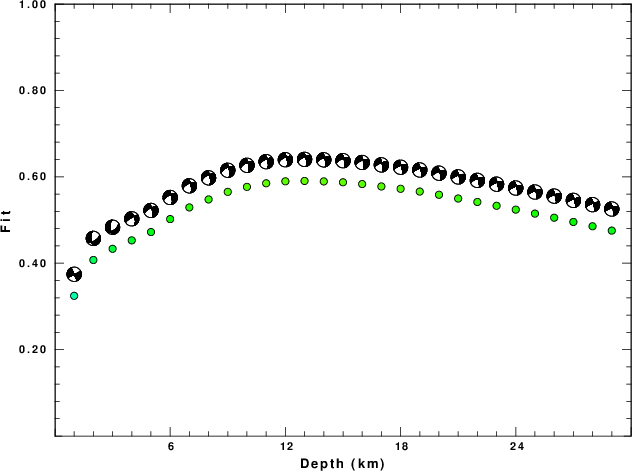

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

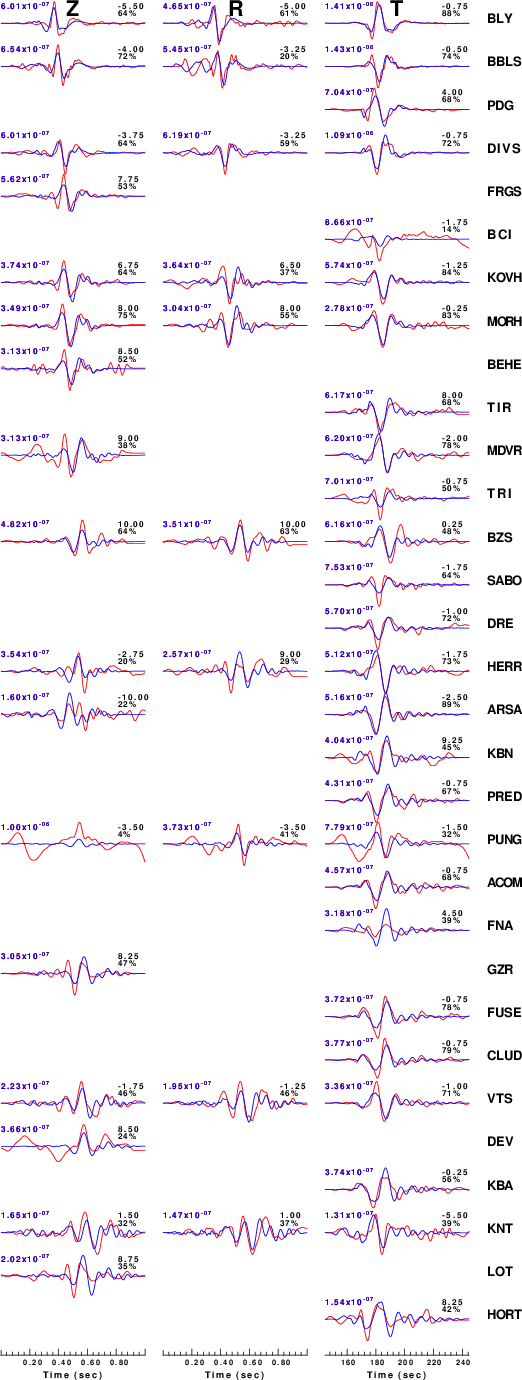

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -30 o DIST/3.3 +70
rtr
taper w 0.1
hp c 0.02 n 3
lp c 0.06 n 3

Figure 3. Waveform comparison for selected depth

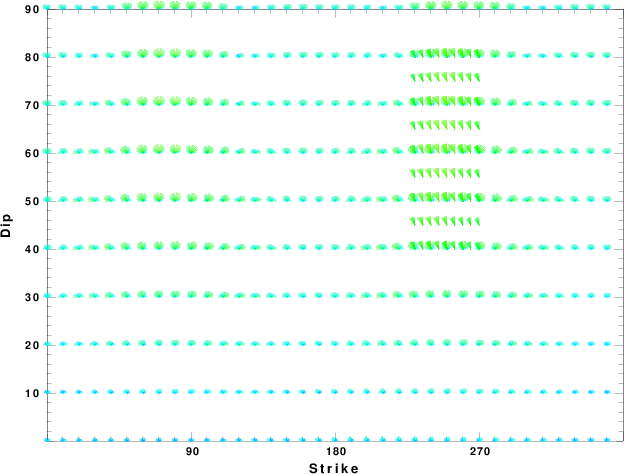

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

The origin time and epicentral distance are incorrect
The velocity model used for the inversion is incorrect
The velocity model used to define the P-arrival time is not the same as the velocity model used for the waveform inversion (assuming that the initial trace alignment is based on the P arrival time)

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

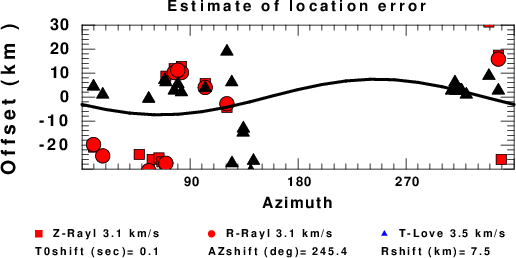

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Discussion

Acknowledgements

Thanks also to the many seismic network operators whose dedication make this effort possible: University of Nevada Reno, University of Alaska, University of Washington, Oregon State University, University of Utah, Montana Bureas of Mines, UC Berkely, Caltech, UC San Diego, Saint Louis University, University of Memphis, Lamont Doherty Earth Observatory, the Iris stations and the Transportable Array of EarthScope.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00

Quality Control

Here we tabulate the reasons for not using certain digital data sets

The following stations did not have a valid response files:

Last Changed Fri Oct 27 08:23:11 CDT 2017
