2014/04/29 07:03:24 43.04 -0.02 5.0 4.3 France
USGS Felt map for this earthquake
USGS/SLU Moment Tensor Solution
ENS 2014/04/29 07:03:24:0 43.04 -0.02 5.0 4.3 France
Stations used:
CA.FBR CH.BRANT CH.GIMEL FR.ATE FR.CALF FR.FILF FR.FNEB
FR.ISO FR.MONQ FR.RENF FR.RUSF FR.SJAF FR.TERF FR.TRBF
G.SSB GU.BHB GU.PZZ GU.RSP GU.STV IV.DOI MN.BNI RD.LOR
RD.MTLF RD.ROSF
Filtering commands used:
cut a -20 a 180
rtr
taper w 0.1
hp c 0.02 n 3
lp c 0.06 n 3
Best Fitting Double Couple
Mo = 1.06e+22 dyne-cm
Mw = 3.95
Z = 12 km
Plane Strike Dip Rake
NP1 240 80 35
NP2 143 56 168
Principal Axes:
Axis Value Plunge Azimuth
T 1.06e+22 31 107
N 0.00e+00 54 254
P -1.06e+22 16 7
Moment Tensor: (dyne-cm)
Component Value
Mxx -8.96e+21
Mxy -3.37e+21
Mxz -4.19e+21
Myy 6.88e+21
Myz 4.16e+21
Mzz 2.08e+21
-------- ---
------------ P -------
#-------------- ----------
##----------------------------
####------------------------------
#####------------------------------#
######------------------------########
#######--------------------#############
########---------------#################
##########-----------#####################
##########--------########################
###########----###########################
################################# ######
########-----################### T #####
######--------################## #####
###------------#######################
----------------####################
-----------------#################
------------------############
---------------------#######
----------------------
--------------
Global CMT Convention Moment Tensor:
R T P
2.08e+21 -4.19e+21 -4.16e+21
-4.19e+21 -8.96e+21 3.37e+21
-4.16e+21 3.37e+21 6.88e+21
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.EU/20140429070324/index.html
|
STK = 240
DIP = 80
RAKE = 35
MW = 3.95
HS = 12.0
The NDK file is 20140429070324.ndk The waveform inversion is preferred.
The following compares this source inversion to others
USGS/SLU Moment Tensor Solution
ENS 2014/04/29 07:03:24:0 43.04 -0.02 5.0 4.3 France
Stations used:
CA.FBR CH.BRANT CH.GIMEL FR.ATE FR.CALF FR.FILF FR.FNEB
FR.ISO FR.MONQ FR.RENF FR.RUSF FR.SJAF FR.TERF FR.TRBF
G.SSB GU.BHB GU.PZZ GU.RSP GU.STV IV.DOI MN.BNI RD.LOR
RD.MTLF RD.ROSF
Filtering commands used:
cut a -20 a 180
rtr
taper w 0.1
hp c 0.02 n 3
lp c 0.06 n 3
Best Fitting Double Couple
Mo = 1.06e+22 dyne-cm
Mw = 3.95
Z = 12 km
Plane Strike Dip Rake
NP1 240 80 35
NP2 143 56 168
Principal Axes:
Axis Value Plunge Azimuth
T 1.06e+22 31 107
N 0.00e+00 54 254
P -1.06e+22 16 7
Moment Tensor: (dyne-cm)
Component Value
Mxx -8.96e+21
Mxy -3.37e+21
Mxz -4.19e+21
Myy 6.88e+21
Myz 4.16e+21
Mzz 2.08e+21
-------- ---
------------ P -------
#-------------- ----------
##----------------------------
####------------------------------
#####------------------------------#
######------------------------########
#######--------------------#############
########---------------#################
##########-----------#####################
##########--------########################
###########----###########################
################################# ######
########-----################### T #####
######--------################## #####
###------------#######################
----------------####################
-----------------#################
------------------############
---------------------#######
----------------------
--------------
Global CMT Convention Moment Tensor:
R T P
2.08e+21 -4.19e+21 -4.16e+21
-4.19e+21 -8.96e+21 3.37e+21
-4.16e+21 3.37e+21 6.88e+21
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.EU/20140429070324/index.html
|

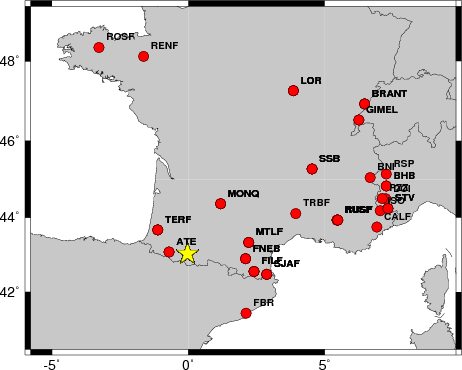

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.
|
|
|
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut a -20 a 180 rtr taper w 0.1 hp c 0.02 n 3 lp c 0.06 n 3The results of this grid search from 0.5 to 19 km depth are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 1.0 245 85 -10 3.60 0.2933
WVFGRD96 2.0 270 45 -90 3.84 0.3433
WVFGRD96 3.0 65 80 5 3.73 0.3431
WVFGRD96 4.0 60 90 -45 3.82 0.3540
WVFGRD96 5.0 245 80 45 3.85 0.3933
WVFGRD96 6.0 245 80 45 3.87 0.4221
WVFGRD96 7.0 240 85 40 3.87 0.4449
WVFGRD96 8.0 245 75 45 3.93 0.4667
WVFGRD96 9.0 245 75 45 3.94 0.4815
WVFGRD96 10.0 240 80 40 3.94 0.4892
WVFGRD96 11.0 240 80 35 3.95 0.4938
WVFGRD96 12.0 240 80 35 3.95 0.4960
WVFGRD96 13.0 240 80 35 3.96 0.4951
WVFGRD96 14.0 240 80 35 3.97 0.4928
WVFGRD96 15.0 240 80 35 3.97 0.4894
WVFGRD96 16.0 240 80 35 3.98 0.4846
WVFGRD96 17.0 240 80 35 3.99 0.4786
WVFGRD96 18.0 240 80 35 3.99 0.4734
WVFGRD96 19.0 145 65 -5 4.01 0.4727
WVFGRD96 20.0 145 65 -5 4.02 0.4692
WVFGRD96 21.0 145 65 -5 4.03 0.4648
WVFGRD96 22.0 145 65 -10 4.04 0.4583
WVFGRD96 23.0 145 65 -10 4.04 0.4526
WVFGRD96 24.0 145 65 -10 4.05 0.4445
WVFGRD96 25.0 145 65 -10 4.06 0.4352
WVFGRD96 26.0 145 65 -10 4.06 0.4258
WVFGRD96 27.0 145 65 -10 4.07 0.4148
WVFGRD96 28.0 330 65 -5 4.07 0.4002
WVFGRD96 29.0 330 65 -5 4.07 0.3901
The best solution is
WVFGRD96 12.0 240 80 35 3.95 0.4960
The mechanism correspond to the best fit is
|
|
|

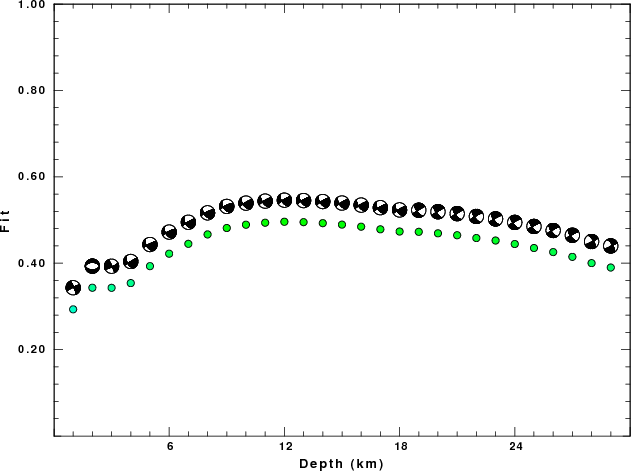

The best fit as a function of depth is given in the following figure:
|
|
|

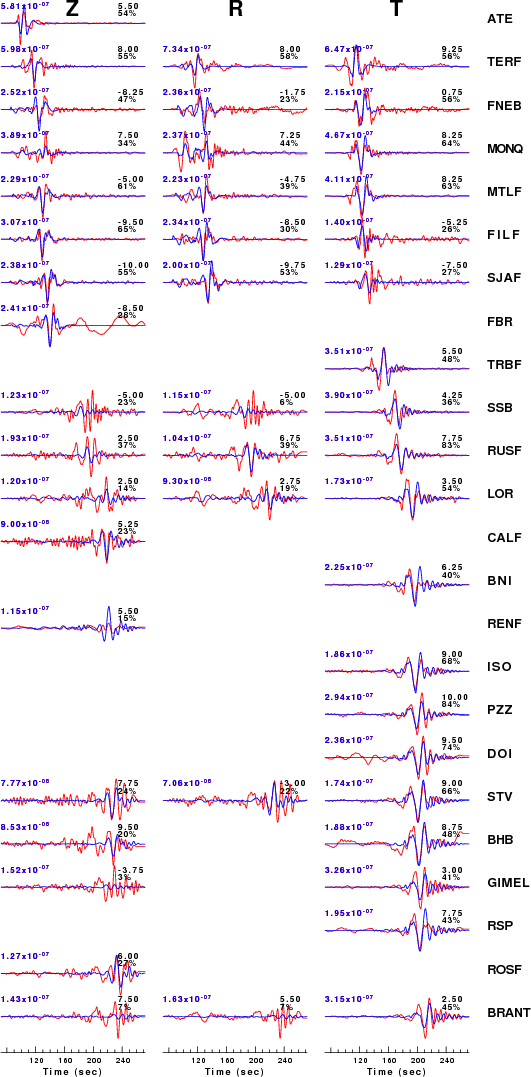

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut a -20 a 180 rtr taper w 0.1 hp c 0.02 n 3 lp c 0.06 n 3
|
|
|
|

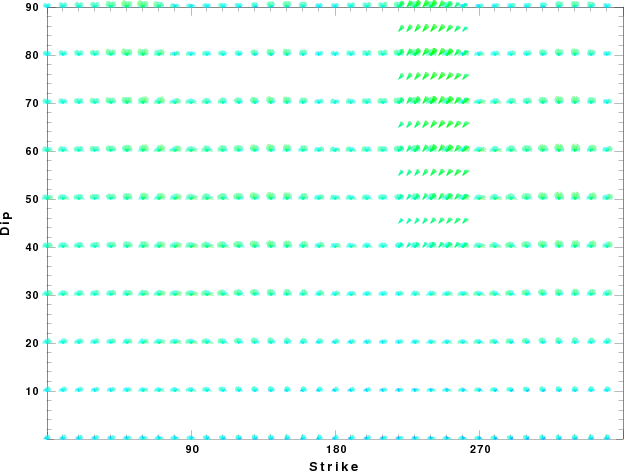

| Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

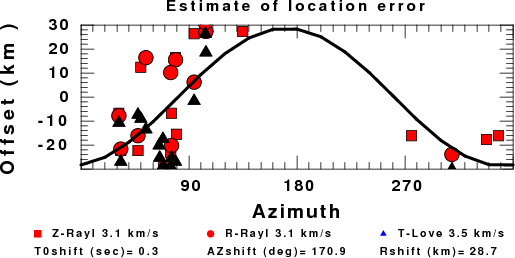

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
Should the national backbone of the USGS Advanced National Seismic System (ANSS) be implemented with an interstation separation of 300 km, it is very likely that an earthquake such as this would have been recorded at distances on the order of 100-200 km. This means that the closest station would have information on source depth and mechanism that was lacking here.
Dr. Harley Benz, USGS, provided the USGS USNSN digital data. The digital data used in this study were provided by Natural Resources Canada through their AUTODRM site http://www.seismo.nrcan.gc.ca/nwfa/autodrm/autodrm_req_e.php, and IRIS using their BUD interface.
Thanks also to the many seismic network operators whose dedication make this effort possible: University of Alaska, University of Washington, Oregon State University, University of Utah, Montana Bureas of Mines, UC Berkely, Caltech, UC San Diego, Saint L ouis University, Universityof Memphis, Lamont Doehrty Earth Observatory, Boston College, the Iris stations and the Transportable Array of EarthScope.
The WUS used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:
MODEL.01
Model after 8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS
1.9000 3.4065 2.0089 2.2150 0.302E-02 0.679E-02 0.00 0.00 1.00 1.00
6.1000 5.5445 3.2953 2.6089 0.349E-02 0.784E-02 0.00 0.00 1.00 1.00
13.0000 6.2708 3.7396 2.7812 0.212E-02 0.476E-02 0.00 0.00 1.00 1.00
19.0000 6.4075 3.7680 2.8223 0.111E-02 0.249E-02 0.00 0.00 1.00 1.00
0.0000 7.9000 4.6200 3.2760 0.164E-10 0.370E-10 0.00 0.00 1.00 1.00
Here we tabulate the reasons for not using certain digital data sets
The following stations did not have a valid response files:
