2013/04/22 22:00:42 43.24 18.83 10.0 3.7 NW Balkan Region

Arrival Times (from USGS)

Felt Map

Focal Mechanism

USGS/SLU Moment Tensor Solution ENS 2013/04/22 22:00:42:0 43.24 18.83 10.0 3.7 NW Balkan Region Stations used: HT.HORT HT.KNT HT.LIT HT.SOH HT.SRS HT.THE HU.BUD MN.PDG MN.TRI MN.VTS RO.BZS SJ.BBLS SJ.FRGS SL.JAVS SL.KNDS SL.SKDS SL.VOJS Filtering commands used: hp c 0.02 n 3 lp c 0.06 n 3 br c 0.12 0.25 n 4 p 2 Best Fitting Double Couple Mo = 1.95e+21 dyne-cm Mw = 3.46 Z = 14 km Plane Strike Dip Rake NP1 22 74 -143 NP2 280 55 -20 Principal Axes: Axis Value Plunge Azimuth T 1.95e+21 12 147 N 0.00e+00 50 42 P -1.95e+21 37 246 Moment Tensor: (dyne-cm) Component Value Mxx 1.12e+21 Mxy -1.30e+21 Mxz 4.21e+19 Myy -4.94e+20 Myz 1.07e+21 Mzz -6.27e+20 ############## ###################--- ######################------ #######################------- #########################--------- #########################----------- #######---------------####------------ ####----------------------###----------- #-------------------------#######------- --------------------------##########------ --------------------------############---- -------------------------###############-- ------- --------------#################- ------ P --------------################# ------ -------------################## --------------------################## ------------------################## ----------------################## ------------########### #### ----------############ T ### -----############## ############## Global CMT Convention Moment Tensor: R T P -6.27e+20 4.21e+19 -1.07e+21 4.21e+19 1.12e+21 1.30e+21 -1.07e+21 1.30e+21 -4.94e+20 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.EU/20130422220042/index.html

Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion and first motion observations is

      STK = 280
      DIP = 55
     RAKE = -20
       MW = 3.46
       HS = 14.0

The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to others

SLU

USGS/SLU Moment Tensor Solution ENS 2013/04/22 22:00:42:0 43.24 18.83 10.0 3.7 NW Balkan Region Stations used: HT.HORT HT.KNT HT.LIT HT.SOH HT.SRS HT.THE HU.BUD MN.PDG MN.TRI MN.VTS RO.BZS SJ.BBLS SJ.FRGS SL.JAVS SL.KNDS SL.SKDS SL.VOJS Filtering commands used: hp c 0.02 n 3 lp c 0.06 n 3 br c 0.12 0.25 n 4 p 2 Best Fitting Double Couple Mo = 1.95e+21 dyne-cm Mw = 3.46 Z = 14 km Plane Strike Dip Rake NP1 22 74 -143 NP2 280 55 -20 Principal Axes: Axis Value Plunge Azimuth T 1.95e+21 12 147 N 0.00e+00 50 42 P -1.95e+21 37 246 Moment Tensor: (dyne-cm) Component Value Mxx 1.12e+21 Mxy -1.30e+21 Mxz 4.21e+19 Myy -4.94e+20 Myz 1.07e+21 Mzz -6.27e+20 ############## ###################--- ######################------ #######################------- #########################--------- #########################----------- #######---------------####------------ ####----------------------###----------- #-------------------------#######------- --------------------------##########------ --------------------------############---- -------------------------###############-- ------- --------------#################- ------ P --------------################# ------ -------------################## --------------------################## ------------------################## ----------------################## ------------########### #### ----------############ T ### -----############## ############## Global CMT Convention Moment Tensor: R T P -6.27e+20 4.21e+19 -1.07e+21 4.21e+19 1.12e+21 1.30e+21 -1.07e+21 1.30e+21 -4.94e+20 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.EU/20130422220042/index.html

Waveform Inversion

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

hp c 0.02 n 3
lp c 0.06 n 3
br c 0.12 0.25 n 4 p 2

The results of this grid search from 0.5 to 19 km depth are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    0.5   255    45   -70   3.23 0.3053
WVFGRD96    1.0   285    90     0   3.15 0.3262
WVFGRD96    2.0   105    85     0   3.24 0.4098
WVFGRD96    3.0   105    90   -10   3.27 0.4224
WVFGRD96    4.0   105    90   -40   3.35 0.4378
WVFGRD96    5.0   275    65   -40   3.38 0.4612
WVFGRD96    6.0   275    50   -30   3.40 0.4727
WVFGRD96    7.0   275    50   -30   3.41 0.4849
WVFGRD96    8.0   275    50   -30   3.44 0.4880
WVFGRD96    9.0   275    50   -30   3.45 0.4982
WVFGRD96   10.0   275    50   -30   3.45 0.5042
WVFGRD96   11.0   280    55   -20   3.44 0.5073
WVFGRD96   12.0   280    55   -20   3.45 0.5114
WVFGRD96   13.0   280    55   -20   3.46 0.5136
WVFGRD96   14.0   280    55   -20   3.46 0.5144
WVFGRD96   15.0   280    55   -20   3.47 0.5139
WVFGRD96   16.0   280    55   -20   3.47 0.5124
WVFGRD96   17.0   280    55   -20   3.48 0.5099
WVFGRD96   18.0   280    55   -15   3.49 0.5069
WVFGRD96   19.0   110    70    25   3.47 0.5048
WVFGRD96   20.0   110    70    25   3.47 0.5004
WVFGRD96   21.0   110    70    20   3.48 0.4961
WVFGRD96   22.0   110    70    20   3.49 0.4919
WVFGRD96   23.0   110    70    20   3.49 0.4873
WVFGRD96   24.0   285    60    -5   3.52 0.4850
WVFGRD96   25.0   290    70    25   3.52 0.4808
WVFGRD96   26.0   290    70    25   3.52 0.4771
WVFGRD96   27.0   290    70    25   3.53 0.4735
WVFGRD96   28.0   290    70    25   3.53 0.4696
WVFGRD96   29.0   290    70    25   3.54 0.4653

The best solution is

WVFGRD96   14.0   280    55   -20   3.46 0.5144

The mechanism correspond to the best fit is

Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

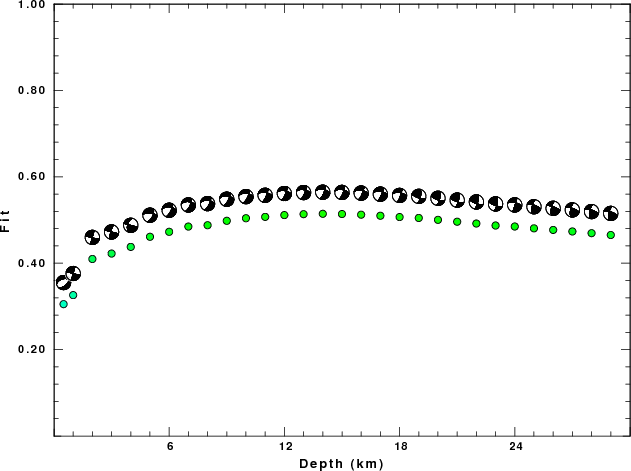

Figure 2. Depth sensitivity for waveform mechanism

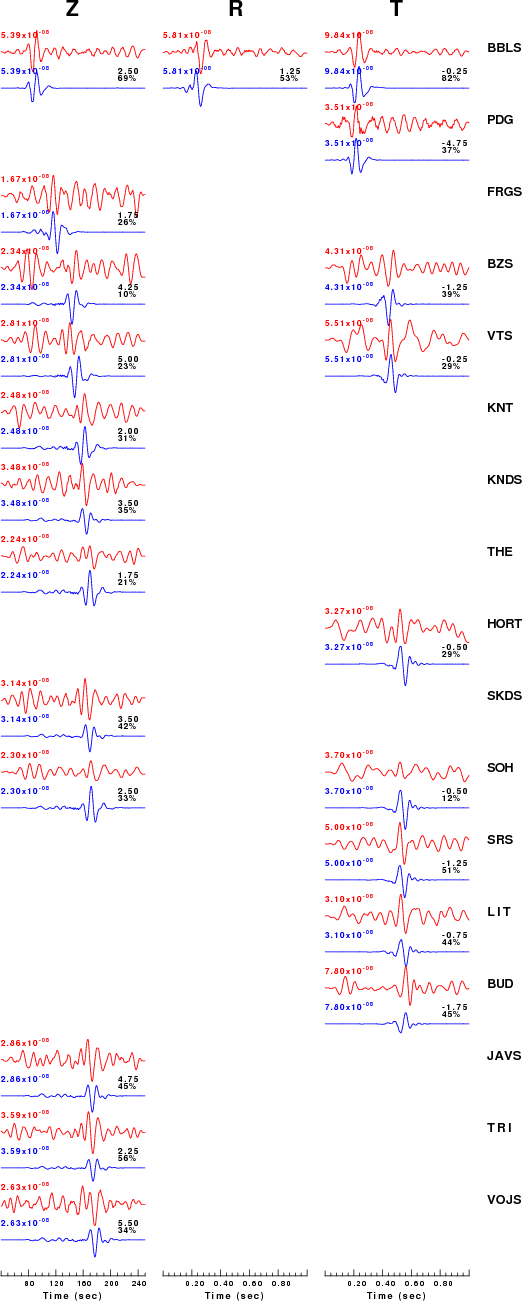

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

hp c 0.02 n 3
lp c 0.06 n 3
br c 0.12 0.25 n 4 p 2

Figure 3. Waveform comparison for selected depth

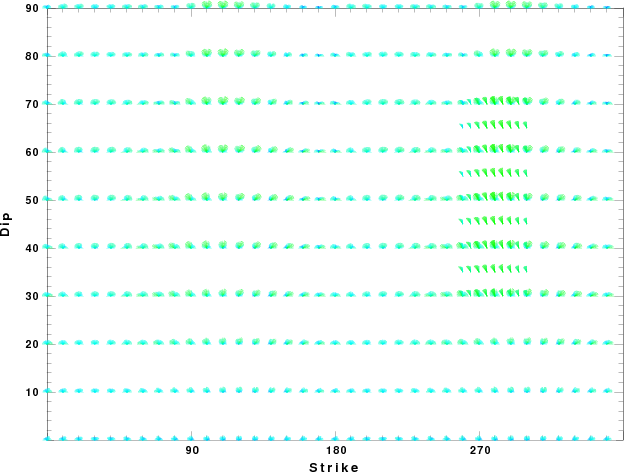

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

The origin time and epicentral distance are incorrect
The velocity model used for the inversion is incorrect
The velocity model used to define the P-arrival time is not the same as the velocity model used for the waveform inversion (assuming that the initial trace alignment is based on the P arrival time)

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

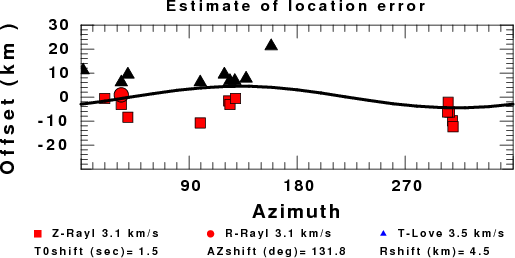

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Discussion

The Future

Should the national backbone of the USGS Advanced National Seismic System (ANSS) be implemented with an interstation separation of 300 km, it is very likely that an earthquake such as this would have been recorded at distances on the order of 100-200 km. This means that the closest station would have information on source depth and mechanism that was lacking here.

Acknowledgements

Dr. Harley Benz, USGS, provided the USGS USNSN digital data. The digital data used in this study were provided by Natural Resources Canada through their AUTODRM site http://www.seismo.nrcan.gc.ca/nwfa/autodrm/autodrm_req_e.php, and IRIS using their BUD interface.
