2008/12/27 20:09:19 40.1400 24.0700 5.0 4.70
USGS Felt map for this earthquake
USGS/SLU Moment Tensor Solution 2008/12/27 20:09:19 40.1400 24.0700 5.0 4.70 Best Fitting Double Couple Mo = 4.62e+22 dyne-cm Mw = 4.41 Z = 5 km Plane Strike Dip Rake NP1 85 60 -109 NP2 300 35 -60 Principal Axes: Axis Value Plunge Azimuth T 4.62e+22 13 189 N 0.00e+00 17 95 P -4.62e+22 69 315 Moment Tensor: (dyne-cm) Component Value Mxx 3.97e+22 Mxy 9.66e+21 Mxz -2.13e+22 Myy -2.08e+21 Myz 9.55e+21 Mzz -3.76e+22 ############## ###################### ############################ ###--------------############# #----------------------########### ---------------------------######### ------------------------------######## -------------- ----------------####### -------------- P ------------------##### --------------- -------------------##### --------------------------------------###- --------------------------------------#--- #------------------------------------##--- ###-----------------------------######-- ########-------------------###########-- #####################################- #################################### ################################## ############################## ########## ############### ####### T ############ ### ######## Harvard Convention Moment Tensor: R T F -3.76e+22 -2.13e+22 -9.55e+21 -2.13e+22 3.97e+22 -9.66e+21 -9.55e+21 -9.66e+21 -2.08e+21 Details of the solution is found at http://www.eas.slu.edu/Earthquake_Center/MECH.NA/20081227200919/index.html |
STK = 300 DIP = 35 RAKE = -60 MW = 4.41 HS = 5.0
The waveform inversion is preferred.
The following compares this source inversion to others
USGS/SLU Moment Tensor Solution 2008/12/27 20:09:19 40.1400 24.0700 5.0 4.70 Best Fitting Double Couple Mo = 4.62e+22 dyne-cm Mw = 4.41 Z = 5 km Plane Strike Dip Rake NP1 85 60 -109 NP2 300 35 -60 Principal Axes: Axis Value Plunge Azimuth T 4.62e+22 13 189 N 0.00e+00 17 95 P -4.62e+22 69 315 Moment Tensor: (dyne-cm) Component Value Mxx 3.97e+22 Mxy 9.66e+21 Mxz -2.13e+22 Myy -2.08e+21 Myz 9.55e+21 Mzz -3.76e+22 ############## ###################### ############################ ###--------------############# #----------------------########### ---------------------------######### ------------------------------######## -------------- ----------------####### -------------- P ------------------##### --------------- -------------------##### --------------------------------------###- --------------------------------------#--- #------------------------------------##--- ###-----------------------------######-- ########-------------------###########-- #####################################- #################################### ################################## ############################## ########## ############### ####### T ############ ### ######## Harvard Convention Moment Tensor: R T F -3.76e+22 -2.13e+22 -9.55e+21 -2.13e+22 3.97e+22 -9.66e+21 -9.55e+21 -9.66e+21 -2.08e+21 Details of the solution is found at http://www.eas.slu.edu/Earthquake_Center/MECH.NA/20081227200919/index.html |

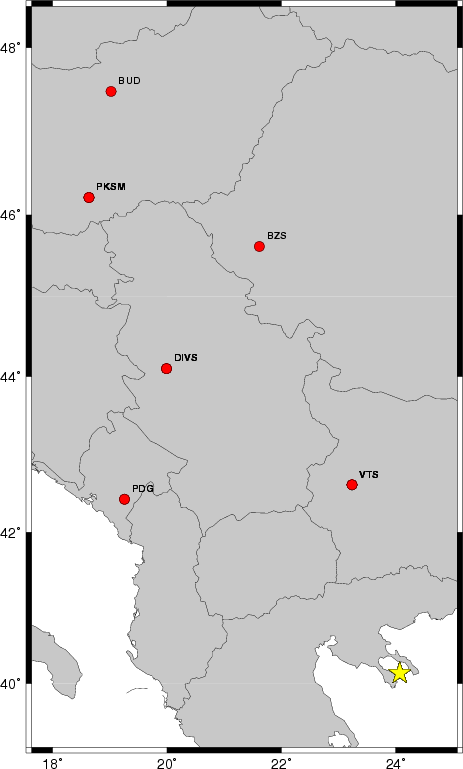

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.
![]() |
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
hp c 0.02 n 3 lp c 0.05 n 3 br c 0.12 0.25 n 4 p 2The results of this grid search from 0.5 to 19 km depth are as follow:
DEPTH STK DIP RAKE MW FIT WVFGRD96 0.5 320 50 -20 4.23 0.6694 WVFGRD96 1.0 320 55 -20 4.23 0.6841 WVFGRD96 2.0 315 40 -25 4.32 0.7293 WVFGRD96 3.0 315 40 -30 4.35 0.7561 WVFGRD96 4.0 310 40 -40 4.37 0.7767 WVFGRD96 5.0 300 35 -60 4.41 0.7885 WVFGRD96 6.0 290 35 -75 4.44 0.7883 WVFGRD96 7.0 110 60 -80 4.46 0.7707 WVFGRD96 8.0 105 60 -85 4.49 0.7842 WVFGRD96 9.0 120 70 -65 4.48 0.7522 WVFGRD96 10.0 320 60 0 4.37 0.7340 WVFGRD96 11.0 320 65 5 4.37 0.7270 WVFGRD96 12.0 325 65 20 4.38 0.7218 WVFGRD96 13.0 325 70 25 4.39 0.7180 WVFGRD96 14.0 325 70 25 4.40 0.7149 WVFGRD96 15.0 325 70 25 4.40 0.7128 WVFGRD96 16.0 325 70 25 4.41 0.7093 WVFGRD96 17.0 325 70 25 4.41 0.7056 WVFGRD96 18.0 330 70 35 4.43 0.7033 WVFGRD96 19.0 330 70 35 4.43 0.7001 WVFGRD96 20.0 330 70 35 4.44 0.6967 WVFGRD96 21.0 330 70 35 4.45 0.6907 WVFGRD96 22.0 330 70 35 4.46 0.6861 WVFGRD96 23.0 330 70 35 4.46 0.6813 WVFGRD96 24.0 330 70 35 4.47 0.6761 WVFGRD96 25.0 330 70 35 4.47 0.6705 WVFGRD96 26.0 330 70 35 4.48 0.6646 WVFGRD96 27.0 330 70 35 4.49 0.6585 WVFGRD96 28.0 335 70 40 4.49 0.6531 WVFGRD96 29.0 335 70 40 4.50 0.6475
The best solution is
WVFGRD96 5.0 300 35 -60 4.41 0.7885
The mechanism correspond to the best fit is
![]() |
|

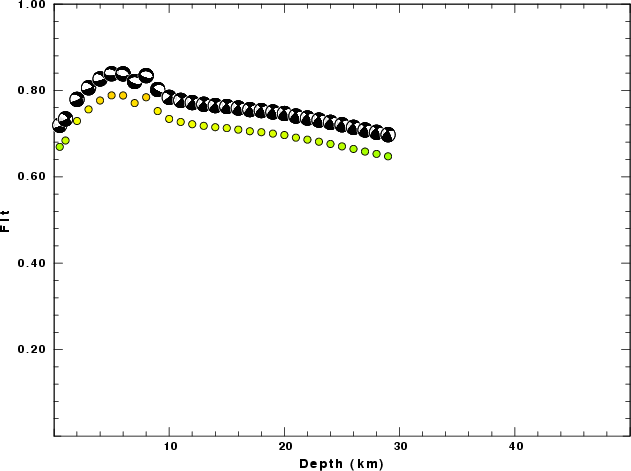

The best fit as a function of depth is given in the following figure:
![]() |
|

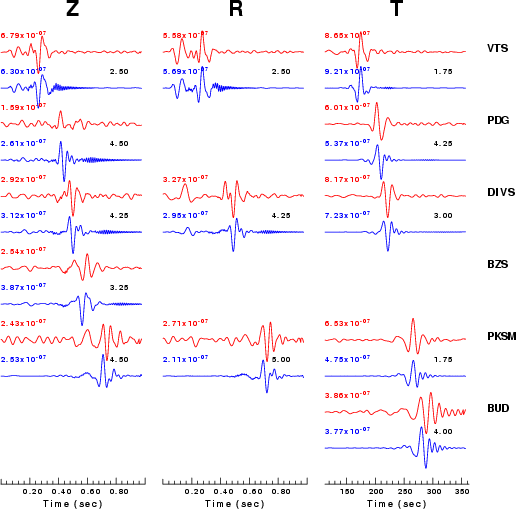

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted componnet is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. The number in black at the rightr of each predicted traces it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The bandpass filter used in the processing and for the display was
hp c 0.02 n 3 lp c 0.05 n 3 br c 0.12 0.25 n 4 p 2
![]() |
|
![]() |

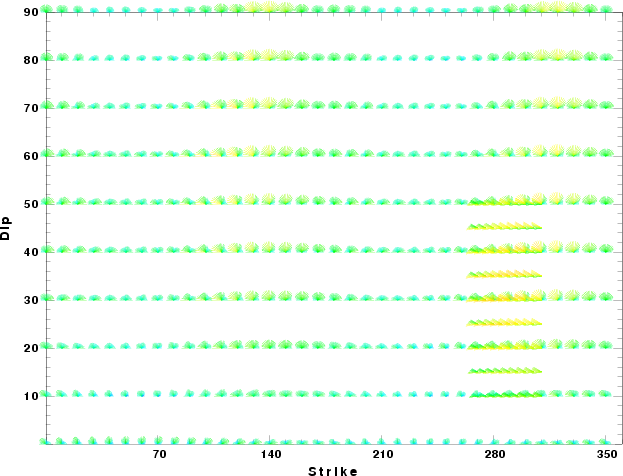

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
Should the national backbone of the USGS Advanced National Seismic System (ANSS) be implemented with an interstation separation of 300 km, it is very likely that an earthquake such as this would have been recorded at distances on the order of 100-200 km. This means that the closest station would have information on source depth and mechanism that was lacking here.
Dr. Harley Benz, USGS, provided the USGS USNSN digital data. The digital data used in this study were provided by Natural Resources Canada through their AUTODRM site http://www.seismo.nrcan.gc.ca/nwfa/autodrm/autodrm_req_e.php, and IRIS using their BUD interface.
Thanks also to the many seismic network operators whose dedication make this effort possible: University of Alaska, University of Washington, Oregon State University, University of Utah, Montana Bureas of Mines, UC Berkely, Caltech, UC San Diego, Saint L ouis University, Universityof Memphis, Lamont Doehrty Earth Observatory, Boston College, the Iris stations and the Transportable Array of EarthScope.
The WUS used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:
MODEL.01 Model after 8 iterations ISOTROPIC KGS FLAT EARTH 1-D CONSTANT VELOCITY LINE08 LINE09 LINE10 LINE11 H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS 1.9000 3.4065 2.0089 2.2150 0.302E-02 0.679E-02 0.00 0.00 1.00 1.00 6.1000 5.5445 3.2953 2.6089 0.349E-02 0.784E-02 0.00 0.00 1.00 1.00 13.0000 6.2708 3.7396 2.7812 0.212E-02 0.476E-02 0.00 0.00 1.00 1.00 19.0000 6.4075 3.7680 2.8223 0.111E-02 0.249E-02 0.00 0.00 1.00 1.00 0.0000 7.9000 4.6200 3.2760 0.164E-10 0.370E-10 0.00 0.00 1.00 1.00
Here we tabulate the reasons for not using certain digital data sets
The following stations did not have a valid response files:
DATE=Sat Dec 27 16:16:23 MST 2008
