2009/03/18 05:28:18 -38.402 145.858 6.0 4.20
USGS Felt map for this earthquake
Details of the solution is found at
http://www.eas.slu.edu/Earthquake_Center/MECH.NA/20090318052818/index.html
|
STK = 205
DIP = 50
RAKE = 60
MW = 4.42
HS = 5.0
The waveform inversion is preferred.
The following compares this source inversion to others
USGS/SLU Moment Tensor Solution
ENS 2009/03/18 05:18:18:3 -38.40 145.86 6.0 4.2
Stations used:
AU.CNB AU.MOO AU.TOO AU.YNG
Filtering commands used:
hp c 0.02 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 5.37e+22 dyne-cm
Mw = 4.42
Z = 5 km
Plane Strike Dip Rake
NP1 205 50 60
NP2 67 48 121
Principal Axes:
Axis Value Plunge Azimuth
T 5.37e+22 67 48
N 0.00e+00 23 225
P -5.37e+22 1 316
Moment Tensor: (dyne-cm)
Component Value
Mxx -2.39e+22
Mxy 3.08e+22
Mxz 1.22e+22
Myy -2.19e+22
Myz 1.46e+22
Mzz 4.58e+22
--------------
---------------#######
P ------------##############
----------#################
-------------#####################
-------------#######################
------------##########################
------------########### #############-
-----------############ T ############--
-----------############# ############---
-----------###########################----
----------##########################------
----------#########################-------
--------########################--------
--------######################----------
-------###################------------
##----###############---------------
#####-----------------------------
####--------------------------
####------------------------
#---------------------
--------------
Global CMT Convention Moment Tensor:
R T P
4.58e+22 1.22e+22 -1.46e+22
1.22e+22 -2.39e+22 -3.08e+22
-1.46e+22 -3.08e+22 -2.19e+22
Details of the solution is found at
http://www.eas.slu.edu/Earthquake_Center/MECH.NA/20090318052818/index.html
|
The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.
|
|
|
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
hp c 0.02 n 3 lp c 0.10 n 3The results of this grid search from 0.5 to 19 km depth are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 0.5 340 15 -10 4.49 0.4492
WVFGRD96 1.0 340 20 -10 4.44 0.4621
WVFGRD96 2.0 160 35 25 4.33 0.4963
WVFGRD96 3.0 -5 55 90 4.56 0.5807
WVFGRD96 4.0 45 50 100 4.41 0.6514
WVFGRD96 5.0 205 50 60 4.42 0.7212
WVFGRD96 6.0 200 55 50 4.41 0.7195
WVFGRD96 7.0 15 70 45 4.44 0.7023
WVFGRD96 8.0 15 75 30 4.46 0.6788
WVFGRD96 9.0 15 75 30 4.46 0.6463
WVFGRD96 10.0 190 70 20 4.43 0.6133
WVFGRD96 11.0 190 75 15 4.44 0.5854
WVFGRD96 12.0 190 75 15 4.43 0.5570
WVFGRD96 13.0 190 80 15 4.45 0.5297
WVFGRD96 14.0 190 80 15 4.45 0.5055
WVFGRD96 15.0 185 80 15 4.42 0.4845
WVFGRD96 16.0 185 85 10 4.43 0.4675
WVFGRD96 17.0 185 85 15 4.44 0.4539
WVFGRD96 18.0 5 90 -5 4.44 0.4400
WVFGRD96 19.0 355 80 -50 4.50 0.4276
WVFGRD96 20.0 355 85 -60 4.56 0.4254
WVFGRD96 21.0 -5 85 -60 4.57 0.4240
WVFGRD96 22.0 180 90 60 4.57 0.4194
WVFGRD96 23.0 0 85 -50 4.55 0.4197
WVFGRD96 24.0 180 90 60 4.58 0.4190
WVFGRD96 25.0 0 90 -60 4.59 0.4175
WVFGRD96 26.0 0 90 -60 4.60 0.4148
WVFGRD96 27.0 5 90 -50 4.58 0.4110
WVFGRD96 28.0 5 90 -50 4.58 0.4079
WVFGRD96 29.0 185 85 55 4.58 0.4049
The best solution is
WVFGRD96 5.0 205 50 60 4.42 0.7212
The mechanism correspond to the best fit is
|
|
|

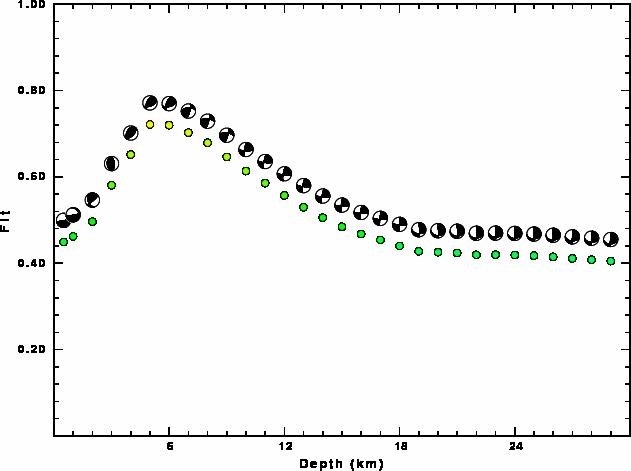

The best fit as a function of depth is given in the following figure:
|
|
|

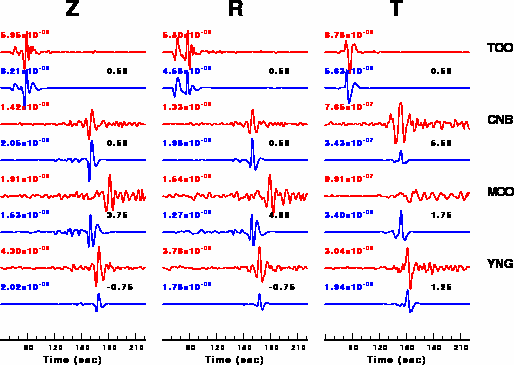

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted componnet is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. The number in black at the rightr of each predicted traces it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The bandpass filter used in the processing and for the display was
hp c 0.02 n 3 lp c 0.10 n 3
|
|
|
|

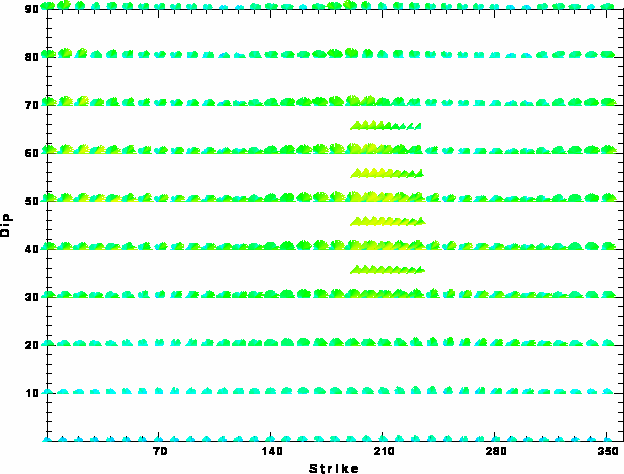

| Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
Should the national backbone of the USGS Advanced National Seismic System (ANSS) be implemented with an interstation separation of 300 km, it is very likely that an earthquake such as this would have been recorded at distances on the order of 100-200 km. This means that the closest station would have information on source depth and mechanism that was lacking here.
Dr. Harley Benz, USGS, provided the USGS USNSN digital data. The digital data used in this study were provided by Natural Resources Canada through their AUTODRM site http://www.seismo.nrcan.gc.ca/nwfa/autodrm/autodrm_req_e.php, and IRIS using their BUD interface.
Thanks also to the many seismic network operators whose dedication make this effort possible: University of Alaska, University of Washington, Oregon State University, University of Utah, Montana Bureas of Mines, UC Berkely, Caltech, UC San Diego, Saint L ouis University, Universityof Memphis, Lamont Doehrty Earth Observatory, Boston College, the Iris stations and the Transportable Array of EarthScope.
The used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:
MODEL.01 CUS Model with Q from simple gamma values ISOTROPIC KGS FLAT EARTH 1-D CONSTANT VELOCITY LINE08 LINE09 LINE10 LINE11 H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS 1.0000 5.0000 2.8900 2.5000 0.172E-02 0.387E-02 0.00 0.00 1.00 1.00 9.0000 6.1000 3.5200 2.7300 0.160E-02 0.363E-02 0.00 0.00 1.00 1.00 10.0000 6.4000 3.7000 2.8200 0.149E-02 0.336E-02 0.00 0.00 1.00 1.00 20.0000 6.7000 3.8700 2.9020 0.000E-04 0.000E-04 0.00 0.00 1.00 1.00 0.0000 8.1500 4.7000 3.3640 0.194E-02 0.431E-02 0.00 0.00 1.00 1.00
