Introduction

The objective of this example is to examine the effect of shallow low velocity sediments on the receiver function. A halfspace and a simple crustal model are considered.

Download

Download the package RFTN3.tgz. Then do the following:
gunzip -c RFTN3.tgz | tar xvf -
cd RFTN3
./DOIT
The script will create the figures shown below. The script requires CPS programs hrftn96, gsac and plotnps and the ImageMagick package program convert to transform the EPS files to a PNG image.

Discussion

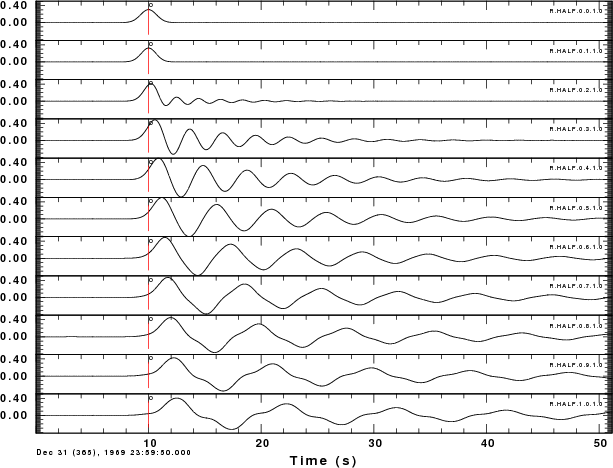

Halfspace model for ALP=1.0

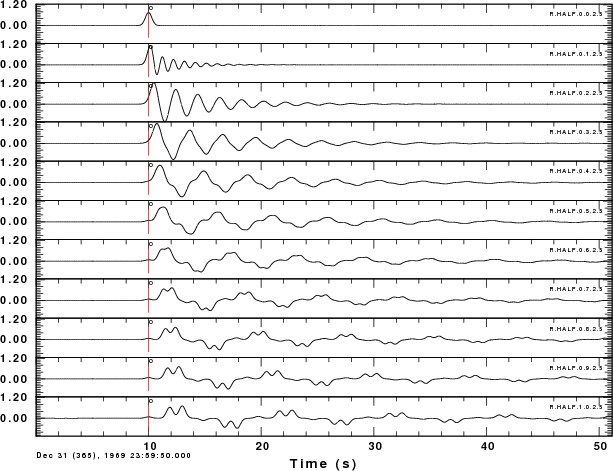

Halfspace model for ALP=2.5

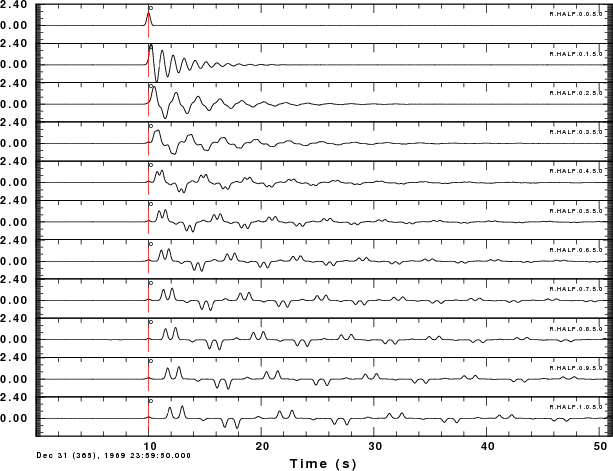

Halfspace model for ALP=5.0

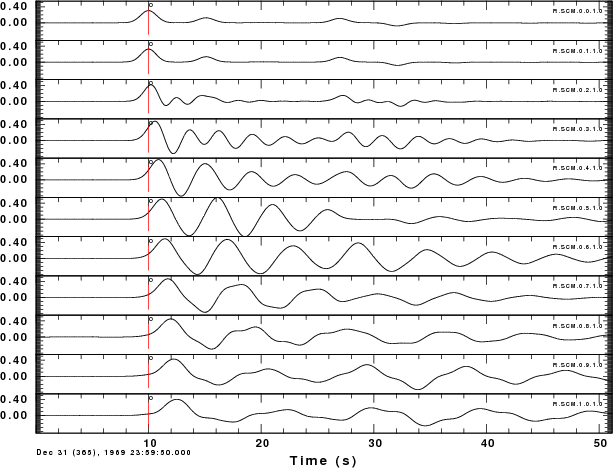

Crustal model for ALP=1.0

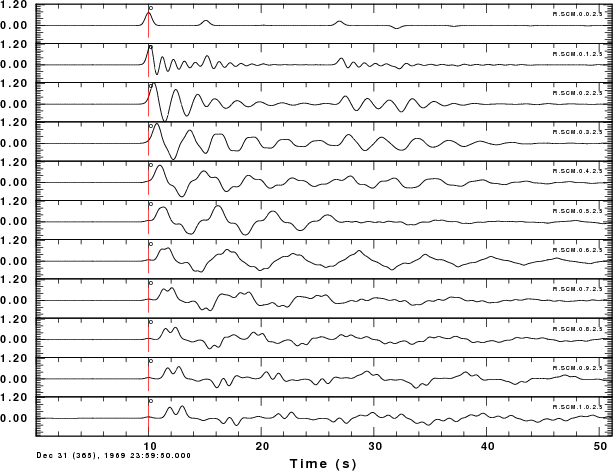

Crustal model for ALP=2.5

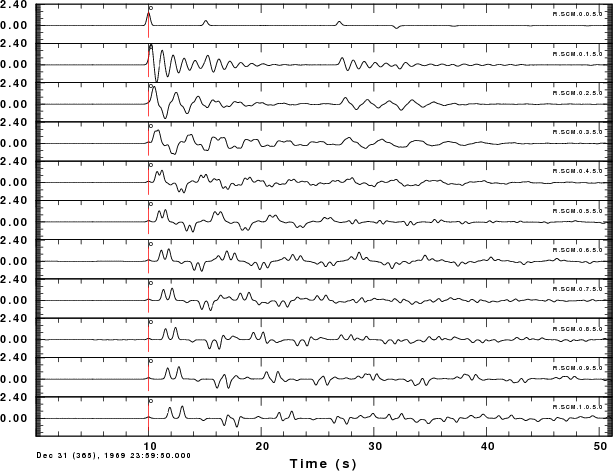

Crustal model for ALP=5.0

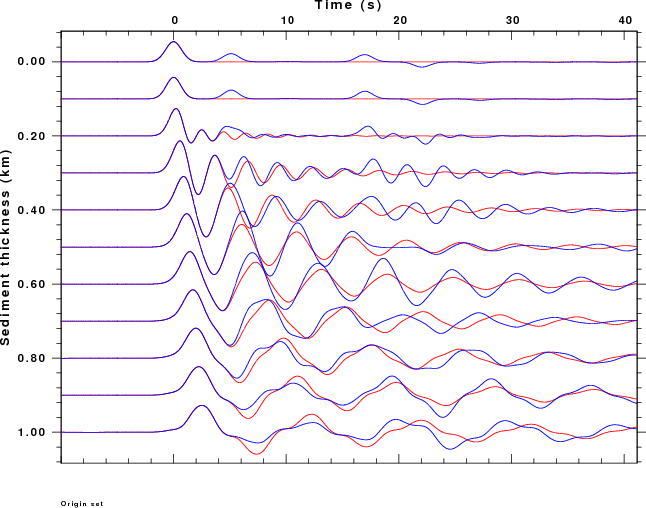

Overlay of halfspace (red) and crustal (blue) base models for ALP=1.0

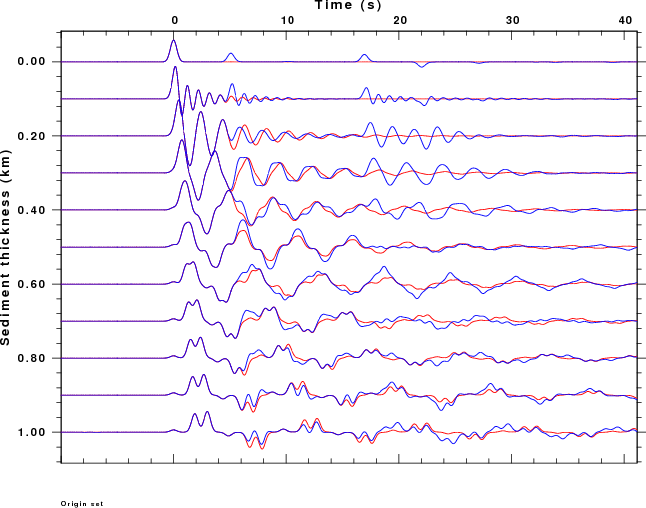

Overlay of halfspace (red) and crustal (blue) base models for ALP=2.5

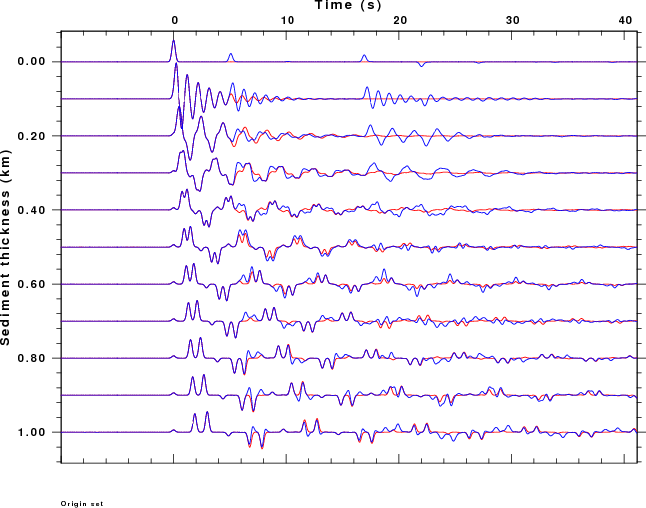

Overlay of halfspace (red) and crustal (blue) base models for ALP=5.0
