USGS/SLU Moment Tensor Solution
ENS 2021/08/13 11:57:35:0 35.88 -84.90 0.0 3.0 Tennessee

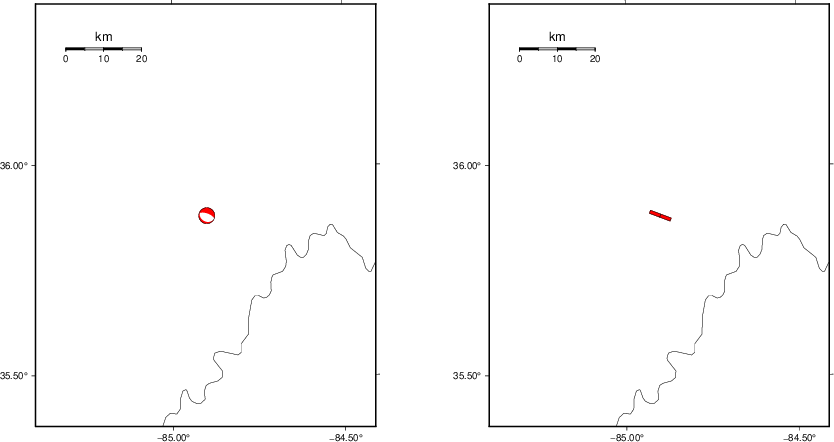

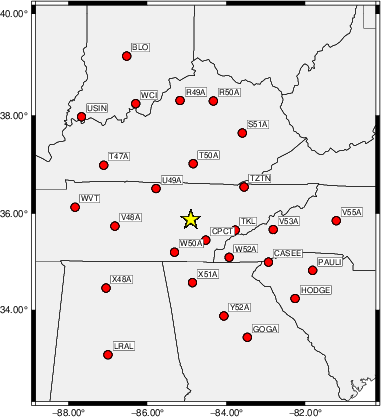

Stations used:
CO.CASEE CO.HODGE CO.PAULI ET.CPCT IM.TKL IU.WCI IU.WVT
N4.R49A N4.R50A N4.S51A N4.T47A N4.T50A N4.U49A N4.V48A
N4.V53A N4.V55A N4.W50A N4.W52A N4.X48A N4.X51A N4.Y52A
NM.BLO NM.USIN US.GOGA US.LRAL US.TZTN
Filtering commands used:
cut o DIST/3.3 -20 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 1.22e+22 dyne-cm
Mw = 3.99
Z = 8 km
Plane Strike Dip Rake
NP1 289 65 -95
NP2 120 25 -80
Principal Axes:
Axis Value Plunge Azimuth
T 1.22e+22 20 22
N 0.00e+00 4 291
P -1.22e+22 69 190
Moment Tensor: (dyne-cm)
Component Value
Mxx 7.65e+21
Mxy 3.53e+21
Mxz 7.62e+21
Myy 1.52e+21
Myz 2.19e+21
Mzz -9.17e+21
##############
################ ###
################### T ######
#################### #######
##################################
####################################
-#####################################
#-------------------####################
#------------------------###############
##----------------------------############
###------------------------------#########
###---------------------------------######
####--------------- ----------------####
###--------------- P -----------------##
#####------------- ------------------#
#####---------------------------------
######------------------------------
#######--------------------------#
#######----------------------#
###########------------#####
######################
##############
Global CMT Convention Moment Tensor:
R T P
-9.17e+21 7.62e+21 -2.19e+21
7.62e+21 7.65e+21 -3.53e+21
-2.19e+21 -3.53e+21 1.52e+21
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20210813115735/index.html
|
STK = 120
DIP = 25
RAKE = -80
MW = 3.99
HS = 8.0
The NDK file is 20210813115735.ndk The waveform inversion is preferred.
The following compares this source inversion to others
USGS/SLU Moment Tensor Solution
ENS 2021/08/13 11:57:35:0 35.88 -84.90 0.0 3.0 Tennessee
Stations used:
CO.CASEE CO.HODGE CO.PAULI ET.CPCT IM.TKL IU.WCI IU.WVT
N4.R49A N4.R50A N4.S51A N4.T47A N4.T50A N4.U49A N4.V48A
N4.V53A N4.V55A N4.W50A N4.W52A N4.X48A N4.X51A N4.Y52A
NM.BLO NM.USIN US.GOGA US.LRAL US.TZTN
Filtering commands used:
cut o DIST/3.3 -20 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 1.22e+22 dyne-cm
Mw = 3.99
Z = 8 km
Plane Strike Dip Rake
NP1 289 65 -95
NP2 120 25 -80
Principal Axes:
Axis Value Plunge Azimuth
T 1.22e+22 20 22
N 0.00e+00 4 291
P -1.22e+22 69 190
Moment Tensor: (dyne-cm)
Component Value
Mxx 7.65e+21
Mxy 3.53e+21
Mxz 7.62e+21
Myy 1.52e+21
Myz 2.19e+21
Mzz -9.17e+21
##############
################ ###
################### T ######
#################### #######
##################################
####################################
-#####################################
#-------------------####################
#------------------------###############
##----------------------------############
###------------------------------#########
###---------------------------------######
####--------------- ----------------####
###--------------- P -----------------##
#####------------- ------------------#
#####---------------------------------
######------------------------------
#######--------------------------#
#######----------------------#
###########------------#####
######################
##############
Global CMT Convention Moment Tensor:
R T P
-9.17e+21 7.62e+21 -2.19e+21
7.62e+21 7.65e+21 -3.53e+21
-2.19e+21 -3.53e+21 1.52e+21
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20210813115735/index.html
|
Moment (dyne-cm) 2.08E+22 dyne-cm
Magnitude (Mw) 4.15
Principal Axes:
Axis Value Plunge Azimuth
T -4.94E+21 29. 19.
N -1.07E+22 1. 288.
P -2.69E+22 61. 197.
Moment Tensor: (dyne-cm) Aki-Richards
Component Value
Mxx -1.01E+22
Mxy 3.00E+20
Mxz 8.80E+21
Myy -1.06E+22
Myz 2.80E+21
Mzz -2.19E+22
Global CMT Convention Moment Tensor: (dyne-cm)
R T F
R -2.19E+22 8.80E+21 -2.80E+21
T 8.80E+21 -1.01E+22 -3.00E+20
F -2.80E+21 -3.00E+20 -1.06E+22
Moment (dyne-cm) 2.08E+22 dyne-cm
Magnitude (Mw) 4.15
Principal Axes:
Axis Value Plunge Azimuth
T -4.94E+21 29. 19.
N -1.07E+22 1. 288.
P -2.69E+22 61. 197.
Moment Tensor: (dyne-cm) Aki-Richards Lune parameters
Component Value
Mxx -1.01E+22 beta: 146.76
Mxy 3.00E+20 gamma: 15.29
Mxy 3.00E+20
Mxz 8.80E+21
Myy -1.06E+22
Myz 2.80E+21
Mzz -2.19E+22
-------------- :
---------------------- :---:
----------------- -------- ::. ..::
------------------ T --------- :--------:
-------------------- ----------- :: . . . :
------------------------------------ : . . . :
-------------------------------------- :------------::
---------------------------------------- :: . . . :
---------------------------------------- : . . . :
------------------------------------------ :---------------:
------------------------------------------ : . . . :
------------------------------------------ :===============:
------------------------------------------ : . . . :
---------------- --------------------- : . . . :
---------------- P --------------------- :---------------:
--------------- -------------------- : . . . :
------------------------------------ :: . . . :
---------------------------------- :------------::
------------------------------ : . . . :
---------------------------- :: . . # :
---------------------- :--------:
-------------- ::. ..::
:---:
:
|
Moment (dyne-cm) 1.23E+22 dyne-cm
Magnitude (Mw) 3.99
Principal Axes:
Axis Value Plunge Azimuth
T 1.23E+22 20. 22.
N -2.60E+18 4. 291.
P -1.23E+22 69. 190.
Moment Tensor: (dyne-cm) Aki-Richards
Component Value
Mxx 7.77E+21
Mxy 3.58E+21
Mxz 7.74E+21
Myy 1.54E+21
Myz 2.22E+21
Mzz -9.31E+21
Global CMT Convention Moment Tensor: (dyne-cm)
R T F
R -9.31E+21 7.74E+21 -2.22E+21
T 7.74E+21 7.77E+21 -3.58E+21
F -2.22E+21 -3.58E+21 1.54E+21
Moment (dyne-cm) 1.23E+22 dyne-cm
Magnitude (Mw) 3.99
Principal Axes:
Axis Value Plunge Azimuth
T 1.23E+22 20. 22.
N -2.60E+18 4. 291.
P -1.23E+22 69. 190.
Moment Tensor: (dyne-cm) Aki-Richards Lune parameters
Component Value
Mxx 7.77E+21 beta: 90.00
Mxy 3.58E+21 gamma: -0.01
Mxy 3.58E+21
Mxz 7.74E+21
Myy 1.54E+21
Myz 2.22E+21
Mzz -9.31E+21
############## :
################ ### :---:
################### T ###### ::. ..::
#################### ####### :--------:
################################## :: . . . :
#################################### : . . . :
-##################################### :------------::
#-------------------#################### :: . . . :
#------------------------############### : . . . :
##----------------------------############ :---------------:
###------------------------------######### : . . . :
###---------------------------------###### :=======#=======:
####--------------- ----------------#### : . . . :
###--------------- P -----------------## : . . . :
#####------------- ------------------- :---------------:
#####--------------------------------- : . . . :
######------------------------------ :: . . . :
#######--------------------------# :------------::
#######----------------------# : . . . :
###########------------##### :: . . . :
###################### :--------:
############## ::. ..::
:---:
:
|
Moment (dyne-cm) 1.38E+22 dyne-cm
Magnitude (Mw) 4.03
Principal Axes:
Axis Value Plunge Azimuth
T 9.99E+21 15. 33.
N 5.73E+21 5. 301.
P -1.58E+22 74. 194.
Moment Tensor: (dyne-cm) Aki-Richards
Component Value
Mxx 6.97E+21
Mxy 1.42E+21
Mxz 6.48E+21
Myy 6.79E+21
Myz 1.95E+21
Mzz -1.38E+22
Global CMT Convention Moment Tensor: (dyne-cm)
R T F
R -1.38E+22 6.48E+21 -1.95E+21
T 6.48E+21 6.97E+21 -1.42E+21
F -1.95E+21 -1.42E+21 6.79E+21
Moment (dyne-cm) 1.38E+22 dyne-cm
Magnitude (Mw) 4.03
Principal Axes:
Axis Value Plunge Azimuth
T 9.99E+21 15. 33.
N 5.73E+21 5. 301.
P -1.58E+22 74. 194.
Moment Tensor: (dyne-cm) Aki-Richards Lune parameters
Component Value
Mxx 6.97E+21 beta: 90.07
Mxy 1.42E+21 gamma: 21.11
Mxy 1.42E+21
Mxz 6.48E+21
Myy 6.79E+21
Myz 1.95E+21
Mzz -1.38E+22
############## :
################### :---:
###################### T ### ::. ..::
####################### #### :--------:
################################## :: . . . :
#################################### : . . . :
##########------------################ :------------::
#########------------------############# :: . . . :
#######----------------------########### : . . . :
#######-------------------------########## :---------------:
######---------------------------######### : . . . :
######----------------------------######## :===============:
######------------ -------------######## : . . . # :
#####------------ P -------------####### : . . . :
######----------- -------------####### :---------------:
######--------------------------###### : . . . :
######------------------------###### :: . . . :
#######---------------------###### :------------::
#######-----------------###### : . . . :
#########-----------######## :: . . . :
###################### :--------:
############## ::. ..::
:---:
:
|
Moment (dyne-cm) 2.08E+22 dyne-cm
Magnitude (Mw) 4.14
Principal Axes:
Axis Value Plunge Azimuth
T -4.13E+21 25. 21.
N -9.44E+21 2. 290.
P -2.75E+22 65. 197.
Moment Tensor: (dyne-cm) Aki-Richards
Component Value
Mxx -8.62E+21
Mxy 5.72E+20
Mxz 8.54E+21
Myy -9.14E+21
Myz 2.72E+21
Mzz -2.33E+22
Global CMT Convention Moment Tensor: (dyne-cm)
R T F
R -2.33E+22 8.54E+21 -2.72E+21
T 8.54E+21 -8.62E+21 -5.72E+20
F -2.72E+21 -5.72E+20 -9.14E+21
Moment (dyne-cm) 2.08E+22 dyne-cm
Magnitude (Mw) 4.14
Principal Axes:
Axis Value Plunge Azimuth
T -4.13E+21 25. 21.
N -9.44E+21 2. 290.
P -2.75E+22 65. 197.
Moment Tensor: (dyne-cm) Aki-Richards Lune parameters
Component Value
Mxx -8.62E+21 beta: 143.84
Mxy 5.72E+20 gamma: 17.48
Mxy 5.72E+20
Mxz 8.54E+21
Myy -9.14E+21
Myz 2.72E+21
Mzz -2.33E+22
-------------- :
---------------------- :---:
------------------ ------- ::. ..::
------------------- T -------- :--------:
--------------------- ---------- :: . . . :
------------------------------------ : . . . :
-------------------------------------- :------------::
---------------------------------------- :: . . . :
---------------------------------------- : . . . :
------------------------------------------ :---------------:
------------------------------------------ : . . . :
------------------------------------------ :===============:
------------------------------------------ : . . . :
----------------- -------------------- : . . . :
----------------- P -------------------- :---------------:
---------------- ------------------- : . . . :
------------------------------------ :: . . . :
---------------------------------- :------------::
------------------------------ : . . . :
---------------------------- :: . . .# :
---------------------- :--------:
-------------- ::. ..::
:---:
:
|
Moment (dyne-cm) 1.34E+22 dyne-cm
Magnitude (Mw) 4.02
Principal Axes:
Axis Value Plunge Azimuth
T 9.45E+21 19. 24.
N 5.91E+21 2. 293.
P -1.54E+22 71. 196.
Moment Tensor: (dyne-cm) Aki-Richards
Component Value
Mxx 6.50E+21
Mxy 5.74E+20
Mxz 7.24E+21
Myy 6.26E+21
Myz 2.28E+21
Mzz -1.28E+22
Global CMT Convention Moment Tensor: (dyne-cm)
R T F
R -1.28E+22 7.24E+21 -2.28E+21
T 7.24E+21 6.50E+21 -5.74E+20
F -2.28E+21 -5.74E+20 6.26E+21
Moment (dyne-cm) 1.34E+22 dyne-cm
Magnitude (Mw) 4.02
Principal Axes:
Axis Value Plunge Azimuth
T 9.45E+21 19. 24.
N 5.91E+21 2. 293.
P -1.54E+22 71. 196.
Moment Tensor: (dyne-cm) Aki-Richards Lune parameters
Component Value
Mxx 6.50E+21 beta: 90.00
Mxy 5.74E+20 gamma: 22.43
Mxy 5.74E+20
Mxz 7.24E+21
Myy 6.26E+21
Myz 2.28E+21
Mzz -1.28E+22
############## :
################ ### :---:
################### T ###### ::. ..::
#################### ####### :--------:
################################## :: . . . :
#################################### : . . . :
############--------################## :------------::
#########-----------------############## :: . . . :
#######---------------------############ : . . . :
#######------------------------########### :---------------:
######--------------------------########## : . . . :
######---------------------------######### :===============:
######------------ -------------######## : . . . # :
#####------------ P -------------####### : . . . :
#####------------ -------------####### :---------------:
#####---------------------------###### : . . . :
#####-------------------------###### :: . . . :
#####-----------------------###### :------------::
#####-------------------###### : . . . :
########------------######## :: . . . :
###################### :--------:
############## ::. ..::
:---:
:
|
Moment (dyne-cm) 2.07E+22 dyne-cm
Magnitude (Mw) 4.14
Principal Axes:
Axis Value Plunge Azimuth
T -4.71E+21 28. 20.
N -1.03E+22 1. 289.
P -2.71E+22 62. 197.
Moment Tensor: (dyne-cm) Aki-Richards
Component Value
Mxx -9.76E+21
Mxy 3.56E+20
Mxz 8.79E+21
Myy -1.01E+22
Myz 2.80E+21
Mzz -2.22E+22
Global CMT Convention Moment Tensor: (dyne-cm)
R T F
R -2.22E+22 8.79E+21 -2.80E+21
T 8.79E+21 -9.76E+21 -3.56E+20
F -2.80E+21 -3.56E+20 -1.01E+22
Moment (dyne-cm) 2.07E+22 dyne-cm
Magnitude (Mw) 4.14
Principal Axes:
Axis Value Plunge Azimuth
T -4.71E+21 28. 20.
N -1.03E+22 1. 289.
P -2.71E+22 62. 197.
Moment Tensor: (dyne-cm) Aki-Richards Lune parameters
Component Value
Mxx -9.76E+21 beta: 145.88
Mxy 3.56E+20 gamma: 16.14
Mxy 3.56E+20
Mxz 8.79E+21
Myy -1.01E+22
Myz 2.80E+21
Mzz -2.22E+22
-------------- :
---------------------- :---:
------------------ ------- ::. ..::
------------------- T -------- :--------:
--------------------- ---------- :: . . . :
------------------------------------ : . . . :
-------------------------------------- :------------::
---------------------------------------- :: . . . :
---------------------------------------- : . . . :
------------------------------------------ :---------------:
------------------------------------------ : . . . :
------------------------------------------ :===============:
------------------------------------------ : . . . :
---------------- --------------------- : . . . :
---------------- P --------------------- :---------------:
--------------- -------------------- : . . . :
------------------------------------ :: . . . :
---------------------------------- :------------::
------------------------------ : . . . :
---------------------------- :: . . .# :
---------------------- :--------:
-------------- ::. ..::
:---:
:
|
|
The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.
|
|
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -20 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3The results of this grid search from 0.5 to 19 km depth are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 1.0 85 85 90 4.24 0.6834
WVFGRD96 2.0 260 10 80 4.08 0.7290
WVFGRD96 3.0 255 10 75 4.02 0.7408
WVFGRD96 4.0 250 10 70 3.98 0.7354
WVFGRD96 5.0 230 5 50 3.95 0.7305
WVFGRD96 6.0 135 5 -45 3.94 0.7294
WVFGRD96 7.0 120 20 -75 3.98 0.7397
WVFGRD96 8.0 120 25 -80 3.99 0.7442
WVFGRD96 9.0 120 25 -80 3.99 0.7428
WVFGRD96 10.0 120 25 -80 4.02 0.7176
WVFGRD96 11.0 120 25 -80 4.02 0.7078
WVFGRD96 12.0 120 25 -80 4.02 0.6924
WVFGRD96 13.0 120 25 -80 4.03 0.6729
WVFGRD96 14.0 110 25 -85 4.03 0.6506
WVFGRD96 15.0 115 25 -80 4.03 0.6264
WVFGRD96 16.0 115 25 -80 4.03 0.6016
WVFGRD96 17.0 115 25 -80 4.04 0.5767
WVFGRD96 18.0 115 25 -80 4.04 0.5513
WVFGRD96 19.0 115 25 -80 4.04 0.5256
WVFGRD96 20.0 120 25 -80 4.08 0.4915
WVFGRD96 21.0 120 25 -80 4.08 0.4678
WVFGRD96 22.0 120 25 -80 4.08 0.4450
WVFGRD96 23.0 125 30 -80 4.09 0.4224
WVFGRD96 24.0 125 30 -80 4.09 0.4011
WVFGRD96 25.0 125 30 -80 4.10 0.3804
WVFGRD96 26.0 125 30 -80 4.10 0.3602
WVFGRD96 27.0 125 30 -80 4.10 0.3402
WVFGRD96 28.0 285 20 -95 4.11 0.3216
WVFGRD96 29.0 285 20 -95 4.12 0.3129
The best solution is
WVFGRD96 8.0 120 25 -80 3.99 0.7442
The mechanism correspond to the best fit is
|
|
|

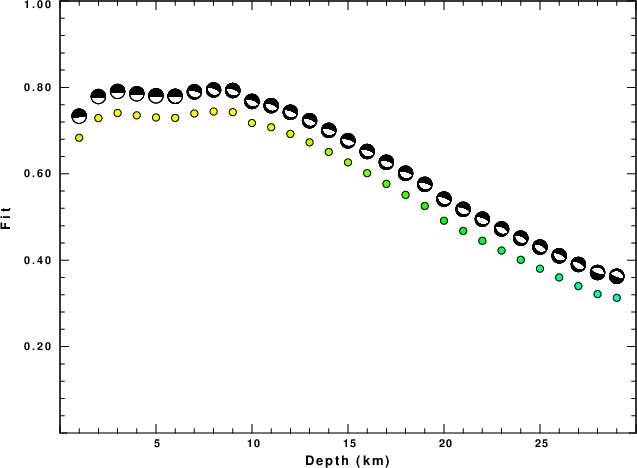

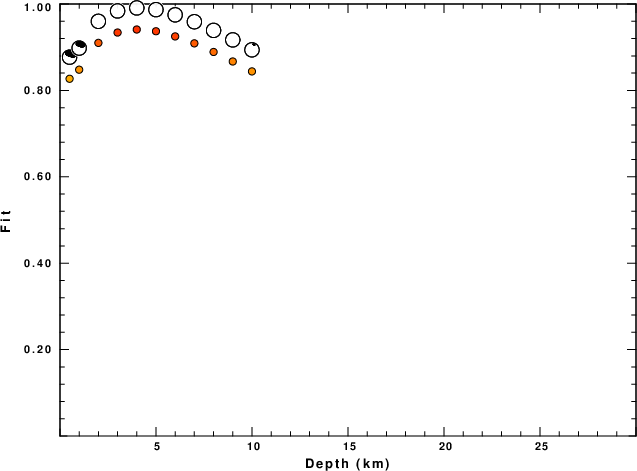

The best fit as a function of depth is given in the following figure:
|
|
|

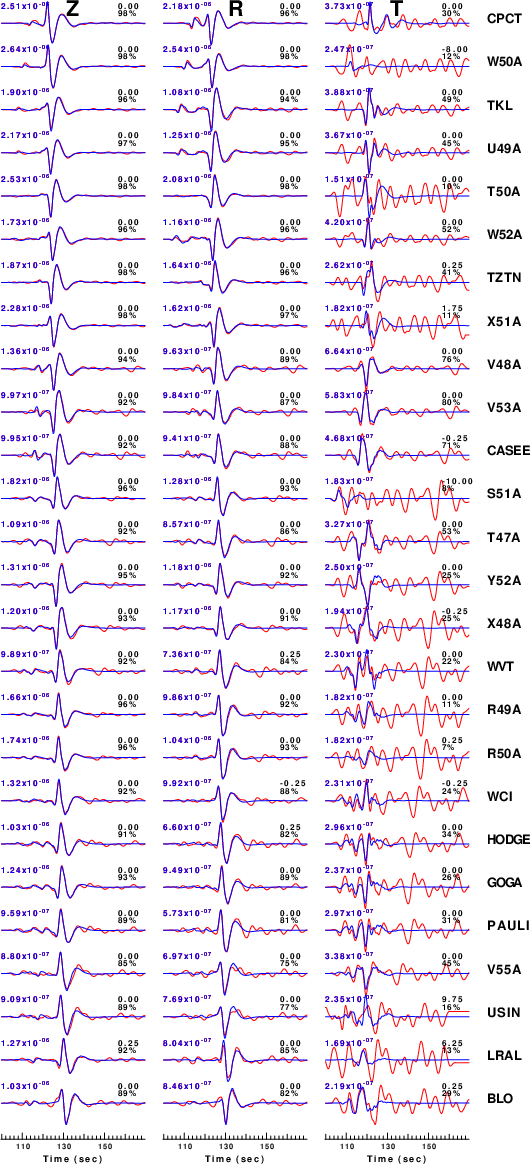

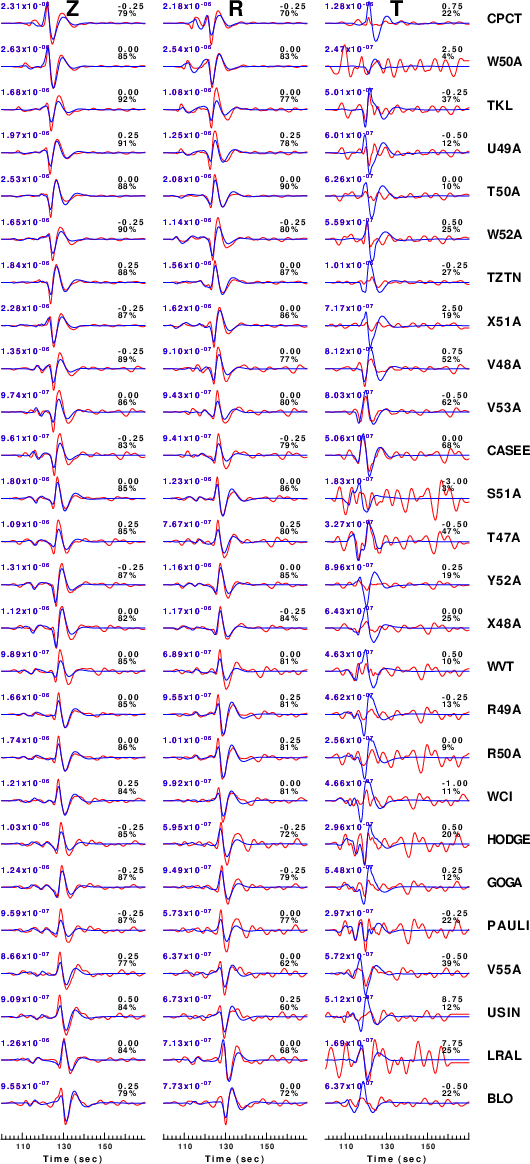

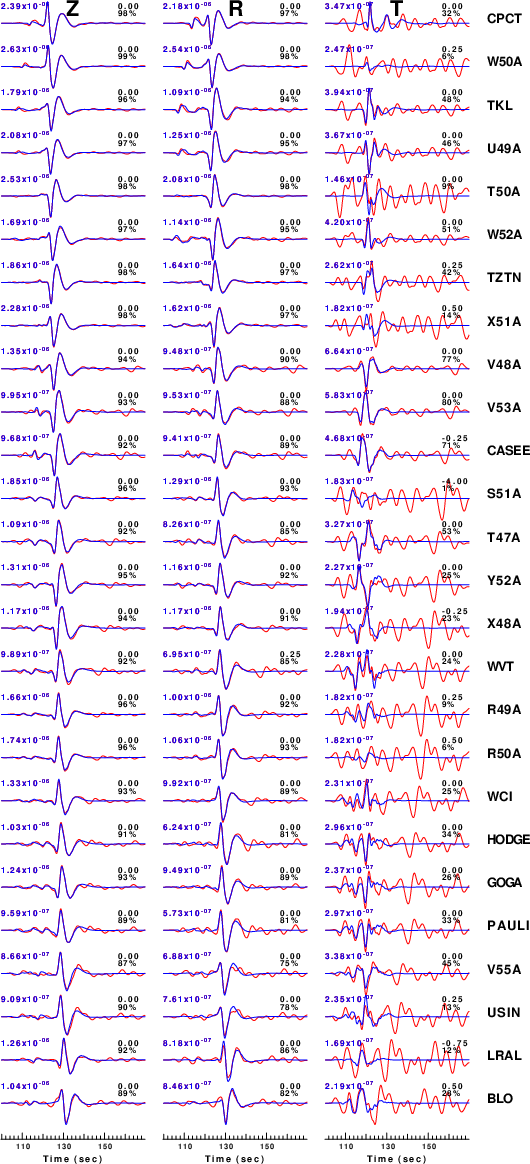

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -20 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3
|
|
|
|

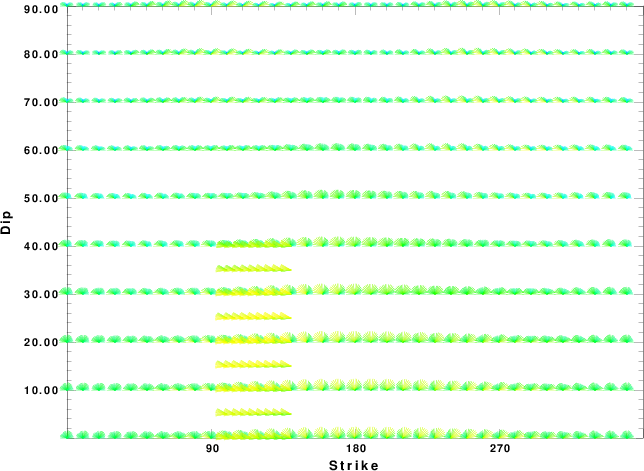

| Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |

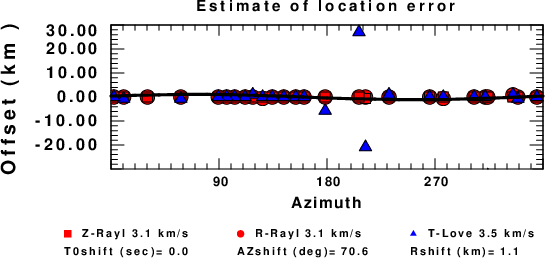

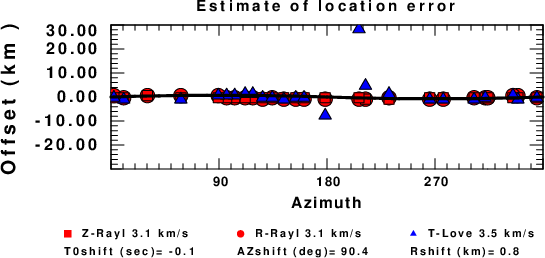

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth
The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.
|
|
|
The program wvfmtd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -20 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3The results of this grid search over depth are as follow:
MT Program H(km) STK DIP RAKE Mw Rvar StdErr Fit WtRvar WtStdErr Pclvd Mxx(dyne-cm) Myy Mxy Mxz Myz Mzz WVFMTD961 0.5 107. 84. 90. 4.24 0.806 0.103E-06 0.813 0.898 0.757E-07 26.4 -0.4080503E+22 -0.3989086E+22 0.9084994E+20 0.2675239E+23 0.8220483E+22 0.8069588E+22 WVFMTD961 1.0 107. 82. 90. 4.23 0.793 0.107E-06 0.807 0.890 0.769E-07 32.3 -0.4778298E+22 -0.4726434E+22 0.9693365E+20 0.2517399E+23 0.7544495E+22 0.9504732E+22 WVFMTD961 2.0 107. 78. 91. 4.11 0.793 0.107E-06 0.798 0.890 0.787E-07 52.7 -0.4580255E+22 -0.5196362E+22 0.5883630E+21 0.1583757E+23 0.4939792E+22 0.9776616E+22 WVFMTD961 3.0 108. 79. 93. 4.06 0.764 0.115E-06 0.772 0.874 0.837E-07 50.6 -0.3925290E+22 -0.3863236E+22 0.7018353E+21 0.1289406E+23 0.4615572E+22 0.7788526E+22 WVFMTD961 4.0 290. 80. -95. 3.98 0.632 0.143E-06 0.647 0.795 0.104E-06 28.5 0.2503245E+22 0.2557045E+22 0.1179898E+22 0.1049855E+23 0.3370075E+22 -0.5060290E+22 WVFMTD961 5.0 293. 67. -94. 4.02 0.692 0.130E-06 0.705 0.832 0.951E-07 67.9 0.5960417E+22 0.5911276E+22 0.1002476E+22 0.8483797E+22 0.2574537E+22 -0.1187169E+23 WVFMTD961 6.0 294. 64. -94. 4.03 0.771 0.112E-06 0.783 0.878 0.815E-07 74.7 0.6678124E+22 0.6502763E+22 0.8207327E+21 0.7629317E+22 0.2439491E+22 -0.1318089E+23 WVFMTD961 7.0 293. 64. -93. 4.02 0.809 0.103E-06 0.821 0.900 0.740E-07 75.8 0.6585239E+22 0.6363875E+22 0.7016567E+21 0.7401517E+22 0.2345220E+22 -0.1294911E+23 WVFMTD961 8.0 292. 64. -93. 4.02 0.822 0.990E-07 0.834 0.907 0.714E-07 77.0 0.6498382E+22 0.6259495E+22 0.5737815E+21 0.7243184E+22 0.2282840E+22 -0.1275788E+23 WVFMTD961 9.0 292. 64. -92. 4.02 0.821 0.995E-07 0.832 0.906 0.718E-07 77.6 0.6500787E+22 0.6230074E+22 0.5267410E+21 0.7134153E+22 0.2241335E+22 -0.1273086E+23 WVFMTD961 10.0 291. 64. -92. 4.05 0.804 0.104E-06 0.815 0.897 0.754E-07 78.1 0.7034699E+22 0.6885882E+22 0.5013210E+21 0.8033250E+22 0.2519438E+22 -0.1392058E+23
The best solution is
WVFMTD961 8.0 292. 64. -93. 4.02 0.822 0.990E-07 0.834 0.907 0.714E-07 77.0 0.6498382E+22 0.6259495E+22 0.5737815E+21 0.7243184E+22 0.2282840E+22 -0.1275788E+23
The complete moment tensor decomposition using the program mtdinfo is given in the text file MTDinfo.txt. (Jost, M. L., and R. B. Herrmann (1989). A student's guide to and review of moment tensors, Seism. Res. Letters 60, 37-57. SRL_60_2_37-57.pdf.
The P-wave first motion mechanism corresponding to the best fit is
|
|
|

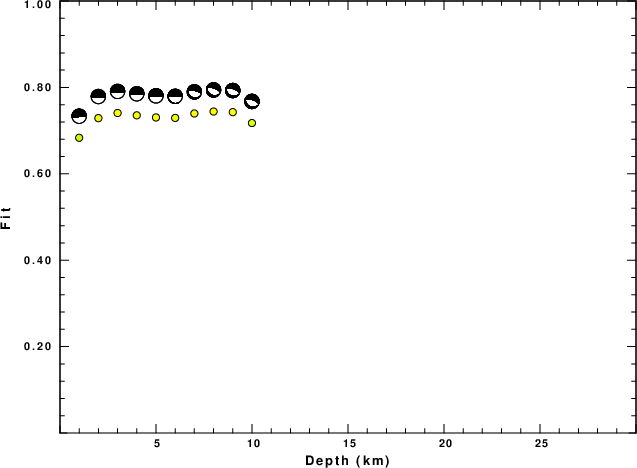

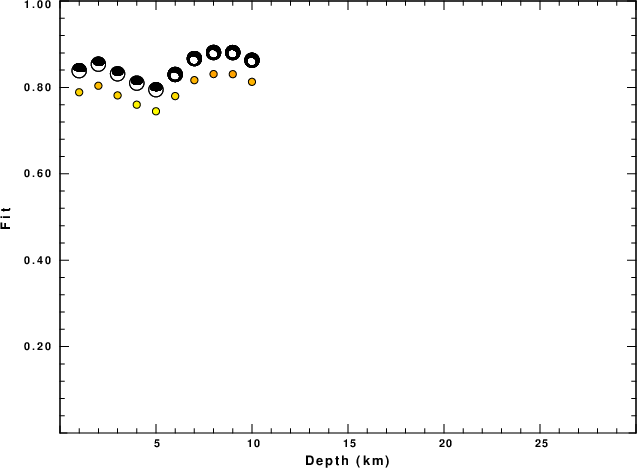

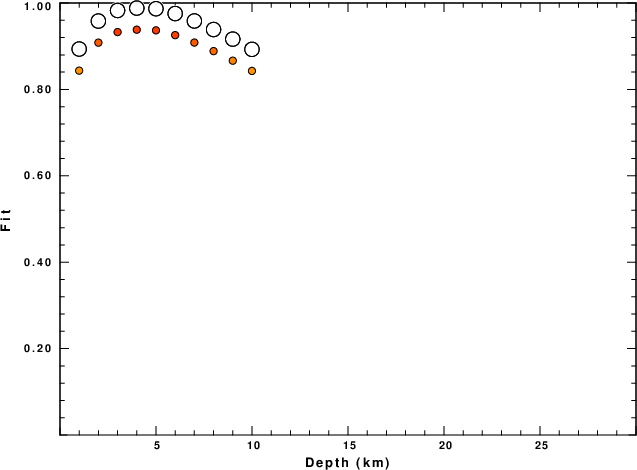

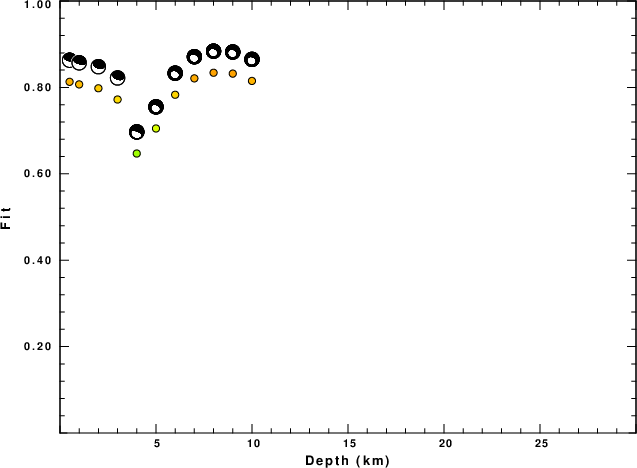

The best fit as a function of depth is given in the following figure:
|
|
|

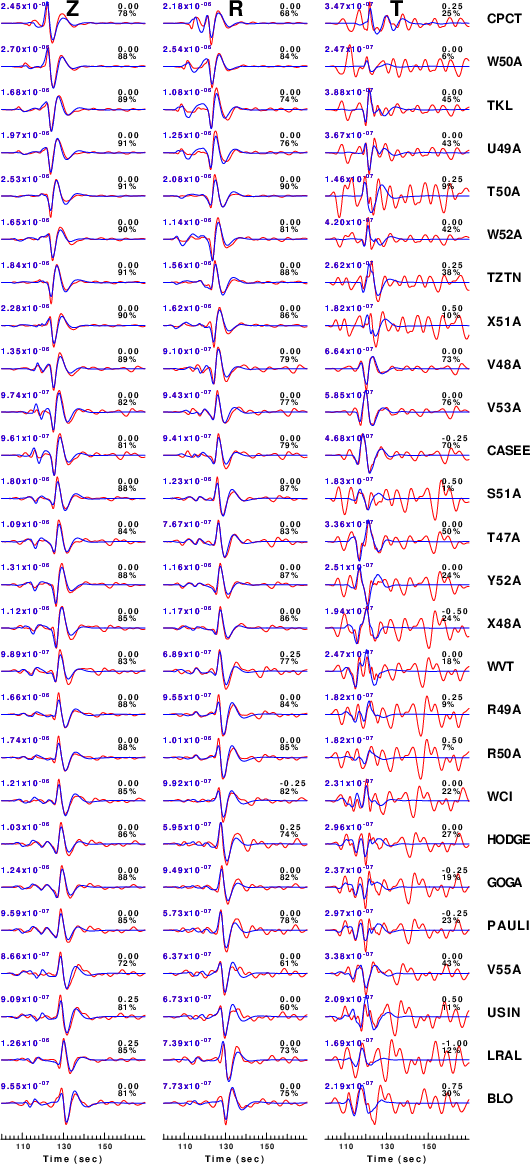

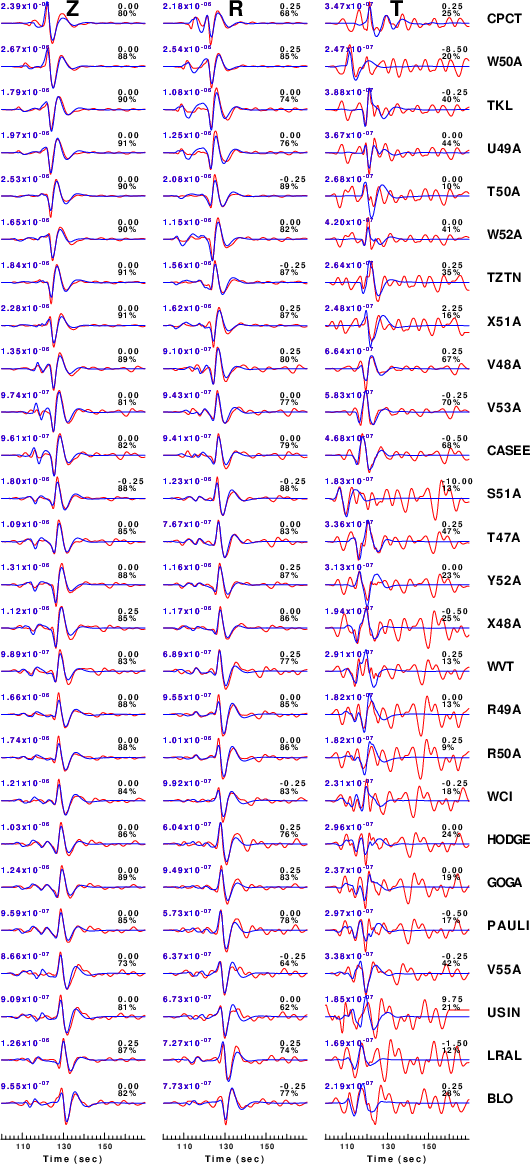

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -20 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3
|
|
|

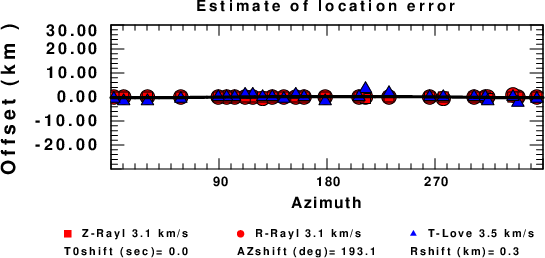

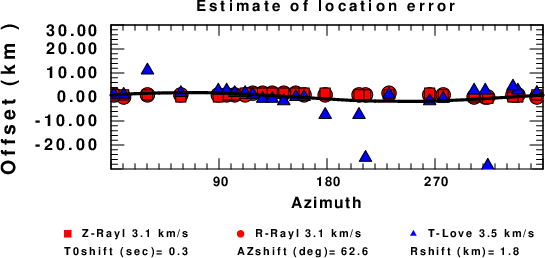

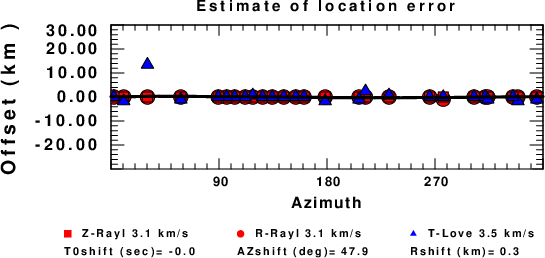

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth
The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.
|
|
|
The program wvfmt96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -20 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3The results of this grid search over depth are as follow:
MT Program H(km) STK DIP RAKE Mw Rvar StdErr Fit WtRvar WtStdErr Pclvd Mxx(dyne-cm) Myy Mxy Mxz Myz Mzz WVFMT961 0.5 287. 89. -90. 4.26 0.818 0.100E-06 0.827 0.905 0.729E-07 5.7 -0.9113324E+22 -0.9015971E+22 0.8319997E+20 0.2665206E+23 0.8171314E+22 -0.1151258E+23 WVFMT961 1.0 287. 86. -90. 4.27 0.832 0.963E-07 0.848 0.912 0.681E-07 19.4 -0.1181179E+23 -0.1176794E+23 0.9049147E+20 0.2483781E+23 0.7694956E+22 -0.1995383E+23 WVFMT961 2.0 288. 79. -91. 4.18 0.899 0.748E-07 0.910 0.948 0.526E-07 40.4 -0.1166335E+23 -0.1184661E+23 0.2264525E+21 0.1279435E+23 0.4091709E+22 -0.2211512E+23 WVFMT961 3.0 288. 75. -91. 4.16 0.921 0.659E-07 0.934 0.960 0.450E-07 51.4 -0.1084575E+23 -0.1111740E+23 0.3051012E+21 0.1000104E+23 0.3192342E+22 -0.2252330E+23 WVFMT961 4.0 289. 73. -91. 4.14 0.927 0.632E-07 0.941 0.963 0.426E-07 57.3 -0.9762453E+22 -0.1010708E+23 0.3561588E+21 0.8792246E+22 0.2797030E+22 -0.2219517E+23 WVFMT961 5.0 289. 71. -91. 4.13 0.923 0.650E-07 0.937 0.961 0.440E-07 61.0 -0.8595562E+22 -0.8959870E+22 0.3739920E+21 0.8153582E+22 0.2581135E+22 -0.2153475E+23 WVFMT961 6.0 289. 70. -91. 4.11 0.912 0.697E-07 0.925 0.955 0.479E-07 63.6 -0.7398382E+22 -0.7764984E+22 0.3890190E+21 0.7779517E+22 0.2450384E+22 -0.2074907E+23 WVFMT961 7.0 289. 69. -91. 4.09 0.896 0.758E-07 0.909 0.947 0.529E-07 65.6 -0.6158004E+22 -0.6535874E+22 0.3939135E+21 0.7534986E+22 0.2373791E+22 -0.1993785E+23 WVFMT961 8.0 289. 68. -91. 4.08 0.876 0.825E-07 0.889 0.936 0.584E-07 67.6 -0.4932368E+22 -0.5285586E+22 0.3908383E+21 0.7374751E+22 0.2316553E+22 -0.1914648E+23 WVFMT961 9.0 290. 68. -91. 4.06 0.855 0.894E-07 0.867 0.925 0.638E-07 69.9 -0.3762338E+22 -0.4129900E+22 0.3402411E+21 0.7205364E+22 0.2341851E+22 -0.1854830E+23 WVFMT961 10.0 290. 67. -91. 4.09 0.832 0.962E-07 0.844 0.912 0.692E-07 72.2 -0.3588663E+22 -0.3821543E+22 0.3313135E+21 0.8117800E+22 0.2632620E+22 -0.2058471E+23
The best solution is
WVFMT961 4.0 289. 73. -91. 4.14 0.927 0.632E-07 0.941 0.963 0.426E-07 57.3 -0.9762453E+22 -0.1010708E+23 0.3561588E+21 0.8792246E+22 0.2797030E+22 -0.2219517E+23
The complete moment tensor decomposition using the program mtinfo is given in the text file MTinfo.txt. (Jost, M. L., and R. B. Herrmann (1989). A student's guide to and review of moment tensors, Seism. Res. Letters 60, 37-57. SRL_60_2_37-57.pdf.
The P-wave first motion mechanism corresponding to the best fit is
|
|
|
The best fit as a function of depth is given in the following figure:
|
|
|
The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -20 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3
|
|
|
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth
The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.
|
|
|
The program wvfmtgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -20 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3The results of this grid search over depth are as follow:
MT Program H(km) Mxx(dyne-cm) Myy Mxy Mxz Myz Mzz Mw Fit WVFMTGRD96 1.0 -0.152E+23 -0.140E+23 0.261E+21 0.186E+23 0.824E+22 -0.293E+23 4.2748 0.8435 WVFMTGRD96 2.0 -0.123E+23 -0.116E+23 0.231E+21 0.124E+23 0.425E+22 -0.215E+23 4.1790 0.9083 WVFMTGRD96 3.0 -0.102E+23 -0.106E+23 0.473E+21 0.103E+23 0.350E+22 -0.224E+23 4.1598 0.9328 WVFMTGRD96 4.0 -0.862E+22 -0.914E+22 0.572E+21 0.854E+22 0.272E+22 -0.233E+23 4.1446 0.9383 WVFMTGRD96 5.0 -0.809E+22 -0.857E+22 0.537E+21 0.802E+22 0.255E+22 -0.218E+23 4.1261 0.9368 WVFMTGRD96 6.0 -0.777E+22 -0.824E+22 0.516E+21 0.770E+22 0.245E+22 -0.210E+23 4.1145 0.9257 WVFMTGRD96 7.0 -0.782E+22 -0.764E+22 0.228E+21 0.741E+22 0.233E+22 -0.206E+23 4.1071 0.9085 WVFMTGRD96 8.0 -0.562E+22 -0.511E+22 0.917E+20 0.762E+22 0.239E+22 -0.188E+23 4.0769 0.8887 WVFMTGRD96 9.0 -0.583E+22 -0.465E+22 -0.199E+21 0.742E+22 0.230E+22 -0.188E+23 4.0739 0.8665 WVFMTGRD96 10.0 -0.566E+22 -0.466E+22 -0.423E+21 0.838E+22 0.305E+22 -0.208E+23 4.1028 0.8428
The best solution is
WVFMTGRD96 4.0 -0.862E+22 -0.914E+22 0.572E+21 0.854E+22 0.272E+22 -0.233E+23 4.1446 0.9383
The complete moment tensor decomposition using the program mtinfo is given in the text file MTGRDinfo.txt. (Jost, M. L., and R. B. Herrmann (1989). A student's guide to and review of moment tensors, Seism. Res. Letters 60, 37-57. SRL_60_2_37-57.pdf.
The P-wave first motion mechanism corresponding to the best fit is
|
|
|
The best fit as a function of depth is given in the following figure:
|
|
|
The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -20 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3
|
|
|
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth
The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.
|
|
|
The program wvfmtgrd96 -DC was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -20 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3The results of this grid search over depth are as follow:
MT Program H(km) Mxx(dyne-cm) Myy Mxy Mxz Myz Mzz Mw Fit WVFMTGRD96 1.0 -0.489E+22 -0.374E+20 0.427E+21 0.278E+23 -0.243E+22 0.492E+22 4.2350 0.6834 WVFMTGRD96 2.0 -0.551E+22 0.256E+19 0.479E+21 0.154E+23 0.126E+21 0.551E+22 4.0758 0.7290 WVFMTGRD96 3.0 -0.441E+22 0.455E+19 0.582E+21 0.126E+23 0.150E+21 0.440E+22 4.0164 0.7408 WVFMTGRD96 4.0 -0.379E+22 0.683E+19 0.680E+21 0.111E+23 0.171E+21 0.378E+22 3.9806 0.7354 WVFMTGRD96 5.0 -0.142E+22 0.224E+19 0.596E+21 0.106E+23 0.599E+20 0.142E+22 3.9525 0.7305 WVFMTGRD96 6.0 0.126E+22 -0.240E+19 0.629E+21 0.101E+23 -0.583E+20 -0.126E+22 3.9404 0.7294 WVFMTGRD96 7.0 0.632E+22 0.915E+21 0.262E+22 0.888E+22 0.186E+22 -0.723E+22 3.9775 0.7397 WVFMTGRD96 8.0 0.777E+22 0.154E+22 0.358E+22 0.774E+22 0.222E+22 -0.931E+22 3.9943 0.7442 WVFMTGRD96 9.0 0.777E+22 0.154E+22 0.358E+22 0.774E+22 0.222E+22 -0.931E+22 3.9942 0.7428 WVFMTGRD96 10.0 0.853E+22 0.170E+22 0.393E+22 0.850E+22 0.244E+22 -0.102E+23 4.0215 0.7176
The best solution is
WVFMTGRD96 8.0 0.777E+22 0.154E+22 0.358E+22 0.774E+22 0.222E+22 -0.931E+22 3.9943 0.7442
The complete moment tensor decomposition using the program mtinfo is given in the text file MTGRDDCinfo.txt. (Jost, M. L., and R. B. Herrmann (1989). A student's guide to and review of moment tensors, Seism. Res. Letters 60, 37-57. SRL_60_2_37-57.pdf.
The P-wave first motion mechanism corresponding to the best fit is
|
|
|
The best fit as a function of depth is given in the following figure:
|
|
|
The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -20 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3
|
|
|
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth
The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.
|
|
|
The program wvfmtgrd96 -DEV was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -20 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3The results of this grid search over depth are as follow:
MT Program H(km) Mxx(dyne-cm) Myy Mxy Mxz Myz Mzz Mw Fit WVFMTGRD96 1.0 -0.326E+22 -0.414E+22 0.403E+21 0.295E+23 0.529E+22 0.740E+22 4.2581 0.7888 WVFMTGRD96 2.0 -0.352E+22 -0.491E+22 0.626E+21 0.165E+23 0.180E+22 0.843E+22 4.1054 0.8039 WVFMTGRD96 3.0 -0.473E+22 -0.488E+22 0.569E+21 0.127E+23 0.579E+21 0.961E+22 4.0541 0.7816 WVFMTGRD96 4.0 -0.414E+22 -0.427E+22 0.497E+21 0.111E+23 0.507E+21 0.841E+22 4.0153 0.7600 WVFMTGRD96 5.0 -0.228E+22 -0.261E+22 0.625E+21 0.105E+23 0.396E+21 0.489E+22 3.9709 0.7448 WVFMTGRD96 6.0 0.664E+22 0.598E+22 0.900E+21 0.785E+22 0.300E+22 -0.126E+23 4.0270 0.7800 WVFMTGRD96 7.0 0.573E+22 0.671E+22 0.339E+21 0.762E+22 0.296E+22 -0.124E+23 4.0210 0.8168 WVFMTGRD96 8.0 0.697E+22 0.679E+22 0.142E+22 0.648E+22 0.195E+22 -0.138E+23 4.0261 0.8309 WVFMTGRD96 9.0 0.723E+22 0.678E+22 0.720E+21 0.608E+22 0.194E+22 -0.140E+23 4.0252 0.8307 WVFMTGRD96 10.0 0.797E+22 0.747E+22 0.794E+21 0.670E+22 0.214E+22 -0.154E+23 4.0533 0.8129
The best solution is
WVFMTGRD96 8.0 0.697E+22 0.679E+22 0.142E+22 0.648E+22 0.195E+22 -0.138E+23 4.0261 0.8309
The complete moment tensor decomposition using the program mtinfo is given in the text file MTGRDDEVinfo.txt. (Jost, M. L., and R. B. Herrmann (1989). A student's guide to and review of moment tensors, Seism. Res. Letters 60, 37-57. SRL_60_2_37-57.pdf.
The P-wave first motion mechanism corresponding to the best fit is
|
|
|
The best fit as a function of depth is given in the following figure:
|
|
|
The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -20 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3
|
|
|
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth
The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
Thanks also to the many seismic network operators whose dedication make this effort possible: University of Nevada Reno, University of Alaska, University of Washington, Oregon State University, University of Utah, Montana Bureau of Mines, UC Berkely, Caltech, UC San Diego, Saint Louis University, University of Memphis, Lamont Doherty Earth Observatory, the Oklahoma Geological Survey, TexNet, the Iris stations, the Transportable Array of EarthScope and other networks.
The CUS model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:
MODEL.01 CUS Model with Q from simple gamma values ISOTROPIC KGS FLAT EARTH 1-D CONSTANT VELOCITY LINE08 LINE09 LINE10 LINE11 H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS 1.0000 5.0000 2.8900 2.5000 0.172E-02 0.387E-02 0.00 0.00 1.00 1.00 9.0000 6.1000 3.5200 2.7300 0.160E-02 0.363E-02 0.00 0.00 1.00 1.00 10.0000 6.4000 3.7000 2.8200 0.149E-02 0.336E-02 0.00 0.00 1.00 1.00 20.0000 6.7000 3.8700 2.9020 0.000E-04 0.000E-04 0.00 0.00 1.00 1.00 0.0000 8.1500 4.7000 3.3640 0.194E-02 0.431E-02 0.00 0.00 1.00 1.00
