The purpose of this section is to introduce the idea of a
pseudo-time history for the permanent deformation. In reality the
displacement at a site is zero until the first P-wave arrives.
After this there is a sequence of P-, S- and surface-wave
arrivals, after which there is the permanent deformation.
There is no simple way to indicate when the ground displacement
settles down to the final static offset.
As a working hypothesis we can assume that the static deformation
occurs at the time of the first S arrival. We thus have the
problem of making a time series that is a step function that
starts at the
S-travel time following the origin time. Fortunately this
can easily be done using gsac.
Given a Sac file with just one point, as is created by hstat96
and hsanal96, and which does not have values set for the
A, T0, T2 ... markers, and for which the "origin time" O=0, and
the epoch time is the same, then the following commands will
display the trick (GSAC> is the gsac prompt):
DELTA=`saclhdr -DELTA sacfile` #get the sample interval - this is not needed since it is 1.0 for the output of the two programs
#now run gsac - Also assume that we want to shift by TSHIFT=TS + TRUP, e.g., the time of the
#initiation of the subfault and then the S travel time from the patch to the station
GSAC> cuterr fillz
GSAC> cut o o 200 #GSAC does not use blackboard variables, but can use previously defined SHELL variables
GSAC> r sacfile
GSAC> lh depmax depmin
GSAC> div ${DELTA}
GSAC> shift ${TSHIFT}
GSAC> int
GSAC> lh depmax depmin GSAC> p
The result will be a time series with a step-like function that
starts at the appropriate time and which also has the same peak
amplitude as the original single point time series. This can be
seen by executing the listheader commands shown in blue.
We wish to test the assumption that the S-wave first-arrival time
is an acceptable proxy for when the displacement has reached the
static value. The answer is that in the two cases considered, it
is.
The other aspect is that the script using the hspec96
Green functions shows how to make regional synthetics for a finite
fault source.
On my computer the environment variable GREENDIR points to a
specific directory that contains the velocity models and Green
functions for those models, e.g.,
Within that directory there will be model file /d/rbh/GREEN/Models/WUS.mod which I can access as ${GREENDIR}/Models/WUS.mod, and a directory of Green functions ${GREENDIR}/WUS.REG. Within that directory are subdirecties with names such as 0230, for a source depth of 23.0 km, a control file ${GREENDIR}/WUS.REG/D.CTL which has two entries per line consisting of the depth in km and the corresponding directory name, e.g.,rbh> echo $GREENDIR
/d/rbh/GREEN
Finally within each depth directory are the Green functions as a function of distance and W.CTL file looks like0.5 0005
1.0 0010
2.0 0020
3.0 0030
This means that I I want the TSS Green function for a depth of 23.0 km and a distance of 8.0 km, I would actually wantrbh> head 0230/W.CTL
1 0.25 512 -4.875 0 0230 000100230
2 0.25 512 -4.75 0 0230 000200230
3 0.25 512 -4.625 0 0230 000300230
4 0.25 512 -4.5 0 0230 000400230
5 0.25 512 -4.375 0 0230 000500230
6 0.25 512 -4.25 0 0230 000600230
7 0.25 512 -4.125 0 0230 000700230
8 0.25 512 -4 0 0230 000800230
${GREENDIR}/WUS.REG/0230/000800230.TSS
The gsac mt command just needs the argument FILE
${GREENDIR}/WUS.REG/0230/000800230 to make a synthetic. #!/bin/sh
gsac << EOF
cuterr fillz
cut o 0 200
bg plt
fileid name
r DYNAMIC_ORIGINAL/FINITE_3/FINAL*Z/* STATIC_ORIG_SHAL/FIN3_ORIGINAL/FINAL?/*Z
# turn off the phase times
ch a -12345 t0 -12345 t1 -12345
# convert to cm
mul 100
int
color list red blue
p overlay on
r DYNAMIC_ORIGINAL/FINITE_3/FINAL*N/* STATIC_ORIG_SHAL/FIN3_ORIGINAL/FINAL?/*N
# turn off the phase times
ch a -12345 t0 -12345 t1 -12345
# convert to cm
mul 100
int
color list red blue
p overlay on
r DYNAMIC_ORIGINAL/FINITE_3/FINAL*E/* STATIC_ORIG_SHAL/FIN3_ORIGINAL/FINAL?/*E
# turn off the phase times
ch a -12345 t0 -12345 t1 -12345
# convert to cm
mul 100
int
color list red blue
p overlay on
q
EOF
for i in 001 002 003
do
plotnps -F7 -W10 -EPS -K < P$i.PLT > t.eps
convert t.eps Orig_P$i.png
mv P$i.PLT Orig_P$i.PLT
done

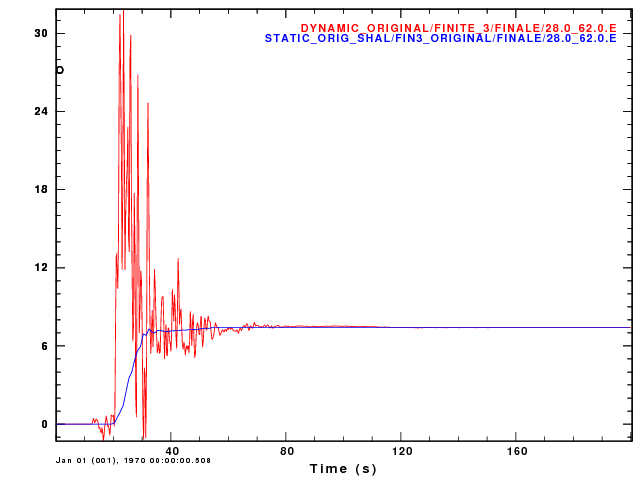

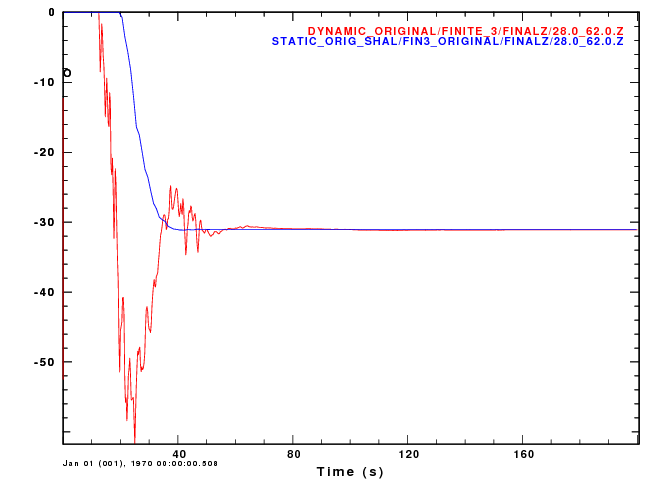

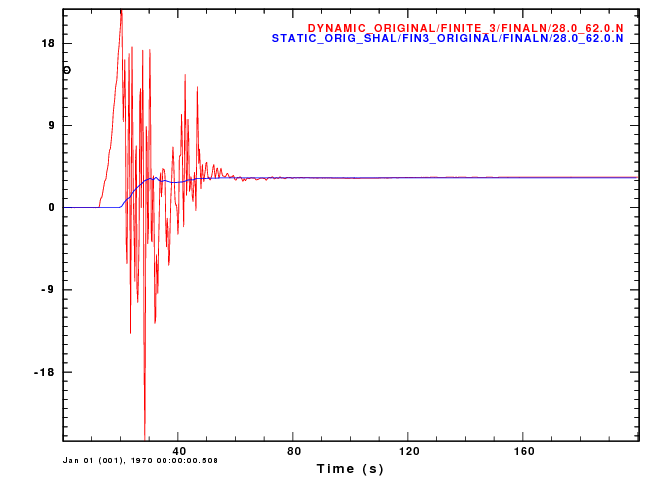

In these figures, the red curve is the result of summing the
individual complete seismograms which the blue curve shows the
effect of delaying and adding the static deformations. It seems as
if there is a correspondence between the time that the pseudo
time-series converges and when the actual ground displacement
stabilizes.
| Vertical |
North |
East |
|
|
|

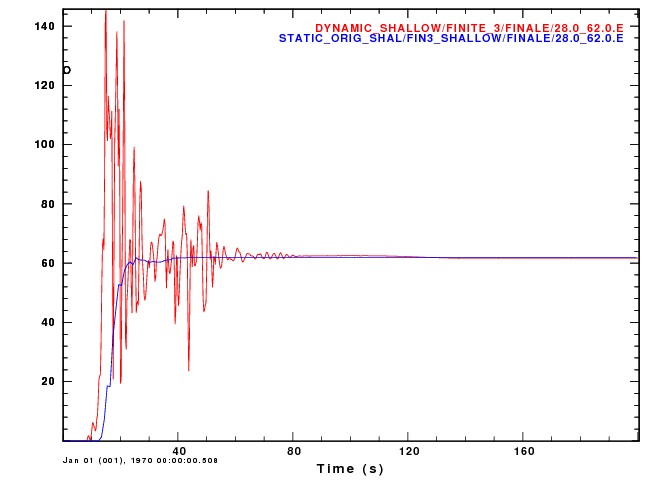

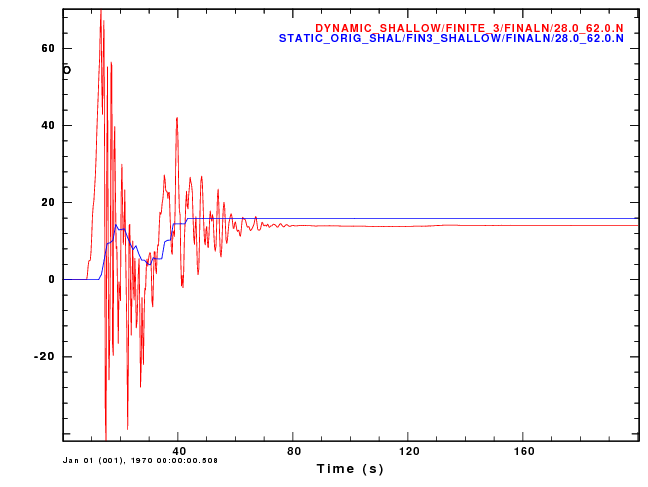

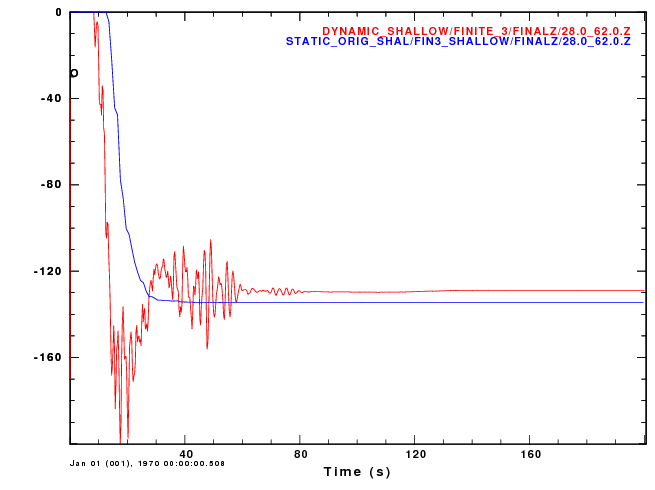

This set of figures was created by subtracting 35 km from all
subfault depths given in the NEIC model.
| Vertical |
North |
East |
 |
 |
 |
Rather than add additional comments, I will use bold RED to indicate
the significant differences. The real difference
is that the script on the left must compute the response while the
one on the right finds a pre-existing synthetic. If we had
used the hprpe96, hspec96 hpusle96 sequence on the left we would
have computed complete time histories and obtained the same
results.
| hstat96 - Pseudo Time History |
hspec96 - Complete Time History |
#!/bin/sh
#####
# define the bounds on the gridded area and also the
# grid interval
#####"
LATMIN="28.0"
LATMAX="28.0"
DLAT="0.25"
LONMIN="62.0"
LONMAX="62.0"
DLON="0.25"
#####
# define control variables for the loop
#####
ENDLATLOOP="NO"
ENDLONLOOT="NO"
#####
# define initial values
#####
LAT=${LATMIN}
LON=${LONMIN}
#####
# define the velocity model
#####
MODEL="${GREENDIR}/WUS.mod"
#####
# define TOPLEVEL directory
#####
MYTOP=`pwd`
#####
# define the finite fault model
#####
cat > static2_out << EOF
#Total number of fault_segments= 1
#Fault_segment = 1 nx(Along-strike)= 14 Dx= 7.00km ny(downdip)= 12 Dy= 7.00km
#Boundary of Fault_segment 1. EQ in cell 8,8. Lon: 62.0532 Lat: 28.1069
#Lon. Lat. Depth
62.62570 28.22120 36.64660
61.85480 27.67950 36.64660
61.60110 27.96040 108.96690
62.37200 28.50210 108.96690
62.62570 28.22120 36.64660
#Lat. Lon. depth slip rake strike dip t_rup h_dur mo
28.218100 62.610200 37.872300 32.892190 210.228390 231.460010 61.110000 33.200000 3.400000 7.994117e+24
28.178900 62.554300 37.872300 26.133590 213.971100 231.460010 61.110000 31.400000 4.000000 6.351509e+24
28.139600 62.498500 37.872300 0.378610 255.360600 231.460010 61.110000 28.400000 2.600000 9.201650e+22
28.100300 62.442600 37.872300 0.271620 283.392210 231.460010 61.110000 26.200000 3.200000 6.601493e+22
28.061100 62.386700 37.872300 0.487170 267.694490 231.460010 61.110000 23.000000 3.400000 1.184024e+23
28.021900 62.330900 37.872300 4.512600 214.114200 231.460010 61.110000 21.200000 3.400000 1.096743e+24
27.982600 62.275000 37.872300 0.054630 245.378800 231.460010 61.110000 19.600000 3.600000 1.327731e+22
27.943400 62.219200 37.872300 0.359760 239.659100 231.460010 61.110000 19.000000 3.000000 8.743530e+22
27.904100 62.163300 37.872300 0.819340 260.363890 231.460010 61.110000 20.800000 3.000000 1.991322e+23
27.864900 62.107400 37.872300 6.014880 268.909300 231.460010 61.110000 21.600000 2.400000 1.461857e+24
27.825600 62.051600 37.872300 7.808980 263.208800 231.460010 61.110000 24.600000 4.200000 1.897894e+24
27.786400 61.995700 37.872300 69.880770 211.684100 231.460010 61.110000 27.600000 4.400000 1.698382e+25
27.747100 61.939900 37.872300 152.146300 213.129500 231.460010 61.110000 28.800000 5.400000 3.697763e+25
27.707900 61.884000 37.872300 149.289790 215.029500 231.460010 61.110000 32.200000 3.800000 3.628339e+25
28.241900 62.588700 44.001200 22.606470 254.847600 231.460010 61.110000 30.800000 3.800000 7.083550e+24
28.202700 62.532800 44.001200 2.119850 247.519300 231.460010 61.110000 27.800000 4.600000 6.642373e+23
28.163400 62.477000 44.001200 0.297780 221.859890 231.460010 61.110000 25.200000 2.400000 9.330823e+22
28.124200 62.421100 44.001200 1.529620 251.172390 231.460010 61.110000 21.800000 3.000000 4.792937e+23
28.084900 62.365200 44.001200 7.235110 236.188100 231.460010 61.110000 20.800000 3.200000 2.267062e+24
28.045700 62.309400 44.001200 8.471940 255.018010 231.460010 61.110000 17.400000 2.400000 2.654612e+24
28.006400 62.253500 44.001200 51.855940 259.450010 231.460010 61.110000 16.400000 2.200000 1.624862e+25
27.967200 62.197700 44.001200 49.460580 277.934810 231.460010 61.110000 16.800000 3.000000 1.549806e+25
27.927900 62.141800 44.001200 5.419170 213.520290 231.460010 61.110000 17.000000 3.000000 1.698052e+24
27.888700 62.085900 44.001200 3.837110 255.061100 231.460010 61.110000 19.800000 4.400000 1.202326e+24
27.849400 62.030100 44.001200 2.201740 242.065200 231.460010 61.110000 20.600000 2.400000 6.898966e+23
27.810200 61.974200 44.001200 55.149570 221.783490 231.460010 61.110000 24.400000 4.400000 1.728065e+25
27.770900 61.918400 44.001200 128.604400 213.373200 231.460010 61.110000 26.800000 4.400000 4.029712e+25
27.731700 61.862500 44.001200 151.452000 210.301800 231.460010 61.110000 28.200000 5.400000 4.745621e+25
28.265700 62.567200 50.130000 4.530330 264.110110 231.460010 61.110000 28.400000 4.200000 1.499164e+24
28.226500 62.511300 50.130000 2.649400 247.963000 231.460010 61.110000 25.200000 2.600000 8.767319e+23
28.187200 62.455500 50.130000 14.969710 251.381100 231.460010 61.110000 22.000000 2.400000 4.953733e+24
28.148000 62.399600 50.130000 10.491010 268.782010 231.460010 61.110000 18.800000 2.400000 3.471654e+24
28.108700 62.343700 50.130000 73.365500 240.725400 231.460010 61.110000 16.200000 4.800000 2.427789e+25
28.069500 62.287900 50.130000 142.354200 258.077610 231.460010 61.110000 15.400000 3.800000 4.710744e+25
28.030200 62.232000 50.130000 159.408400 258.796600 231.460010 61.110000 13.200000 4.000000 5.275095e+25
27.991000 62.176200 50.130000 150.119600 270.854400 231.460010 61.110000 12.800000 2.400000 4.967715e+25
27.951700 62.120300 50.130000 51.833320 268.783600 231.460010 61.110000 13.800000 3.000000 1.715253e+25
27.912500 62.064400 50.130000 27.987930 268.758000 231.460010 61.110000 16.400000 3.800000 9.261682e+24
27.873200 62.008600 50.130000 53.615780 286.815400 231.460010 61.110000 17.400000 4.000000 1.774238e+25
27.834000 61.952700 50.130000 58.043200 285.933110 231.460010 61.110000 20.000000 3.000000 1.920748e+25
27.794700 61.896900 50.130000 15.560400 247.248600 231.460010 61.110000 22.800000 2.400000 5.149200e+24
27.755500 61.841000 50.130000 56.564990 221.178210 231.460010 61.110000 26.600000 4.000000 1.871832e+25
28.289500 62.545700 56.258900 0.535510 248.583690 231.460010 61.110000 26.000000 3.800000 1.772104e+23
28.250300 62.489800 56.258900 0.492050 228.388310 231.460010 61.110000 22.800000 3.800000 1.628287e+23
28.211000 62.434000 56.258900 32.724030 242.349790 231.460010 61.110000 19.200000 3.400000 1.082894e+25
28.171800 62.378100 56.258900 83.106200 251.551900 231.460010 61.110000 17.400000 3.400000 2.750125e+25
28.132500 62.322200 56.258900 189.516300 250.577500 231.460010 61.110000 13.200000 2.400000 6.271416e+25
28.093300 62.266400 56.258900 324.978910 256.584200 231.460010 61.110000 11.400000 2.400000 1.075410e+26
28.054000 62.210500 56.258900 356.779390 255.187700 231.460010 61.110000 10.000000 2.400000 1.180644e+26
28.014800 62.154700 56.258900 325.681300 260.263890 231.460010 61.110000 9.600000 2.400000 1.077735e+26
27.975500 62.098800 56.258900 198.344800 261.329500 231.460010 61.110000 10.400000 2.800000 6.563567e+25
27.936300 62.042900 56.258900 113.726700 273.064790 231.460010 61.110000 13.200000 4.000000 3.763409e+25
27.897000 61.987100 56.258900 106.637600 288.630710 231.460010 61.110000 15.600000 4.400000 3.528819e+25
27.857800 61.931200 56.258900 116.412600 287.598600 231.460010 61.110000 18.400000 3.800000 3.852292e+25
27.818500 61.875400 56.258900 70.925380 288.786900 231.460010 61.110000 20.200000 3.200000 2.347042e+25
27.779300 61.819500 56.258900 43.106050 287.997590 231.460010 61.110000 22.000000 2.400000 1.426453e+25
28.313300 62.524200 62.387700 2.934820 252.381390 231.460010 61.110000 22.200000 2.400000 9.711830e+23
28.274100 62.468300 62.387700 4.968770 283.197910 231.460010 61.110000 20.400000 3.200000 1.644250e+24
28.234800 62.412500 62.387700 46.202920 274.951810 231.460010 61.110000 16.200000 2.400000 1.528933e+25
28.195600 62.356600 62.387700 170.870410 251.076400 231.460010 61.110000 13.400000 2.400000 5.654392e+25
28.156300 62.300700 62.387700 282.176700 245.795900 231.460010 61.110000 11.000000 2.400000 9.337704e+25
28.117100 62.244900 62.387700 401.651610 249.109600 231.460010 61.110000 8.800000 4.400000 1.329134e+26
28.077800 62.189000 62.387700 433.329410 250.572200 231.460010 61.110000 7.400000 2.800000 1.433960e+26
28.038600 62.133200 62.387700 393.998810 254.099000 231.460010 61.110000 6.800000 2.400000 1.303809e+26
27.999300 62.077300 62.387700 306.459500 257.955690 231.460010 61.110000 7.400000 2.400000 1.014127e+26
27.960100 62.021400 62.387700 206.576510 262.989110 231.460010 61.110000 9.400001 5.000000 6.835968e+25
27.920800 61.965600 62.387700 157.121200 274.246800 231.460010 61.110000 12.800000 3.400000 5.199408e+25
27.881600 61.909700 62.387700 153.499690 275.781010 231.460010 61.110000 15.200000 3.800000 5.079567e+25
27.842300 61.853900 62.387700 108.558200 285.134800 231.460010 61.110000 16.800000 2.400000 3.592377e+25
27.803100 61.798000 62.387700 46.251880 286.540590 231.460010 61.110000 19.400000 3.000000 1.530553e+25
28.337100 62.502700 68.516500 9.300190 265.807100 231.460010 61.110000 20.000000 2.400000 3.077592e+24
28.297900 62.446800 68.516500 25.211800 253.313000 231.460010 61.110000 17.800000 3.000000 8.343013e+24
28.258600 62.391000 68.516500 85.873110 250.889890 231.460010 61.110000 15.400000 3.800000 2.841688e+25
28.219400 62.335100 68.516500 186.283100 247.663890 231.460010 61.110000 11.400000 2.400000 6.164426e+25
28.180100 62.279300 68.516500 274.027100 243.564000 231.460010 61.110000 8.600000 4.800000 9.068021e+25
28.140900 62.223400 68.516500 390.263610 242.516300 231.460010 61.110000 6.400000 5.400000 1.291449e+26
28.101600 62.167500 68.516500 436.490690 242.766490 231.460010 61.110000 4.800000 2.400000 1.444422e+26
28.062400 62.111700 68.516500 428.757510 246.774400 231.460010 61.110000 4.000000 2.400000 1.418831e+26
28.023100 62.055800 68.516500 345.800990 253.678410 231.460010 61.110000 4.800000 2.400000 1.144314e+26
27.983900 61.999900 68.516500 240.714000 257.735600 231.460010 61.110000 8.000000 3.800000 7.965638e+25
27.944600 61.944100 68.516500 162.880600 260.772490 231.460010 61.110000 9.400001 4.400000 5.389998e+25
27.905400 61.888200 68.516500 148.647510 269.645810 231.460010 61.110000 13.400000 3.400000 4.919000e+25
27.866100 61.832400 68.516500 89.934330 265.667390 231.460010 61.110000 14.800000 2.400000 2.976080e+25
27.826900 61.776500 68.516500 51.094400 283.599910 231.460010 61.110000 17.600000 2.800000 1.690801e+25
28.360900 62.481200 74.645400 20.577690 265.335390 231.460010 61.110000 19.400000 2.200000 6.809507e+24
28.321700 62.425300 74.645400 31.631030 246.478000 231.460010 61.110000 16.600000 3.600000 1.046724e+25
28.282400 62.369500 74.645400 69.330800 234.520400 231.460010 61.110000 13.400000 2.400000 2.294274e+25
28.243200 62.313600 74.645400 141.466290 235.261000 231.460010 61.110000 10.800000 2.800000 4.681361e+25
28.203900 62.257800 74.645400 213.153900 240.296800 231.460010 61.110000 7.600000 2.400000 7.053625e+25
28.164700 62.201900 74.645400 298.338010 237.639690 231.460010 61.110000 4.800000 4.000000 9.872511e+25
28.125400 62.146000 74.645400 387.448610 239.173600 231.460010 61.110000 2.200000 2.400000 1.282133e+26
28.086200 62.090200 74.645400 383.663790 241.469100 231.460010 61.110000 1.400000 2.400000 1.269609e+26
28.046900 62.034300 74.645400 335.844300 254.890110 231.460010 61.110000 3.000000 2.400000 1.111366e+26
28.007700 61.978400 74.645400 260.581600 264.116700 231.460010 61.110000 5.200000 2.400000 8.623091e+25
27.968400 61.922600 74.645400 174.139690 255.296400 231.460010 61.110000 9.200000 3.800000 5.762580e+25
27.929200 61.866700 74.645400 121.296000 262.509800 231.460010 61.110000 12.400000 3.200000 4.013891e+25
27.889900 61.810900 74.645400 77.254110 272.867710 231.460010 61.110000 13.800000 2.400000 2.556471e+25
27.850700 61.755000 74.645400 46.800040 281.726290 231.460010 61.110000 16.800000 3.200000 1.548693e+25
28.384700 62.459700 80.774200 22.670600 245.952300 231.460010 61.110000 19.600000 2.400000 7.502089e+24
28.345500 62.403800 80.774200 12.952180 222.278500 231.460010 61.110000 17.600000 3.800000 4.286097e+24
28.306200 62.348000 80.774200 17.885060 214.616390 231.460010 61.110000 13.600000 3.200000 5.918471e+24
28.267000 62.292100 80.774200 57.872700 221.773100 231.460010 61.110000 10.600000 3.200000 1.915106e+25
28.227700 62.236300 80.774200 101.690200 228.124690 231.460010 61.110000 8.600000 3.800000 3.365102e+25
28.188500 62.180400 80.774200 150.759510 237.195100 231.460010 61.110000 5.800000 3.200000 4.988887e+25
28.149200 62.124500 80.774200 187.960490 231.108310 231.460010 61.110000 1.400000 3.000000 6.219933e+25
28.110000 62.068700 80.774200 256.444890 241.812300 231.460010 61.110000 0.600000 1.200000 8.486199e+25
28.070700 62.012800 80.774200 224.077100 259.035400 231.460010 61.110000 2.800000 4.400000 7.415093e+25
28.031500 61.957000 80.774200 186.628910 264.020110 231.460010 61.110000 5.600000 3.000000 6.175870e+25
27.992200 61.901100 80.774200 133.210100 256.119690 231.460010 61.110000 7.800000 2.800000 4.408150e+25
27.953000 61.845200 80.774200 95.179370 273.979890 231.460010 61.110000 11.000000 2.200000 3.149647e+25
27.913700 61.789400 80.774200 52.583880 271.434510 231.460010 61.110000 13.600000 2.600000 1.740090e+25
27.874500 61.733500 80.774200 24.422390 270.582310 231.460010 61.110000 17.400000 3.200000 8.081785e+24
28.408500 62.438200 86.903100 31.818200 289.837490 231.460010 61.110000 19.800000 2.200000 1.052919e+25
28.369300 62.382300 86.903100 26.434880 271.301090 231.460010 61.110000 17.000000 3.600000 8.747751e+24
28.330000 62.326500 86.903100 1.513690 236.468000 231.460010 61.110000 14.000000 3.800000 5.009059e+23
28.290800 62.270600 86.903100 3.133530 237.588900 231.460010 61.110000 12.000000 3.400000 1.036938e+24
28.251500 62.214800 86.903100 35.832100 251.059200 231.460010 61.110000 9.000000 3.000000 1.185745e+25
28.212300 62.158900 86.903100 69.548780 271.278500 231.460010 61.110000 5.200000 4.400000 2.301487e+25
28.173000 62.103000 86.903100 56.593120 269.568390 231.460010 61.110000 2.600000 5.400000 1.872763e+25
28.133800 62.047200 86.903100 117.871400 261.960110 231.460010 61.110000 2.800000 4.400000 3.900565e+25
28.094500 61.991300 86.903100 126.783800 259.493010 231.460010 61.110000 2.800000 5.200000 4.195490e+25
28.055300 61.935500 86.903100 127.146100 269.007290 231.460010 61.110000 5.400000 3.400000 4.207483e+25
28.016000 61.879600 86.903100 87.267580 275.952300 231.460010 61.110000 9.600000 3.400000 2.887832e+25
27.976800 61.823700 86.903100 41.807950 276.147710 231.460010 61.110000 12.000000 4.200000 1.383496e+25
27.937500 61.767900 86.903100 26.064060 287.786990 231.460010 61.110000 14.000000 4.400000 8.625041e+24
27.898300 61.712000 86.903100 8.181570 274.464290 231.460010 61.110000 17.000000 2.200000 2.707419e+24
28.432300 62.416700 93.031900 6.405820 284.893590 231.460010 61.110000 21.000000 3.400000 2.119794e+24
28.393100 62.360800 93.031900 18.458070 288.080200 231.460010 61.110000 17.800000 2.800000 6.108092e+24
28.353800 62.305000 93.031900 1.279460 278.640810 231.460010 61.110000 14.800000 2.800000 4.233959e+23
28.314600 62.249100 93.031900 0.599400 274.622890 231.460010 61.110000 12.000000 3.200000 1.983513e+23
28.275300 62.193300 93.031900 25.459990 258.353300 231.460010 61.110000 9.200000 2.400000 8.425144e+24
28.236100 62.137400 93.031900 26.765440 243.859700 231.460010 61.110000 7.400000 2.400000 8.857139e+24
28.196800 62.081500 93.031900 29.471740 285.797000 231.460010 61.110000 5.000000 3.200000 9.752699e+24
28.157600 62.025700 93.031900 50.024290 265.187990 231.460010 61.110000 5.200000 3.800000 1.655389e+25
28.118300 61.969800 93.031900 66.397960 257.845790 231.460010 61.110000 5.200000 3.200000 2.197221e+25
28.079100 61.914000 93.031900 49.187810 271.475010 231.460010 61.110000 7.000000 3.000000 1.627708e+25
28.039900 61.858100 93.031900 35.893540 281.687710 231.460010 61.110000 9.600000 3.200000 1.187778e+25
28.000600 61.802200 93.031900 19.697600 273.443390 231.460010 61.110000 12.600000 2.600000 6.518271e+24
27.961300 61.746400 93.031900 2.591010 264.401090 231.460010 61.110000 15.400000 2.600000 8.574082e+23
27.922100 61.690500 93.031900 12.862410 238.930300 231.460010 61.110000 18.400000 3.200000 4.256390e+24
28.456200 62.395200 99.160800 13.551250 281.543000 231.460010 61.110000 22.200000 3.000000 4.484339e+24
28.416900 62.339300 99.160800 0.327750 286.877990 231.460010 61.110000 20.000000 3.400000 1.084597e+23
28.377700 62.283500 99.160800 10.019360 262.442500 231.460010 61.110000 16.200000 4.400000 3.315577e+24
28.338400 62.227600 99.160800 8.451900 229.654010 231.460010 61.110000 14.000000 3.200000 2.796876e+24
28.299200 62.171800 99.160800 20.387290 214.007710 231.460010 61.110000 11.400000 2.400000 6.746502e+24
28.259900 62.115900 99.160800 15.485250 263.379700 231.460010 61.110000 9.400001 2.800000 5.124333e+24
28.220700 62.060000 99.160800 2.923250 254.364810 231.460010 61.110000 8.400001 3.400000 9.673535e+23
28.181400 62.004200 99.160800 40.274280 254.890700 231.460010 61.110000 8.200000 3.400000 1.332745e+25
28.142200 61.948300 99.160800 29.277030 226.103900 231.460010 61.110000 8.000000 2.400000 9.688268e+24
28.102900 61.892500 99.160800 22.528820 242.392590 231.460010 61.110000 9.600000 2.600000 7.455169e+24
28.063700 61.836600 99.160800 31.893340 285.535190 231.460010 61.110000 12.200000 2.800000 1.055405e+25
28.024400 61.780700 99.160800 5.373890 220.317310 231.460010 61.110000 13.600000 2.400000 1.778311e+24
27.985200 61.724900 99.160800 3.636940 270.711490 231.460010 61.110000 16.000000 3.000000 1.203525e+24
27.945900 61.669000 99.160800 7.361200 272.673310 231.460010 61.110000 19.000000 2.600000 2.435946e+24
28.480000 62.373700 105.289600 5.055000 272.767790 231.460010 61.110000 23.600000 3.000000 1.672784e+24
28.440700 62.317800 105.289600 6.849870 245.966200 231.460010 61.110000 22.200000 3.800000 2.266739e+24
28.401500 62.262000 105.289600 7.498080 244.543700 231.460010 61.110000 18.000000 4.000000 2.481242e+24
28.362200 62.206100 105.289600 4.282910 251.452190 231.460010 61.110000 16.600000 4.400000 1.417289e+24
28.323000 62.150300 105.289600 1.277030 239.147090 231.460010 61.110000 14.400000 3.800000 4.225900e+23
28.283700 62.094400 105.289600 2.265150 281.404390 231.460010 61.110000 12.600000 3.800000 7.495761e+23
28.244500 62.038500 105.289600 0.498610 284.564510 231.460010 61.110000 10.000000 2.400000 1.649996e+23
28.205200 61.982700 105.289600 2.148300 286.994110 231.460010 61.110000 10.200000 2.600000 7.109085e+23
28.166000 61.926800 105.289600 11.399260 237.709400 231.460010 61.110000 10.800000 2.600000 3.772208e+24
28.126700 61.871000 105.289600 19.978060 278.846190 231.460010 61.110000 12.800000 3.800000 6.611081e+24
28.087500 61.815100 105.289600 8.099820 259.199580 231.460010 61.110000 13.800000 2.600000 2.680370e+24
28.048200 61.759200 105.289600 10.134160 279.116000 231.460010 61.110000 16.200000 2.400000 3.353566e+24
28.009000 61.703400 105.289600 5.598870 233.119400 231.460010 61.110000 18.200000 3.400000 1.852760e+24
27.969700 61.647500 105.289600 3.026610 222.242900 231.460010 61.110000 20.600000 3.400000 1.001558e+24
EOF
#####
# processing
# First get the fault model by skipping the first few lines of the output
#####
ed static2_out << EOF
1,/t_rup/d
w ff.mod
EOF
#####
# create the do_process script that does all of the work
#####
do_process ()
{
#####
# do_process SITE_LATITUDE SITE_LONGITUDE
STLA=$1
STLO=$2
#####
# NSUB is the sub fault number
# PNSUB is a pretty version with 4 digits, e.g., 0001 for
# file name
#####
NSUB=0
#####
# make a synthetic for each finite fault element
#####
while read EVLA EVLO EVDP SLIP RAKE STK DIP TRUP TRISE MOM
do
NSUB=`echo $NSUB | awk '{print $1 + 1 }' `
PBSUB=`echo $NSUB | awk '{printf "%4.4d", $1}' `
MW=`echo $MOM | awk '{ print 2.*( log($1)/log(10.0) -16.1)/3.0 }' `
# echo $MOM $MW $DUR
#####
# compute the distance in km ans azimuth from subfault to station
#####
DIST=`udelaz -DIST -EVLA $EVLA -EVLO $EVLO -STLA $STLA -STLO $STLO`
AZ=`udelaz -AZ -EVLA $EVLA -EVLO $EVLO -STLA $STLA -STLO $STLO`
BAZ=`udelaz -BAZ -EVLA $EVLA -EVLO $EVLO -STLA $STLA -STLO $STLO`
TIMES=`time96 -M ${MODEL} -EVDP ${EVDP} -SV -DIST $DIST`
#####
# determine the static deformation
#####
cat > dfile << EOF
${DIST} 0.1 256 0 0
EOF
hprep96 -M ${MODEL} -d dfile -ALL -HS ${EVDP} -HR 0 -TF -BH
hstat96
#####
# go to WORK make GREEN and then mechanism, delay and duration
#####
cd WORK
rm -f *
#####
# get Green functions
#####
f96tosac -T < ../file96
#####
# get basename for gsac
#####
F=`ls *.ZSS`
|
#!/bin/sh
#####
# define the bounds on the gridded area and also the
# grid interval
#####
LATMIN="28.0"
LATMAX="28.0"
DLAT="0.25"
LONMIN="62.0"
LONMAX="62.0"
DLON="0.25"
#####
# define control variables for the loop
#####
ENDLATLOOP="NO"
ENDLONLOOT="NO"
#####
# define initial values
#####
LAT=${LATMIN}
LON=${LONMIN}
#####
# define the velocity model
#####
MODEL=${GREENDIR}/WUS.REG
#####
# define TOPLEVEL directory
#####
MYTOP=`pwd`
#####
# define the finite fault model
#####
cat > static2_out << EOF
#Total number of fault_segments= 1
#Fault_segment = 1 nx(Along-strike)= 14 Dx= 7.00km ny(downdip)= 12 Dy= 7.00km
#Boundary of Fault_segment 1. EQ in cell 8,8. Lon: 62.0532 Lat: 28.1069
#Lon. Lat. Depth
62.62570 28.22120 36.64660
61.85480 27.67950 36.64660
61.60110 27.96040 108.96690
62.37200 28.50210 108.96690
62.62570 28.22120 36.64660
#Lat. Lon. depth slip rake strike dip t_rup h_dur mo
28.218100 62.610200 37.872300 32.892190 210.228390 231.460010 61.110000 33.200000 3.400000 7.994117e+24
28.178900 62.554300 37.872300 26.133590 213.971100 231.460010 61.110000 31.400000 4.000000 6.351509e+24
28.139600 62.498500 37.872300 0.378610 255.360600 231.460010 61.110000 28.400000 2.600000 9.201650e+22
28.100300 62.442600 37.872300 0.271620 283.392210 231.460010 61.110000 26.200000 3.200000 6.601493e+22
28.061100 62.386700 37.872300 0.487170 267.694490 231.460010 61.110000 23.000000 3.400000 1.184024e+23
28.021900 62.330900 37.872300 4.512600 214.114200 231.460010 61.110000 21.200000 3.400000 1.096743e+24
27.982600 62.275000 37.872300 0.054630 245.378800 231.460010 61.110000 19.600000 3.600000 1.327731e+22
27.943400 62.219200 37.872300 0.359760 239.659100 231.460010 61.110000 19.000000 3.000000 8.743530e+22
27.904100 62.163300 37.872300 0.819340 260.363890 231.460010 61.110000 20.800000 3.000000 1.991322e+23
27.864900 62.107400 37.872300 6.014880 268.909300 231.460010 61.110000 21.600000 2.400000 1.461857e+24
27.825600 62.051600 37.872300 7.808980 263.208800 231.460010 61.110000 24.600000 4.200000 1.897894e+24
27.786400 61.995700 37.872300 69.880770 211.684100 231.460010 61.110000 27.600000 4.400000 1.698382e+25
27.747100 61.939900 37.872300 152.146300 213.129500 231.460010 61.110000 28.800000 5.400000 3.697763e+25
27.707900 61.884000 37.872300 149.289790 215.029500 231.460010 61.110000 32.200000 3.800000 3.628339e+25
28.241900 62.588700 44.001200 22.606470 254.847600 231.460010 61.110000 30.800000 3.800000 7.083550e+24
28.202700 62.532800 44.001200 2.119850 247.519300 231.460010 61.110000 27.800000 4.600000 6.642373e+23
28.163400 62.477000 44.001200 0.297780 221.859890 231.460010 61.110000 25.200000 2.400000 9.330823e+22
28.124200 62.421100 44.001200 1.529620 251.172390 231.460010 61.110000 21.800000 3.000000 4.792937e+23
28.084900 62.365200 44.001200 7.235110 236.188100 231.460010 61.110000 20.800000 3.200000 2.267062e+24
28.045700 62.309400 44.001200 8.471940 255.018010 231.460010 61.110000 17.400000 2.400000 2.654612e+24
28.006400 62.253500 44.001200 51.855940 259.450010 231.460010 61.110000 16.400000 2.200000 1.624862e+25
27.967200 62.197700 44.001200 49.460580 277.934810 231.460010 61.110000 16.800000 3.000000 1.549806e+25
27.927900 62.141800 44.001200 5.419170 213.520290 231.460010 61.110000 17.000000 3.000000 1.698052e+24
27.888700 62.085900 44.001200 3.837110 255.061100 231.460010 61.110000 19.800000 4.400000 1.202326e+24
27.849400 62.030100 44.001200 2.201740 242.065200 231.460010 61.110000 20.600000 2.400000 6.898966e+23
27.810200 61.974200 44.001200 55.149570 221.783490 231.460010 61.110000 24.400000 4.400000 1.728065e+25
27.770900 61.918400 44.001200 128.604400 213.373200 231.460010 61.110000 26.800000 4.400000 4.029712e+25
27.731700 61.862500 44.001200 151.452000 210.301800 231.460010 61.110000 28.200000 5.400000 4.745621e+25
28.265700 62.567200 50.130000 4.530330 264.110110 231.460010 61.110000 28.400000 4.200000 1.499164e+24
28.226500 62.511300 50.130000 2.649400 247.963000 231.460010 61.110000 25.200000 2.600000 8.767319e+23
28.187200 62.455500 50.130000 14.969710 251.381100 231.460010 61.110000 22.000000 2.400000 4.953733e+24
28.148000 62.399600 50.130000 10.491010 268.782010 231.460010 61.110000 18.800000 2.400000 3.471654e+24
28.108700 62.343700 50.130000 73.365500 240.725400 231.460010 61.110000 16.200000 4.800000 2.427789e+25
28.069500 62.287900 50.130000 142.354200 258.077610 231.460010 61.110000 15.400000 3.800000 4.710744e+25
28.030200 62.232000 50.130000 159.408400 258.796600 231.460010 61.110000 13.200000 4.000000 5.275095e+25
27.991000 62.176200 50.130000 150.119600 270.854400 231.460010 61.110000 12.800000 2.400000 4.967715e+25
27.951700 62.120300 50.130000 51.833320 268.783600 231.460010 61.110000 13.800000 3.000000 1.715253e+25
27.912500 62.064400 50.130000 27.987930 268.758000 231.460010 61.110000 16.400000 3.800000 9.261682e+24
27.873200 62.008600 50.130000 53.615780 286.815400 231.460010 61.110000 17.400000 4.000000 1.774238e+25
27.834000 61.952700 50.130000 58.043200 285.933110 231.460010 61.110000 20.000000 3.000000 1.920748e+25
27.794700 61.896900 50.130000 15.560400 247.248600 231.460010 61.110000 22.800000 2.400000 5.149200e+24
27.755500 61.841000 50.130000 56.564990 221.178210 231.460010 61.110000 26.600000 4.000000 1.871832e+25
28.289500 62.545700 56.258900 0.535510 248.583690 231.460010 61.110000 26.000000 3.800000 1.772104e+23
28.250300 62.489800 56.258900 0.492050 228.388310 231.460010 61.110000 22.800000 3.800000 1.628287e+23
28.211000 62.434000 56.258900 32.724030 242.349790 231.460010 61.110000 19.200000 3.400000 1.082894e+25
28.171800 62.378100 56.258900 83.106200 251.551900 231.460010 61.110000 17.400000 3.400000 2.750125e+25
28.132500 62.322200 56.258900 189.516300 250.577500 231.460010 61.110000 13.200000 2.400000 6.271416e+25
28.093300 62.266400 56.258900 324.978910 256.584200 231.460010 61.110000 11.400000 2.400000 1.075410e+26
28.054000 62.210500 56.258900 356.779390 255.187700 231.460010 61.110000 10.000000 2.400000 1.180644e+26
28.014800 62.154700 56.258900 325.681300 260.263890 231.460010 61.110000 9.600000 2.400000 1.077735e+26
27.975500 62.098800 56.258900 198.344800 261.329500 231.460010 61.110000 10.400000 2.800000 6.563567e+25
27.936300 62.042900 56.258900 113.726700 273.064790 231.460010 61.110000 13.200000 4.000000 3.763409e+25
27.897000 61.987100 56.258900 106.637600 288.630710 231.460010 61.110000 15.600000 4.400000 3.528819e+25
27.857800 61.931200 56.258900 116.412600 287.598600 231.460010 61.110000 18.400000 3.800000 3.852292e+25
27.818500 61.875400 56.258900 70.925380 288.786900 231.460010 61.110000 20.200000 3.200000 2.347042e+25
27.779300 61.819500 56.258900 43.106050 287.997590 231.460010 61.110000 22.000000 2.400000 1.426453e+25
28.313300 62.524200 62.387700 2.934820 252.381390 231.460010 61.110000 22.200000 2.400000 9.711830e+23
28.274100 62.468300 62.387700 4.968770 283.197910 231.460010 61.110000 20.400000 3.200000 1.644250e+24
28.234800 62.412500 62.387700 46.202920 274.951810 231.460010 61.110000 16.200000 2.400000 1.528933e+25
28.195600 62.356600 62.387700 170.870410 251.076400 231.460010 61.110000 13.400000 2.400000 5.654392e+25
28.156300 62.300700 62.387700 282.176700 245.795900 231.460010 61.110000 11.000000 2.400000 9.337704e+25
28.117100 62.244900 62.387700 401.651610 249.109600 231.460010 61.110000 8.800000 4.400000 1.329134e+26
28.077800 62.189000 62.387700 433.329410 250.572200 231.460010 61.110000 7.400000 2.800000 1.433960e+26
28.038600 62.133200 62.387700 393.998810 254.099000 231.460010 61.110000 6.800000 2.400000 1.303809e+26
27.999300 62.077300 62.387700 306.459500 257.955690 231.460010 61.110000 7.400000 2.400000 1.014127e+26
27.960100 62.021400 62.387700 206.576510 262.989110 231.460010 61.110000 9.400001 5.000000 6.835968e+25
27.920800 61.965600 62.387700 157.121200 274.246800 231.460010 61.110000 12.800000 3.400000 5.199408e+25
27.881600 61.909700 62.387700 153.499690 275.781010 231.460010 61.110000 15.200000 3.800000 5.079567e+25
27.842300 61.853900 62.387700 108.558200 285.134800 231.460010 61.110000 16.800000 2.400000 3.592377e+25
27.803100 61.798000 62.387700 46.251880 286.540590 231.460010 61.110000 19.400000 3.000000 1.530553e+25
28.337100 62.502700 68.516500 9.300190 265.807100 231.460010 61.110000 20.000000 2.400000 3.077592e+24
28.297900 62.446800 68.516500 25.211800 253.313000 231.460010 61.110000 17.800000 3.000000 8.343013e+24
28.258600 62.391000 68.516500 85.873110 250.889890 231.460010 61.110000 15.400000 3.800000 2.841688e+25
28.219400 62.335100 68.516500 186.283100 247.663890 231.460010 61.110000 11.400000 2.400000 6.164426e+25
28.180100 62.279300 68.516500 274.027100 243.564000 231.460010 61.110000 8.600000 4.800000 9.068021e+25
28.140900 62.223400 68.516500 390.263610 242.516300 231.460010 61.110000 6.400000 5.400000 1.291449e+26
28.101600 62.167500 68.516500 436.490690 242.766490 231.460010 61.110000 4.800000 2.400000 1.444422e+26
28.062400 62.111700 68.516500 428.757510 246.774400 231.460010 61.110000 4.000000 2.400000 1.418831e+26
28.023100 62.055800 68.516500 345.800990 253.678410 231.460010 61.110000 4.800000 2.400000 1.144314e+26
27.983900 61.999900 68.516500 240.714000 257.735600 231.460010 61.110000 8.000000 3.800000 7.965638e+25
27.944600 61.944100 68.516500 162.880600 260.772490 231.460010 61.110000 9.400001 4.400000 5.389998e+25
27.905400 61.888200 68.516500 148.647510 269.645810 231.460010 61.110000 13.400000 3.400000 4.919000e+25
27.866100 61.832400 68.516500 89.934330 265.667390 231.460010 61.110000 14.800000 2.400000 2.976080e+25
27.826900 61.776500 68.516500 51.094400 283.599910 231.460010 61.110000 17.600000 2.800000 1.690801e+25
28.360900 62.481200 74.645400 20.577690 265.335390 231.460010 61.110000 19.400000 2.200000 6.809507e+24
28.321700 62.425300 74.645400 31.631030 246.478000 231.460010 61.110000 16.600000 3.600000 1.046724e+25
28.282400 62.369500 74.645400 69.330800 234.520400 231.460010 61.110000 13.400000 2.400000 2.294274e+25
28.243200 62.313600 74.645400 141.466290 235.261000 231.460010 61.110000 10.800000 2.800000 4.681361e+25
28.203900 62.257800 74.645400 213.153900 240.296800 231.460010 61.110000 7.600000 2.400000 7.053625e+25
28.164700 62.201900 74.645400 298.338010 237.639690 231.460010 61.110000 4.800000 4.000000 9.872511e+25
28.125400 62.146000 74.645400 387.448610 239.173600 231.460010 61.110000 2.200000 2.400000 1.282133e+26
28.086200 62.090200 74.645400 383.663790 241.469100 231.460010 61.110000 1.400000 2.400000 1.269609e+26
28.046900 62.034300 74.645400 335.844300 254.890110 231.460010 61.110000 3.000000 2.400000 1.111366e+26
28.007700 61.978400 74.645400 260.581600 264.116700 231.460010 61.110000 5.200000 2.400000 8.623091e+25
27.968400 61.922600 74.645400 174.139690 255.296400 231.460010 61.110000 9.200000 3.800000 5.762580e+25
27.929200 61.866700 74.645400 121.296000 262.509800 231.460010 61.110000 12.400000 3.200000 4.013891e+25
27.889900 61.810900 74.645400 77.254110 272.867710 231.460010 61.110000 13.800000 2.400000 2.556471e+25
27.850700 61.755000 74.645400 46.800040 281.726290 231.460010 61.110000 16.800000 3.200000 1.548693e+25
28.384700 62.459700 80.774200 22.670600 245.952300 231.460010 61.110000 19.600000 2.400000 7.502089e+24
28.345500 62.403800 80.774200 12.952180 222.278500 231.460010 61.110000 17.600000 3.800000 4.286097e+24
28.306200 62.348000 80.774200 17.885060 214.616390 231.460010 61.110000 13.600000 3.200000 5.918471e+24
28.267000 62.292100 80.774200 57.872700 221.773100 231.460010 61.110000 10.600000 3.200000 1.915106e+25
28.227700 62.236300 80.774200 101.690200 228.124690 231.460010 61.110000 8.600000 3.800000 3.365102e+25
28.188500 62.180400 80.774200 150.759510 237.195100 231.460010 61.110000 5.800000 3.200000 4.988887e+25
28.149200 62.124500 80.774200 187.960490 231.108310 231.460010 61.110000 1.400000 3.000000 6.219933e+25
28.110000 62.068700 80.774200 256.444890 241.812300 231.460010 61.110000 0.600000 1.200000 8.486199e+25
28.070700 62.012800 80.774200 224.077100 259.035400 231.460010 61.110000 2.800000 4.400000 7.415093e+25
28.031500 61.957000 80.774200 186.628910 264.020110 231.460010 61.110000 5.600000 3.000000 6.175870e+25
27.992200 61.901100 80.774200 133.210100 256.119690 231.460010 61.110000 7.800000 2.800000 4.408150e+25
27.953000 61.845200 80.774200 95.179370 273.979890 231.460010 61.110000 11.000000 2.200000 3.149647e+25
27.913700 61.789400 80.774200 52.583880 271.434510 231.460010 61.110000 13.600000 2.600000 1.740090e+25
27.874500 61.733500 80.774200 24.422390 270.582310 231.460010 61.110000 17.400000 3.200000 8.081785e+24
28.408500 62.438200 86.903100 31.818200 289.837490 231.460010 61.110000 19.800000 2.200000 1.052919e+25
28.369300 62.382300 86.903100 26.434880 271.301090 231.460010 61.110000 17.000000 3.600000 8.747751e+24
28.330000 62.326500 86.903100 1.513690 236.468000 231.460010 61.110000 14.000000 3.800000 5.009059e+23
28.290800 62.270600 86.903100 3.133530 237.588900 231.460010 61.110000 12.000000 3.400000 1.036938e+24
28.251500 62.214800 86.903100 35.832100 251.059200 231.460010 61.110000 9.000000 3.000000 1.185745e+25
28.212300 62.158900 86.903100 69.548780 271.278500 231.460010 61.110000 5.200000 4.400000 2.301487e+25
28.173000 62.103000 86.903100 56.593120 269.568390 231.460010 61.110000 2.600000 5.400000 1.872763e+25
28.133800 62.047200 86.903100 117.871400 261.960110 231.460010 61.110000 2.800000 4.400000 3.900565e+25
28.094500 61.991300 86.903100 126.783800 259.493010 231.460010 61.110000 2.800000 5.200000 4.195490e+25
28.055300 61.935500 86.903100 127.146100 269.007290 231.460010 61.110000 5.400000 3.400000 4.207483e+25
28.016000 61.879600 86.903100 87.267580 275.952300 231.460010 61.110000 9.600000 3.400000 2.887832e+25
27.976800 61.823700 86.903100 41.807950 276.147710 231.460010 61.110000 12.000000 4.200000 1.383496e+25
27.937500 61.767900 86.903100 26.064060 287.786990 231.460010 61.110000 14.000000 4.400000 8.625041e+24
27.898300 61.712000 86.903100 8.181570 274.464290 231.460010 61.110000 17.000000 2.200000 2.707419e+24
28.432300 62.416700 93.031900 6.405820 284.893590 231.460010 61.110000 21.000000 3.400000 2.119794e+24
28.393100 62.360800 93.031900 18.458070 288.080200 231.460010 61.110000 17.800000 2.800000 6.108092e+24
28.353800 62.305000 93.031900 1.279460 278.640810 231.460010 61.110000 14.800000 2.800000 4.233959e+23
28.314600 62.249100 93.031900 0.599400 274.622890 231.460010 61.110000 12.000000 3.200000 1.983513e+23
28.275300 62.193300 93.031900 25.459990 258.353300 231.460010 61.110000 9.200000 2.400000 8.425144e+24
28.236100 62.137400 93.031900 26.765440 243.859700 231.460010 61.110000 7.400000 2.400000 8.857139e+24
28.196800 62.081500 93.031900 29.471740 285.797000 231.460010 61.110000 5.000000 3.200000 9.752699e+24
28.157600 62.025700 93.031900 50.024290 265.187990 231.460010 61.110000 5.200000 3.800000 1.655389e+25
28.118300 61.969800 93.031900 66.397960 257.845790 231.460010 61.110000 5.200000 3.200000 2.197221e+25
28.079100 61.914000 93.031900 49.187810 271.475010 231.460010 61.110000 7.000000 3.000000 1.627708e+25
28.039900 61.858100 93.031900 35.893540 281.687710 231.460010 61.110000 9.600000 3.200000 1.187778e+25
28.000600 61.802200 93.031900 19.697600 273.443390 231.460010 61.110000 12.600000 2.600000 6.518271e+24
27.961300 61.746400 93.031900 2.591010 264.401090 231.460010 61.110000 15.400000 2.600000 8.574082e+23
27.922100 61.690500 93.031900 12.862410 238.930300 231.460010 61.110000 18.400000 3.200000 4.256390e+24
28.456200 62.395200 99.160800 13.551250 281.543000 231.460010 61.110000 22.200000 3.000000 4.484339e+24
28.416900 62.339300 99.160800 0.327750 286.877990 231.460010 61.110000 20.000000 3.400000 1.084597e+23
28.377700 62.283500 99.160800 10.019360 262.442500 231.460010 61.110000 16.200000 4.400000 3.315577e+24
28.338400 62.227600 99.160800 8.451900 229.654010 231.460010 61.110000 14.000000 3.200000 2.796876e+24
28.299200 62.171800 99.160800 20.387290 214.007710 231.460010 61.110000 11.400000 2.400000 6.746502e+24
28.259900 62.115900 99.160800 15.485250 263.379700 231.460010 61.110000 9.400001 2.800000 5.124333e+24
28.220700 62.060000 99.160800 2.923250 254.364810 231.460010 61.110000 8.400001 3.400000 9.673535e+23
28.181400 62.004200 99.160800 40.274280 254.890700 231.460010 61.110000 8.200000 3.400000 1.332745e+25
28.142200 61.948300 99.160800 29.277030 226.103900 231.460010 61.110000 8.000000 2.400000 9.688268e+24
28.102900 61.892500 99.160800 22.528820 242.392590 231.460010 61.110000 9.600000 2.600000 7.455169e+24
28.063700 61.836600 99.160800 31.893340 285.535190 231.460010 61.110000 12.200000 2.800000 1.055405e+25
28.024400 61.780700 99.160800 5.373890 220.317310 231.460010 61.110000 13.600000 2.400000 1.778311e+24
27.985200 61.724900 99.160800 3.636940 270.711490 231.460010 61.110000 16.000000 3.000000 1.203525e+24
27.945900 61.669000 99.160800 7.361200 272.673310 231.460010 61.110000 19.000000 2.600000 2.435946e+24
28.480000 62.373700 105.289600 5.055000 272.767790 231.460010 61.110000 23.600000 3.000000 1.672784e+24
28.440700 62.317800 105.289600 6.849870 245.966200 231.460010 61.110000 22.200000 3.800000 2.266739e+24
28.401500 62.262000 105.289600 7.498080 244.543700 231.460010 61.110000 18.000000 4.000000 2.481242e+24
28.362200 62.206100 105.289600 4.282910 251.452190 231.460010 61.110000 16.600000 4.400000 1.417289e+24
28.323000 62.150300 105.289600 1.277030 239.147090 231.460010 61.110000 14.400000 3.800000 4.225900e+23
28.283700 62.094400 105.289600 2.265150 281.404390 231.460010 61.110000 12.600000 3.800000 7.495761e+23
28.244500 62.038500 105.289600 0.498610 284.564510 231.460010 61.110000 10.000000 2.400000 1.649996e+23
28.205200 61.982700 105.289600 2.148300 286.994110 231.460010 61.110000 10.200000 2.600000 7.109085e+23
28.166000 61.926800 105.289600 11.399260 237.709400 231.460010 61.110000 10.800000 2.600000 3.772208e+24
28.126700 61.871000 105.289600 19.978060 278.846190 231.460010 61.110000 12.800000 3.800000 6.611081e+24
28.087500 61.815100 105.289600 8.099820 259.199580 231.460010 61.110000 13.800000 2.600000 2.680370e+24
28.048200 61.759200 105.289600 10.134160 279.116000 231.460010 61.110000 16.200000 2.400000 3.353566e+24
28.009000 61.703400 105.289600 5.598870 233.119400 231.460010 61.110000 18.200000 3.400000 1.852760e+24
27.969700 61.647500 105.289600 3.026610 222.242900 231.460010 61.110000 20.600000 3.400000 1.001558e+24
EOF
#####
# processing
# First get the fault model by skipping the first few lines of the output
#####
ed static2_out << EOF
1,/t_rup/d
w ff.mod
EOF
#####
# create the do_process script that does all of the work
#####
do_process ()
{
#####
# do_process SITE_LATITUDE SITE_LONGITUDE
STLA=$1
STLO=$2
#####
# NSUB is the sub fault number
# PNSUB is a pretty version with 4 digits, e.g., 0001 for
# file name
#####
NSUB=0
#####
# make a synthetic for each finite fault element
#####
while read EVLA EVLO EVDP SLIP RAKE STK DIP TRUP TRISE MOM
do
NSUB=`echo $NSUB | awk '{print $1 + 1 }' `
PBSUB=`echo $NSUB | awk '{printf "%4.4d", $1}' `
MW=`echo $MOM | awk '{ print 2.*( log($1)/log(10.0) -16.1)/3.0 }' `
# echo $MOM $MW $DUR
#####
# compute the distance in km ans azimuth from subfault to station
#####
DIST=`udelaz -DIST -EVLA $EVLA -EVLO $EVLO -STLA $STLA -STLO $STLO`
AZ=`udelaz -AZ -EVLA $EVLA -EVLO $EVLO -STLA $STLA -STLO $STLO`
BAZ=`udelaz -BAZ -EVLA $EVLA -EVLO $EVLO -STLA $STLA -STLO $STLO`
#####
# determine the static deformation
#####
# get the depth from DCTL and the dist from DEPTH/W.CTL
cat > awkprog << FOE
# This works under gawk - on Solaris try nawk
BEGIN { MDIF = 10000.0 }
{DIF = $EVDP - \$1 ;
if( DIF < 0 ) DIF = - DIF ;
if(DIF < MDIF) { MDIF = DIF ; Hfile = \$2 }
}
END { print Hfile }
FOE
cat ${MODEL}/D.CTL | \
awk -f awkprog > j
HS=`awk '{print $1}' < j `
cat > awkprog << FOE
# This works under gawk - on Solaris try nawk
BEGIN { MDIF = 10000.0 }
{DIF = $DIST - \$1 ;
if( DIF < 0 ) DIF = - DIF ;
if(DIF < MDIF) { MDIF = DIF ; Dfile = \$7 ; Rate = \$2 ; Dist = \$1 }
}
END { print Dfile , Rate, Dist }
FOE
cat ${MODEL}/${HS}/W.CTL | \
awk -f awkprog > j
FILEPROTO=`awk '{print $1}' < j `
echo $DIST $EVDP ${MODEL}/${HS}/${FILEPROTO}
#####
# go to WORK make GREEN and then mechanism, delay and duration
#####
cd WORK
rm -f *
gsac > /dev/null << EOF
mt to ZNE MW ${MW} AZ ${AZ} BAZ ${BAZ} STK ${STK} RAKE ${RAKE} DIP ${DIP} FILE ${MODEL}/${HS}/${FILEPROTO}
shift F $TRUP
#
ch EVLA ${EVLA} EVLO ${EVLO} STLA ${STLA} STLO ${STLO}
w
mv T.Z ../STACK/Z.${PBSUB}
mv T.N ../STACK/N.${PBSUB}
mv T.E ../STACK/E.${PBSUB}
q
EOF
cd ${MYTOP}
done < ff.mod
#####
# now perform the stacking
# determine the minimum B time, maximum E time to define the cut window
# determine the minimum A time to set the first srrival time on the stack
# These offsets are with respect to the origin time
#####
cd STACK
#####
# now use gsac to read all in and stack
#####
gsac << EOF
cuterr fillz
cut o o 300
r Z.????
stack absolute
w ../FINALZ/${STLA}_${STLO}.Z
r N.????
stack absolute
w ../FINALN/${STLA}_${STLO}.N
r E.????
stack absolute
w ../FINALE/${STLA}_${STLO}.E
q
EOF
}
#####
# create a work area for making the synthetic for a sub-fault
#####
rm -fr WORK ; mkdir WORK
#####
# create a work area to store synthetics for each finite fault
# which will be used for the stack
#####
rm -fr STACK ; mkdir STACK
#####
# create directory for final synthetics
#####
rm -fr FINALZ ; mkdir FINALZ
rm -fr FINALN ; mkdir FINALN
rm -fr FINALE ; mkdir FINALE
while [ "${ENDLATLOOP}" != "YES" ]
do
while [ "${ENDLONLOOP}" != "YES" ]
do
#####
# process this LAT/LON coordinate
#####
cd ${MYTOP}
do_process $LAT $LON
LON=`echo $LON $DLON | awk '{print $1 + $2 }' `
ENDLONLOOP=`echo ${LONMIN} ${LONMAX} ${LON} | awk '{ if ( $3 >= $1 && $3 <= $2 ) print "NO" ; else print "YES" }' `
done
#####
# reset the LON loop
#####
ENDLONLOOP="NO"
LON=${LONMIN}
#####
# increment and test latitude
#####
LAT=`echo ${LAT} ${DLAT} | awk '{print $1 + $2 }' `
ENDLATLOOP=`echo ${LATMIN} ${LATMAX} ${LAT} | awk '{ if ( $3 >= $1 && $3 <= $2 ) print "NO" ; else print "YES" }' `
done
|
