Introduction

SAC v102.0 introduced extended precision for certain floating point variables (< href="http://ds.iris.edu/files/sac-manual/manual/file_format.html">http://ds.iris.edu/files/sac-manual/manual/file_format.html). The reason for this is given in http://ds.iris.edu/files/sac-manual/manual/tutorial.html in the section entitled FLOATING-POINT PRECISON IN SAC. This section gives an example of how floating point numebrs are stored for use in a computer and gives graphic example of the problem addressed by sacv102.

This web page provides additional examples on the nature of floating point numbers and problem tat arise using sac or gsac

Floating point numbers

A discussion of the IEEE 754-1985 industry standard is given at https://en.wikipedia.org/wiki/IEEE_754-1985 This web page gives two examples of how 32-bit (float) and 64-bit (double) floating point numbers are stored in binary.

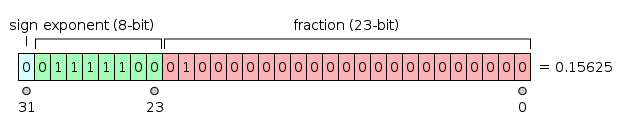

The number 0.15625 represented as a single-precision IEEE 754-1985 floating-point number. See text for explanation.

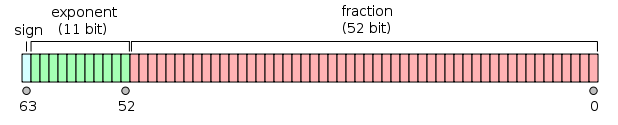

The three fields in a 64bit IEEE 754 float

The important point to note is that computers cannot represent a continuum floating point numbers . Because of the finite number of bits in the mantissa (fraction), a continuum would plot as a series of steps.

This granularity is also exhibited in the process of printing a floating point number, e.g., using printf in C. Consider this C code named tprec.c:

#include
#include


char fmtstr[30];
#define FVAL 172800.05
#define NDEC 20

void main()
{
        float fvar;
        double dvar;
        int i;
        fvar = FVAL;
        dvar = FVAL;
printf("Comparison of printing single anddoulple precision values of 172800.05\n");
printf("using a format string of the form %%40.NDECf, e.g., %%40.10f\n");
printf(" ndec                                    float                                   double\n");
        for (i=0;i < NDEC; i++){
                sprintf(fmtstr,"%%5d %%40.%df %%40.%df\n",i,i);
                printf(fmtstr,i,fvar,dvar);
        }

}

Then

gcc tprec.c
a.out
Comparison of printing single and doulple precision values of 172800.05
using a format string of the form %40.{NDEC}f, e.g., %40.10f
 NDEC                                    float                                   double
    0                                   172800                                   172800
    1                                 172800.0                                 172800.0
    2                                172800.05                                172800.05
    3                               172800.047                               172800.050
    4                              172800.0469                              172800.0500
    5                             172800.04688                             172800.05000
    6                            172800.046875                            172800.050000
    7                           172800.0468750                           172800.0500000
    8                          172800.04687500                          172800.05000000
    9                         172800.046875000                         172800.050000000
   10                        172800.0468750000                        172800.0500000000
   11                       172800.04687500000                       172800.04999999999
   12                      172800.046875000000                      172800.049999999988
   13                     172800.0468750000000                     172800.0499999999884
   14                    172800.04687500000000                    172800.04999999998836
   15                   172800.046875000000000                   172800.049999999988358
   16                  172800.0468750000000000                  172800.0499999999883585
   17                 172800.04687500000000000                 172800.04999999998835847
   18                172800.046875000000000000                172800.049999999988358468

First note that the single precision cannot represent the number 172800.05 perfectly. In single precision the nearest "bit" for this number corresponds to 1721800.04687. Double precision does better in represent the desired number. The second point to note, is that extending the number of digits in the format statement will yield a sequence of printed characters, whose additional information is the result of the algorithm of converting a float to a string. This algorithm decides what character to print, e.g., 0 1 2 3 4 5 6 7 8 9, then divides by 10 and selects the character corresponding to the first digit. This process can continue forever since the procedure may always yield a value due to roundoff.

Sac and gsac

The discussion given in the tutorial at IRIS illustrates the problem. This example was duplicated with gsac by writing a simple C program since gsac does not support blackboard variables. This exercise also served as a test of the updated sacsub c.c which is part of Computer Programs in Seismology. This code named dsac.c is

#include <stdio.h>
#include <stdlib.h>
#include <math.h>
#include "sacsubc.h"

/*
#define NPTS 10000000
#define DELTA 0.01
#define NA 9123456789
*/
#define NPTS 13
#define DELTA 0.01
#define NA 18246913578

void main()
{
int i;
float depmax, depmin, depmen;
int indmax, indmin;
float dt, b;
int npts;
float *arr;
int nerr;
float e;
float a;

double db, de, ddt;
double da;

float t0,t1,t2,t3,t4,t5,t6,t7,t8,t9;
float stla, stlo, evla, evlo;
double dstla, dstlo, devla, devlo;
double dt0,dt1,dt2,dt3,dt4,dt5,dt6,dt7,dt8,dt9;

stla = 0.0 ;
stlo = -105.0000003;
evla = 0.0 ;
evlo = -105.0;
dt = DELTA;
npts = NPTS;
arr = (float *)calloc(npts,sizeof(float));
/* initialiuze */
for(i=0;i < NPTS ; i++)
arr[i] = sin(6.2831853*2.0*i*DELTA);

b = 172800.;
t0 = b + 1*dt;
t1 = b + 2*dt;
t2 = b + 3*dt;
t3 = b + 4*dt;
t4 = b + 5*dt;
t5 = b + 6*dt;
t6 = b + 7*dt;
t7 = b + 8*dt;
t8 = b + 9*dt;
t9 = b + 10*dt;

e = b + (npts -1 )*dt;
scmxmn(arr,npts,&depmax,&depmin,&depmen,&indmax,&indmin);
newhdr();
setfhv("DEPMAX", depmax, &nerr);
setfhv("DEPMIN", depmin, &nerr);
setfhv("DEPMEN", depmen, &nerr);
setnhv("NPTS ",npts,&nerr);
setfhv("DELTA ",dt ,&nerr);
setfhv("TIMMAX ",b + indmax*dt, &nerr);
setfhv("TIMMIN ",b + indmin*dt, &nerr);
setihv("IFTYPE ","ITIME ",&nerr);
setfhv("B ",b ,&nerr);
setfhv("E ",e ,&nerr);
setfhv("T0 ",t0 ,&nerr);
setfhv("T1 ",t1 ,&nerr);
setfhv("T2 ",t2 ,&nerr);
setfhv("T3 ",t3 ,&nerr);
setfhv("T4 ",t4 ,&nerr);
setfhv("T5 ",t5 ,&nerr);
setfhv("T6 ",t6 ,&nerr);
setfhv("T7 ",t7 ,&nerr);
setfhv("T8 ",t8 ,&nerr);
setfhv("T9 ",t9 ,&nerr);
setfhv("EVLA ",evla,&nerr);
setfhv("EVLO ",evlo,&nerr);
setfhv("STLA ",stla,&nerr);
setfhv("STLO ",stlo,&nerr);
setlhv("LEVEN ",1,&nerr);
setlhv("LOVROK ",1,&nerr);
setlhv("LCALDA ",1,&nerr);
setnhv("NZYEAR ",2022,&nerr);
setnhv("NZJDAY ",1,&nerr);
setnhv("NZHOUR ",0,&nerr);
setnhv("NZMIN ",0,&nerr);
setnhv("NZSEC ",0,&nerr);
setnhv("NZMSEC ",0,&nerr);
setkhv("KT0 ","t0 ",&nerr);
setkhv("KT1 ","t1 ",&nerr);
setkhv("KT2 ","t2 ",&nerr);
setkhv("KT3 ","t3 ",&nerr);
setkhv("KT4 ","t4 ",&nerr);
setkhv("KT5 ","t5 ",&nerr);
setkhv("KT6 ","t6 ",&nerr);
setkhv("KT7 ","t7 ",&nerr);
setkhv("KT8 ","t8 ",&nerr);
setkhv("KT9 ","t9 ",&nerr);
bwsac(npts,"dut6.sac",arr);

dstla = 0.0 ;
dstlo = -105.0000003;
devla = 0.0 ;
devlo = -105.0;
db = 172800.;
ddt = DELTA;
dt0 = db + 1*ddt;
dt1 = db + 2*ddt;
dt2 = db + 3*ddt;
dt3 = db + 4*ddt;
dt4 = db + 5*ddt;
dt5 = db + 6*ddt;
dt6 = db + 7*ddt;
dt7 = db + 8*ddt;
dt8 = db + 9*ddt;
dt9 = db + 10*ddt;
fprintf(stderr,"dt0 %22.16g\n",dt0);
fprintf(stderr,"dt1 %22.16g\n",dt1);
fprintf(stderr,"dt2 %22.16g\n",dt2);
fprintf(stderr,"dt3 %22.16g\n",dt3);
fprintf(stderr,"dt4 %22.16g\n",dt4);
fprintf(stderr,"dt5 %22.16g\n",dt5);
fprintf(stderr,"dt6 %22.16g\n",dt6);
fprintf(stderr,"dt7 %22.16g\n",dt7);
fprintf(stderr,"dt8 %22.16g\n",dt8);
fprintf(stderr,"dt9 %22.16g\n",dt9);
de = db + (npts -1 )*dt;
setdhv("DELTA ",ddt ,&nerr);
setdhv("B ",db ,&nerr);
setdhv("E ",de ,&nerr);
setdhv("T0 ",dt0 ,&nerr);
setdhv("T1 ",dt1 ,&nerr);
setdhv("T2 ",dt2 ,&nerr);
setdhv("T3 ",dt3 ,&nerr);
setdhv("T4 ",dt4 ,&nerr);
setdhv("T5 ",dt5 ,&nerr);
setdhv("T6 ",dt6 ,&nerr);
setdhv("T7 ",dt7 ,&nerr);
setdhv("T8 ",dt8 ,&nerr);
setdhv("T9 ",dt9 ,&nerr);
setnhv("NVHDR ",7,&nerr);
setdhv("DELTA ",ddt,&nerr);
setdhv("EVLA ",devla,&nerr);
setdhv("EVLO ",devlo,&nerr);
setdhv("STLA ",dstla,&nerr);
setdhv("STLO ",dstlo,&nerr);
bwsac(npts,"dut7.sac",arr);
/* clean up */
free (arr);
}

The purpose of this code is to create two files in sac format with names dut6.sac and dut7.sac. The code is very careful about distinguishing single- and double-precision floating point variables. The timing and coordinates used were selected to test the ability of floating point numbers to represent very small differences. This C program was used to have complete control on the numbers stored in the sac file headers. A second example below uses gsac to do this, but that must be done carefully since gsac represents all floating point numbers in the Sac header internally in double precision.

The next step is to compile and run the code.

gcc dsac.c sacsubc.c -lm -o dsac dsac

This creates the files cut6.sac which has NVHDR=6 and cut7.sac which has NVHDR=7. The header contents of these files can be viewed using the comman sachdr -B cut7.sac and similarly with cut6.sac. A plot is illustrative of the problem associated with NVHDR=6 that arises with long time series at with high sample rates.

gsac GSAC> r cut?.sac GSAC> fileid list fname GSAC> bg plt GSAC> p GSAC> # creates P001.PLT which is then converted to an EPS and then a PNG

The C source code attempts to create time picks at 172800.01, 172800.02, ..., 172800.10. The following are shown using the listheader command of gsac:

GSAC> lh b e t0 t1 t2 t3 t4 t5 t6 t7 t8 t9 stla stlo evla evlo dist gcarc az baz npts nvhdr
dut6.sac (0):
NPTS 13 B 172800
E 172800.1 T0 172800
STLA 0 STLO -105
EVLA 0 EVLO -105
DIST 2.219911e-09 AZ 0
BAZ 180 GCARC 1.986611e-11
T1 172800 T2 172800
T3 172800 T4 172800
T5 172800.1 T6 172800.1
T7 172800.1 T8 172800.1
T9 172800.1 NVHDR 6
dut7.sac (1):
NPTS 13 B 1.7280000000000e+05
E 1.7280012000000e+05 T0 1.7280001000000e+05
STLA 0.0000000000000e+00 STLO -1.0500000030000e+02
EVLA 0.0000000000000e+00 EVLO -1.0500000000000e+02
DIST 3.339586e-05 AZ 270.0038
BAZ 90.00379 GCARC 3e-07
T1 1.7280002000000e+05 T2 1.7280003000000e+05
T3 1.7280004000000e+05 T4 1.7280005000000e+05
T5 1.7280006000000e+05 T6 1.7280007000000e+05
T7 1.7280008000000e+05 T8 1.7280009000000e+05
T9 1.7280010000000e+05 NVHDR 7

You will note that gsac now uses an extended formatting statement %20.13g for these variables with NVHDR=7 instead of %21.7g Note these are biased somewhat by the formatting using to make this presentation.
Writing a separate program to display the numbers actually stored gives

True float double T0 172800.01 172800.01562 172800.01000 T1 172800.02 172800.01562 172800.02000 T2 172800.03 172800.03125 172800.03000 T3 172800.04 172800.04688 172800.04000 T4 172800.05 172800.04688 172800.05000 T5 172800.06 172800.06250 172800.06000 T6 172800.07 172800.06250 172800.07000 T7 172800.08 172800.07812 172800.08000 T8 172800.09 172800.09375 172800.09000 T9 172800.10 172800.09375 172800.10000

Thus NVHDR=6 file dut6.sac would see that T1=T0, T3=T4, T5=T6, T8=T9. The plot shows these picks at the actual floating point time instead of the desited time. The plot for dut7.sac with NHVDR=7, plots the picks at the desired correct times. The plot for dut6.sac plots the times as given in the header.

This test also examined the effect or precision in the station coordinates. The example shows the value of the extended format when the station coordinates differ by about 0.03m.

The documentation given at http://ds.iris.edu/files/sac-manual/manual/tutorial.html gives the commands creating the test data sets using sac102. The following shwos how this is donw without blackboard variables using gsac. This is a bit lengthier because of the way that gsac works internally. If both source and station coordinates are entered, then gsac will compute the distances and azimuths. A write would place them on the sac file that is created. To avoid this the sac files must be created with lcalda false before the write. Then it is read, lcalda true is set and a new file created with .lcalda appended. That file will demonstrated the effect of the extended coordinates.
