Introduction

A number of general plotting programs have been written using the CALPLOT library of Computer Programs in Seismology.
While useful, programs such at xyplt2 are not easy to use. The program genplt has a simpler syntax since it does not attempt to be a general purpose plotting package. It can be used together with the program calplt to make useful figures.

Command syntax

Entering genplt -h provides the on-line help that describes the use of the program:


 USAGE:genplt -XMIN xmin -XMAX xmax -YMIN ymin -YMAX ymax -X0 x0 -Y0 y0 -NOBOX -XLIN _XLOG _YLIN YLOG -XLOG -XLIN -YLOG -YLIN  -C cmdfil -A acmdfil -? -h
 -XMIN xmin (default 0.0)  minimum value of X-Axis
 -XMAX xmax (default    )  maximum value of X-Axis
 -YMIN ymin (default 0.0)  minimum value of Y-Axis
 -YMAX ymax (default 0.0)  maximum value of Y-Axis
 -X0 x0     (default 2.0)  lower left corner of plot
 -Y0 y0     (default 1.0)  bottom left corner of plot
 -XLEN xlen (default 6.0)  length of X-Axis
 -YLEN ylen (default 6.0)  length of Y-Axis
 -NOBOX     (default false) do not plot axes
 -XLIN      (default linear) X axis is linear
 -XLOG      (default linear) X axis is logarithmic
 -YLIN      (default linear) Y axis is linear
 -YLOG      (default linear) Y axis is logarithmic
 -C cmdfil
    cmdfil consists of one xy-pair file per line as
       File Kolor Width Psymb
     File: file name of x-y pairs to be plotted
         with the File and Psymb enclosed in single quotes
     Kolor: (integer)1=black,1000=red,1050=green,1100=blue
         0=white or any CALPLOT color
     Width: width of line/or symbol border in inches
     Psymb: - a quoted 2 character entry for  the following
            SQ - square
            TR - triangle
            HX - heaxgon
            DI - diamond
            CI - circle
            NO - no symbol - plot a line
 -A acmdfil
    acmdfil consists of one xy-pair file per line as
       File Kolor Width Psymb Size
     File: file name of x-y pairs to be plotted
         with the File and Psymb enclosed in single quotes
     Kolor: (integer)1=black,1000=red,1050=green,1100=blue
         0=white or any CALPLOT color
     Width: width of line/or symbol border in inches
     Psymb: - a quoted 2 character entry for the following
            SQ - square
            TR - triangle
            HX - heaxgon
            DI - diamond
            CI - circle
            NO - no symbol - plot a line
     Size: - Symbol size
 -TX title-x (default none) Must be enclosed in quotes
 -TY title-y (default none) Must be enclosed in quotes
 -?         (default false) online help
 -h         (default false) online help

The program currently permits a total of 100 files to be plotted with each file consisting or 1000 x-y pairs.

An example of the use of this program together is given DONEW:

genplt -C cmdfil -A acmdfil -TX 'X-axis (m)' -TY 'Y-axis (km)' -XMIN 0 -XMAX 10 -YMIN 0 -YMAX 10

where the file cmdfil has the entries:
'03.xy' 1 0.05 'NO'
'01.xy' 2 0.00 'SQ'

and the file acmdfil has the entry:

'02.xy' 1060 0.02 'CI' 0.10

Note that the purpose of the punctuation ' marks for the command invocation permits passing of spaces in the title to the program.
The purpose of the ' marks in the list of plotting commands contained in the file cmdfil and acmdfil is to delimit strings since genplt is a FORTRAN program that used list directed IO.

The data given in the files 01.xy, 02.xy and 03.xy consist of one x-y pair per line, e.g., 02.xy contains is
10 10
9 9
8 7
7 8
6 6
The plot space limits defined by the -XMIN xmin -XMAX xmax -YMIN ymin -YMAX ymax command arguments are used to set a clipping region so that no data points are plotted outside the plot window. At present the plotnps program features a rounded line termination which extends beyond the plot window. This is a problem with plotnps and not genplt./

Output

The output of the program is a CALPLOT file with the name GENPLT.PLT.  The contents of this file can be converted to EPS using the command:

plotnps -F7 -W10 -EPS -K < GENPLT.PLT > genplt.eps

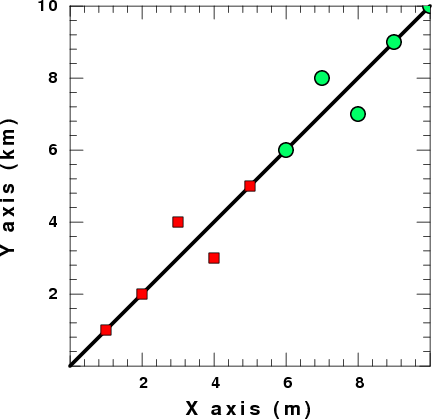

A sample image that results appears as follows:



Note the linewidth of the straight line, and the different border widths on the symbols.

Although the brder width of the square symbol was set to 0.0 in cmdfil, this value is overridden by the -W10 argument used by plotnps when the figure was made.
Last changed February 8, 2012
