Main page for SLU Virginia earthquake

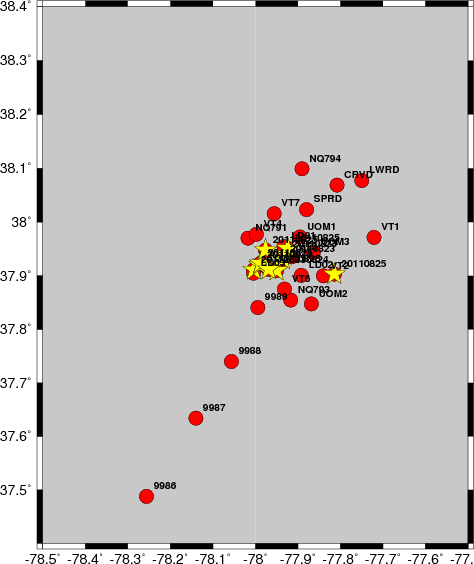

Code Lat(ºN) Lon(ºW) Elev(m) Start Instrument Sample Rate Tel NC Affiliation LD01 37.95470 77.93250 134 08/24/2011 16:44 CMG40T/RT147 250Hz N -- LDEO LD02 37.90102 77.89229 99 08/24/2011 21:28 CMG40T/RT147 250Hz N -- LDEO LD03 37.90470 78.00432 132 08/24/2011 23:40 CMG40T/RT147 250Hz N -- LDEO LD04 37.93312 78.03537 128 08/25/2011 15:52 L22/RT147 (CMG-40T) 250Hz N -- LDEO LD05 37.98644 77.92135 138 08/25/2011 17:56 L22/RT147 250Hz N -- LDEO LD06 37.89620 77.93641 89 09/01/2011 22:44 CMG40T/CMG5T 250Hz N -- LDEO LD07 37.89694 77.93249 95 09/02/2011 16:23 RT147/L22 250Hz N -- LDEO IP01 37.9572 77.9112 109 Trillium40/RT130 100Hz Y YC IRIS Ramp IP02 37.9572 77.9112 115 Trillium40/RT130 100Hz Y YC IRIS Ramp IP03 37.89917 77.84152 152 Trillium40/RT130 100Hz Y YC IRIS Ramp IP04 38.02052 78.01467 166 Trillium40/RT130 100Hz Y YC IRIS Ramp IP05 38.0922 78.0942 108 Trillium40/RT130 100Hz Y YC IRIS Ramp IP06 37.83028 77.75567 114 Trillium40/RT130 100Hz Y YC IRIS Ramp IP07 37.93343 77.98154 138 Trillium40/RT130 100Hz Y YC IRIS Ramp CVRD 38.0686 77.80810 100Hz Y LWRD 38.07712 77.75008 SPRD 38.0234 77.87995 PTRD 38.1196 -77.6227 100HZ Y NQ791 37.97006 78.01733 109 NetQuake 200Hz Y NQ USGS Menlo Park NQ792 37.87722 78.12663 129 NetQuake 200Hz Y NQ USGS Menlo Park NQ793 37.85474 77.91676 NetQuake 200Hz Y NQ USGS Menlo Park NQ794 38.09906 77.89056 NetQuake 200Hz Y NQ USGS Menlo Park RSTON NetQuake 200Hz Y N@ USGS Menlo Park UOM1 37.97224 77.89543 N -- CERI/University of Memphis UOM2 37.84763 77.86858 N -- CERI/University of Memphis UOM3 37.94324 77.86408 N -- CERI/University of Memphis 9985 38.0105 77.90766 100 Episensor/Basalt 100HZ Y NP USGS NSMP 9986 37.48761 78.25627 109 Episensor/Basalt 100HZ Y NP USGS NSMP 9987 37.63410 78.14010 82 Episensor/Basalt 100HZ Y NP USGS NSMP 9988 37.73993 78.05618 92 Episensor/Basalt 100HZ Y NP USGS NSMP 9989 37.84101 77.99440 102 Episensor/Basalt 100HZ Y NP USGS NSMP VT1 37.97167 77.72115 N -- Virginia Tech VT2 37.900 77.84018 N -- Virginia Tech VT3 37.93508 77.91499 N -- Virginia Tech VT4 37.9775 77.9977 N -- Virginia Tech VT5 37,87479 77.96730 N -- Virginia Tech VT6 37.87554 77.93148 N -- Virginia Tech VT7 38.01575 77.95575 N -- Virginia Tech BUPP YNCY TRCY LDEO - Lamont-Doherty Earth Observatory Tel: N - local data storage; Y - triggered/continuous telemetry
For viewing in Google Earth click on sluva.kmz to download the KMZ file with color coded source depths.
|
|
|
|

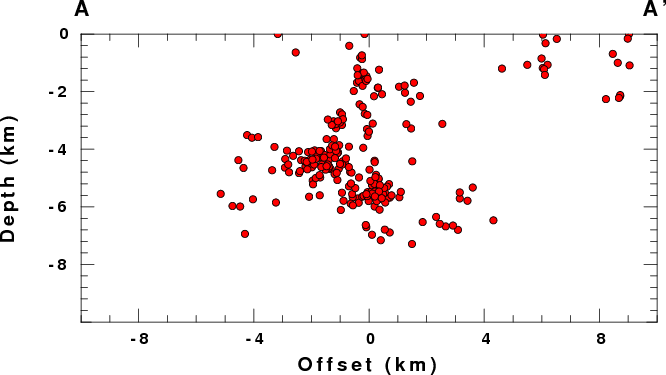

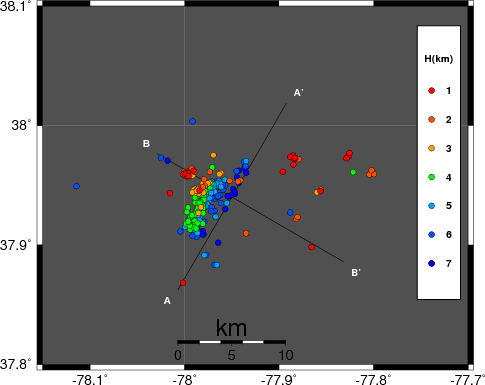

Vertical Profile centered 37.94N 77.95W in direction of N030E (for positive x)
|

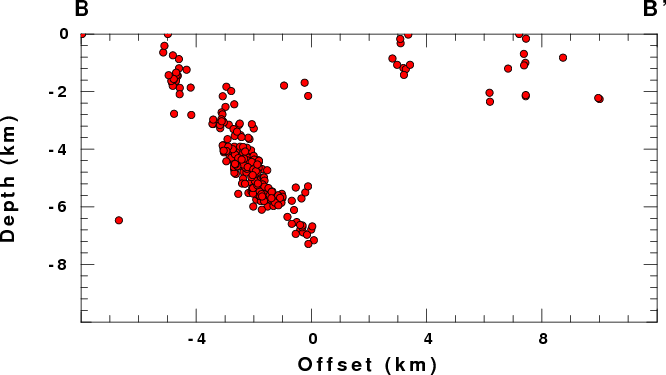

Vertical Profile centered 37.94N 77.95W in direction of N120E (for positive x)
Neglecting the two shallow outliers, this orientation gives best planar fit. The inferred plane dips down 46 degrees to the east-southeast.
|

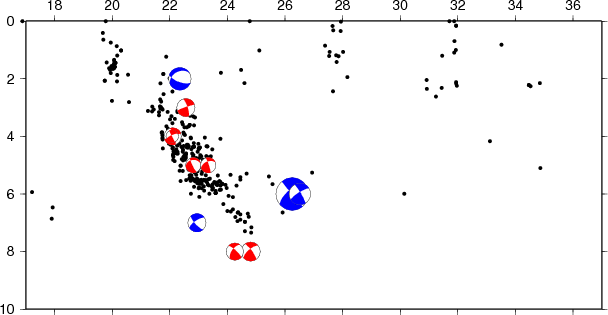

| Vertical profile in direction N120E with projected
moment tensors. The blue colors indicate the earlier solutions before the operation of the earthquake monitoring network. The red colors indicate solutions whose hypocentral coordinates are well known.
|

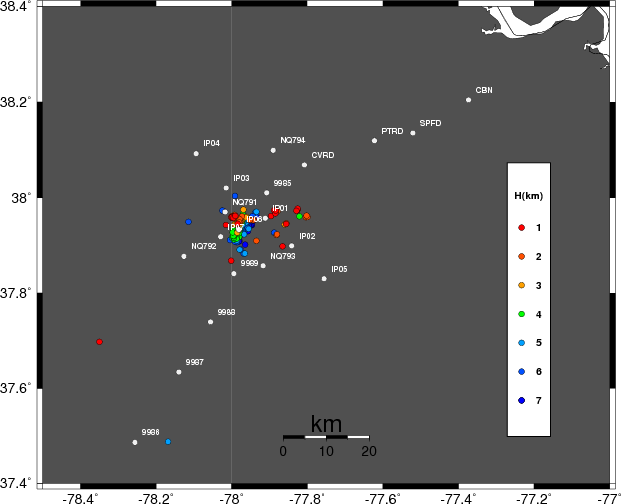

The following is a tabulation of the earthquakes plotted on the figure above. The yellow colored symbols are ANSS solutions. The red colors are SLU elocate solutions using real time waveform data in the NEIC CWB. The SLU solutions are initiated by an examination of the NetQuake waveform page http://earthquake.usgs.gov/monitoring/netquakes/station/NQ794_NQ_01/, and also for 791, 792 and 793 substituted for 794. This is not a process of examining continuous data streams.
Waveforms in Sac format are available.
Date_Time(UTC) LAT LON H Qual Mw Stk Dip Rake
20110823_175105 37.94 -77.93 6 __ 5.65 175 45 65 WEB
20110823_184650 37.931 -77.935 0.1 __ 2.8 _ _ _ _
20110823_192026 37.911 -78.004 0.1 __ 2.2 _ _ _ _
20110824_000436 37.91 -77.95 6 __ 3.77 185 35 60 WEB
20110824_044526 37.92 -77.99 7 __ 3.20 175 40 80 WEB
20110825_040647 37.923 -77.988 0.1 __ 2.5 _ _ _ _
20110825_050750 37.948 -77.976 2 __ 3.94 140 60 80 WEB
20110825_063731 37.912 -77.969 0.1 __ 2.3 _ _ _ _
20110825_152747 37.951 -77.924 0.1 __ 2.4 _ _ _ _
20110825_234056 37.903 -77.814 4.9 __ 2.6 _ _ _ _
20110826_041218 37.9272 -77.8880 5.99 BD _ _ _ _ _ SLU elocate 20110826_041218.txt
20110826_225221 37.9272 -77.9882 4.34 AB _ _ _ _ _ SLU elocate 20110826_225221.txt
20110827_000239 37.9120 -77.9905 5.99 AB _ _ _ _ _ SLU elocate 20110827_000239.txt
20110827_062720 37.9305 -77.9846 4.07 AB _ _ _ _ _ SLU elocate 20110827_062720.txt
20110827_074248 37.9181 -77.9984 3.51 AB _ _ _ _ _ SLU elocate 20110827_074248.txt
20110827_090229 37.9426 -77.9855 3.95 AA _ _ _ _ _ SLU elocate 20110827_090229.txt
20110827_113045 37.9519 -77.9616 5.88 AD _ _ _ _ _ SLU elocate 20110827_113045.txt
20110827_124019 37.9353 -77.9845 4.83 AC _ _ _ _ _ SLU elocate 20110827_124019.txt
20110827_184344 37.9532 -77.9549 5.67 AA _ _ _ _ _ SLU elocate 20110827_184344.txt
20110827_195336 37.9373 -77.9744 4.69 AB _ _ _ _ _ SLU elocate 20110827_195336.txt
20110827_235203 37.9394 -77.9737 5.07 AB _ _ _ _ _ SLU elocate 20110827_235203.txt
20110828_021822 37.9130 -77.9941 4.38 AB _ _ _ _ _ SLU elocate 20110828_021822.txt
20110828_052023 37.9504 -77.9724 4.71 AB _ _ _ _ _ SLU elocate 20110828_052023.txt
20110828_054249 37.9453 -77.9878 3.27 AB _ _ _ _ _ SLU elocate 20110828_054249.txt
20110828_070450 37.9615 -77.8959 1.21 AD _ _ _ _ _ SLU elocate 20110828_070450.txt
20110828_114349 37.9317 -77.9825 3.31 AC _ _ _ _ _ SLU elocate 20110828_114349.txt
20110828_114903 37.9269 -77.9855 3.34 AD _ _ _ _ _ SLU elocate 20110828_114903.txt
20110828_143231 37.9456 -77.9826 3.79 AD _ _ _ _ _ SLU elocate 20110828_143231.txt
20110828_164629 37.9658 -77.9362 6.80 AB _ _ _ _ _ SLU elocate 20110828_164629.txt
20110828_201805 37.9393 -77.9685 5.87 AA _ _ _ _ _ SLU elocate 20110828_201805.txt
20110828_210350 37.9506 -77.9783 3.64 AD _ _ _ _ _ SLU elocate 20110828_210350.txt
20110828_210946 37.9201 -77.9802 5.73 AD _ _ _ _ _ SLU elocate 20110828_210946.txt
20110829_010636 37.9408 -77.9843 4.56 AA _ _ _ _ _ SLU elocate 20110829_010636.txt
20110829_031521 37.9406 -77.9828 4.60 AA _ _ _ _ _ SLU elocate 20110829_031521.txt
20110829_031651 37.9393 -77.9857 4.53 AA _ _ _ _ _ SLU elocate 20110829_031651.txt
NEIC 031650 37.938 -78.006 5.1 2.7 _ _ _ _ USGS NEIC Phase List
20110829_031859 37.9447 -77.9840 3.91 AC _ _ _ _ _ SLU elocate 20110829_031859.txt
20110829_033721 37.9407 -77.9839 4.22 AC _ _ _ _ _ SLU elocate 20110829_033721.txt
20110829_033815 37.8914 -77.9790 5.39 AD _ _ _ _ _ SLU elocate 20110829_033815.txt
20110829_041926 37.9403 -77.9850 4.71 AA _ _ _ _ _ SLU elocate 20110829_041926.txt
20110829_054143 37.9410 -77.9826 4.53 AC _ _ _ _ _ SLU elocate 20110829_054143.txt
20110829_073846 37.9203 -77.9891 4.26 AD _ _ _ _ _ SLU elocate 20110829_073846.txt
20110829_093841 37.9478 -77.9673 5.52 AB _ _ _ _ _ SLU elocate 20110829_093841.txt
20110829_125015 37.9179 -77.9807 5.58 AD _ _ _ _ _ SLU elocate 20110829_125015.txt
20110829_125509 37.9440 -77.9802 3.16 BB _ _ _ _ _ SLU elocate 20110829_125509.txt
20110829_162317 37.9455 -77.9770 4.79 AB _ _ _ _ _ SLU elocate 20110829_162317.txt
20110829_233950 37.9697 -77.9372 5.79 AB _ _ _ _ _ SLU elocate 20110829_233950.txt
20110830_014542 37.9469 -77.9487 6.89 AB _ _ _ _ _ SLU elocate 20110830_014542.txt
20110830_034828 37.9089 -77.9799 6.94 AB _ _ _ _ _ SLU elocate 20110830_034828.txt
20110830_042951 37.9068 -77.9871 5.68 AC _ _ _ _ _ SLU elocate 20110830_042951.txt
20110830_051804 37.9388 -77.9854 4.06 AA _ _ _ _ _ SLU elocate 20110830_051804.txt
20110830_094411 37.9361 -77.9821 4.29 AA _ _ _ _ _ SLU elocate 20110830_094411.txt
20110830_102253 37.9415 -77.9622 5.71 AB _ _ _ _ _ SLU elocate 20110830_102253.txt
20110830_121705 37.9384 -77.9848 4.27 AA _ _ _ _ _ SLU elocate 20110830_121705.txt
20110830_132650 37.9197 -77.9791 5.85 AB _ _ _ _ _ SLU elocate 20110830_132650.txt
20110830_181801 37.9347 -77.9814 4.04 AA _ _ _ _ _ SLU elocate 20110830_181801.txt
20110830_194609 37.9450 -77.9818 4.42 AB _ _ _ _ _ SLU elocate 20110830_194609.txt
20110830_222514 37.9236 -77.9670 5.42 BC _ _ _ _ _ SLU elocate 20110830_222514.txt
20110831_005927 37.9492 -77.9661 5.77 AC _ _ _ _ _ SLU elocate 20110831_005927.txt
20110831_033257 37.9405 -77.9862 4.20 AA _ _ _ _ _ SLU elocate 20110831_033257.txt
20110831_045349 37.9305 -77.9845 4.83 AB _ _ _ _ _ SLU elocate 20110831_045349.txt
20110831_123335 37.9442 -77.9871 3.96 AB _ _ _ _ _ SLU elocate 20110831_123335.txt
20110831_134410 37.9219 -77.8818 2.04 AB _ _ _ _ _ SLU elocate 20110831_134410.txt
The waveforms are good but different in shape than other events. This is east of the pattern.
20110831_150154 37.9485 -77.9732 3.95 AB _ _ _ _ _ SLU elocate 20110831_150154.txt
20110831_163902 37.9463 -77.9589 5.55 AB _ _ _ _ _ SLU elocate 20110831_163902.txt
20110831_172410 37.9442 -77.9873 3.03 AB _ _ _ _ _ SLU elocate 20110831_172410.txt
20110831_191235 37.9534 -77.9635 5.21 BA _ _ _ _ _ SLU elocate 20110831_191235.txt
20110831_191843 37.9517 -77.9702 5.52 AA _ _ _ _ _ SLU elocate 20110831_191843.txt
20110831_224002 37.9337 -77.9812 4.37 AB _ _ _ _ _ SLU elocate 20110831_224002.txt
20110901_044350 37.9433 -77.9828 3.91 AB _ _ _ _ _ SLU elocate 20110901_044350.txt
20110901_090937 37.9428 -77.9468 7.16 AB 3.30 180 45 55 WEB SLU elocate 20110901_090937.txt
20110901_094617 37.9414 -77.9660 5.67 AB _ _ _ _ _ SLU elocate 20110901_094617.txt
20110901_123532 37.9443 -77.9469 6.79 AB _ _ _ _ _ SLU elocate 20110901_123532.txt
20110901_182134 37.9495 -77.9783 2.44 AB _ _ _ _ _ SLU elocate 20110901_182134.txt
20110902_011415 37.9439 -77.9777 4.47 AB _ _ _ _ _ SLU elocate 20110902_011415.txt
20110902_011857 37.9301 -77.9569 7.34 AC _ _ _ _ _ SLU elocate 20110902_011857.txt
20110902_123756 37.9423 -77.9856 4.25 BA _ _ _ _ _ SLU elocate 20110902_123756.txt
20110903_033337 37.9287 -77.9685 6.07 AC _ _ _ _ _ SLU elocate 20110903_033337.txt
20110903_045755 37.9432 -77.9854 3.15 AA _ _ _ _ _ SLU elocate 20110903_045755.txt
20110903_161434 37.9179 -77.9807 4.08 AC _ _ _ _ _ SLU elocate 20110903_161434.txt
20110903_211053 37.9505 -77.9655 5.05 AA _ _ _ _ _ SLU elocate 20110903_211053.txt
20110903_221259 37.9519 -77.9717 4.40 AA _ _ _ _ _ SLU elocate 20110903_221259.txt
20110904_015803 37.9174 -77.9901 5.51 AC _ _ _ _ _ SLU elocate 20110904_015803.txt
20110904_072452 37.9285 -77.9848 4.23 AB _ _ _ _ _ SLU elocate 20110904_072452.txt
20110904_075955 37.9330 -77.9849 4.59 BB _ _ _ _ _ SLU elocate 20110904_075955.txt
20110904_172651 37.9412 -77.9846 4.38 AB _ _ _ _ _ SLU elocate 20110904_172651.txt
20110905_004444 37.9210 -77.9849 4.68 AC _ _ _ _ _ SLU elocate 20110905_004444.txt
20110905_133149 37.9310 -77.9805 4.43 AB _ _ _ _ _ SLU elocate 20110905_133149.txt
20110905_165424 37.9502 -77.9667 5.33 AA _ _ _ _ _ SLU elocate 20110905_165424.txt
20110905_170611 37.9506 -77.9688 5.99 BA _ _ _ _ _ SLU elocate 20110905_170611.txt
20110905_194242 37.9403 -77.9863 4.29 AA _ _ _ _ _ SLU elocate 20110905_194242.txt
20110905_234103 37.9486 -77.9689 5.75 AB _ _ _ _ _ SLU elocate 20110905_234103.txt
20110906_005613 37.9316 -77.9802 4.43 AB _ _ _ _ _ SLU elocate 20110906_005613.txt
20110906_023047 37.9507 -77.9679 4.89 AA _ _ _ _ _ SLU elocate 20110906_023047.txt
20110906_045350 37.9521 -77.9425 7.29 AB _ _ _ _ _ SLU elocate 20110906_045350.txt
20110906_090043 37.9182 -77.9865 4.35 AC _ _ _ _ _ SLU elocate 20110906_090043.txt
20110906_090316 37.9234 -77.8805 2.35 AB _ _ _ _ _ SLU elocate 20110906_090316.txt
20110906_104304 37.9343 -77.9761 4.98 AB _ _ _ _ _ SLU elocate 20110906_104304.txt
20110906_124634 37.9661 -77.9354 5.71 AA _ _ _ _ _ SLU elocate 20110906_124634.txt
20110906_170638 37.9452 -77.9862 3.07 AA _ _ _ _ _ SLU elocate 20110906_170638.txt
20110906_211753 37.9351 -77.9615 6.11 AB _ _ _ _ _ SLU elocate 20110906_211753.txt
20110907_023405 37.9655 -77.9341 5.50 AA _ _ _ _ _ SLU elocate 20110907_023405.txt
20110907_055643 37.9619 -77.9449 6.35 AA _ _ _ _ _ SLU elocate 20110907_055643.txt
20110907_153444 37.9382 -77.9796 3.65 AA _ _ _ _ _ SLU elocate 20110907_153444.txt
20110908_001928 37.9407 -77.9842 4.53 AA _ _ _ _ _ SLU elocate 20110908_001928.txt
20110908_075127 37.9457 -77.9861 3.86 AA _ _ _ _ _ SLU elocate 20110908_075127.txt
20110908_082047 37.9425 -77.9827 4.86 AB _ _ _ _ _ SLU elocate 20110908_082047.txt
20110908_114002 37.9302 -77.9863 4.29 AD _ _ _ _ _ SLU elocate 20110908_114002.txt
20110909_024733 37.9317 -77.9855 4.38 AB _ _ _ _ _ SLU elocate 20110909_024733.txt
20110909_053605 37.9498 -77.9634 5.73 AB _ _ _ _ _ SLU elocate 20110909_053605.txt
20110909_053835 37.9520 -77.9598 5.68 AB _ _ _ _ _ SLU elocate 20110909_053835.txt
20110909_174801 37.9062 -77.9966 5.54 AB _ _ _ _ _ SLU elocate 20110909_174801.txt
20110909_192741 37.9330 -77.9812 4.36 AB _ _ _ _ _ SLU elocate 20110909_192741.txt
20110910_025656 37.9506 -77.9634 5.78 AB _ _ _ _ _ SLU elocate 20110910_025656.txt
20110910_135300 37.9151 -77.9990 4.74 AC _ _ _ _ _ SLU elocate 20110910_135300.txt
20110911_203337 37.9585 -78.0002 1.69 AB _ _ _ _ _ SLU elocate 20110911_203337.txt
20110912_025936 37.9090 -77.9900 5.97 AB _ _ _ _ _ SLU elocate 20110912_025936.txt
20110912_181257 37.9451 -77.9794 4.32 AA _ _ _ _ _ SLU elocate 20110912_181257.txt
20110912_205045 37.9629 -77.9934 1.87 AB _ _ _ _ _ SLU elocate 20110912_205045.txt
20110913_030030 37.9511 -77.9692 5.47 AA _ _ _ _ _ SLU elocate 20110913_030030.txt
20110914_020200 37.9404 -77.9653 5.89 AA _ _ _ _ _ SLU elocate 20110914_020200.txt
20110914_024150 37.8983 -77.8655 0.82 AB _ _ _ _ _ SLU elocate 20110914_024150.txt
20110915_074247 37.9415 -77.9509 6.97 AA _ _ _ _ _ SLU elocate 20110915_074247.txt
20110916_135232 37.9078 -77.9915 5.59 AC _ _ _ _ _ SLU elocate 20110916_135232.txt
20110916_161739 37.9369 -77.9849 4.25 BB _ _ _ _ _ SLU elocate 20110916_161739.txt
20110917_083308 37.9308 -77.9807 4.40 AB _ _ _ _ _ SLU elocate 20110917_083308.txt
20110917_124234 37.9454 -77.9757 4.81 AA _ _ _ _ _ SLU elocate 20110917_124234.txt
20110917_153313 37.9264 -77.9867 4.64 AB 2.64 125 60 30 WEB SLU elocate 20110917_153313.txt
20110917_162641 37.9169 -77.9914 4.41 AC _ _ _ _ _ SLU elocate 20110917_162641.txt
20110917_183737 37.9744 -77.8267 2.16 AB _ _ _ _ _ SLU elocate 20110917_183737.txt
20110917_195140 37.9749 -77.8260 2.24 AC _ _ _ _ _ SLU elocate 20110917_195140.txt
20110917_232819 37.9113 -78.0044 5.55 BB _ _ _ _ _ SLU elocate 20110917_232819.txt
20110918_050554 37.9744 -77.8267 2.12 AB _ _ _ _ _ SLU elocate 20110918_050554.txt
20110918_074432 37.9641 -77.9926 2.09 AA _ _ _ _ _ SLU elocate 20110918_074432.txt
20110918_084302 37.9543 -77.9410 2.15 AA _ _ _ _ _ SLU elocate 20110918_084302.txt
20110918_114836 37.9510 -77.9696 5.15 AA _ _ _ _ _ SLU elocate 20110918_114836.txt
20110918_230611 37.9270 -77.9818 4.81 AC _ _ _ _ _ SLU elocate 20110918_230611.txt
20110919_001936 37.9738 -77.8273 1.00 BB _ _ _ _ _ SLU elocate 20110919_001936.txt
20110919_044751 37.9478 -77.9674 5.80 AA _ _ _ _ _ SLU elocate 20110919_044751.txt
20110919_045843 37.9778 -77.8272 0.00 BB _ _ _ _ _ SLU elocate 20110919_045843.txt
20110919_081721 37.9143 -77.9929 4.65 AB _ _ _ _ _ SLU elocate 20110919_081721.txt
20110919_103006 37.9568 -77.9444 6.53 AA _ _ _ _ _ SLU elocate 20110919_103006.txt
20110919_152940 37.9183 -77.9950 3.61 AB _ _ _ _ _ SLU elocate 20110919_152940.txt
20110919_203312 37.9772 -77.8254 1.09 BB _ _ _ _ _ SLU elocate 20110919_203312.txt
20110920_033116 37.9150 -77.9870 5.74 AB _ _ _ _ _ SLU elocate 20110920_033116.txt
20110920_042419 37.9407 -77.9536 6.71 AA _ _ _ _ _ SLU elocate 20110920_042419.txt
20110921_053019 37.9336 -77.9816 4.59 AA _ _ _ _ _ SLU elocate 20110921_053019.txt
20110921_112653 37.9499 -77.9696 5.46 AA _ _ _ _ _ SLU elocate 20110921_112653.txt
20110921_151705 37.9493 -77.9680 5.25 AB _ _ _ _ _ SLU elocate 20110921_151705.txt
20110922_010604 37.9514 -77.9683 5.37 AB _ _ _ _ _ SLU elocate 20110922_010604.txt
20110922_010612 37.9506 -77.9679 5.48 BA _ _ _ _ _ SLU elocate 20110922_010612.txt
20110922_030150 37.9319 -77.9712 5.60 AB _ _ _ _ _ SLU elocate 20110922_030150.txt
20110922_101248 37.9641 -77.9364 6.65 AB _ _ _ _ _ SLU elocate 20110922_101248.txt
20110922_123606 37.9218 -77.9844 5.52 AC _ _ _ _ _ SLU elocate 20110922_123606.txt
20110922_170001 37.9236 -77.9935 3.87 AC _ _ _ _ _ SLU elocate 20110922_170001.txt
20110923_022224 37.9614 -77.9732 1.83 AA _ _ _ _ _ SLU elocate 20110923_022224.txt
20110923_094140 37.9447 -77.9682 4.98 AB _ _ _ _ _ SLU elocate 20110923_094140.txt
20110923_143429 37.9325 -77.9828 4.44 AB _ _ _ _ _ SLU elocate 20110923_143429.txt
20110924_051424 37.9764 -77.8251 0.16 AB _ _ _ _ _ SLU elocate 20110924_051424.txt
20110924_101300 37.9321 -77.9772 5.09 AB _ _ _ _ _ SLU elocate 20110924_101300.txt
20110924_125927 37.9419 -77.9623 5.86 AA _ _ _ _ _ SLU elocate 20110924_125927.txt
20110925_110724 37.9472 -77.9888 3.07 AA _ _ _ _ _ SLU elocate 20110925_110724.txt
20110927_232708 37.9453 -77.9861 4.11 AA _ _ _ _ _ SLU elocate 20110927_232708.txt
20110928_051231 37.9456 -77.9677 5.65 AB _ _ _ _ _ SLU elocate 20110928_051231.txt
20110929_031412 37.9463 -77.9903 3.13 AA _ _ _ _ _ SLU elocate 20110929_031412.txt
20110930_034325 37.9421 -77.9796 4.14 AA _ _ _ _ _ SLU elocate 20110930_034325.txt
20111001_200149 37.9255 -77.9898 4.39 AD _ _ _ _ _ SLU elocate 20111001_200149.txt
20111002_050926 37.9606 -77.9345 6.68 AB _ _ _ _ _ SLU elocate 20111002_050926.txt
20111002_081103 37.9325 -77.9778 5.22 AB _ _ _ _ _ SLU elocate 20111002_081103.txt
20111003_043326 37.9419 -77.9781 4.68 AA _ _ _ _ _ SLU elocate 20111003_043326.txt
20111003_061626 37.9517 -77.9807 2.53 AA _ _ _ _ _ SLU elocate 20111003_061626.txt
20111004_094853 37.9604 -77.9614 3.28 AA _ _ _ _ _ SLU elocate 20111004_094853.txt
20111004_102653 37.9148 -77.9904 4.04 AC _ _ _ _ _ SLU elocate 20111004_102653.txt
20111004_120607 37.9349 -77.9840 4.63 AB _ _ _ _ _ SLU elocate 20111004_120607.txt
20111005_061849 37.9357 -77.9888 4.10 AB 2.19 175 30 60 WEB SLU elocate 20111005_061849.txt
20111006_052629 37.9433 -77.9828 4.82 AA _ _ _ _ _ SLU elocate 20111006_052629.txt
20111006_142230 37.9314 -77.9717 5.57 AB _ _ _ _ _ SLU elocate 20111006_142230.txt
20111006_223711 37.9441 -77.8600 2.62 CB _ _ _ _ _ SLU elocate 20111006_223711.txt
20111006_224239 37.9452 -77.8562 1.20 AB _ _ _ _ _ SLU elocate 20111006_224239.txt
20111007_051011 37.9516 -77.9766 3.54 AA _ _ _ _ _ SLU elocate 20111007_051011.txt
20111007_093733 37.9399 -77.9712 5.51 AB _ _ _ _ _ SLU elocate 20111007_093733.txt
20111009_155324 37.9522 -77.9738 3.11 AA _ _ _ _ _ SLU elocate 20111009_155324.txt
20111009_193754 37.9464 -77.8555 2.32 BD _ _ _ _ _ SLU elocate 20111009_193754.txt
20111010_010453 37.9346 -77.9803 5.00 AA _ _ _ _ _ SLU elocate 20111010_010453.txt
20111010_083738 37.9590 -77.8042 2.26 BB _ _ _ _ _ SLU elocate 20111010_083738.txt
20111010_094607 37.9392 -77.9860 4.62 AA _ _ _ _ _ SLU elocate 20111010_094607.txt
20111012_083009 37.9727 -77.8288 0.69 BB _ _ _ _ _ SLU elocate 20111012_083009.txt
20111012_164000 37.9415 -77.9838 4.18 AA 3.02 200 20 65 WEB SLU elocate 20111012_164000.txt
20111013_145531 37.9506 -77.9649 6.13 AB _ _ _ _ _ SLU elocate 20111013_145531.txt
20111015_001541 37.9417 -77.9847 4.00 AA _ _ _ _ _ SLU elocate 20111015_001541.txt
20111015_161344 37.9516 -77.9771 3.30 AA _ _ _ _ _ SLU elocate 20111015_161344.txt
20111015_214147 37.9467 -77.9690 5.62 AB _ _ _ _ _ SLU elocate 20111015_214147.txt
20111016_024728 37.9495 -77.9648 5.57 AB _ _ _ _ _ SLU elocate 20111016_024728.txt
20111017_091358 37.9726 -77.8840 1.18 BB _ _ _ _ _ SLU elocate 20111017_091358.txt
20111017_091657 37.9719 -77.8823 0.02 AB _ _ _ _ _ SLU elocate 20111017_091657.txt
20111018_101425 37.9097 -77.9349 2.43 BC _ _ _ _ _ SLU elocate 20111018_101425.txt
20111018_212020 37.9533 -77.9715 5.02 AB _ _ _ _ _ SLU elocate 20111018_212020.txt
20111019_000244 37.9436 -77.9857 3.65 AA _ _ _ _ _ SLU elocate 20111019_000244.txt
20111019_061559 37.9132 -77.9940 4.74 AC _ _ _ _ _ SLU elocate 20111019_061559.txt
20111019_085818 37.9439 -77.9877 3.87 AA _ _ _ _ _ SLU elocate 20111019_085818.txt
20111021_183910 37.9529 -77.9738 4.45 AA _ _ _ _ _ SLU elocate 20111021_183910.txt
20111022_013621 37.9137 -77.9878 4.45 AC _ _ _ _ _ SLU elocate 20111022_013621.txt
20111022_045249 37.8831 -77.9655 5.26 AC _ _ _ _ _ SLU elocate 20111022_045249.txt
20111022_183805 37.9595 -77.7995 2.15 AC _ _ _ _ _ SLU elocate 20111022_183805.txt
20111023_103452 37.9358 -77.9842 4.53 AB _ _ _ _ _ SLU elocate 20111023_103452.txt
20111024_012426 37.9703 -77.8309 0.00 BC _ _ _ _ _ SLU elocate 20111024_012426.txt
20111024_055030 37.9497 -77.9633 5.53 AB _ _ _ _ _ SLU elocate 20111024_055030.txt
20111025_053827 37.9622 -77.9427 6.59 AB _ _ _ _ _ SLU elocate 20111025_053827.txt
20111025_124533 37.8833 -77.9683 5.83 AC _ _ _ _ _ SLU elocate 20111025_124533.txt
20111025_190224 37.9610 -77.8215 4.17 AD _ _ _ _ _ SLU elocate 20111025_190224.txt
20111026_073036 37.9268 -77.9843 4.80 AB _ _ _ _ _ SLU elocate 20111026_073036.txt
20111026_223657 37.9500 -77.9570 5.69 BB _ _ _ _ _ SLU elocate 20111026_223657.txt
20111027_122011 37.9627 -77.8021 2.22 AB _ _ _ _ _ SLU elocate 20111027_122011.txt
20111030_234804 37.9524 -77.9726 5.19 AA _ _ _ _ _ SLU elocate 20111030_234804.txt
20111031_102500 37.9603 -77.9979 2.77 AB _ _ _ _ _ SLU elocate 20111031_102500.txt
20111102_122845 37.9749 -77.8852 1.07 AB _ _ _ _ _ SLU elocate 20111102_122845.txt
20111102_164809 37.9532 -77.9664 5.51 AB _ _ _ _ _ SLU elocate 20111102_164809.txt
20111103_101113 37.9522 -77.9625 5.30 AB _ _ _ _ _ SLU elocate 20111103_101113.txt
20111103_125031 37.9512 -77.9634 5.56 AB _ _ _ _ _ SLU elocate 20111103_125031.txt
20111103_231954 37.9422 -77.9818 4.31 AB _ _ _ _ _ SLU elocate 20111103_231954.txt
20111104_144337 37.9448 -77.9866 4.06 AB _ _ _ _ _ SLU elocate 20111104_144337.txt
20111104_171722 37.9726 -77.8829 1.22 AB _ _ _ _ _ SLU elocate 20111104_171722.txt
20111106_150807 37.9438 -77.9852 3.91 AA _ _ _ _ _ SLU elocate 20111106_150807.txt
20111109_022441 37.9508 -77.9617 5.35 AB _ _ _ _ _ SLU elocate 20111109_022441.txt
20111112_163528 37.9511 -78.0467 0.00 AB _ _ _ _ _ SLU elocate 20111112_163528.txt
20111112_163858 37.9440 -77.9721 5.56 AB _ _ _ _ _ SLU elocate 20111112_163858.txt
20111112_184912 37.9362 -77.9835 4.33 AB _ _ _ _ _ SLU elocate 20111112_184912.txt
20111114_025631 37.9461 -77.9863 2.98 CB _ _ _ _ _ SLU elocate 20111114_025631.txt
20111114_190731 37.9351 -77.9551 5.29 AB _ _ _ _ _ SLU elocate 20111114_190731.txt
20111116_152348 37.9161 -77.9944 3.62 AC _ _ _ _ _ SLU elocate 20111116_152348.txt
20111117_043857 37.9401 -77.9838 4.59 AA _ _ _ _ _ SLU elocate 20111117_043857.txt
20111118_065351 37.9753 -77.9694 3.12 AA _ _ _ _ _ SLU elocate 20111118_065351.txt
20111119_201224 37.9462 -77.9865 2.72 AB _ _ _ _ _ SLU elocate 20111119_201224.txt
20111120_010637 37.9466 -77.9858 2.79 AB _ _ _ _ _ SLU elocate 20111120_010637.txt
20111120_060712 37.9442 -77.9887 3.16 AB _ _ _ _ _ SLU elocate 20111120_060712.txt
20111121_010622 37.9497 -77.9666 5.47 AA _ _ _ _ _ SLU elocate 20111121_010622.txt
20111121_011702 37.9495 -77.9647 5.80 AB _ _ _ _ _ SLU elocate 20111121_011702.txt
20111121_052525 37.9492 -78.1146 5.32 AD _ _ _ _ _ SLU elocate 20111121_052525.txt
20111122_130410 37.9532 -77.9434 1.69 AB _ _ _ _ _ SLU elocate 20111122_130410.txt
20111122_152248 37.9034 -77.9780 7.85 AC _ _ _ _ _ SLU elocate 20111122_152248.txt
20111123_070933 37.9470 -77.9860 2.96 AB _ _ _ _ _ SLU elocate 20111123_070933.txt
20111124_093552 37.9475 -77.9679 5.63 AB _ _ _ _ _ SLU elocate 20111124_093552.txt
20111124_121353 37.9518 -77.9717 5.20 AA _ _ _ _ _ SLU elocate 20111124_121353.txt
20111126_083151 37.9500 -77.9694 5.54 AA _ _ _ _ _ SLU elocate 20111126_083151.txt
20111126_093944 37.9194 -77.9952 3.68 AC _ _ _ _ _ SLU elocate 20111126_093944.txt
20111126_232013 37.9705 -77.9348 5.33 AA _ _ _ _ _ SLU elocate 20111126_232013.txt
20111127_042915 37.9445 -77.9758 4.62 AA _ _ _ _ _ SLU elocate 20111127_042915.txt
20111127_092643 37.9594 -77.9630 3.13 AA _ _ _ _ _ SLU elocate 20111127_092643.txt
20111129_121432 37.9740 -77.8880 0.85 AB _ _ _ _ _ SLU elocate 20111129_121432.txt
20111130_022924 37.9324 -77.9821 4.70 AB _ _ _ _ _ SLU elocate 20111130_022924.txt
20111202_093254 37.9433 -78.0153 0.64 BB _ _ _ _ _ SLU elocate 20111202_093254.txt
20111202_175642 37.9457 -77.9784 3.91 AA _ _ _ _ _ SLU elocate 20111202_175642.txt
20111203_005306 37.9227 -77.9838 5.17 AC _ _ _ _ _ SLU elocate 20111203_005306.txt
20111203_055231 37.9300 -77.9827 4.76 AB _ _ _ _ _ SLU elocate 20111203_055231.txt
20111203_081923 37.9738 -77.8844 0.32 AB _ _ _ _ _ SLU elocate 20111203_081923.txt
20111204_045722 37.9471 -77.9676 5.56 AB _ _ _ _ _ SLU elocate 20111204_045722.txt
20111204_061303 37.9454 -77.9727 5.35 AA _ _ _ _ _ SLU elocate 20111204_061303.txt
20111204_203015 37.9442 -77.9918 2.97 AB _ _ _ _ _ SLU elocate 20111204_203015.txt
20111205_054101 37.9585 -77.9976 1.44 AB _ _ _ _ _ SLU elocate 20111205_054101.txt
20111205_054128 37.9593 -77.9977 1.56 AA _ _ _ _ _ SLU elocate 20111205_054128.txt
20111205_055201 37.9590 -77.9985 1.66 AB _ _ _ _ _ SLU elocate 20111205_055201.txt
20111205_064953 37.9575 -77.9977 1.19 AB _ _ _ _ _ SLU elocate 20111205_064953.txt
20111205_091343 37.9587 -77.9984 1.51 AB _ _ _ _ _ SLU elocate 20111205_091343.txt
20111205_203144 37.9514 -77.9664 5.25 AA _ _ _ _ _ SLU elocate 20111205_203144.txt
20111206_005640 37.9602 -77.9964 1.46 AA _ _ _ _ _ SLU elocate 20111206_005640.txt
20111207_185609 37.9526 -77.9598 5.60 AA _ _ _ _ _ SLU elocate 20111207_185609.txt
20111207_202923 37.6979 -78.3503 0.68 BD _ _ _ _ _ SLU elocate 20111207_202923.txt
20111208_070241 37.9674 -77.8848 1.07 AB _ _ _ _ _ SLU elocate 20111208_070241.txt
20111208_184427 37.8640 -78.0094 0.00 BC _ _ _ _ _ SLU elocate 20111208_184427.txt
20111208_205450 37.9446 -77.9813 4.53 AA _ _ _ _ _ SLU elocate 20111208_205450.txt
20111209_070823 37.9488 -77.9614 5.47 AB _ _ _ _ _ SLU elocate 20111209_070823.txt
20111209_091317 37.9593 -77.9977 1.37 AB _ _ _ _ _ SLU elocate 20111209_091317.txt
20111209_221055 37.7801 -77.6364 15.37 AD _ _ _ _ _ SLU elocate 20111209_221055.txt
20111211_020037 37.9501 -77.9593 5.85 AB _ _ _ _ _ SLU elocate 20111211_020037.txt
20111211_024239 37.9584 -77.9984 1.63 AB _ _ _ _ _ SLU elocate 20111211_024239.txt
20111212_064747 37.9731 -77.8834 1.42 AA _ _ _ _ _ SLU elocate 20111212_064747.txt
20111212_065247 37.9723 -77.8821 0.34 AC _ _ _ _ _ SLU elocate 20111212_065247.txt
20111212_215700 37.9599 -77.9988 1.80 AA _ _ _ _ _ SLU elocate 20111212_215700.txt
20111214_014520 37.9588 -77.9968 0.87 AA _ _ _ _ _ SLU elocate 20111214_014520.txt
20111214_141731 37.9769 -77.8823 0.17 BA _ _ _ _ _ SLU elocate 20111214_141731.txt
20111214_195958 37.9582 -77.9983 1.43 AA _ _ _ _ _ SLU elocate 20111214_195958.txt
20111216_003636 37.9597 -77.9974 1.34 AB _ _ _ _ _ SLU elocate 20111216_003636.txt
20111217_034255 37.9493 -77.9657 5.64 AB _ _ _ _ _ SLU elocate 20111217_034255.txt
20111218_090844 37.9612 -78.0001 0.00 BB _ _ _ _ _ SLU elocate 20111218_090844.txt
20111219_113829 37.9441 -77.9819 4.51 AB _ _ _ _ _ SLU elocate 20111219_113829.txt
20111219_171837 37.9720 -77.8792 1.94 AD _ _ _ _ _ SLU elocate 20111219_171837.txt
20111221_201047 37.9614 -78.0004 2.07 AD _ _ _ _ _ SLU elocate 20111221_201047.txt
20111222_183231 37.9605 -77.9979 1.58 AB _ _ _ _ _ SLU elocate 20111222_183231.txt
20111223_035028 37.9611 -77.9986 1.63 AB _ _ _ _ _ SLU elocate 20111223_035028.txt
20111223_115626 37.9611 -77.9975 1.56 AA _ _ _ _ _ SLU elocate 20111223_115626.txt
20111224_020314 37.9356 -77.9851 4.36 AB _ _ _ _ _ SLU elocate 20111224_020314.txt
20111224_073005 37.9209 -77.9959 3.58 AB _ _ _ _ _ SLU elocate 20111224_073005.txt
20111224_164005 37.9492 -77.9691 5.10 AB _ _ _ _ _ SLU elocate 20111224_164005.txt
20111224_164554 37.9511 -77.9693 4.97 AB _ _ _ _ _ SLU elocate 20111224_164554.txt
20111225_101930 37.9605 -77.9966 1.46 AC _ _ _ _ _ SLU elocate 20111225_101930.txt
20111225_102034 37.9603 -77.9965 1.58 AC _ _ _ _ _ SLU elocate 20111225_102034.txt
20111226_140752 37.9592 -78.0012 1.43 AB _ _ _ _ _ SLU elocate 20111226_140752.txt
20111230_061713 37.9019 -77.9644 6.64 BC _ _ _ _ _ SLU elocate 20111230_061713.txt
20111230_193616 37.9597 -77.9989 0.74 AB _ _ _ _ _ SLU elocate 20111230_193616.txt
20120102_012237 37.9266 -77.9804 4.34 AC _ _ _ _ _ SLU elocate 20120102_012237.txt
20120102_095227 37.9399 -77.9889 4.06 AB _ _ _ _ _ SLU elocate 20120102_095227.txt
20120102_180725 37.9732 -78.0250 5.93 AC _ _ _ _ _ SLU elocate 20120102_180725.txt
20120103_222019 37.9578 -77.9956 1.02 BC _ _ _ _ _ SLU elocate 20120103_222019.txt
20120105_210501 37.9552 -77.9794 2.16 AA _ _ _ _ _ SLU elocate 20120105_210501.txt
20120107_055746 37.9315 -77.9963 4.05 AB _ _ _ _ _ SLU elocate 20120107_055746.txt
20120107_092054 37.9251 -77.9921 3.92 AB _ _ _ _ _ SLU elocate 20120107_092054.txt
20120108_142555 37.9266 -77.9845 4.53 AB _ _ _ _ _ SLU elocate 20120108_142555.txt
20120108_214142 37.9236 -77.9864 5.11 AC _ _ _ _ _ SLU elocate 20120108_214142.txt
20120110_130924 37.9425 -77.9840 4.14 AC _ _ _ _ _ SLU elocate 20120110_130924.txt
20120113_205306 37.9221 -77.9886 4.76 AC _ _ _ _ _ SLU elocate 20120113_205306.txt
20120113_231805 37.8918 -77.9770 5.66 AD _ _ _ _ _ SLU elocate 20120113_231805.txt
20120115_030258 37.9435 -77.9719 5.19 AB _ _ _ _ _ SLU elocate 20120115_030258.txt
20120115_230852 37.9650 -77.9706 4.42 AA _ _ _ _ _ SLU elocate 20120115_230852.txt
20120118_130829 37.9539 -77.9523 1.79 AA _ _ _ _ _ SLU elocate 20120118_130829.txt
20120118_141955 37.9126 -77.9894 4.69 AC _ _ _ _ _ SLU elocate 20120118_141955.txt
20120118_210321 37.9358 -77.9799 4.90 AA _ _ _ _ _ SLU elocate 20120118_210321.txt
20120122_024057 37.9516 -77.9755 3.39 AB _ _ _ _ _ SLU elocate 20120122_024057.txt
20120127_020839 37.9409 -77.9545 6.63 AB _ _ _ _ _ SLU elocate 20120127_020839.txt
20120127_191624 37.9576 -78.0043 0.41 AB _ _ _ _ _ SLU elocate 20120127_191624.txt
20120128_015753 37.9456 -77.9869 3.03 AB _ _ _ _ _ SLU elocate 20120128_015753.txt
20120130_233947 37.9484 -77.9805 1.98 AA _ _ _ _ _ SLU elocate 20120130_233947.txt
20120215_010954 38.0037 -77.9914 6.47 AB _ _ _ _ _ SLU elocate 20120215_010954.txt
20120216_085136 37.9707 -78.0178 6.86 AC _ _ _ _ _ SLU elocate 20120216_085136.txt
20120219_071230 37.9165 -77.9828 4.14 AB _ _ _ _ _ SLU elocate 20120219_071230.txt
20120224_113726 37.8683 -78.0016 1.02 BD _ _ _ _ _ SLU elocate 20120224_113726.txt
20120227_015904 37.7798 -77.5609 11.88 AD _ _ _ _ _ SLU elocate 20120227_015904.txt
20120228_051500 37.9198 -77.9960 3.68 AC _ _ _ _ _ SLU elocate 20120228_051500.txt
20120228_154849 37.9277 -77.9975 3.73 AD _ _ _ _ _ SLU elocate 20120228_154849.txt
20120306_160350 37.9117 -77.9808 6.61 AC _ _ _ _ _ SLU elocate 20120306_160350.txt
20120306_232131 37.9548 -77.9573 5.48 AB _ _ _ _ _ SLU elocate 20120306_232131.txt
20120307_080057 37.9583 -77.9915 2.81 AB _ _ _ _ _ SLU elocate 20120307_080057.txt
20120307_085233 37.9497 -77.9612 5.70 AB _ _ _ _ _ SLU elocate 20120307_085233.txt
20120308_054758 37.9613 -77.9896 1.86 BB _ _ _ _ _ SLU elocate 20120308_054758.txt
20120311_013814 37.9458 -77.9841 1.23 AC _ _ _ _ _ SLU elocate 20120311_013814.txt
20120316_183047 37.4876 -78.1683 5.10 BD _ _ _ _ _ SLU elocate 20120316_183047.txt
20120319_101509 37.9439 -77.9829 4.34 AB _ _ _ _ _ SLU elocate 20120319_101509.txt
20120319_154244 37.9528 -77.9478 6.54 BB _ _ _ _ _ SLU elocate 20120319_154244.txt
20120323_181421 37.6935 -78.3573 0.42 BD _ _ _ _ _ SLU elocate 20120323_181421.txt
20120326_032151 37.9090 -77.9813 7.43 AC 2.98 175 60 55 WEB SLU elocate 20120326_032151.txt
20120329_183822 37.9349 -77.9840 4.08 AB _ _ _ _ _ SLU elocate 20120329_183822.txt
20120330_114224 37.9408 -77.9645 5.95 AB _ _ _ _ _ SLU elocate 20120330_114224.txt
20120403_190054 37.9102 -77.9864 5.32 AC _ _ _ _ _ SLU elocate 20120403_190054.txt
20120412_041122 37.9622 -77.9908 1.24 AB _ _ _ _ _ SLU elocate 20120412_041122.txt
20120502_083635 37.9250 -77.9860 4.61 AC _ _ _ _ _ SLU elocate 20120502_083635.txt
If a Stk, Dip, Rake is given, the depth H and Mw are based on waveform
inversion. The other depths are from the location program and the magnitudes
are an ML.
