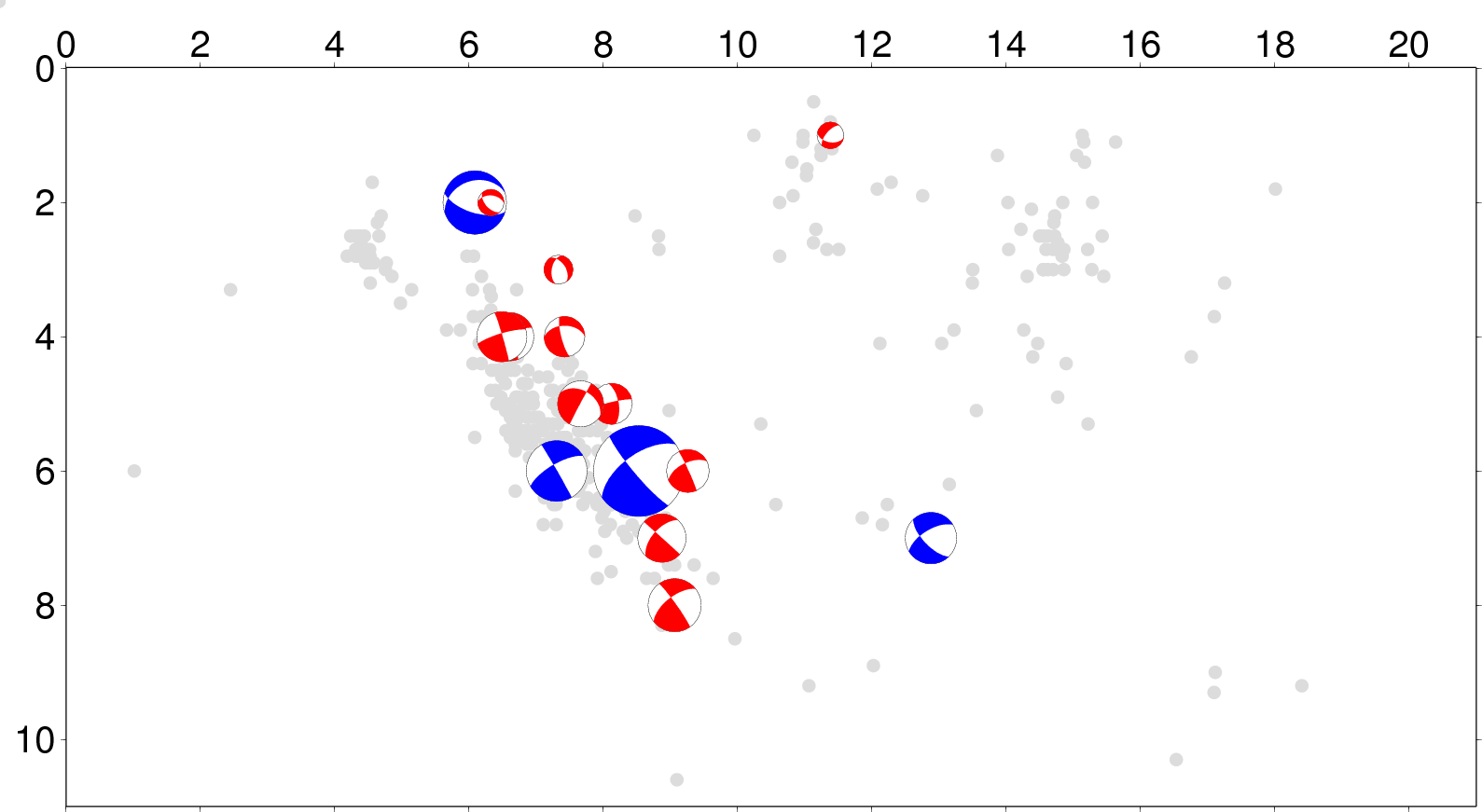

projection of McNamara et al (2013) relocations onto a vertical plane striking N120E. The moment tensor solutions are also plotted. The blue shaded beachballs are for the mainshock and first three aftershocks and were derived using the ANSS broadband network stations. The red shaded beachballs used the recordings of the aftershock monitoring.

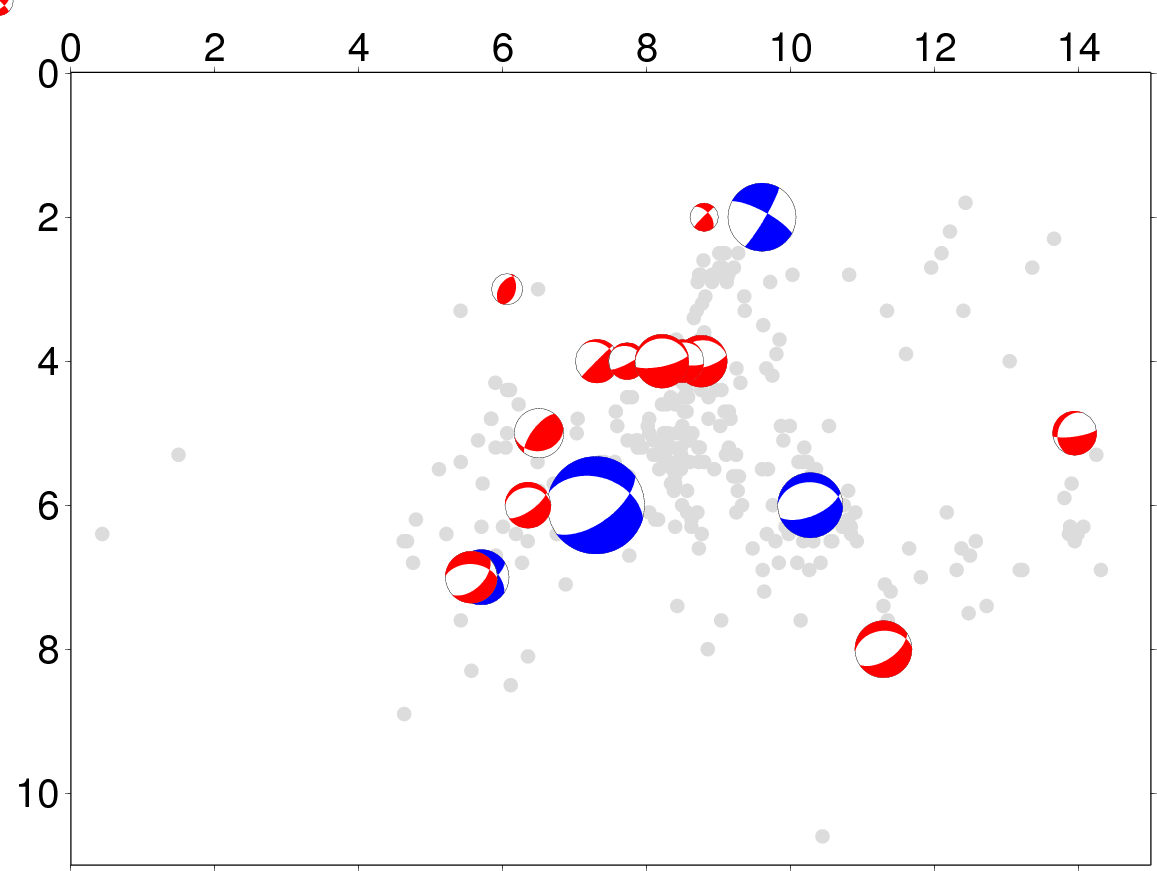

projection of McNamara et al (2013) relocations onto a vertical plane striking N30E. The moment tensor solutions are also plotted. The blue shaded beachballs are for the mainshock and first three aftershocks and were derived using the ANSS broadband network stations. The red shaded beachballs used the recordings of the aftershock monitoring.
