Introduction

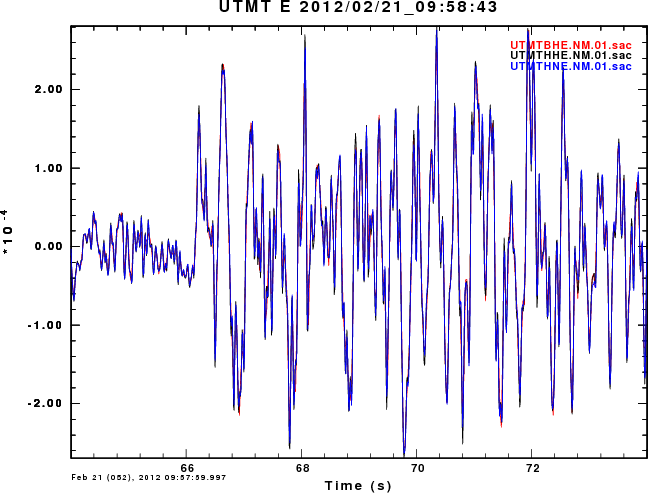

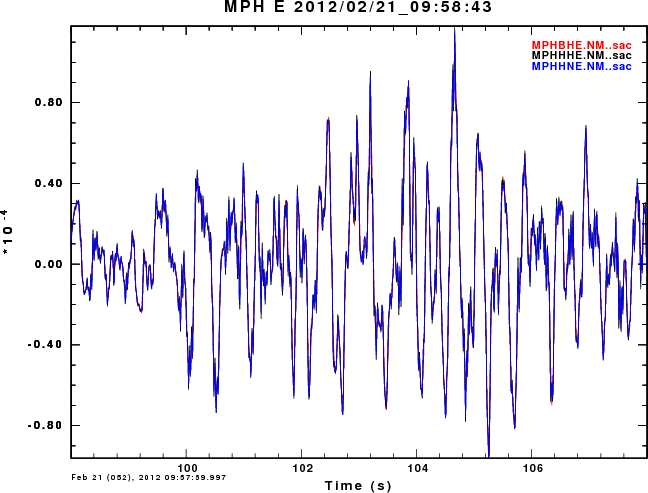

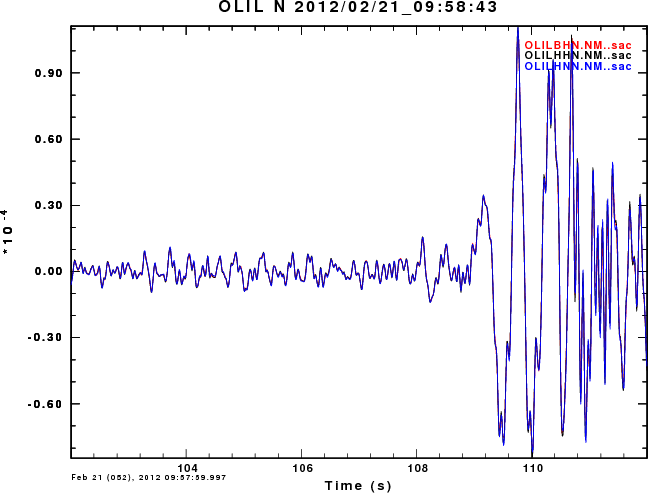

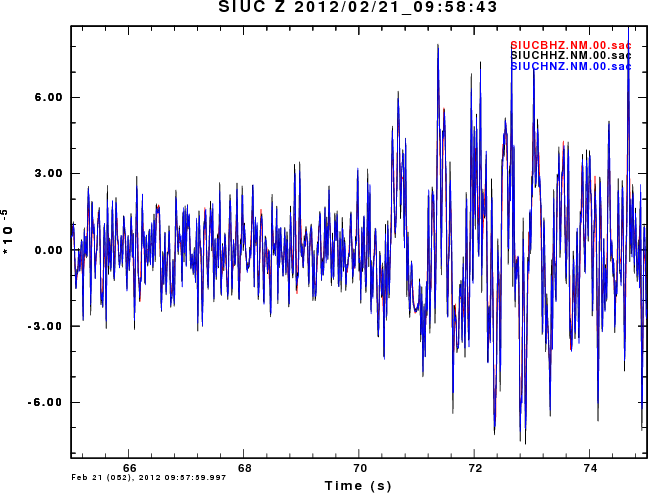

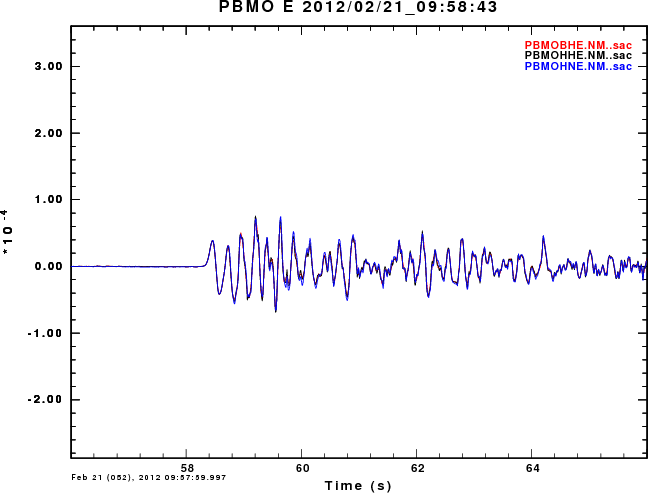

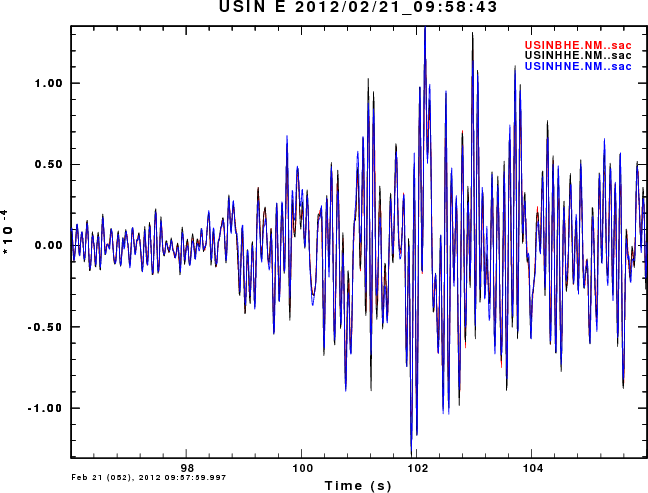

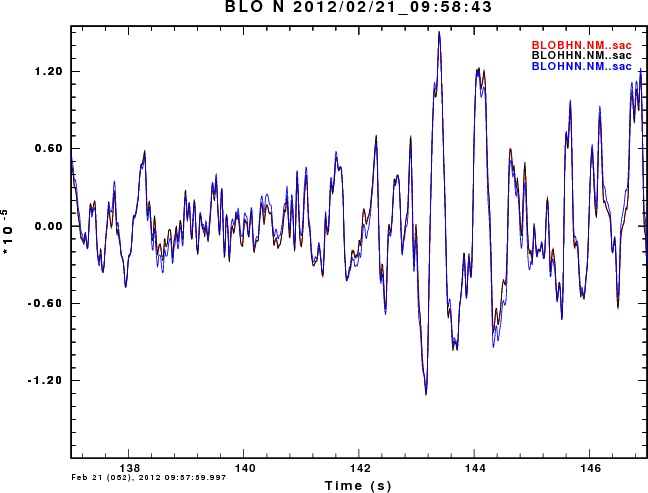

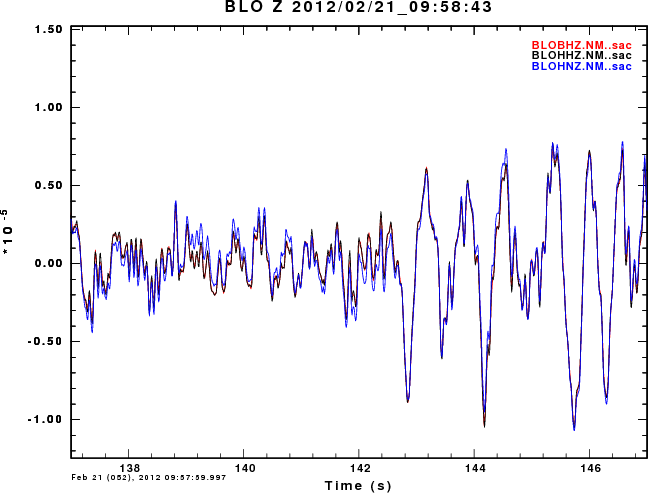

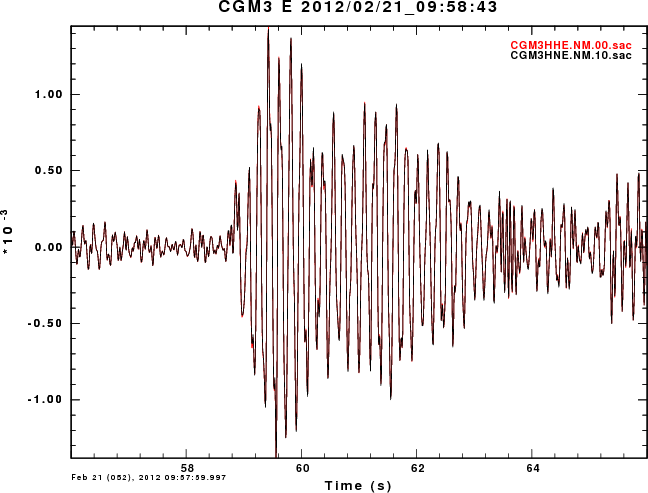

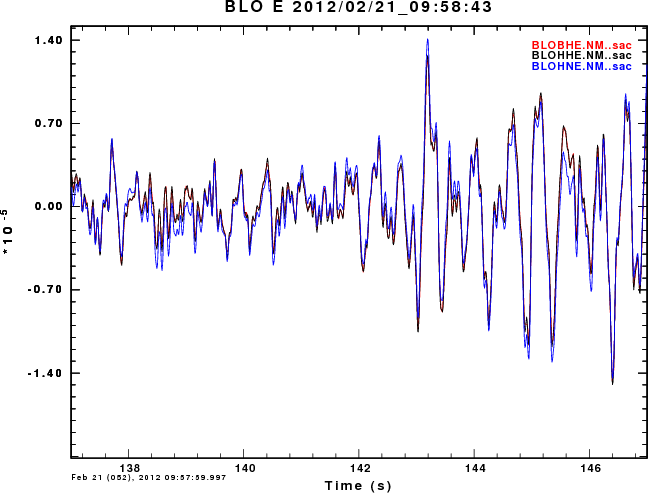

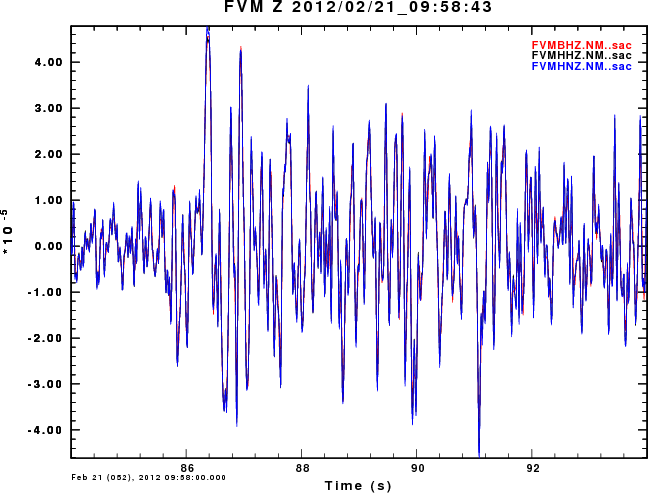

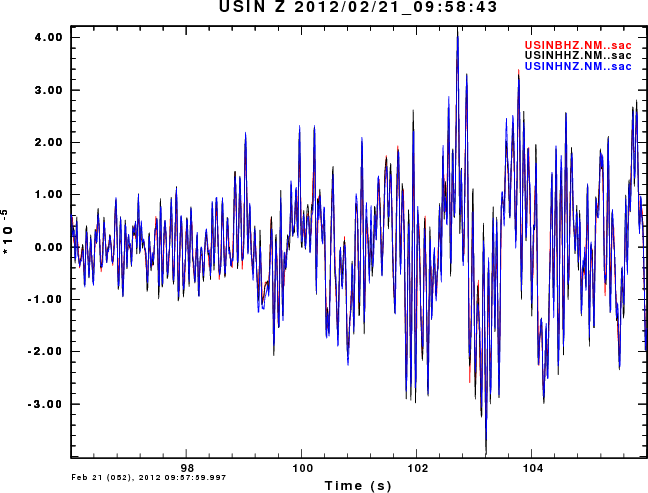

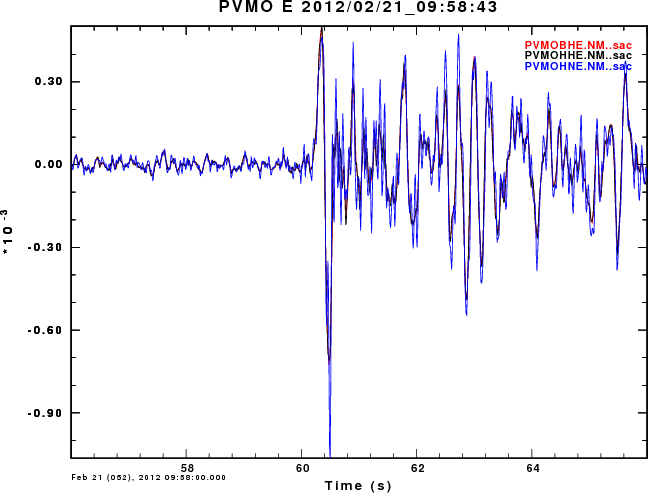

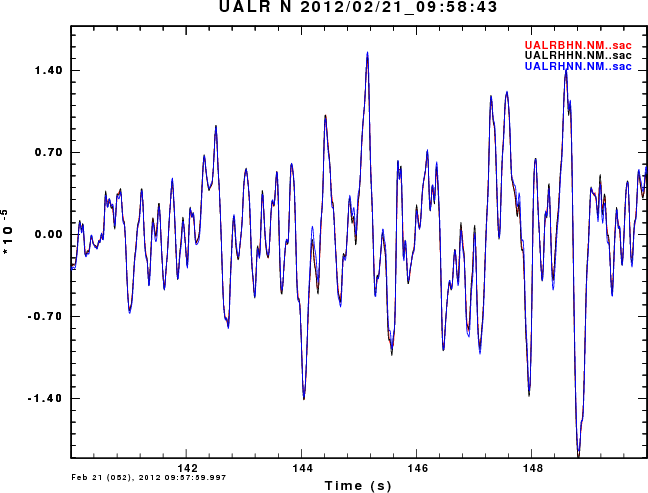

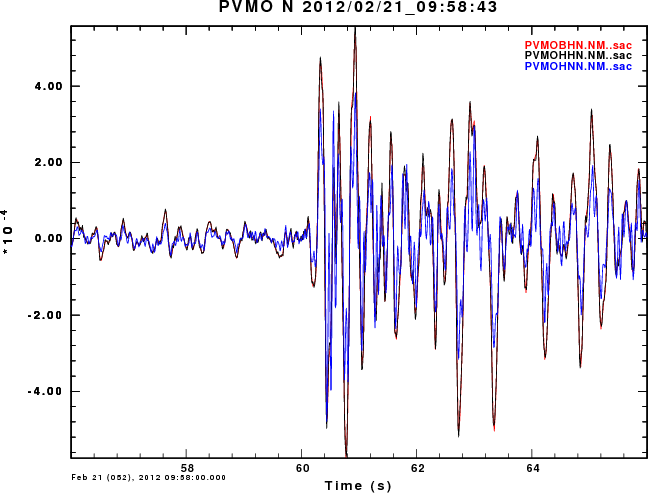

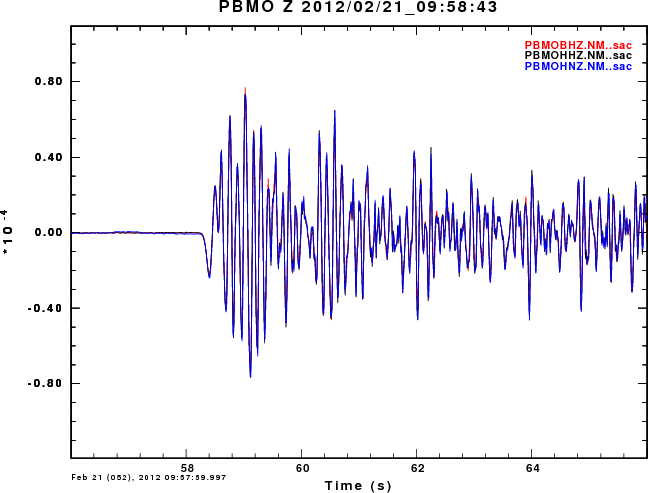

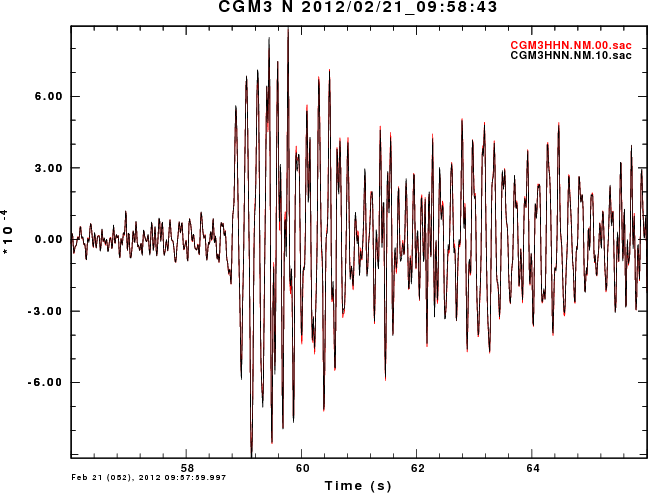

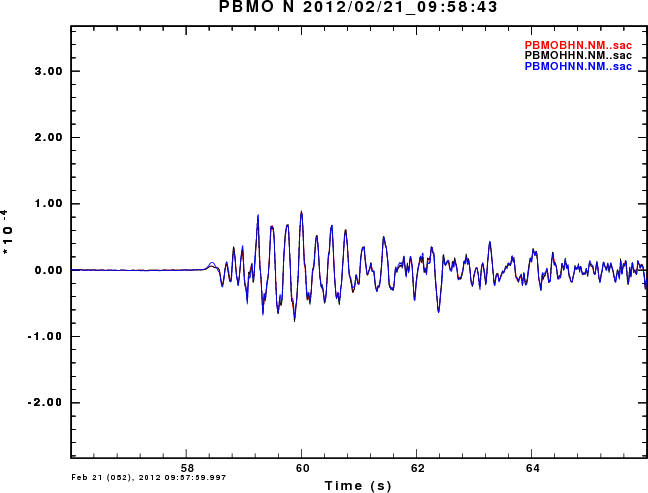

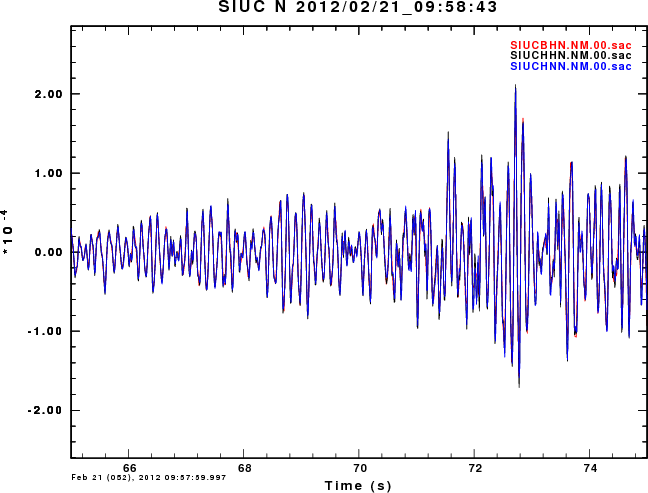

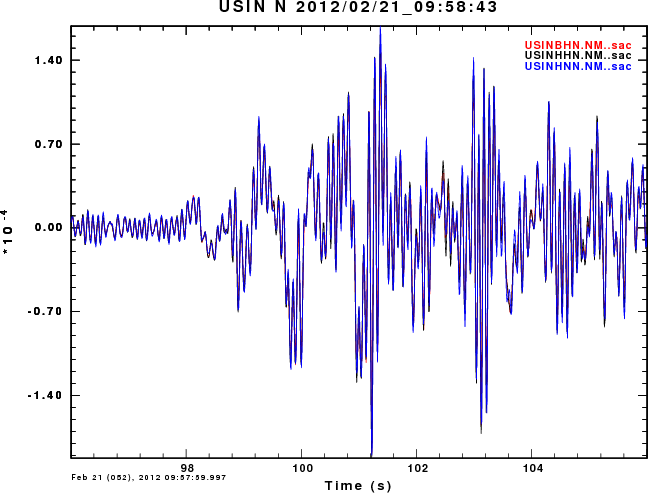

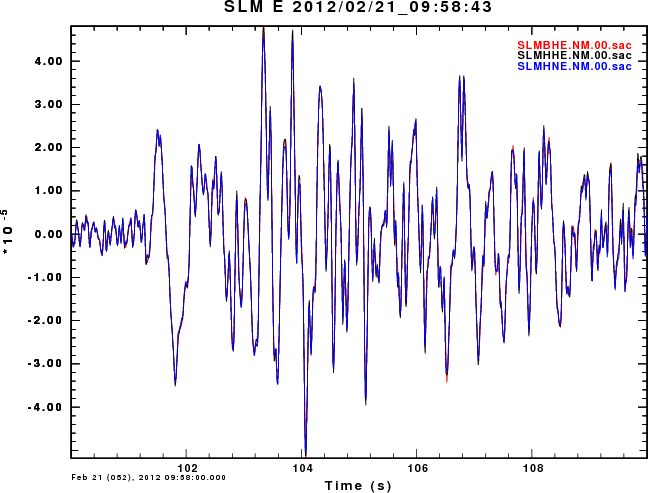

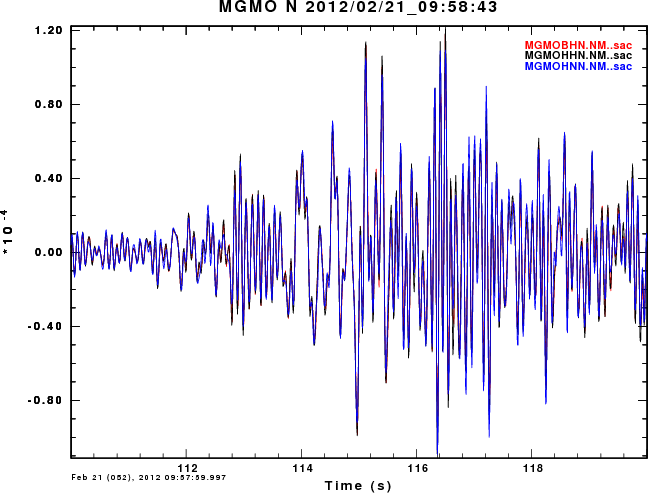

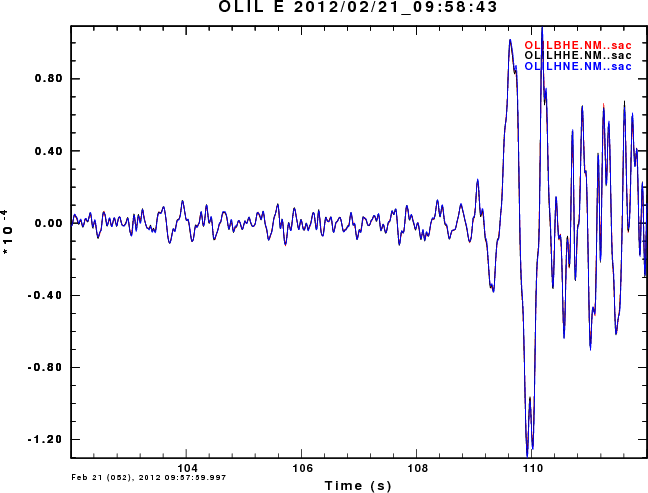

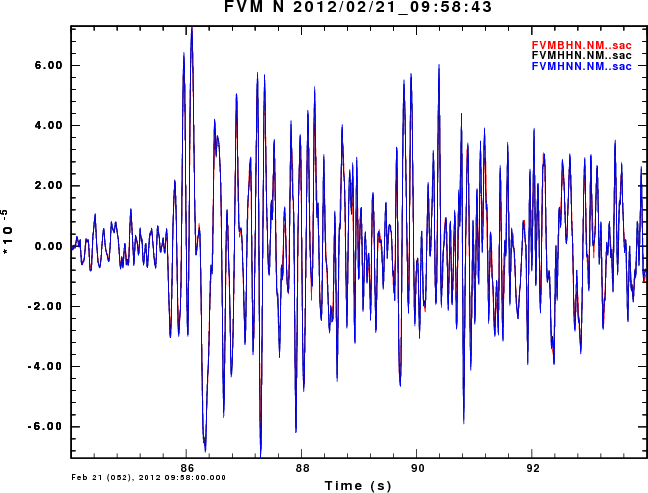

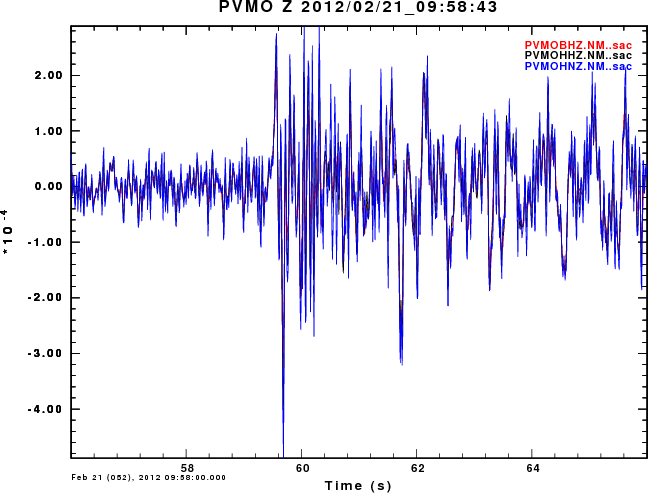

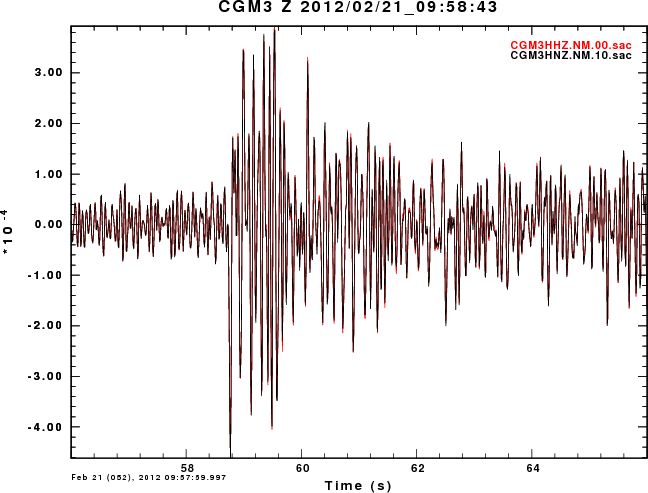

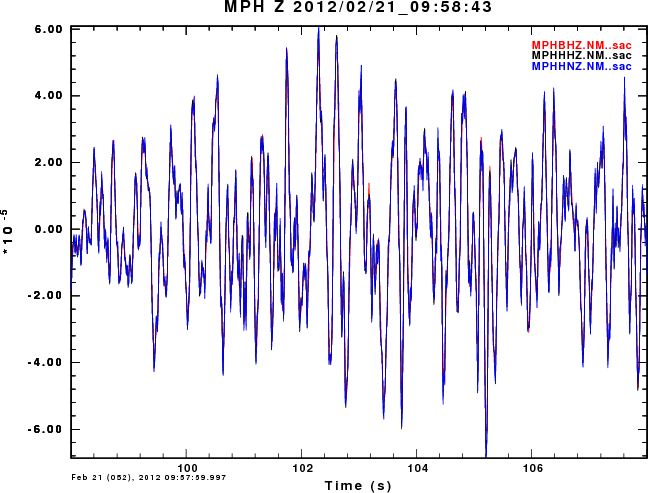

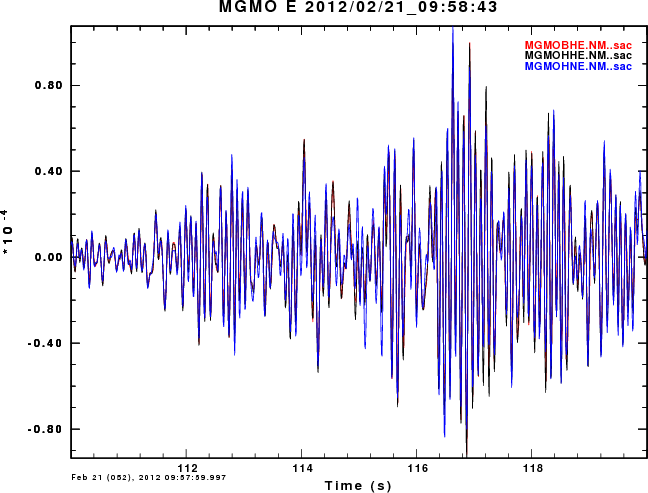

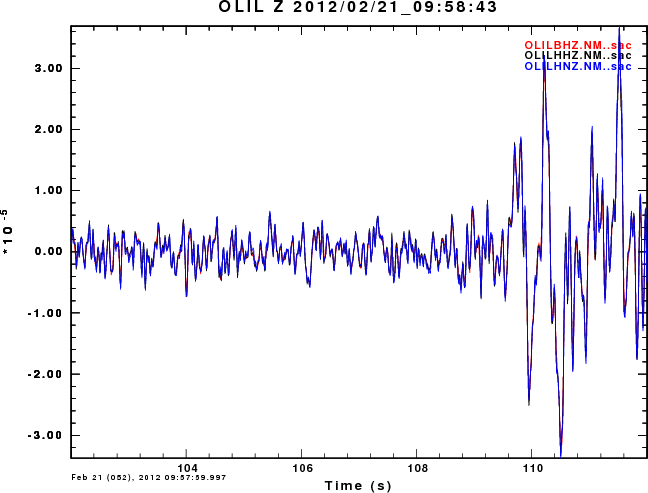

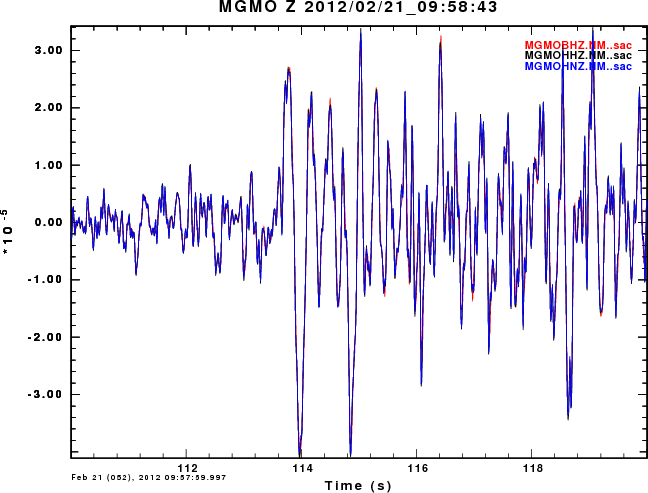

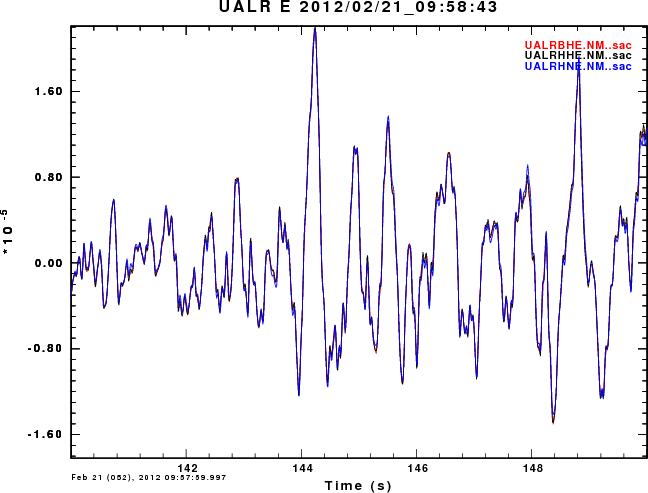

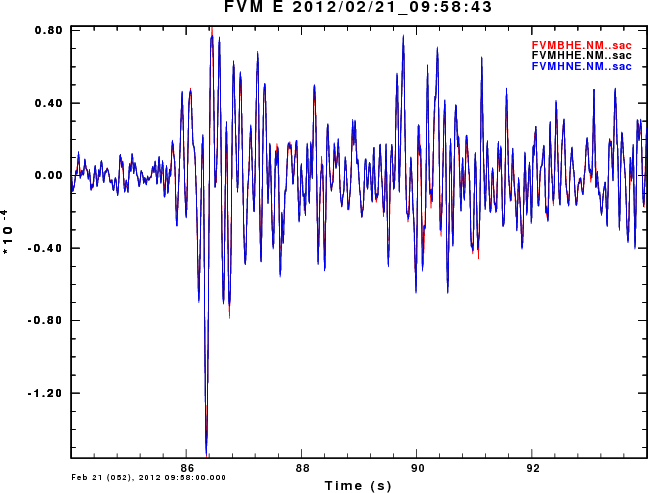

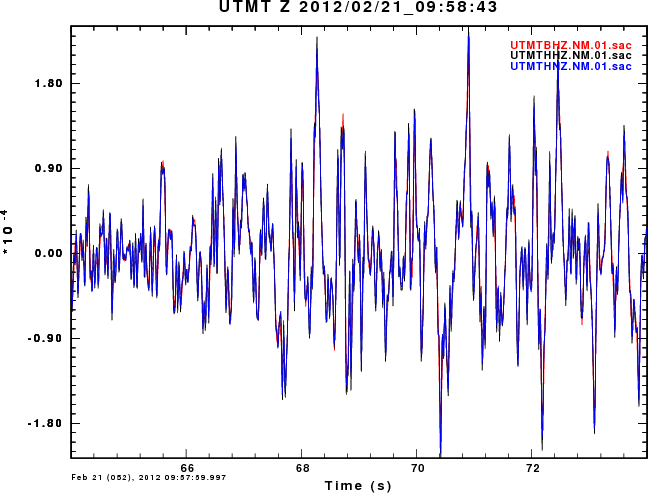

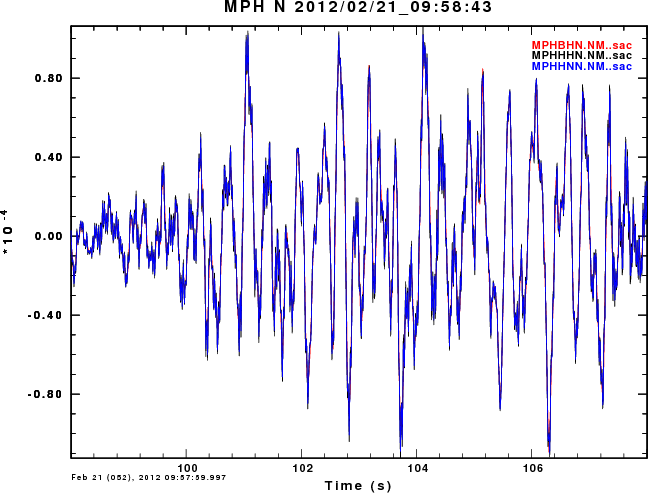

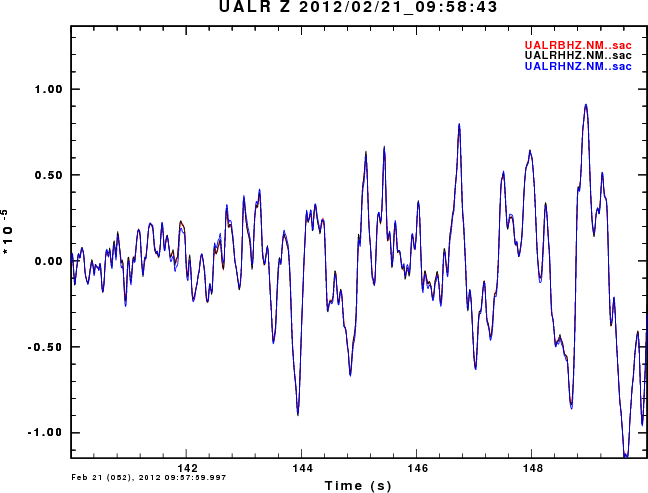

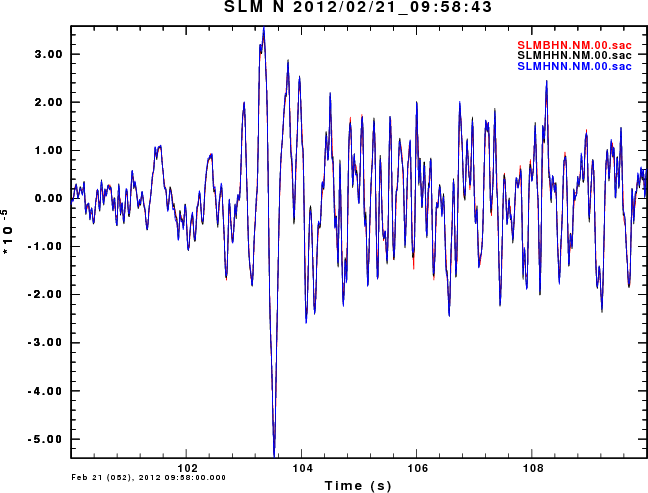

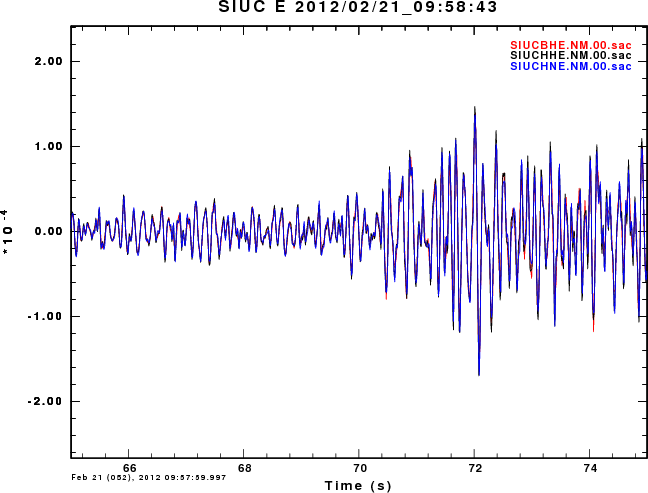

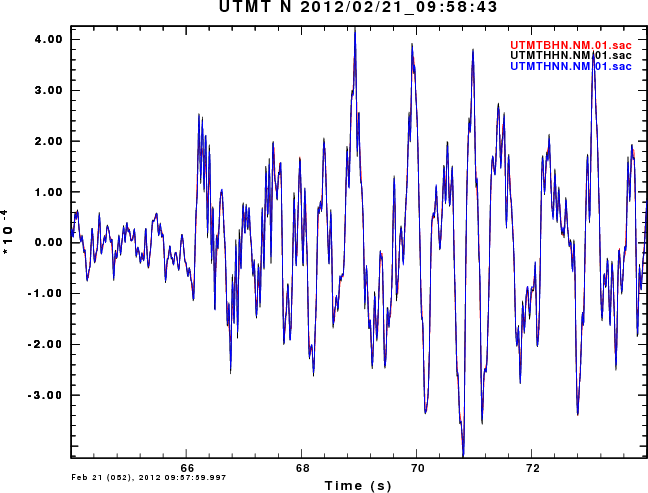

The following figures present deconvolved ground velocities of the S-wave arrivals for the
earthquake of 2012/02/21_09:58:43. The traces are filtered using the gsaccommand hp c 0.20 n 3 for presentation.
The purpose of the plots is two fold: first to check the metadata which describes the instrument responses, and second, to test the performance of the sensors. A lack of agreementment in any plot calls for a reexamination.
Comparisons
