Location

2011/10/23 15:24:31 38.478 43.243 14.8 4.80 Turkey

Arrival Times (from USGS)

Felt Map

Focal Mechanism

USGS/SLU Moment Tensor Solution ENS 2011/10/23 15:24:31:0 38.48 43.24 14.8 4.8 Turkey Stations used: KO.AGRB KO.BNGB KO.CUKT KO.ERZN KO.PTK KO.SVRC KO.VRTB Filtering commands used: hp c 0.02 n 3 lp c 0.05 n 3 Best Fitting Double Couple Mo = 1.41e+23 dyne-cm Mw = 4.70 Z = 18 km Plane Strike Dip Rake NP1 120 85 -30 NP2 213 60 -174 Principal Axes: Axis Value Plunge Azimuth T 1.41e+23 17 170 N 0.00e+00 60 291 P -1.41e+23 24 72 Moment Tensor: (dyne-cm) Component Value Mxx 1.15e+23 Mxy -5.56e+22 Mxz -5.49e+22 Myy -1.02e+23 Myz -4.40e+22 Mzz -1.23e+22 ############## ###################### ####################-------- ##################------------ #################----------------- ################-------------------- ----############---------------------- -------########------------------- --- ----------####-------------------- P --- ----------------------------------- ---- -------------####------------------------- ------------########---------------------- -----------############------------------- ---------#################-------------- ---------####################----------- --------########################------ ------#############################- -----############################# ---########################### --############# ########## ############ T ####### ######## ### Global CMT Convention Moment Tensor: R T P -1.23e+22 -5.49e+22 4.40e+22 -5.49e+22 1.15e+23 5.56e+22 4.40e+22 5.56e+22 -1.02e+23 Details of the solution is found at http://www.eas.slu.edu/Earthquake_Center/MECH.NA/20111023152431/index.html

Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion and first motion observations is

      STK = 120
      DIP = 85
     RAKE = -30
       MW = 4.70
       HS = 18.0

The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to others

SLU

USGS/SLU Moment Tensor Solution ENS 2011/10/23 15:24:31:0 38.48 43.24 14.8 4.8 Turkey Stations used: KO.AGRB KO.BNGB KO.CUKT KO.ERZN KO.PTK KO.SVRC KO.VRTB Filtering commands used: hp c 0.02 n 3 lp c 0.05 n 3 Best Fitting Double Couple Mo = 1.41e+23 dyne-cm Mw = 4.70 Z = 18 km Plane Strike Dip Rake NP1 120 85 -30 NP2 213 60 -174 Principal Axes: Axis Value Plunge Azimuth T 1.41e+23 17 170 N 0.00e+00 60 291 P -1.41e+23 24 72 Moment Tensor: (dyne-cm) Component Value Mxx 1.15e+23 Mxy -5.56e+22 Mxz -5.49e+22 Myy -1.02e+23 Myz -4.40e+22 Mzz -1.23e+22 ############## ###################### ####################-------- ##################------------ #################----------------- ################-------------------- ----############---------------------- -------########------------------- --- ----------####-------------------- P --- ----------------------------------- ---- -------------####------------------------- ------------########---------------------- -----------############------------------- ---------#################-------------- ---------####################----------- --------########################------ ------#############################- -----############################# ---########################### --############# ########## ############ T ####### ######## ### Global CMT Convention Moment Tensor: R T P -1.23e+22 -5.49e+22 4.40e+22 -5.49e+22 1.15e+23 5.56e+22 4.40e+22 5.56e+22 -1.02e+23 Details of the solution is found at http://www.eas.slu.edu/Earthquake_Center/MECH.NA/20111023152431/index.html

Waveform Inversion

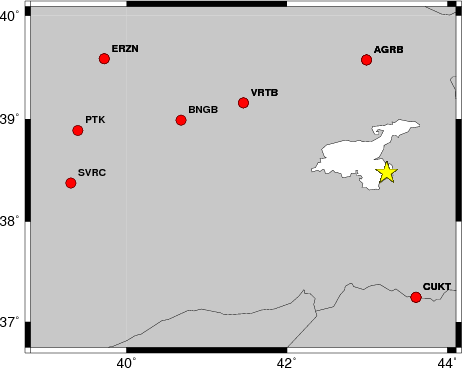

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

hp c 0.02 n 3
lp c 0.05 n 3

The results of this grid search from 0.5 to 19 km depth are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    0.5   215    35    30   4.32 0.1690
WVFGRD96    1.0   220    40    45   4.31 0.1822
WVFGRD96    2.0   220    30    40   4.45 0.2194
WVFGRD96    3.0   230    35    60   4.48 0.2574
WVFGRD96    4.0   230    40    60   4.52 0.2789
WVFGRD96    5.0   230    40    60   4.55 0.2801
WVFGRD96    6.0   220    50    35   4.55 0.2675
WVFGRD96    7.0   220    50    30   4.56 0.2578
WVFGRD96    8.0   225    45    45   4.61 0.2629
WVFGRD96    9.0   115    70   -35   4.62 0.2685
WVFGRD96   10.0   110    70   -45   4.63 0.2775
WVFGRD96   11.0   115    75   -40   4.64 0.2948
WVFGRD96   12.0   115    75   -40   4.65 0.3068
WVFGRD96   13.0   115    80   -35   4.65 0.3178
WVFGRD96   14.0   115    80   -35   4.66 0.3230
WVFGRD96   15.0   115    80   -35   4.67 0.3282
WVFGRD96   16.0   300    90    25   4.68 0.3265
WVFGRD96   17.0   300    90    25   4.69 0.3278
WVFGRD96   18.0   120    85   -30   4.70 0.3293
WVFGRD96   19.0   120    90   -25   4.70 0.3269
WVFGRD96   20.0   300    85    20   4.71 0.3242
WVFGRD96   21.0   300    85    20   4.72 0.3224
WVFGRD96   22.0   300    85    30   4.71 0.3181
WVFGRD96   23.0   300    85    30   4.72 0.3163
WVFGRD96   24.0   300    85    30   4.72 0.3129
WVFGRD96   25.0   300    85    30   4.73 0.3087
WVFGRD96   26.0   300    80    30   4.73 0.3053
WVFGRD96   27.0   300    80    30   4.74 0.3005
WVFGRD96   28.0   300    80    30   4.74 0.3009
WVFGRD96   29.0   300    80    30   4.75 0.2949

The best solution is

WVFGRD96   18.0   120    85   -30   4.70 0.3293

The mechanism correspond to the best fit is

Figure 1. Waveform inversion focal mechanism

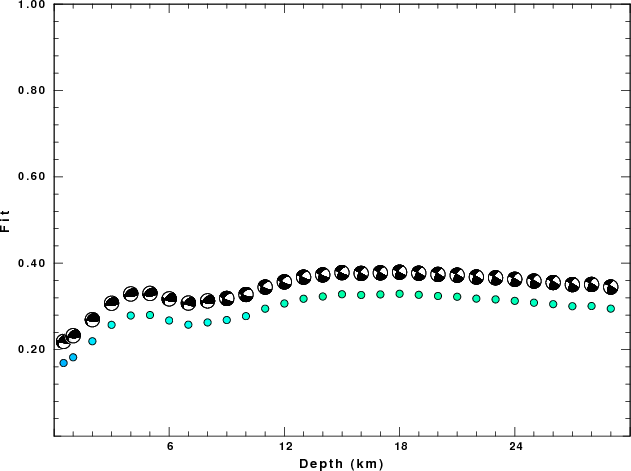

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

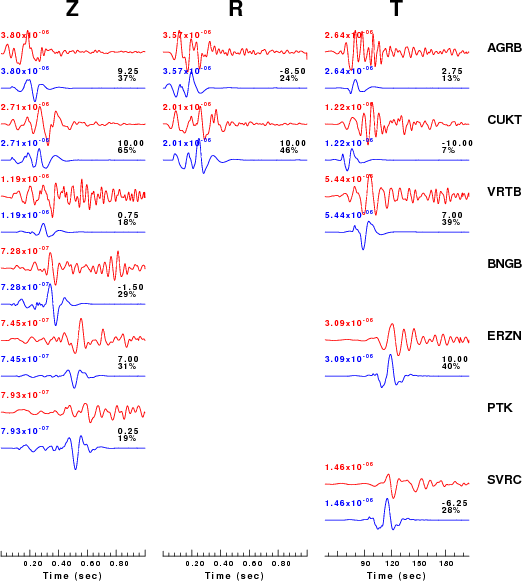

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

hp c 0.02 n 3
lp c 0.05 n 3

Figure 3. Waveform comparison for selected depth

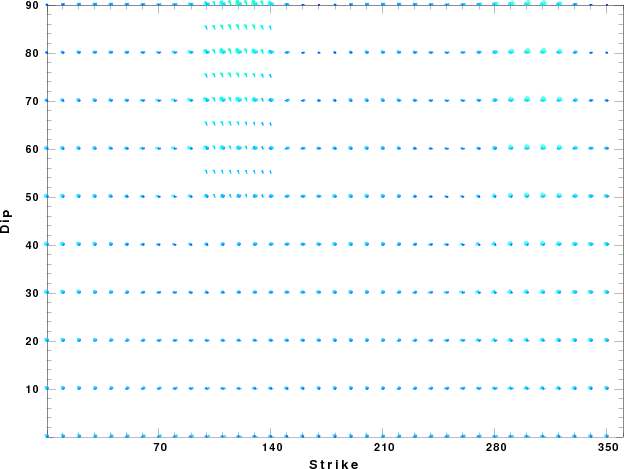

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

The origin time and epicentral distance are incorrect
The velocity model used for the inversion is incorrect
The velocity model used to define the P-arrival time is not the same as the velocity model used for the waveform inversion (assuming that the initial trace alignment is based on the P arrival time)

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

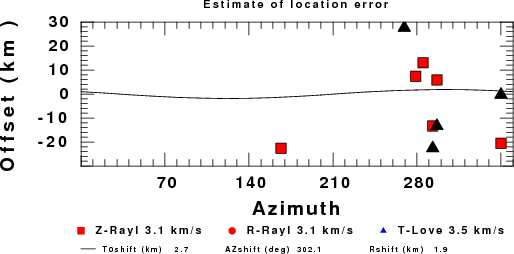

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Discussion

Velocity Model

The WUS used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00

Quality Control

Here we tabulate the reasons for not using certain digital data sets

The following stations did not have a valid response files:

DATE=Sun Oct 23 12:23:01 CDT 2011

Last Changed 2011/10/23
