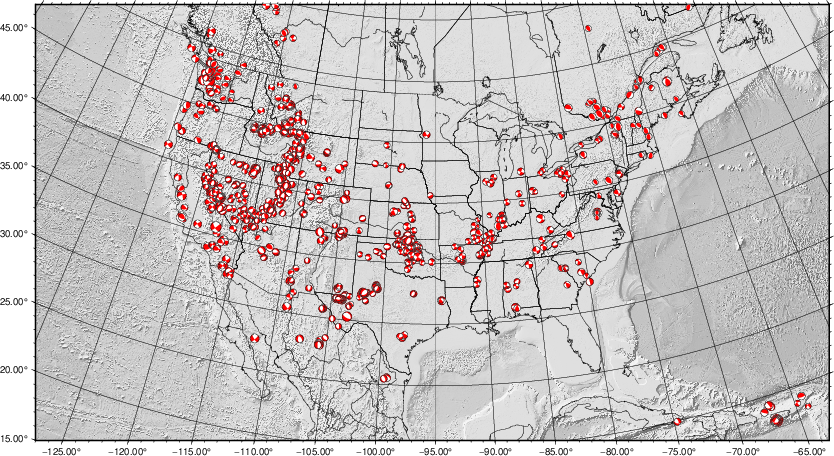

Moment tensors. The colored quadrant indicates compressional motion. The seismicity plot consists of all earthquakes with M greater than 3.0 in the ANSS catalog from 1993/01/01 to 2003/12/31
Orientation of tension axis onto the horizontal plane. The length and width indicate the degree that the axis is horizontal. A vertical axis has zero length in the plot. Red color indicates recent events. The seismicity plot consists of all earthquakes with M greater than 3.0 in the ANSS catalog from 1993/01/01 to 2003/12/31 .
Orientation of pressure axis onto the horizontal plane. The length and width indicate the degree that the axis is horizontal. A vertical axis has zero length in the plot. Red color indicates recent events. The seismicity plot consists of all earthquakes with M greater than 3.0 in the ANSS catalog from 1993/01/01 to 2003/12/31 .

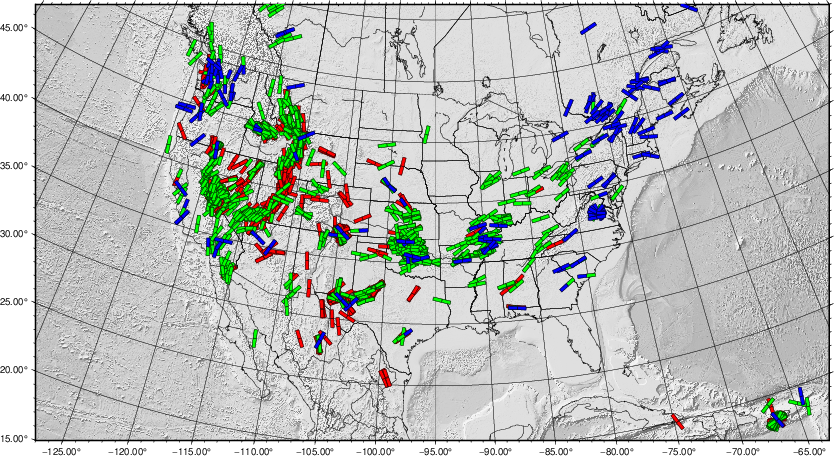

Orientation of maximum horizontal compressive stress following the convention of Zoback (1992) (Description of Stress Regime Assigment from WSM web page). Red indicates normal faulting, blue thrust faulting and green strike-slip faulting.

    P/S1-axis    B/S2-axis          T/S3-axis    Regime    SH-azimuth
      pl > 52                        pl < 35       NF      azim. of B-axis
 40 < pl < 52                        pl < 20       NS      azim. of T-axis +90
      pl < 40     pl > 45            pl < 20       SS      azim. of T-axis +90
      pl < 20     pl > 45            pl < 40       SS      azim. of P-axis
      pl < 20                   40 < pl < 52       TS      azim. of P-axis
      pl < 35                        pl > 52       TF      azim. of P-axis

Last Changed "Sun Apr 1 19:32:22 UTC 2018"
