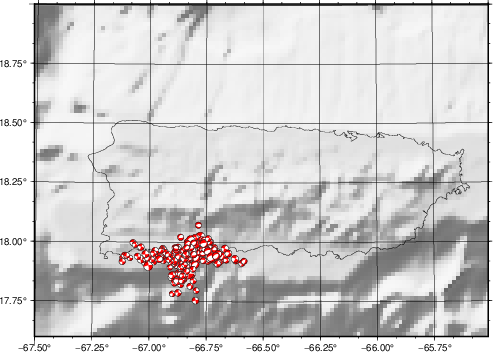

| Moment tensors. The colored quadrant indicates compressional motion. The seismicity plot consists of all earthquakes with M greater than 3.0 in the ANSS catalog from 1993/01/01 to 2003/12/31 |
 |

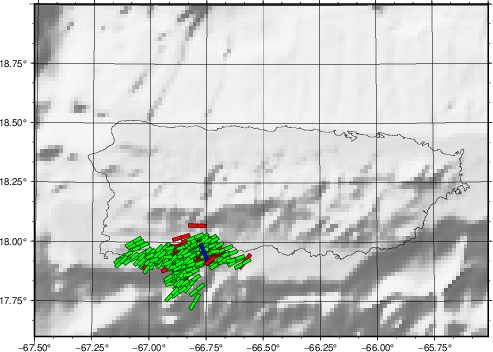

| Orientation of tension axis onto the horizontal plane. The length and width indicate the degree tha thte axis is horizontal. A vertical axis has zero length in the plot. Red color indicates recent events. |
 |
| Orientation of pressure axis onto the horizontal plane. The length and width indicate the degree tha thte axis is horizontal. A vertical axis has zero length in the plot. Red color indicates recent events. |
| Orientation of pressure axis onto the horizontal plane. The length and width indicate the degree that the axis is horizontal. A vertical axis has zero length in the plot. Red color indicates recent events. |
 |
Orientation of maximum horizontal compressive stress following the convention of Zoback (1992)
(Description of Stress Regime Assigment from WSM web page). Red indicates normal faulting, blue thrust faulting and green strike-slip faulting.
P/S1-axis B/S2-axis T/S3-axis Regime SH-azimuth
pl > 52 pl < 35 NF azim. of B-axis
40 < pl < 52 pl < 20 NS azim. of T-axis +90
pl < 40 pl > 45 pl < 20 SS azim. of T-axis +90
pl < 20 pl > 45 pl < 40 SS azim. of P-axis
pl < 20 40 < pl < 52 TS azim. of P-axis
pl < 35 pl > 52 TF azim. of P-axis
|
| Tabulation of events on this page |
20191228_223537 17.94 -66.87 7 4.64 115 90 5 WEB WUS SLU
20191228_233559 17.90 -66.85 7 3.63 105 85 10 WEB WUS SLU
20191229_000639 17.92 -66.84 7 3.90 290 85 -15 WEB WUS SLU
20191229_003401 17.93 -66.85 7 3.54 295 85 -10 WEB WUS SLU
20191229_010600 17.89 -66.86 5 4.84 290 80 -10 WEB WUS SLU
20191229_012114 17.93 -66.84 6 4.71 295 90 -15 WEB WUS SLU
20191229_054907 17.93 -66.86 5 3.63 290 75 -10 WEB WUS SLU
20191229_170350 17.90 -66.86 4 3.54 295 60 -5 WEB WUS SLU
20191231_110344 17.91 -66.89 6 3.64 285 80 -10 WEB WUS SLU
20191231_155910 17.92 -66.84 8 3.67 265 65 -30 WEB WUS SLU
20191231_220256 17.91 -66.89 7 3.65 290 80 -10 WEB WUS SLU
20191231_230742 17.92 -66.84 8 4.17 280 85 -30 WEB WUS SLU
20200101_105948 17.94 -66.84 7 3.72 295 90 -40 WEB WUS SLU
20200102_164940 17.84 -66.81 5 3.68 280 75 -5 WEB WUS SLU
20200102_204202 17.91 -66.83 8 4.49 285 80 -20 WEB WUS SLU
20200103_034115 17.90 -66.83 6 4.75 295 80 -10 WEB WUS SLU
20200103_165212 17.90 -66.80 5 3.62 300 75 -5 WEB WUS SLU
20200106_103218 17.87 -66.82 7 5.60 290 80 -10 WEB WUS SLU
20200106_145117 17.91 -66.80 5 4.56 245 50 -65 WEB WUS SLU
20200106_145819 17.91 -66.89 8 3.91 85 55 -15 WEB WUS SLU
20200106_213755 17.94 -66.83 9 4.34 115 60 0 WEB WUS SLU
20200107_082426 17.87 -66.83 15 6.22 95 85 0 WEB WUS SLU
20200107_101355 17.93 -66.72 5 3.94 255 60 -70 WEB WUS SLU
20200107_102811 17.95 -66.74 8 3.97 285 75 -30 WEB WUS SLU
20200107_111450 17.93 -66.78 8 4.16 260 60 -55 WEB WUS SLU
20200107_111843 18.02 -66.78 17 5.64 300 80 5 WEB WUS SLU
20200107_130022 17.97 -66.67 14 4.39 110 90 -15 WEB WUS SLU
20200107_140446 17.96 -66.78 14 4.17 80 60 -65 WEB WUS SLU
20200107_143935 17.94 -66.70 4 3.92 245 55 -85 WEB WUS SLU
20200107_155512 18.01 -66.77 12 4.00 75 60 -45 WEB WUS SLU
20200107_162706 17.96 -66.83 10 4.37 255 70 -55 WEB WUS SLU
20200107_184346 17.93 -66.89 9 4.16 95 60 0 WEB WUS SLU
20200107_203259 17.92 -66.71 7 3.95 260 70 -60 WEB WUS SLU
20200108_005949 17.95 -66.94 11 3.88 260 85 -10 WEB WUS SLU
20200108_035248 17.99 -66.83 14 3.60 285 45 -55 WEB WUS SLU
20200108_091957 17.94 -66.70 3 3.85 90 30 -45 WEB WUS SLU
20200108_124122 17.83 -66.89 13 3.81 115 60 -25 WEB WUS SLU
20200108_154542 17.98 -66.78 12 3.97 135 15 -60 WEB WUS SLU
20200108_184414 17.92 -66.94 11 4.10 265 80 -10 WEB WUS SLU
20200108_200418 17.91 -66.70 9 4.47 280 70 -15 WEB WUS SLU
20200109_050313 18.00 -66.83 16 4.09 90 50 -55 WEB WUS SLU
20200109_054218 17.94 -66.94 11 3.74 260 80 -15 WEB WUS SLU
20200109_112441 17.96 -66.95 7 3.92 295 90 -25 WEB WUS SLU
20200109_201123 17.93 -66.68 6 3.79 285 65 -20 WEB WUS SLU
20200110_021152 17.92 -66.62 8 3.53 290 60 0 WEB WUS SLU
20200110_080528 17.94 -66.68 6 4.16 280 65 -25 WEB WUS SLU
20200110_084111 17.94 -66.87 11 3.89 115 65 -15 WEB WUS SLU
20200110_174430 17.96 -66.95 11 3.57 270 80 -20 WEB WUS SLU
20200110_214425 17.95 -66.88 11 3.52 110 65 -50 WEB WUS SLU
20200110_222625 17.93 -66.88 12 5.11 95 60 -55 WEB WUS SLU
20200111_015108 17.98 -66.89 11 3.44 110 60 -30 WEB WUS SLU
20200111_022821 17.99 -66.80 5 4.64 290 60 -20 WEB WUS SLU
20200111_040858 17.95 -66.74 8 4.37 100 75 -25 WEB WUS SLU
20200111_072528 17.93 -66.83 14 3.95 115 70 20 WEB WUS SLU
20200111_072841 17.94 -66.82 15 3.87 120 70 15 WEB WUS SLU
20200111_085951 17.96 -66.94 12 3.96 265 85 -20 WEB WUS SLU
20200111_111453 17.93 -66.84 12 3.66 115 75 -10 WEB WUS SLU
20200111_125444 17.95 -66.85 21 5.95 90 40 -60 WEB WUS SLU
20200111_154117 17.97 -66.84 16 3.88 75 90 -5 WEB WUS SLU
20200111_183255 18.02 -66.80 23 3.93 290 70 -20 WEB WUS SLU
20200111_234938 17.94 -66.84 14 4.53 100 75 -5 WEB WUS SLU
20200112_010005 17.94 -66.85 16 3.68 280 55 -40 WEB WUS SLU
20200112_022832 17.94 -66.83 14 3.89 105 85 -15 WEB WUS SLU
20200112_075957 17.96 -66.89 12 4.51 60 50 -80 WEB WUS SLU
20200112_105500 17.90 -66.88 14 4.20 275 55 -45 WEB WUS SLU
20200112_210102 17.94 -66.81 9 3.63 100 55 0 WEB WUS SLU
20200112_211014 17.94 -66.81 10 4.06 105 65 20 WEB WUS SLU
20200112_230227 17.84 -66.85 6 3.71 255 65 -45 WEB WUS SLU
20200112_233343 18.00 -67.07 7 3.69 280 70 -25 WEB WUS SLU
20200113_025230 17.97 -66.72 15 4.13 270 75 5 WEB WUS SLU
20200113_030520 17.96 -66.81 14 4.48 110 80 -5 WEB WUS SLU
20200113_070738 17.93 -66.83 12 3.49 105 75 20 WEB WUS SLU
20200113_100129 17.97 -66.74 10 4.02 300 65 -45 WEB WUS SLU
20200113_125802 17.93 -66.89 7 3.77 285 80 -5 WEB WUS SLU
20200113_140322 17.94 -66.71 6 3.55 175 60 -55 WEB WUS SLU
20200113_161911 17.75 -66.80 11 3.98 255 85 -5 WEB WUS SLU
20200113_170630 17.95 -66.84 13 3.88 100 80 -10 WEB WUS SLU
20200113_204640 17.94 -67.00 8 4.25 80 85 -15 WEB WUS SLU
20200113_210025 17.82 -66.82 15 3.67 255 70 -35 WEB WUS SLU
20200114_013118 17.82 -66.86 9 3.54 285 80 10 WEB WUS SLU
20200114_014053 17.91 -66.84 16 3.85 295 65 25 WEB WUS SLU
20200114_080704 17.93 -66.71 5 3.81 250 70 -75 WEB WUS SLU
20200114_122641 17.86 -66.87 13 4.78 290 90 -15 WEB WUS SLU
20200114_140218 17.94 -66.87 10 3.77 260 65 -30 WEB WUS SLU
20200114_144809 17.93 -67.02 8 4.04 260 70 30 WEB WUS SLU
20200114_160353 17.80 -66.79 15 3.56 95 80 -10 WEB WUS SLU
20200114_164419 17.89 -66.86 13 4.00 120 90 20 WEB WUS SLU
20200114_222743 17.86 -66.85 17 4.24 285 90 -10 WEB WUS SLU
20200115_081448 18.00 -66.74 5 3.41 105 65 -40 WEB WUS SLU
20200115_153624 17.92 -67.02 8 4.87 75 85 -20 WEB WUS SLU
20200115_191249 17.93 -66.95 9 3.62 100 70 10 WEB WUS SLU
20200115_194947 17.93 -66.97 4 3.96 240 55 -50 WEB WUS SLU
20200115_200040 17.96 -66.94 12 3.84 270 85 -15 WEB WUS SLU
20200115_200630 17.97 -66.94 11 3.61 270 75 -20 WEB WUS SLU
20200115_202753 17.93 -66.96 8 3.95 105 60 -10 WEB WUS SLU
20200115_210805 17.95 -66.83 12 3.65 105 80 10 WEB WUS SLU
20200115_214110 17.90 -66.86 15 3.60 100 40 -45 WEB WUS SLU
20200116_025123 17.93 -67.04 6 4.33 85 80 -5 WEB WUS SLU
20200116_130957 17.92 -66.85 13 3.70 95 55 -75 WEB WUS SLU
20200116_135300 17.91 -66.85 13 3.51 110 65 0 WEB WUS SLU
20200116_192414 17.96 -66.76 10 3.54 55 80 75 WEB WUS SLU
20200116_205847 18.01 -66.76 13 4.06 85 65 -70 WEB WUS SLU
20200116_211519 17.94 -66.94 8 4.20 105 70 -5 WEB WUS SLU
20200116_231828 17.98 -66.83 13 3.45 100 70 5 WEB WUS SLU
20200116_233839 17.98 -66.71 9 3.76 275 55 -40 WEB WUS SLU
20200117_001856 17.89 -66.91 14 3.21 105 65 -35 WEB WUS SLU
20200117_064736 17.92 -66.74 8 3.56 260 45 -70 WEB WUS SLU
20200117_082553 17.92 -66.85 16 3.66 270 65 -45 WEB WUS SLU
20200117_103259 17.93 -66.79 8 4.18 235 40 -80 WEB WUS SLU
20200117_125217 17.98 -67.04 9 3.76 290 75 -5 WEB WUS SLU
20200117_173052 17.93 -66.73 9 3.79 250 40 -75 WEB WUS SLU
20200117_194007 17.91 -66.85 18 3.33 270 90 -5 WEB WUS SLU
20200117_194812 18.00 -66.76 13 3.73 100 70 -45 WEB WUS SLU
20200117_220235 17.97 -66.77 12 4.01 220 45 -75 WEB WUS SLU
20200118_065912 18.00 -66.74 8 4.04 105 85 -20 WEB WUS SLU
20200118_083406 17.93 -66.91 10 3.45 105 50 -30 WEB WUS SLU
20200118_084435 17.98 -66.74 7 3.89 110 85 -30 WEB WUS SLU
20200118_084716 17.94 -66.90 7 3.15 125 50 -25 WEB WUS SLU
20200118_165659 17.92 -66.84 14 3.77 105 70 -5 WEB WUS SLU
20200118_214720 17.93 -66.90 11 3.73 275 75 -15 WEB WUS SLU
20200119_000555 17.96 -66.94 8 4.43 100 90 25 WEB WUS SLU
20200119_005358 17.94 -66.94 8 4.02 95 85 35 WEB WUS SLU
20200119_030659 17.95 -66.77 10 3.68 80 40 -85 WEB WUS SLU
20200119_155219 17.94 -66.98 3 3.85 270 70 -10 WEB WUS SLU
20200119_184504 17.95 -66.73 8 3.85 275 40 -35 WEB WUS SLU
20200120_012606 18.01 -66.74 17 3.89 295 80 15 WEB WUS SLU
20200120_052619 17.98 -66.74 5 4.44 95 65 -50 WEB WUS SLU
20200120_071104 17.96 -66.73 5 3.79 110 70 -55 WEB WUS SLU
20200120_093636 17.98 -66.75 4 4.29 250 45 -75 WEB WUS SLU
20200120_095621 17.97 -66.75 5 4.01 265 30 -65 WEB WUS SLU
20200120_151454 17.96 -66.74 11 4.37 255 60 -65 WEB WUS SLU
20200120_200005 17.93 -66.72 8 3.63 275 40 -40 WEB WUS SLU
20200121_020759 18.00 -66.73 14 3.71 280 55 -25 WEB WUS SLU
20200121_052808 18.00 -66.73 16 3.63 280 60 -20 WEB WUS SLU
20200122_093709 17.97 -66.94 12 3.89 265 75 -30 WEB WUS SLU
20200123_074803 17.90 -66.84 13 3.87 115 80 5 WEB WUS SLU
20200123_143356 17.89 -66.81 10 3.55 110 55 5 WEB WUS SLU
20200125_103220 17.94 -66.93 12 3.66 280 75 -15 WEB WUS SLU
20200125_141739 17.95 -66.81 11 3.85 85 65 -50 WEB WUS SLU
20200125_202038 18.01 -66.82 17 4.70 95 50 -60 WEB WUS SLU
20200126_171907 17.97 -66.84 15 3.78 250 80 5 WEB WUS SLU
20200127_052039 17.93 -66.62 8 4.34 295 75 -10 WEB WUS SLU
20200127_055746 17.87 -66.86 4 3.90 265 75 -20 WEB WUS SLU
20200127_065323 17.95 -66.65 5 4.08 290 60 -20 WEB WUS SLU
20200128_001648 17.91 -66.69 9 3.75 290 25 -30 WEB WUS SLU
20200128_103841 17.84 -66.86 8 3.86 265 75 -20 WEB WUS SLU
20200201_100548 17.91 -66.86 14 3.78 120 70 5 WEB WUS SLU
20200202_031856 17.99 -67.06 8 3.46 290 70 -10 WEB WUS SLU
20200203_003318 17.91 -66.70 8 3.92 100 80 -10 WEB WUS SLU
20200203_050213 17.92 -66.85 16 3.74 255 50 -70 WEB WUS SLU
20200204_144555 17.84 -66.88 14 4.91 285 70 -20 WEB WUS SLU
20200204_151211 17.84 -66.86 13 3.83 270 80 -30 WEB WUS SLU
20200204_172927 17.86 -66.88 13 4.08 275 90 -15 WEB WUS SLU
20200204_195316 17.87 -66.87 12 4.15 90 40 -65 WEB WUS SLU
20200204_200004 17.86 -66.87 12 3.59 80 50 -65 WEB WUS SLU
20200208_100939 17.79 -66.87 12 3.95 280 80 -5 WEB WUS SLU
20200211_015808 17.92 -66.98 11 3.43 250 80 25 WEB WUS SLU
20200211_072652 17.96 -66.95 13 3.52 105 75 -10 WEB WUS SLU
20200211_213114 17.93 -66.95 12 3.58 265 65 -20 WEB WUS SLU
20200211_220908 17.95 -66.95 14 3.26 275 85 -25 WEB WUS SLU
20200212_044840 18.02 -66.86 15 3.72 90 65 -55 WEB WUS SLU
20200212_044942 17.98 -66.87 15 4.03 90 55 -50 WEB WUS SLU
20200213_001317 17.97 -66.88 15 3.57 100 60 -45 WEB WUS SLU
20200217_111804 17.92 -66.90 11 3.52 80 65 -15 WEB WUS SLU
20200219_010354 17.93 -67.02 8 3.25 90 80 -5 WEB WUS SLU
20200221_184656 17.91 -67.00 6 3.67 85 45 -40 WEB WUS SLU
20200223_160846 17.78 -66.90 12 3.42 265 70 -20 WEB WUS SLU
20200224_213015 17.88 -66.84 13 3.48 85 55 -20 WEB WUS SLU
20200228_170525 18.00 -66.81 15 3.60 245 55 -80 WEB WUS SLU
20200307_114246 17.86 -66.85 12 3.39 305 65 -5 WEB WUS SLU
20200307_232425 17.86 -66.89 14 3.35 110 90 20 WEB WUS SLU
20200319_231656 17.93 -66.99 9 3.43 90 90 -15 WEB WUS SLU
20200328_152306 17.91 -66.89 13 3.46 275 75 -10 WEB WUS SLU
20200330_160643 17.92 -66.89 5 3.97 285 80 -5 WEB WUS SLU
20200405_162521 17.97 -66.88 9 3.50 90 55 -65 WEB WUS SLU
20200407_130035 18.07 -66.78 2 3.62 115 40 -60 WEB WUS SLU
20200427_172115 17.89 -66.86 6 3.35 250 65 -75 WEB WUS SLU
20200502_111319 17.94 -66.73 8 5.36 260 55 -65 WEB WUS SLU
20200502_111929 17.95 -66.70 5 4.44 235 65 -90 WEB WUS SLU
20200502_113220 17.94 -66.71 4 4.29 240 55 -75 WEB WUS SLU
20200507_195254 17.94 -66.94 9 3.70 290 65 -5 WEB WUS SLU
20200511_074824 17.97 -66.72 9 3.32 95 65 -50 WEB WUS SLU
20200529_015851 17.91 -66.59 8 3.64 105 80 10 WEB WUS SLU
20200601_120551 17.98 -66.82 15 3.81 95 65 -20 WEB WUS SLU
20200604_144618 17.91 -66.85 13 4.21 85 55 -85 WEB WUS SLU
20200611_064517 17.92 -66.58 5 3.58 250 50 -45 WEB WUS SLU
20200612_073635 17.93 -66.66 5 3.44 300 65 -25 WEB WUS SLU
20200613_055234 17.96 -66.95 13 4.26 270 80 -15 WEB WUS SLU
20200613_223118 17.94 -66.94 15 3.37 260 80 -25 WEB WUS SLU
20200615_060048 17.93 -67.01 4 3.33 255 50 -50 WEB WUS SLU
20200618_063834 17.92 -66.76 4 3.73 280 65 -40 WEB WUS SLU
20200624_023058 17.99 -66.83 16 3.91 100 35 -5 WEB WUS SLU
20200628_064506 17.95 -66.94 8 4.24 90 80 -20 WEB WUS SLU
20200628_224851 17.94 -66.95 16 4.23 255 60 -45 WEB WUS SLU
20200628_231247 17.93 -66.95 14 3.69 250 85 -40 WEB WUS SLU
20200629_165914 17.96 -66.93 15 3.53 260 75 -45 WEB WUS SLU
20200630_061001 18.00 -66.77 12 3.68 75 65 -45 WEB WUS SLU
20200702_033709 17.95 -66.92 14 3.69 265 60 -20 WEB WUS SLU
20200703_204944 17.90 -67.00 8 5.21 260 75 -10 WEB WUS SLU
20200703_210008 17.95 -67.02 7 4.14 90 80 -10 WEB WUS SLU
20200723_044416 17.90 -66.86 15 3.70 105 60 -10 WEB WUS SLU
20200724_001325 17.99 -66.76 12 3.49 65 55 -85 WEB WUS SLU
20200806_222850 17.99 -66.76 13 3.68 270 80 -60 WEB WUS SLU
20200807_032700 18.00 -66.76 12 4.49 260 75 -65 WEB WUS SLU
20200829_163345 17.96 -66.97 9 4.09 85 80 -25 WEB WUS SLU
20200906_213846 17.92 -66.91 11 3.43 275 80 -10 WEB WUS SLU
20201011_040047 17.94 -67.05 15 3.72 105 85 10 WEB WUS SLU
20201111_172741 17.98 -66.88 8 3.30 280 20 -90 WEB WUS SLU
20201224_111700 17.93 -66.84 11 3.61 105 70 -5 WEB WUS SLU
20201224_160327 17.98 -66.83 12 3.46 105 75 0 WEB WUS SLU
20201224_165638 17.93 -66.84 14 4.66 110 80 5 WEB WUS SLU
20201224_173347 17.95 -66.84 12 4.29 105 75 5 WEB WUS SLU
20201227_162202 17.91 -66.84 13 3.27 90 90 -20 WEB WUS SLU
20210531_051839 18.02 -66.74 15 3.61 285 65 -15 WEB WUS SLU
20210624_162821 17.93 -67.12 11 3.31 100 75 -15 WEB WUS SLU
20210624_163028 17.94 -67.11 12 3.76 105 85 -10 WEB WUS SLU
20210625_221706 17.92 -67.12 16 3.70 90 85 5 WEB WUS SLU
20210627_151812 17.93 -67.08 13 3.30 95 90 -10 WEB WUS SLU
20210630_092002 17.94 -67.10 14 3.41 90 55 -5 WEB WUS SLU
20210920_215825 17.96 -66.85 14 3.50 270 70 25 WEB WUS SLU
20211210_012534 17.99 -66.83 17 3.61 230 55 -85 WEB WUS SLU
20220626_132557 17.95 -66.84 13 3.62 115 70 15 WEB WUS SLU
20220806_195110 17.85 -66.90 13 3.90 280 90 -15 WEB WUS SLU
20220806_195330 17.86 -66.90 13 4.19 280 80 -20 WEB WUS SLU
20220809_131204 17.98 -66.84 15 3.43 90 45 -45 WEB WUS SLU
20221104_063618 17.95 -66.98 15 3.58 285 80 -15 WEB WUS SLU
20221224_115157 17.96 -66.95 8 3.18 305 45 0 WEB WUS SLU
20230101_090648 17.93 -66.92 18 3.26 80 85 10 WEB WUS SLU
20230315_075146 17.93 -66.96 8 4.05 115 45 -25 WEB WUS SLU
|
