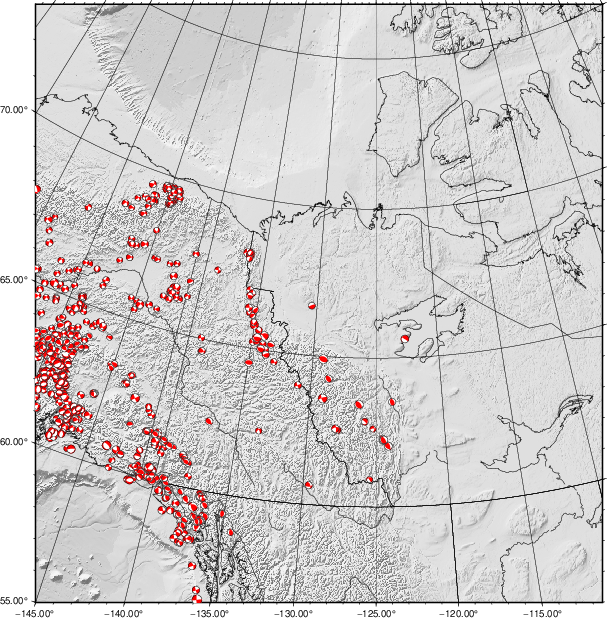

Moment tensors. The colored quadrant indicates compressional motion. The seismicity plot consists of all earthquakes with M greater than 3.0 in the combined ANSS and Geological Survey of Canada catalogs from 1999/01/01 through 2006/10/26
Orientation of tension axis onto the horizontal plane. The length and width indicate the degree that the axis is horizontal. A vertical axis has zero length in the plot. Red color indicates recent events. The seismicity plot consists of all earthquakes with M greater than 3.0 in the combined ANSS and Geological Survey of Canada catalogs from 1999/01/01 through 2006/10/26
Orientation of pressure axis onto the horizontal plane. The length and width indicate the degree that the axis is horizontal. A vertical axis has zero length in the plot. Red color indicates recent events. The seismicity plot consists of all earthquakes with M greater than 3.0 in the combined ANSS and Geological Survey of Canada catalogs from 1999/01/01 through 2006/10/26

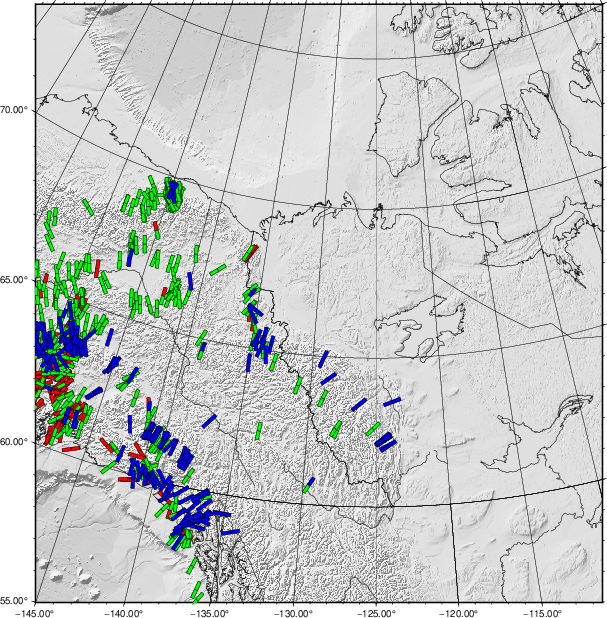

Orientation of maximum horizontal compressive stress following the convention of Zoback (1992) (Description of Stress Regime Assigment from WSM web page). Red indicates normal faulting, blue thrust faulting and green strike-slip faulting.

    P/S1-axis    B/S2-axis          T/S3-axis    Regime    SH-azimuth
      pl > 52                        pl < 35       NF      azim. of B-axis
 40 < pl < 52                        pl < 20       NS      azim. of T-axis +90
      pl < 40     pl > 45            pl < 20       SS      azim. of T-axis +90
      pl < 20     pl > 45            pl < 40       SS      azim. of P-axis
      pl < 20                   40 < pl < 52       TS      azim. of P-axis
      pl < 35                        pl > 52       TF      azim. of P-axis

Tabulation of events on this page
20010414_022013  56.08 -119.81   15  5.13  275   40    75 WEB      WUS          SLU
20060216_122832  66.93 -135.83   11  4.12   85   90    30 WEB      CUS          SLU
20060218_130131  66.50 -142.11   13  4.17   70   85   -20 WEB      CUS          SLU
20060305_104216  64.93 -129.26    2  5.42  290   45    85 WEB      CUS          SLU
20060329_033654  66.41 -142.23    6  4.30  225   70    15 WEB      CUS          SLU
20060826_005004  66.26 -142.49   21  4.48  230   75   -20 WEB      CUS          SLU
20060827_025823  66.27 -142.14   22  4.33  235   80   -15 WEB      CUS          SLU
20060827_032005  66.30 -142.25   20  4.35  225   75   -15 WEB      CUS          SLU
20060901_234449  66.43 -142.44    3  4.41   50   75    15 WEB      CUS          SLU
20070109_154935  59.37 -136.87   13  5.59  275   60    30 WEB      UTAHPECH.SW1 SLU
20070305_180622  58.81 -134.44    1  3.81   35   35    85 WEB      UTAHPECH.SW1 SLU
20070410_163425  69.73 -144.68   18  4.49  205   65    25 WEB      UTAHPECH.SW1 SLU
20070428_052030  69.65 -144.79   21  4.87  205   90     0 WEB      UTAHPECH.SW1 SLU
20070610_180606  66.27 -142.30   12  4.27  235   95     5 WEB      CUS          SLU
20071103_153532  66.32 -135.43    6  4.57   70   70    20 WEB      CUS          SLU
20071103_195505  66.05 -142.17   13  3.90  240   70     0 WEB      CUS          SLU
20071128_125818  66.19 -135.45   22  4.04   25   70   -45 WEB      CUS          SLU
20071129_222744  66.38 -142.29   13  4.64   70   80   -35 WEB      CUS          SLU
20080103_135310  66.32 -142.55   10  3.84   50   80    15 WEB      CUS          SLU
20080117_194645  67.93 -136.28   18  4.92  250   70    15 WEB      CUS          SLU
20080130_100707  62.43 -137.05   12  4.29   85   40    60 WEB      CUS          SLU
20080517_092002  66.51 -141.99   15  4.44   40   70   -25 WEB      CUS          SLU
20080523_114214  65.21 -133.94   14  3.92   35   85     0 WEB      CUS          SLU
20080701_024842  58.69 -137.46   17  4.24  260   25    55 WEB      CUS          SLU
20080714_155557  63.60 -123.73   11  4.15  325   55    75 WEB      CUS          SLU
20080730_145557  66.06 -142.85    9  3.67   40   55   -25 WEB      CUS          SLU
20080803_094428  58.78 -137.73   15  4.39  115   65    60 WEB      CUS          SLU
20080805_095847  58.76 -137.41   13  3.82  125   70    65 WEB      CUS          SLU
20080805_194810  61.45 -141.52   10  3.90  225   55    25 WEB      CUS          SLU
20080920_051611  63.60 -129.16   12  5.15  250   75    20 WEB      CUS          SLU
20081008_095301  60.70 -143.62   17  5.19  135   25   -75 WEB      CUS          SLU
20081106_182723  61.61 -142.58    9  3.65   65   65    80 WEB      CUS          SLU
20081120_113409  69.10 -144.78   11  4.04  210   60     5 WEB      WUS          SLU
20081203_024730  60.91 -138.11    6  4.15  270   35    60 WEB      CUS          SLU
20090224_162023  62.93 -143.68   13  3.96  270   50    15 WEB      CUS          SLU
20090327_025839  61.01 -138.41   13  4.94  285   70    75 WEB      CUS          SLU
20090328_141121  61.00 -138.54   13  4.08   65   25    50 WEB      CUS          SLU
20090416_050603  58.75 -137.59   22  4.47  135   30    95 WEB      WUS          SLU
20090528_135730  66.32 -135.16   12  3.87    5   35    55 WEB      CUS          SLU
20090607_232439  58.97 -136.72   15  4.75  155   50    45 WEB      WUS          SLU
20091205_091454  66.84 -142.35    9  4.46   20   85    10 WEB      CUS          SLU
20100219_071804  66.20 -142.28   15  4.13   65   80    -5 WEB      WUS          SLU
20100807_214619  65.03 -133.77    9  4.58   55   70    10 WEB      CUS          SLU
20100904_002311  62.86 -125.82   11  3.93  310   85   -60 WEB      CUS          SLU
20100913_100757  62.65 -125.53   11  3.60  260   75   -40 WEB      CUS          SLU
20101014_125926  60.38 -140.62   13  4.15  345   55   -20 WEB      WUS          SLU
20101210_054234  59.36 -135.16    1  4.38  180   40    85 WEB      CUS          SLU
20101212_002740  65.39 -135.00    9  4.02   50   85    -5 WEB      CUS          SLU
20101230_014920  65.20 -133.56   10  4.04   80   35    65 WEB      CUS          SLU
20110108_193340  59.35 -135.02    2  3.79    0   45    90 WEB      WUS          SLU
20110226_110826  61.61 -140.52   21  4.07   80   90    20 WEB      WUS          SLU
20110422_000604  63.88 -130.39   11  4.15   60   90   -10 WEB      CUS          SLU
20110730_160800  62.16 -124.00    4  4.05  330   40    85 WEB      CUS          SLU
20110803_060837  62.13 -141.26   11  4.22  240   80     5 WEB      CUS          SLU
20110915_020648  59.13 -138.12   14  4.57   95   70    30 WEB      CUS          SLU
20110926_010253  63.45 -126.31    3  5.04  140   30    90 WEB      WUS          SLU
20111127_022124  60.15 -139.94    7  3.71    5   55    40 WEB      WUS          SLU
20120104_162537  59.10 -138.14   15  4.28  295   65    40 WEB      CUS          SLU
20120302_232922  64.32 -128.72    2  4.39  325   50    95 WEB      CUS          SLU
20120901_105734  66.88 -135.98   26  3.88   95   55    10 WEB      WUS          SLU
20121211_051220  68.14 -136.41    8  4.72  230   60   -50 WEB      WUS          SLU
20121231_113828  61.65 -141.09   10  4.09   60   90   -65 WEB      WUS          SLU
20130201_210350  65.52 -144.52   15  3.90  205   90   -45 WEB      WUS          SLU
20130515_071032  65.57 -134.94   15  3.98   10   35   -20 WEB      CUS          SLU
20130528_043600  56.00 -120.70    2  3.99  120   45    80 WEB      WUS          SLU
20130712_195948  62.08 -124.23   14  4.62  125   40    60 WEB      CUS          SLU
20130714_081516  61.58 -141.12   11  4.33  290   50   105 WEB      WUS          SLU
20130714_160452  61.58 -141.10    9  3.64  275   60    75 WEB      WUS          SLU
20130717_063618  69.14 -144.48   12  4.11   10   80   -35 WEB      WUS          SLU
20130816_225544  67.75 -141.09   16  3.86  215   70    -5 WEB      WUS          SLU
20130823_212859  61.72 -140.85    8  4.36  265   55    80 WEB      WUS          SLU
20130901_225205  69.20 -144.53   11  4.48   30   85    -5 WEB      WUS          SLU
20130905_201159  69.19 -144.41   13  3.96  220   90    -5 WEB      WUS          SLU
20131003_074748  58.49 -137.20   20  3.78   90   15  -105 WEB      WUS          SLU
20131013_082618  65.06 -138.99   20  3.86   65   90   -10 WEB      WUS          SLU
20131119_144421  59.48 -139.03   16  4.05  135   30   -75 WEB      WUS          SLU
20131224_205647  60.24 -141.68   11  4.03  240   25    50 WEB      WUS          SLU
20140225_202438  60.96 -138.27   16  4.04  290   25    85 WEB      WUS          SLU
20140331_163027  62.31 -124.49    6  4.22  310   55    75 WEB      CUS          SLU
20140418_230406  63.41 -144.97   14  3.98  270   55    60 WEB      WUS          SLU
20140509_180900  59.71 -136.52   18  3.86  265   75    20 WEB      WUS          SLU
20140516_004900  59.76 -141.35   12  3.65   75   45    85 WEB      WUS          SLU
20140604_115858  59.00 -136.66   15  5.57  125   45    55 WEB      WUS          SLU
20140605_053759  61.16 -140.25   14  5.05   70   80    25 WEB      WUS          SLU
20140605_054427  61.15 -140.25   14  5.06   70   80    20 WEB      WUS          SLU
20140605_225239  61.51 -140.67   12  3.73  110   75    60 WEB      WUS          SLU
20140712_111533  61.17 -140.16   21  4.67   70   80    15 WEB      WUS          SLU
20140716_002008  62.56 -127.71    9  4.29  240   60   -25 WEB      CUS          SLU
20140716_002854  62.55 -127.80    7  4.46  255   60   -15 WEB      CUS          SLU
20140717_114937  60.22 -140.55   12  5.85   10   90    25 WEB      WUS          SLU
20140720_021545  60.30 -140.44   13  4.72    0   80    25 WEB      WUS          SLU
20140725_105449  58.36 -137.13   17  5.85   50   75    15 WEB      WUS          SLU
20140725_182853  65.65 -144.82   17  3.43   20   90     5 WEB      WUS          SLU
20140726_205308  58.27 -137.16   16  3.71   60   70    25 WEB      WUS          SLU
20140829_183729  65.64 -122.66   16  4.56  215   15     0 WEB      WUS          SLU
20141105_160352  59.16 -136.23   15  4.62  295   40    65 WEB      WUS          SLU
20141105_234532  59.16 -136.25   13  3.66  275   75    15 WEB      WUS          SLU
20141110_171742  61.52 -140.68   14  3.66  240   65   -20 WEB      WUS          SLU
20150218_221507  58.35 -136.91   16  4.26  210   65    20 WEB      WUS          SLU
20150521_165646  59.46 -136.43   18  4.16  295   35    65 WEB      WUS          SLU
20150801_090752  66.08 -141.64   13  3.87   25   80    30 WEB      WUS          SLU
20150809_231230  67.23 -144.52   15  3.72   50   65    20 WEB      WUS          SLU
20150810_075400  59.52 -138.96   13  3.96  290   35    50 WEB      WUS          SLU
20150828_084649  66.12 -141.51   13  3.78  210   70    20 WEB      WUS          SLU
20160117_025355  59.92 -141.61   10  3.99  255   65   -85 WEB      WUS          SLU
20160219_153821  65.45 -133.90   11  3.77  250   60    55 WEB      CUS          SLU
20160222_023042  69.26 -144.70   13  4.08  165   75   -20 WEB      WUS          SLU
20160225_065755  65.65 -143.81   11  3.99  195   70    10 WEB      WUS          SLU
20160715_140101  69.59 -144.77    8  3.66  180   60   -10 WEB      WUS          SLU
20160728_014217  61.23 -139.24   17  3.75  100   60    85 WEB      WUS          SLU
20160803_150432  60.12 -139.60   13  3.95  205   35    45 WEB      WUS          SLU
20160823_233623  62.30 -133.48   14  3.69  225   60   -25 WEB      WUS          SLU
20160905_043837  59.00 -137.38   14  3.84  105   25    75 WEB      WUS          SLU
20161009_022848  64.67 -132.85    7  3.81   60   70    10 WEB      CUS          SLU
20161116_142535  59.63 -137.60   15  4.49  115   50    50 WEB      WUS          SLU
20161226_235950  60.13 -141.15   12  4.12  185   70    25 WEB      WUS          SLU
20170213_071712  62.52 -142.75   14  5.21   50   90    -5 WEB      WUS          SLU
20170501_123154  59.84 -136.69   18  6.05  275   55    25 WEB      WUS          SLU
20170501_141815  59.74 -136.70   14  6.12  275   65     0 WEB      WUS          SLU
20170503_112049  59.72 -136.50   11  3.53  280   75    35 WEB      WUS          SLU
20170504_031347  59.89 -136.75    8  4.46  270   75    20 WEB      WUS          SLU
20170505_052130  59.83 -136.65   13  3.86   95   60    30 WEB      WUS          SLU
20170510_151426  65.00 -134.13   12  4.37  275   65    70 WEB      WUS          SLU
20170510_151426  65.00 -134.13   12  4.37  275   65    70 WEB      CUS          SLU
20170521_193338  59.76 -136.51   17  3.91  125   55    15 WEB      WUS          SLU
20170606_001203  59.14 -136.32   17  3.53  295   40    80 WEB      WUS          SLU
20170717_215236  61.02 -138.29    1  3.74   65   50    55 WEB      CUS          SLU
20170721_052415  59.85 -136.72   17  3.85  285   20    60 WEB      WUS          SLU
20170810_093803  60.25 -140.55   14  3.84  350   70   -55 WEB      CUS          SLU
20170818_044436  58.99 -136.39   21  4.02  185   70    80 WEB      CUS          SLU
20170916_233803  59.90 -136.75   10  5.04  115   60    55 WEB      CUS          SLU
20171011_060521  61.56 -141.00    8  3.93  255   50    70 WEB      CUS          SLU
20171019_024800  67.40 -144.00   10  3.63   40   70    30 WEB      WUS          SLU
20171105_222742  61.39 -140.09    8  4.02  265   15    85 WEB      WUS          SLU
20171113_160037  60.57 -142.64   25  4.27   95    5   -90 WEB      WUS          SLU
20171117_172026  67.15 -143.10   10  3.60  230   70    10 WEB      WUS          SLU
20171219_001015  59.86 -136.62   10  4.00  335   30    90 WEB      WUS          SLU
20171222_080012  65.50 -134.05   11  5.03  250   45    30 WEB      CUS          SLU
20171224_191503  60.23 -143.15    9  3.64   10   85    45 WEB      WUS          SLU
20180118_024746  59.78 -136.70    7  4.27  290   55    45 WEB      CUS          SLU
20180119_095619  59.76 -136.69   10  3.76  295   40    60 WEB      CUS          SLU
20180201_134028  61.17 -139.83    9  3.73   70   80   -25 WEB      WUS          SLU
20180403_163640  60.40 -137.82    9  3.92   70   75     0 WEB      CUS          SLU
20180412_234432  60.88 -138.28    8  4.07  275   35    55 WEB      CUS          SLU
20180421_070728  60.87 -138.25   11  3.62  115   65    85 WEB      CUS          SLU
20180515_203153  61.18 -140.47   10  3.94  250   75   -15 WEB      CUS          SLU
20180610_002917  61.19 -140.48    9  3.84  245   75   -25 WEB      CUS          SLU
20180812_160209  69.60 -144.96   11  5.05  190   70    15 WEB      CUS          SLU
20180812_164440  69.60 -144.51   11  4.18  180   75   -10 WEB      CUS          SLU
20180812_183644  69.56 -144.75   12  4.64  195   70    20 WEB      CUS          SLU
20180812_173046  69.67 -144.84   14  3.87  205   75   -15 WEB      CUS          SLU
20180812_175425  69.61 -144.76   11  3.91  235   55    35 WEB      CUS          SLU
20180812_193828  69.61 -144.73   12  3.83  195   70    15 WEB      CUS          SLU
20180812_205645  69.66 -144.27   13  4.02  190   75    10 WEB      CUS          SLU
20180812_211502  69.55 -144.33    7  5.97  195   80     5 WEB      CUS          SLU
20180812_213104  69.46 -144.25   11  4.98   25   80    20 WEB      CUS          SLU
20180812_235949  69.62 -144.19    3  4.09  215   80   -20 WEB      CUS          SLU
20180813_044309  69.52 -144.74   13  3.88   25   60    25 WEB      CUS          SLU
20180813_050021  69.60 -144.58    7  3.92  195   70   -10 WEB      CUS          SLU
20180813_063728  69.63 -144.20   29  4.19  120   85   -30 WEB      CUS          SLU
20180813_085312  69.64 -144.29    3  4.25  180   45   -50 WEB      CUS          SLU
20180813_110515  69.62 -144.73    9  4.21  190   70   -25 WEB      CUS          SLU
20180813_114727  69.61 -144.19    7  3.93  205   75    15 WEB      CUS          SLU
20180813_161954  69.57 -144.66   11  3.88   20   55    15 WEB      CUS          SLU
20180813_193609  69.49 -144.40   13  4.67  190   65    10 WEB      CUS          SLU
20180813_235311  69.68 -144.14   12  4.16   15   85    20 WEB      CUS          SLU
20180814_165310  69.55 -144.76   10  4.53  190   55   -20 WEB      CUS          SLU
20180814_174546  69.62 -144.21    7  3.81  210   80   -30 WEB      CUS          SLU
20180814_182020  69.59 -144.72    8  3.75  205   90   -25 WEB      CUS          SLU
20180816_063231  69.69 -144.24    3  4.22  160   45   -75 WEB      CUS          SLU
20180816_072239  69.64 -144.22    3  4.50  195   75   -15 WEB      CUS          SLU
20180817_132708  69.61 -144.21    3  3.91  200   80   -10 WEB      CUS          SLU
20180818_043937  69.55 -144.28   14  4.28  210   75    -5 WEB      CUS          SLU
20180818_070602  69.57 -144.20    3  4.21  185   65   -20 WEB      CUS          SLU
20180819_133223  69.58 -144.82   10  4.28  190   75    15 WEB      CUS          SLU
20180819_193007  69.65 -144.46   12  4.18  230   75    10 WEB      CUS          SLU
20180823_043040  69.52 -144.30   17  4.43  210   50    25 WEB      CUS          SLU
20180823_085928  69.64 -144.28    1  3.78  205   75    10 WEB      CUS          SLU
20180823_161125  69.52 -144.09    9  3.94  200   85    25 WEB      CUS          SLU
20180828_111321  69.56 -144.88   12  3.95   15   80   -25 WEB      CUS          SLU
20180830_224950  69.46 -144.26   16  4.06  170   80    -5 WEB      CUS          SLU
20180901_064119  69.54 -144.97   10  4.46  190   65    10 WEB      CUS          SLU
Last Changed "Sat Sep 1 11:57:30 UTC 2018"
