The ANSS event ID is hv72294777 and the event page is at https://earthquake.usgs.gov/earthquakes/eventpage/hv72294777/executive.

2020/12/21 08:36:27 19.337 -155.112 6.3 4.39 Hawaii

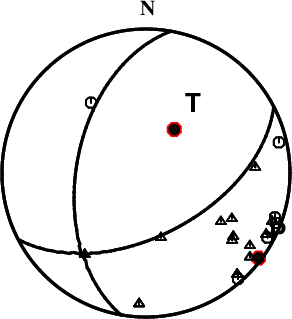

Focal Mechanism

USGS/SLU Moment Tensor Solution ENS 2020/12/21 08:36:27:0 19.34 -155.11 6.3 4.4 Hawaii Stations used: HV.BYL HV.DEVL HV.HAT HV.HLPD HV.HOVE HV.HUAD HV.JOKA HV.MOKD HV.TOUO IU.POHA PT.HILB PT.KHLU PT.MLOA Filtering commands used: cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3 Best Fitting Double Couple Mo = 2.79e+22 dyne-cm Mw = 4.23 Z = 9 km Plane Strike Dip Rake NP1 63 54 127 NP2 190 50 50 Principal Axes: Axis Value Plunge Azimuth T 2.79e+22 60 33 N 0.00e+00 29 218 P -2.79e+22 2 127 Moment Tensor: (dyne-cm) Component Value Mxx -5.33e+21 Mxy 1.65e+22 Mxz 1.07e+22 Myy -1.57e+22 Myz 5.65e+21 Mzz 2.10e+22 --------###### ----------############ -----------################# ----------#################### -----------####################### -----------######################### -----------########### ############- -----------############ T ############-- -----------############ ###########--- -----------##########################----- -----------#########################------ -----------#######################-------- -----------######################--------- ----------###################----------- ----------#################------------- ---------##############--------------- #-------#########---------------- ########------------------------ P #######----------------------- #######--------------------- #####----------------- ##------------ Global CMT Convention Moment Tensor: R T P 2.10e+22 1.07e+22 -5.65e+21 1.07e+22 -5.33e+21 -1.65e+22 -5.65e+21 -1.65e+22 -1.57e+22 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20201221083627/index.html

Preferred Solution

      STK = 190
      DIP = 50
     RAKE = 50
       MW = 4.23
       HS = 9.0

The NDK file is 20201221083627.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to those provided by others. The purpose is to look for major differences and also to note slight differences that might be inherent to the processing procedure. For completeness the USGS/SLU solution is repeated from above.

SLU	MTGRD	SLUFM
USGS/SLU Moment Tensor Solution ENS 2020/12/21 08:36:27:0 19.34 -155.11 6.3 4.4 Hawaii Stations used: HV.BYL HV.DEVL HV.HAT HV.HLPD HV.HOVE HV.HUAD HV.JOKA HV.MOKD HV.TOUO IU.POHA PT.HILB PT.KHLU PT.MLOA Filtering commands used: cut o DIST/3.3 -40 o DIST/3.3 +50 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3 Best Fitting Double Couple Mo = 2.79e+22 dyne-cm Mw = 4.23 Z = 9 km Plane Strike Dip Rake NP1 63 54 127 NP2 190 50 50 Principal Axes: Axis Value Plunge Azimuth T 2.79e+22 60 33 N 0.00e+00 29 218 P -2.79e+22 2 127 Moment Tensor: (dyne-cm) Component Value Mxx -5.33e+21 Mxy 1.65e+22 Mxz 1.07e+22 Myy -1.57e+22 Myz 5.65e+21 Mzz 2.10e+22 --------###### ----------############ -----------################# ----------#################### -----------####################### -----------######################### -----------########### ############- -----------############ T ############-- -----------############ ###########--- -----------##########################----- -----------#########################------ -----------#######################-------- -----------######################--------- ----------###################----------- ----------#################------------- ---------##############--------------- #-------#########---------------- ########------------------------ P #######----------------------- #######--------------------- #####----------------- ##------------ Global CMT Convention Moment Tensor: R T P 2.10e+22 1.07e+22 -5.65e+21 1.07e+22 -5.33e+21 -1.65e+22 -5.65e+21 -1.65e+22 -1.57e+22 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20201221083627/index.html	Moment (dyne-cm) 2.84E+22 dyne-cm Magnitude (Mw) 4.24 Principal Axes: Axis Value Plunge Azimuth T 3.51E+22 57. 29. N 1.01E+22 33. 218. P -1.67E+22 4. 125. Moment Tensor: (dyne-cm) Aki-Richards Component Value Mxx 6.99E+21 Mxy 1.57E+22 Mxz 1.11E+22 Myy -6.07E+21 Myz 3.95E+21 Mzz 2.75E+22 --############ -----################# ------###################### ------######################## -------########################### --------############################ --------############# ############## --------############## T ############### -------############### ############### --------################################-- -------################################--- ------###############################----- -----##############################------- ################################-------- ##############################---------- ###########################----------- ########################--------- #####################----------- P #################------------- ###############------------- #############--------- ##########---- Global CMT Convention Moment Tensor: (dyne-cm) R T F R 2.75E+22 1.11E+22 -3.95E+21 T 1.11E+22 6.99E+21 -1.57E+22 F -3.95E+21 -1.57E+22 -6.07E+21	First motions and takeoff angles from an elocate run.

Magnitudes

Given the availability of digital waveforms for determination of the moment tensor, this section documents the added processing leading to mLg, if appropriate to the region, and M_L by application of the respective IASPEI formulae. As a research study, the linear distance term of the IASPEI formula for M_L is adjusted to remove a linear distance trend in residuals to give a regionally defined M_L. The defined M_L uses horizontal component recordings, but the same procedure is applied to the vertical components since there may be some interest in vertical component ground motions. Residual plots versus distance may indicate interesting features of ground motion scaling in some distance ranges. A residual plot of the regionalized magnitude is given as a function of distance and azimuth, since data sets may transcend different wave propagation provinces.

ML Magnitude

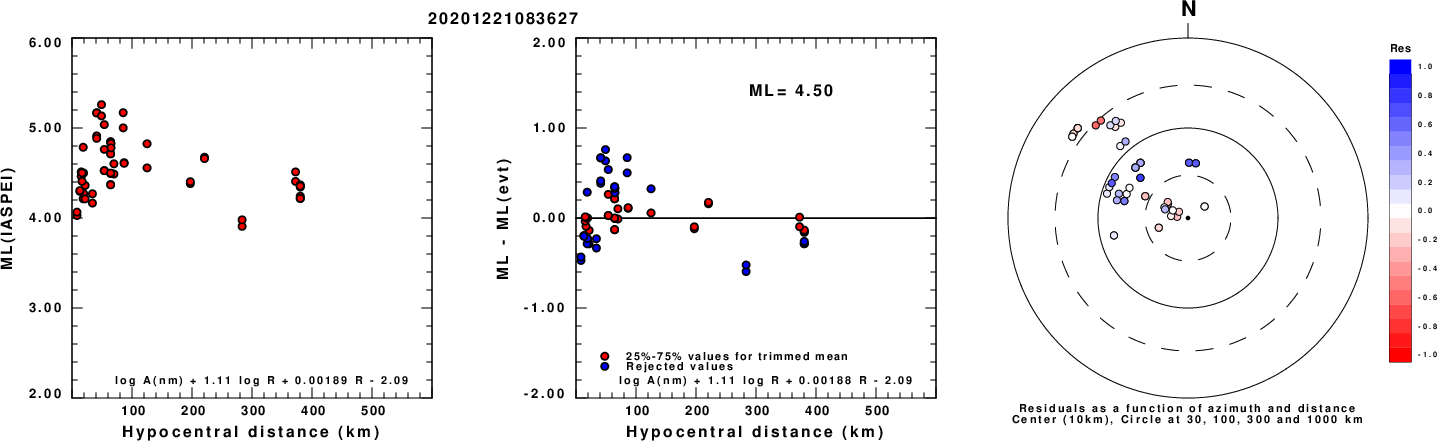

Left: ML computed using the IASPEI formula for Horizontal components. Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

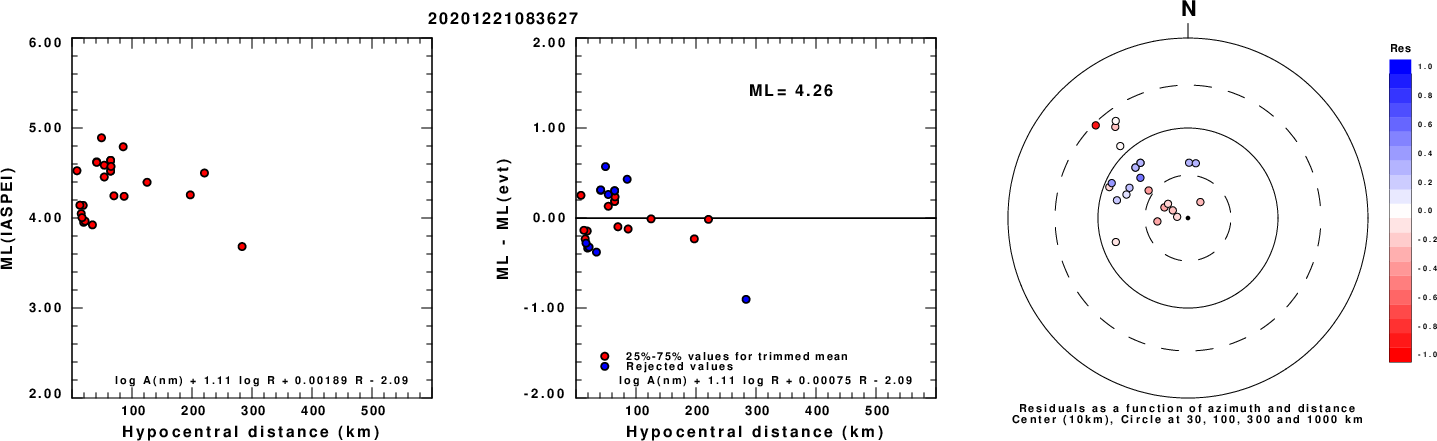

Left: ML computed using the IASPEI formula for Vertical components (research). Center: ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot. Right: Residuals from new relation as a function of distance and azimuth.

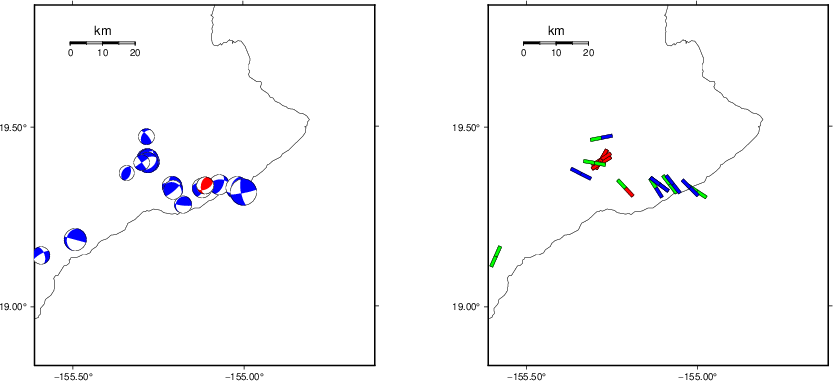

Context

Waveform Inversion using wvfgrd96

The focal mechanism was determined using broadband seismic waveforms. The location of the event (star) and the stations used for (red) the waveform inversion are shown in the next figure.

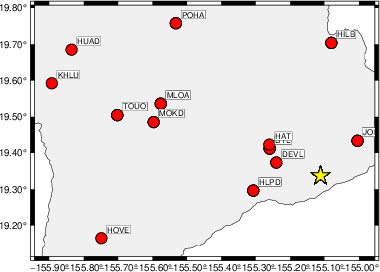

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green's functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   165    75     0   3.75 0.2495
WVFGRD96    2.0   165    70   -10   3.90 0.3126
WVFGRD96    3.0   175    45    15   4.00 0.3345
WVFGRD96    4.0   155    35   -30   4.08 0.3754
WVFGRD96    5.0   185    60    45   4.09 0.4178
WVFGRD96    6.0   190    55    55   4.13 0.4625
WVFGRD96    7.0   185    55    45   4.16 0.4917
WVFGRD96    8.0   190    50    50   4.22 0.4968
WVFGRD96    9.0   190    50    50   4.23 0.5039
WVFGRD96   10.0   180    55    35   4.24 0.4974
WVFGRD96   11.0   180    55    35   4.25 0.4838
WVFGRD96   12.0   180    55    30   4.26 0.4670
WVFGRD96   13.0   175    60    25   4.27 0.4507
WVFGRD96   14.0   175    60    20   4.27 0.4339
WVFGRD96   15.0   175    60    20   4.28 0.4167
WVFGRD96   16.0   175    60    20   4.28 0.4005
WVFGRD96   17.0   170    80    10   4.30 0.3852
WVFGRD96   18.0   170    80    10   4.31 0.3734
WVFGRD96   19.0   170    85     5   4.32 0.3625
WVFGRD96   20.0   350    80    -5   4.34 0.3554
WVFGRD96   21.0   180    55   -40   4.28 0.3494
WVFGRD96   22.0   180    55   -40   4.29 0.3476
WVFGRD96   23.0   180    55   -40   4.29 0.3457
WVFGRD96   24.0   180    55   -40   4.30 0.3429
WVFGRD96   25.0   180    55   -40   4.30 0.3404
WVFGRD96   26.0   175    50   -45   4.31 0.3375
WVFGRD96   27.0   175    50   -45   4.32 0.3341
WVFGRD96   28.0   175    50   -45   4.32 0.3305
WVFGRD96   29.0   180    50   -45   4.32 0.3264

The best solution is

WVFGRD96    9.0   190    50    50   4.23 0.5039

The mechanism corresponding to the best fit is

Figure 1. Waveform inversion focal mechanism

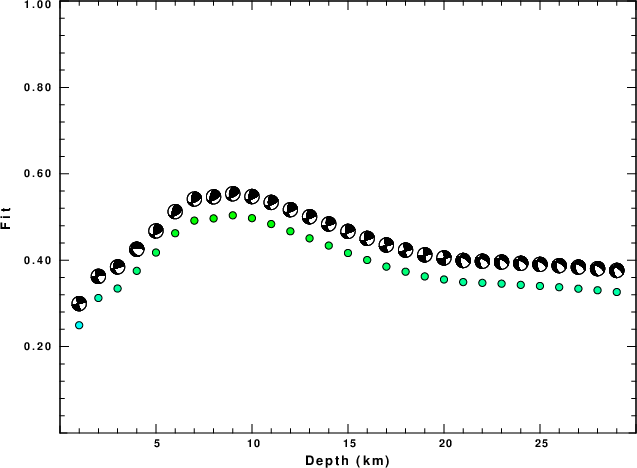

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

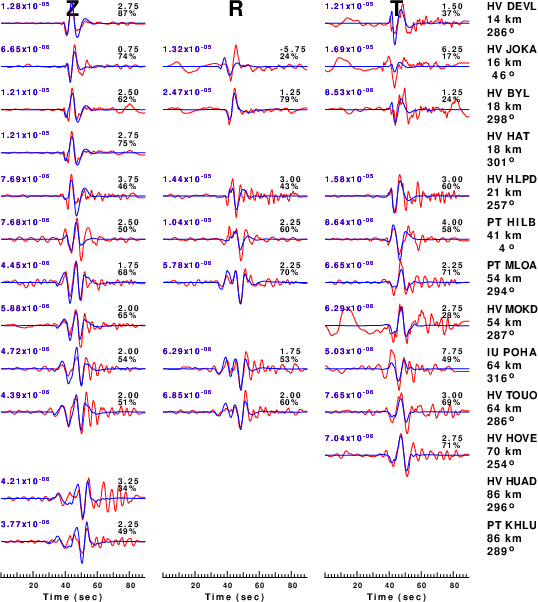

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed, the velocity model used in the predictions may not be perfect and the epicentral parameters may be be off. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -40 o DIST/3.3 +50
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3

Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated. The time scale is relative to the first trace sample.

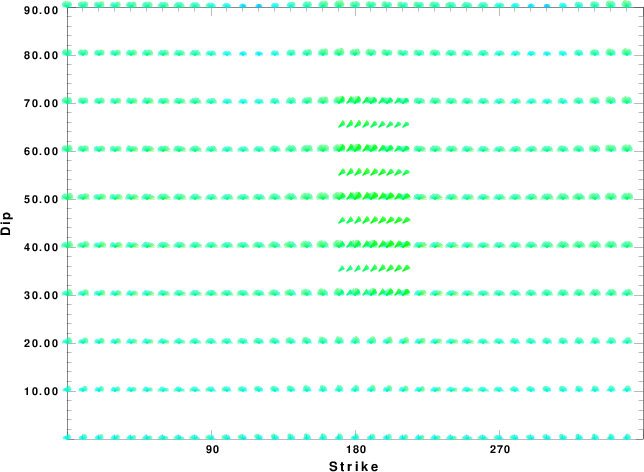

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to the waveforms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

• The origin time and epicentral distance are incorrect
• The velocity model used for the inversion is incorrect
• The velocity model used to define the P-arrival time is not the same as the velocity model used for the waveform inversion (assuming that the initial trace alignment is based on the P arrival time)

 Time_shift = A + B cos Azimuth + C Sin Azimuth

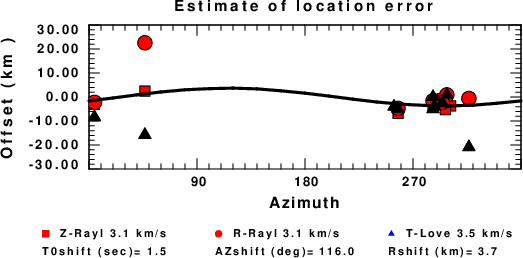

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows (The format is in the model96 format of Computer Programs in Seismology).
