Location

2017/02/03 03:47:55 42.9902 13.0218 6.4 4.0 Macerata

Arrival Times (from USGS)

Arrival time list

Felt Map

USGS Felt map for this earthquake

USGS Felt reports page for

Focal Mechanism

 SLU Moment Tensor Solution
 ENS  2017/02/03 03:47:55:9  42.99   13.02   6.4 4.0 Macerata

 Stations used:
   IV.AOI IV.ARVD IV.ASQU IV.ATFO IV.ATMI IV.ATVO IV.CAFI
   IV.CERT IV.CING IV.CRE IV.CSNT IV.FIAM IV.FRES IV.GIUL
   IV.GUAR IV.GUMA IV.LATE IV.LAV9 IV.LNSS IV.LPEL IV.MA9
   IV.MGAB IV.MTCE IV.MURB IV.NRCA IV.OFFI IV.PARC IV.PESA
   IV.PIEI IV.PTQR IV.RMP IV.SACS IV.SAMA IV.SNTG IV.TOLF

 Filtering commands used:
   cut o DIST/3.3 -20 o DIST/3.3 +40
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 7.24e+21 dyne-cm
  Mw = 3.84
  Z  = 1 km
  Plane   Strike  Dip  Rake
   NP1      153    45   -95
   NP2      340    45   -85
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   7.24e+21      0     246
    N   0.00e+00      4     156
    P  -7.24e+21     86     338

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     1.13e+21
       Mxy     2.66e+21
       Mxz    -4.20e+20
       Myy     6.09e+21
       Myz     1.53e+20
       Mzz    -7.22e+21




                     -#############
                 #---------############
              ###-------------############
             ###----------------###########
           #####------------------###########
          #####--------------------###########
         ######---------------------###########
        #######----------------------###########
        #######-----------------------##########
       ########-----------   ----------##########
       #########---------- P ----------##########
       #########----------   -----------#########
       ##########-----------------------#########
        ##########----------------------########
           ########---------------------########
         T #########--------------------#######
           ##########-------------------######
           ############----------------######
             ############--------------####
              ##############----------####
                 ###############-----##
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
 -7.22e+21  -4.20e+20  -1.53e+20
 -4.20e+20   1.13e+21  -2.66e+21
 -1.53e+20  -2.66e+21   6.09e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20170203034755/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion and first motion observations is

      STK = 340
      DIP = 45
     RAKE = -85
       MW = 3.84
       HS = 1.0

The NDK file is 20170203034755.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to others
SLU
 SLU Moment Tensor Solution
 ENS  2017/02/03 03:47:55:9  42.99   13.02   6.4 4.0 Macerata

 Stations used:
   IV.AOI IV.ARVD IV.ASQU IV.ATFO IV.ATMI IV.ATVO IV.CAFI
   IV.CERT IV.CING IV.CRE IV.CSNT IV.FIAM IV.FRES IV.GIUL
   IV.GUAR IV.GUMA IV.LATE IV.LAV9 IV.LNSS IV.LPEL IV.MA9
   IV.MGAB IV.MTCE IV.MURB IV.NRCA IV.OFFI IV.PARC IV.PESA
   IV.PIEI IV.PTQR IV.RMP IV.SACS IV.SAMA IV.SNTG IV.TOLF

 Filtering commands used:
   cut o DIST/3.3 -20 o DIST/3.3 +40
   rtr
   taper w 0.1
   hp c 0.03 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 7.24e+21 dyne-cm
  Mw = 3.84
  Z  = 1 km
  Plane   Strike  Dip  Rake
   NP1      153    45   -95
   NP2      340    45   -85
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   7.24e+21      0     246
    N   0.00e+00      4     156
    P  -7.24e+21     86     338

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     1.13e+21
       Mxy     2.66e+21
       Mxz    -4.20e+20
       Myy     6.09e+21
       Myz     1.53e+20
       Mzz    -7.22e+21




                     -#############
                 #---------############
              ###-------------############
             ###----------------###########
           #####------------------###########
          #####--------------------###########
         ######---------------------###########
        #######----------------------###########
        #######-----------------------##########
       ########-----------   ----------##########
       #########---------- P ----------##########
       #########----------   -----------#########
       ##########-----------------------#########
        ##########----------------------########
           ########---------------------########
         T #########--------------------#######
           ##########-------------------######
           ############----------------######
             ############--------------####
              ##############----------####
                 ###############-----##
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
 -7.22e+21  -4.20e+20  -1.53e+20
 -4.20e+20   1.13e+21  -2.66e+21
 -1.53e+20  -2.66e+21   6.09e+21


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20170203034755/index.html


Waveform Inversion

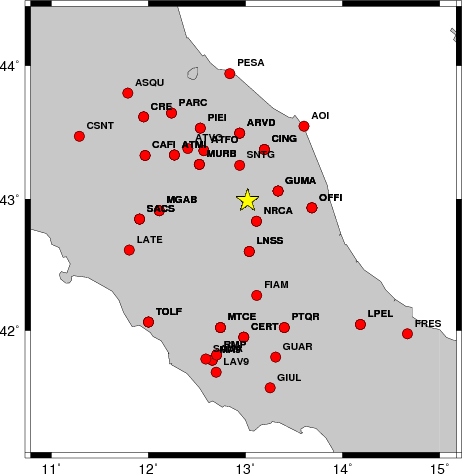

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -20 o DIST/3.3 +40
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
The results of this grid search from 0.5 to 19 km depth are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   340    45   -85   3.84 0.5424
WVFGRD96    2.0   340    45   -85   3.90 0.5191
WVFGRD96    3.0   350    30   -65   3.88 0.4125
WVFGRD96    4.0   340    25   -80   3.88 0.3980
WVFGRD96    5.0   150    65   -95   3.97 0.4223
WVFGRD96    6.0   155    70   -85   3.96 0.4074
WVFGRD96    7.0   155    70   -85   3.96 0.3979
WVFGRD96    8.0    25    65    35   3.89 0.3980
WVFGRD96    9.0    30    60    40   3.90 0.4001
WVFGRD96   10.0    30    60    40   3.91 0.4005
WVFGRD96   11.0    30    60    40   3.92 0.3979
WVFGRD96   12.0    30    60    40   3.93 0.3947
WVFGRD96   13.0   330    50    85   3.98 0.3959
WVFGRD96   14.0   330    50    80   4.00 0.4035
WVFGRD96   15.0   325    50    75   4.04 0.4099
WVFGRD96   16.0   325    50    75   4.05 0.4134
WVFGRD96   17.0   320    50    70   4.06 0.4136
WVFGRD96   18.0   320    50    65   4.07 0.4121
WVFGRD96   19.0   315    50    60   4.07 0.4097

The best solution is

WVFGRD96    1.0   340    45   -85   3.84 0.5424

The mechanism correspond to the best fit is
Figure 1. Waveform inversion focal mechanism

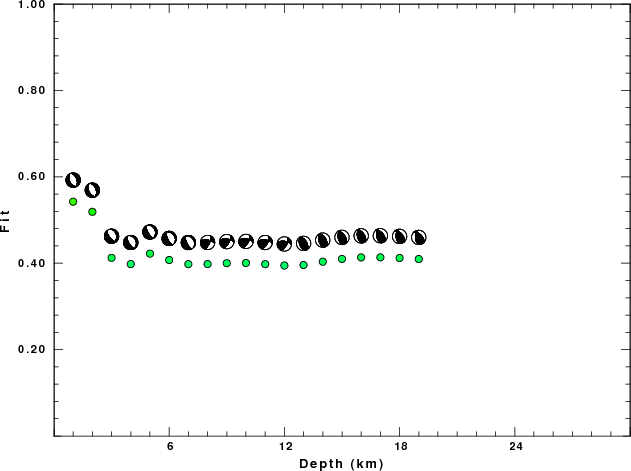

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

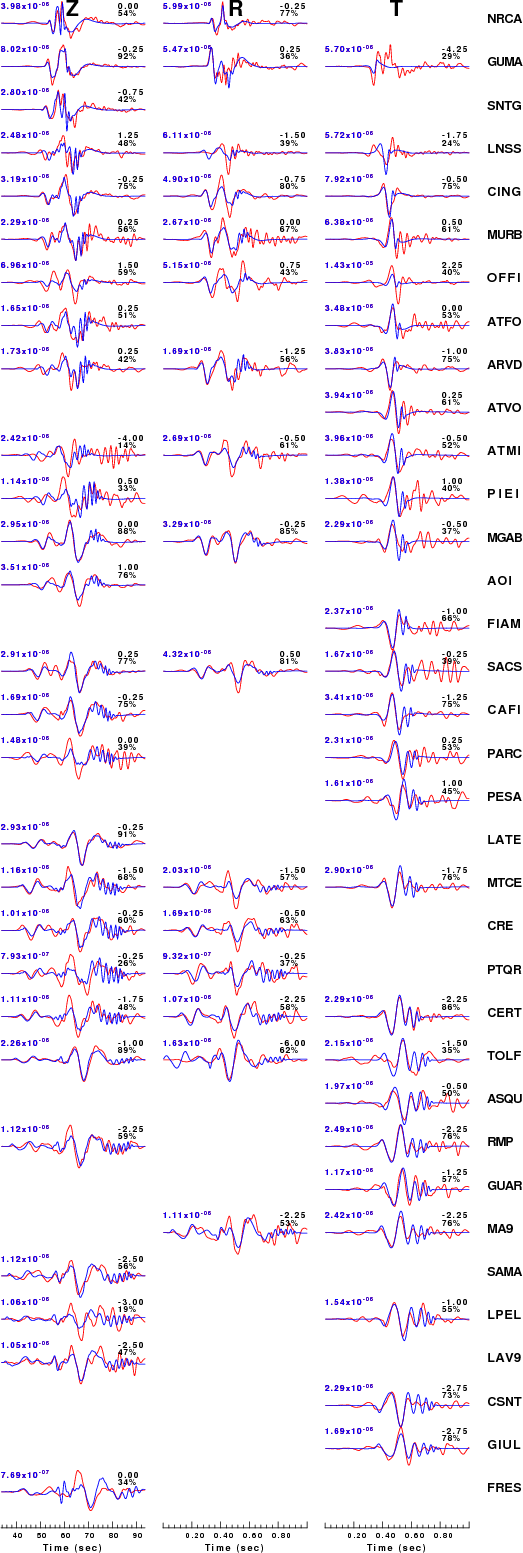

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -20 o DIST/3.3 +40
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Figure 3. Waveform comparison for selected depth. Red: observed; Blue - predicted. The time shift with respect to the model prediction is indicated. The percent of fit is also indicated.

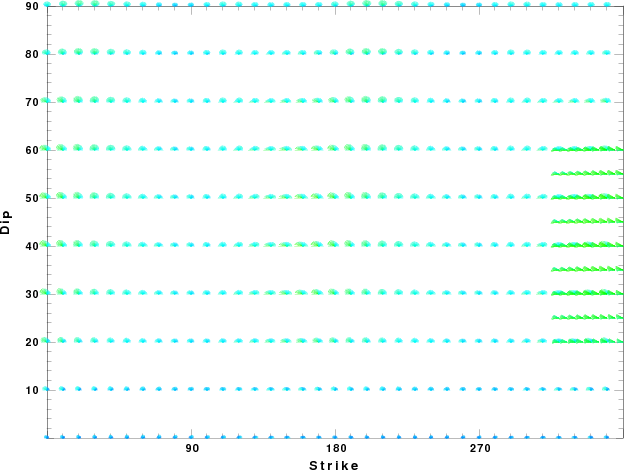

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

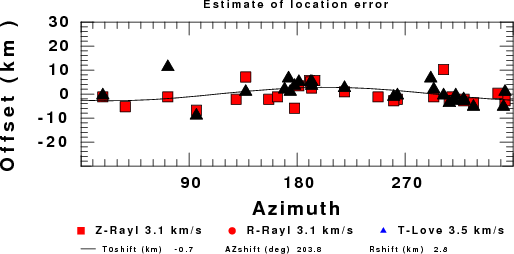

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Discussion

Velocity Model

The nnCIA used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:

MODEL.01
C.It. A. Di Luzio et al Earth Plan Lettrs 280 (2009) 1-12 Fig 5. 7-8 MODEL/SURF3
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.5000     3.7497     2.1436     2.2753  0.500E-02  0.100E-01   0.00       0.00       1.00       1.00
     3.0000     4.9399     2.8210     2.4858  0.500E-02  0.100E-01   0.00       0.00       1.00       1.00
     3.0000     6.0129     3.4336     2.7058  0.500E-02  0.100E-01   0.00       0.00       1.00       1.00
     7.0000     5.5516     3.1475     2.6093  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
    15.0000     5.8805     3.3583     2.6770  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
     6.0000     7.1059     4.0081     3.0002  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
     8.0000     7.1000     3.9864     3.0120  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.4036     3.2760  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00

Quality Control

Here we tabulate the reasons for not using certain digital data sets

The following stations did not have a valid response files:

DATE=Fri Feb 3 06:09:31 CST 2017

Last Changed 2017/02/03
