Location

2013/06/23 13:13:41 44.151 10.186 9.7 3.8 Italy

Arrival Times (from USGS)

Arrival time list

Felt Map

USGS Felt map for this earthquake

USGS Felt reports page for

Focal Mechanism

 SLU Moment Tensor Solution
 ENS  2013/06/23 13:13:41:0  44.15   10.19   9.7 3.8 Italy

 Stations used:
   GU.FINB GU.GORR GU.MAIM GU.PCP IV.ARCI IV.ARVD IV.ASQU
   IV.BDI IV.CASP IV.CRMI IV.CSNT IV.FNVD IV.MGAB IV.MSSA
   IV.MURB IV.PARC IV.PIEI IV.QLNO IV.SACS IV.SNTG IV.SSFR
   IV.TEOL IV.ZCCA

 Filtering commands used:
   cut a -10 a 90
   rtr
   taper w 0.1
   hp c 0.02 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 3.16e+21 dyne-cm
  Mw = 3.60
  Z  = 5 km
  Plane   Strike  Dip  Rake
   NP1      230    60   -125
   NP2      105    45   -45
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   3.16e+21      8     345
    N   0.00e+00     30     250
    P  -3.16e+21     59      89

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     2.88e+21
       Mxy    -8.10e+20
       Mxz     4.09e+20
       Myy    -6.41e+20
       Myz    -1.53e+21
       Mzz    -2.24e+21




                      T ###########
                 ####   ###############
              ############################
             ##############################
           #######################-----------
          ####################----------------
         #################---------------------
        ################------------------------
        ##############--------------------------
       --###########--------------   ------------
       ---########---------------- P ------------
       ----######-----------------   ------------
       -----####---------------------------------
        ----------------------------------------
        ------##-------------------------------#
         ----######--------------------------##
          --###########------------------#####
           -#################################
             ##############################
              ############################
                 ######################
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
 -2.24e+21   4.09e+20   1.53e+21
  4.09e+20   2.88e+21   8.10e+20
  1.53e+21   8.10e+20  -6.41e+20


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20130623131341/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion and first motion observations is

      STK = 105
      DIP = 45
     RAKE = -45
       MW = 3.60
       HS = 5.0

The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to others
SLU
 SLU Moment Tensor Solution
 ENS  2013/06/23 13:13:41:0  44.15   10.19   9.7 3.8 Italy

 Stations used:
   GU.FINB GU.GORR GU.MAIM GU.PCP IV.ARCI IV.ARVD IV.ASQU
   IV.BDI IV.CASP IV.CRMI IV.CSNT IV.FNVD IV.MGAB IV.MSSA
   IV.MURB IV.PARC IV.PIEI IV.QLNO IV.SACS IV.SNTG IV.SSFR
   IV.TEOL IV.ZCCA

 Filtering commands used:
   cut a -10 a 90
   rtr
   taper w 0.1
   hp c 0.02 n 3
   lp c 0.10 n 3

 Best Fitting Double Couple
  Mo = 3.16e+21 dyne-cm
  Mw = 3.60
  Z  = 5 km
  Plane   Strike  Dip  Rake
   NP1      230    60   -125
   NP2      105    45   -45
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   3.16e+21      8     345
    N   0.00e+00     30     250
    P  -3.16e+21     59      89

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     2.88e+21
       Mxy    -8.10e+20
       Mxz     4.09e+20
       Myy    -6.41e+20
       Myz    -1.53e+21
       Mzz    -2.24e+21




                      T ###########
                 ####   ###############
              ############################
             ##############################
           #######################-----------
          ####################----------------
         #################---------------------
        ################------------------------
        ##############--------------------------
       --###########--------------   ------------
       ---########---------------- P ------------
       ----######-----------------   ------------
       -----####---------------------------------
        ----------------------------------------
        ------##-------------------------------#
         ----######--------------------------##
          --###########------------------#####
           -#################################
             ##############################
              ############################
                 ######################
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
 -2.24e+21   4.09e+20   1.53e+21
  4.09e+20   2.88e+21   8.10e+20
  1.53e+21   8.10e+20  -6.41e+20


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20130623131341/index.html


Waveform Inversion

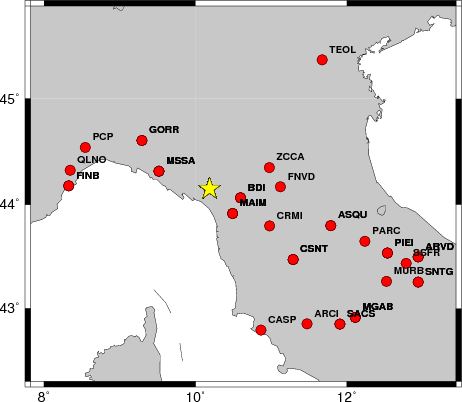

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut a -10 a 90
rtr
taper w 0.1
hp c 0.02 n 3
lp c 0.10 n 3
The results of this grid search from 0.5 to 19 km depth are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   100    35   -40   3.46 0.4156
WVFGRD96    2.0   100    35   -40   3.52 0.4584
WVFGRD96    3.0   100    45   -40   3.51 0.4818
WVFGRD96    4.0   105    50   -40   3.52 0.4877
WVFGRD96    5.0   105    45   -45   3.60 0.4965
WVFGRD96    6.0   110    50   -35   3.58 0.4758
WVFGRD96    7.0   305    70    60   3.67 0.4745
WVFGRD96    8.0   305    70    50   3.63 0.4791
WVFGRD96    9.0   305    70    50   3.64 0.4711
WVFGRD96   10.0   125    65    30   3.60 0.4633
WVFGRD96   11.0   130    65    30   3.61 0.4576
WVFGRD96   12.0   130    65    35   3.62 0.4504
WVFGRD96   13.0   130    65    35   3.63 0.4421
WVFGRD96   14.0   130    65    35   3.64 0.4333
WVFGRD96   15.0   130    60    35   3.66 0.4226
WVFGRD96   16.0   130    60    35   3.67 0.4127
WVFGRD96   17.0   130    65    35   3.67 0.4027
WVFGRD96   18.0   130    65    35   3.68 0.3918
WVFGRD96   19.0   130    65    40   3.69 0.3810
WVFGRD96   20.0   135    60    40   3.69 0.3699
WVFGRD96   21.0   135    60    40   3.70 0.3598
WVFGRD96   22.0   135    60    40   3.70 0.3491
WVFGRD96   23.0   135    65    40   3.71 0.3403
WVFGRD96   24.0   135    65    40   3.72 0.3315
WVFGRD96   25.0   135    65    45   3.73 0.3249
WVFGRD96   26.0   135    65    45   3.74 0.3197
WVFGRD96   27.0   135    65    45   3.75 0.3157
WVFGRD96   28.0   140    60    50   3.76 0.3120
WVFGRD96   29.0   140    60    50   3.77 0.3084

The best solution is

WVFGRD96    5.0   105    45   -45   3.60 0.4965

The mechanism correspond to the best fit is
Figure 1. Waveform inversion focal mechanism

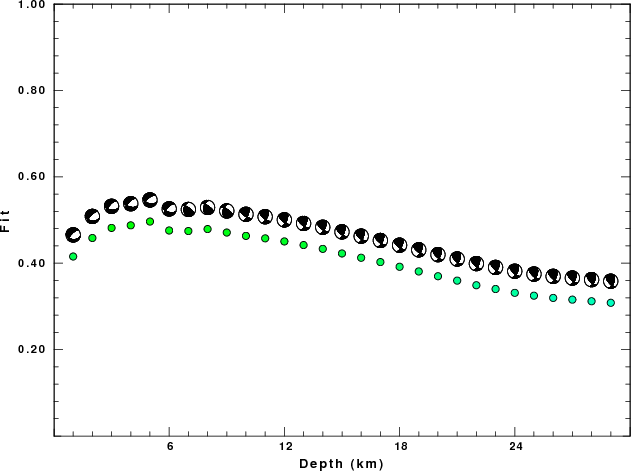

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

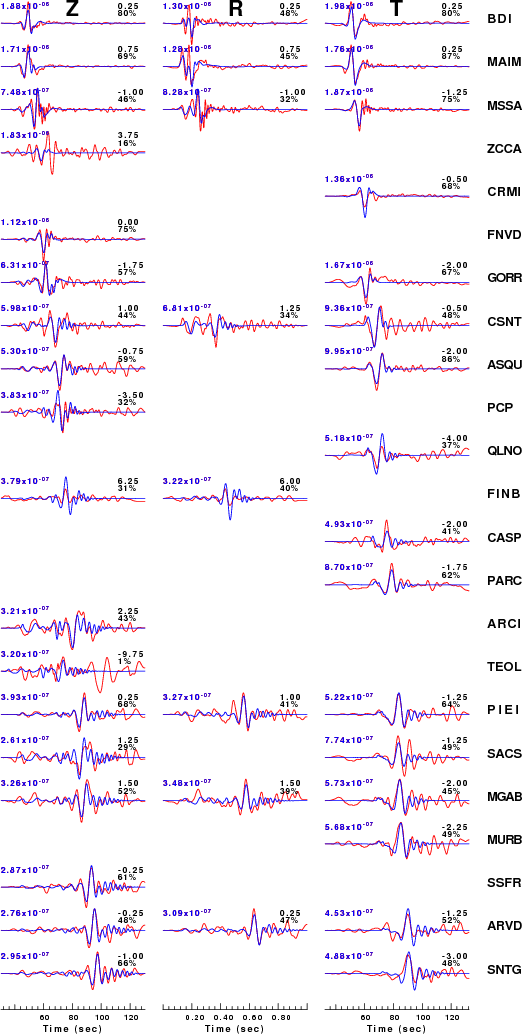

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut a -10 a 90
rtr
taper w 0.1
hp c 0.02 n 3
lp c 0.10 n 3
Figure 3. Waveform comparison for selected depth

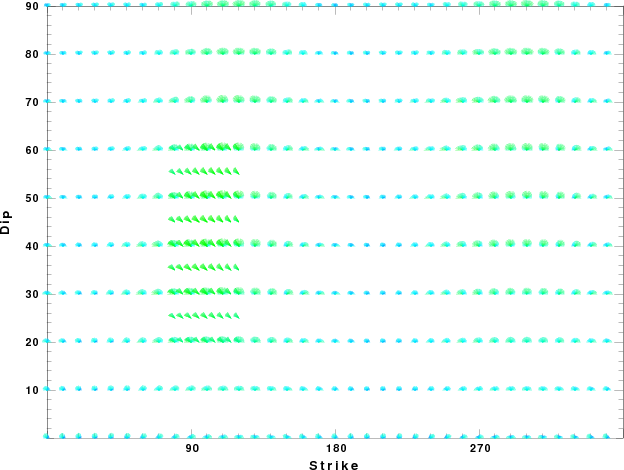

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

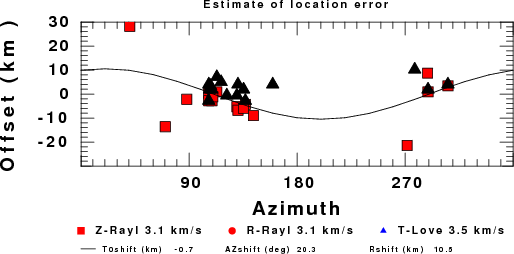

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Discussion

Velocity Model

The nnCIA used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:

MODEL.01
C.It. A. Di Luzio et al Earth Plan Lettrs 280 (2009) 1-12 Fig 5. 7-8 MODEL/SURF3
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.5000     3.7497     2.1436     2.2753  0.500E-02  0.100E-01   0.00       0.00       1.00       1.00
     3.0000     4.9399     2.8210     2.4858  0.500E-02  0.100E-01   0.00       0.00       1.00       1.00
     3.0000     6.0129     3.4336     2.7058  0.500E-02  0.100E-01   0.00       0.00       1.00       1.00
     7.0000     5.5516     3.1475     2.6093  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
    15.0000     5.8805     3.3583     2.6770  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
     6.0000     7.1059     4.0081     3.0002  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
     8.0000     7.1000     3.9864     3.0120  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.4036     3.2760  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00

Quality Control

Here we tabulate the reasons for not using certain digital data sets

The following stations did not have a valid response files:

DATE=Mon Jun 24 02:14:39 CDT 2013

Last Changed 2013/06/23
