Location

2011/09/19 05:34:34 44.622 10.253 23 3.2 Italy

Arrival Times (from USGS)

Felt Map

Focal Mechanism

SLU Moment Tensor Solution ENS 2011/09/19 05:34:34:0 44.62 10.25 23.0 3.2 Italy Stations used: IV.BDI IV.CRE IV.FNVD IV.FROS IV.MABI IV.MSSA IV.PRMA MN.VLC Filtering commands used: hp c 0.02 n 3 lp c 0.10 n 3 Best Fitting Double Couple Mo = 1.64e+21 dyne-cm Mw = 3.41 Z = 16 km Plane Strike Dip Rake NP1 110 85 80 NP2 354 11 153 Principal Axes: Axis Value Plunge Azimuth T 1.64e+21 49 9 N 0.00e+00 10 111 P -1.64e+21 39 209 Moment Tensor: (dyne-cm) Component Value Mxx -6.53e+19 Mxy -3.08e+20 Mxz 1.50e+21 Myy -2.15e+20 Myz 5.21e+20 Mzz 2.81e+20 ############-- ####################-- #########################--- ############################-- ################# ############-- ################## T #############-- ################### ##############-- --####################################-- -----#################################-- ----------#############################--- ---------------#########################-- --------------------####################-- -------------------------###############-- ------------------------------########-- -------------------------------------#-- ------------ ---------------------## ----------- P --------------------## ---------- -------------------## -----------------------------# --------------------------## ---------------------# -------------# Global CMT Convention Moment Tensor: R T P 2.81e+20 1.50e+21 -5.21e+20 1.50e+21 -6.53e+19 3.08e+20 -5.21e+20 3.08e+20 -2.15e+20 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20110919053434/index.html

Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion and first motion observations is

      STK = 110
      DIP = 85
     RAKE = 80
       MW = 3.41
       HS = 16.0

The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to others

SLU

SLU Moment Tensor Solution ENS 2011/09/19 05:34:34:0 44.62 10.25 23.0 3.2 Italy Stations used: IV.BDI IV.CRE IV.FNVD IV.FROS IV.MABI IV.MSSA IV.PRMA MN.VLC Filtering commands used: hp c 0.02 n 3 lp c 0.10 n 3 Best Fitting Double Couple Mo = 1.64e+21 dyne-cm Mw = 3.41 Z = 16 km Plane Strike Dip Rake NP1 110 85 80 NP2 354 11 153 Principal Axes: Axis Value Plunge Azimuth T 1.64e+21 49 9 N 0.00e+00 10 111 P -1.64e+21 39 209 Moment Tensor: (dyne-cm) Component Value Mxx -6.53e+19 Mxy -3.08e+20 Mxz 1.50e+21 Myy -2.15e+20 Myz 5.21e+20 Mzz 2.81e+20 ############-- ####################-- #########################--- ############################-- ################# ############-- ################## T #############-- ################### ##############-- --####################################-- -----#################################-- ----------#############################--- ---------------#########################-- --------------------####################-- -------------------------###############-- ------------------------------########-- -------------------------------------#-- ------------ ---------------------## ----------- P --------------------## ---------- -------------------## -----------------------------# --------------------------## ---------------------# -------------# Global CMT Convention Moment Tensor: R T P 2.81e+20 1.50e+21 -5.21e+20 1.50e+21 -6.53e+19 3.08e+20 -5.21e+20 3.08e+20 -2.15e+20 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20110919053434/index.html

Waveform Inversion

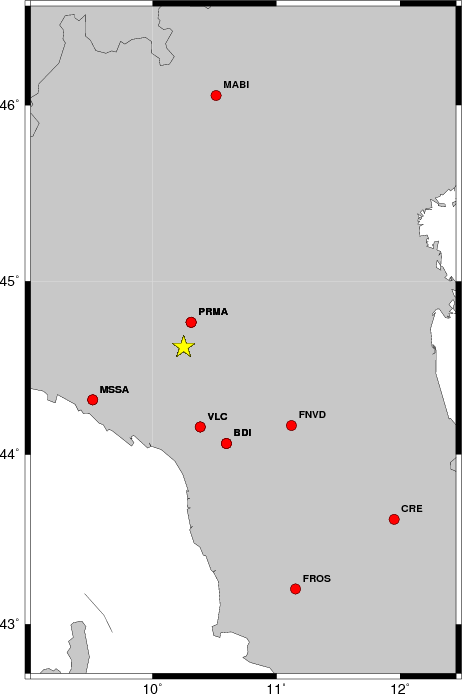

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

hp c 0.02 n 3
lp c 0.10 n 3

The results of this grid search from 0.5 to 19 km depth are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   270    30    75   3.14 0.3535
WVFGRD96    2.0   265    30    75   3.21 0.3908
WVFGRD96    3.0   235    40    30   3.21 0.3822
WVFGRD96    4.0   220    50   -15   3.21 0.3932
WVFGRD96    5.0   220    45   -15   3.29 0.4174
WVFGRD96    6.0   220    50   -15   3.29 0.4466
WVFGRD96    7.0   220    45   -10   3.30 0.4715
WVFGRD96    8.0   225    60   -20   3.29 0.4998
WVFGRD96    9.0   225    35    10   3.28 0.5161
WVFGRD96   10.0   230    25    25   3.28 0.5338
WVFGRD96   11.0   110    80    75   3.29 0.5531
WVFGRD96   12.0   110    80    75   3.31 0.5683
WVFGRD96   13.0   110    80    75   3.33 0.5811
WVFGRD96   14.0   110    80    75   3.34 0.5863
WVFGRD96   15.0   110    85    80   3.39 0.5892
WVFGRD96   16.0   110    85    80   3.41 0.5926
WVFGRD96   17.0   215    15    15   3.43 0.5866
WVFGRD96   18.0   200    15     0   3.44 0.5820
WVFGRD96   19.0   195    15    -5   3.45 0.5742
WVFGRD96   20.0   175    20   -30   3.46 0.5653
WVFGRD96   21.0   165    20   -40   3.47 0.5587
WVFGRD96   22.0   160    25   -50   3.49 0.5543
WVFGRD96   23.0   160    25   -50   3.50 0.5493
WVFGRD96   24.0   155    30   -60   3.51 0.5436
WVFGRD96   25.0   155    30   -60   3.52 0.5369
WVFGRD96   26.0   155    30   -60   3.53 0.5253
WVFGRD96   27.0   155    35   -65   3.54 0.5127
WVFGRD96   28.0   155    35   -65   3.55 0.5014
WVFGRD96   29.0   145    35   -70   3.56 0.4917

The best solution is

WVFGRD96   16.0   110    85    80   3.41 0.5926

The mechanism correspond to the best fit is

Figure 1. Waveform inversion focal mechanism

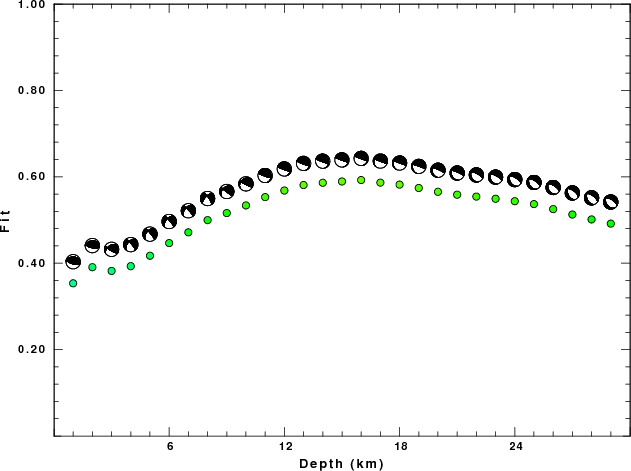

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

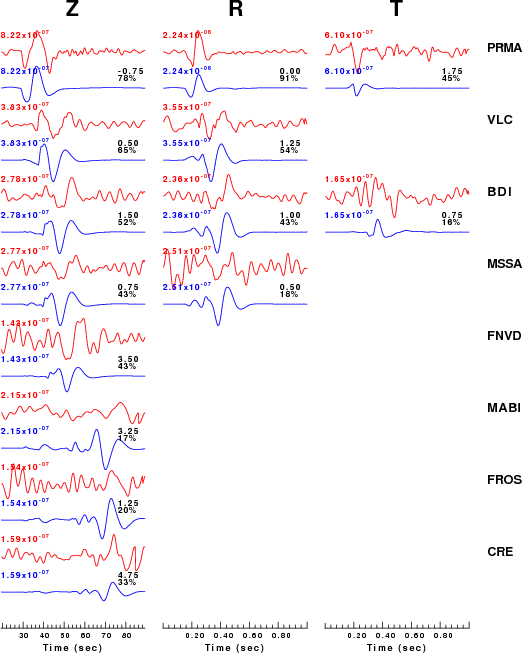

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

hp c 0.02 n 3
lp c 0.10 n 3

Figure 3. Waveform comparison for selected depth

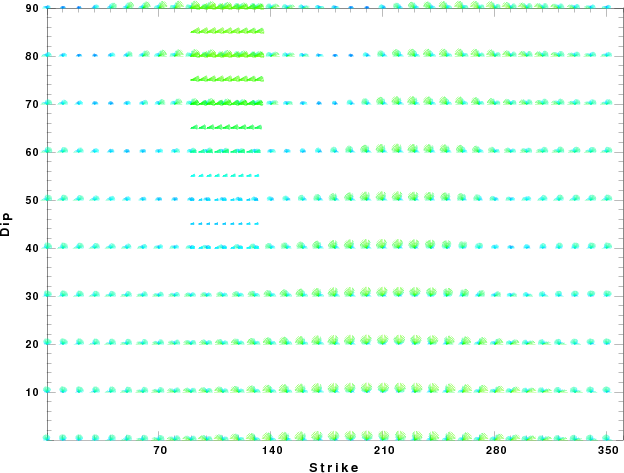

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

The origin time and epicentral distance are incorrect
The velocity model used for the inversion is incorrect
The velocity model used to define the P-arrival time is not the same as the velocity model used for the waveform inversion (assuming that the initial trace alignment is based on the P arrival time)

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

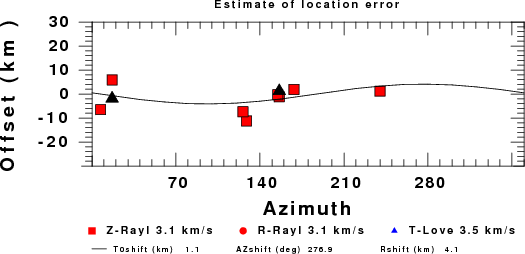

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Discussion

Velocity Model

The nnCIA used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:

MODEL.01
C.It. A. Di Luzio et al Earth Plan Lettrs 280 (2009) 1-12 Fig 5. 7-8 MODEL/SURF3
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.5000     3.7497     2.1436     2.2753  0.500E-02  0.100E-01   0.00       0.00       1.00       1.00
     3.0000     4.9399     2.8210     2.4858  0.500E-02  0.100E-01   0.00       0.00       1.00       1.00
     3.0000     6.0129     3.4336     2.7058  0.500E-02  0.100E-01   0.00       0.00       1.00       1.00
     7.0000     5.5516     3.1475     2.6093  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
    15.0000     5.8805     3.3583     2.6770  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
     6.0000     7.1059     4.0081     3.0002  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
     8.0000     7.1000     3.9864     3.0120  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.4036     3.2760  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00

Quality Control

Here we tabulate the reasons for not using certain digital data sets

The following stations did not have a valid response files:

DATE=Mon Sep 19 05:54:09 CDT 2011

Last Changed 2011/09/19
