Location

2011/05/25 00:05:41 43.896 12.019 7.5 3.1 Italy

Arrival Times (from USGS)

Arrival time list

Felt Map

USGS Felt map for this earthquake

USGS Felt reports page for

Focal Mechanism

 USGS/SLU Moment Tensor Solution
 ENS  2011/05/25 00:05:41:0  43.90   12.02   7.5 3.1 Italy

 Stations used:
   GU.MAIM IV.AOI IV.ARCI IV.ATPC IV.ATTE IV.BDI IV.CASP
   IV.CING IV.FDMO IV.FIR IV.FNVD IV.FROS IV.GUMA IV.LATE
   IV.LNSS IV.MAON IV.MCIV IV.MGAB IV.MURB IV.NRCA IV.SACS
   IV.SASS IV.SNTG IV.SSFR IV.TERO IV.TRIF

 Filtering commands used:
   hp c 0.04 n 3
   lp c 0.10 n 3
   br c 0.12 0.25 n 4 p 2

 Best Fitting Double Couple
  Mo = 1.38e+21 dyne-cm
  Mw = 3.36
  Z  = 6 km
  Plane   Strike  Dip  Rake
   NP1      108    61   -96
   NP2      300    30   -80
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.38e+21     15     203
    N   0.00e+00      5     111
    P  -1.38e+21     74       4

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     9.87e+20
       Mxy     4.50e+20
       Mxz    -6.92e+20
       Myy     1.91e+20
       Myz    -1.60e+20
       Mzz    -1.18e+21




                     ##############
                 ######################
              ########----################
             ##------------------##########
           #------------------------#########
          -----------------------------#######
         --------------------------------######
        -------------------   ------------######
        #------------------ P --------------####
       ####----------------   ---------------####
       #####---------------------------------####
       #######--------------------------------###
       ##########-----------------------------###
        ############--------------------------##
        ################-----------------------#
         #####################-------------###-
          ####################################
           ##################################
             #######   ####################
              ###### T ###################
                 ###   ################
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.18e+21  -6.92e+20   1.60e+20
 -6.92e+20   9.87e+20  -4.50e+20
  1.60e+20  -4.50e+20   1.91e+20


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20110525000541/index.html


Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion and first motion observations is

      STK = 300
      DIP = 30
     RAKE = -80
       MW = 3.36
       HS = 6.0

The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to others
SLU
 USGS/SLU Moment Tensor Solution
 ENS  2011/05/25 00:05:41:0  43.90   12.02   7.5 3.1 Italy

 Stations used:
   GU.MAIM IV.AOI IV.ARCI IV.ATPC IV.ATTE IV.BDI IV.CASP
   IV.CING IV.FDMO IV.FIR IV.FNVD IV.FROS IV.GUMA IV.LATE
   IV.LNSS IV.MAON IV.MCIV IV.MGAB IV.MURB IV.NRCA IV.SACS
   IV.SASS IV.SNTG IV.SSFR IV.TERO IV.TRIF

 Filtering commands used:
   hp c 0.04 n 3
   lp c 0.10 n 3
   br c 0.12 0.25 n 4 p 2

 Best Fitting Double Couple
  Mo = 1.38e+21 dyne-cm
  Mw = 3.36
  Z  = 6 km
  Plane   Strike  Dip  Rake
   NP1      108    61   -96
   NP2      300    30   -80
  Principal Axes:
   Axis    Value   Plunge  Azimuth
    T   1.38e+21     15     203
    N   0.00e+00      5     111
    P  -1.38e+21     74       4

 Moment Tensor: (dyne-cm)
    Component   Value
       Mxx     9.87e+20
       Mxy     4.50e+20
       Mxz    -6.92e+20
       Myy     1.91e+20
       Myz    -1.60e+20
       Mzz    -1.18e+21




                     ##############
                 ######################
              ########----################
             ##------------------##########
           #------------------------#########
          -----------------------------#######
         --------------------------------######
        -------------------   ------------######
        #------------------ P --------------####
       ####----------------   ---------------####
       #####---------------------------------####
       #######--------------------------------###
       ##########-----------------------------###
        ############--------------------------##
        ################-----------------------#
         #####################-------------###-
          ####################################
           ##################################
             #######   ####################
              ###### T ###################
                 ###   ################
                     ##############



 Global CMT Convention Moment Tensor:
      R          T          P
 -1.18e+21  -6.92e+20   1.60e+20
 -6.92e+20   9.87e+20  -4.50e+20
  1.60e+20  -4.50e+20   1.91e+20


Details of the solution is found at

http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20110525000541/index.html


Waveform Inversion

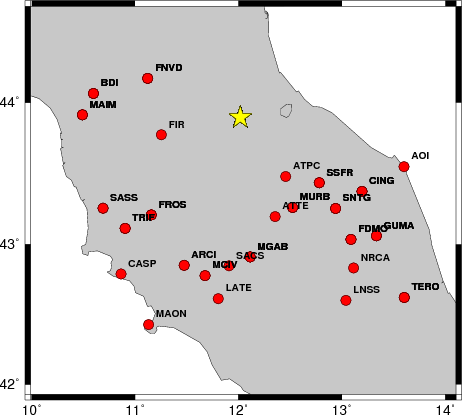

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.
Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

hp c 0.04 n 3
lp c 0.10 n 3
br c 0.12 0.25 n 4 p 2
The results of this grid search from 0.5 to 19 km depth are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   160    75   -20   3.08 0.3438
WVFGRD96    2.0   155    75   -35   3.16 0.3683
WVFGRD96    3.0   335    50   -20   3.21 0.3874
WVFGRD96    4.0   340    50   -10   3.21 0.4001
WVFGRD96    5.0   320    35   -45   3.32 0.4216
WVFGRD96    6.0   300    30   -80   3.36 0.4304
WVFGRD96    7.0   125    60   -75   3.34 0.4238
WVFGRD96    8.0   260    40    45   3.27 0.4179
WVFGRD96    9.0   260    40    45   3.27 0.4189
WVFGRD96   10.0   255    45    40   3.26 0.4190
WVFGRD96   11.0   255    45    40   3.26 0.4175
WVFGRD96   12.0   250    50    30   3.27 0.4157
WVFGRD96   13.0   250    50    30   3.28 0.4130
WVFGRD96   14.0   250    50    30   3.28 0.4091
WVFGRD96   15.0   250    50    30   3.32 0.4101
WVFGRD96   16.0   250    50    30   3.33 0.4061
WVFGRD96   17.0   250    55    25   3.34 0.4011
WVFGRD96   18.0   250    55    25   3.35 0.3956
WVFGRD96   19.0   250    55    25   3.36 0.3894
WVFGRD96   20.0   250    55    25   3.37 0.3825
WVFGRD96   21.0   250    55    25   3.38 0.3751
WVFGRD96   22.0   250    55    25   3.39 0.3673
WVFGRD96   23.0   250    55    20   3.41 0.3593
WVFGRD96   24.0   250    55    20   3.42 0.3511
WVFGRD96   25.0   240    65   -20   3.42 0.3442
WVFGRD96   26.0   240    65   -20   3.44 0.3418
WVFGRD96   27.0   240    65   -20   3.45 0.3397
WVFGRD96   28.0   240    65   -20   3.47 0.3385
WVFGRD96   29.0   240    65   -20   3.49 0.3388

The best solution is

WVFGRD96    6.0   300    30   -80   3.36 0.4304

The mechanism correspond to the best fit is
Figure 1. Waveform inversion focal mechanism

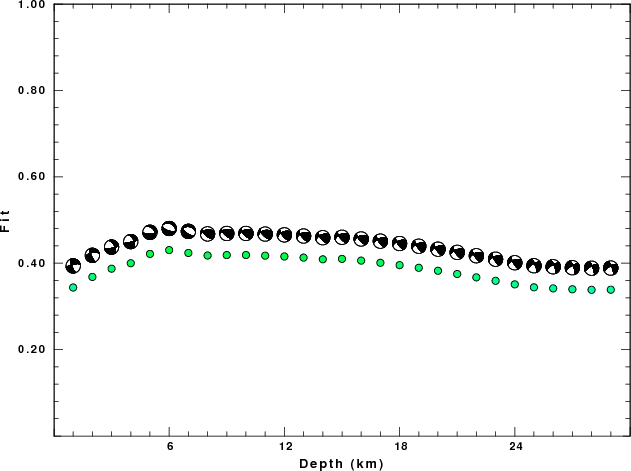

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

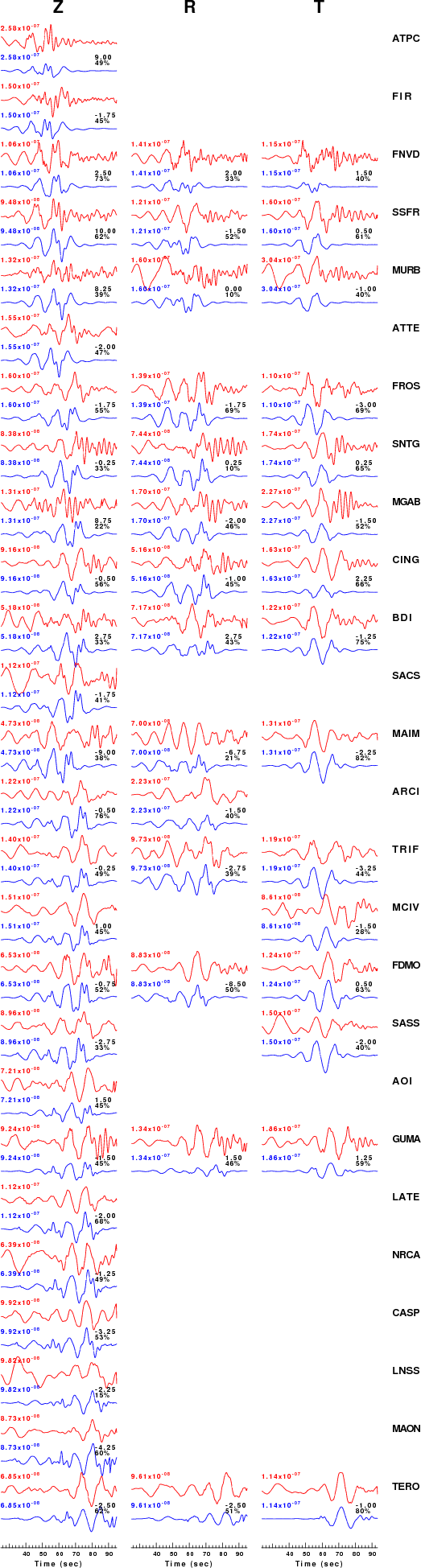

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

hp c 0.04 n 3
lp c 0.10 n 3
br c 0.12 0.25 n 4 p 2
Figure 3. Waveform comparison for selected depth

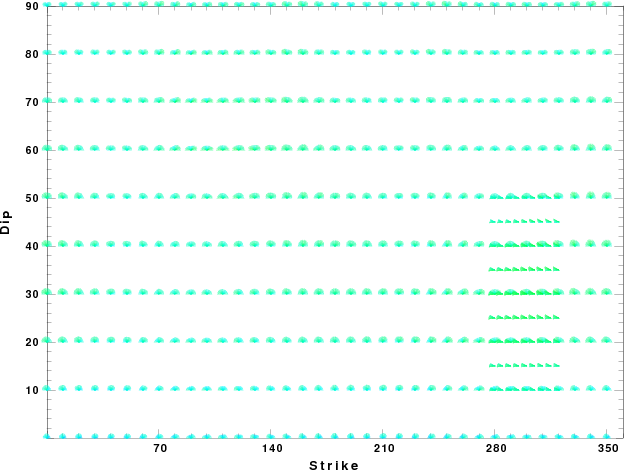

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

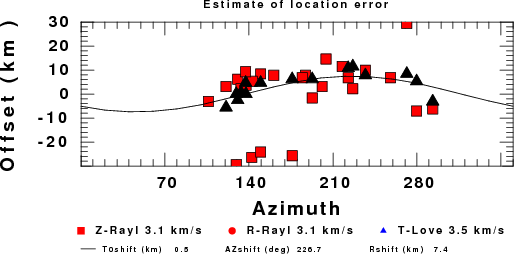

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Discussion

Velocity Model

The nnCIA used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:

MODEL.01
C.It. A. Di Luzio et al Earth Plan Lettrs 280 (2009) 1-12 Fig 5. 7-8 MODEL/SURF3
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.5000     3.7497     2.1436     2.2753  0.500E-02  0.100E-01   0.00       0.00       1.00       1.00
     3.0000     4.9399     2.8210     2.4858  0.500E-02  0.100E-01   0.00       0.00       1.00       1.00
     3.0000     6.0129     3.4336     2.7058  0.500E-02  0.100E-01   0.00       0.00       1.00       1.00
     7.0000     5.5516     3.1475     2.6093  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
    15.0000     5.8805     3.3583     2.6770  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
     6.0000     7.1059     4.0081     3.0002  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
     8.0000     7.1000     3.9864     3.0120  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.4036     3.2760  0.167E-02  0.333E-02   0.00       0.00       1.00       1.00

Quality Control

Here we tabulate the reasons for not using certain digital data sets

The following stations did not have a valid response files:

DATE=Fri May 27 03:18:14 CDT 2011
