2009/06/16 18:52:57 42.297 13.391 12.3 3.10 Italy
USGS Felt map for this earthquake
USGS/SLU Moment Tensor Solution
ENS 2009/06/16 18:52:57:0 42.30 13.39 12.3 3.1 Italy
Stations used:
IV.AOI IV.ARVD IV.CAMP IV.CERT IV.CESX IV.FAGN IV.FIAM
IV.GUMA IV.MNS IV.MTCE IV.NRCA IV.OFFI IV.RMP IV.TERO
IV.VVLD MN.AQU
Filtering commands used:
hp c 0.02 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 4.90e+20 dyne-cm
Mw = 3.06
Z = 12 km
Plane Strike Dip Rake
NP1 127 63 -121
NP2 0 40 -45
Principal Axes:
Axis Value Plunge Azimuth
T 4.90e+20 13 239
N 0.00e+00 27 143
P -4.90e+20 60 352
Moment Tensor: (dyne-cm)
Component Value
Mxx 0.00e+00
Mxy 2.23e+20
Mxz -2.65e+20
Myy 3.41e+20
Myz -6.01e+19
Mzz -3.41e+20
----------####
----------------######
---------------------#######
-----------------------#######
#-------------------------########
##------------- ----------########
####------------ P -----------########
#####------------ ------------########
#######-------------------------########
#########------------------------#########
##########-----------------------#########
############---------------------#########
##############-------------------#########
###############-----------------########
#################---------------########
## ##############-----------########
# T ##################------########
###############################
#######################-------
#####################-------
################------
##########----
Global CMT Convention Moment Tensor:
R T P
-3.41e+20 -2.65e+20 6.01e+19
-2.65e+20 0.00e+00 -2.23e+20
6.01e+19 -2.23e+20 3.41e+20
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20090616185257/index.html
|
STK = 0
DIP = 40
RAKE = -45
MW = 3.06
HS = 12.0
The waveform inversion is preferred.
The following compares this source inversion to others
USGS/SLU Moment Tensor Solution
ENS 2009/06/16 18:52:57:0 42.30 13.39 12.3 3.1 Italy
Stations used:
IV.AOI IV.ARVD IV.CAMP IV.CERT IV.CESX IV.FAGN IV.FIAM
IV.GUMA IV.MNS IV.MTCE IV.NRCA IV.OFFI IV.RMP IV.TERO
IV.VVLD MN.AQU
Filtering commands used:
hp c 0.02 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 4.90e+20 dyne-cm
Mw = 3.06
Z = 12 km
Plane Strike Dip Rake
NP1 127 63 -121
NP2 0 40 -45
Principal Axes:
Axis Value Plunge Azimuth
T 4.90e+20 13 239
N 0.00e+00 27 143
P -4.90e+20 60 352
Moment Tensor: (dyne-cm)
Component Value
Mxx 0.00e+00
Mxy 2.23e+20
Mxz -2.65e+20
Myy 3.41e+20
Myz -6.01e+19
Mzz -3.41e+20
----------####
----------------######
---------------------#######
-----------------------#######
#-------------------------########
##------------- ----------########
####------------ P -----------########
#####------------ ------------########
#######-------------------------########
#########------------------------#########
##########-----------------------#########
############---------------------#########
##############-------------------#########
###############-----------------########
#################---------------########
## ##############-----------########
# T ##################------########
###############################
#######################-------
#####################-------
################------
##########----
Global CMT Convention Moment Tensor:
R T P
-3.41e+20 -2.65e+20 6.01e+19
-2.65e+20 0.00e+00 -2.23e+20
6.01e+19 -2.23e+20 3.41e+20
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20090616185257/index.html
|

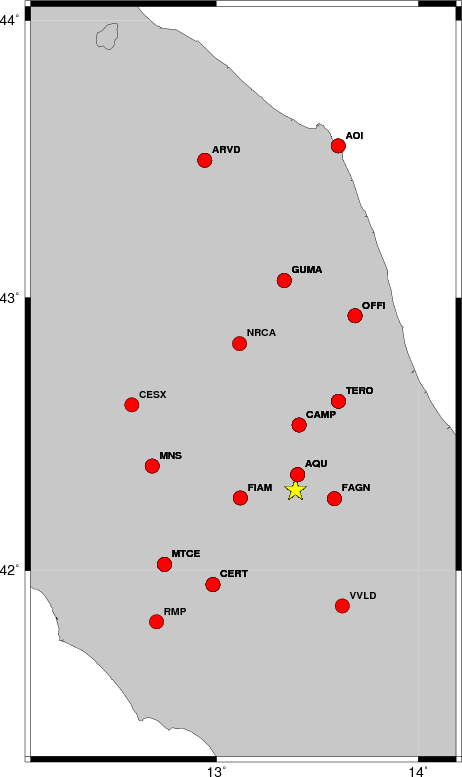

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.
|
|
|
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
hp c 0.02 n 3 lp c 0.10 n 3The results of this grid search from 0.5 to 19 km depth are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 0.5 335 50 85 2.75 0.2454
WVFGRD96 1.0 330 50 85 2.77 0.2181
WVFGRD96 2.0 150 30 -75 2.84 0.1998
WVFGRD96 3.0 140 80 55 2.87 0.2257
WVFGRD96 4.0 150 70 65 2.88 0.2483
WVFGRD96 5.0 150 75 70 2.98 0.2791
WVFGRD96 6.0 5 30 -50 3.01 0.3379
WVFGRD96 7.0 355 30 -55 3.03 0.3930
WVFGRD96 8.0 355 35 -55 3.02 0.4342
WVFGRD96 9.0 -5 35 -55 3.03 0.4571
WVFGRD96 10.0 350 35 -55 3.04 0.4700
WVFGRD96 11.0 360 40 -45 3.05 0.4762
WVFGRD96 12.0 0 40 -45 3.06 0.4770
WVFGRD96 13.0 5 40 -40 3.07 0.4729
WVFGRD96 14.0 5 40 -40 3.08 0.4655
WVFGRD96 15.0 10 35 -35 3.12 0.4633
WVFGRD96 16.0 10 35 -30 3.12 0.4599
WVFGRD96 17.0 10 35 -30 3.13 0.4540
WVFGRD96 18.0 15 35 -25 3.14 0.4458
WVFGRD96 19.0 15 35 -25 3.15 0.4361
WVFGRD96 20.0 15 35 -25 3.16 0.4238
WVFGRD96 21.0 15 35 -25 3.16 0.4100
WVFGRD96 22.0 20 35 -20 3.17 0.3955
WVFGRD96 23.0 35 35 0 3.18 0.3845
WVFGRD96 24.0 35 35 0 3.18 0.3742
WVFGRD96 25.0 350 50 -45 3.19 0.3648
WVFGRD96 26.0 350 50 -45 3.20 0.3578
WVFGRD96 27.0 355 55 -40 3.21 0.3475
WVFGRD96 28.0 350 50 -45 3.21 0.3371
WVFGRD96 29.0 45 35 10 3.19 0.3281
The best solution is
WVFGRD96 12.0 0 40 -45 3.06 0.4770
The mechanism correspond to the best fit is
|
|
|

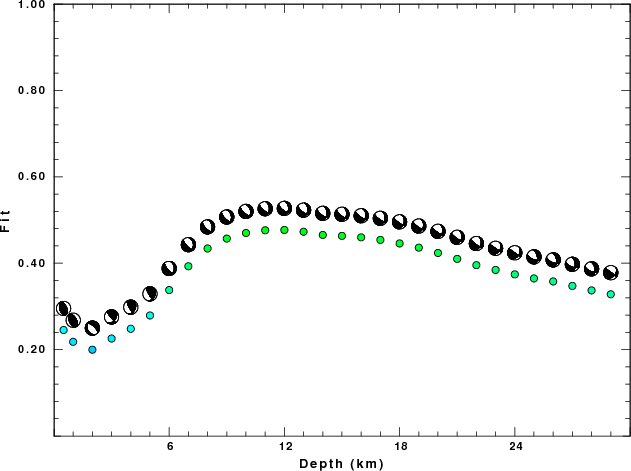

The best fit as a function of depth is given in the following figure:
|
|
|

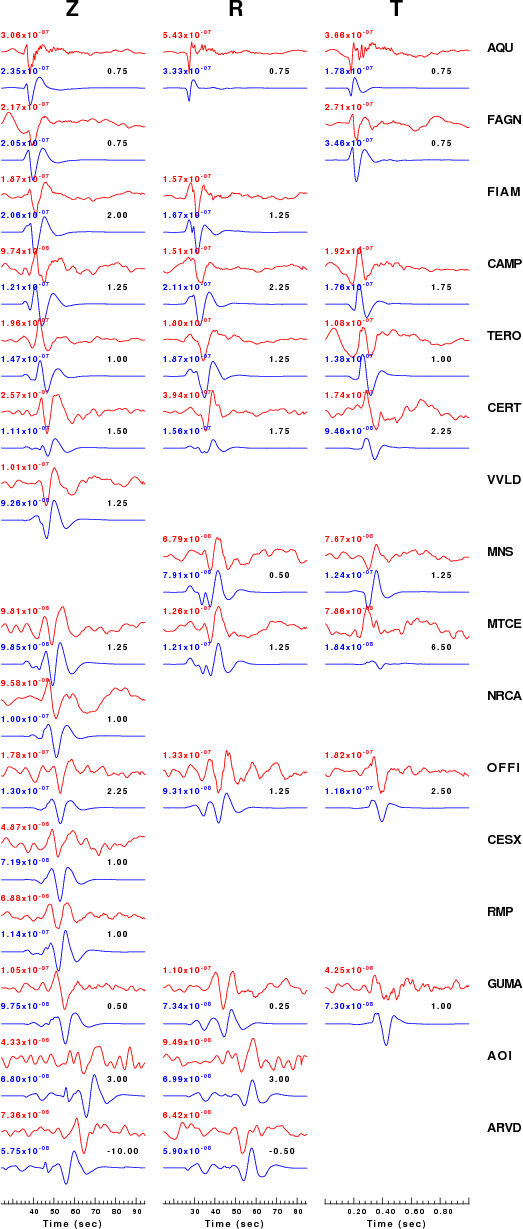

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. The number in black at the rightr of each predicted traces it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The bandpass filter used in the processing and for the display was
hp c 0.02 n 3 lp c 0.10 n 3
|
|
|
|

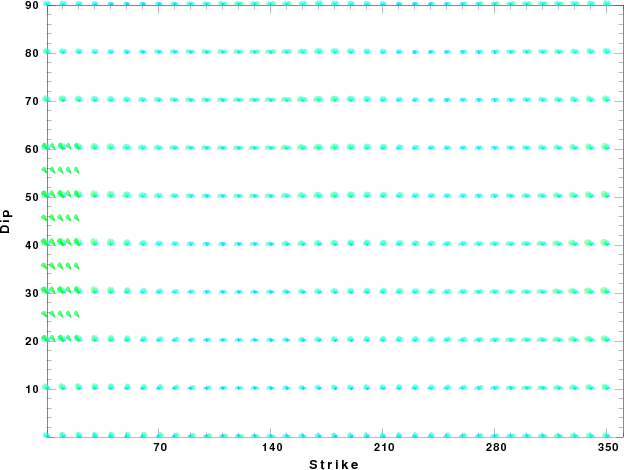

| Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
The nnCIA used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:
MODEL.01
C.It. A. Di Luzio et al Earth Plan Lettrs 280 (2009) 1-12 Fig 5. 7-8 MODEL/SURF3
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS
1.5000 3.7497 2.1436 2.2753 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
3.0000 4.9399 2.8210 2.4858 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
3.0000 6.0129 3.4336 2.7058 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
7.0000 5.5516 3.1475 2.6093 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
15.0000 5.8805 3.3583 2.6770 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
6.0000 7.1059 4.0081 3.0002 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
8.0000 7.1000 3.9864 3.0120 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
0.0000 7.9000 4.4036 3.2760 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
Here we tabulate the reasons for not using certain digital data sets
The following stations did not have a valid response files:
DATE=Tue Jun 16 14:46:26 CDT 2009
