2009/04/06 10:36:18 42.343 13.402 10.1 3.50 Italy
USGS Felt map for this earthquake
USGS/SLU Moment Tensor Solution
ENS 2009/04/06 10:36:18:0 42.34 13.40 10.1 3.5 Italy
Stations used:
IV.ASSB IV.BSSO IV.CERA IV.CING IV.FAGN IV.FDMO IV.LATE
IV.LPEL IV.MGAB IV.MNS IV.MTCE IV.OFFI IV.POFI IV.RDP
IV.RMP IV.SACS IV.TERO IV.VVLD
Filtering commands used:
hp c 0.02 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 1.20e+21 dyne-cm
Mw = 3.32
Z = 6 km
Plane Strike Dip Rake
NP1 133 61 -132
NP2 15 50 -40
Principal Axes:
Axis Value Plunge Azimuth
T 1.20e+21 6 252
N 0.00e+00 36 158
P -1.20e+21 53 350
Moment Tensor: (dyne-cm)
Component Value
Mxx -3.02e+20
Mxy 4.21e+20
Mxz -6.07e+20
Myy 1.06e+21
Myz -2.36e+19
Mzz -7.61e+20
-------------#
------------------####
----------------------######
------------------------######
##-------------------------#######
###------------ ----------########
#####----------- P -----------########
######----------- -----------#########
#######------------------------#########
#########-----------------------##########
##########---------------------###########
############-------------------###########
#############------------------###########
###########---------------###########
T #############------------############
###############----------###########
###################------###########
#####################-############
###################------#####
################------------
###########-----------
###-----------
Global CMT Convention Moment Tensor:
R T P
-7.61e+20 -6.07e+20 2.36e+19
-6.07e+20 -3.02e+20 -4.21e+20
2.36e+19 -4.21e+20 1.06e+21
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20090406103618/index.html
|
STK = 15
DIP = 50
RAKE = -40
MW = 3.32
HS = 6.0
The waveform inversion is preferred.
The following compares this source inversion to others
USGS/SLU Moment Tensor Solution
ENS 2009/04/06 10:36:18:0 42.34 13.40 10.1 3.5 Italy
Stations used:
IV.ASSB IV.BSSO IV.CERA IV.CING IV.FAGN IV.FDMO IV.LATE
IV.LPEL IV.MGAB IV.MNS IV.MTCE IV.OFFI IV.POFI IV.RDP
IV.RMP IV.SACS IV.TERO IV.VVLD
Filtering commands used:
hp c 0.02 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 1.20e+21 dyne-cm
Mw = 3.32
Z = 6 km
Plane Strike Dip Rake
NP1 133 61 -132
NP2 15 50 -40
Principal Axes:
Axis Value Plunge Azimuth
T 1.20e+21 6 252
N 0.00e+00 36 158
P -1.20e+21 53 350
Moment Tensor: (dyne-cm)
Component Value
Mxx -3.02e+20
Mxy 4.21e+20
Mxz -6.07e+20
Myy 1.06e+21
Myz -2.36e+19
Mzz -7.61e+20
-------------#
------------------####
----------------------######
------------------------######
##-------------------------#######
###------------ ----------########
#####----------- P -----------########
######----------- -----------#########
#######------------------------#########
#########-----------------------##########
##########---------------------###########
############-------------------###########
#############------------------###########
###########---------------###########
T #############------------############
###############----------###########
###################------###########
#####################-############
###################------#####
################------------
###########-----------
###-----------
Global CMT Convention Moment Tensor:
R T P
-7.61e+20 -6.07e+20 2.36e+19
-6.07e+20 -3.02e+20 -4.21e+20
2.36e+19 -4.21e+20 1.06e+21
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.IT/20090406103618/index.html
|

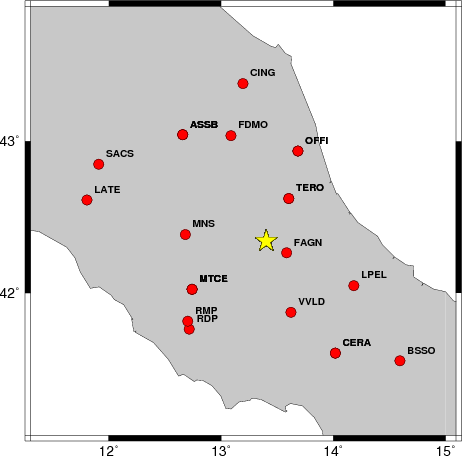

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.
|
|
|
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
hp c 0.02 n 3 lp c 0.10 n 3The results of this grid search from 0.5 to 19 km depth are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 0.5 210 80 -30 3.02 0.2446
WVFGRD96 1.0 25 70 -25 3.05 0.2550
WVFGRD96 2.0 20 60 -35 3.15 0.2809
WVFGRD96 3.0 20 55 -30 3.19 0.3017
WVFGRD96 4.0 20 55 -35 3.23 0.3220
WVFGRD96 5.0 10 45 -45 3.33 0.3382
WVFGRD96 6.0 15 50 -40 3.32 0.3418
WVFGRD96 7.0 20 55 -30 3.31 0.3386
WVFGRD96 8.0 25 60 -20 3.30 0.3316
WVFGRD96 9.0 25 65 -15 3.31 0.3251
WVFGRD96 10.0 25 65 -15 3.32 0.3175
WVFGRD96 11.0 25 65 -10 3.33 0.3082
WVFGRD96 12.0 30 65 -10 3.33 0.2986
WVFGRD96 13.0 30 65 -10 3.34 0.2885
WVFGRD96 14.0 25 65 -10 3.36 0.2787
WVFGRD96 15.0 25 60 -10 3.38 0.2691
WVFGRD96 16.0 25 60 5 3.39 0.2588
WVFGRD96 17.0 25 60 5 3.40 0.2503
WVFGRD96 18.0 25 60 5 3.40 0.2414
WVFGRD96 19.0 25 60 5 3.41 0.2332
WVFGRD96 20.0 25 60 5 3.42 0.2268
WVFGRD96 21.0 25 60 5 3.43 0.2219
WVFGRD96 22.0 25 60 5 3.43 0.2181
WVFGRD96 23.0 25 60 5 3.44 0.2144
WVFGRD96 24.0 25 70 15 3.45 0.2105
WVFGRD96 25.0 25 70 15 3.46 0.2087
WVFGRD96 26.0 25 70 15 3.47 0.2066
WVFGRD96 27.0 25 70 15 3.48 0.2058
WVFGRD96 28.0 10 75 15 3.55 0.2061
WVFGRD96 29.0 20 80 5 3.53 0.2082
The best solution is
WVFGRD96 6.0 15 50 -40 3.32 0.3418
The mechanism correspond to the best fit is
|
|
|

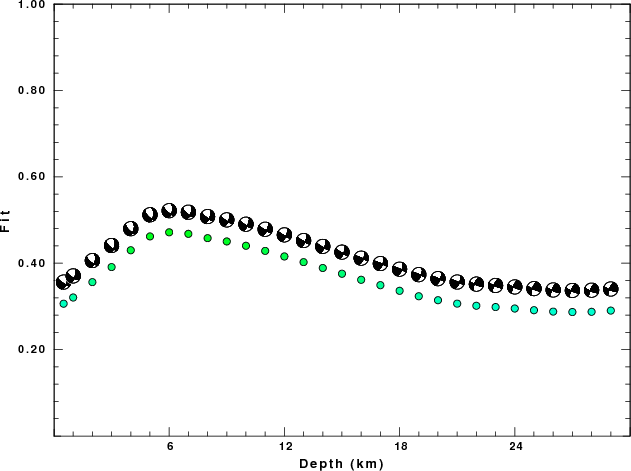

The best fit as a function of depth is given in the following figure:
|
|
|

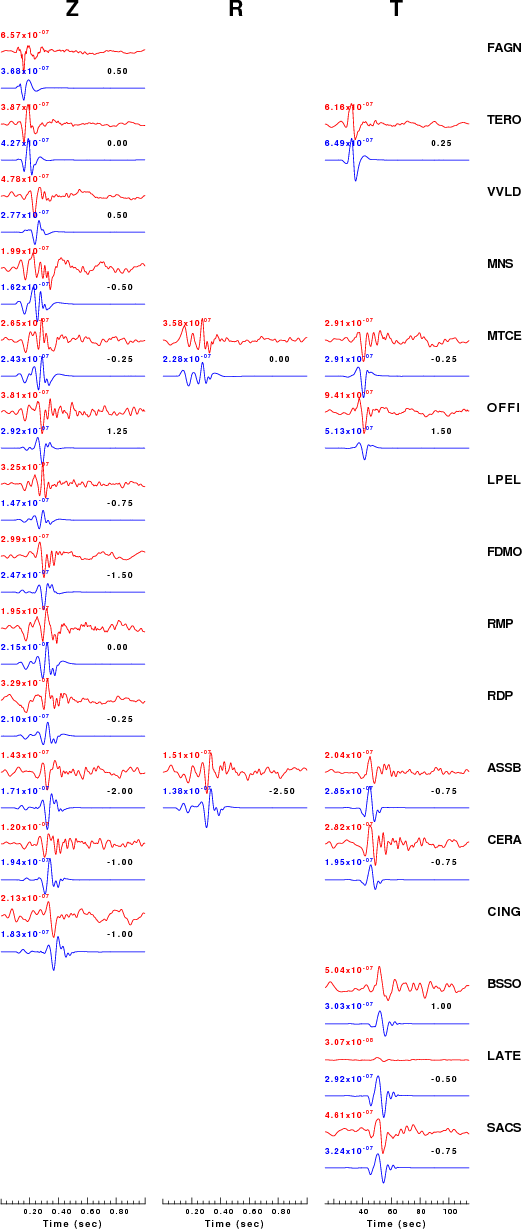

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. The number in black at the rightr of each predicted traces it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The bandpass filter used in the processing and for the display was
hp c 0.02 n 3 lp c 0.10 n 3
|
|
|
|

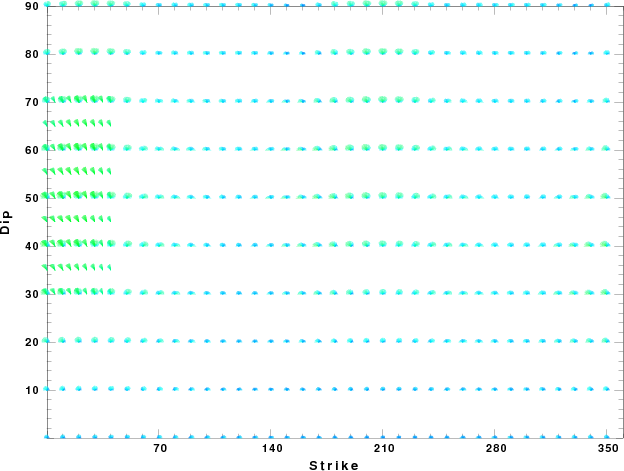

| Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
The nnCIA used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:
MODEL.01
C.It. A. Di Luzio et al Earth Plan Lettrs 280 (2009) 1-12 Fig 5. 7-8 MODEL/SURF3
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS
1.5000 3.7497 2.1436 2.2753 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
3.0000 4.9399 2.8210 2.4858 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
3.0000 6.0129 3.4336 2.7058 0.500E-02 0.100E-01 0.00 0.00 1.00 1.00
7.0000 5.5516 3.1475 2.6093 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
15.0000 5.8805 3.3583 2.6770 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
6.0000 7.1059 4.0081 3.0002 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
8.0000 7.1000 3.9864 3.0120 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
0.0000 7.9000 4.4036 3.2760 0.167E-02 0.333E-02 0.00 0.00 1.00 1.00
Here we tabulate the reasons for not using certain digital data sets
The following stations did not have a valid response files:
DATE=Mon Apr 27 08:46:57 CDT 2009
