Location

Location ANSS

Focal Mechanism

USGS/SLU Moment Tensor Solution ENS 2021/02/05 15:36:10:0 40.49 45.35 10.0 5.1 Armenia Stations used: KO.AGRB KO.BAYT KO.BCA KO.BNGB KO.CHOM KO.DYBB KO.ERZN KO.GURO KO.ILIC KO.KARO KO.KARS KO.KTUT KO.MLAZ KO.RSDY KO.SENK KO.SVAN KO.URFA KO.VANB KO.VRTB Filtering commands used: cut o DIST/3.3 -30 o DIST/3.3 +70 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.06 n 3 Best Fitting Double Couple Mo = 5.25e+23 dyne-cm Mw = 5.08 Z = 15 km Plane Strike Dip Rake NP1 25 90 15 NP2 295 75 180 Principal Axes: Axis Value Plunge Azimuth T 5.25e+23 11 251 N 0.00e+00 75 25 P -5.25e+23 11 159 Moment Tensor: (dyne-cm) Component Value Mxx -3.88e+23 Mxy 3.26e+23 Mxz 5.74e+22 Myy 3.88e+23 Myz -1.23e+23 Mzz -1.19e+16 -------------- -------------------### ---------------------####### ---------------------######### -----------------------########### -----------------------############# ######-----------------############### ##############---------################# ###################---################## ######################--################## #####################-------############## #####################----------########### ####################-------------######### # ##############-----------------##### # T #############--------------------### ############----------------------# #############----------------------- ###########----------------------- #########--------------------- #######------------ ------ ###------------- P --- ------------ Global CMT Convention Moment Tensor: R T P -1.19e+16 5.74e+22 1.23e+23 5.74e+22 -3.88e+23 -3.26e+23 1.23e+23 -3.26e+23 3.88e+23 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20210205153610/index.html

Preferred Solution

      STK = 25
      DIP = 90
     RAKE = 15
       MW = 5.08
       HS = 15.0

The NDK file is 20210205153610.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to others

SLU

USGSMWR

USGS/SLU Moment Tensor Solution ENS 2021/02/05 15:36:10:0 40.49 45.35 10.0 5.1 Armenia Stations used: KO.AGRB KO.BAYT KO.BCA KO.BNGB KO.CHOM KO.DYBB KO.ERZN KO.GURO KO.ILIC KO.KARO KO.KARS KO.KTUT KO.MLAZ KO.RSDY KO.SENK KO.SVAN KO.URFA KO.VANB KO.VRTB Filtering commands used: cut o DIST/3.3 -30 o DIST/3.3 +70 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.06 n 3 Best Fitting Double Couple Mo = 5.25e+23 dyne-cm Mw = 5.08 Z = 15 km Plane Strike Dip Rake NP1 25 90 15 NP2 295 75 180 Principal Axes: Axis Value Plunge Azimuth T 5.25e+23 11 251 N 0.00e+00 75 25 P -5.25e+23 11 159 Moment Tensor: (dyne-cm) Component Value Mxx -3.88e+23 Mxy 3.26e+23 Mxz 5.74e+22 Myy 3.88e+23 Myz -1.23e+23 Mzz -1.19e+16 -------------- -------------------### ---------------------####### ---------------------######### -----------------------########### -----------------------############# ######-----------------############### ##############---------################# ###################---################## ######################--################## #####################-------############## #####################----------########### ####################-------------######### # ##############-----------------##### # T #############--------------------### ############----------------------# #############----------------------- ###########----------------------- #########--------------------- #######------------ ------ ###------------- P --- ------------ Global CMT Convention Moment Tensor: R T P -1.19e+16 5.74e+22 1.23e+23 5.74e+22 -3.88e+23 -3.26e+23 1.23e+23 -3.26e+23 3.88e+23 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20210205153610/index.html

egional Moment Tensor (Mwr) Moment 4.978e+16 N-m Magnitude 5.06 Mwr Depth 9.0 km Percent DC 85% Half Duration - Catalog US Data Source US 1 Contributor US 1 Nodal Planes Plane Strike Dip Rake NP1 27 77 -43 NP2 128 48 -162 Principal Axes Axis Value Plunge Azimuth T 4.772e+16 N-m 18 84 N 0.389e+16 N-m 45 193 P -5.160e+16 N-m 39 338

Magnitudes

ML Magnitude

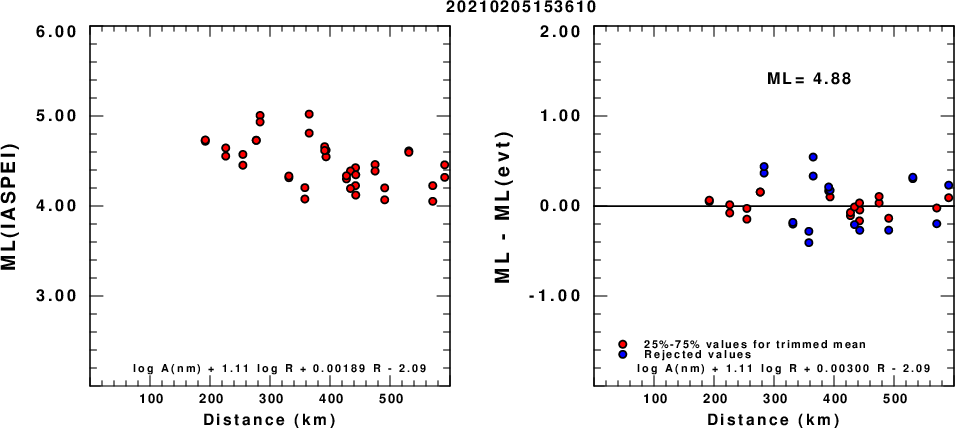

(a) ML computed using the IASPEI formula for Horizontal components; (b) ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.

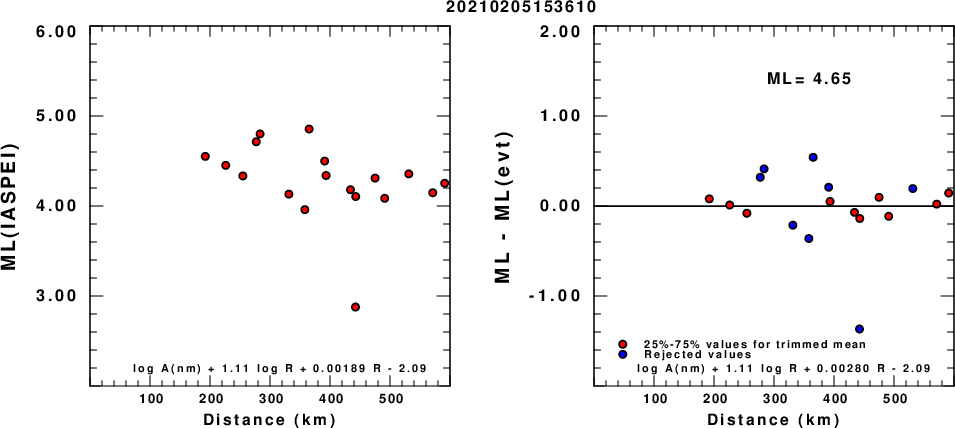

(a) ML computed using the IASPEI formula for Vertical components (research); (b) ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.

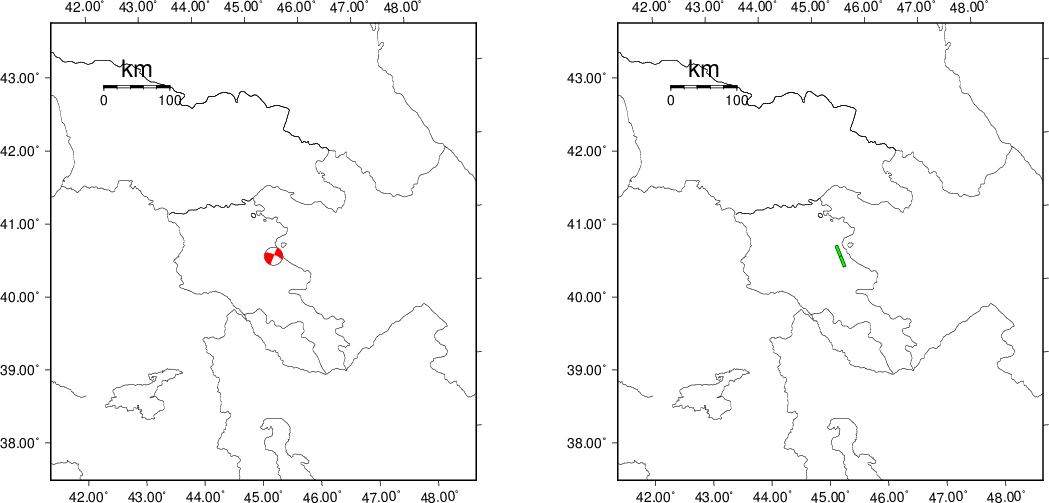

Context

Waveform Inversion

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.

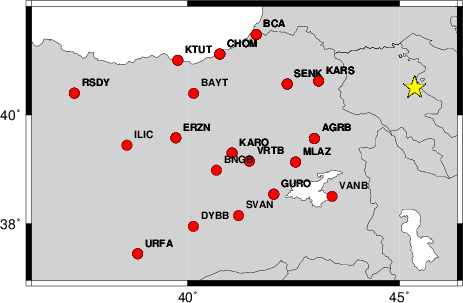

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -30 o DIST/3.3 +70
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.06 n 3

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   245    45    80   4.94 0.3464
WVFGRD96    2.0   240    45    70   5.02 0.4269
WVFGRD96    3.0   205    85     0   4.84 0.4452
WVFGRD96    4.0   205    80    -5   4.88 0.4800
WVFGRD96    5.0   205    80    -5   4.91 0.5045
WVFGRD96    6.0   205    80    -5   4.94 0.5223
WVFGRD96    7.0    25    90     0   4.96 0.5371
WVFGRD96    8.0   205    85     0   4.99 0.5517
WVFGRD96    9.0   205    90   -15   5.01 0.5543
WVFGRD96   10.0    25    85    15   5.02 0.5608
WVFGRD96   11.0    25    85    15   5.03 0.5685
WVFGRD96   12.0    25    85    15   5.05 0.5752
WVFGRD96   13.0    25    85    15   5.06 0.5798
WVFGRD96   14.0    25    90    15   5.07 0.5833
WVFGRD96   15.0    25    90    15   5.08 0.5849
WVFGRD96   16.0    25    90    15   5.09 0.5845
WVFGRD96   17.0    30    85    10   5.11 0.5830
WVFGRD96   18.0    30    85    10   5.12 0.5800
WVFGRD96   19.0    30    85    10   5.13 0.5754
WVFGRD96   20.0    25    90    10   5.13 0.5696
WVFGRD96   21.0    30    85    10   5.14 0.5626
WVFGRD96   22.0    25    90    10   5.15 0.5544
WVFGRD96   23.0   205    85   -10   5.15 0.5459
WVFGRD96   24.0    30    90    10   5.16 0.5352
WVFGRD96   25.0   205    85   -10   5.17 0.5255
WVFGRD96   26.0    25    90    10   5.17 0.5133
WVFGRD96   27.0    25    90    10   5.18 0.5014
WVFGRD96   28.0    25    90    10   5.18 0.4889
WVFGRD96   29.0   205    85   -10   5.19 0.4776

The best solution is

WVFGRD96   15.0    25    90    15   5.08 0.5849

The mechanism correspond to the best fit is

Figure 1. Waveform inversion focal mechanism

The best fit as a function of depth is given in the following figure:

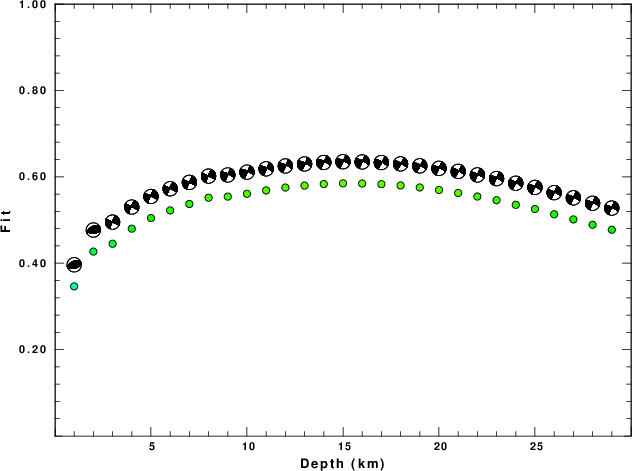

Figure 2. Depth sensitivity for waveform mechanism

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -30 o DIST/3.3 +70
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.06 n 3

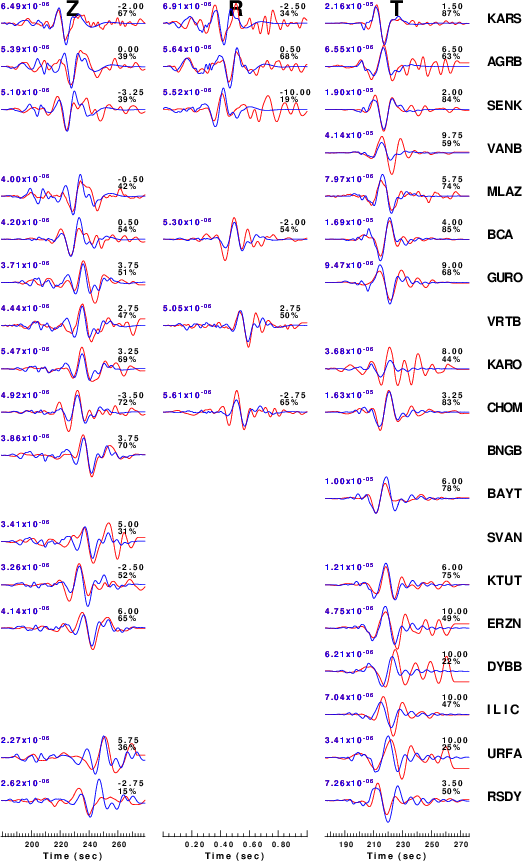

Figure 3. Waveform comparison for selected depth

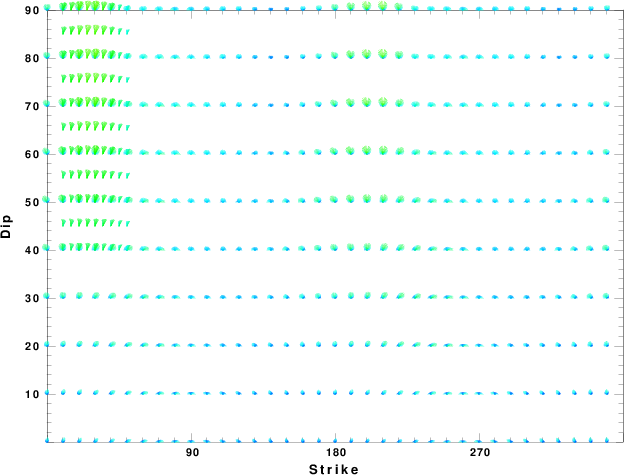

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

• The origin time and epicentral distance are incorrect
• The velocity model used for the inversion is incorrect
• The velocity model used to define the P-arrival time is not the same as the velocity model used for the waveform inversion (assuming that the initial trace alignment is based on the P arrival time)

 Time_shift = A + B cos Azimuth + C Sin Azimuth

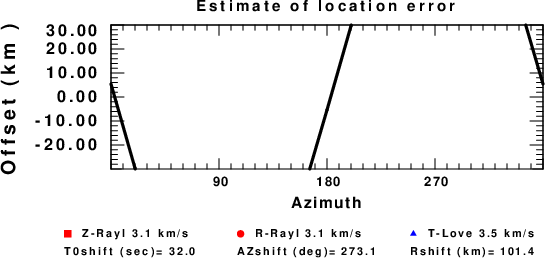

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.

Discussion

Acknowledgements

Thanks also to the many seismic network operators whose dedication make this effort possible: University of Nevada Reno, University of Alaska, University of Washington, Oregon State University, University of Utah, Montana Bureas of Mines, UC Berkely, Caltech, UC San Diego, Saint Louis University, University of Memphis, Lamont Doherty Earth Observatory, the Iris stations and the Transportable Array of EarthScope.

Velocity Model

The WUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:

MODEL.01
Model after     8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
     1.9000     3.4065     2.0089     2.2150  0.302E-02  0.679E-02   0.00       0.00       1.00       1.00
     6.1000     5.5445     3.2953     2.6089  0.349E-02  0.784E-02   0.00       0.00       1.00       1.00
    13.0000     6.2708     3.7396     2.7812  0.212E-02  0.476E-02   0.00       0.00       1.00       1.00
    19.0000     6.4075     3.7680     2.8223  0.111E-02  0.249E-02   0.00       0.00       1.00       1.00
     0.0000     7.9000     4.6200     3.2760  0.164E-10  0.370E-10   0.00       0.00       1.00       1.00

Quality Control

Here we tabulate the reasons for not using certain digital data sets

The following stations did not have a valid response files:
