USGS/SLU Moment Tensor Solution ENS 2017/10/28 19:06:13:2 42.79 0.23 2.0 3.7 Catalunya Stations used: CA.ARBS CA.CARA CA.CBRU CA.CCAS CA.CEST CA.CGAR CA.CLLI CA.CORG CA.CORI CA.CSOR CA.CTRE FR.ATE FR.CARF FR.CLAF FR.FILF FR.MLS FR.PAND FR.PYLO FR.SALF FR.VIEF Filtering commands used: cut o DIST/3.3 -20 o DIST/3.3 +40 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.12 n 3 Best Fitting Double Couple Mo = 1.64e+21 dyne-cm Mw = 3.41 Z = 12 km Plane Strike Dip Rake NP1 355 70 -55 NP2 111 40 -148 Principal Axes: Axis Value Plunge Azimuth T 1.64e+21 18 60 N 0.00e+00 33 162 P -1.64e+21 52 306 Moment Tensor: (dyne-cm) Component Value Mxx 1.60e+20 Mxy 9.46e+20 Mxz -2.31e+20 Myy 7.04e+20 Myz 1.05e+21 Mzz -8.64e+20 ------######## -----------########### ---------------############# -----------------############# --------------------############## ---------------------########### # --------- -----------########## T ## #--------- P -----------########## ### #--------- ------------############### ##------------------------################ ###-----------------------################ ####----------------------################ #####---------------------################ #####--------------------############### #######------------------############### ########----------------#############- ##########-------------###########-- ##############--------#######----- ###################----------- ##################---------- ##############-------- #########----- Global CMT Convention Moment Tensor: R T P -8.64e+20 -2.31e+20 -1.05e+21 -2.31e+20 1.60e+20 -9.46e+20 -1.05e+21 -9.46e+20 7.04e+20 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20171028190613/index.html |
STK = 355 DIP = 70 RAKE = -55 MW = 3.41 HS = 12.0
The NDK file is 20171028190613.ndk The waveform inversion is preferred.
The following compares this source inversion to others
USGS/SLU Moment Tensor Solution ENS 2017/10/28 19:06:13:2 42.79 0.23 2.0 3.7 Catalunya Stations used: CA.ARBS CA.CARA CA.CBRU CA.CCAS CA.CEST CA.CGAR CA.CLLI CA.CORG CA.CORI CA.CSOR CA.CTRE FR.ATE FR.CARF FR.CLAF FR.FILF FR.MLS FR.PAND FR.PYLO FR.SALF FR.VIEF Filtering commands used: cut o DIST/3.3 -20 o DIST/3.3 +40 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.12 n 3 Best Fitting Double Couple Mo = 1.64e+21 dyne-cm Mw = 3.41 Z = 12 km Plane Strike Dip Rake NP1 355 70 -55 NP2 111 40 -148 Principal Axes: Axis Value Plunge Azimuth T 1.64e+21 18 60 N 0.00e+00 33 162 P -1.64e+21 52 306 Moment Tensor: (dyne-cm) Component Value Mxx 1.60e+20 Mxy 9.46e+20 Mxz -2.31e+20 Myy 7.04e+20 Myz 1.05e+21 Mzz -8.64e+20 ------######## -----------########### ---------------############# -----------------############# --------------------############## ---------------------########### # --------- -----------########## T ## #--------- P -----------########## ### #--------- ------------############### ##------------------------################ ###-----------------------################ ####----------------------################ #####---------------------################ #####--------------------############### #######------------------############### ########----------------#############- ##########-------------###########-- ##############--------#######----- ###################----------- ##################---------- ##############-------- #########----- Global CMT Convention Moment Tensor: R T P -8.64e+20 -2.31e+20 -1.05e+21 -2.31e+20 1.60e+20 -9.46e+20 -1.05e+21 -9.46e+20 7.04e+20 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.NA/20171028190613/index.html |

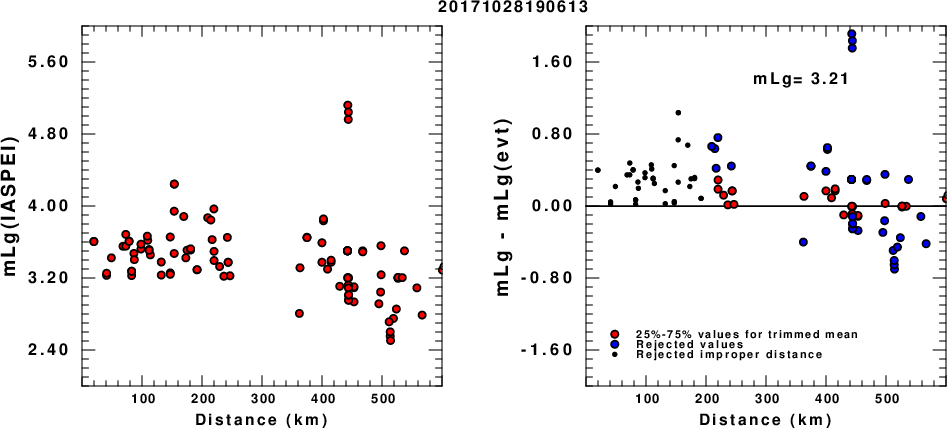

(a) mLg computed using the IASPEI formula; (b) mLg residuals ; the values used for the trimmed mean are indicated.

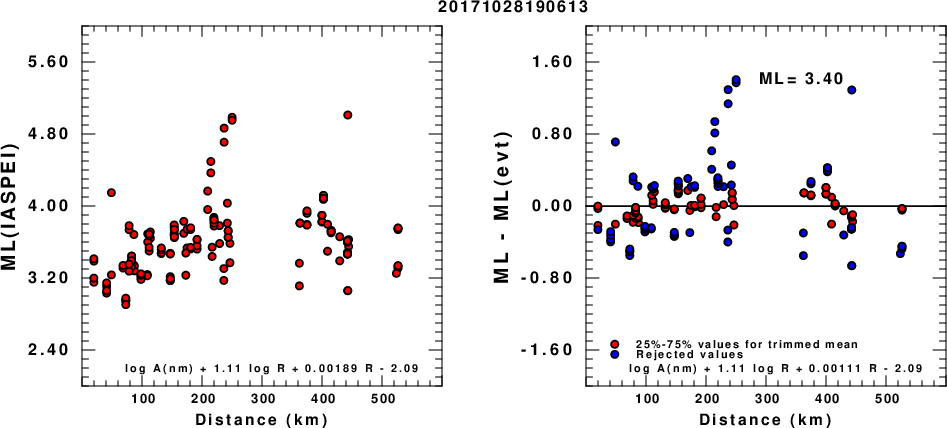

(a) ML computed using the IASPEI formula for Horizontal components; (b) ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.

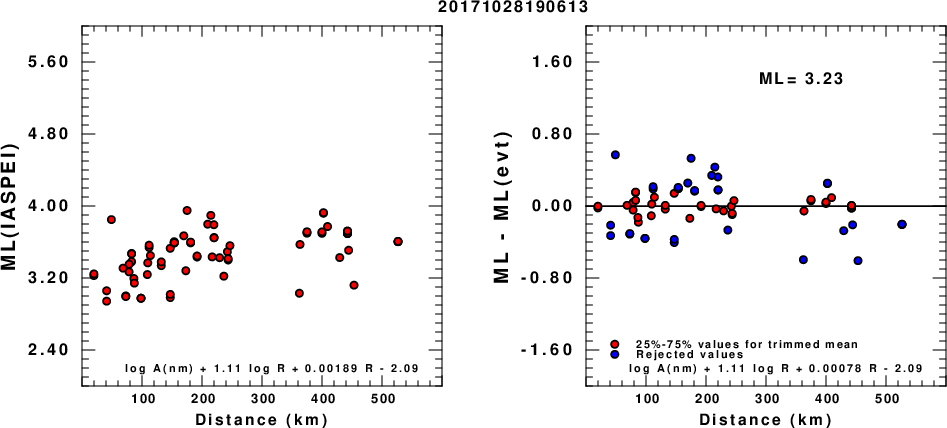

(a) ML computed using the IASPEI formula for Vertical components (research); (b) ML residuals computed using a modified IASPEI formula that accounts for path specific attenuation; the values used for the trimmed mean are indicated. The ML relation used for each figure is given at the bottom of each plot.

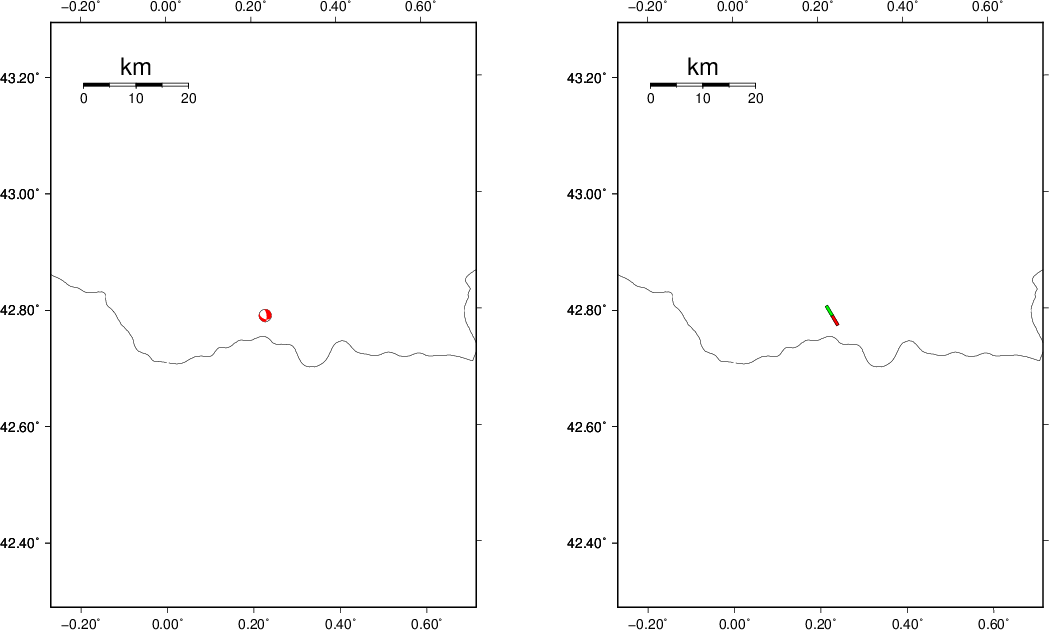

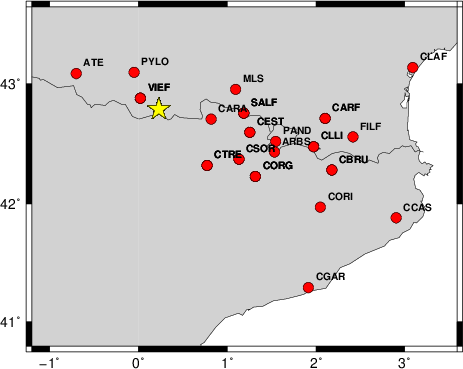

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -20 o DIST/3.3 +40 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.12 n 3The results of this grid search from 0.5 to 19 km depth are as follow:
DEPTH STK DIP RAKE MW FIT WVFGRD96 1.0 130 40 90 3.42 0.4201 WVFGRD96 2.0 20 55 60 3.31 0.3942 WVFGRD96 3.0 15 90 -50 3.26 0.4056 WVFGRD96 4.0 15 90 -50 3.26 0.4434 WVFGRD96 5.0 10 85 -50 3.27 0.4755 WVFGRD96 6.0 5 80 -50 3.29 0.5027 WVFGRD96 7.0 0 75 -50 3.31 0.5242 WVFGRD96 8.0 360 75 -50 3.32 0.5416 WVFGRD96 9.0 360 75 -50 3.33 0.5529 WVFGRD96 10.0 350 70 -55 3.40 0.5616 WVFGRD96 11.0 355 70 -55 3.40 0.5674 WVFGRD96 12.0 355 70 -55 3.41 0.5702 WVFGRD96 13.0 355 70 -55 3.43 0.5689 WVFGRD96 14.0 350 70 -55 3.45 0.5652 WVFGRD96 15.0 350 70 -55 3.46 0.5585 WVFGRD96 16.0 355 65 -55 3.47 0.5504 WVFGRD96 17.0 355 65 -60 3.48 0.5405 WVFGRD96 18.0 355 65 -60 3.49 0.5298 WVFGRD96 19.0 355 65 -60 3.50 0.5169 WVFGRD96 20.0 355 85 -55 3.50 0.5021 WVFGRD96 21.0 -5 85 -55 3.51 0.4925 WVFGRD96 22.0 -5 85 -55 3.52 0.4833 WVFGRD96 23.0 0 90 -55 3.51 0.4752 WVFGRD96 24.0 355 85 -55 3.54 0.4671 WVFGRD96 25.0 180 90 55 3.53 0.4588 WVFGRD96 26.0 360 85 -60 3.54 0.4531 WVFGRD96 27.0 360 85 -60 3.55 0.4471 WVFGRD96 28.0 0 85 -60 3.55 0.4406 WVFGRD96 29.0 -5 80 -60 3.57 0.4343
The best solution is
WVFGRD96 12.0 355 70 -55 3.41 0.5702
The mechanism correspond to the best fit is
|

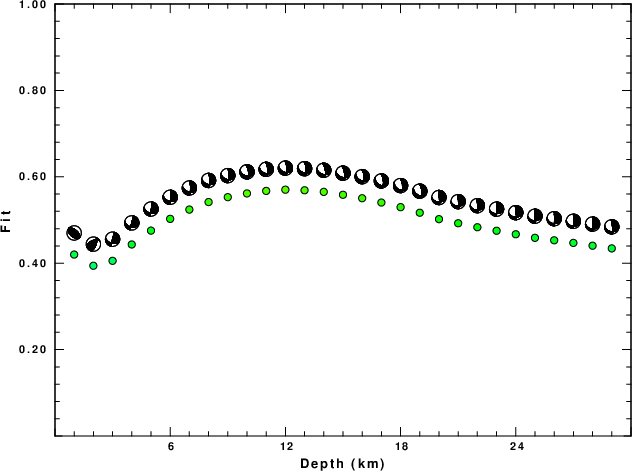

The best fit as a function of depth is given in the following figure:
|

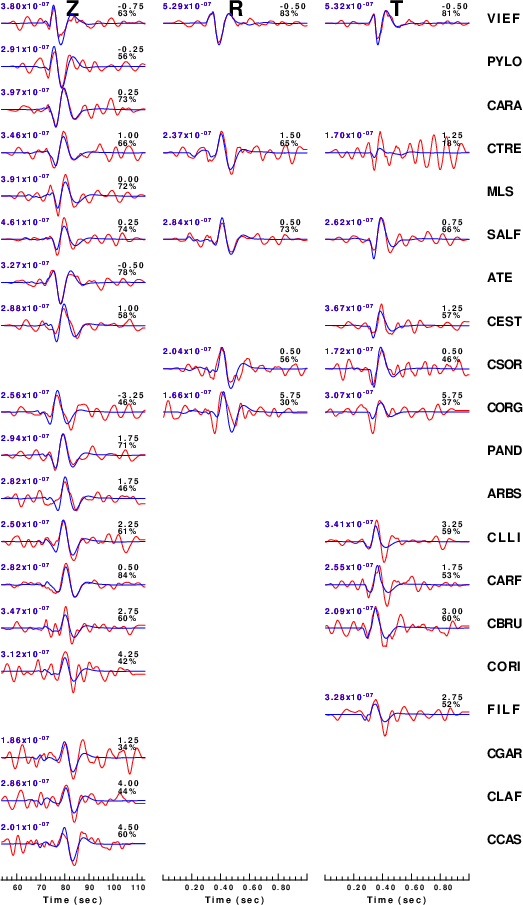

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -20 o DIST/3.3 +40 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.12 n 3
|

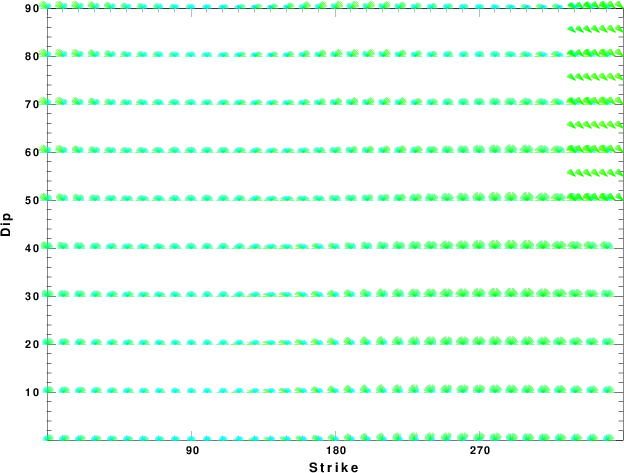

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

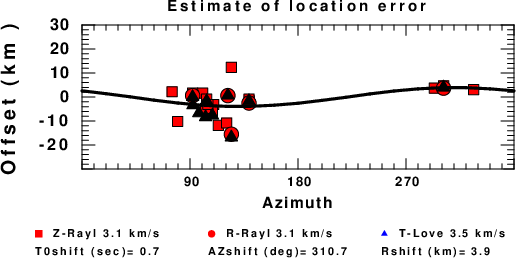

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
Thanks also to the many seismic network operators whose dedication make this effort possible: University of Nevada Reno, University of Alaska, University of Washington, Oregon State University, University of Utah, Montana Bureas of Mines, UC Berkely, Caltech, UC San Diego, Saint Louis University, University of Memphis, Lamont Doherty Earth Observatory, the Iris stations and the Transportable Array of EarthScope.
The CUS.model used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:
MODEL.01 CUS Model with Q from simple gamma values ISOTROPIC KGS FLAT EARTH 1-D CONSTANT VELOCITY LINE08 LINE09 LINE10 LINE11 H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS 1.0000 5.0000 2.8900 2.5000 0.172E-02 0.387E-02 0.00 0.00 1.00 1.00 9.0000 6.1000 3.5200 2.7300 0.160E-02 0.363E-02 0.00 0.00 1.00 1.00 10.0000 6.4000 3.7000 2.8200 0.149E-02 0.336E-02 0.00 0.00 1.00 1.00 20.0000 6.7000 3.8700 2.9020 0.000E-04 0.000E-04 0.00 0.00 1.00 1.00 0.0000 8.1500 4.7000 3.3640 0.194E-02 0.431E-02 0.00 0.00 1.00 1.00
Here we tabulate the reasons for not using certain digital data sets
The following stations did not have a valid response files:
