2016/10/07 09:25:46 45.19 18.30 6 4.1 Croatia
USGS Felt map for this earthquake
USGS/SLU Moment Tensor Solution ENS 2016/10/07 09:25:46:0 45.19 18.30 6.0 4.1 Croatia Stations used: HU.BUD HU.CSKK HU.KOVH HU.MORH HU.MPLH HU.SOP HU.TIH SJ.BBLS SJ.FRGS SL.BOJS SL.CADS SL.CEY SL.CRES SL.CRNS SL.GBAS SL.GBRS SL.GOLS SL.GORS SL.GROS SL.JAVS SL.KNDS SL.MOZS SL.ROBS SL.SKDS SL.VISS SL.VNDS SL.VOJS Filtering commands used: cut o DIST/3.3 -30 o DIST/3.3 +60 rtr taper w 0.1 hp c 0.02 n 3 lp c 0.06 n 3 Best Fitting Double Couple Mo = 1.97e+22 dyne-cm Mw = 4.13 Z = 12 km Plane Strike Dip Rake NP1 14 76 -164 NP2 280 75 -15 Principal Axes: Axis Value Plunge Azimuth T 1.97e+22 0 147 N 0.00e+00 69 56 P -1.97e+22 21 237 Moment Tensor: (dyne-cm) Component Value Mxx 8.77e+21 Mxy -1.69e+22 Mxz 3.50e+21 Myy -6.22e+21 Myz 5.62e+21 Mzz -2.55e+21 ############-- ################------ ####################-------- #####################--------- #######################----------- #######################------------- ########################-------------- #########################--------------- #####---------###########--------------- -------------------------#---------------- -------------------------########--------- -------------------------############----- ------------------------################-- -----------------------################# ---- ---------------################## --- P --------------################## -- --------------################# -----------------################# --------------################ ------------########### ## --------############ T ---########### Global CMT Convention Moment Tensor: R T P -2.55e+21 3.50e+21 -5.62e+21 3.50e+21 8.77e+21 1.69e+22 -5.62e+21 1.69e+22 -6.22e+21 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.EU/20161007092546/index.html |
STK = 280 DIP = 75 RAKE = -15 MW = 4.13 HS = 12.0
The NDK file is 20161007092546.ndk The waveform inversion is preferred.
The following compares this source inversion to others
USGS/SLU Moment Tensor Solution ENS 2016/10/07 09:25:46:0 45.19 18.30 6.0 4.1 Croatia Stations used: HU.BUD HU.CSKK HU.KOVH HU.MORH HU.MPLH HU.SOP HU.TIH SJ.BBLS SJ.FRGS SL.BOJS SL.CADS SL.CEY SL.CRES SL.CRNS SL.GBAS SL.GBRS SL.GOLS SL.GORS SL.GROS SL.JAVS SL.KNDS SL.MOZS SL.ROBS SL.SKDS SL.VISS SL.VNDS SL.VOJS Filtering commands used: cut o DIST/3.3 -30 o DIST/3.3 +60 rtr taper w 0.1 hp c 0.02 n 3 lp c 0.06 n 3 Best Fitting Double Couple Mo = 1.97e+22 dyne-cm Mw = 4.13 Z = 12 km Plane Strike Dip Rake NP1 14 76 -164 NP2 280 75 -15 Principal Axes: Axis Value Plunge Azimuth T 1.97e+22 0 147 N 0.00e+00 69 56 P -1.97e+22 21 237 Moment Tensor: (dyne-cm) Component Value Mxx 8.77e+21 Mxy -1.69e+22 Mxz 3.50e+21 Myy -6.22e+21 Myz 5.62e+21 Mzz -2.55e+21 ############-- ################------ ####################-------- #####################--------- #######################----------- #######################------------- ########################-------------- #########################--------------- #####---------###########--------------- -------------------------#---------------- -------------------------########--------- -------------------------############----- ------------------------################-- -----------------------################# ---- ---------------################## --- P --------------################## -- --------------################# -----------------################# --------------################ ------------########### ## --------############ T ---########### Global CMT Convention Moment Tensor: R T P -2.55e+21 3.50e+21 -5.62e+21 3.50e+21 8.77e+21 1.69e+22 -5.62e+21 1.69e+22 -6.22e+21 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.EU/20161007092546/index.html |

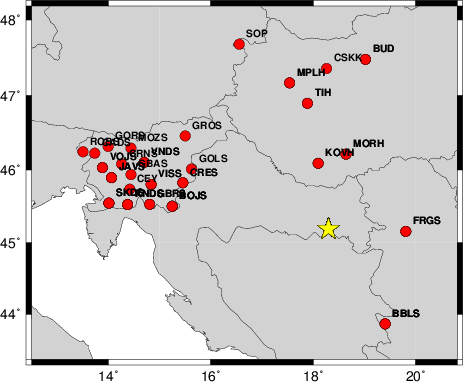

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -30 o DIST/3.3 +60 rtr taper w 0.1 hp c 0.02 n 3 lp c 0.06 n 3The results of this grid search from 0.5 to 19 km depth are as follow:
DEPTH STK DIP RAKE MW FIT WVFGRD96 1.0 275 90 5 3.77 0.3400 WVFGRD96 2.0 110 60 35 3.95 0.4480 WVFGRD96 3.0 100 65 15 3.94 0.4902 WVFGRD96 4.0 100 65 10 3.97 0.5244 WVFGRD96 5.0 100 65 10 3.99 0.5518 WVFGRD96 6.0 280 70 -10 4.02 0.5762 WVFGRD96 7.0 280 70 -10 4.04 0.5983 WVFGRD96 8.0 280 70 -15 4.07 0.6148 WVFGRD96 9.0 280 70 -15 4.09 0.6273 WVFGRD96 10.0 280 70 -15 4.11 0.6355 WVFGRD96 11.0 280 70 -15 4.12 0.6394 WVFGRD96 12.0 280 75 -15 4.13 0.6401 WVFGRD96 13.0 280 75 -15 4.14 0.6390 WVFGRD96 14.0 280 75 -15 4.15 0.6353 WVFGRD96 15.0 280 75 -15 4.16 0.6295 WVFGRD96 16.0 280 80 -15 4.16 0.6222 WVFGRD96 17.0 280 80 -15 4.17 0.6143 WVFGRD96 18.0 280 80 -15 4.18 0.6052 WVFGRD96 19.0 280 80 -15 4.19 0.5952 WVFGRD96 20.0 100 80 10 4.19 0.5847 WVFGRD96 21.0 100 80 10 4.19 0.5739 WVFGRD96 22.0 100 80 10 4.20 0.5629 WVFGRD96 23.0 100 80 10 4.20 0.5515 WVFGRD96 24.0 100 80 15 4.21 0.5395 WVFGRD96 25.0 100 80 15 4.22 0.5269 WVFGRD96 26.0 100 80 10 4.22 0.5141 WVFGRD96 27.0 100 80 15 4.23 0.5010 WVFGRD96 28.0 100 80 15 4.23 0.4874 WVFGRD96 29.0 100 80 15 4.24 0.4737
The best solution is
WVFGRD96 12.0 280 75 -15 4.13 0.6401
The mechanism correspond to the best fit is
|

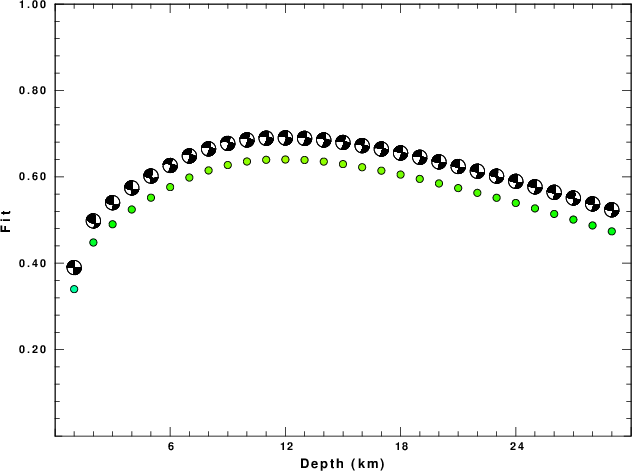

The best fit as a function of depth is given in the following figure:
|

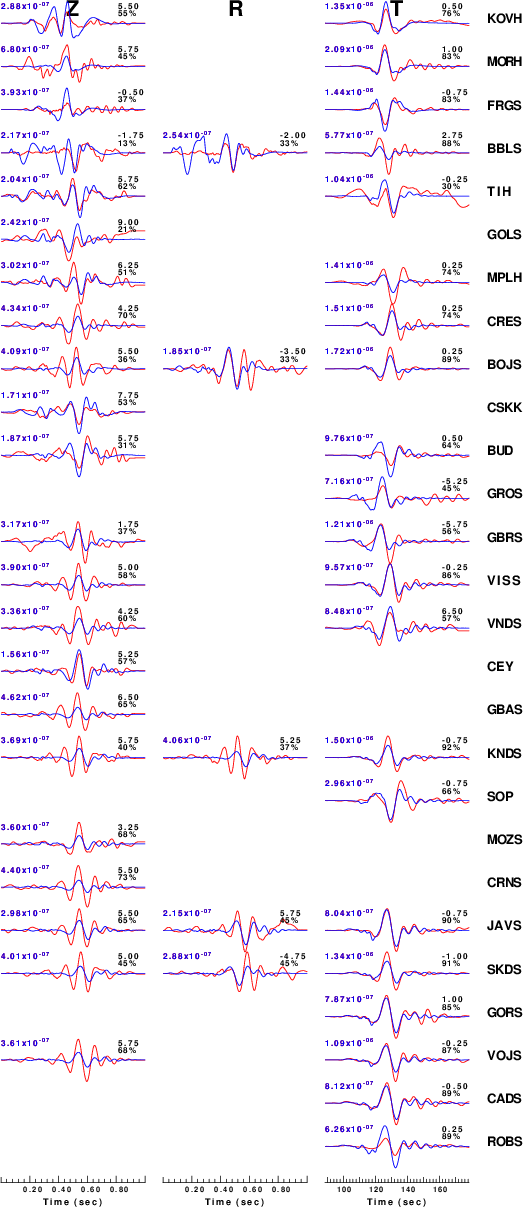

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -30 o DIST/3.3 +60 rtr taper w 0.1 hp c 0.02 n 3 lp c 0.06 n 3
|

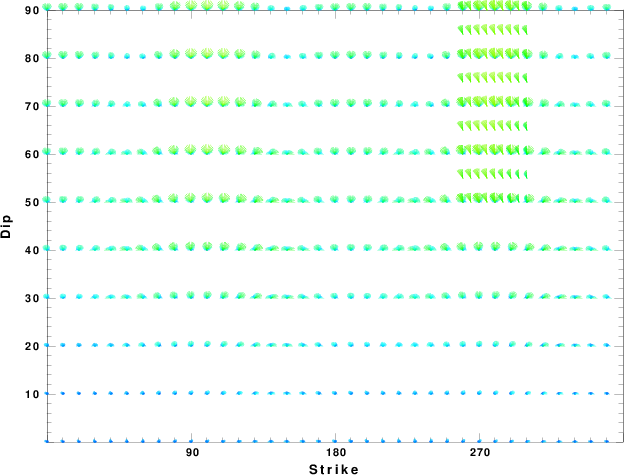

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

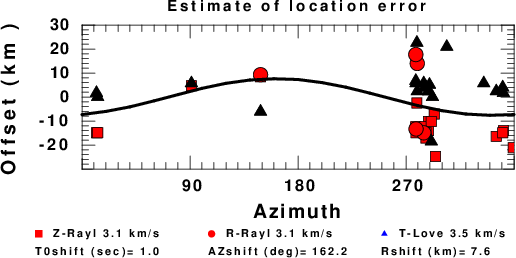

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
Should the national backbone of the USGS Advanced National Seismic System (ANSS) be implemented with an interstation separation of 300 km, it is very likely that an earthquake such as this would have been recorded at distances on the order of 100-200 km. This means that the closest station would have information on source depth and mechanism that was lacking here.
Dr. Harley Benz, USGS, provided the USGS USNSN digital data. The digital data used in this study were provided by Natural Resources Canada through their AUTODRM site http://www.seismo.nrcan.gc.ca/nwfa/autodrm/autodrm_req_e.php, and IRIS using their BUD interface.
Thanks also to the many seismic network operators whose dedication make this effort possible: University of Alaska, University of Washington, Oregon State University, University of Utah, Montana Bureas of Mines, UC Berkely, Caltech, UC San Diego, Saint L ouis University, Universityof Memphis, Lamont Doehrty Earth Observatory, Boston College, the Iris stations and the Transportable Array of EarthScope.
The WUS used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:
MODEL.01 Model after 8 iterations ISOTROPIC KGS FLAT EARTH 1-D CONSTANT VELOCITY LINE08 LINE09 LINE10 LINE11 H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS 1.9000 3.4065 2.0089 2.2150 0.302E-02 0.679E-02 0.00 0.00 1.00 1.00 6.1000 5.5445 3.2953 2.6089 0.349E-02 0.784E-02 0.00 0.00 1.00 1.00 13.0000 6.2708 3.7396 2.7812 0.212E-02 0.476E-02 0.00 0.00 1.00 1.00 19.0000 6.4075 3.7680 2.8223 0.111E-02 0.249E-02 0.00 0.00 1.00 1.00 0.0000 7.9000 4.6200 3.2760 0.164E-10 0.370E-10 0.00 0.00 1.00 1.00
