USGS/SLU Moment Tensor Solution ENS 2015/04/28 16:16:51:0 44.56 17.60 10.0 4.4 Bosnia Herzegovina Stations used: GE.PSZ HT.GRG HT.HORT HT.SOH HT.SRS HU.BEHE HU.BSZH HU.MORH HU.SOP IV.PTCC MN.BLY MN.DIVS MN.PDG MN.TRI MN.VTS NI.ACOM NI.SABO NI.VINO OE.ARSA OE.KBA OE.MOA OE.MYKA OE.OBKA OE.SOKA RO.GZR RO.LOT SJ.BBLS SJ.FRGS SL.CADS SL.CEY SL.CRES SL.CRNS SL.GBAS SL.GBRS SL.GCIS SL.GROS SL.JAVS SL.KNDS SL.PERS SL.ROBS SL.VISS SL.VNDS SL.VOJS Filtering commands used: cut o DIST/3.3 -30 o DIST/3.3 +70 rtr taper w 0.1 hp c 0.02 n 3 lp c 0.06 n 3 Best Fitting Double Couple Mo = 6.31e+21 dyne-cm Mw = 3.80 Z = 12 km Plane Strike Dip Rake NP1 215 85 -30 NP2 308 60 -174 Principal Axes: Axis Value Plunge Azimuth T 6.31e+21 17 265 N 0.00e+00 60 26 P -6.31e+21 24 167 Moment Tensor: (dyne-cm) Component Value Mxx -4.93e+21 Mxy 1.60e+21 Mxz 2.17e+21 Myy 5.48e+21 Myz -2.27e+21 Mzz -5.48e+20 -------------- ---------------------- -------------------------### ------------------------###### ##########--------------########## ################--------############ ####################----############## #######################-################ ######################----############## #####################--------############# ## ###############-----------########### ## T ##############--------------######### ## #############----------------######## ###############-------------------###### ##############---------------------##### ############-----------------------### ##########------------------------## ########-------------------------# #####------------ ---------- ###------------- P --------- ------------- ------ -------------- Global CMT Convention Moment Tensor: R T P -5.48e+20 2.17e+21 2.27e+21 2.17e+21 -4.93e+21 -1.60e+21 2.27e+21 -1.60e+21 5.48e+21 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.EU/20150428161651/index.html

Preferred Solution

The preferred solution from an analysis of the surface-wave spectral amplitude radiation pattern, waveform inversion and first motion observations is

      STK = 215
      DIP = 85
     RAKE = -30
       MW = 3.80
       HS = 12.0

The NDK file is 20150428161651.ndk The waveform inversion is preferred.

Moment Tensor Comparison

The following compares this source inversion to others

SLU

USGS/SLU Moment Tensor Solution ENS 2015/04/28 16:16:51:0 44.56 17.60 10.0 4.4 Bosnia Herzegovina Stations used: GE.PSZ HT.GRG HT.HORT HT.SOH HT.SRS HU.BEHE HU.BSZH HU.MORH HU.SOP IV.PTCC MN.BLY MN.DIVS MN.PDG MN.TRI MN.VTS NI.ACOM NI.SABO NI.VINO OE.ARSA OE.KBA OE.MOA OE.MYKA OE.OBKA OE.SOKA RO.GZR RO.LOT SJ.BBLS SJ.FRGS SL.CADS SL.CEY SL.CRES SL.CRNS SL.GBAS SL.GBRS SL.GCIS SL.GROS SL.JAVS SL.KNDS SL.PERS SL.ROBS SL.VISS SL.VNDS SL.VOJS Filtering commands used: cut o DIST/3.3 -30 o DIST/3.3 +70 rtr taper w 0.1 hp c 0.02 n 3 lp c 0.06 n 3 Best Fitting Double Couple Mo = 6.31e+21 dyne-cm Mw = 3.80 Z = 12 km Plane Strike Dip Rake NP1 215 85 -30 NP2 308 60 -174 Principal Axes: Axis Value Plunge Azimuth T 6.31e+21 17 265 N 0.00e+00 60 26 P -6.31e+21 24 167 Moment Tensor: (dyne-cm) Component Value Mxx -4.93e+21 Mxy 1.60e+21 Mxz 2.17e+21 Myy 5.48e+21 Myz -2.27e+21 Mzz -5.48e+20 -------------- ---------------------- -------------------------### ------------------------###### ##########--------------########## ################--------############ ####################----############## #######################-################ ######################----############## #####################--------############# ## ###############-----------########### ## T ##############--------------######### ## #############----------------######## ###############-------------------###### ##############---------------------##### ############-----------------------### ##########------------------------## ########-------------------------# #####------------ ---------- ###------------- P --------- ------------- ------ -------------- Global CMT Convention Moment Tensor: R T P -5.48e+20 2.17e+21 2.27e+21 2.17e+21 -4.93e+21 -1.60e+21 2.27e+21 -1.60e+21 5.48e+21 Details of the solution is found at http://www.eas.slu.edu/eqc/eqc_mt/MECH.EU/20150428161651/index.html

Waveform Inversion

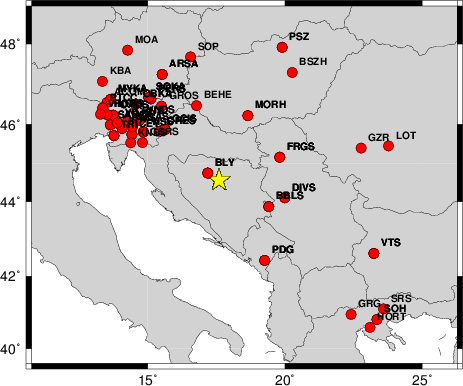

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.

Location of broadband stations used for waveform inversion

The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.

The observed and predicted traces are filtered using the following gsac commands:

cut o DIST/3.3 -30 o DIST/3.3 +70
rtr
taper w 0.1
hp c 0.02 n 3
lp c 0.06 n 3

The results of this grid search from 0.5 to 19 km depth are as follow:

           DEPTH  STK   DIP  RAKE   MW    FIT
WVFGRD96    1.0   230    90     5   3.51 0.3779
WVFGRD96    2.0    55    65    60   3.71 0.4630
WVFGRD96    3.0    50    70    55   3.73 0.4912
WVFGRD96    4.0    50    70    50   3.73 0.5159
WVFGRD96    5.0    45    75    40   3.72 0.5322
WVFGRD96    6.0    45    70    35   3.73 0.5468
WVFGRD96    7.0    45    70    35   3.75 0.5592
WVFGRD96    8.0    45    75    40   3.78 0.5704
WVFGRD96    9.0    40    85    35   3.78 0.5761
WVFGRD96   10.0    40    85    35   3.79 0.5810
WVFGRD96   11.0    45    70    35   3.81 0.5832
WVFGRD96   12.0   215    85   -30   3.80 0.5857
WVFGRD96   13.0    40    85    30   3.82 0.5846
WVFGRD96   14.0    40    90    30   3.82 0.5831
WVFGRD96   15.0   215    80   -30   3.83 0.5814
WVFGRD96   16.0   215    80   -30   3.84 0.5772
WVFGRD96   17.0    40    90    25   3.85 0.5701
WVFGRD96   18.0    40    90    25   3.86 0.5655
WVFGRD96   19.0   215    80   -25   3.87 0.5599
WVFGRD96   20.0    40    90    25   3.88 0.5523
WVFGRD96   21.0    40    90    25   3.89 0.5442
WVFGRD96   22.0    40    90    25   3.89 0.5361
WVFGRD96   23.0    45    80    25   3.91 0.5274
WVFGRD96   24.0    45    80    25   3.92 0.5188
WVFGRD96   25.0    45    80    25   3.92 0.5096
WVFGRD96   26.0    45    80    25   3.93 0.5000
WVFGRD96   27.0    45    80    25   3.94 0.4905
WVFGRD96   28.0    45    80    25   3.94 0.4802
WVFGRD96   29.0   220    80   -25   3.93 0.4686

The best solution is

WVFGRD96   12.0   215    85   -30   3.80 0.5857

The mechanism correspond to the best fit is

Figure 1. Waveform inversion focal mechanism

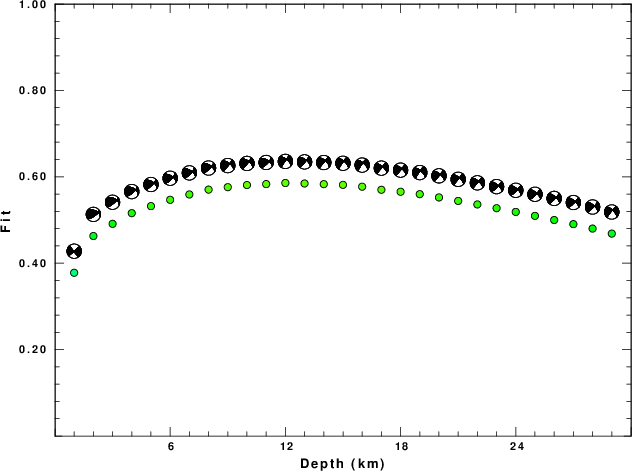

The best fit as a function of depth is given in the following figure:

Figure 2. Depth sensitivity for waveform mechanism

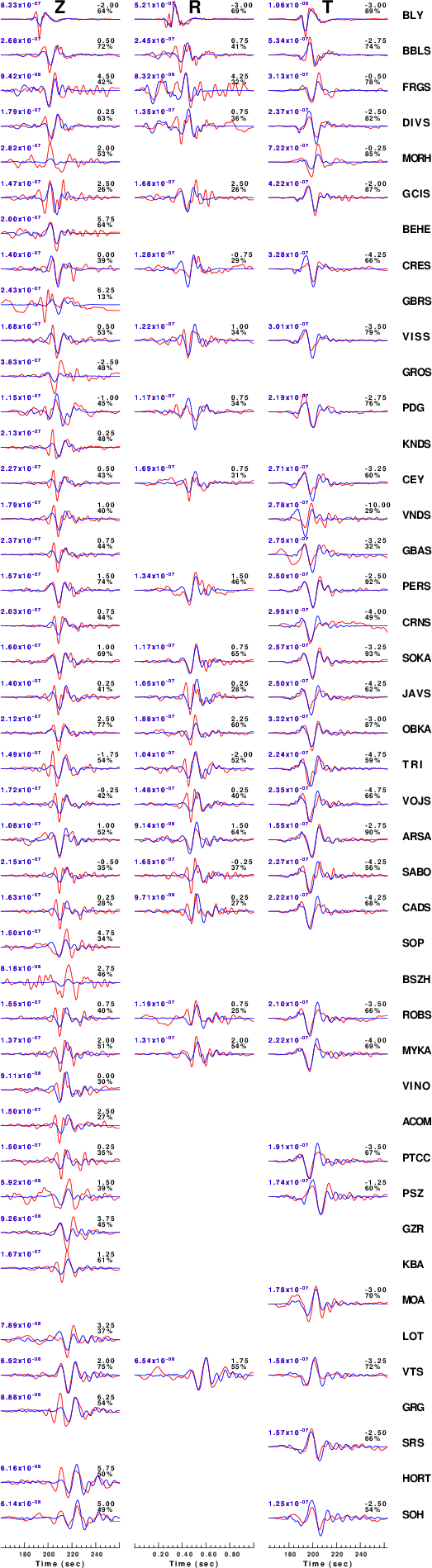

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).

The bandpass filter used in the processing and for the display was

cut o DIST/3.3 -30 o DIST/3.3 +70
rtr
taper w 0.1
hp c 0.02 n 3
lp c 0.06 n 3

Figure 3. Waveform comparison for selected depth

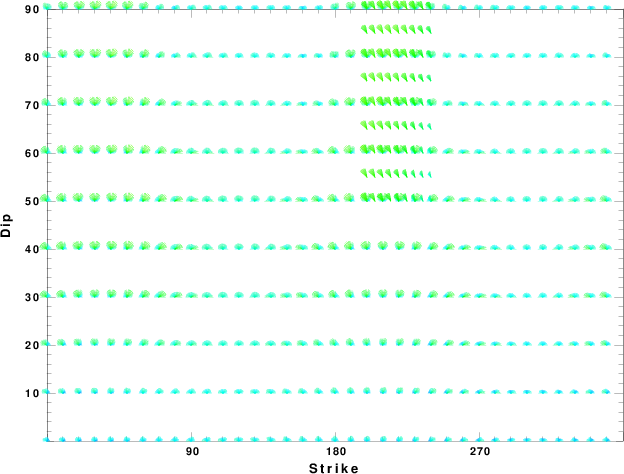

Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure.

A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:

The origin time and epicentral distance are incorrect
The velocity model used for the inversion is incorrect
The velocity model used to define the P-arrival time is not the same as the velocity model used for the waveform inversion (assuming that the initial trace alignment is based on the P arrival time)

Assuming only a mislocation, the time shifts are fit to a functional form:

 Time_shift = A + B cos Azimuth + C Sin Azimuth

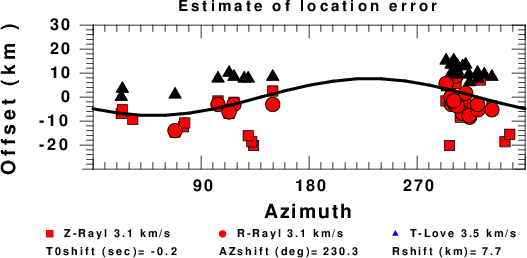

The time shifts for this inversion lead to the next figure:

The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
