2015/04/01 07:33:54 44.30 16.34 10.0 4.3 Bosnia
USGS Felt map for this earthquake
USGS/SLU Moment Tensor Solution
ENS 2015/04/01 07:33:54:0 44.30 16.34 10.0 4.3 Bosnia
Stations used:
GE.PSZ HT.GRG HU.BUD IV.PTCC MN.BLY MN.DIVS MN.PDG MN.TIR
MN.TRI MN.VTS NI.SABO NI.VINO OE.ARSA OE.CONA OE.KBA
OE.MYKA OE.OBKA OE.SOKA RO.BZS RO.GZR SJ.BBLS SL.BOJS
SL.CADS SL.CEY SL.CRES SL.CRNS SL.GBAS SL.GCIS SL.GORS
SL.JAVS SL.KNDS SL.KOGS SL.PERS SL.ROBS SL.VISS SL.VNDS
SL.VOJS
Filtering commands used:
cut o DIST/3.3 -30 o DIST/3.3 +70
rtr
taper w 0.1
hp c 0.02 n 3
lp c 0.06 n 3
Best Fitting Double Couple
Mo = 1.26e+22 dyne-cm
Mw = 4.00
Z = 16 km
Plane Strike Dip Rake
NP1 308 77 -149
NP2 210 60 -15
Principal Axes:
Axis Value Plunge Azimuth
T 1.26e+22 11 76
N 0.00e+00 57 328
P -1.26e+22 31 173
Moment Tensor: (dyne-cm)
Component Value
Mxx -8.41e+21
Mxy 4.04e+21
Mxz 6.08e+21
Myy 1.12e+22
Myz 1.63e+21
Mzz -2.82e+21
--------------
--------------------##
-------------------#########
-----------------#############
###--------------#################
########--------####################
#############--#######################
###############--####################
##############-----################## T
##############---------############### #
#############------------#################
############---------------###############
###########------------------#############
##########--------------------##########
#########-----------------------########
########-------------------------#####
#######--------------------------###
######----------- -------------#
####----------- P ------------
###----------- -----------
----------------------
--------------
Global CMT Convention Moment Tensor:
R T P
-2.82e+21 6.08e+21 -1.63e+21
6.08e+21 -8.41e+21 -4.04e+21
-1.63e+21 -4.04e+21 1.12e+22
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.EU/20150401073354/index.html
|
STK = 210
DIP = 60
RAKE = -15
MW = 4.00
HS = 16.0
The NDK file is 20150401073354.ndk The waveform inversion is preferred.
The following compares this source inversion to others
USGS/SLU Moment Tensor Solution
ENS 2015/04/01 07:33:54:0 44.30 16.34 10.0 4.3 Bosnia
Stations used:
GE.PSZ HT.GRG HU.BUD IV.PTCC MN.BLY MN.DIVS MN.PDG MN.TIR
MN.TRI MN.VTS NI.SABO NI.VINO OE.ARSA OE.CONA OE.KBA
OE.MYKA OE.OBKA OE.SOKA RO.BZS RO.GZR SJ.BBLS SL.BOJS
SL.CADS SL.CEY SL.CRES SL.CRNS SL.GBAS SL.GCIS SL.GORS
SL.JAVS SL.KNDS SL.KOGS SL.PERS SL.ROBS SL.VISS SL.VNDS
SL.VOJS
Filtering commands used:
cut o DIST/3.3 -30 o DIST/3.3 +70
rtr
taper w 0.1
hp c 0.02 n 3
lp c 0.06 n 3
Best Fitting Double Couple
Mo = 1.26e+22 dyne-cm
Mw = 4.00
Z = 16 km
Plane Strike Dip Rake
NP1 308 77 -149
NP2 210 60 -15
Principal Axes:
Axis Value Plunge Azimuth
T 1.26e+22 11 76
N 0.00e+00 57 328
P -1.26e+22 31 173
Moment Tensor: (dyne-cm)
Component Value
Mxx -8.41e+21
Mxy 4.04e+21
Mxz 6.08e+21
Myy 1.12e+22
Myz 1.63e+21
Mzz -2.82e+21
--------------
--------------------##
-------------------#########
-----------------#############
###--------------#################
########--------####################
#############--#######################
###############--####################
##############-----################## T
##############---------############### #
#############------------#################
############---------------###############
###########------------------#############
##########--------------------##########
#########-----------------------########
########-------------------------#####
#######--------------------------###
######----------- -------------#
####----------- P ------------
###----------- -----------
----------------------
--------------
Global CMT Convention Moment Tensor:
R T P
-2.82e+21 6.08e+21 -1.63e+21
6.08e+21 -8.41e+21 -4.04e+21
-1.63e+21 -4.04e+21 1.12e+22
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.EU/20150401073354/index.html
|

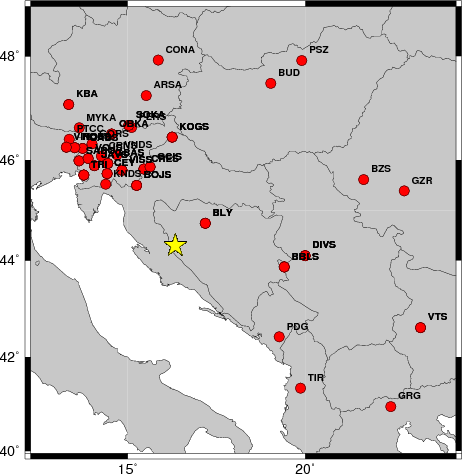

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.
|
|
|
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -30 o DIST/3.3 +70 rtr taper w 0.1 hp c 0.02 n 3 lp c 0.06 n 3The results of this grid search from 0.5 to 19 km depth are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 1.0 210 85 0 3.62 0.3868
WVFGRD96 2.0 30 85 -10 3.72 0.4805
WVFGRD96 3.0 30 90 -5 3.76 0.5163
WVFGRD96 4.0 210 70 10 3.81 0.5390
WVFGRD96 5.0 210 65 5 3.84 0.5584
WVFGRD96 6.0 215 75 25 3.86 0.5771
WVFGRD96 7.0 215 80 25 3.87 0.6006
WVFGRD96 8.0 215 80 30 3.91 0.6220
WVFGRD96 9.0 215 80 30 3.93 0.6371
WVFGRD96 10.0 210 85 25 3.95 0.6489
WVFGRD96 11.0 210 85 25 3.96 0.6577
WVFGRD96 12.0 210 60 -15 3.96 0.6615
WVFGRD96 13.0 210 60 -15 3.97 0.6681
WVFGRD96 14.0 210 60 -15 3.98 0.6721
WVFGRD96 15.0 210 60 -15 3.99 0.6739
WVFGRD96 16.0 210 60 -15 4.00 0.6742
WVFGRD96 17.0 210 60 -15 4.01 0.6729
WVFGRD96 18.0 210 60 -15 4.02 0.6708
WVFGRD96 19.0 210 60 -15 4.02 0.6672
WVFGRD96 20.0 210 65 -10 4.04 0.6637
WVFGRD96 21.0 210 60 -10 4.05 0.6595
WVFGRD96 22.0 210 60 -10 4.05 0.6542
WVFGRD96 23.0 210 60 -10 4.06 0.6485
WVFGRD96 24.0 215 70 10 4.06 0.6429
WVFGRD96 25.0 215 70 10 4.07 0.6381
WVFGRD96 26.0 215 70 10 4.08 0.6323
WVFGRD96 27.0 215 70 10 4.09 0.6258
WVFGRD96 28.0 215 70 10 4.09 0.6185
WVFGRD96 29.0 215 70 10 4.10 0.6103
The best solution is
WVFGRD96 16.0 210 60 -15 4.00 0.6742
The mechanism correspond to the best fit is
|
|
|

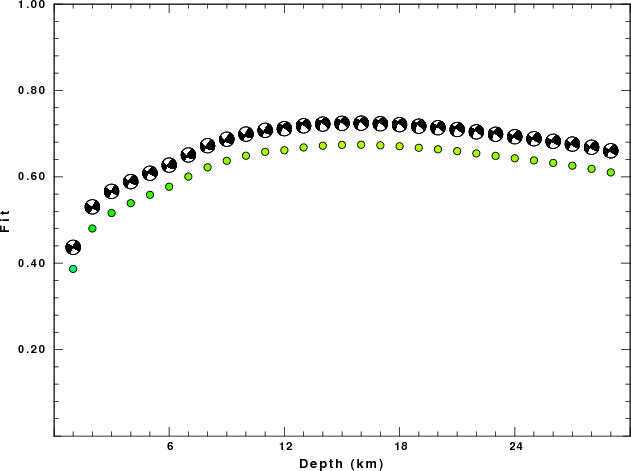

The best fit as a function of depth is given in the following figure:
|
|
|

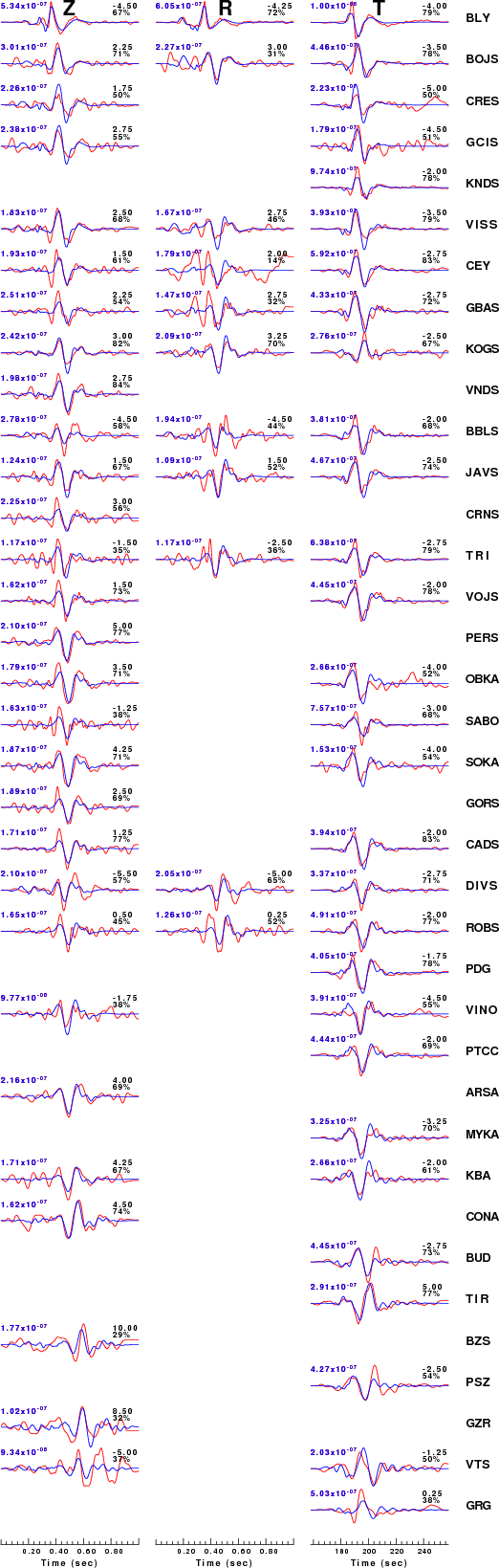

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -30 o DIST/3.3 +70 rtr taper w 0.1 hp c 0.02 n 3 lp c 0.06 n 3
|
|
|
|

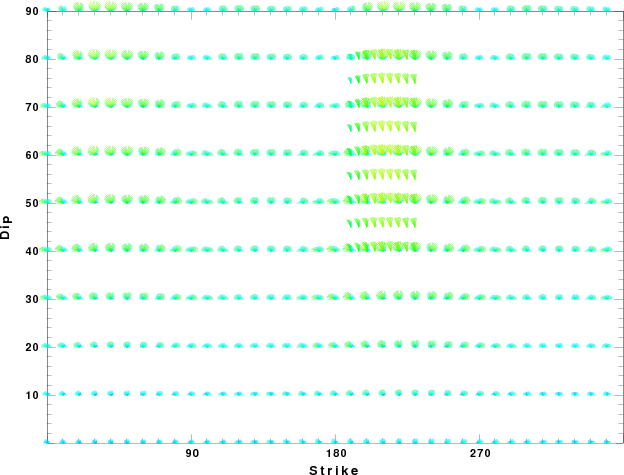

| Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

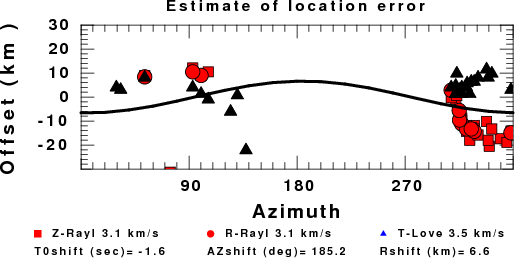

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
Should the national backbone of the USGS Advanced National Seismic System (ANSS) be implemented with an interstation separation of 300 km, it is very likely that an earthquake such as this would have been recorded at distances on the order of 100-200 km. This means that the closest station would have information on source depth and mechanism that was lacking here.
Dr. Harley Benz, USGS, provided the USGS USNSN digital data. The digital data used in this study were provided by Natural Resources Canada through their AUTODRM site http://www.seismo.nrcan.gc.ca/nwfa/autodrm/autodrm_req_e.php, and IRIS using their BUD interface.
Thanks also to the many seismic network operators whose dedication make this effort possible: University of Alaska, University of Washington, Oregon State University, University of Utah, Montana Bureas of Mines, UC Berkely, Caltech, UC San Diego, Saint L ouis University, Universityof Memphis, Lamont Doehrty Earth Observatory, Boston College, the Iris stations and the Transportable Array of EarthScope.
