2014/06/19 13:52:19 43.93 17.16 10 4.4 Bosnia Herzegovina
USGS Felt map for this earthquake
USGS/SLU Moment Tensor Solution
ENS 2014/06/19 13:52:19:9 43.93 17.16 10.0 4.4 Bosnia Herzegovina
Stations used:
CZ.KHC CZ.KRUC CZ.TREC GR.FUR GR.WET HT.HORT HT.KNT HT.SRS
HT.THE HU.BEHE HU.BUD HU.SOP MN.BLY MN.DIVS MN.PDG MN.TIR
MN.VTS OE.MOA OE.OBKA OE.RETA OE.SOKA OE.WTTA RO.ARR RO.BZS
RO.LOT SJ.BBLS SJ.FRGS SL.CRES SL.DOBS SL.GBAS SL.GCIS
SL.KNDS SL.KOGS SL.LJU SL.MOZS SL.PERS SL.VISS SL.VNDS
Filtering commands used:
cut o DIST/3.3 -30 o DIST/3.3 +70
rtr
taper w 0.1
hp c 0.02 n 3
lp c 0.07 n 3
Best Fitting Double Couple
Mo = 1.10e+22 dyne-cm
Mw = 3.96
Z = 19 km
Plane Strike Dip Rake
NP1 10 87 -100
NP2 265 10 -15
Principal Axes:
Axis Value Plunge Azimuth
T 1.10e+22 42 109
N 0.00e+00 10 10
P -1.10e+22 47 270
Moment Tensor: (dyne-cm)
Component Value
Mxx 6.44e+20
Mxy -1.90e+21
Mxz -1.75e+21
Myy 3.27e+20
Myz 1.06e+22
Mzz -9.71e+20
##########----
####----------####----
###--------------########---
##----------------###########-
##------------------#############-
#-------------------###############-
#--------------------################-
#---------------------#################-
---------------------###################
#---------------------###################-
--------- ----------####################
--------- P ----------####################
--------- ---------########## ########
--------------------########## T #######
--------------------########## #######
------------------####################
-----------------###################
---------------###################
-------------#################
------------################
--------##############
----##########
Global CMT Convention Moment Tensor:
R T P
-9.71e+20 -1.75e+21 -1.06e+22
-1.75e+21 6.44e+20 1.90e+21
-1.06e+22 1.90e+21 3.27e+20
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.EU/20140619135219/index.html
|
STK = 265
DIP = 10
RAKE = -15
MW = 3.96
HS = 19.0
The NDK file is 20140619135219.ndk The waveform inversion is preferred.
The following compares this source inversion to others
USGS/SLU Moment Tensor Solution
ENS 2014/06/19 13:52:19:9 43.93 17.16 10.0 4.4 Bosnia Herzegovina
Stations used:
CZ.KHC CZ.KRUC CZ.TREC GR.FUR GR.WET HT.HORT HT.KNT HT.SRS
HT.THE HU.BEHE HU.BUD HU.SOP MN.BLY MN.DIVS MN.PDG MN.TIR
MN.VTS OE.MOA OE.OBKA OE.RETA OE.SOKA OE.WTTA RO.ARR RO.BZS
RO.LOT SJ.BBLS SJ.FRGS SL.CRES SL.DOBS SL.GBAS SL.GCIS
SL.KNDS SL.KOGS SL.LJU SL.MOZS SL.PERS SL.VISS SL.VNDS
Filtering commands used:
cut o DIST/3.3 -30 o DIST/3.3 +70
rtr
taper w 0.1
hp c 0.02 n 3
lp c 0.07 n 3
Best Fitting Double Couple
Mo = 1.10e+22 dyne-cm
Mw = 3.96
Z = 19 km
Plane Strike Dip Rake
NP1 10 87 -100
NP2 265 10 -15
Principal Axes:
Axis Value Plunge Azimuth
T 1.10e+22 42 109
N 0.00e+00 10 10
P -1.10e+22 47 270
Moment Tensor: (dyne-cm)
Component Value
Mxx 6.44e+20
Mxy -1.90e+21
Mxz -1.75e+21
Myy 3.27e+20
Myz 1.06e+22
Mzz -9.71e+20
##########----
####----------####----
###--------------########---
##----------------###########-
##------------------#############-
#-------------------###############-
#--------------------################-
#---------------------#################-
---------------------###################
#---------------------###################-
--------- ----------####################
--------- P ----------####################
--------- ---------########## ########
--------------------########## T #######
--------------------########## #######
------------------####################
-----------------###################
---------------###################
-------------#################
------------################
--------##############
----##########
Global CMT Convention Moment Tensor:
R T P
-9.71e+20 -1.75e+21 -1.06e+22
-1.75e+21 6.44e+20 1.90e+21
-1.06e+22 1.90e+21 3.27e+20
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.EU/20140619135219/index.html
|

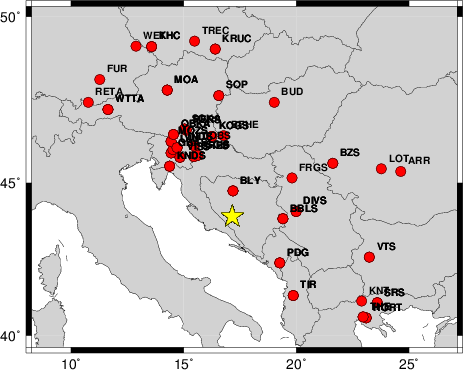

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.
|
|
|
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut o DIST/3.3 -30 o DIST/3.3 +70 rtr taper w 0.1 hp c 0.02 n 3 lp c 0.07 n 3The results of this grid search from 0.5 to 19 km depth are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 1.0 195 45 90 3.64 0.3531
WVFGRD96 2.0 195 45 90 3.73 0.4055
WVFGRD96 3.0 200 45 90 3.76 0.3483
WVFGRD96 4.0 115 25 5 3.75 0.2595
WVFGRD96 5.0 115 20 5 3.77 0.3091
WVFGRD96 6.0 120 20 15 3.77 0.3494
WVFGRD96 7.0 115 20 10 3.77 0.3783
WVFGRD96 8.0 305 10 20 3.86 0.4007
WVFGRD96 9.0 300 10 15 3.86 0.4387
WVFGRD96 10.0 295 10 10 3.87 0.4701
WVFGRD96 11.0 295 10 15 3.89 0.4967
WVFGRD96 12.0 295 10 15 3.89 0.5185
WVFGRD96 13.0 290 10 10 3.90 0.5360
WVFGRD96 14.0 285 10 5 3.91 0.5499
WVFGRD96 15.0 280 10 0 3.92 0.5603
WVFGRD96 16.0 270 10 -10 3.93 0.5678
WVFGRD96 17.0 265 10 -15 3.94 0.5730
WVFGRD96 18.0 265 10 -15 3.95 0.5756
WVFGRD96 19.0 265 10 -15 3.96 0.5759
WVFGRD96 20.0 260 10 -20 3.97 0.5743
WVFGRD96 21.0 260 10 -20 3.98 0.5710
WVFGRD96 22.0 255 10 -25 3.99 0.5658
WVFGRD96 23.0 255 10 -25 4.00 0.5592
WVFGRD96 24.0 230 5 -50 4.01 0.5514
WVFGRD96 25.0 230 5 -50 4.01 0.5423
WVFGRD96 26.0 230 5 -50 4.02 0.5321
WVFGRD96 27.0 230 5 -50 4.03 0.5207
WVFGRD96 28.0 230 5 -50 4.04 0.5084
WVFGRD96 29.0 230 5 -50 4.04 0.4952
The best solution is
WVFGRD96 19.0 265 10 -15 3.96 0.5759
The mechanism correspond to the best fit is
|
|
|

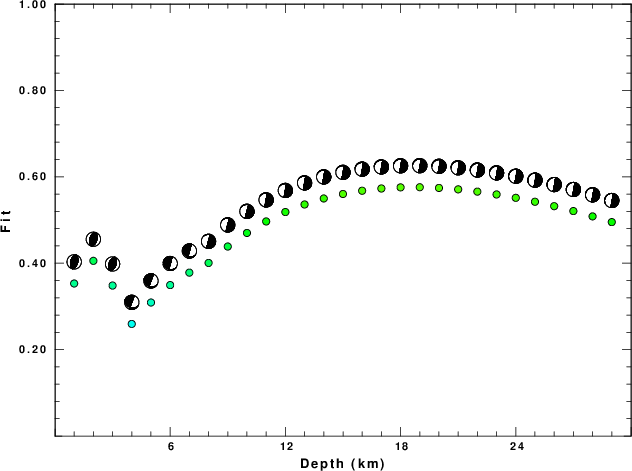

The best fit as a function of depth is given in the following figure:
|
|
|

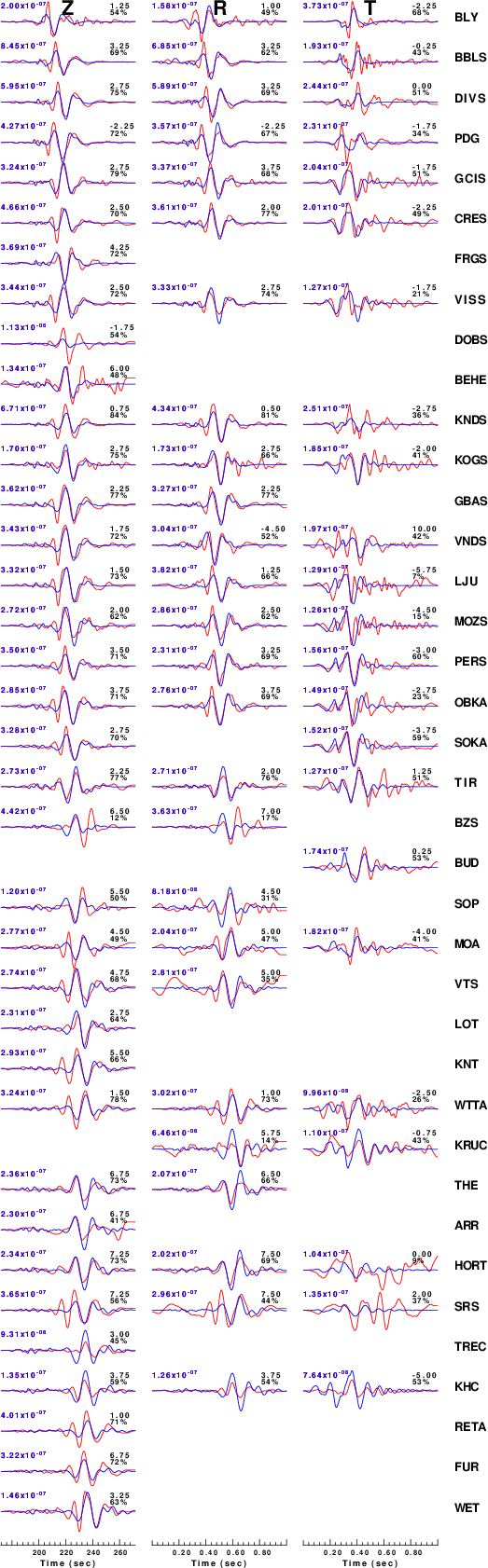

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut o DIST/3.3 -30 o DIST/3.3 +70 rtr taper w 0.1 hp c 0.02 n 3 lp c 0.07 n 3
|
|
|
|

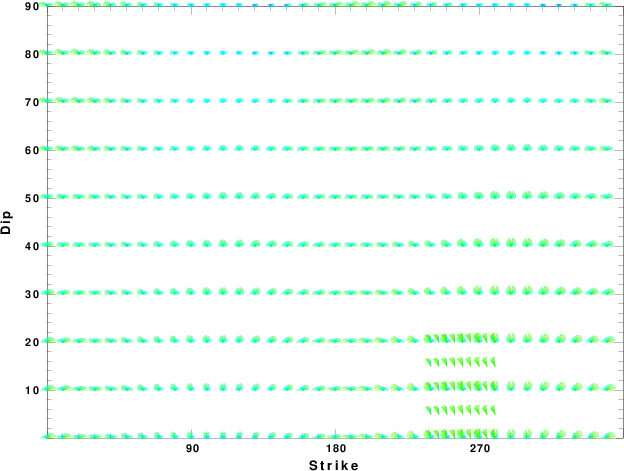

| Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

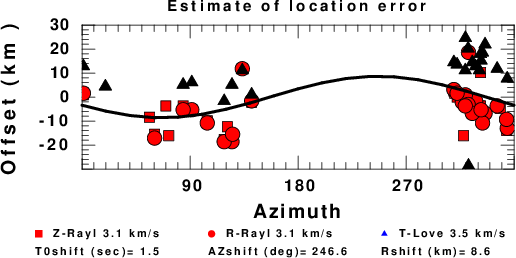

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
Should the national backbone of the USGS Advanced National Seismic System (ANSS) be implemented with an interstation separation of 300 km, it is very likely that an earthquake such as this would have been recorded at distances on the order of 100-200 km. This means that the closest station would have information on source depth and mechanism that was lacking here.
Dr. Harley Benz, USGS, provided the USGS USNSN digital data. The digital data used in this study were provided by Natural Resources Canada through their AUTODRM site http://www.seismo.nrcan.gc.ca/nwfa/autodrm/autodrm_req_e.php, and IRIS using their BUD interface.
Thanks also to the many seismic network operators whose dedication make this effort possible: University of Alaska, University of Washington, Oregon State University, University of Utah, Montana Bureas of Mines, UC Berkely, Caltech, UC San Diego, Saint L ouis University, Universityof Memphis, Lamont Doehrty Earth Observatory, Boston College, the Iris stations and the Transportable Array of EarthScope.
The WUS used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:
