2014/05/04 23:29:51 43.14 18.47 10.0 3.8 Boznia Herzegovina
USGS Felt map for this earthquake
USGS/SLU Moment Tensor Solution
ENS 2014/05/04 23:29:51:0 43.14 18.47 10.0 3.8 Boznia Herzegovina
Stations used:
HT.HORT HT.KNT HT.SRS HT.THE MN.BLY MN.PDG MN.TIR MN.TRI
MN.VTS OE.MYKA OE.OBKA OE.SOKA RO.BZS RO.VOIR SJ.BBLS
SL.JAVS SL.KNDS SL.KOGS SL.LJU SL.MOZS SL.PERS SL.ROBS
SL.SKDS SL.VISS SL.VNDS SL.VOJS
Filtering commands used:
cut a -20 a 180
rtr
taper w 0.1
hp c 0.02 n 3
lp c 0.06 n 3
Best Fitting Double Couple
Mo = 5.69e+21 dyne-cm
Mw = 3.77
Z = 21 km
Plane Strike Dip Rake
NP1 18 66 -141
NP2 270 55 -30
Principal Axes:
Axis Value Plunge Azimuth
T 5.69e+21 7 142
N 0.00e+00 45 45
P -5.69e+21 44 238
Moment Tensor: (dyne-cm)
Component Value
Mxx 2.67e+21
Mxy -4.04e+21
Mxz 9.73e+20
Myy -9.62e+13
Myz 2.83e+21
Mzz -2.67e+21
##############
##################----
######################------
#######################-------
#########################---------
##########################----------
#############------------##-----------
########--------------------####--------
####------------------------########----
###-------------------------###########---
#---------------------------#############-
---------------------------###############
---------------------------###############
--------- -------------###############
--------- P ------------################
-------- -----------################
--------------------################
------------------################
---------------########## ##
------------############ T #
-------##############
-#############
Global CMT Convention Moment Tensor:
R T P
-2.67e+21 9.73e+20 -2.83e+21
9.73e+20 2.67e+21 4.04e+21
-2.83e+21 4.04e+21 -9.62e+13
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.EU/20140504232951/index.html
|
STK = 270
DIP = 55
RAKE = -30
MW = 3.77
HS = 21.0
The NDK file is 20140504232951.ndk The waveform inversion is preferred.
The following compares this source inversion to others
USGS/SLU Moment Tensor Solution
ENS 2014/05/04 23:29:51:0 43.14 18.47 10.0 3.8 Boznia Herzegovina
Stations used:
HT.HORT HT.KNT HT.SRS HT.THE MN.BLY MN.PDG MN.TIR MN.TRI
MN.VTS OE.MYKA OE.OBKA OE.SOKA RO.BZS RO.VOIR SJ.BBLS
SL.JAVS SL.KNDS SL.KOGS SL.LJU SL.MOZS SL.PERS SL.ROBS
SL.SKDS SL.VISS SL.VNDS SL.VOJS
Filtering commands used:
cut a -20 a 180
rtr
taper w 0.1
hp c 0.02 n 3
lp c 0.06 n 3
Best Fitting Double Couple
Mo = 5.69e+21 dyne-cm
Mw = 3.77
Z = 21 km
Plane Strike Dip Rake
NP1 18 66 -141
NP2 270 55 -30
Principal Axes:
Axis Value Plunge Azimuth
T 5.69e+21 7 142
N 0.00e+00 45 45
P -5.69e+21 44 238
Moment Tensor: (dyne-cm)
Component Value
Mxx 2.67e+21
Mxy -4.04e+21
Mxz 9.73e+20
Myy -9.62e+13
Myz 2.83e+21
Mzz -2.67e+21
##############
##################----
######################------
#######################-------
#########################---------
##########################----------
#############------------##-----------
########--------------------####--------
####------------------------########----
###-------------------------###########---
#---------------------------#############-
---------------------------###############
---------------------------###############
--------- -------------###############
--------- P ------------################
-------- -----------################
--------------------################
------------------################
---------------########## ##
------------############ T #
-------##############
-#############
Global CMT Convention Moment Tensor:
R T P
-2.67e+21 9.73e+20 -2.83e+21
9.73e+20 2.67e+21 4.04e+21
-2.83e+21 4.04e+21 -9.62e+13
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.EU/20140504232951/index.html
|

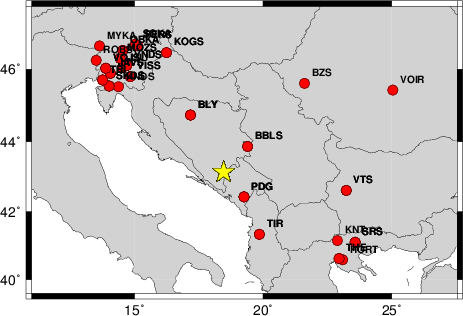

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.
|
|
|
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut a -20 a 180 rtr taper w 0.1 hp c 0.02 n 3 lp c 0.06 n 3The results of this grid search from 0.5 to 19 km depth are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 1.0 10 70 20 3.33 0.3007
WVFGRD96 2.0 190 65 20 3.43 0.3407
WVFGRD96 3.0 185 80 5 3.49 0.3437
WVFGRD96 4.0 185 85 -20 3.54 0.3261
WVFGRD96 5.0 185 80 -30 3.56 0.3174
WVFGRD96 6.0 105 50 25 3.59 0.3472
WVFGRD96 7.0 105 50 20 3.59 0.3709
WVFGRD96 8.0 110 45 30 3.66 0.3935
WVFGRD96 9.0 105 45 20 3.66 0.4101
WVFGRD96 10.0 105 45 20 3.66 0.4220
WVFGRD96 11.0 285 35 10 3.65 0.4416
WVFGRD96 12.0 280 40 0 3.67 0.4649
WVFGRD96 13.0 275 45 -15 3.69 0.4896
WVFGRD96 14.0 265 45 -40 3.70 0.5209
WVFGRD96 15.0 265 50 -45 3.71 0.5489
WVFGRD96 16.0 265 50 -45 3.72 0.5706
WVFGRD96 17.0 270 55 -35 3.74 0.5865
WVFGRD96 18.0 270 55 -35 3.74 0.5987
WVFGRD96 19.0 270 55 -35 3.75 0.6062
WVFGRD96 20.0 270 55 -30 3.76 0.6102
WVFGRD96 21.0 270 55 -30 3.77 0.6123
WVFGRD96 22.0 270 55 -30 3.77 0.6107
WVFGRD96 23.0 275 60 -20 3.80 0.6070
WVFGRD96 24.0 275 60 -20 3.80 0.6027
WVFGRD96 25.0 275 60 -20 3.80 0.5973
WVFGRD96 26.0 275 65 -15 3.83 0.5905
WVFGRD96 27.0 275 65 -15 3.83 0.5830
WVFGRD96 28.0 275 65 -15 3.84 0.5748
WVFGRD96 29.0 275 65 -15 3.84 0.5657
The best solution is
WVFGRD96 21.0 270 55 -30 3.77 0.6123
The mechanism correspond to the best fit is
|
|
|

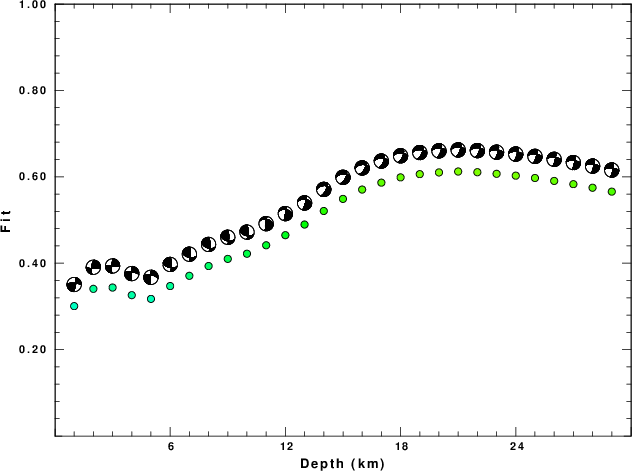

The best fit as a function of depth is given in the following figure:
|
|
|

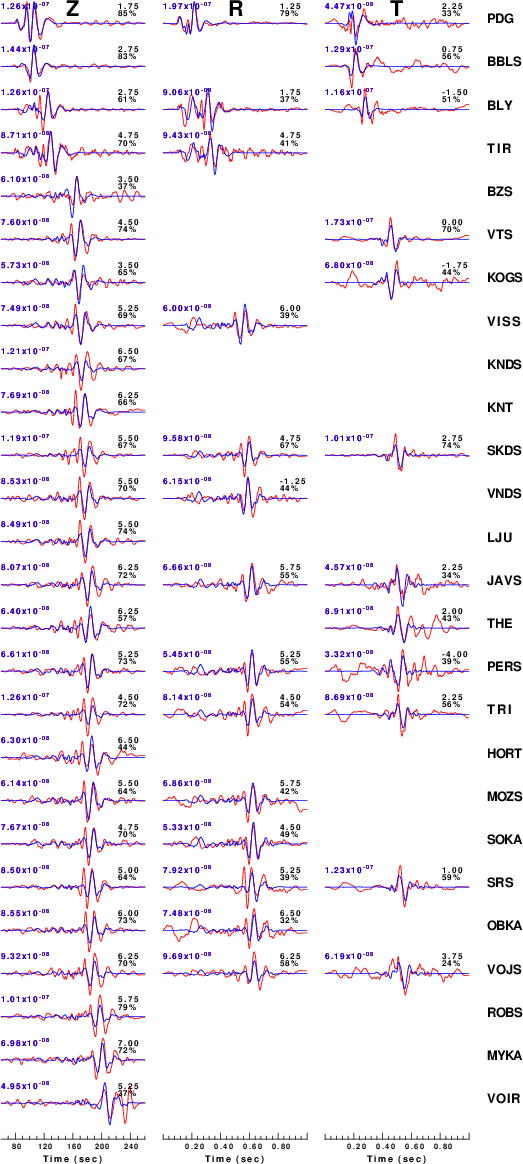

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut a -20 a 180 rtr taper w 0.1 hp c 0.02 n 3 lp c 0.06 n 3
|
|
|
|

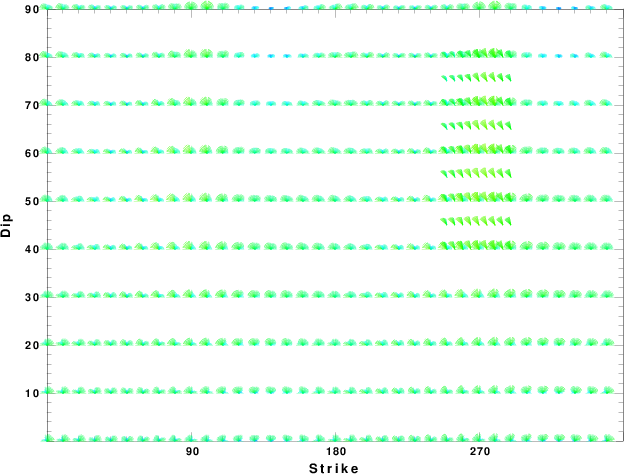

| Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

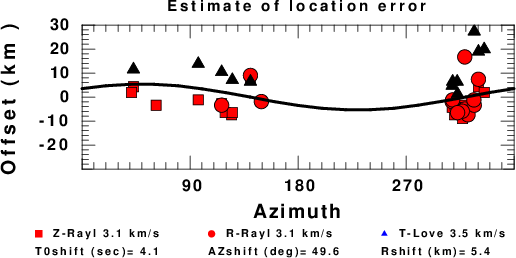

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
Should the national backbone of the USGS Advanced National Seismic System (ANSS) be implemented with an interstation separation of 300 km, it is very likely that an earthquake such as this would have been recorded at distances on the order of 100-200 km. This means that the closest station would have information on source depth and mechanism that was lacking here.
Dr. Harley Benz, USGS, provided the USGS USNSN digital data. The digital data used in this study were provided by Natural Resources Canada through their AUTODRM site http://www.seismo.nrcan.gc.ca/nwfa/autodrm/autodrm_req_e.php, and IRIS using their BUD interface.
Thanks also to the many seismic network operators whose dedication make this effort possible: University of Alaska, University of Washington, Oregon State University, University of Utah, Montana Bureas of Mines, UC Berkely, Caltech, UC San Diego, Saint L ouis University, Universityof Memphis, Lamont Doehrty Earth Observatory, Boston College, the Iris stations and the Transportable Array of EarthScope.
