2014/04/17 14:59:17 47.60 15.49 2.0 4.0 Austria
USGS Felt map for this earthquake
USGS/SLU Moment Tensor Solution
ENS 2014/04/17 14:59:17:0 47.60 15.49 2.0 4.0 Austria
Stations used:
CZ.NKC CZ.PRU CZ.TREC GR.GEC2 HU.BEHE HU.BUD HU.SOP MN.BLY
MN.TRI OE.ABTA OE.ARSA OE.CONA OE.CSNA OE.KBA OE.MOA
OE.MYKA OE.OBKA OE.SOKA SL.BOJS SL.CADS SL.CEY SL.CRES
SL.CRNS SL.GBAS SL.GCIS SL.GROS SL.KOGS SL.LJU SL.MOZS
SL.PERS SL.SKDS SL.VISS SL.VNDS
Filtering commands used:
cut a -10 a 120
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 2.48e+21 dyne-cm
Mw = 3.53
Z = 20 km
Plane Strike Dip Rake
NP1 90 90 35
NP2 360 55 180
Principal Axes:
Axis Value Plunge Azimuth
T 2.48e+21 24 321
N 0.00e+00 55 90
P -2.48e+21 24 219
Moment Tensor: (dyne-cm)
Component Value
Mxx 3.02e+14
Mxy -2.03e+21
Mxz 1.42e+21
Myy -1.78e+14
Myz 1.51e+14
Mzz -1.25e+14
#########-----
##############--------
###################---------
### ###############---------
##### T ################----------
###### ################-----------
###########################-----------
############################------------
#############################-----------
##############################------------
##############################------------
------------------------------############
------------------------------############
-----------------------------###########
----------------------------############
---------------------------###########
------ ----------------###########
----- P ----------------##########
--- ---------------#########
-------------------#########
--------------########
---------#####
Global CMT Convention Moment Tensor:
R T P
-1.25e+14 1.42e+21 -1.51e+14
1.42e+21 3.02e+14 2.03e+21
-1.51e+14 2.03e+21 -1.78e+14
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.EU/20140417145917/index.html
|
STK = 90
DIP = 90
RAKE = 35
MW = 3.53
HS = 20.0
The NDK file is 20140417145917.ndk The waveform inversion is preferred.
The following compares this source inversion to others
USGS/SLU Moment Tensor Solution
ENS 2014/04/17 14:59:17:0 47.60 15.49 2.0 4.0 Austria
Stations used:
CZ.NKC CZ.PRU CZ.TREC GR.GEC2 HU.BEHE HU.BUD HU.SOP MN.BLY
MN.TRI OE.ABTA OE.ARSA OE.CONA OE.CSNA OE.KBA OE.MOA
OE.MYKA OE.OBKA OE.SOKA SL.BOJS SL.CADS SL.CEY SL.CRES
SL.CRNS SL.GBAS SL.GCIS SL.GROS SL.KOGS SL.LJU SL.MOZS
SL.PERS SL.SKDS SL.VISS SL.VNDS
Filtering commands used:
cut a -10 a 120
rtr
taper w 0.1
hp c 0.03 n 3
lp c 0.10 n 3
Best Fitting Double Couple
Mo = 2.48e+21 dyne-cm
Mw = 3.53
Z = 20 km
Plane Strike Dip Rake
NP1 90 90 35
NP2 360 55 180
Principal Axes:
Axis Value Plunge Azimuth
T 2.48e+21 24 321
N 0.00e+00 55 90
P -2.48e+21 24 219
Moment Tensor: (dyne-cm)
Component Value
Mxx 3.02e+14
Mxy -2.03e+21
Mxz 1.42e+21
Myy -1.78e+14
Myz 1.51e+14
Mzz -1.25e+14
#########-----
##############--------
###################---------
### ###############---------
##### T ################----------
###### ################-----------
###########################-----------
############################------------
#############################-----------
##############################------------
##############################------------
------------------------------############
------------------------------############
-----------------------------###########
----------------------------############
---------------------------###########
------ ----------------###########
----- P ----------------##########
--- ---------------#########
-------------------#########
--------------########
---------#####
Global CMT Convention Moment Tensor:
R T P
-1.25e+14 1.42e+21 -1.51e+14
1.42e+21 3.02e+14 2.03e+21
-1.51e+14 2.03e+21 -1.78e+14
Details of the solution is found at
http://www.eas.slu.edu/eqc/eqc_mt/MECH.EU/20140417145917/index.html
|

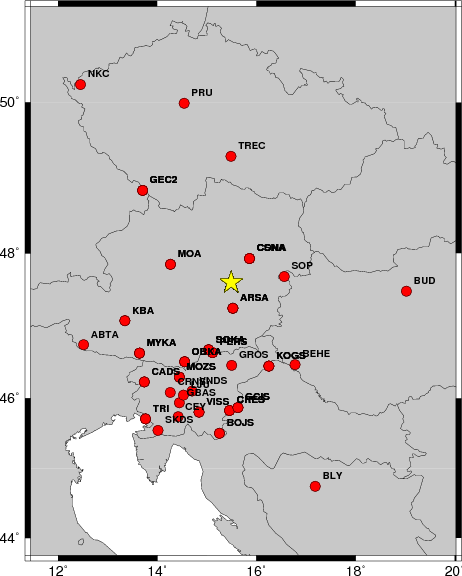

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.
|
|
|
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
cut a -10 a 120 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3The results of this grid search from 0.5 to 19 km depth are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 1.0 155 60 -40 2.97 0.2064
WVFGRD96 2.0 130 45 -90 3.17 0.2845
WVFGRD96 3.0 160 60 -35 3.17 0.2801
WVFGRD96 4.0 350 50 -5 3.19 0.2922
WVFGRD96 5.0 355 50 5 3.22 0.3171
WVFGRD96 6.0 255 75 -45 3.25 0.3486
WVFGRD96 7.0 255 65 -40 3.29 0.3757
WVFGRD96 8.0 255 65 -45 3.36 0.3951
WVFGRD96 9.0 255 65 -45 3.38 0.4133
WVFGRD96 10.0 260 75 -40 3.38 0.4301
WVFGRD96 11.0 260 75 -40 3.40 0.4437
WVFGRD96 12.0 265 80 -40 3.41 0.4557
WVFGRD96 13.0 90 90 35 3.43 0.4614
WVFGRD96 14.0 265 80 -35 3.45 0.4714
WVFGRD96 15.0 90 90 35 3.46 0.4763
WVFGRD96 16.0 90 90 35 3.47 0.4811
WVFGRD96 17.0 90 90 35 3.49 0.4847
WVFGRD96 18.0 90 90 35 3.50 0.4852
WVFGRD96 19.0 270 90 -35 3.51 0.4858
WVFGRD96 20.0 90 90 35 3.53 0.4860
WVFGRD96 21.0 90 90 40 3.54 0.4850
WVFGRD96 22.0 90 90 40 3.55 0.4834
WVFGRD96 23.0 270 90 -40 3.56 0.4816
WVFGRD96 24.0 90 90 40 3.57 0.4788
WVFGRD96 25.0 270 90 -40 3.58 0.4750
WVFGRD96 26.0 90 90 40 3.59 0.4700
WVFGRD96 27.0 90 90 40 3.59 0.4641
WVFGRD96 28.0 265 80 -40 3.61 0.4581
WVFGRD96 29.0 265 85 -45 3.61 0.4505
The best solution is
WVFGRD96 20.0 90 90 35 3.53 0.4860
The mechanism correspond to the best fit is
|
|
|

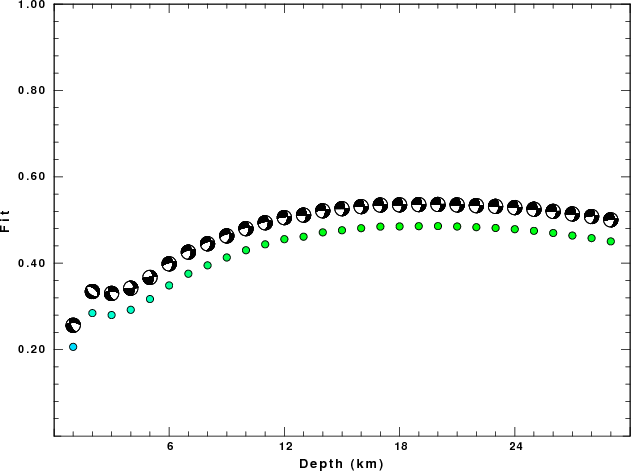

The best fit as a function of depth is given in the following figure:
|
|
|

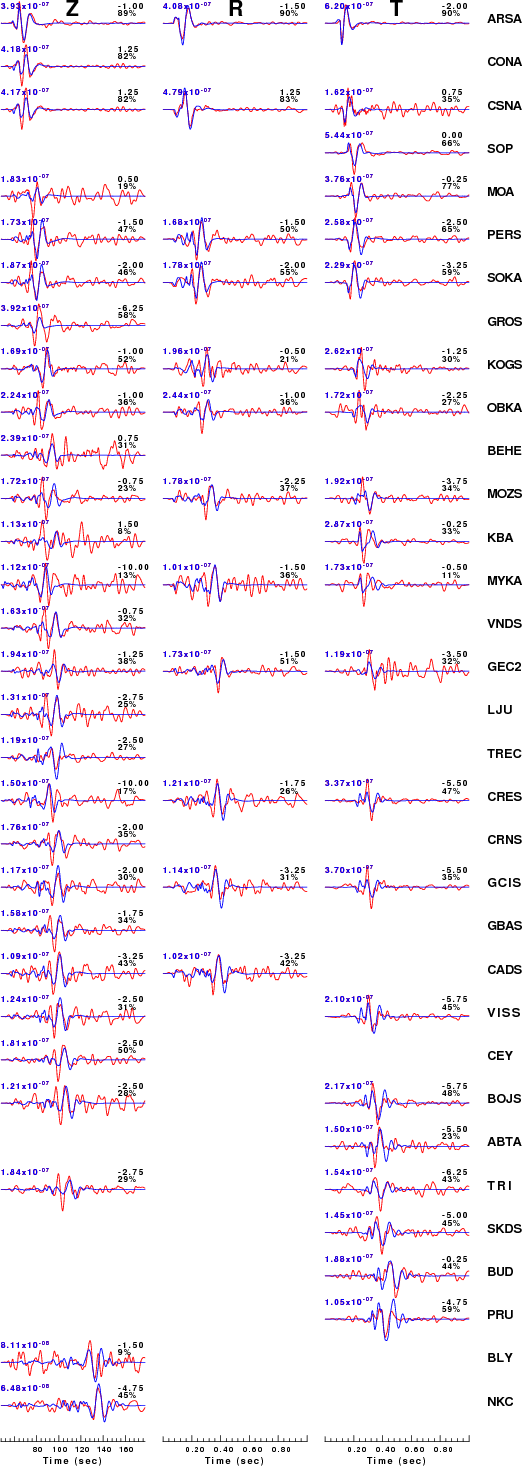

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted component is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. A pair of numbers is given in black at the right of each predicted traces. The upper number it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The lower number gives the percentage of variance reduction to characterize the individual goodness of fit (100% indicates a perfect fit).
The bandpass filter used in the processing and for the display was
cut a -10 a 120 rtr taper w 0.1 hp c 0.03 n 3 lp c 0.10 n 3
|
|
|
|

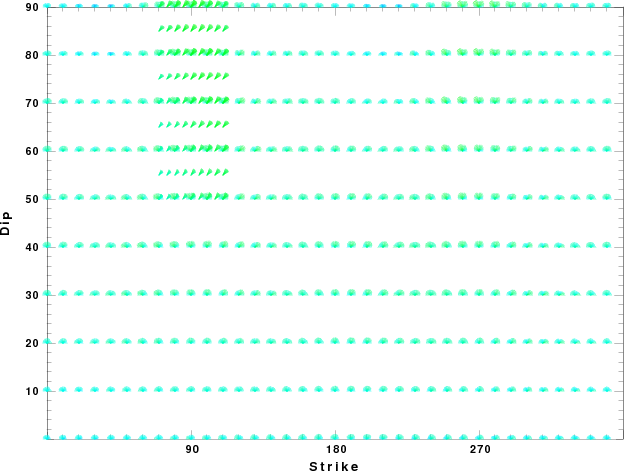

| Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
A check on the assumed source location is possible by looking at the time shifts between the observed and predicted traces. The time shifts for waveform matching arise for several reasons:
Time_shift = A + B cos Azimuth + C Sin Azimuth

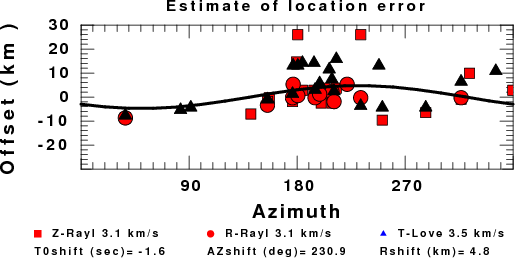

The time shifts for this inversion lead to the next figure:
The derived shift in origin time and epicentral coordinates are given at the bottom of the figure.
Should the national backbone of the USGS Advanced National Seismic System (ANSS) be implemented with an interstation separation of 300 km, it is very likely that an earthquake such as this would have been recorded at distances on the order of 100-200 km. This means that the closest station would have information on source depth and mechanism that was lacking here.
Dr. Harley Benz, USGS, provided the USGS USNSN digital data. The digital data used in this study were provided by Natural Resources Canada through their AUTODRM site http://www.seismo.nrcan.gc.ca/nwfa/autodrm/autodrm_req_e.php, and IRIS using their BUD interface.
