2010/03/10 13:38:04 42.829 20.616 10.0 4.90 Serbia
USGS Felt map for this earthquake
USGS/SLU Moment Tensor Solution
ENS 2010/03/10 13:38:04:5 42.83 20.62 10.0 4.9 Serbia
Stations used:
BS.PLD HT.FNA HT.GRG HT.HORT HT.PAIG HT.THE HU.BUD HU.PKSM
MN.DIVS MN.PDG MN.VTS RO.BZS RO.DEV RO.HUMR SL.CRES SL.GROS
Filtering commands used:
hp c 0.02 n 3
lp c 0.06 n 3
Best Fitting Double Couple
Mo = 1.04e+23 dyne-cm
Mw = 4.61
Z = 16 km
Plane Strike Dip Rake
NP1 65 65 -30
NP2 169 63 -152
Principal Axes:
Axis Value Plunge Azimuth
T 1.04e+23 1 117
N 0.00e+00 52 209
P -1.04e+23 38 26
Moment Tensor: (dyne-cm)
Component Value
Mxx -2.97e+22
Mxy -6.74e+22
Mxz -4.62e+22
Myy 6.93e+22
Myz -2.03e+22
Mzz -3.96e+22
##------------
#####-----------------
########--------------------
########----------- --------
##########----------- P ----------
###########----------- -----------
############--------------------------
############--------------------------##
#############-----------------------####
##############----------------------######
##############--------------------########
##############------------------##########
###############--------------#############
##############-----------###############
###############------################
##############-##################### T
--------------#####################
--------------####################
-------------#################
-------------###############
------------##########
----------####
Global CMT Convention Moment Tensor:
R T P
-3.96e+22 -4.62e+22 2.03e+22
-4.62e+22 -2.97e+22 6.74e+22
2.03e+22 6.74e+22 6.93e+22
Details of the solution is found at
http://www.eas.slu.edu/Earthquake_Center/MECH.NA/20100310133804/index.html
|
STK = 65
DIP = 65
RAKE = -30
MW = 4.61
HS = 16.0
The waveform inversion is preferred.
The following compares this source inversion to others
USGS/SLU Moment Tensor Solution
ENS 2010/03/10 13:38:04:5 42.83 20.62 10.0 4.9 Serbia
Stations used:
BS.PLD HT.FNA HT.GRG HT.HORT HT.PAIG HT.THE HU.BUD HU.PKSM
MN.DIVS MN.PDG MN.VTS RO.BZS RO.DEV RO.HUMR SL.CRES SL.GROS
Filtering commands used:
hp c 0.02 n 3
lp c 0.06 n 3
Best Fitting Double Couple
Mo = 1.04e+23 dyne-cm
Mw = 4.61
Z = 16 km
Plane Strike Dip Rake
NP1 65 65 -30
NP2 169 63 -152
Principal Axes:
Axis Value Plunge Azimuth
T 1.04e+23 1 117
N 0.00e+00 52 209
P -1.04e+23 38 26
Moment Tensor: (dyne-cm)
Component Value
Mxx -2.97e+22
Mxy -6.74e+22
Mxz -4.62e+22
Myy 6.93e+22
Myz -2.03e+22
Mzz -3.96e+22
##------------
#####-----------------
########--------------------
########----------- --------
##########----------- P ----------
###########----------- -----------
############--------------------------
############--------------------------##
#############-----------------------####
##############----------------------######
##############--------------------########
##############------------------##########
###############--------------#############
##############-----------###############
###############------################
##############-##################### T
--------------#####################
--------------####################
-------------#################
-------------###############
------------##########
----------####
Global CMT Convention Moment Tensor:
R T P
-3.96e+22 -4.62e+22 2.03e+22
-4.62e+22 -2.97e+22 6.74e+22
2.03e+22 6.74e+22 6.93e+22
Details of the solution is found at
http://www.eas.slu.edu/Earthquake_Center/MECH.NA/20100310133804/index.html
|

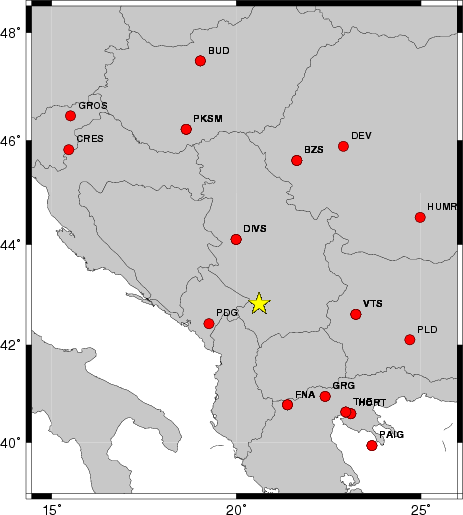

The focal mechanism was determined using broadband seismic waveforms. The location of the event and the and stations used for the waveform inversion are shown in the next figure.
|
|
|
|
The program wvfgrd96 was used with good traces observed at short distance to determine the focal mechanism, depth and seismic moment. This technique requires a high quality signal and well determined velocity model for the Green functions. To the extent that these are the quality data, this type of mechanism should be preferred over the radiation pattern technique which requires the separate step of defining the pressure and tension quadrants and the correct strike.
The observed and predicted traces are filtered using the following gsac commands:
hp c 0.02 n 3 lp c 0.06 n 3The results of this grid search from 0.5 to 19 km depth are as follow:
DEPTH STK DIP RAKE MW FIT
WVFGRD96 0.5 95 55 60 4.29 0.3598
WVFGRD96 1.0 100 50 65 4.33 0.3731
WVFGRD96 2.0 100 50 65 4.42 0.4629
WVFGRD96 3.0 95 55 60 4.46 0.4672
WVFGRD96 4.0 80 60 40 4.43 0.4639
WVFGRD96 5.0 260 80 35 4.43 0.4798
WVFGRD96 6.0 260 70 30 4.45 0.5085
WVFGRD96 7.0 260 70 30 4.47 0.5370
WVFGRD96 8.0 260 70 35 4.51 0.5573
WVFGRD96 9.0 65 65 -35 4.53 0.5899
WVFGRD96 10.0 65 65 -35 4.55 0.6209
WVFGRD96 11.0 65 65 -35 4.56 0.6457
WVFGRD96 12.0 65 65 -35 4.57 0.6639
WVFGRD96 13.0 65 65 -30 4.58 0.6775
WVFGRD96 14.0 65 65 -30 4.59 0.6882
WVFGRD96 15.0 65 65 -30 4.60 0.6943
WVFGRD96 16.0 65 65 -30 4.61 0.6975
WVFGRD96 17.0 65 65 -30 4.61 0.6971
WVFGRD96 18.0 65 65 -30 4.62 0.6950
WVFGRD96 19.0 70 65 -25 4.63 0.6917
WVFGRD96 20.0 70 65 -25 4.64 0.6862
WVFGRD96 21.0 70 65 -25 4.65 0.6804
WVFGRD96 22.0 70 65 -25 4.66 0.6723
WVFGRD96 23.0 70 65 -25 4.66 0.6629
WVFGRD96 24.0 70 65 -25 4.67 0.6537
WVFGRD96 25.0 70 65 -25 4.68 0.6429
WVFGRD96 26.0 70 65 -25 4.68 0.6321
WVFGRD96 27.0 70 65 -25 4.69 0.6211
WVFGRD96 28.0 70 65 -25 4.69 0.6093
WVFGRD96 29.0 70 65 -25 4.70 0.5980
The best solution is
WVFGRD96 16.0 65 65 -30 4.61 0.6975
The mechanism correspond to the best fit is
|
|
|

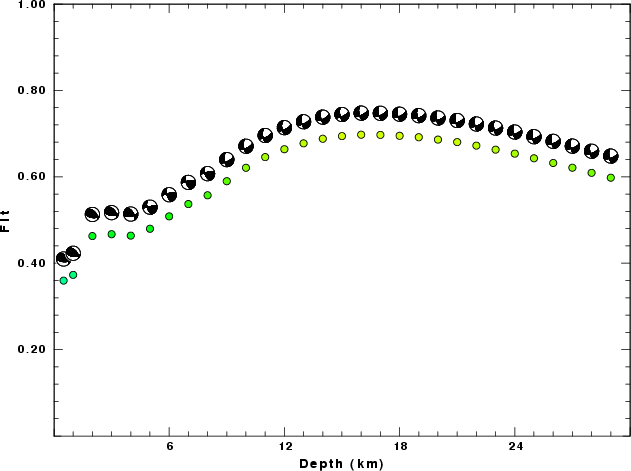

The best fit as a function of depth is given in the following figure:
|
|
|

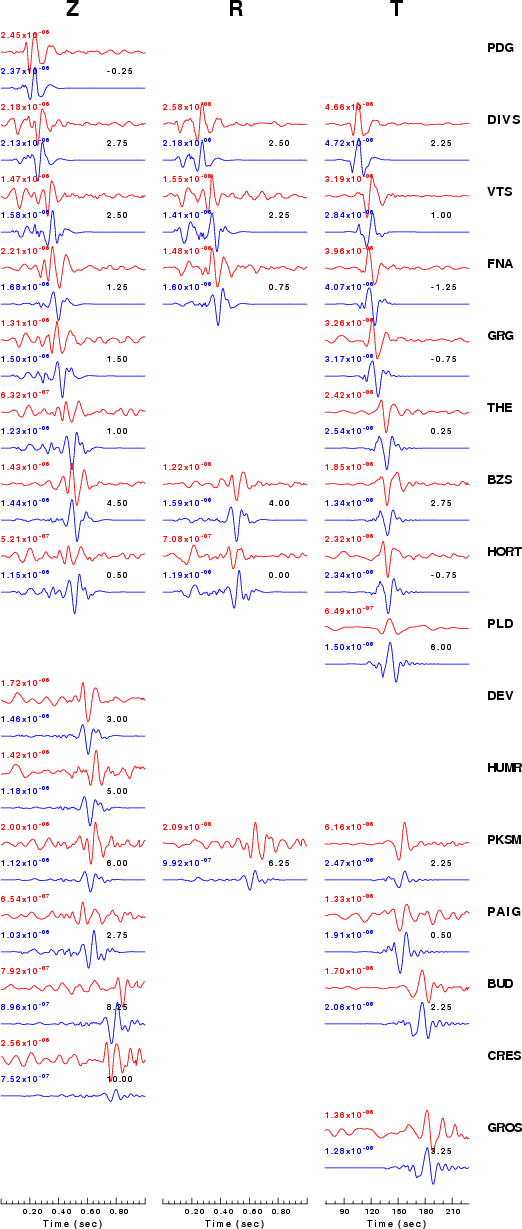

The comparison of the observed and predicted waveforms is given in the next figure. The red traces are the observed and the blue are the predicted. Each observed-predicted componnet is plotted to the same scale and peak amplitudes are indicated by the numbers to the left of each trace. The number in black at the rightr of each predicted traces it the time shift required for maximum correlation between the observed and predicted traces. This time shift is required because the synthetics are not computed at exactly the same distance as the observed and because the velocity model used in the predictions may not be perfect. A positive time shift indicates that the prediction is too fast and should be delayed to match the observed trace (shift to the right in this figure). A negative value indicates that the prediction is too slow. The bandpass filter used in the processing and for the display was
hp c 0.02 n 3 lp c 0.06 n 3
|
|
|
|

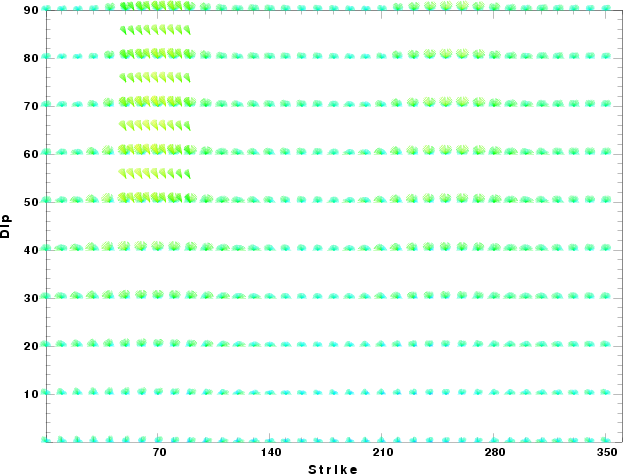

| Focal mechanism sensitivity at the preferred depth. The red color indicates a very good fit to thewavefroms. Each solution is plotted as a vector at a given value of strike and dip with the angle of the vector representing the rake angle, measured, with respect to the upward vertical (N) in the figure. |
Should the national backbone of the USGS Advanced National Seismic System (ANSS) be implemented with an interstation separation of 300 km, it is very likely that an earthquake such as this would have been recorded at distances on the order of 100-200 km. This means that the closest station would have information on source depth and mechanism that was lacking here.
Dr. Harley Benz, USGS, provided the USGS USNSN digital data. The digital data used in this study were provided by Natural Resources Canada through their AUTODRM site http://www.seismo.nrcan.gc.ca/nwfa/autodrm/autodrm_req_e.php, and IRIS using their BUD interface.
Thanks also to the many seismic network operators whose dedication make this effort possible: University of Alaska, University of Washington, Oregon State University, University of Utah, Montana Bureas of Mines, UC Berkely, Caltech, UC San Diego, Saint L ouis University, Universityof Memphis, Lamont Doehrty Earth Observatory, Boston College, the Iris stations and the Transportable Array of EarthScope.
The WUS used for the waveform synthetic seismograms and for the surface wave eigenfunctions and dispersion is as follows:
MODEL.01
Model after 8 iterations
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
H(KM) VP(KM/S) VS(KM/S) RHO(GM/CC) QP QS ETAP ETAS FREFP FREFS
1.9000 3.4065 2.0089 2.2150 0.302E-02 0.679E-02 0.00 0.00 1.00 1.00
6.1000 5.5445 3.2953 2.6089 0.349E-02 0.784E-02 0.00 0.00 1.00 1.00
13.0000 6.2708 3.7396 2.7812 0.212E-02 0.476E-02 0.00 0.00 1.00 1.00
19.0000 6.4075 3.7680 2.8223 0.111E-02 0.249E-02 0.00 0.00 1.00 1.00
0.0000 7.9000 4.6200 3.2760 0.164E-10 0.370E-10 0.00 0.00 1.00 1.00
Here we tabulate the reasons for not using certain digital data sets
The following stations did not have a valid response files:
DATE=Wed Mar 10 11:36:06 CST 2010
