Introduction

Computer Programs in Seismology has had code for vertically transverse isotropic (VTI) media for some time. The wavenumber integration code in VOLVI was easiest to write, while the surface wave code was developed later as the author had to learn much about propagators and compound matrices for isotropic and VTI media.

As the result of seeing a preprint of a paper by S. N. Bhattacharya, Indian Institute of Science Education and Research, Kolkata, India, I learned that for some VTI model, the solution of the eigenfunction problem that describes the vertical dependence of the wavefield in homogeneous layers sometimes yielded complex vertical wavenumbers in addition to the real or imaginary wavenumbers encountered with isotropic media. Dr. Bhattacharya started with a paper by Anderson (1961) and expressed models in terms of VPH, VSV, VSH, PHI, ETA and RHO, where VPV=sqrt(PHI) * VPH. Computer Programs in Seismology uses VPV, VPH, VSV, VSH, RHO and a VPF, which is defined as sqrt( ETA * (VPH^2 - q VSV^2 )). Dr. Bhattacharya showed that certain combinations of ETA and PHI would lead to the problematic complex vertical wavenumbers.

Test Suite

Testing the codes involved many steps. First the revised VTI code must give the same result for isotropic media as earlier codes in the package. Next it was necessary to understand the difference between wave propagation in VTI media and an equivalent isotropic media. To do this the VTI media was converted using the program ti2ismod which implements Equations (8.191) and (8.192) of Dahlen and Tromp (1998)

The test suite is available for you use as VTI.tgz. After downloading,

gunzip -c VTI.tgz
DOIT
The DOIT script invokes the DOIT1 and DOIT3 scripts and produces the following files which are used in this web page:
TEST1CU.png	TEST1EGNUZ.png	TEST1ZSS.png	TEST3EGNUR.png	TEST3ZSSprsissw.png
TEST1EGNTR.png	TEST1SRDER.TXT	TEST3CU.png	TEST3EGNUZ.png	TEST3ZSSprsiswk.png
TEST1EGNTZ.png	TEST1TRDER.TXT	TEST3EGNTR.png	TEST3TSS.png	TEST3ZSSprstisw.png
TEST1EGNUR.png	TEST1TSS.png	TEST3EGNTZ.png	TEST3ZSS.png	TEST3ZSSprstiwk.png
.

Crustal model test

This test involved a VTI model based on Huang et al (2010).

The VTI model in model96 format, ti.2.mod, is as follows:

MODEL.01
VTI model for test
TRANSVERSE ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)  VPV(KM/S)  VSV(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
             VPH(KM/S)  VSH(KM/S)  VPF(KM/S)
    16.0000   5.5435   3.2000   2.5000   0.00       0.00       0.00       0.00       0.00       0.00
              5.6300   3.2500   3.3825
    16.0000   5.7862   3.3400   2.7000   0.00       0.00       0.00       0.00       0.00       0.00
              6.1500   3.5500   3.9776
    17.0000   6.2844   3.6300   3.0000   0.00       0.00       0.00       0.00       0.00       0.00
              6.7000   3.8700   4.3482
     0.0000   7.5070   4.2800   3.3000   0.00       0.00       0.00       0.00       0.00       0.00
              7.7000   4.3900   4.7833
The derived equivalent isotropic model in model96 format, is.2.mod, is as follows:
MODEL.01
Isotropic equivalent of VTI model
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)     QP         QS       ETAP       ETAS      FREFP      FREFS
    16.0000     5.6181     3.2021     2.5000   0.00       0.00       0.00       0.00       0.00       0.00
    16.0000     6.0858     3.3626     2.7000   0.00       0.00       0.00       0.00       0.00       0.00
    17.0000     6.6264     3.6562     3.0000   0.00       0.00       0.00       0.00       0.00       0.00
     0.0000     7.6657     4.2907     3.3000   0.00       0.00       0.00       0.00       0.00       0.00

Test 1

The first test is to compare the results running the transverse isotropic code with an isotropic model. Since an isotropic model is a special case of a VTI model, the results must be the same. Since the code rewrite focused on the P-SV code, we just compare the resulting eigenfunctions for the is.2.mod model. The result of running sdisp96, sregn96 -DER is as follows:
 Model:
  LAYER     H(km)     Vp(km/s)     Vs(km/s)  Density     QA(inv)     QB(inv)
    1    16.00000     5.61810     3.20210     2.50000     0.00000     0.00000
    2    16.00000     6.08580     3.36260     2.70000     0.00000     0.00000
    3    17.00000     6.62640     3.65620     3.00000     0.00000     0.00000
    4     0.00000     7.66570     4.29070     3.30000     0.00000     0.00000


                      RAYLEIGH WAVE      MODE #  0
        T = 0.1000E+02 C =    0.3004E+01 U   = 0.2864E+01
        AR= 0.1650E-02 GAMMA= 0.0000E+00 ZREF= 0.0000E+00
    M       UR         TR        UZ         TZ        DC/DH      DC/DA      DC/DB      DC/DR
    1   0.669E+00  0.000E+00  0.100E+01  0.000E+00 -0.816E-02  0.784E-01  0.622E+00 -0.745E-01
    2  -0.140E+00  0.304E+01  0.479E+00 -0.254E+01 -0.101E-02  0.759E-03  0.202E+00  0.643E-01
    3  -0.413E-01  0.886E+00  0.903E-01 -0.831E+00 -0.339E-04  0.183E-04  0.996E-02  0.414E-02
    4  -0.504E-02  0.149E+00  0.890E-02 -0.152E+00  0.000E+00  0.224E-06  0.138E-03  0.722E-04
The result of running tdisp96, tregn96 -DER is as follows:

 Model:
  LAYER     H(km)       TA          TC          TF          TL          TN        Density     QA(inv)     QB(inv)
    1    16.00000    78.90762    78.90762    27.64040    25.63361    25.63361     2.50000     0.00000     0.00000
    2    16.00000    99.99981    99.99981    38.94158    30.52912    30.52912     2.70000     0.00000     0.00000
    3    17.00000   131.72752   131.72752    51.52074    40.10339    40.10339     3.00000     0.00000     0.00000
    4     0.00000   193.91776   193.91776    72.41106    60.75335    60.75335     3.30000     0.00000     0.00000


                      RAYLEIGH WAVE      MODE #  0
        T = 0.1000E+02 C =    0.3004E+01 U   = 0.2864E+01
        AR= 0.1650E-02 GAMMA= 0.0000E+00 ZREF= 0.0000E+00
    M       UR         TR        UZ         TZ        DC/DH      DC/DAv     DC/DAh     DC/DN      DC/DBv     DC/DBh     DC/DR
    1   0.669E+00  0.000E+00  0.100E+01  0.000E+00 -0.816E-02  0.880E-01 -0.969E-02 -0.121E+00  0.622E+00  0.000E+00 -0.745E-01
    2  -0.140E+00  0.304E+01  0.479E+00 -0.254E+01 -0.101E-02  0.384E-01 -0.376E-01 -0.785E-01  0.202E+00  0.000E+00  0.643E-01
    3  -0.413E-01  0.886E+00  0.903E-01 -0.831E+00 -0.339E-04  0.215E-02 -0.214E-02 -0.509E-02  0.996E-02  0.000E+00  0.414E-02
    4  -0.504E-02  0.149E+00  0.890E-02 -0.152E+00  0.000E+00  0.307E-04 -0.305E-04 -0.806E-04  0.138E-03  0.000E+00  0.722E-04
We see that the eigenfunction variation with depth is the same as is the partial derivative dC/dH. The isotropic dc/da is the sum of the dc/dav and dc/dah from the VTI code.

Test 2

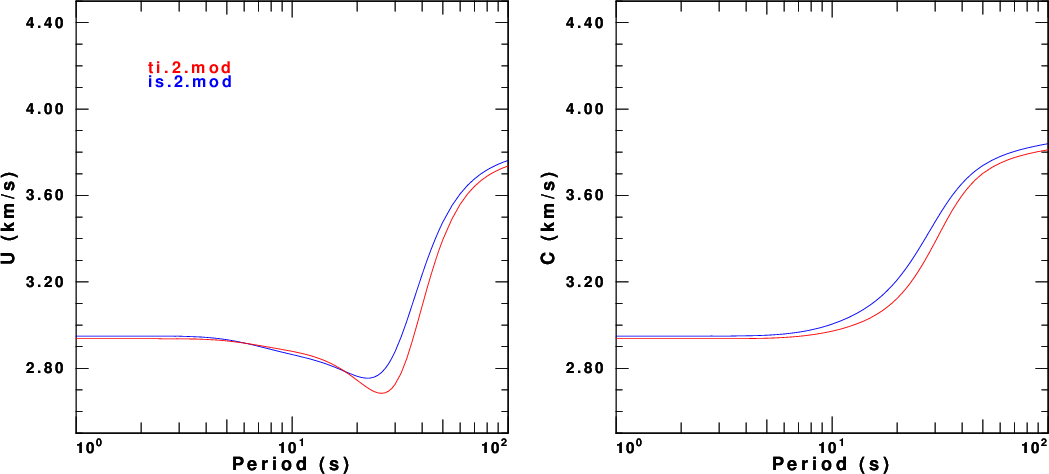

The next step is to compare the dispersion from for the isotropic and VTI models. This is shown in the next figure for the fundamental mode Rayleigh wave. The group velocity comparison is on the left and the phase velocity comparison on the right. The VTI model is in read while the equivalent isotropic model is in blue.

Test 3

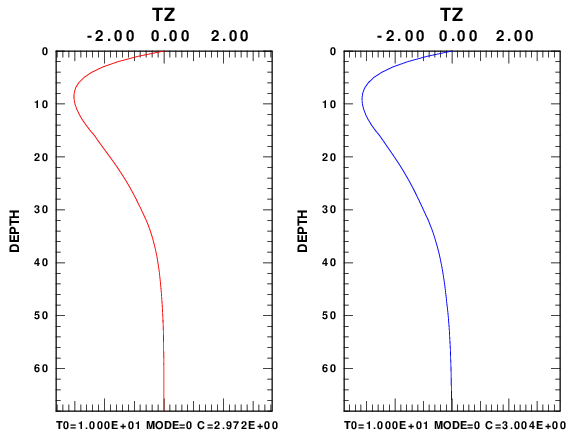

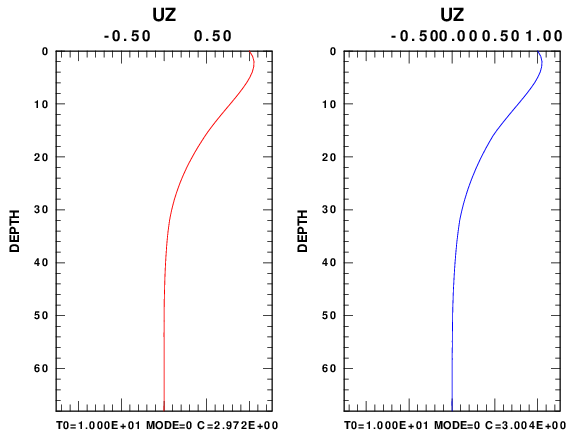

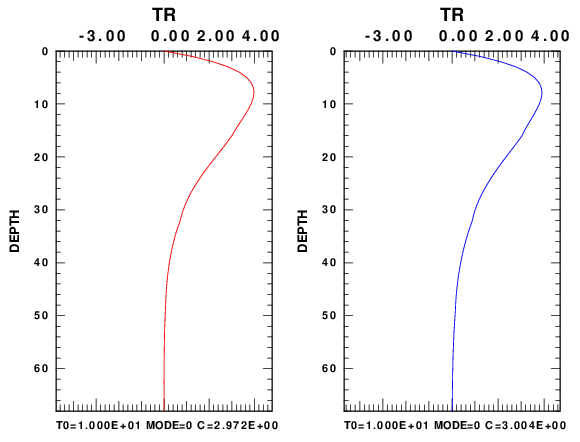

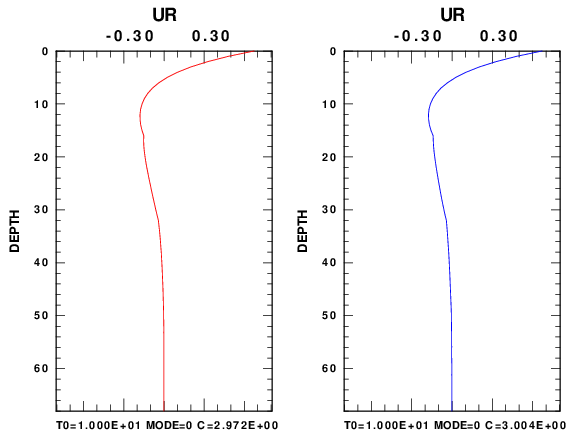

The next set of figures compares the UR, Uz, Tr and Tr eigenfunctions. These are important since they are required to make synthetics. In each frame of the next figure, the figure on the left (red) is for the VTI model and the one on the right (blue) is for the isotropic model. The eigenfunction variation with depth is very similar for these models.

Test 4

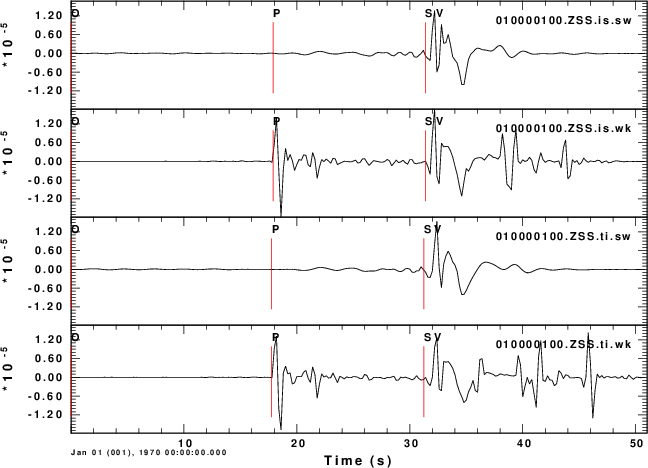

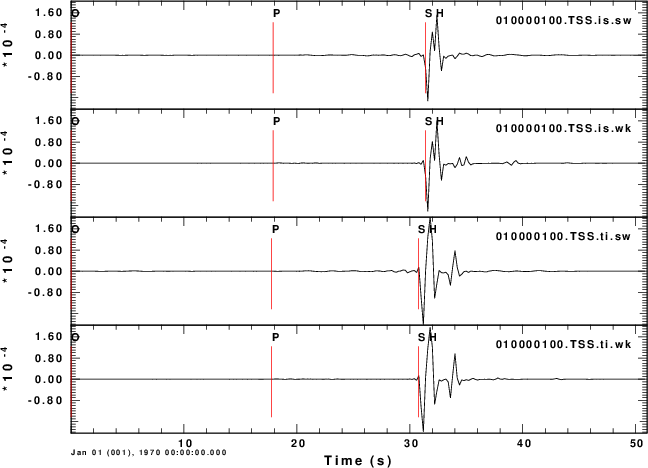

The final set of comparisons looks at synthetics for the vertical component SS Green's function at a distance of 100 km for a source buried at a depth of 10 km. Synthetics were made two ways: (a) using tspec96 and hspec96 for VTI and isotropic media, respectively, in a wavenumber integration code to give the complete solution and (b) using modal superposition and up to 10 modes. In the next figure the file name consists of 010000100, e.g., distance of 100.0 km and a source depth of 10.0 km, ZSS or TSS which defines the Green's functions, is or ti to indicate the isotropic or transverse isotropic code and model, and finally sw and wk to indicate model superposition or wavenumber integration.

To evaluate the computations, note that for these models, the modal superposition can only model arrivals with phase velocities less than the shear velocities in the halfspace. Thus do not focus on the P-wave arrivals. In addition near vertical reflections from the Moho cannot be modeled either because of the higher phase velocity. However we see that the direct S and Rayleigh wave (on the ZSS trace) are in good agreement.

Since the phase an group velocity dispersion for the isotropic and VTI models are similar, we might expect that the synthetics of the is and ti should be similar, and they are. The similarity between the wavenumebr integration and modal supeposition codes shows that all programs of the modal (surface wave) package are functioning properly.

Soil model test

This test considers the top layer of a VTI model by Xiao et al (2005). This model exhibits the complex vertical wavenumber and also highlights some interesting features of wave propagation in VTI media.

cat > ti.3.mod << EOF
MODEL.01
VTI Halfspace model
TRANSVERSE ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)  VPV(KM/S)  VSV(KM/S) RHO(GM/CC)         QP         QS       ETAP       ETAS      FREFP      FREFS
             VPH(KM/S)  VSH(KM/S)  VPF(KM/S)
     0.5000   2.8000   1.4000   2.2000   0.00       0.00       0.00       0.00       0.00       0.00
              3.3130   1.4000   2.8955
EOF
MODEL.01
Table 3 VTI
ISOTROPIC
KGS
FLAT EARTH
1-D
CONSTANT VELOCITY
LINE08
LINE09
LINE10
LINE11
      H(KM)   VP(KM/S)   VS(KM/S) RHO(GM/CC)     QP         QS       ETAP       ETAS      FREFP      FREFS
     0.5000     3.2715     1.2545     2.2000   0.00       0.00       0.00       0.00       0.00       0.00

Test 1

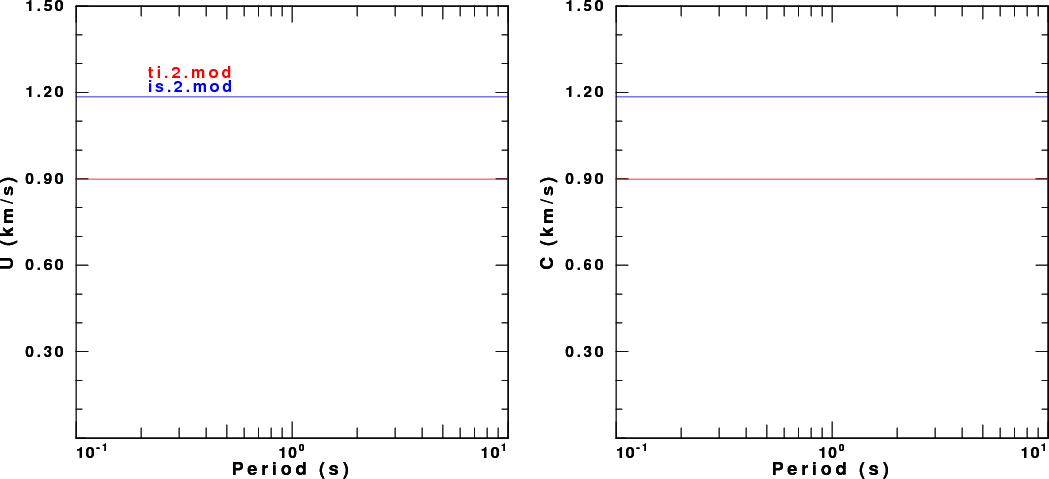

We first compare the phase velocities. As expected there is just one Rayleigh wave mode for a halfspace model. It is interesting that the VTI phase velocity is so much lower than the specified S velocities in the medium. This observation caused a lot of thought on how to start the search for dispersion in the program tdisp96.

Test 2

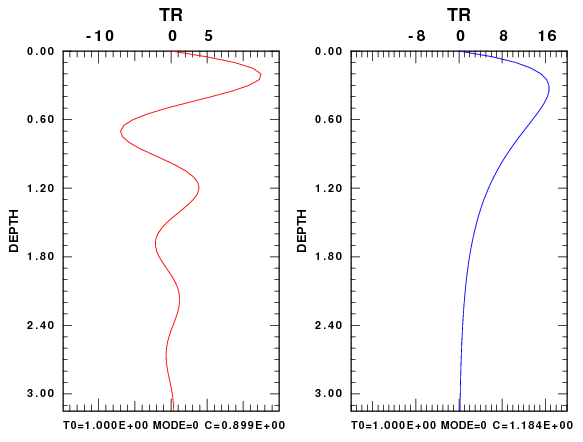

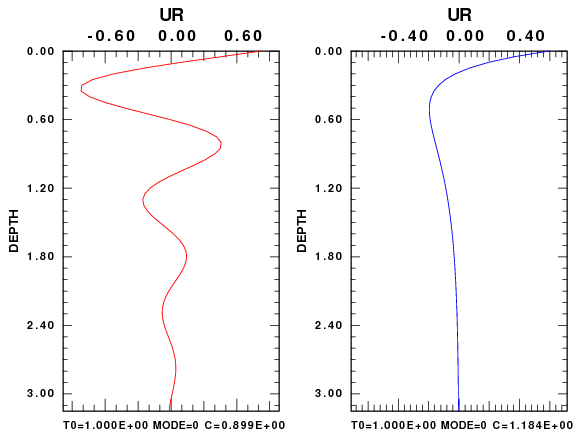

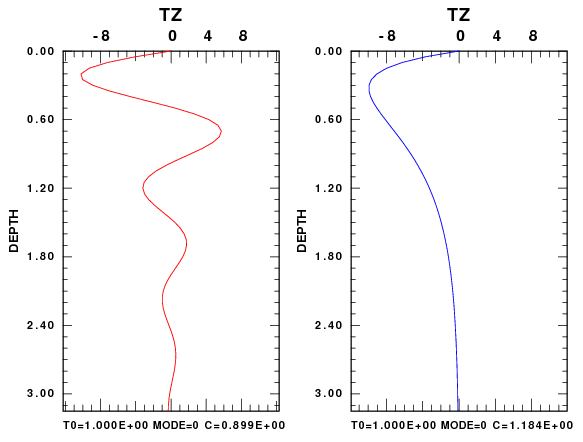

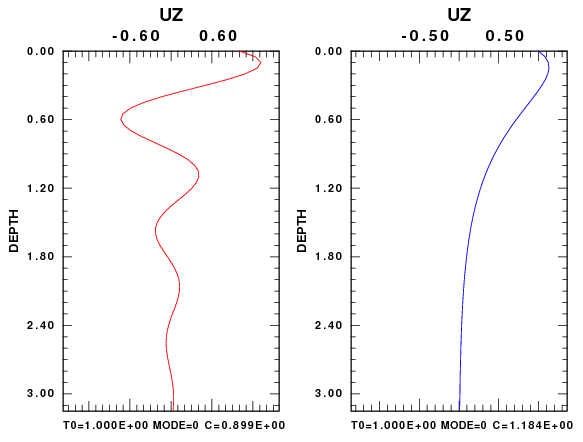

The next task was to look at the eigenfunctions. For each eigenfunction pair displayed, the one on the left (red) is for the VTI model while the one on the right (blue) is for the isotropic model. For the VTI model we see the effect of the complex vertical wavenumber is to cause damped oscillatory patterns. The pattern is frequency dependent, and this when synthetics are made, there will be an oscillating amplitude spectrum for the single mode. This will lead to some interesting synthetics

Test 3

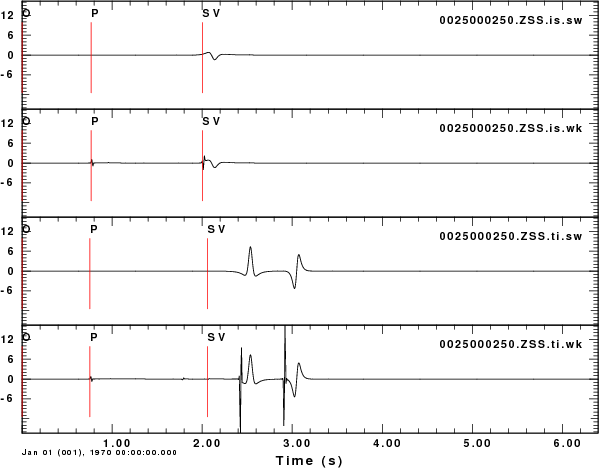

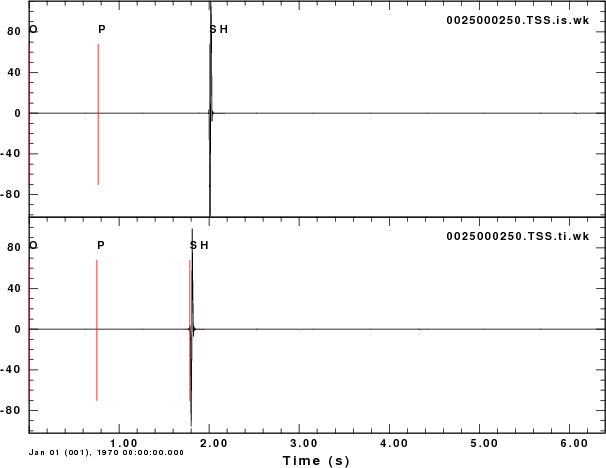

The ZSS synthetics are again compared for the isotropic and VTI models, computed using wavenumber integration and modal superposition. The epicentral distance is 2.5 km and the source depth in 0.25 km in the halfspace. For the SH (TSS) traces on the right of the figure, the S arrival is a simple pulse, and its arrival time is predicted. The vertical component for the SS source (ZSS traces on the left) are interesting. Note that these synthetics are for the same moment and all four traces are plotted using the same scale. For the isotropic medium one see that the surface wave is the same in both./p>

The waveforms for the VTI mdeia are really strange. There are two S and two Rayleigh wave arrivals. This should not be surpising since VTI media should exhibit birefringence. There are two Rayleigh wave arrivals, each exhibiting retrograde elliptical motion. In addition the two pulse are Hilbert transforms of each other (e.g., 90 degrees out of phase). It took me a while to realize how this is possible with just one mode. The answer is that the amplitude spectrum is not smooth which is related to the behavior of the eigenfunctions shown above.

I will have to check the code that tries to predict the S-wave first arrival for VTI media, since it seems as if I am missing the big arrival.

Test 4

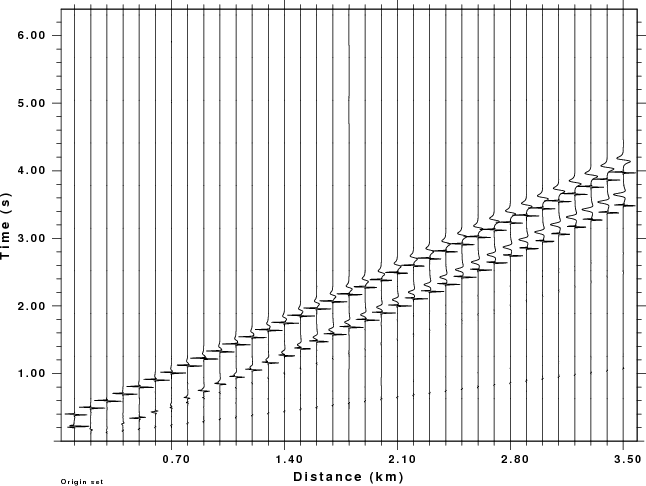

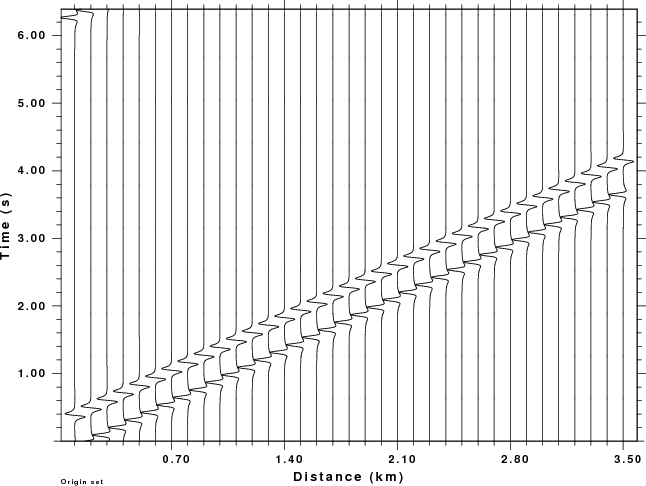

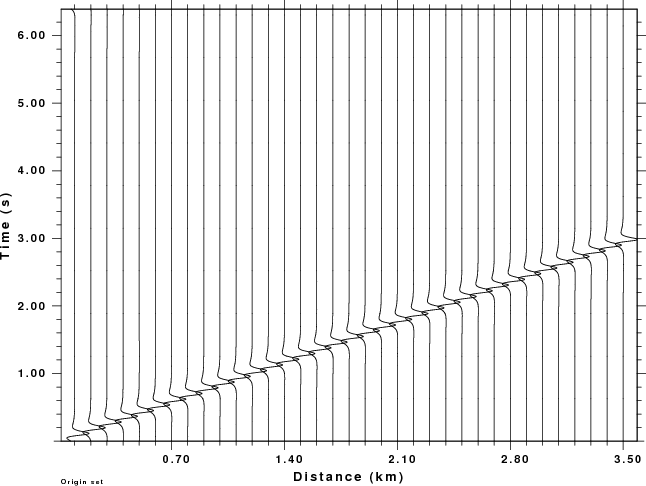

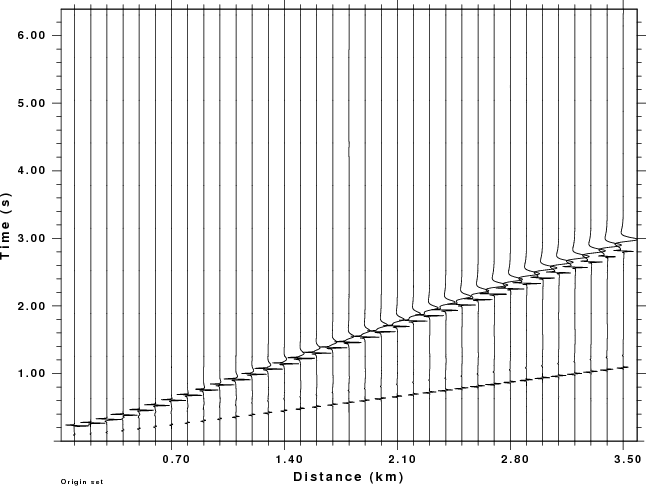

The final part of the testing is to make record sections for the ZSS Green's function for the two models. The source depth is still 0.25 km. These are not true amplitude record sections as each trace is scaled to have the same maximum height. Examination of the traces points out the following:
(a) The double Rayleigh wave arrival for the VTI mdeia wraps around to later time because of the use of the Discrete Fourier Transform;
(b) The wavenumebr integration synthetics at short distance seem to have an offset hyperbola for the first arriving S centered at an epicentral distance of 0.3 km. This seems counterintuitive is one thinks about the problem in terms of expeience with isotropic media.

Equivlaent isotropic model
VTI model
Wavenumber integration synthetics

Wavenumber integration synthetics

Modal superposition synthetics

Modal superposition synthetics

Conclusion

This set of tests gives confidence the modal codes tprep96, tdisp96, tlegn96, tregn96, tdpegn96, tdpder96, tcomb96, tpulse96 and the wavenumber integration code tspec96 work properly. Of course comaprison with codes of other investigators would be welcomed.
